thomann Stairville LED BossFx-2 Pro Bundle User manual

LED BossFx-2 Pro Bundle
LED lighting set
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
07.08.2019, ID: 466569 (V2)

Table of contents
1 General information.............................................................................................................. 4
1.1 Further information........................................................................................................ 4
1.2 Notational conventions................................................................................................. 4
1.3 Symbols and signal words........................................................................................... 5
2 Safety instructions................................................................................................................. 6
3 Features....................................................................................................................................... 9
4 Installation.............................................................................................................................. 10
5 Starting up............................................................................................................................... 12
6 Connections and controls................................................................................................ 13
7 Operating................................................................................................................................. 16
7.1 Starting and stopping operation............................................................................. 16
7.2 Main menu...................................................................................................................... 16
7.3 Menu overview.............................................................................................................. 18
7.4 Functions in 4-channel DMX mode........................................................................ 18
7.5 Functions in 5-channel DMX mode........................................................................ 20
7.6 Functions in 7-channel DMX mode........................................................................ 20
7.7 Functions in 25-channel DMX mode..................................................................... 21
8 Technical specications.................................................................................................... 24
9 Plug and connection assignment................................................................................. 25
10 Troubleshooting................................................................................................................... 26
11 Cleaning.................................................................................................................................... 27
12 Protecting the environment........................................................................................... 28
Table of contents
LED BossFx-2 Pro Bundle
3

1 General information
This user manual contains important information on the safe operation of the device.
Read and follow all safety notes and all instructions. Save this manual for future refer‐
ence. Make sure that it is available to all persons using this device. If you sell the
device to another user, be sure that they also receive this manual.
Our products and user manuals are subject to a process of continuous development.
We therefore reserve the right to make changes without notice. Please refer to the
latest version of the user manual which is ready for download under
www.thomann.de.
1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and
details on the following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the
topics of interest for you quickly.
Online guides Our online guides provide detailed information on technical
basics and terms.
Personal
consultation
For personal consultation please contact our
technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
Letterings
Displays
General information
LED lighting set
4

The individual steps of an instruction are numbered consecutively. The result of a
step is indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words
that are used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates
an immediate dangerous situation that will result in
death or serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates
a possible dangerous situation that can result in death
or serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates
a possible dangerous situation that can result in mate‐
rial and environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – hot surface.
Warning – dangerous optical radiation.
Warning – suspended load.
Warning – danger zone.
Instructions
General information
LED BossFx-2 Pro Bundle
5

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED tech‐
nology. The device is designed for professional use only and is not suitable for use in
households. Use the device only as described in this user manual. Any other use or
use under other operating conditions is considered to be improper and may result in
personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intel‐
lectual abilities and having corresponding knowledge and experience. Other persons
may use this device only if they are supervised or instructed by a person who is
responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and
are not within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the
like) from the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present.
Never remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are
missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord)
with a protective contact plug. Do not modify the mains cable or the
plug. Failure to do so could result in electric shock/death or re. If in
doubt, seek advice from a registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
Intended use
Safety
Safety instructions
LED lighting set
6

WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive
persons should avoid looking at strobe lights.
WARNING!
Risk of burns
The surface of the device can become very hot during operation.
Do not touch the device with bare hands during operation, and after
switching o wait for at least 15 minutes.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any
direct heat source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage,
never expose the device to any liquid or moisture. Avoid direct sunlight,
heavy dirt, and strong vibrations.
Only operate the device within the ambient conditions specied in the
chapter ‘Technical specications’ of this user manual. Avoid heavy tem‐
perature uctuations and do not switch the device on immediately after
it was exposed to temperature uctuations (for example after transport
at low outside temperatures).
Dust and dirt inside can damage the unit. When operated in harmful
ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be
maintained by qualied service personnel at regular intervals to prevent
overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet)
matches the voltage rating of the device and that the AC outlet is pro‐
tected by a residual current circuit breaker. Failure to do so could result
in damage to the device and possibly injure the user.
Unplug the device before electrical storms occur and when it is unused
for long periods of time to reduce the risk of electric shock or re.
Safety instructions
LED BossFx-2 Pro Bundle
7

NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit.
Fire hazard!
Only fuses of the same type may be used.
Safety instructions
LED lighting set
8

3 Features
Special features of the device:
n2 LED spots each with 6 tricolour LEDs, 9 W each
nDerby eect each with 6 tricolour LEDs, 3 W each
nStroboscope with 4 LEDs, 2 W each (white and ultra-violet)
nControl via DMX (4 dierent modes), buttons and display on the unit, the sup‐
plied wireless foot switch and the supplied infrared remote control
nPreprogrammed automatic shows
nSound control
nMaster / Slave mode
nThe scope of delivery also includes a T-bar tripod, various mounting brackets and
a carrying bag
Features
LED BossFx-2 Pro Bundle
9

4 Installation
Unpack and check carefully there is no transportation damage before using the unit.
Keep the equipment packaging. To fully protect the product against vibration, dust
and moisture during transportation or storage use the original packaging or your
own packaging material suitable for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules
that apply in your country. Always secure the device with a secondary
safety attachment, such as a safety cable or a safety chain.
NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be
more than 1.5 m (19.7in).
Provide sucient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a
safe and stable position and that the weight of the device does not
exceed the maximum permissible load capacity of the stand.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not
use ordinary microphone cables.
Never connect the DMX input or output to audio devices such as mixers
or ampliers.
Installation
LED lighting set
10

The two spots and the two derby eects are pre-assembled at the T-bar. The strobe
LEDs are integrated in the T-bar. Only the tripod is still to be attached and the foot
switch unit has to be connected.
Press the lock of the battery holder to the centre of the housing and pull out the bat‐
tery holder like a drawer. Insert the battery. The battery is correct if the positive pole
points to the housing base of the remote control. Slide the battery holder back into
the remote until it clicks into place.
When shipping, the battery is already installed in the remote and protected against
discharge by a transparent plastic foil. Remove the plastic foil prior to rst use.
Pre-mounted spots
Inserting the battery into the remote
control
Installation
LED BossFx-2 Pro Bundle
11

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality
cables for all connections. Take care when running the cables to prevent tripping
hazards.
Connect the DMX input of the device to the DMX output of a DMX controller or
another DMX device. Connect the output of the rst DMX device to the input of the
second one, and so on to form a daisy chain. Always ensure that the output of the
last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼W).
When you congure a group of devices in master/slave mode, the rst unit will con‐
trol the other units for an automatic, sound-activated, synchronized show. This func‐
tion is ideal when you want to start a show immediately. Connect the DMX output of
the master device to the DMX input of the rst slave device. Then connect the DMX
output of the rst slave device to the DMX input of the second slave device and so
on.
Connections in DMX mode
Connections in master/slave mode
Starting up
LED lighting set
12

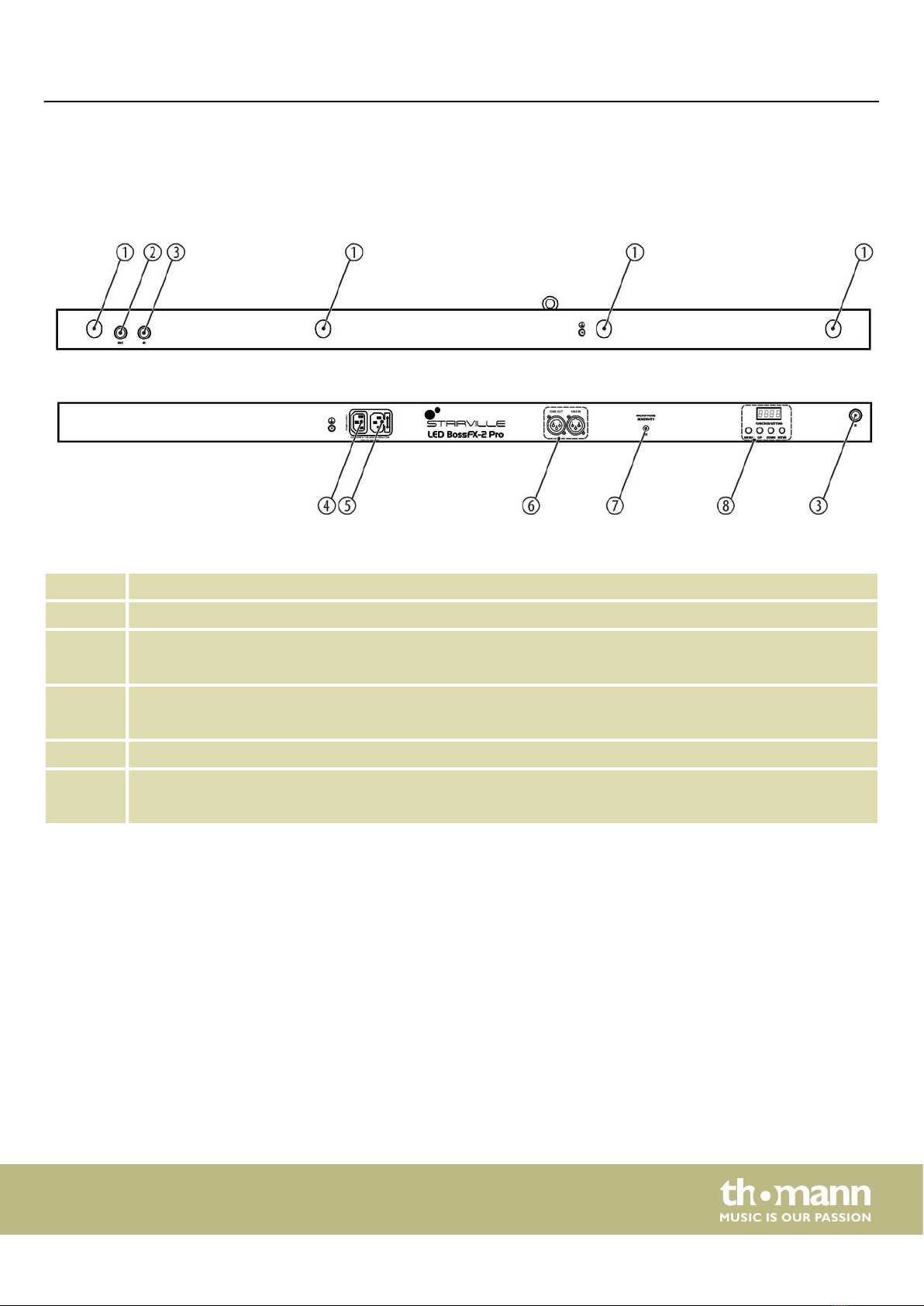

6 Connections and controls
1 Strobe LEDs
2 Microphone for sound control
3[IR]
Infrared sensor for the remote control signals.
4[POWER OUTPUT]
IEC chassis socket for the power supply of further devices
5 IEC chassis plug for power supply with fuse holder
6[DMX IN] / [DMX OUT]
DMX in and output
Front panel
Connections and controls
LED BossFx-2 Pro Bundle
13

7[MICROPHONE SENSITIVITY]
Controller for the sensitivity of the built-in microphone
8 Display
[MENU]
Activates the main menu and toggles between menu items. Closes an opened submenu.
[ENTER]
Selects an option of the respective operating mode, conrms the set value.
[UP]
Increases the displayed value by one.
[DOWN]
Decreases the displayed value by one.
9[AUTO]
Activates the ‘Automatic’ mode (playback of preprogrammed automatic shows).
10 [MUSIC]
Activates the ‘Sound-control’ mode (playback of sound-controlled automatic shows).
11 [COLOUR]
Starts the automatic colour change or stops it again.
12 [BLACKOUT]
Blackouts all LEDs or turns them back on again.
Wireless foot switch
Connections and controls
LED lighting set
14

13 Main switch. Turns the device on and o.
14 [POWER]
Status LED lights up when the wireless footswitch is turned on.
[TRANSMITTER]
Status LED lights up when the wireless footswitch is connected to the LED bar.
Button labelling: Function
[AUTO] Enable / disable the automatic mode, selecting programme
AM01 … AM03.
[MUSIC] Enable / disable the sound-controlled mode, selecting mode
SM01 … SM03.
[ON/OFF] Blackout
, Colour selection
[II] Pause button
[A] Selection of an automatic show for the LED spots and derby
eects (AP01 … AP18)
[B] No function
[C] Selection of an automatic show for the strobe LEDs
(AF01 … AF12)
[0] … [9] Selection of the programme speed (0 = slow, 9 = fast)
[-/--] No function
Button to switch between auto and sound-controlled mode.
Infrared remote control
Connections and controls
LED BossFx-2 Pro Bundle
15

7 Operating
7.1 Starting and stopping operation
Complete the following steps to start operation:
1. Connect the device to the power grid.
2. After a few seconds, the fan and the motors start to work. The display shows
the current operation mode. The device is now operational.
3. Turn the foot switch on.
Complete the following steps to stop operation:
1. Turn the foot switch o.
2. Disconnect the device from the mains.
7.2 Main menu
Press [MENU] to activate the main menu and to return to the main menu from a sub‐
menu. Use [ENTER] to select further options. Use [UP] and [DOWN] to change the
respectively indicated value. When the display shows the desired value press [Mode].
The set values are retained even when the device is disconnected from the mains
power supply.
The following table shows the setting options.
Main menu Menu level 2 Menu level 3 Meaning
‘Aut’ Operating mode ‘Preprogrammed automatic show’
‘AutP’ Selecting an automatic show for the LED spots and derby
eects ( ‘AP01’ … ‘AP18’ )
‘S.01’ … ‘S.99’ Speed of the selected auto‐
matic show
‘AutF’ Selecting an automatic show for the strobe LEDs
(‘AF01’ … ‘AF12’ )
‘S.01’ … ‘S.99’ Speed of the selected auto‐
matic show
‘AutN’ Selecting an automatic show for all components
(‘AN01’ … ‘AN03’ )
‘S.01’ … ‘S.99’ Speed of the selected auto‐
matic show
Starting
Stopping
Operating
LED lighting set
16

Main menu Menu level 2 Menu level 3 Meaning
‘Sou’ Sound control
‘SouP’ Selecting a sound-controlled automatic show for the LED spots
and derby eects ( ‘SP01’ … ‘SP18’ )
‘SouF’ Selecting a sound-controlled automatic show for the strobe
LEDs ( ‘SF01’ … ‘SF11’ )
‘SouN’ Selecting a sound-controlled automatic show for all compo‐
nents ( ‘SM01’ … ‘SM03’ )
‘CoL’ Manual colour selection for the LED spots
‘r.xxx’ Setting intensity red ( ‘r.000’ … ‘r.255’ )
‘G.xxx’ Setting intensity green ( ‘G.000’ … ‘G.255’ )
‘b.xxx’ Setting intensity blue ( ‘b.000’ … ‘b.255’ )
‘S.xxx’ ‘S.00’ … ‘S.99’ Setting the ash frequency
‘dNH’ Operating mode DMX
‘dXXX’ Setting the DMX address
(‘001’ … ‘512’ )
‘xxCH’ Selecting a DMX mode: 4-channel, 5-channel, 7-channel or 25-
channel
‘dXXX’ Setting the DMX address
4-channel: ( ‘001’ … ‘509’ )
5-channel: ( ‘001’ … ‘508’ )
7-channel: ( ‘001’ … ‘506’ )
25-channel: ( ‘001’ … ‘488’ )
‘SLA’ Operating mode ‘Slave’
‘SLAV’ Slave mode selection
‘SYS’ System settings
‘LEdS’ Enabling automatic shutdown of the display when not in use
(‘on’ ) or disabling ( ‘o’ )
‘teSt’ Starting self-test
‘rESt’ Reset to factory defaults
‘W-EN’ Enabling the interface for the wireless foot switch ( ‘on’ ) or dis‐
abling ( ‘o’ )
Operating
LED BossFx-2 Pro Bundle
17

7.3 Menu overview
7.4 Functions in 4-channel DMX mode
Channel Value Function
1 Selecting an automatic show
0…5 Blackout
6…91 AM01 / SM01
92…172 AM02 / SM02
173…255 AM03 / SM03
2 Automatic show for the LED spots and derby eects
0…5 Blackout
6…18 AP01 / SP01
19…31 AP02 / SP02
32…44 AP03 / SP03
45…57 AP04 / SP04
58…70 AP05 / SP05
71…83 AP06 / SP06
84…96 AP07 / SP07
97…109 AP08 / SP08
110…122 AP09 / SP09
Operating
LED lighting set
18

Channel Value Function
123…135 AP10 / SP10
136…148 AP11 / SP11
149…161 AP12 / SP12
162…174 AP13 / SP13
175…187 AP14 / SP14
188…190 AP15 / SP15
191…203 AP16 / SP16
204…216 AP17 / SP17
217…255 AP18 / SP18
3 Strobe LEDs
0...5 Blackout
6...24 AF01 / SF01
25...43 AF02 / SF02
44...62 AF03 / SF03
63...81 AF04 / SF04
82...100 AF05 / SF05
101...119 AF06 / SF06
120...138 AF07 / SF07
139...157 AF08 / SF08
158...176 AF09 / SF09
177...195 AF10 / SF10
196...214 AF11 / SF11
215...233 White strobe light bright
234...255 UV strobe light bright
4 Speed
0…250 Programme speed increasing
21...255 Sound control
Operating
LED BossFx-2 Pro Bundle
19

7.5 Functions in 5-channel DMX mode
Channel Value Function
LED spots and derby eects
1 0…255 Intensity Red (0 % to 100 %)
2 0…255 Intensity Green (0 % to 100 %)
3 0…255 Intensity Blue (0 % to 100 %)
4 0…191 Dimmer (0 % to 100 %), colour selection with channel 1…3
192…200 Sound-controlled strobe eect (white)
201…249 Strobe eect with increasing speed, 30 Hz at max, colour selection with channel 1…3
250…255 All LEDs on
5 Motor control (derby eects)
0…4 Stopped
5…127 Clockwise rotation, speed increasing
128…133 Stopped
134…255 Counter-clockwise rotation, speed increasing
7.6 Functions in 7-channel DMX mode
Channel Value Function
LED spots and derby eects
1 0…255 Intensity Red (0 % to 100 %)
2 0…255 Intensity Green (0 % to 100 %)
3 0…255 Intensity Blue (0 % to 100 %)
4 0…191 Overall brightness (0 % to 100 %)
192…200 Sound-controlled strobe eect
201…249 Strobe eect with increasing speed, 30 Hz at max
250…255 All LEDs on
5 Motor control
0…4 Stopped
5…127 Clockwise rotation, speed increasing
128…133 Stopped
134…255 Counter-clockwise rotation, speed increasing
Operating
LED lighting set
20
