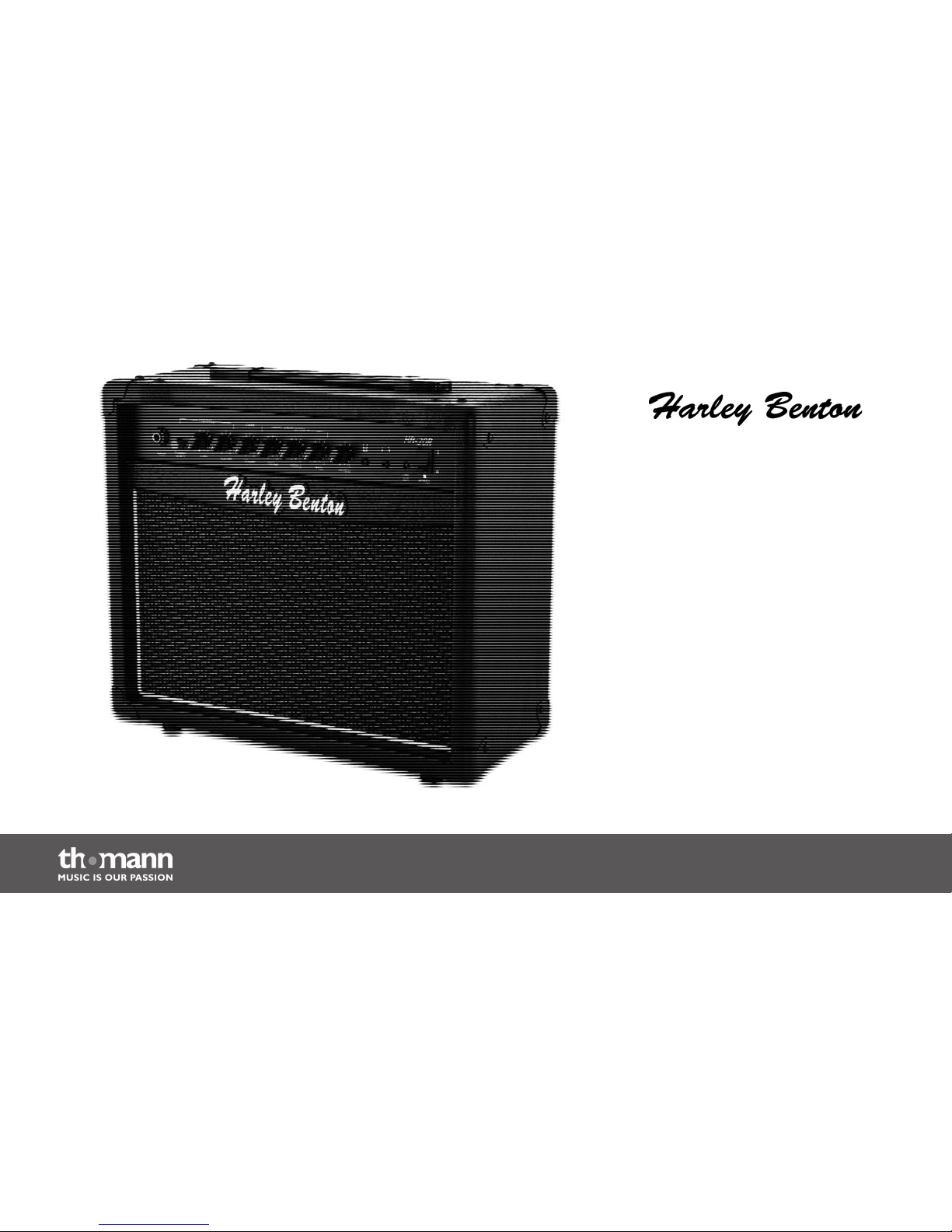

thomann Harley Benton HB-20R User manual

HB-20R
guitar combo
user manual

Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
19.01.2015, ID: 147167

Table of contents
1 General notes............................................................................................................................................... 4
2 Safety instructions..................................................................................................................................... 6
3 Features....................................................................................................................................................... 10
4 Installation and starting up................................................................................................................ 11
5 Connections and operating elements........................................................................................... 12
6 Technical specifications....................................................................................................................... 16
7 Plug and connection assignment.................................................................................................... 17
8 Protecting the environment.............................................................................................................. 19
Table of contents
HB-20R
3

1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device, include the manual for
the next owner.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
guitar combo
4

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General notes
HB-20R
5

2 Safety instructions
This device is intended to be used for amplification and playback of signals from musical
instruments with electromagnetic pickups. Any other use or use under other operating condi‐
tions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
guitar combo
6

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.
Safety instructions
HB-20R
7

CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use suffi‐
cient ear protectors.
NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
Safety instructions
guitar combo
8

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
HB-20R
9

3 Features
Special features of the device
nOutput power 20 watt
n8" speaker
nOverdrive switch
nBuilt-in reverb effect
n3-band equalizer
nAux input
nHeadphones output
nLine output
nStandby function
Features
guitar combo
10

4 Installation and starting up
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Establish all connections as long as the unit is switched off. Use the shortest possible high-
quality cables for all connections.
NOTICE!
Possible property damage by magnetic fields
Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate
distance to devices that can be adversely affected or damaged by an external
magnetic field.
Installation and starting up
HB-20R
11

5 Connections and operating elements
Front panel
Connections and operating elements
guitar combo
12

1[INPUT]
1/4" phone socket to connect your instrument.
2[CHANNEL SELECT]
Switch to toggle between clean and overdrive channel.
3[GAIN]
Control to adjust the signals preamp gain.
4[VOLUME]
Control to adjust the volume of the overdrive channel.
5[VOLUME]
Control to adjust the volume of the clean channel.
6[TREBLE]
Control to adjust the treble.
7[MIDDLE]
Control to adjust the mids.
Connections and operating elements
HB-20R
13

8[BASS]
Control to adjust the bass.
9[REVERB]
Control to adjust the intensity of the reverb effect.
10 Aux input for connecting an MP3 or CD player (3.5 mm mini phone socket).
11 Headphones output (3.5 mm mini phone socket).
When you connect headphones, the internal speaker is automatically muted.
12 [LINE OUT]
Output jack for connecting an additional amplifier or recording device (3.5 mm mini phone socket).
13 [POWER]
Mains switch. Turns the device on and off.
This LED lights red during normal operation. If there is no signal input at the [INPUT] jack for 30 minutes, the device
will automatically enter standby mode. As soon as the [INPUT] jack receives a signal again, the device switches back
to normal mode.
Connections and operating elements
guitar combo
14

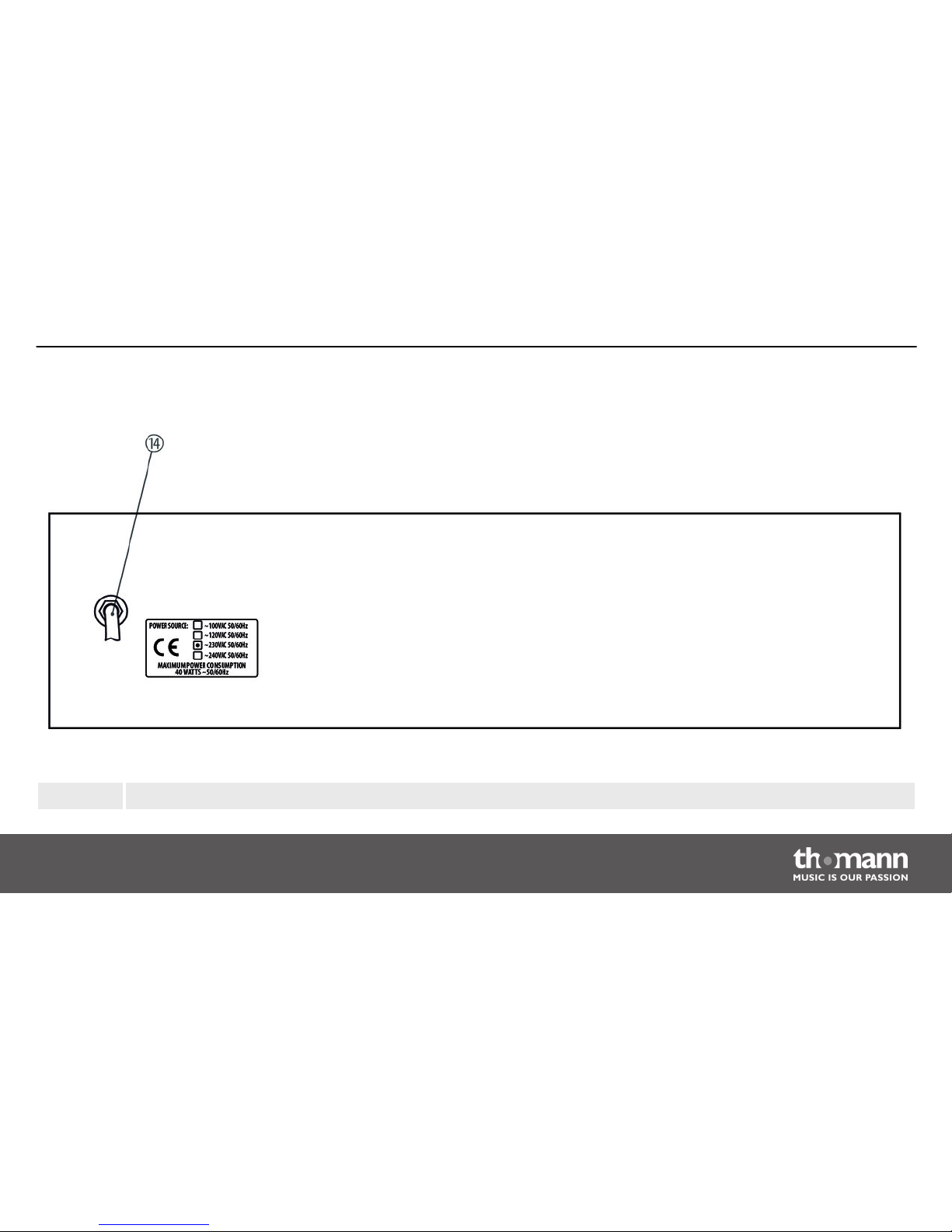

14 Power cord.
Rear panel
Connections and operating elements
HB-20R
15

6 Technical specifications
Output power 20 W
Speakers 1 × 8" speaker
Frequency response 70 Hz to 10 kHz
Input impedance 220 kΩ
THD 0.5% (Clean-Sound)
Signal-to-noise ratio 75 dB
Power consumption max. 40 W
Operating supply voltage AC 220 – 240 V , 50/60 Hz
Dimensions (H × W × D) 340 mm × 380 mm × 175 mm
Weight 7 kg
Technical specifications
guitar combo
16

7 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a
plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short
circuit or ‘just’ in poor transmission quality!
Unbalanced transmission is mainly used in semi-professional environment and in hifi use.
Instrument cables with two conductors (one core plus shielding) are typical representatives of
the unbalanced transmission. One conductor is ground and shielding while the signal is trans‐
mitted through the core.
Unbalanced transmission is susceptible to electromagnetic interference, especially at low
levels, such as microphone signals and when using long cables.
In a professional environment, therefore, the balanced transmission is preferred, because this
enables an undisturbed transmission of signals over long distances. In addition to the conduc‐
tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers
the signal, but phase-shifted by 180°.
Introduction
Balanced and unbalanced trans‐
mission
Plug and connection assignment
HB-20R
17

Since the interference affects both cores equally, by subtracting the phase-shifted signals, the
interfering signal is completely neutralized. The result is a pure signal without any noise inter‐
ference.

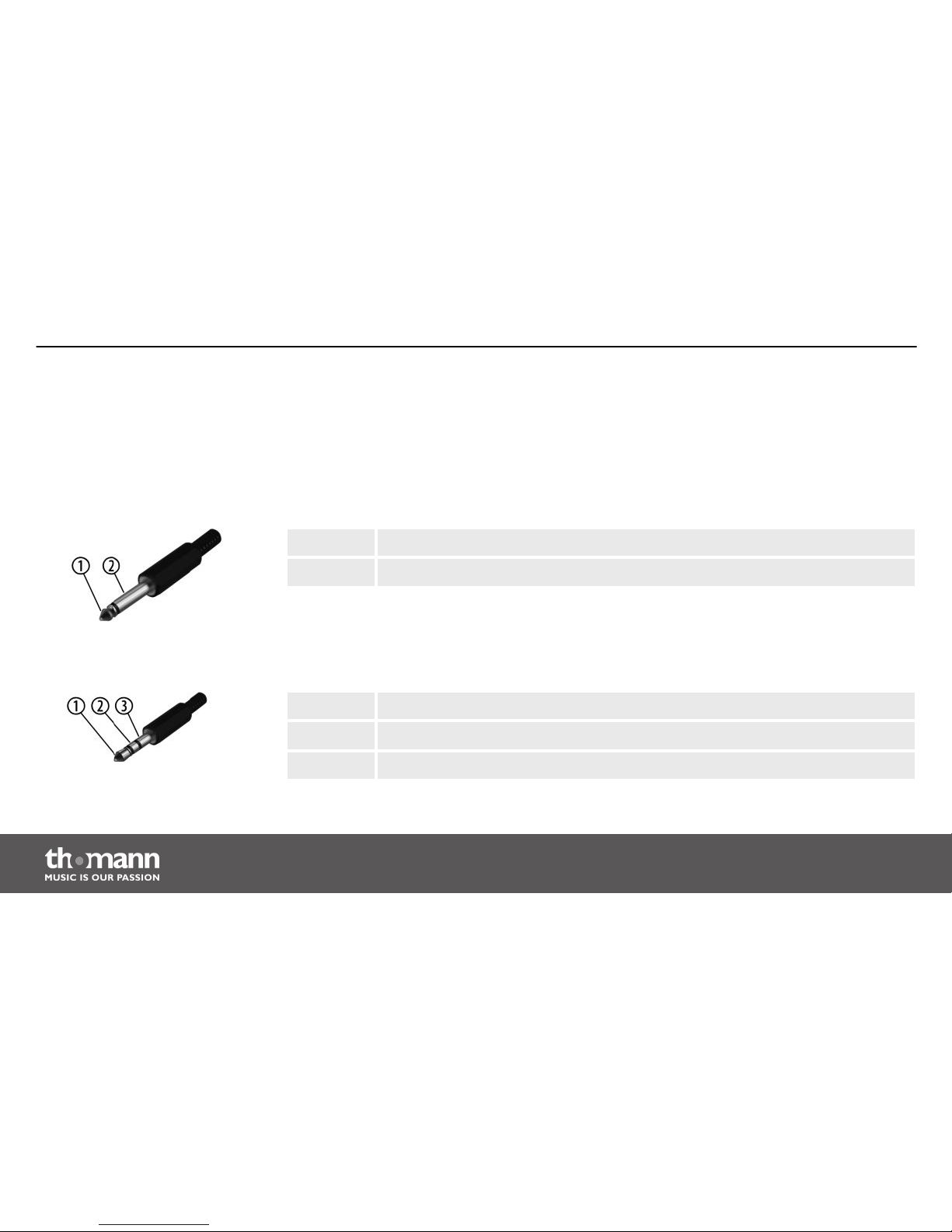

1 Signal
2 Ground, shielding
1 Signal (left)
2 Signal (right)
3 Ground, shielding
1/4" TS phone plug (mono,
unbalanced)
Three-pole 1/8" mini phone jack
(stereo, unbalanced)
Plug and connection assignment
guitar combo
18

8 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE). Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐
rial
Disposal of your old device
Protecting the environment
HB-20R
19
