thomann Harley Benton SolidBass 115T User manual

SolidBass 115T
SolidBass 210T
SolidBass 410T
SolidBass 810
bass box
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
10.12.2019, ID: 477619, 477625, 477626, 477627

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 11
4 Installation and starting up................................................................................................................ 12
5 Connections and controls................................................................................................................... 14
6 Technical specications....................................................................................................................... 16
7 Plug and connection assignment.................................................................................................... 18
8 Protecting the environment.............................................................................................................. 21
Table of contents
SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
bass box
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
bass box
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
General information
SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810
7

2 Safety instructions
This device is intended to be used in a sound reinforcement system. Use the device only as
described in this user manual. Any other use or use under other operating conditions is consid‐
ered to be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety instructions
bass box
8

CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use su‐
cient ear protectors.
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.
Safety instructions
SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810
9

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctua‐
tions and do not switch the device on immediately after it was exposed to tem‐
perature uctuations (for example after transport at low outside temperatures).
Dust and dirt inside can damage the unit. When operated in harmful ambient
conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other
malfunction.
Safety instructions
bass box
10

3 Features
Special features of the device:
nPower rating:
– SolidBass 115T, item no. 477619, 250 watt (8 Ω)
– SolidBass 210T, item no. 477625, 250 watt (8 Ω)
– SolidBass 410T, item no. 477626, 450 watt (8 Ω)
– SolidBass 810, item no. 477627, 900 watt (4 Ω)
nSpeakers:
– SolidBass 115T, item no. 477619, 1 × 15-inch woofer, 1 × 3-inch switchable tweeter
– SolidBass 210T, item no. 477625, 2 × 10-inch woofer, 1 × 3-inch switchable tweeter
– SolidBass 410T, item no. 477626, 4 × 10-inch woofer, 1 × 3-inch switchable tweeter
– SolidBass 810, item no. 477627, 8 × 10-inch woofer
nInputs: 1 × lockable Speaker Twist socket, 1 × 1/4" phone jack socket
nPoplar plywood housing with Bronco style tolex & British style front fabric
Features
SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810
11

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.
Installation and starting up
bass box
12

NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Installation and starting up
SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810
13

5 Connections and controls
Rear panel
Connections and controls
bass box
14

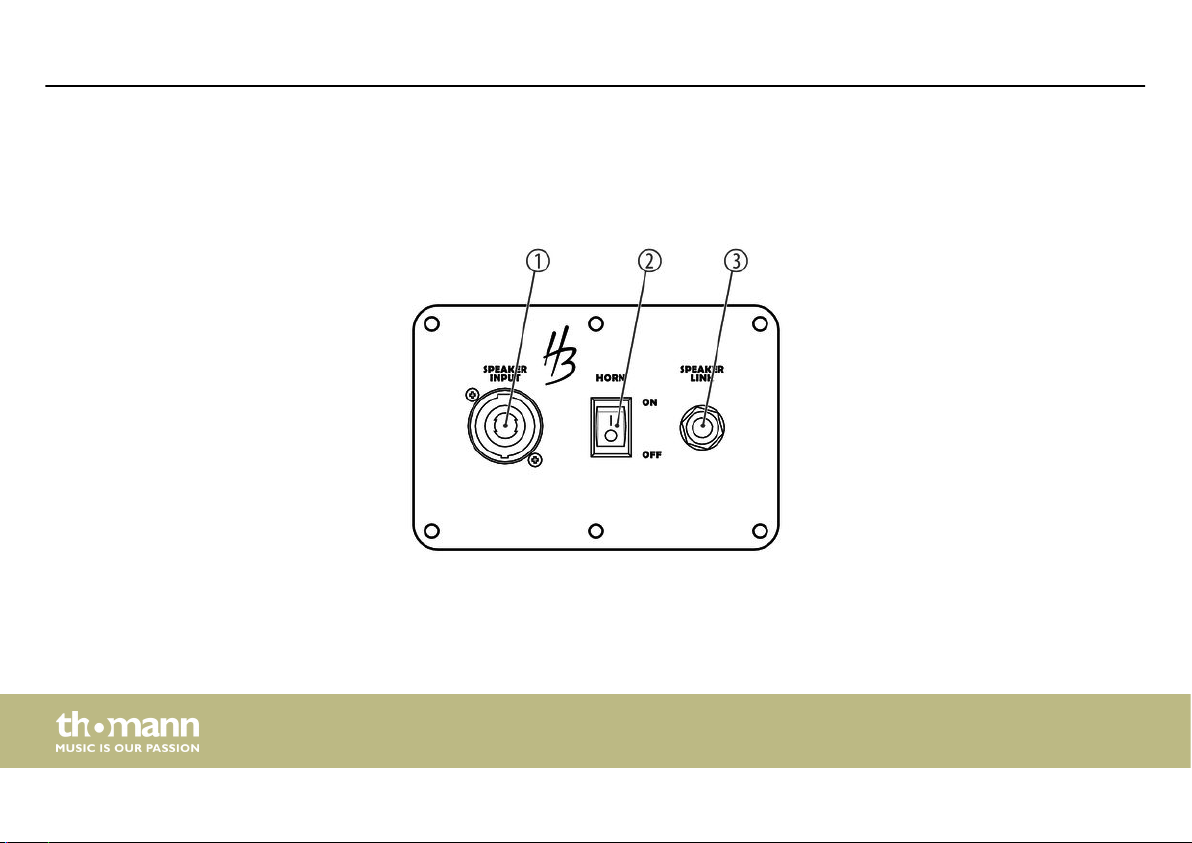

1[SPEAKER INPUT] 1 × lockable Speaker Twist input socket
2[HORN]
(not for item no. 477627)
Rocker switch for the horn
[ON] turned on
[OFF] turned o
3[SPEAKER LINK] 1 × 1/4" phone socket
Connections and controls
SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810
15

6 Technical specications
SolidBass 115T
Item no. 477619
SolidBass 210T
Item no. 477625
SolidBass 410T
Item no. 477626
SolidBass 810
Item no. 477627
Speaker 1 × 15-inch woofer
1 × controllable 3-inch
tweeter
switchable horn
2 × 10-inch woofer
1 × controllable 3-inch
tweeter
switchable horn
4 × 10-inch woofer
1 × controllable 3-inch
tweeter
switchable horn
8 × 10-inch woofer
Input connections 1 × Speaker Twist 1 × Speaker Twist 1 × Speaker Twist 1 × Speaker Twist
1 × 1/4" phone socket 1 × 1/4" phone socket 1 × 1/4" phone socket 1 × 1/4" phone socket
Frequency range 60 kHz … 20 kHz 60 kHz … 20 kHz 60 kHz … 20 kHz 60 kHz … 20 kHz
Power handling 250 W (peak) 250 W (peak) 450 W (peak) 900 W (peak)
Rated impedance 8 Ω 8 Ω 8 Ω 4 Ω
Technical specications
bass box
16

SolidBass 115T
Item no. 477619
SolidBass 210T
Item no. 477625
SolidBass 410T
Item no. 477626
SolidBass 810
Item no. 477627
Dimensions (W × H × D) 600 mm × 380 mm ×
480 mm
600 mm × 380 mm ×
480 mm
600 mm × 380 mm ×
635 mm
600 mm × 420 mm ×
1150 mm
Weight 17.5 kg 18.2 kg 23.2 kg 49.4 kg
SolidBass 115T
Item no. 477619
SolidBass 210T
Item no. 477625
SolidBass 410T
Item no. 477626
SolidBass 810
Item no. 477627
HF horn Yes Yes Yes No
Further information
Technical specications
SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810
17

7 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a
plug ts into the socket, an incorrect connection may result in a destroyed power amp, a short
circuit or ‘just’ in poor transmission quality!
Unbalanced transmission is mainly used in semi-professional environment and in hi use.
Instrument cables with two conductors (one core plus shielding) are typical representatives of
the unbalanced transmission. One conductor is ground and shielding while the signal is trans‐
mitted through the core.
Unbalanced transmission is susceptible to electromagnetic interference, especially at low
levels, such as microphone signals and when using long cables.
In a professional environment, therefore, the balanced transmission is preferred, because this
enables an undisturbed transmission of signals over long distances. In addition to the conduc‐
tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers
the signal, but phase-shifted by 180°.
Introduction
Balanced and unbalanced trans‐
mission
Plug and connection assignment
bass box
18

Since the interference aects both cores equally, by subtracting the phase-shifted signals, the
interfering signal is completely neutralized. The result is a pure signal without any noise inter‐
ference.
1 Signal
2 Ground, shielding
1/4" TS phone plug (mono,
unbalanced)
Plug and connection assignment
SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810
19

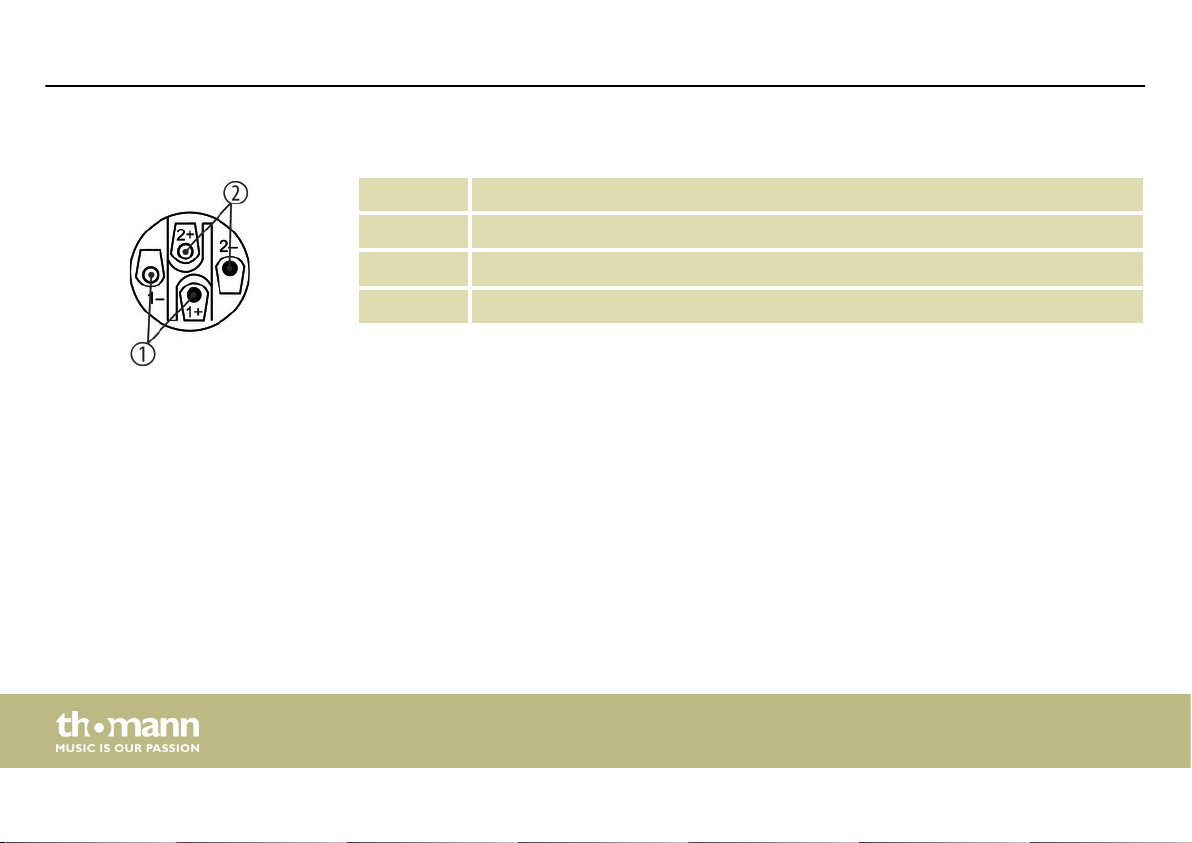

1, + Signal 1 (in phase)
1, – Signal 1 (out of phase)
2, + Signal 2 (in phase)
2, – Signal 2 (out of phase)
Speaker Twist chassis connector
Plug and connection assignment
bass box
