thomann the box PA302 A User manual

PA302 A
active 2-way-
full-range-speaker
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
14.11.2016, ID: 160813 (V2)

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 14
4 Installation.................................................................................................................................................. 15
4.1 Tips on handling speakers............................................................................................................ 17
5 Connections and operating elements........................................................................................... 18
6 Technical specifications....................................................................................................................... 21
7 Plug and connection assignment.................................................................................................... 23
8 Protecting the environment.............................................................................................................. 25
Table of contents
PA302 A
3

1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
active 2-way-full-range-speaker
4

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
PA302 A
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
active 2-way-full-range-speaker
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
General information
PA302 A
7

Warning signs Type of danger
Warning – suspended load.
Warning – danger zone.
General information
active 2-way-full-range-speaker
8

2 Safety instructions
This device is intended to be used in a sound reinforcement system. This device is designed for
professional and not household use. Use the device only as described in this user manual. Any
other use or use under other operating conditions is considered to be improper and may result
in personal injury or property damage. No liability will be assumed for damages resulting from
improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
PA302 A
9

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
active 2-way-full-range-speaker
10

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use suffi‐
cient ear protectors.
Safety instructions
PA302 A
11

NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
active 2-way-full-range-speaker
12

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
Safety instructions
PA302 A
13

3 Features
Special features of this active 2-way full-range speaker box:
n1 × 12" woofer
n1 × 44 mm titanium driver (50° … 100° × 55°)
nOutput power 300 W (bass) + 100 W (tweeter)
n2-band tone stack
nXLR in and output
nSwitchable low cut @ 120 Hz
nTripod mounting flange
nMonitor feet supplied for use as floor monitor
Features
active 2-way-full-range-speaker
14

4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
PA302 A
15

NOTICE!
Possible property damage by magnetic fields
Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate
distance to devices that can be adversely affected or damaged by an external
magnetic field.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
Installation
active 2-way-full-range-speaker
16

4.1 Tips on handling speakers
We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.
Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
For optimum results both impedance and power handling of the speakers must match the
requirements of the amplifier. Always follow the technical specifications of the speakers! The
overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐
tortion.
Installation
PA302 A
17

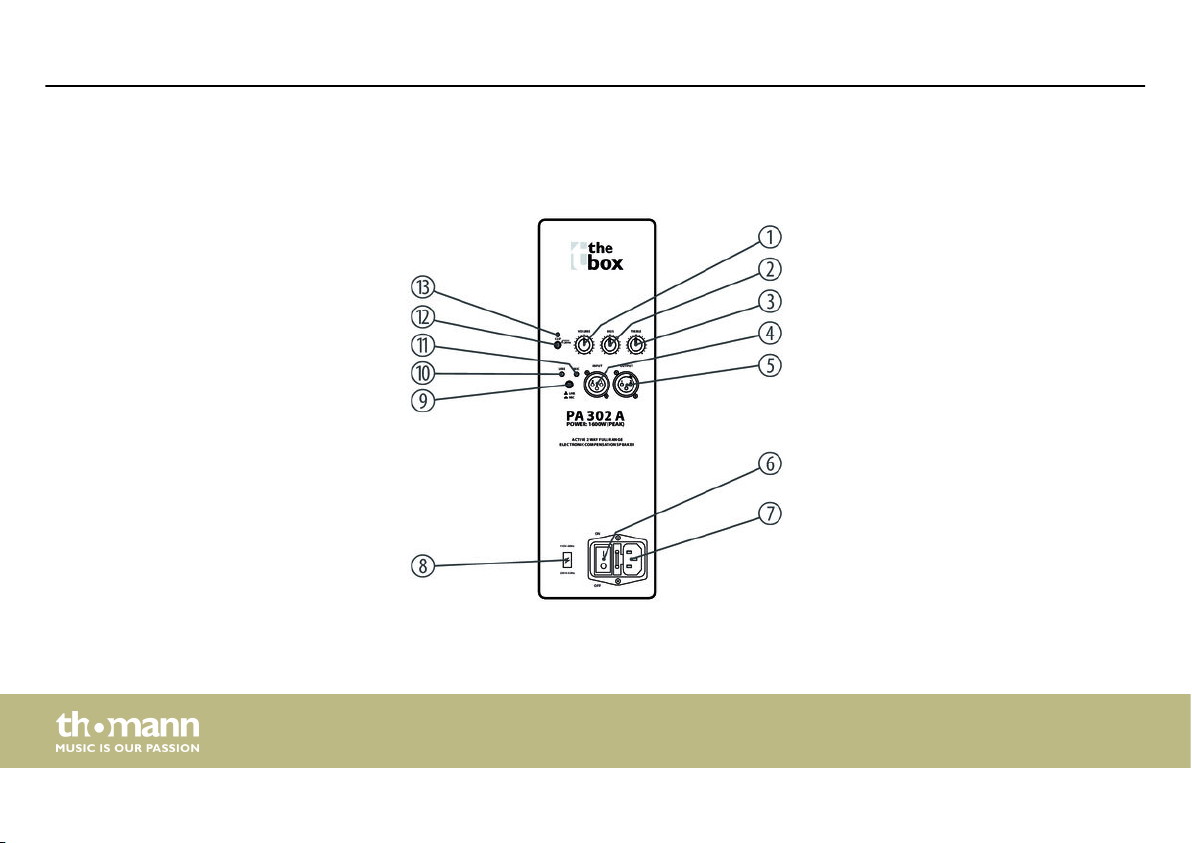

5 Connections and operating elements
Connections and operating elements
active 2-way-full-range-speaker
18

1[VOLUME]
Volume control. Turn the knob clockwise to increase the volume or counterclockwise to decrease the volume.
2[BASS]
Bass control. Turn the knob clockwise for a more bassy sound. Turn the knob counterclockwise to decrease the bass.
3[TREBLE]
Treble control. Turn the knob clockwise for a brighter sound. Turn the knob counterclockwise to decrease the treble.
4[INPUT]
Signal input with switchable sensitivity, designed as XLR chassis socket.
5[OUTPUT]
Line output for connecting further powered speakers, designed as XLR chassis plug.
6[ON/OFF]
Mains switch to turn the device on/off.
7 IEC chassis plug with fuse holder for the power supply.
Connections and operating elements
PA302 A
19

8[115V/60Hz — 230V/50Hz]
Selector switch for the power supply. Make sure that, before activating the device, the switch position is set to the
local supply voltage.
9[LINE/MIC]
Button to select the input sensitivity of the speaker (line or microphone level). Push the push-button with a suitable
sharp tool, e.g. a ballpen.
10 LED [LINE]
The LED lights in operation when the input sensitivity is set to LINE.
11 LED [MIC]
The LED lights in operation when the input sensitivity is set to MIC.
12 [120Hz]
Low cut switch to lower frequencies below 120Hz. This function reduces impact noise and maximize the lifetime of
the woofer.
13 [CLIP]
Indicates overload. If the LED flickers or is lit, the input signal level is too high.
Connections and operating elements
