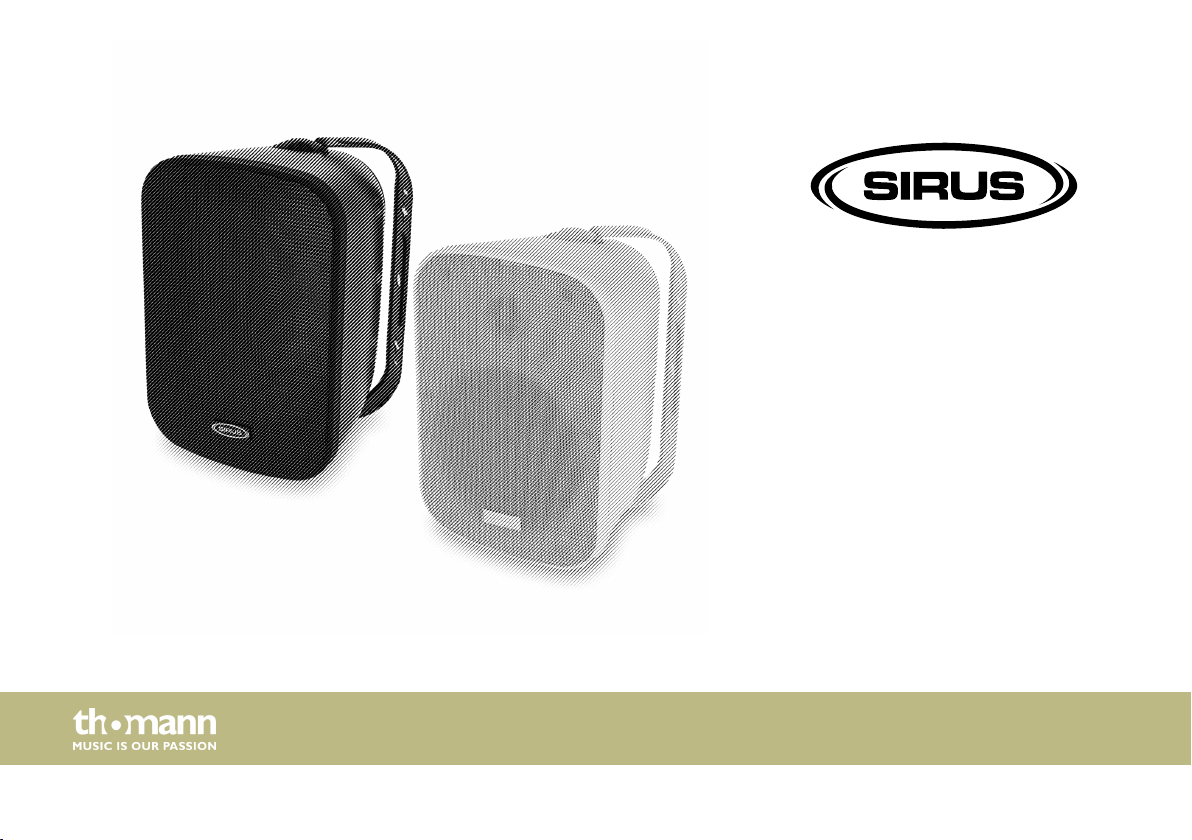

thomann Sirus Reflect 5 User manual

Reect 5, Reect 6,
Reect 8
passive speaker
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
14.05.2021, ID: 508920, 508921, 508922, ...

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 10
4 Installation.................................................................................................................................................. 12
4.1 Installation.......................................................................................................................................... 13
4.2 Power tap............................................................................................................................................ 16
4.3 Tips on handling speakers............................................................................................................ 17
5 Technical specications....................................................................................................................... 18
5.1 Reect 5 (item no. 508920, 508921).......................................................................................... 18
5.2 Reect 6 (item no. 508922, 508923).......................................................................................... 21
5.3 Reect 8 (item no. 508924, 508925).......................................................................................... 24
6 Protecting the environment.............................................................................................................. 28
Table of contents
Reect 5, Reect 6, Reect 8
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
passive speaker
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
Reect 5, Reect 6, Reect 8
5

1.2 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General information
passive speaker
6

Warning signs Type of danger
Warning – danger zone.
General information
Reect 5, Reect 6, Reect 8
7

2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
passive speaker
8

CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use su‐
cient ear protectors.
Safety instructions
Reect 5, Reect 6, Reect 8
9

3 Features
nSpeakers: 1 × 1" tweeter, 1 × 5" woofer
nOBE technology (Optimal Bass Enhancement Radiator)
nTransformer for 100 V/70 V (3.75 W/7.5 W/15 W/30 W)
nPluggable screw terminal connections
nMounting bracket included
nWeatherproof thanks to protection class IP66
nHousing colour: black (item no. 508920), white (item no. 508921)
nSpeakers: 1 × 1" tweeter, 1 × 6.5" woofer
nOBE technology (Optimal Bass Enhancement Radiator)
nTransformer for 100 V/70 V (5 W/10 W/20 W/40 W)
nPluggable screw terminal connections
nMounting bracket included
nWeatherproof thanks to protection class IP66
nHousing colour: black (item no. 508922), white (item no. 508923)
Reect 5
(item no. 508920, 508921)
Reect 6
(item no. 508922, 508923)
Features
passive speaker
10

nSpeakers: 1 × 1.1" tweeter, 1 × 8" woofer
nOBE technology (Optimal Bass Enhancement Radiator)
nTransformer for 100 V/70 V (6.25 W/12.5 W/25 W/50 W)
nPluggable screw terminal connections
nMounting bracket included
nWeatherproof thanks to protection class IP66
nHousing colour: black (item no. 508924), white (item no. 508925)
Reect 8
(item no. 508924, 508925)
Features
Reect 5, Reect 6, Reect 8
11

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Installation
passive speaker
12

4.1 Installation
The following illustration shows how the supplied mounting bracket can be attached to the
wall. Check the condition of the subsurface and use appropriate fastening material (not
included).

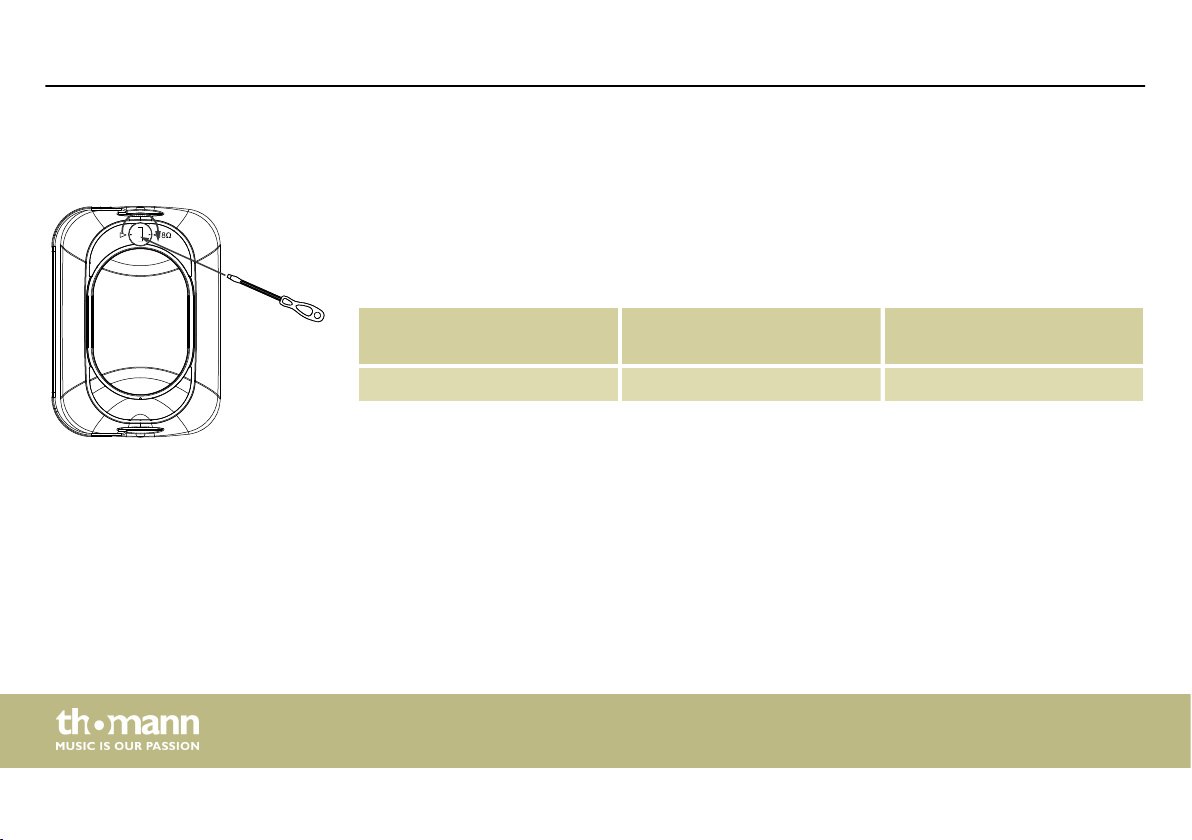

1 2 3
Wall mounting
Installation
Reect 5, Reect 6, Reect 8
13

NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
The passive loudspeaker can be mounted on a tripod. Fasten the loudspeaker with the appro‐
priate fastening material to the opening of the mounting bracket with the tripod.
Tripod mounting
Installation
passive speaker
14

In order to adapt the attached logo on the front grille to the alignment of the speaker, remove
the inserted front grille and use a screwdriver to open the logo screw. Align the logo and
tighten the screw. Put the front grille back on the speaker.
Logo alignment
Installation
Reect 5, Reect 6, Reect 8
15

4.2 Power tap
Use the selector switch on the rear of the device to select the setting for the power tap.
The following table shows the possible settings:
Reect 5
(item no. 508920, 508921)
Reect 6
(item no. 508922, 508923)
Reect 8
(item no. 508924, 508925)
3.75 W / 7.5 W / 15 W / 30 W 5 W / 10 W / 20 W / 40 W 6.25 W / 12.5 W / 25 W / 50 W
70W
100V
20W 10W
40W
N/C
5W
10W
2.5W
5W
20W
N/C
Installation
passive speaker
16

4.3 Tips on handling speakers
We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.
Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
For optimum results both impedance and power handling of the speakers must match the
requirements of the amplier. Always follow the technical specications of the speakers! The
overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐
tortion.
Installation
Reect 5, Reect 6, Reect 8
17

5 Technical specications
5.1 Reect 5 (item no. 508920, 508921)
Speaker 1 × 1" tweeter
1 × 5" woofer
Input connections Pluggable screw terminal
Frequency response (± 3 dB) 100 Hz…20 kHz
Power handling 30 W (RMS)
60 W (peak)
Sensitivity (1 W / 1 m) 85 dB
Rated impedance 8 Ω
Protection class IP66

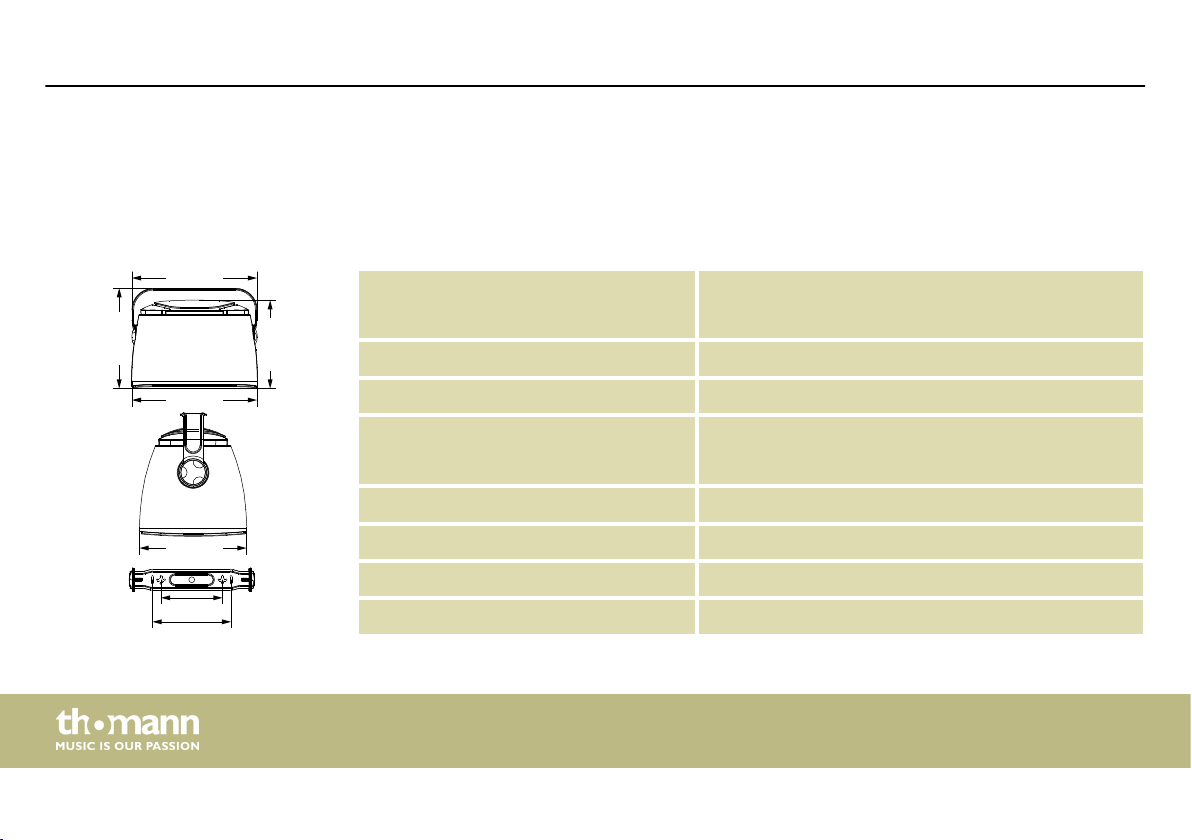

Dimensions (W × H × D) 258 mm × 188 mm × 163 mm
114 mm
254 mm
258 mm
163 mm
188 mm
163 mm
150,5 mm
Technical specications
passive speaker
18

Weight 2.75 kg
Colour black (item no. 508920), white (item # 508921)
The following graph shows the course of the sound pressure level at 1 W/1 m (1) and
impedance (2) depending on the signal frequency.
20 5 0 100 200 500 1K 2K 5K 10K 20K
Ω
6
7
8
9
10
20
30
40
50
60
70
80
90 dB
- 2 0
- 1 0
0
10
20
30
40
50
60
70
80
90
100
Hz
ö
#
Frequency response
Technical specications
Reect 5, Reect 6, Reect 8
19

(1) vertical, (2) horizontal
0°
180°
330° 30°
300° 60°
210° 150°
270° 90°
240° 120°
0°
180°
330°
30°
60°
210
°
150
°
90°
120°
0°
180°
330° 30°
300° 60°
210° 150°
270° 90°
240° 120°
300
°
270°
240°
0°
180°
330°
30°
300
°
60°
210
°
150
°
270°
90°
240°
120
°
ö #

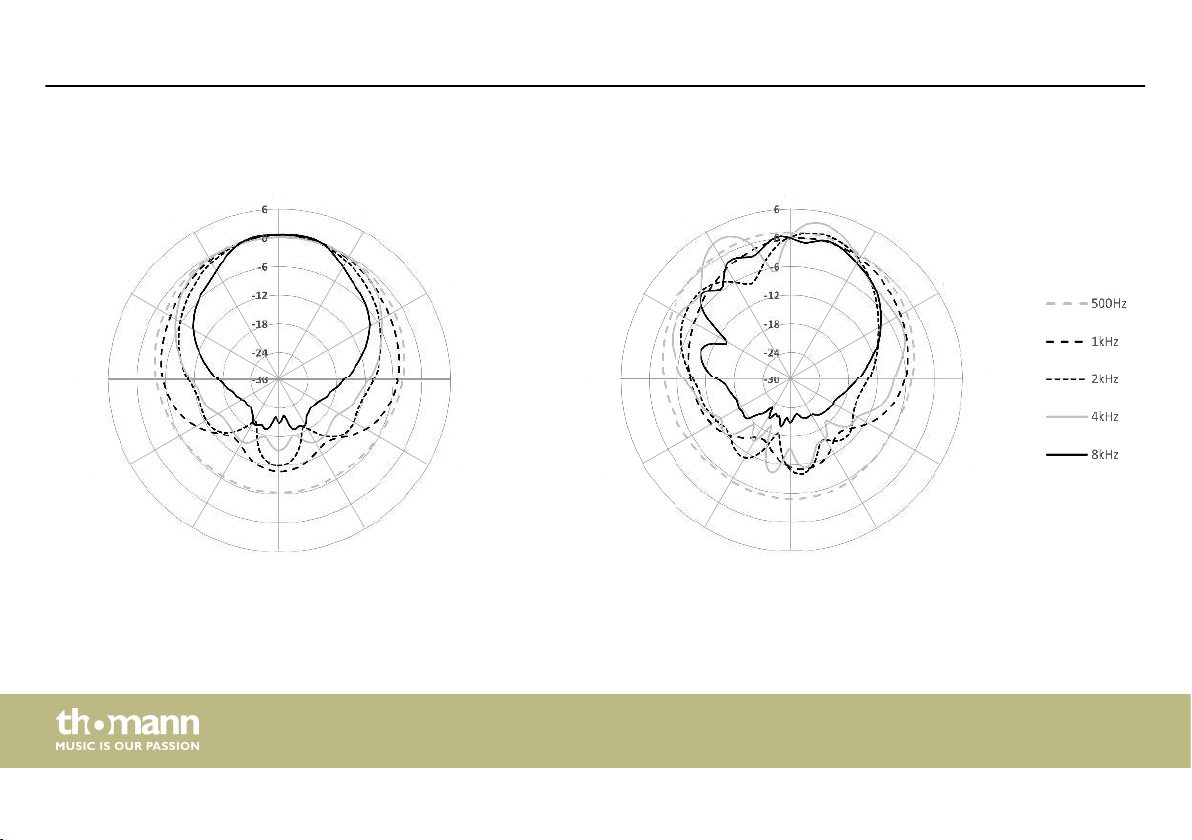

Polar pattern
Technical specications
passive speaker
