thomann Achat 208 HR User manual

Achat 208 HL / 208 HR
passive speaker
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
22.09.2021, ID: 283310, 283313 (V2)

Table of contents
1 General notes............................................................................................................................................... 4
2 Safety instructions..................................................................................................................................... 7
3 Features....................................................................................................................................................... 10
4 Installation.................................................................................................................................................. 11
4.1 Tips on handling speakers............................................................................................................ 14
4.2 Hanging the speaker box ............................................................................................................. 15
4.3 Connections....................................................................................................................................... 16
4.4 Setup options.................................................................................................................................... 17
5 Technical specications....................................................................................................................... 22
6 Plug and connection assignment.................................................................................................... 25
7 Protecting the environment.............................................................................................................. 26
Table of contents
Achat 208 HL / 208 HR
3

1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device, include the manual for
the next owner.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
passive speaker
4

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – suspended load.
General notes
Achat 208 HL / 208 HR
5

Warning signs Type of danger
Warning – danger zone.
General notes
passive speaker
6

2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
Intended use
Safety instructions
Achat 208 HL / 208 HR
7

WARNING!
Consequences of faulty mounting
Faulty mounting may lead to lethal injuries or property damage. Please ensure that the norms and regulations valid in your country
are always observed when mounting and operating your product. In Germany: DGUV rule 17 „Veranstaltungs- und Produktions‐
stätten für szenische Darstellung“ (event and production sites for stage presentations). Only expertly trained sta may mount
speakers.
WARNING!
Risk of injury caused by falling objects
Portable PA systems should be secured from falling using two independently working devices, for example, safety ropes.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for transport and installation.
Safety instructions
passive speaker
8

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate
or PVC oor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the oor, but
use felt-pad oor protectors or a carpet.
Safety instructions
Achat 208 HL / 208 HR
9

3 Features
Special features of the device:
n2 × horn-loaded 8" mid-frequency transducers and 1 × 1.4" high-frequency driver
nLeft horn 208 HL (item no. 283310) or right horn 208 HR (item no. 283313)
n2 × NL4 connections (1+, 1-)
nFlying tracks on top and bottom
nBlack textured coating
nM10 thread for speaker stand mounting ange
nHandles
nLink Bar for coupling two Achat 208 H speakers (option)
nAdapter plate for stacking on top of Achat 115SUB, Achat 118, TP 118/800 and TP
218/1600 (option)
Features
passive speaker
10

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
Achat 208 HL / 208 HR
11

WARNING!
Hearing damage
These devices can produce volume levels that may cause temporary or perma‐
nent hearing impairment in a short period of time.
Set up the devices so that no persons can stay in their immediate vicinity. The
devices must not be used as stage monitors.
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Installation
passive speaker
12

NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
Installation
Achat 208 HL / 208 HR
13

4.1 Tips on handling speakers
We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.
Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
For optimum results both impedance and power handling of the speakers must match the
requirements of the amplier. Always follow the technical specications of the speakers! The
overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐
tortion.
Installation
passive speaker
14

4.2 Hanging the speaker box
To hang the speaker box on special mounting devices (aka ‘ying’) both sides of the box oer
built-in Aeroquip or y tracks. In these tracks safety eyelets (double studs) can be screwed or
latched. Check the secure connection of the safety eyelets with the box carefully, before you
use it in ‘ying mode’.
Installation
Achat 208 HL / 208 HR
15

4.3 Connections
#
achat 208 ...
1, 2 NL4 connections wired in parallel (1+,1– through-connected and assigned; 2+, 2–
through-connected and not assigned)
Installation
passive speaker
16

4.4 Setup options
The Achat 208 HL (left-hand version) and the Achat 208 HR (right-hand version) are always
operated in pairs. The side where the horn is located is marked with a grooved line and with
"AIM". When viewed from the front, the grooved line shows the vertical orientation of the horn
(8° downwards).
This allows you to see where the main radiation axis hits the ground and you can determine
the range of the box via the height in which it is operated.
In single and double block setups, the lines always point to the stage centre.
In all applications, the use of additional woofers covering the range from low bass frequencies
to the crossover frequency is recommended. Due to the achievable level of the Achat 208, at
least a double 18“ woofer should be used for each Achat 208.
The Achat stack board is recommended as an adapter plate that can be put on all woofers of
the Achat series (from Achat 115 SUB onwards) and engages there.
In double or quad block congurations, two Achat 208 each are set on top of one another. To
this end, they are xed together with the optionally available link bars.
Installation
Achat 208 HL / 208 HR
17

ö ö
# #
1 Grooved line marks the side where the horn is located
2 Adapter plate
Single setup at both sides of the
stage
Installation
passive speaker
18

# #

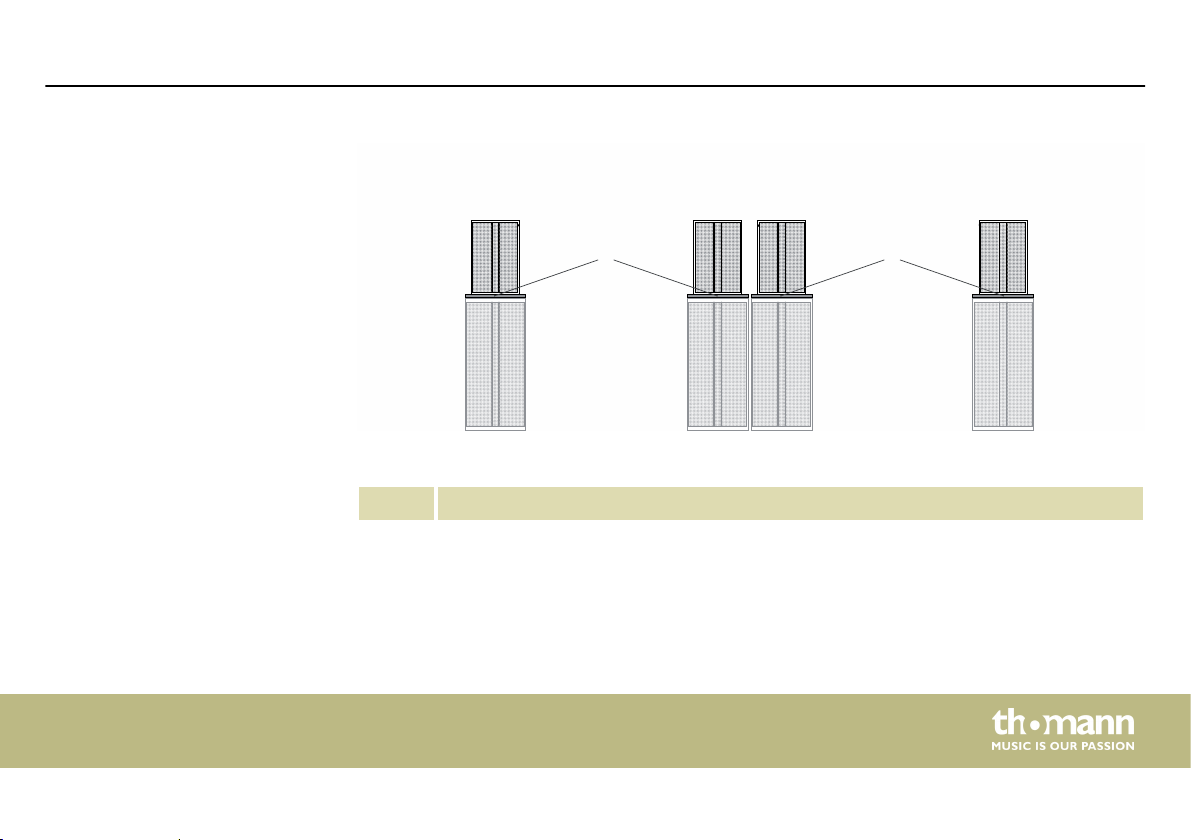

2 Adapter plate
When you spread the two centre loudspeakers by approximately 10 cm, you will get a more
even acoustic diusion (about 100° horizontally).
When the box walls of the the two centre loudspeakers are located directly to one another,
maximum coupling with a high concentration of the medium frequencies is achieved.
Single setup at both sides and in
the centre of the stage
Installation
Achat 208 HL / 208 HR
19

$
#
$
#

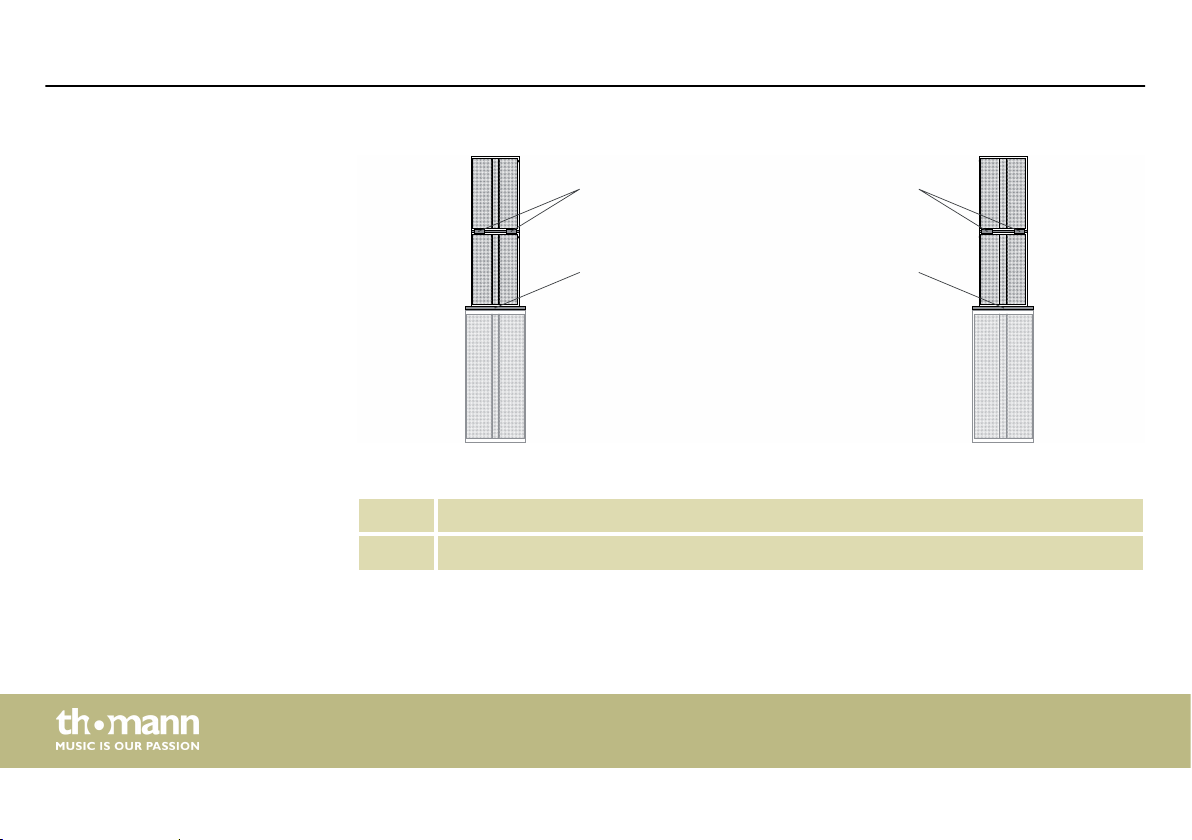

2 Adapter plate
3 Link Bars for coupling two Achat 208
Double block at both sides of
the stage
