THOMSON Grass Valley Kameleon HD Series User manual

KAM-HD-MULTI
KAMELEON HD/SD MODULE SERIES
Instruction Manual
SOFTWARE VERSION 3.2.0
071843802
FEBRUARY 2009

Affiliate with the N.V. KEMA in The Netherlands
CERTIFICATE
Certificate Number: 510040.001
The Quality System of:
Grass Valley, Inc.
400 Providence Mine Road
Nevada City, CA 95945
United States
15655 SW Greystone Ct.
Beaverton, OR 97006
United States
10 Presidential Way
3rd Floor, Suite 300
Woburn, MA 01801
United States
Nederland B.V.
4800 RP BREDA
The Netherlands
Weiterstadt, Germany
Brunnenweg 9
D-64331 Weiterstadt
Germany
Rennes, France
Rue du Clos Courtel
Cesson-Sevigne, Cedex
France
Technopole Brest Iroise
CS 73808
29238 Brest Cedex 3
France
17 rue du Petit Albi-BP 8244
95801 Cergy Pontoise
Cergy, France
2300 South Decker Lake Blvd.
Salt Lake City, UT 84119
United States
7140 Baymeadows Way
Suite 101
Jacksonville, FL 32256
United States
Including its implementation, meets the requirements of the standard:
ISO 9001:2000
Scope:
The design, manufacture and support of video hardware and software products and
related systems.
This Certificate is valid until: June 14, 2009
This Certificate is valid as of: August 30, 2006
Certified for the first time: June 14, 2000
H. Pierre Sallé
President
KEMA-Registered Quality
The method of operation for quality certification is defined in the KEMA General Terms
And Conditions For Quality And Environmental Management Systems Certifications.
Integral publication of this certificate is allowed.
KEM
A
-Registered Quality, Inc.
4377 County Line Road
Chalfont, PA 18914
Ph: [phone]
Fax: [phone]
CRT 001 073004
A
ccredited By:
ANAB

KAM-HD-MULTI
KAMELEON HD/SD MODULE SERIES
Instruction Manual
SOFTWARE VERSION 3.2.0
071843802
FEBRUARY 2009

4 KAM-HD-MULTI — Instruction Manual
Contacting Grass Valley
Copyright © Thomson, Inc. All rights reserved.
This product may be covered by one or more U.S. and foreign patents.
Grass Valley Web Site
The www.thomsongrassvalley.com web site offers the following:
Online User Documentation — Current versions of product catalogs, brochures,
data sheets, ordering guides, planning guides, manuals, and release notes
in .pdf format can be downloaded.
FAQ Database — Solutions to problems and troubleshooting efforts can be
found by searching our Frequently Asked Questions (FAQ) database.
Software Downloads — Download software updates, drivers, and patches.
International
Support Centers
France
24 x 7
[phone] or [phone]
[phone] or [phone]
United States/Canada
24 x 7 [phone] or [phone]
Local Support
Centers
(available
during normal
business hours)
Asia
Hong Kong, Taiwan, Korea, Macau: [phone] Indian Subcontinent: [phone]
Southeast Asia/Malaysia: [phone] Southeast Asia/Singapore: [phone]
China: [phone] Japan: [phone]
Australia and New Zealand: [phone] Central/South America: [phone]
Middle East: [phone] Near East and Africa: [phone] or [phone]
Europe
Belarus, Russia, Tadzikistan, Ukraine, Uzbekistan: [phone] Switzerland: [phone]
S. Europe/Italy-Roma: [phone] -Milan: [phone] S. Europe/Spain: [phone]
Benelux/Belgium: [phone] Benelux/Netherlands: [phone] N. Europe: [phone]
Germany, Austria, Eastern Europe: [phone] UK, Ireland, Israel: [phone]

KAM-HD-MULTI — Release Notes 5
Contents
Preface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Kameleon HD/SD
Multi-Function Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

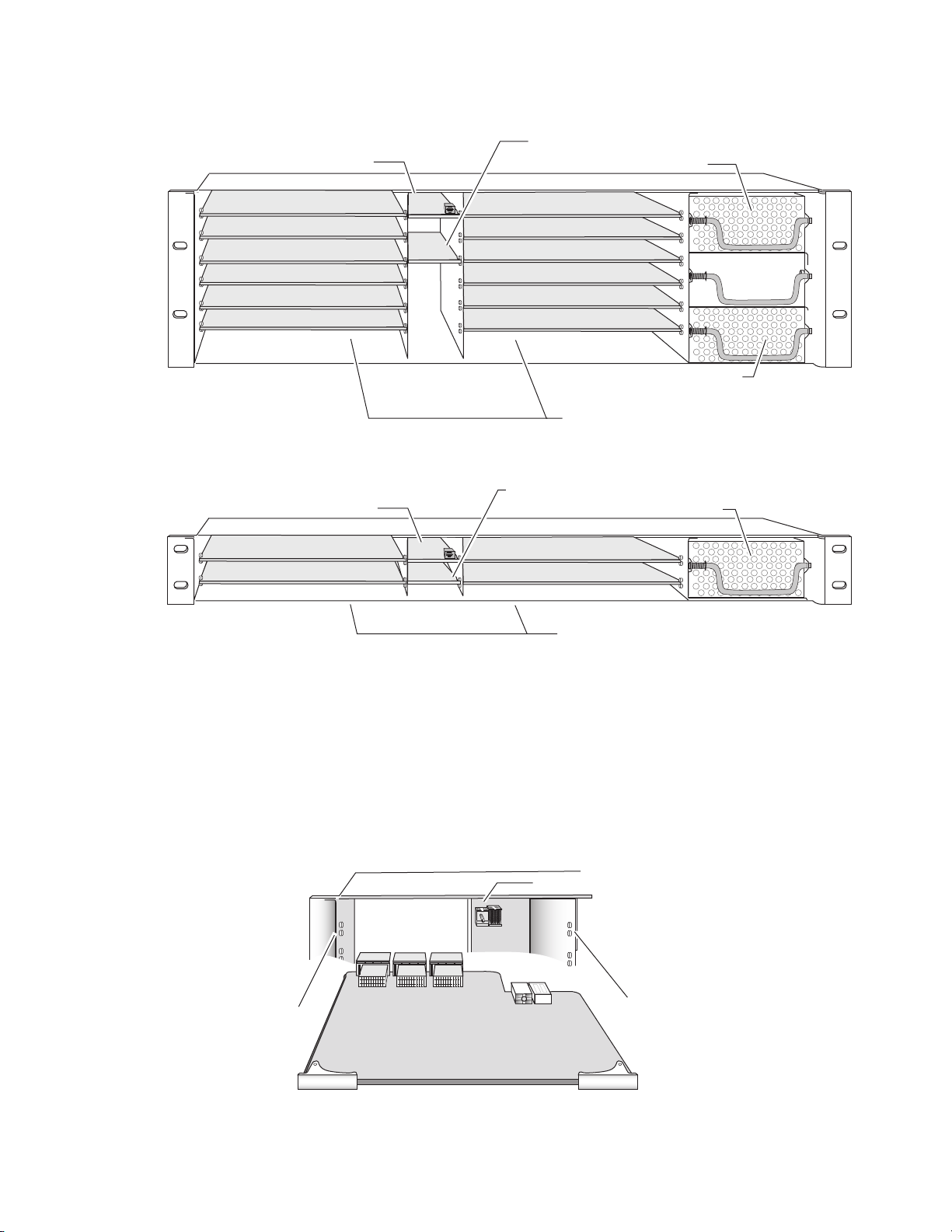

Module Placement in the 2000 Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Serial or HD SDI Video Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Video Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Audio Input and Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fiber IF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

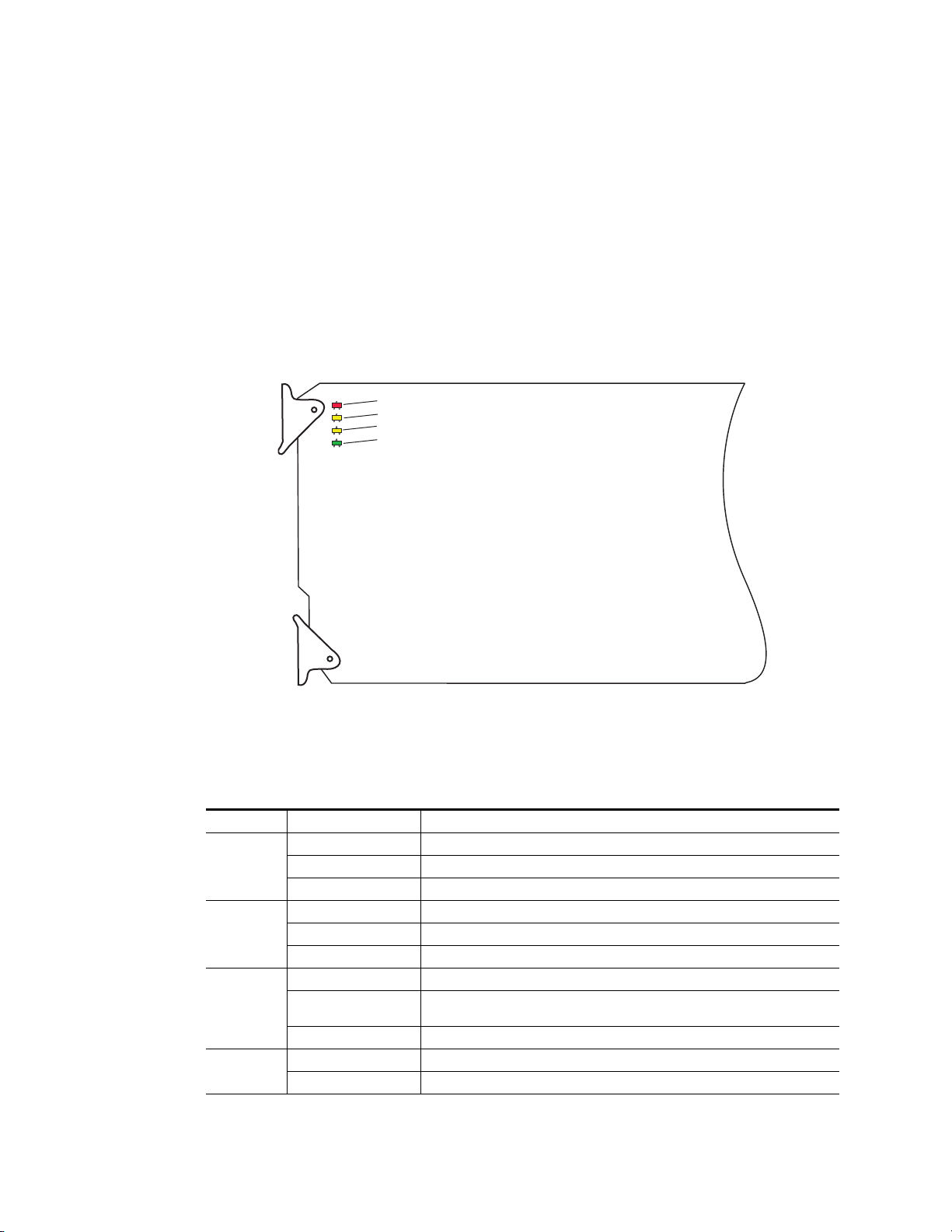

Operation Indicator LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Remote Control Lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Quick Start Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Configuration and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Audio Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Audio Input Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
AES C/U/V Bits Pass Through . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Audio Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Audio Preset Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Configuration Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Newton Control Panel Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Web Browser Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Web Page Operations and Functional Elements. . . . . . . . . . . . . . . . . . . . . . . . . . 34
Status and Identification Header. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Kameleon HD Links and Web Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Status Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Status Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Warning/Fault Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Status/Front Module Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
I/O Config Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Num AES I/O Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Header Row . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Input/Output Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Signal Naming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Status Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
System Config Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Input Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

6 KAM-HD-MULTI — Release Notes
Contents
Video Proc Amps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Output Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Split Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Functional View Web Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Module Configuration Web Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
HD/SD Video In Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
HD/SD Frame Sync Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
HD/SD Color Correction Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
HD/SD Video Proc Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
HD/SD MUX Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
SD Video Out Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Audio Input Status Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Audio Input Select Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Audio Sync Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Audio Processing Select Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Audio Gain Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Audio Channel Pairing Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Audio Proc Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
AES Outputs Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
E-MEM Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
E-MEM Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Slot Config Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Locate Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Slot Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Slot Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Frame Health Reports Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
LED Reports Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
SNMP Trap Reports Link. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Updating Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

KAM-HD-MULTI — Instruction Manual 7
Preface
About This Manual
This manual describes the features of a specific module of the 2000 Series
Modular Products family including the Kameleon HD/SD product lines.
As part of this module family, it is subject to Safety and Regulatory Com-
pliance described in the Kameleon 2000 Series frame and power supply
documentation (see the Kameleon 2000 Frames Instruction Manual).

8 KAM-HD-MULTI — Instruction Manual
Preface

KAM-HD-MULTI—Instruction Manual 9
Kameleon HD/SD
Multi-Function Module
Introduction
The Kameleon HD modules are part of the Grass Valley Kameleon Media
Processing System family of products. They offer an ideal solution for high
definition and serial digital video processing, frame synchronization, color
correction, video processing, audio processing, and timing. This manual
covers installation, configuration, and operation of the
KAM-HD/SD-MULTI-Function module.
Features offered in these modules include:
• SD video rates of:
• 480i/59.94 or 576i/50
• HD video rates of:
• HD 59.94: 1080i or 720p,
• HD 50: 1080i or 720p, and
• HD 24: 1080sf or 1080p
• Two different rear module types:
•KAM-HD-MULTI-BRwithbalanced AES/EBU audio connectors,
or
• KAM-HD-MULTI-UR with unbalanced AES/EBU connectors
(including audio breakout cables),
• HD/SD video processing for brightness, contrast, saturation and hue,
• Frame synchronization with horizontal and vertical timing delay
adjustments,
• Minimum delay mode to allow the minimum amount of delay through
the module when input is synchronous and aligned with genlock refer-
ence to the module,
• Split Screen (horizontal or vertical) output mode,
• Auto and Manual Freeze controls,
• HD/SD color correction and gamma adjustments,

10 KAM-HD-MULTI—Instruction Manual
System Requirements
• Color bars test signal generator,
• Audio inputs and outputs on the rear modules are configurable as one
of the following:
• 8 inputs/0 outputs
• 4 inputs/4 outputs
• 0 inputs/8 outputs
• Up to eight streams of input audio selectable for synchronization, then
multiplexed into the output video stream and/or sent to available AES
audio outputs on the rear module,
• Four audio preset E-MEMs for auto setup of configuration,
• Four streams of the selected audio may be paired and processed for
multiplexing into the output audio stream and/or sent to available AES
audio outputs,
• Audio Disruption Processing to remove possible audio disruption from
the AES stream when video is switched upstream,
•DolbyEbypass,
• Newton Modular Control Panel interface,
• NetConfig support, and
• SNMP support – remote monitoring.
System Requirements
Operation of the Kameleon HD modules in 2000 Series frames has the fol-
lowing hardware and software requirements:
• Modules must be installed in a 2000T1DNG or 2000T3DNG Kameleon
2000 Series frame containing a 2000GEN module.
Existing Kameleon frames can be upgraded with the necessary
modules and software for proper operation. Contact your sales repre-
sentative for more information.
• The frame must have a 2000NET module with assembly number
671-5231-01 or later running software version 4.0.0 or later.
• KAM-HD-MULTI Function operation requires a Kameleon HD module
with assembly number 671-6514-20.
• The dual height KAM-HD-MULTI-UR Rear (Figure 7 on page 15 for
unbalanced audio inputs) or KAM-HD-MULTI-BR Rear (Figure 8 on
page 15 for balanced audio inputs) is required for this module.
Note If the wrong rear module is installed, the module will not be operable.

KAM-HD-MULTI—Instruction Manual 11
Installation
Installation
Installation of the Kameleon HD module is a process of:
• Placing the dual-height KAM-HD-MULTI-UR or KAM-HD-MULTI-BR
rear module in a rear frame slot (no other rear modules can be used),
• Placing the media module in the corresponding front slot, and
• Cabling and terminating signal ports.
The Kameleon HD module can be plugged in and removed from a 2000
Series frame with power on. When power is applied to the module, LED
indicators reflect the initialization process (see Power Up on page 16).
Note The Kameleon HD must be installed in a 2000T1DNG or 2000T3NG frame
(2000NET and 2000GEN module installed) for access to a frame reference.
Module Placement in the 2000 Frame
There are twelve slot locations in both the front and rear of a Kameleon
3RU frame to accommodate Kameleon HD modules. The
KAM-HD-MULTI module requires a dual height rear module, either the
KAM-HD-MULTI-UR or the KAM-HD-MULTI-BR, that uses two rear
module slots allowing up to 4 modules per 3 RU frame, 2 in a 1 RU frame.
Dual-height modules can be placed in any rear slot as long as there is room
in the frame.
To install a Kameleon HD module set in a 2000 Series frame:
1. Locate a vacant slot in the rear of the 3 RU frame (Figure 1) or the
2000T1DNG frame (Figure 2 on page 12).

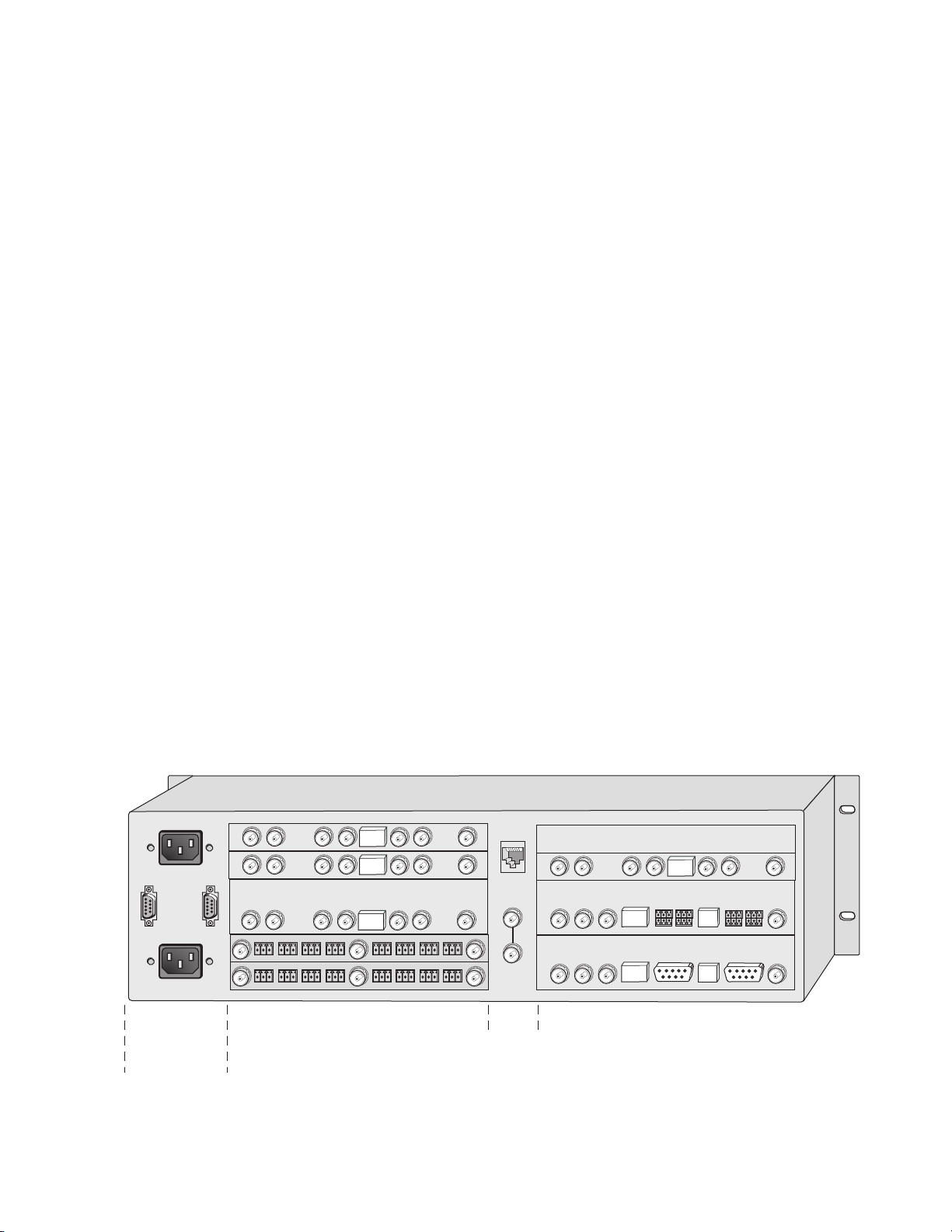

Figure 1. 2000T3NG Frame, Rear View
Media section
rear slots 1-6
(with one 2000EMI blank)
Media section
rear slots 7-12 Network
and reference
input connections
Power, frame
configuration,
& frame health
connections
8341_12r2

12 KAM-HD-MULTI—Instruction Manual
Installation

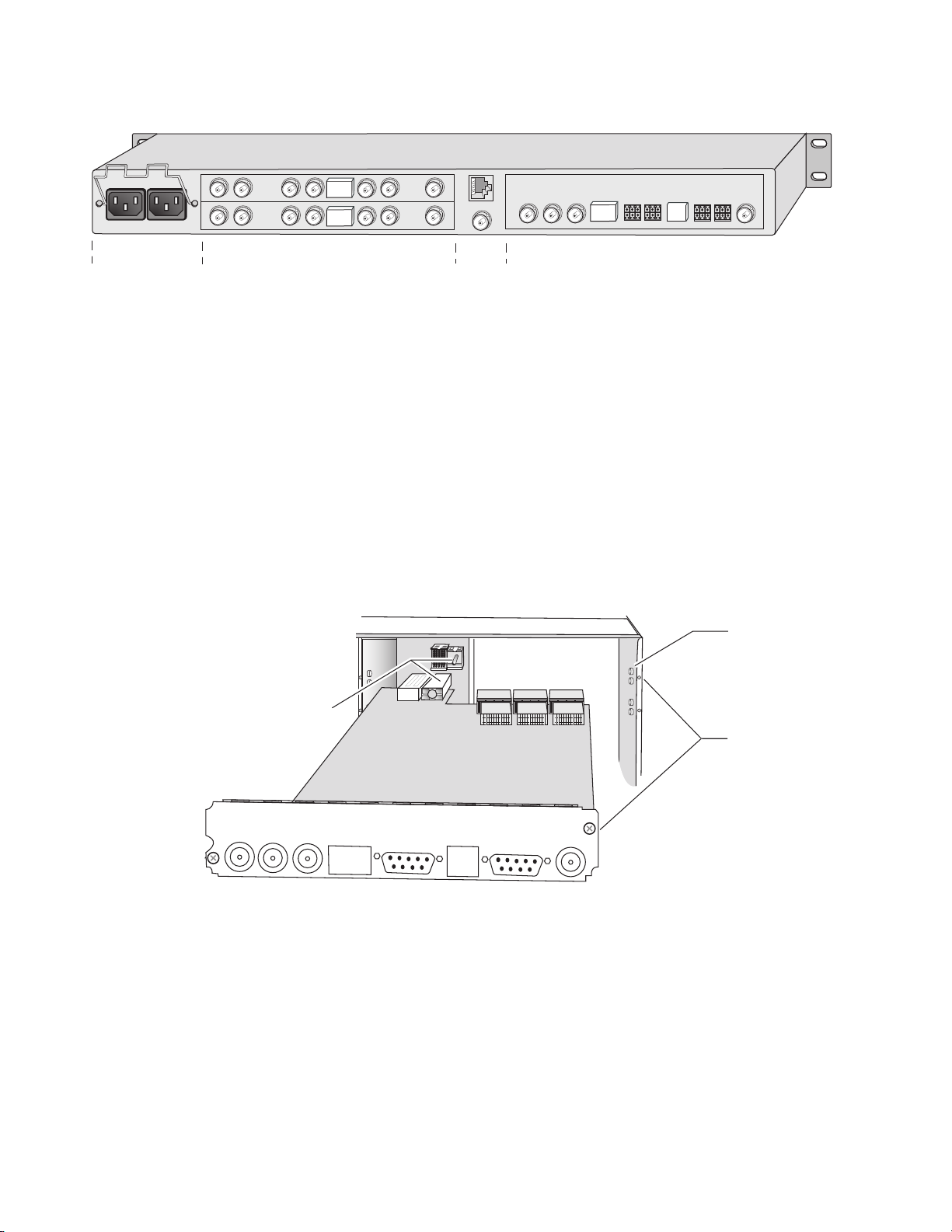

Figure 2. 2000T1DNG Frame, Rear View
2. Insert the rear module into the vacant rear slot of the frame as
illustrated in Figure 3.
3. Verify that the module connector seats properly against the midplane.
4. Using a crossblade screwdriver, tighten the two screw locks to secure
the module in the frame.
CAUTION Using the incorrect rear module can cause overheating of the Kameleon 2000
frame.
Figure 3. Installing Passive Rear Module
5. Locate the corresponding front media slot (1 -12) in the 3 RU frame
frame (Figure 4) or front media (slot 1-4) the 1 RU frame (Figure 5).
Place the KAM-HDD/-FS module in the lower slot when using a
dual-height rear module.
8341_11r2
Media section
rear slots 1-2
(with VID-HDD-R Rear Module)
J101
1
2
3
4
J102
Media section
rear slots 3-4 Network
and reference
input connections
Power connections
KAM-HD
MULTI-UR
Alignment post
and receptacle Screw lock
(both sides)
8341_06
2000 frame (rear view)
Board edge guides
(both sides)

KAM-HD-MULTI—Instruction Manual 13
Installation
Figure 4. 2000T3NG Kameleon Frame, Front Slots
Figure 5. 2000T1DNG Kameleon Frame Front Slot
6. With the component side up, insert the front media module in the
corresponding front slot (see Figure 6).
7. Verify that the module connector seats properly against the midplane
and rear module connector.
8. Press firmly on both ejector tabs to seat the module.
Figure 6. Installing Front Media Module
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(15)
(13)
(1)
8173-04r1
Network Slot (13)
Reference Distribution Slot (15)
Main Power Supply Slot (18)
Secondary Power
Supply Slot (20)
Front Media Slots (1-12)
Fan Sled
Slot (19)
(2)
(3)
(4)
(5)
(6)
(1)
8039-21
Network Slot (5) Power Supply Slot (7)
Front Media Slots (1-4)
Reference Distribution Slot (6)
Alignment post and receptacle
8024-06r2
2000 Frame (front view)
Board edge
guides
Board edge
guides

14 KAM-HD-MULTI—Instruction Manual
Installation
Cabling
All cabling to the Kameleon HD module is done on the corresponding
KAM-HD-MULTI-UR Rear (Figure 7 on page 15 for unbalanced audio
inputs) or KAM-HD-MULTI-BR Rear (Figure 8 on page 15 for balanced
audio inputs) at the back of the 2000 frame. There are a number of different
input and output configurations possible depending on system configura-
tion and module type.
To determine the correct cabling for your application, refer to System Config
Web Page on page 47 and the I/O Config Web Page on page 43.
Serial or HD SDI Video Input
Connect an SD or HD SDI video input to the BNC connector, labeled VI:
• J8 on the KAM-HD-MULTI-UR Rear
• J10 on the KAM-HD-MULTI-BR Rear
Video Outputs
There are three SDI video outputs at the following BNC connectors labeled
SDO:
• J1, J6, and J7 on the KAM-HD-MULTI-UR Rear
• J1, J8, and on the J9 KAM-HD-MULTI-BR Rear
Audio Input and Outputs
The balanced and unbalanced audio connectors on the
KAM-HD-MULTI-BR and KAM-HD-MULTI-UR rear modules can be used
as input or outputs. Configuration is done on the I/O Config web page (I/O
Config Web Page on page 43) or using the Audio Preset Config buttons on
the E-MEM web page (E-MEM Web Page on page 85).
The KAM-HD-MULTI-UR comes with two audio breakout cables for con-
nection to the 9-pin D connectors J2 and J4. The outputs from the breakout
cables are labeled A, B, C, and D which correspond to the outputs on the
unbalanced connectors. Refer to Figure 20 on page 44 for 8 In/0 Out,
Figure 21 on page 45 for 4 In/4 Out, and Figure 23 on page 46 for 0
In/8 Out configurations.
Data
This connection is for future use and currently not used.
Fiber IF
This connection is for future use and currently not used.

KAM-HD-MULTI—Instruction Manual 15
Installation
Figure 7. KAM-HD-MULTI-UR Rear Module
Figure 8. KAM-HD-MULTI-BR Rear Module
AES I/O AES I/O
FIBER IF
DATA SDOSDO SDO
J8 J7 J6 J5 J4 J3 J1J2
VI
KAM-HD
MULTI-UR
8438_03
SD or HD
SDI Input
SD or HD SDI Outputs (3)
Currently
not used
Currently
not used
FIBER IF AES I/OAES I/O AES I/O AES I/O
DATA SDOSDO SDO
J10 J9 J8 J5J6J7 J4 J3 J1J2
VI
KAM-HD
MULTI-UR
Dual Audio
Connector
pinout
+ – G
8438_04
SD or HD
SDI Input
SD or HD SDI Outputs (3)
Currently
not used
Currently
not used

16 KAM-HD-MULTI—Instruction Manual
Power Up
Power Up
The front LED indicators are illustrated in Figure 9. Upon power-up, the
green PWR LED should light and the yellow CONF LED should illuminate
for the duration of module initialization.
Operation Indicator LEDs
With factory default configuration and valid input and reference signals
connected, only the green PWR LED should be on.
Figure 9. Operation Indicator LEDs
A red FAULT LED indicates an error situation and, with the other LEDs,
can indicate the operational conditions presented in Table 1.
Table 1. Indicator LEDs and Conditions Indicated
LED Indication Condition
FAULT
(red)
Off Normal operation.
On continuously Module has detected an internal fault.
Flashing Frame reference or video input is missing, input does not match manual selection.
COMM
(yellow)
Off No activity on frame communication bus.
Long flash Location Command received by the module from a remote control system.
Short flash The new system configuration is being stored to the module.
CONF
(yellow)
Off Module is in normal operating mode.
On continuously Module is initializing, changing operating modes or updating firmware. Simultaneous
CONF and FAULT LEDs on indicate FPGA load error.
Long flash Location Command received by the module from a remote control system.
PWR
(green)
Off No power to module or module’s DC/DC converter failed.
On continuously Normal operation, module is powered.
8341_03
FAULT LED
COMM LED
CONF LED
POWER LED

KAM-HD-MULTI—Instruction Manual 17
Power Up
Remote Control Lockout
When a jumper is placed across pins 1 and 2 of jumper block JP2 (see
Figure 10), module output mode settings are locked out from remote con-
trol. To have remote access, set the jumper across pins 2 and 3.
Figure 10. Local/Remote Jumper
8245_06
JP2
LOCAL LCL&REM
1 & 2
2 & 3

18 KAM-HD-MULTI—Instruction Manual
Quick Start Procedure
Quick Start Procedure
Follow the procedure below for a quick start method configuration for the
Kameleon HD module:
1. Go to the E-MEM web page (page 85) to select a preset audio
configuration if your audio needs match one of the four preset modes
explained in Audio Preset Configurations on page 23, or set the audio
configuration on the I/O Config web page (I/O Config Web Page on
page 43)
2. Go to the I/O Config web page (page 43) to name inputs and outputs.
3. Go to the System Config web page (page 47) to configure the input
video type (HD or SD), the video input rate, and the output timing
source. Split Screen controls are also available on this page as well as on
the HD Video Proc, SD Video Proc, and Color Correction web pages.
4. If not already connected, connect all input and output signals and
verify component and signal presence and condition on the Status web
page (page 38).
5. Go to the Functional View web page (page 50) to use the block diagram
links to configure each function in turn. Video processing must be
enabled on the System Config web page or with the Newton control
panel before adjustments can be made.
Note Next,Functional View,and Back links are provided to help you navigate
through a logical configuration sequence.
6. Use the Slot Config web page (page 92) to assign Slot Configuration
information such as slot name and asset number. Also link to the
2000NET module web pages to enable and disable Frame Health and
SNMP trap reporting.
7. Use E-MEM memory (page 85) to store or recall configurations as
necessary.
Note Always recall factory defaults after a software update.
8. Refer to Updating Software on page 97 for information on updating
software.

KAM-HD-MULTI—Instruction Manual 19
Configuration and Adjustments
Configuration and Adjustments
Kameleon HD configuration and monitoring can be performed using a web
browser GUI interface or a networked Newton Control Panel. This section
provides an overview of each of these controls along with the configuration
parameters available with each type of control device. It also provides an
overview of the audio configurations available on this module.
Audio Overview
There are a number of audio paths through the KAM-HD-MULTI module
that can be utilized depending on the type of audio application required.
This section gives an overview of the overall audio system and describes
the best uses of each of the audio paths and how to use the audio preset
configurations.
Audio Input Sources
Embedded audio in the SD or HD video input stream is automatically
demultiplexed and copied at the input of the module. Any or all of the eight
demuxed audio streams can be selected to be input streams to the audio
timing circuitry or bypass timing and processing completely, depending on
the type of audio and the application, and be sent directly to the AES out-
puts. The embedded audio can also be passed to the video output of the
module unmodified. Audio capabilities for different audio types are sum-
marized in Table 2 on page 20.
Up to eight external AES audio inputs can be connected to the rear module,
depending on the audio configuration set on the I/O Config web page (I/O
Config Web Page on page 43).
Eight audio sources, can be selected from the list of demuxed inputs
and/or the external AES inputs to make up the audio that can be multi-
plexed into the output video stream or output to external AES outputs
depending on the I/O configuration of the rear module and other module
configuration setups.

20 KAM-HD-MULTI—Instruction Manual
Configuration and Adjustments
KAM-HD-MULTI audio capabilities are summarized in Table 2 below:
The KAM-HD-MULTI module can use a rear module with either balanced
or unbalanced AES audio connectors. Eight audio streams can be con-
nected in the following configurations set on the I/O Config web page:
• 8 inputs/0 outputs – when the module is set for 8 inputs and no out-
puts, all eight audio connectors on the rear module become inputs for
external AES audio.
• 4 inputs/4 outputs – when the module is set for 4 inputs and 4 outputs,
4 audio connectors become inputs for AES audio and 4 audio connec-
tors become AES audio outputs on the rear module. Refer to the I/O
Config web page for the specific rear module connector numbers.
• 0 inputs/8 outputs – when the module is set for 8 inputs and no out-
puts, all eight audio connectors on the rear module become inputs for
external AES audio.
AES C/U/V Bits Pass Through
The control bits that are part of each subframe of AES data are defined as
C(Channel status), U (User), and V (Valid) bits and the Z bit, which carries
the start position of the AES block frame. For the control and status bits in
the CUV positions of each audio channel, and the Z marker for each stream
(pair of channels), there is a buffer on the module that handles the asyn-
chronous timebase slips between the input and output AES stream fre-
quency.
This buffer will drop or repeat an entire block (occurring every 192 sam-
ples) of CUV bits when the two timebases cross a block boundary rather
than drop or repeat individual bits from the block.
Tab l e 2 . KAM-HD - M ULTI Audio Capabilities Summary
Audio Source Audio Type Asynchronous Audio
Allowed
CUVZ Passthrough
Permitted
SRC Bypass
Enabled
Auto Track
Enabled
AES Rear Connector Port Audio Yes Yes1
1 CUVZ Pass Through with asynchronous inputs will cause entire blocks of C, U, and V bits to be periodically skipped or repeated.
Synchronous only Yes or No
Non-Audio No Yes1Must be enabled Disabled
Demultiplexed Audio
Audio Yes Yes1, 2
2 Only when the input video shares the same genlock reference as the module or when the module is in input-timed mode, are the Demultiplexed streams considered
to be synchronous.
Synchronous only2Automatically disabled
when SRC Bypass is
enabled.
Non-Audio No Yes1,2 Must be enabled Disabled
Bypass to AES
Output Ports
Force-flagged as
Asynchronous Mandatory N/A N/A
