THOMSON 32LM051B6 User manual

32’’LCDTVColorMonitor Thomson 32LM051B6
1
Service
Service
Service
Horizontal Frequency
31.5-60kHz
TABLE OF CONTENTS
Description Page Description Page
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE
CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
8.1 Main Board.……….......................................65
8.2 Power Board……..……..............................67
8.3 Tuner Board…...................................70
8.4 Key Board …................….......................71
8.5 IR Board …................….......................71
8.6 DC-DC Board....…………...............................71
8.7 Headphone Board..…..…..........................72
9. Block Diagram.…….........................................73
9.1 Main Board.………………………………..….73
9.2 Power Board…..…....………………….......74
10. Exploded View..……….....................…..75
11. Schematic Diagram………………………...76
11.1 Main Board………..………………………..76
11.2 Power Board.....…...................................90
11.3 Tuner Board...…….......................................90
11.4 Key Board……………….………………….93
Table Of Contents.......……..............................…........1
Revision List.…........................................……......2
1. Monitor Specification..............................………........3
2. Operating Instructions…………………….……….......4
2.1 The Use Of Remote Control..……………...................4
2.2 The Use Of Teletext……..........…...........…...........5
2.3 Front Panel Control Knobs.…............……...............6
2.4 OSD Operations .………........................…............7
2.5 How To Connect ……..............……………............15
3 Input/Output Specification…………..........................19
3.1 Input Signal Connector……..........................19
3.2 RGB Input Signal Timing …….....……......................20
4. Mechanical Instructions…………………..................21
5. Repair Flow Chart ……………………….……….....26
6. White Balance Luminance Adjustment….…........32
7.BOM List..…………………………....….…….....36
8. PCB Layout ………….……………………....….......65

32’’LCDTVColorMonitor Thomson 32LM051B6
2
Revision List
Version Release Date Revision Instructions TPV Model
A00 Jul-05-2006 Initial Release E326MTNBD4TENP

32’’LCDTVColorMonitor Thomson 32LM051B6
3
1. Monitor Specifications
Items Specification
Panel Type 32” CMO V320B1-L01 panel
Driver Element a-si TFT active matrix
Aspect Ratio 16: 9
Pixel Number 1366 x 768
Active Display Area H x V 708.954(H) x 398.592 (V)
Pixel Pitch 0.5190 (H) x 0.5190 (V)
Contrast Ratio 1000:1 (type)
Brightness 550:1 (type)
Response Time 8ms
View Angle (CR≥20) H: 176/V: 176 (CR≥20)
Display colors 16.7M
Lamp Type/Life 60000 hr (type)
LCD Panel
Color Temperature Cool / Warm
Video Inputs CVBS, S-Video, Component, SCART (RGB + Composite),HDMI
Video system NTSC/PAL/SECAM
Audio Output Audio Output: L / R Headphone Mini-jack for stereo (3.5ø)
OSD language (default) English
Table Stand Included
Wall Mount VESA 100 x 100 mm
Power Supply AC100V~240V, 50/60Hz
Power Power Consumption <160W
Operating Tem. + 0 °C ~ + 40 °C
Storage Tem. - 10 °C ~ + 50 °C
Operating humidity 10% ~ 85%
Environment
Storage humidity 5% ~ 85%

32’’LCDTVColorMonitor Thomson 32LM051B6
4
2. Operations Instructions
2.1 The Use Of Remote Control

32’’LCDTVColorMonitor Thomson 32LM051B6
5

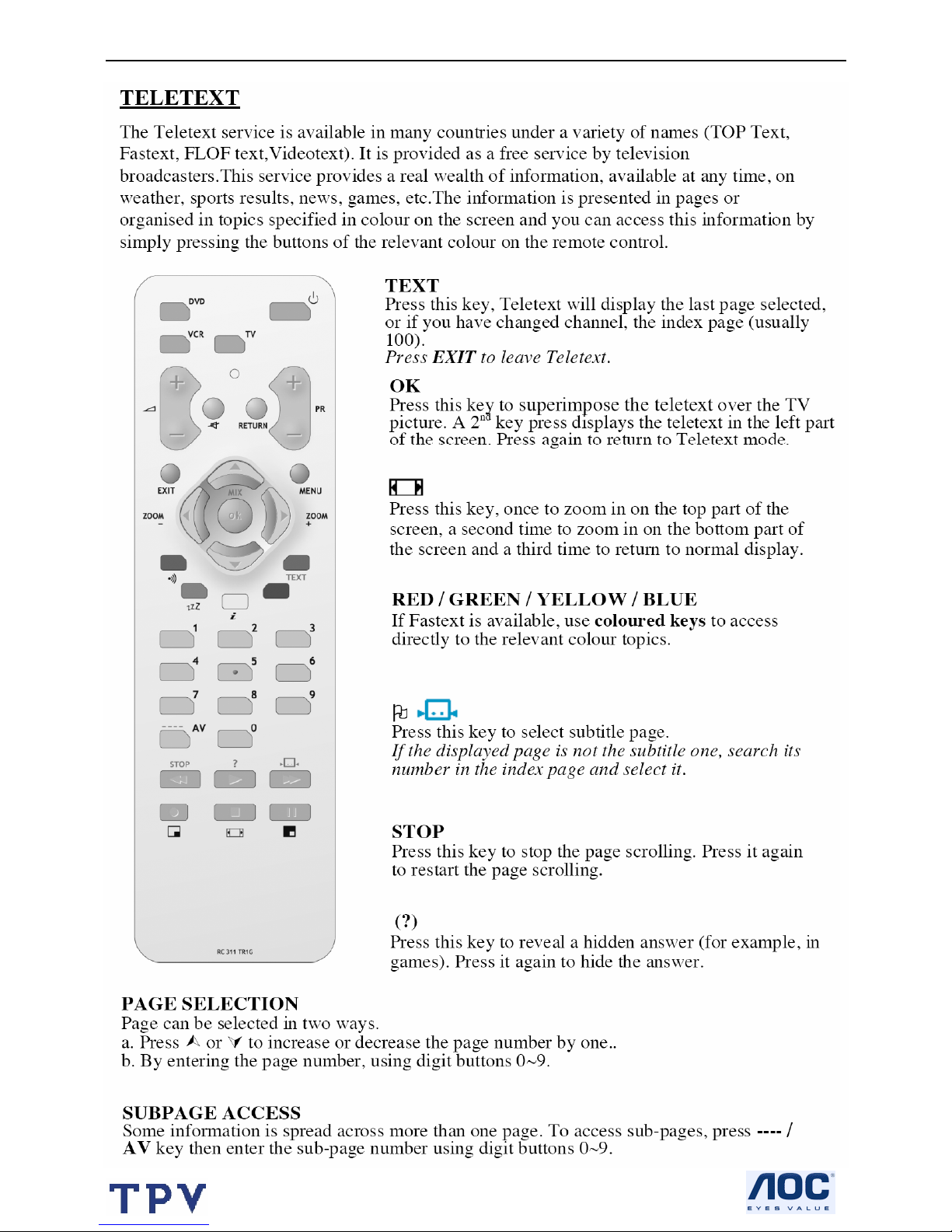

2.2 The Use Of Teletext

32’’LCDTVColorMonitor Thomson 32LM051B6
6
2.3 Front Panel Control Knobs

32’’LCDTVColorMonitor Thomson 32LM051B6
7

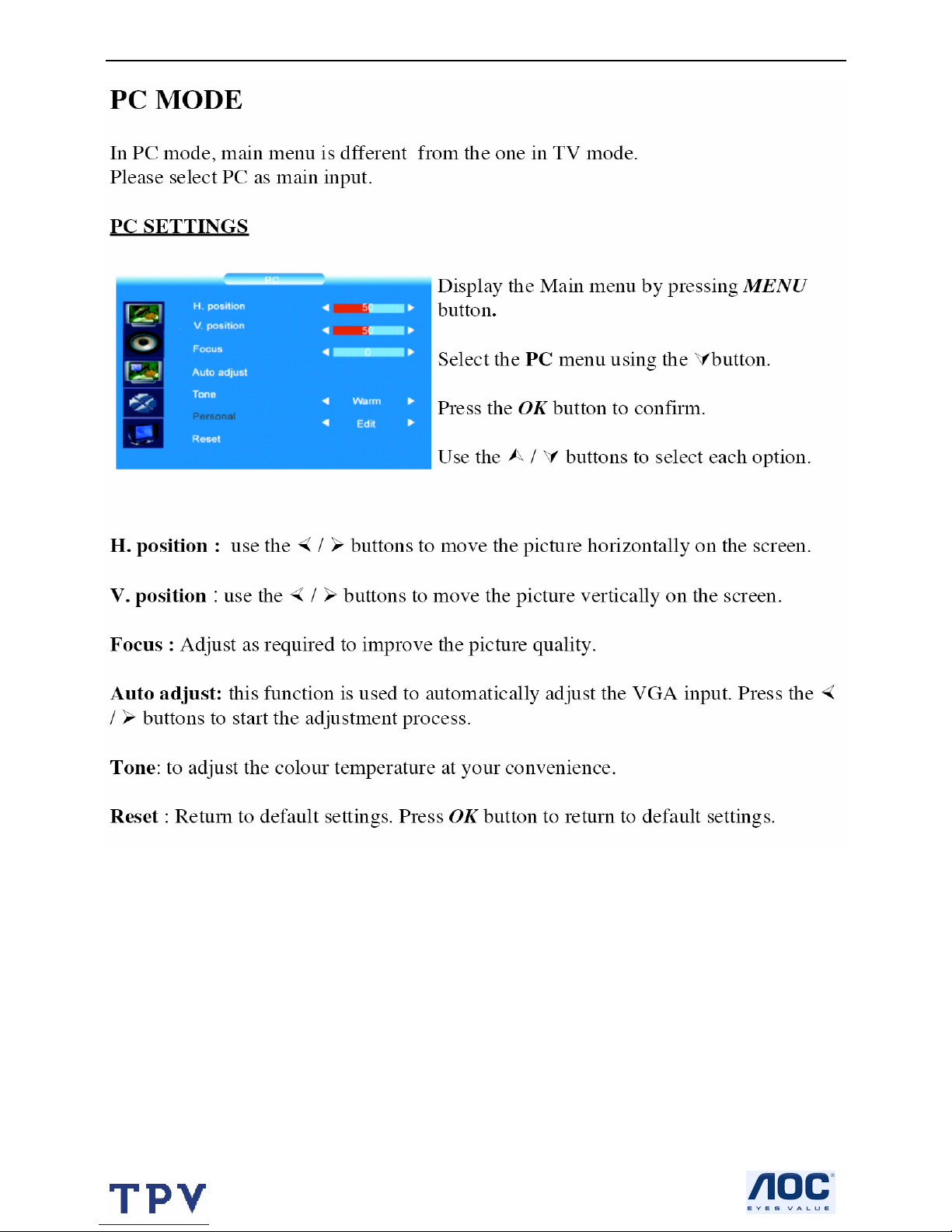

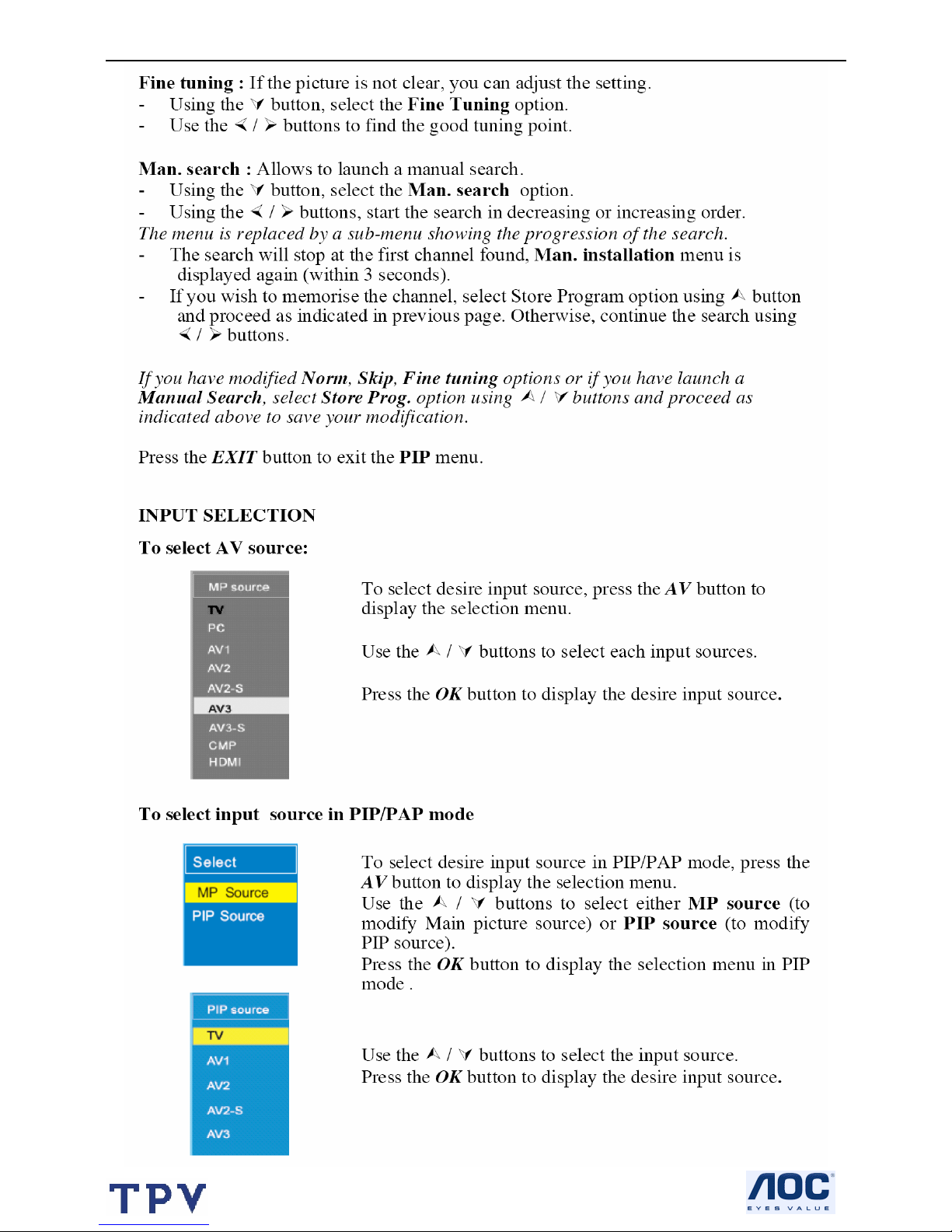

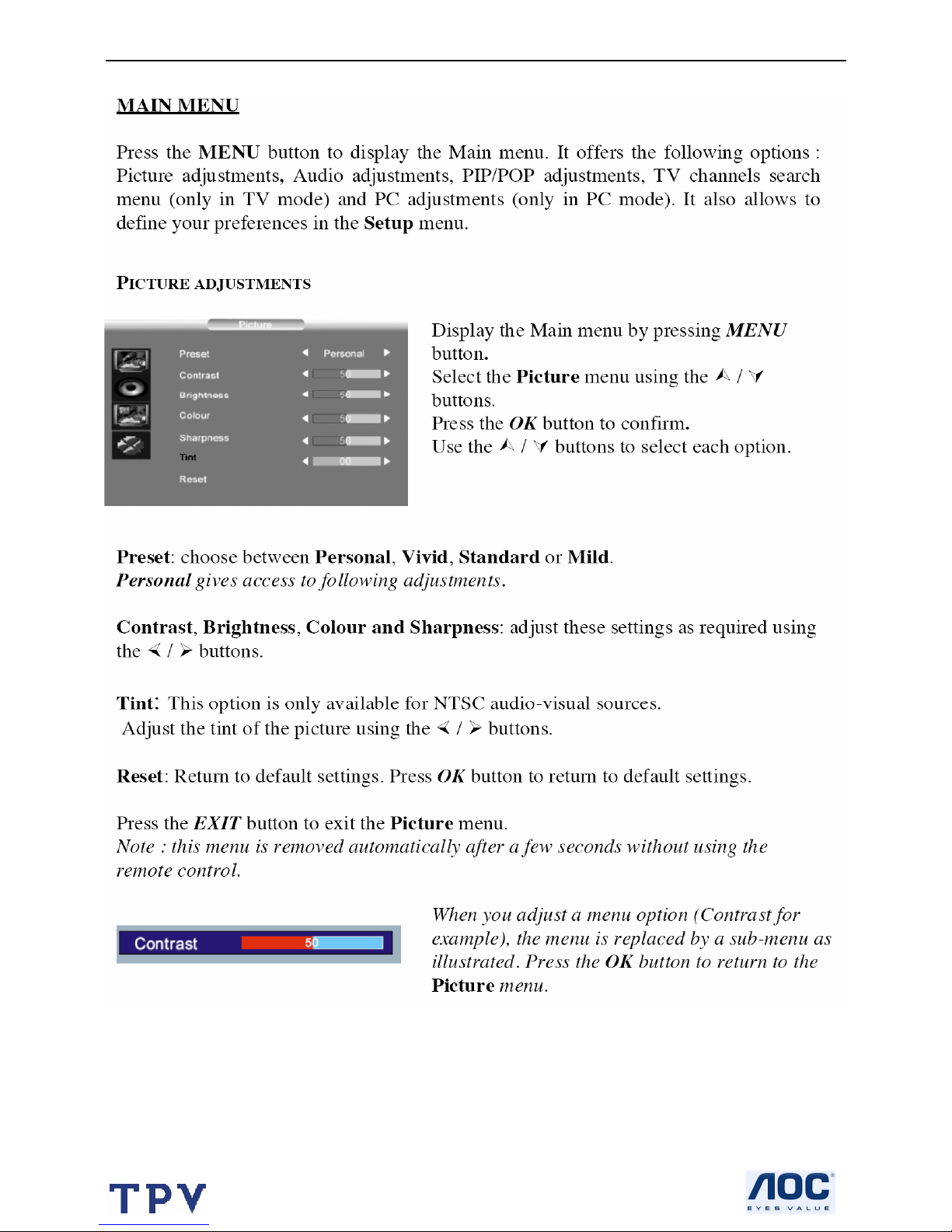

2.4 OSD Operations

32’’LCDTVColorMonitor Thomson 32LM051B6
8

32’’LCDTVColorMonitor Thomson 32LM051B6
9

32’’LCDTVColorMonitor Thomson 32LM051B6
10

32’’LCDTVColorMonitor Thomson 32LM051B6
11

32’’LCDTVColorMonitor Thomson 32LM051B6
12

32’’LCDTVColorMonitor Thomson 32LM051B6
13

32’’LCDTVColorMonitor Thomson 32LM051B6
14

32’’LCDTVColorMonitor Thomson 32LM051B6
15

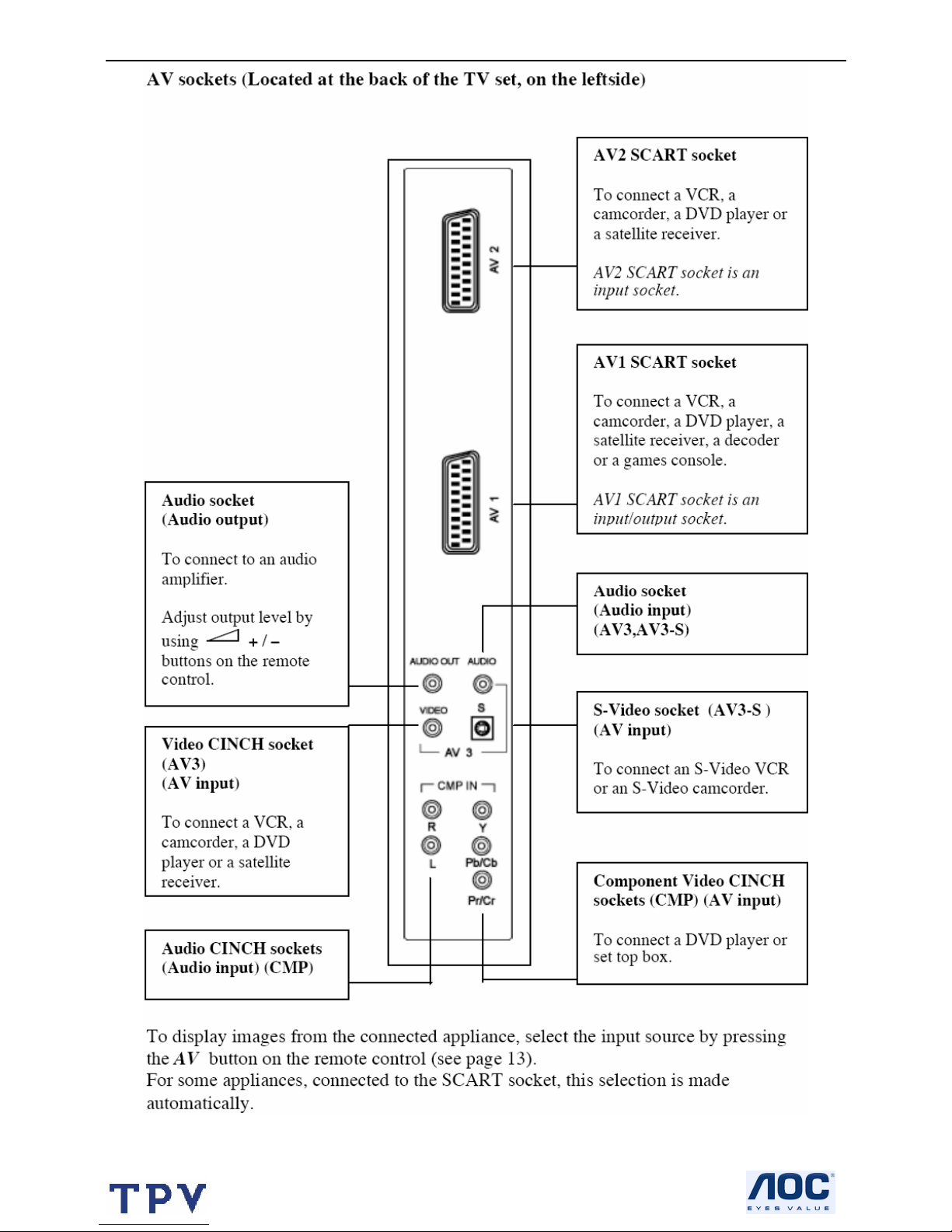

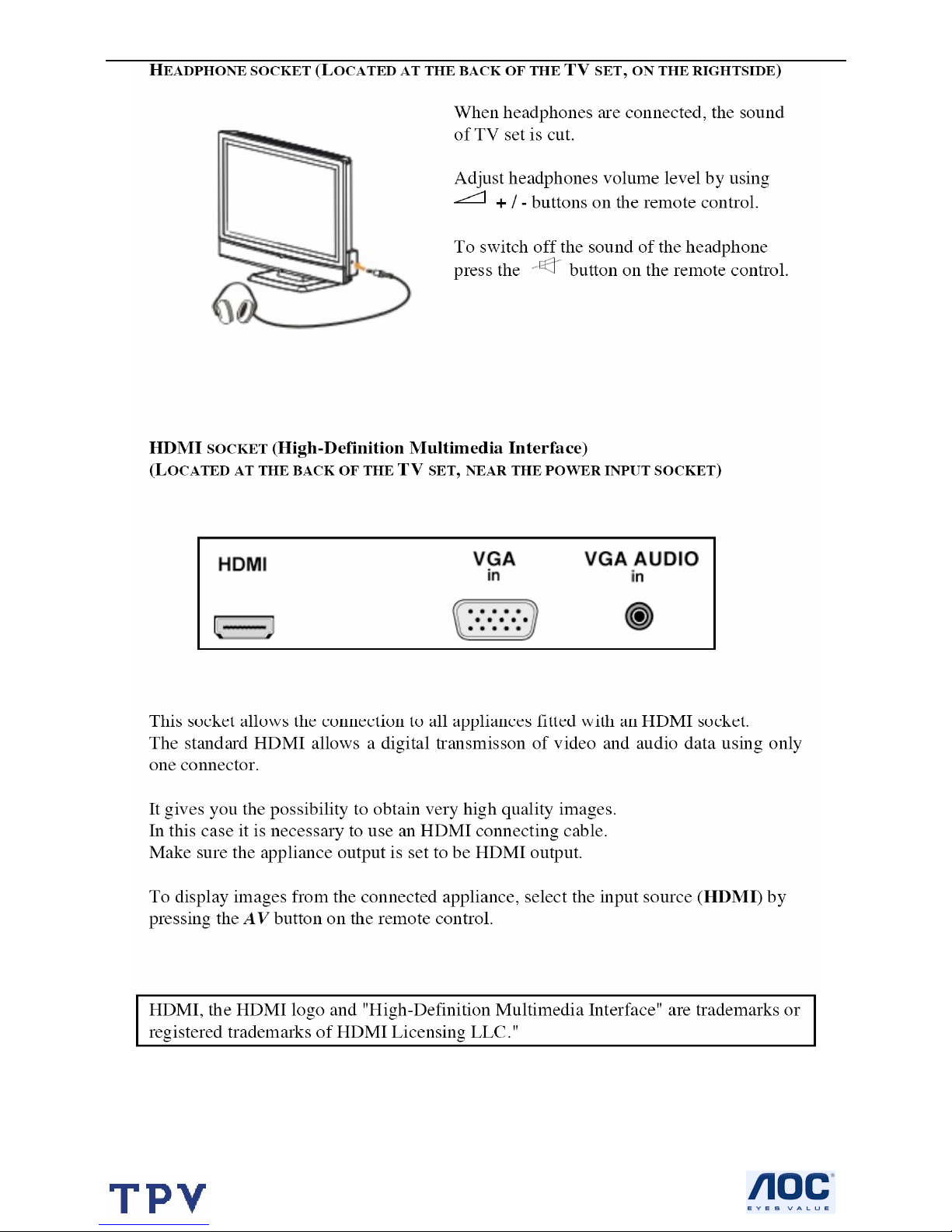

2.5 How To Connect

32’’LCDTVColorMonitor Thomson 32LM051B6
16

32’’LCDTVColorMonitor Thomson 32LM051B6
17

32’’LCDTVColorMonitor Thomson 32LM051B6
18

32’’LCDTVColorMonitor Thomson 32LM051B6
19
3. Input/Output Specification
3.1 Input Signal connector
This procedure gives you instructions for installing and using the LCD TV display.
Lay the display on the desired operation and plug the power cord into a convenient AC outlet. Three-wire power cord
must be shielded and is provided as a safety precaution as it connects the chassis and cabinet to the electrical
conduct ground. If the AC outlet in your location does not have provisions for the grounded type plug, the installer
should attach the proper adapter to ensure a safe ground potential.
Connect the 15-pin D-SUB color display shielded signal cable to your signal system device and lock both screws on
the connector to ensure firm grounding. The connector information is as follow:
1
6
11 15
5
10
15 - Pin Color Display Signal Cable
Pin No. Description
1 Red Video
2 Green Video
3 Blue Video
4 Not Used
5 GROUND
6 Red Ground
7 Green Ground
8 Blue Ground
9 No Pin
10 Sync. Ground
11 Not Used
12 Serial Data for DDC
13 Horizontal Sync.
14 Vertical Sync.
15 Serial Clock for DDC
Apply power to the display by turning the power switch to the "ON" position and allow about ten seconds for Panel
warm-up. The Power-On indicator lights "GREEN" when the display is on.
With proper signals feed to the display, a pattern or data should appear on the screen, adjust the brightness and
contrast to the most pleasing display, or press auto-adjust to get the best picture-quality.
This TV (with PC function) has power saving function following the VESA DPMS. Be sure to connect the signal
cable to the PC.
If your TV requires service, it must be returned with the power cord.

32’’LCDTVColorMonitor Thomson 32LM051B6
20
3.2 RGB Input Signal Timing
Sync Polarity Presence Screen Mode
Dots × Lines Horizontal Frequency
(kHz)
Vertical
Frequency
(Hz) Horizontal Vertical Horizontal Vertical Normal
(4:3) FULL (16:9)
720×400 31.47 70.08 NEG POS YES YES YES YES
640×480 31.50 60.00 NEG NEG YES YES YES YES
640×480 37.50 75.00 NEG NEG YES YES YES YES
640×480 37.86 72.81 NEG NEG YES YES YES YES
800×600 37.90 60.32 NEG NEG YES YES YES YES
800×600 46.90 75.00 NEG NEG YES YES YES YES
800×600 48.08 72.19 NEG NEG YES YES YES YES
1024×768 48.40 60.00 YES YES YES YES YES YES
1280×768 47.7 60 YES YES YES YES YES YES
