THUNDER TIGER TITAN X50 - User manual

INSTRUCTION MANUAL
組裝說明書
INSTRUCTION MANUAL
組裝說明書
This radio control model is not a toy! Before beginning assembly, please read
this manual thoroughly.
本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。
The contents are subject to change without prior notice due to product
improvements and specification changes.
本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原
因，我們將保留產品規格變更權力，不再另行通知使用者。
No.4757
Electric Version . Flybarless Edition

-1-
CONTENTS
INTRODUCTION
INTRO & CAUTION / 簡介與注意事項
OTHER ITEMS REQUIRED / 其餘必須配件
MANUAL FORMAT / 說明書使用方式
ASSEMBLY / 組裝步驟
Main Rotor System / 主旋翼機構組裝
Main Rotor Head Linkage Rod Installation / 主旋翼頭連桿組裝
Tail Boom Bracket Assembly / 尾管固定座組裝
Main Frame / 本體組裝
Landing Skid / 腳架組組裝
Main Gear Set / 主齒輪組裝
Control Arm Set / 控制臂組裝
Tail Rotor System / 尾旋翼機構組裝
Tail Unit / 尾部總成組裝
Servo Installation / 伺服機裝配
Linkage Rod Installation / 連桿組裝
Power Motor Installation / 動力馬達安裝
Electric Device Installation / 電子設備配置
Main Rotor Blade / 主旋翼安裝
SET-UP SECTION / 設定程序說明
Radio System Setup / 遙控系統設定
Swashplate Type Setting / 十字盤模式設定
Electric Device Connection / 電子設備連接說明
Index of Linkage Length / 連桿長度索引
Swashplate & Servo Movement Setting / 十字盤及伺服機動作設定
Tail Control And Gyro Setup / 尾舵控制及陀螺儀控制
Setting Up Data For Your Reference / 參數設定參考
Blade Tracking Adjustment / 主旋翼軌跡調整
Cautions of Li-Po Battery Pack Using / 鋰聚電池使用注意事項
After Flight Checklist / 飛行後的檢查項目
Regular Maintenance / 定期保養事項
SPARE PARTS / 維修零件包
SPARE PARTS LIST / 維修零件包表格
OPTIONAL PARTS / 改裝零件包
OPTIONAL PARTS – FLYBAR EDITION / 改裝零件包-平衡翼旋翼頭
Exploded View / 爆炸圖檢索
2
4
5
6
7
8
9
11
12
13
14
16
17
18
19
20
21
22
22
22
23
23
24
25
26
27
27
27
28
32
39
40
41
Electric Version . Flybarless Edition

-2-
INTRODUCTION / 簡介
Thank you for purchasing the Thunder Tiger Titan X50 R/C helicopter. This new helicopter is the latest
innovation by Thunder Tiger. It has the perfect combination of flying stability and the agility for 3D flying.
This helicopter is an excellent choice for flying enthusiasts like you. For convenient assembly and safe
operation of the helicopter, please read the instructions carefully. Retain the user manual in case you need
it for any information or reference.
感謝您購買雷虎科技Titan X50直昇機產品，本項產品為雷虎科技全新開發機種，兼具高度穩定性與3D飛行特性，是
熱衷引擎直昇機的您不可錯過的選擇。請於使用本產品前詳盡閱讀使用手冊，以利於組裝工作順暢進行與安全操控本
產品。請妥善保存使用說明書，以利後續調整與維修參考用途。
CAUTION / 警告
1. R/C models are not toys. This product is a high-precision flying machine. Possibilities of unexpected
crashes may occur due to electronic interference, incorrect operation, or poor mechanical maintenance.
Although it is a small-sized helicopter, the rotor blades rotate at high speeds, which may cause serious
damage, injury, or death if the model hits people or property. Therefore, extreme caution must be
exercised during operation.
2. Thunder Tiger ensures parts packaged in this product is of the highest quality. However, after assembly
and usage, parts damaged due to wear or misuse will not be replaced under any circumstances. If you
have any questions regarding its operation and repair, Thunder Tigers service agents are able to
provide free technical guidance.
3. This product is only recommended for users ages 16 and up. Because flying a R/C helicopter is difficult,
beginners must receive guidance and supervision from experienced pilots to minimize unexpected danger.
Practice in spacious areas, far away from obstacles such as buildings, trees, electrical towers, or crowds.
4. To decrease the cost of repair and maintenance for beginners, it is recommended to fly the helicopter
with a practice rack and to learn basic flying skills with a computer R/C flying simulator. (Crashes in
simulators are free to repair!)
1. 本項遙控直昇機產品並不是玩具，是一項結構精密、高專業度模型產品，如果未經正確組裝與操控，將可能對操控
者或其他人造成身體傷害。使用者必須了解，若未確實進行飛行前安全檢查或操控不當，而造成人員受傷或物體損
壞，使用者必須負起法律責任。
2. 本產品由高品質零組件組成，雷虎科技對於安裝過程、使用過後..等人為因素造成損壞事件不負損壞賠償之責。如您
需要本產品相關組裝、調整或其他協助，可與雷虎科技全省經銷商聯繫。
3. 本項產品禁止十六歲以下青少年與孩童使用。強烈建議初學者應取得技術支援後再進行飛行，以避免危險發生。請
於空曠地區操控本產品，並避免於建築物、樹木、電塔..等障礙物區域飛行。
4. 建議初學者可安裝練習架或透過電腦模擬軟體練習，可達到實際練習效果與符合經濟效益。
AMA INFORMATION / 特別注意事項
Operating a model helicopter requires a high degree of responsibility and skill. If you are a newcomer to the
hobby, it is best to seek help and guidance from accomplished model helicopter pilots. This will greatly
speed up the learning process and have you flying successfully in a reasonable amount of time. We also
would strongly urge you to join the Academy of Model Aeronautics. The AMA is a non-profit organization
that provides its members with a liability insurance plan as well as monthly magazine entitled Model Aviation.
All AMA charter aircraft clubs require all pilots to hold a current AMA sporting license prior to operation of
their models at club fields. For further information, contact the AMA at:
Academy of Model Aeronautics
5151 East Memorial Drive
Muncie, IN 47302
[phone]
操控遙控直昇機對於飛行安全要求極高，需要高度的負責任態度配合，以及較高的操控技巧。如果您是一位初學者，
建議您必須向當地專業模型經銷商，或是遙控直昇機相關組織以及經驗豐富的玩家尋求相關協助，以獲得您所需要的
訊息以及專業知識。如此可有效協助您縮短學習的時間，更容易學會遙控直昇機的組裝、設定與操控技巧。

-3-
FLIGHT SAFETY CHECKLIST / 飛行前安全確認工作項目
POST FLIGHT INSPECTION / 飛行結束安全檢查事項
CAUTION / 注意事項
1. Make sure that the transmitter battery is fully charged before flying.
2. Make sure all control surfaces are operated properly before flying.
3. Do a range check of the radio before the first flight. The electronic equipment must operate properly
at a range of at least 5 meters (18 ft) even with the transmitter antenna collapsed.
4. Make sure there are no other pilots using the same radio frequency with yours and that there are no
other radio interference on your frequency.
5. Be sure to turn on the transmitter first with the throttle stick in the idle position. Plug the battery into the
ESC last.
6. The main rotor and the tail rotor spin at very high RPM. Make sure nothing can come in contact with
the rotor blades during flight.
7. Always maintain a safe distance from the helicopter during flight.
8. Never fly the helicopter in the rain or in excessive wind conditions.
9. Always operate and fly the helicopter in a safe and responsible manner.
10. Never fly the helicopter over other pilots, spectators, cars or anything that could result in injury or
property damage.
1. 確認接收機與發射機電池，均已確實充電完成。
2. 確認所有操控介面運作順暢。
3. 確認無其他無線電波干擾，且不與其他同好同時使用相同頻率。
4. 確實將油門搖桿放置於低速，再將發射機電源開啟，然後再將電池接上。
5. 確認遙控器發射器與接收機工作正常，將機體放至於距離5公尺外，確認遙控器是否正常，機體控制動作是否正確。
6. 主旋翼與尾旋翼轉速相當高，運轉時須避免任何障礙物與旋翼接觸。
7. 飛行時，需與遙控直升機保持安全距離。
8. 勿於下雨天或是強風的狀態下操控遙控直升機。
9. 請以安全為第一考量，並以高度負責任的態度參與遙控直升機活動。
10. 禁止於人群、車輛..或任何其他障礙物上方飛行遙控直升機，避免意外發生。
1. Inspect the model thoroughly to insure no parts have come loose or become damaged during the flight
and landing. Replace damaged parts and tighten loose screws before flying again.
2. Clean the helicopter body.
3. Lubricate all moving parts to ensure smooth operation for the next flying.
4. Replace any worn ball links and damaged bearings.
5. Store the model in a cool, dry place. Avoid putting it under direct sunlight or near a source of heat.
Following these simple rules will allow you to enjoy the thrill of model helicopter flying for many years.
1. 飛行結束後確認機體所有的零件與螺絲是否有損壞或鬆動，更換損壞零件與確實固定鬆動的螺絲。
2. 機體清潔乾淨。
3. 檢查所有活動零組件是否運作順暢，以利下次飛行。
4. 更換所有鬆動的連桿、接頭，以及損壞的軸承。
5. 將機體存放於陰涼通風處，避免機體放置於陽光直射處或接近熱源。
確實執行上述幾項簡單的步驟，將可確保您的愛機維持數年的壽命！
When the model has crashed, inspect the flybar, rotor shaft and the blade spindle to make sure they are
not bent. If any item is damaged, it must be replaced with a new part to ensure safe operation. Do not
glue any broken or damaged plastic parts. Do not repair broken rotor blades. It is very important to
inspect the motor, speed control and the battery.
Always inspect the following items:
Gears, Ball links, Link rods, Bearings, Main shaft, Flybar, Spindle, Tail boom and support, Fins, Tail rotor
shaft, Belt, Main blades, Tail blades, the Motor, the Speed control and the Battery.
機體一但發生墜落事件，請確實檢查平衡桿、主軸、橫軸是否有彎曲變形，如果有任何的損壞，請立即更換原廠新
的零組件，確認機體操作安全！切勿使用任何接著劑嘗試黏合塑膠零件；請勿使用修復過的主旋翼。馬達、速控器
、電池的安全檢查工作亦相當重要。
發生機體墜落事件後，請確實檢查下列項目：
齒輪組、球頭連桿、連桿頭、軸承、主軸、橫軸、尾軸、平衡桿、平衡片、尾管、尾管支撐架、垂直與水平尾翼、
尾驅動輪、皮帶、主旋翼、尾旋翼、馬達、速控器、電池。

-4-
Screw Driver
各種規格的螺絲起子
Foam
雙面膠帶

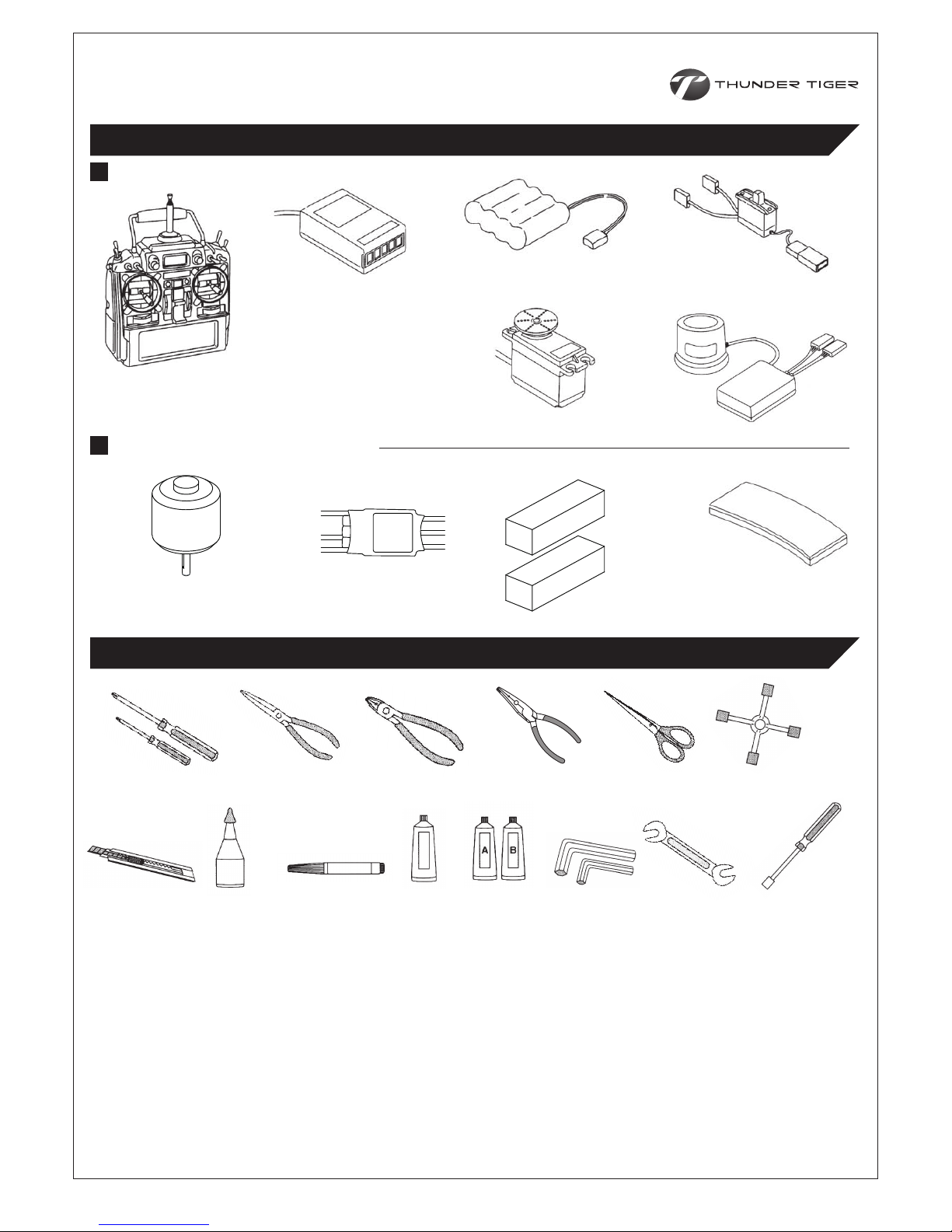

OTHER ITEMS REQUIRED 需自行準備的配件
TOOLS REQUIRED FOR ASSEMBLY 需要準備的工具
Receiver
接收機
Battery 接收機電池
1000mAh
Gyro
發射機（需具備直昇機控制功能
的6動以上遙控器）
陀螺儀
RADIO SET / 遙控系統
POWER SYSTEM / 動力系統
7mm
5.5mm
7mm
8mm
Transmitter (helicopter type
only, 6 or more channels)
Switch Harness
具備充電線的開關組
Servo
伺服機
Hobby Knife
美工刀
C.A Glue
瞬間膠
Grease
潤滑油
Epoxy
環氧樹酯
Hex Wrench
六角板手
Threadlocker
螺絲防鬆膠
Needle Nose Pliers
尖嘴鉗
Wrench
開口板手
5.5mm
Ball Link Pliers
拆連桿頭的專用鉗子
Nipper
斜口鉗
Scissors
剪刀
Metric 4-way Wrench
十字套筒板手
5.5mm
7mm
8mm
10mm
Socket Drivers
套筒螺絲起子
Electric Brushless Motor
無刷馬達
Electronic Speed Controller
速控器 8~12S Li-Po Battery Pack
鋰聚電池組

-5-
Apply C.A Glue
使用快乾膠黏合
Assemble as many times as specified
依指示組裝所需數量
Assemble left and right side the same way
左右側組件相同
Assemble in right order
依標示順序組裝
Drill holes with the specified diameter
依標示尺寸鑽孔
Hint
組裝提示
Must be purchased separately
改裝品需另購
Cut off shaded portion
依標示部分裁切
Ensure smooth, non-binding movement when assembling
確認組件靈活度
Pay close attention here
注意組裝步驟
Cut off excess
裁剪多餘部分
Apply grease
使用潤滑油膏(黃油)
Apply threadlocker
使用螺絲防鬆膠
The parts in the KIT are packed according to each major assembly steps. The part number and quantity are always
shown in the square box on each page. As good practice, only open up the bag that you need for the paticular assembly.
零件均依照組裝步驟包裝，請依照組裝程序，逐一開啟零件包，避免零件遺失。
T22(#262) THREADLOCKER / 螺絲防鬆膠
CA CA GLUE / 快乾膠
Note / 注意
Assembly drawings will contain icons that indicate use of
Threadlocker or CA glue as needed.
Examples of the icons are as right shown:
請依組裝步驟圖示，使用防鬆膠或接著劑。
圖示範例如右：

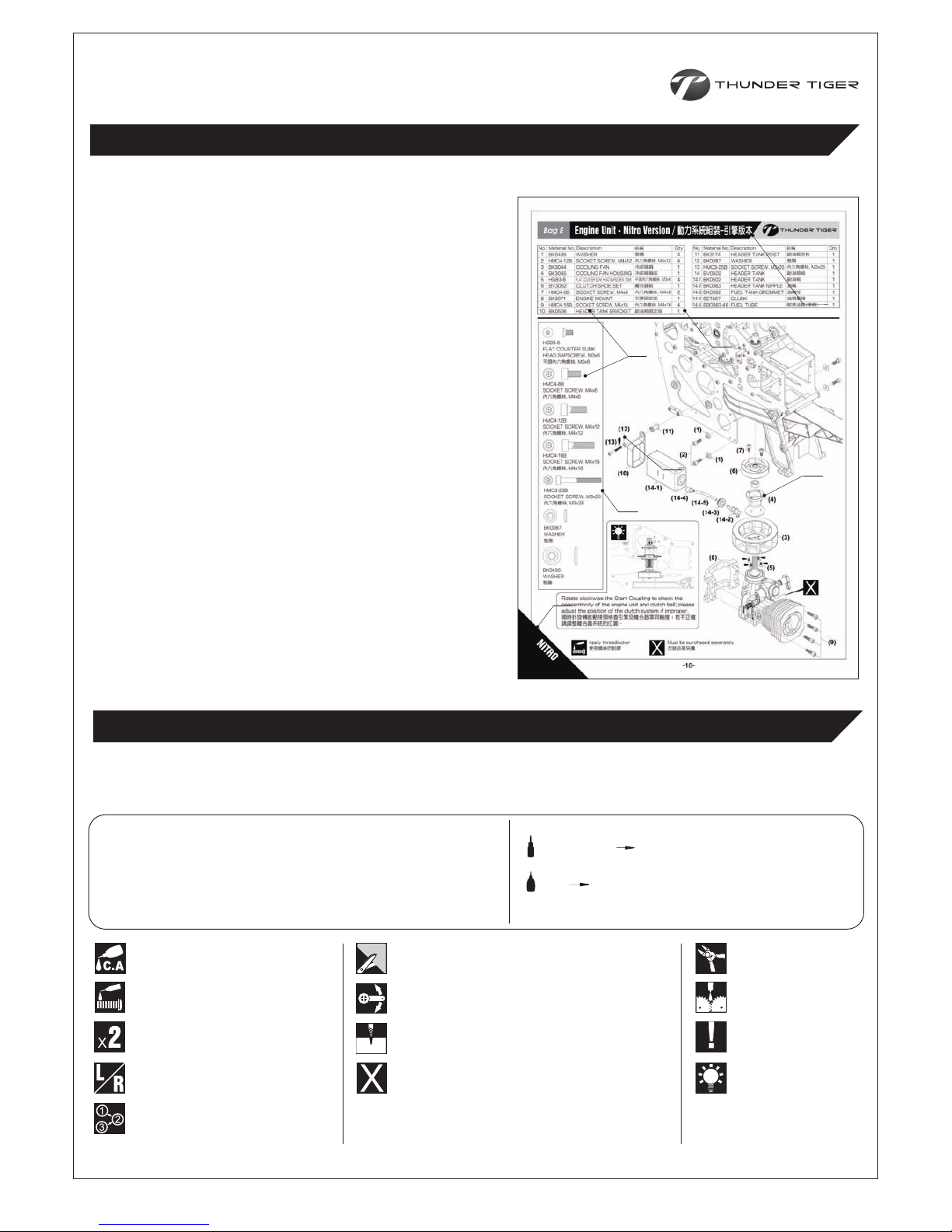

MANUAL FORMAT / 說明書使用方式
SYMBOLS USED THROUGHOUT THE MANUAL / 符號說明
How to read the instruction manual?
說明書導讀
A: Indicates the assembly step number and the parts bags
that are to be assembled.
B: Displays actual size drawings, and part quantities used.
C: All parts, except screws, are identified by its order
numbers. When purchasing spare parts, identify the part
required and cross reference this to the spare parts list in
the end of this maunal, which shows the purchasable
spare parts and the corresponding order numbers.
D: This instruction manual uses several symbols. Pay careful
attention to them during construction. Details are given
at the bottom of each page.
E: If a label marked here indicates the page is the exclusive
assembly steps for a particular model type; please follow
the exclusive instructions according to the model type you
purchased.
A: 顯示組立步驟及需組立之零件包順序。
B: 零件實際對照尺寸及使用數量。
C: 請比對零件形狀以及後附零件料號對照圖示找出需求零件料號。
D: 操作說明符號可更有效協助組裝者使用此說明書，請依說明書符
號指示進行組裝步驟。
E: 出現此標籤表示本頁為特定模型版本之專屬組裝說明，請依您所
購買之版本依說明進行組裝步驟。
Example 說明範例
CB
A
B
E
DC

-6-

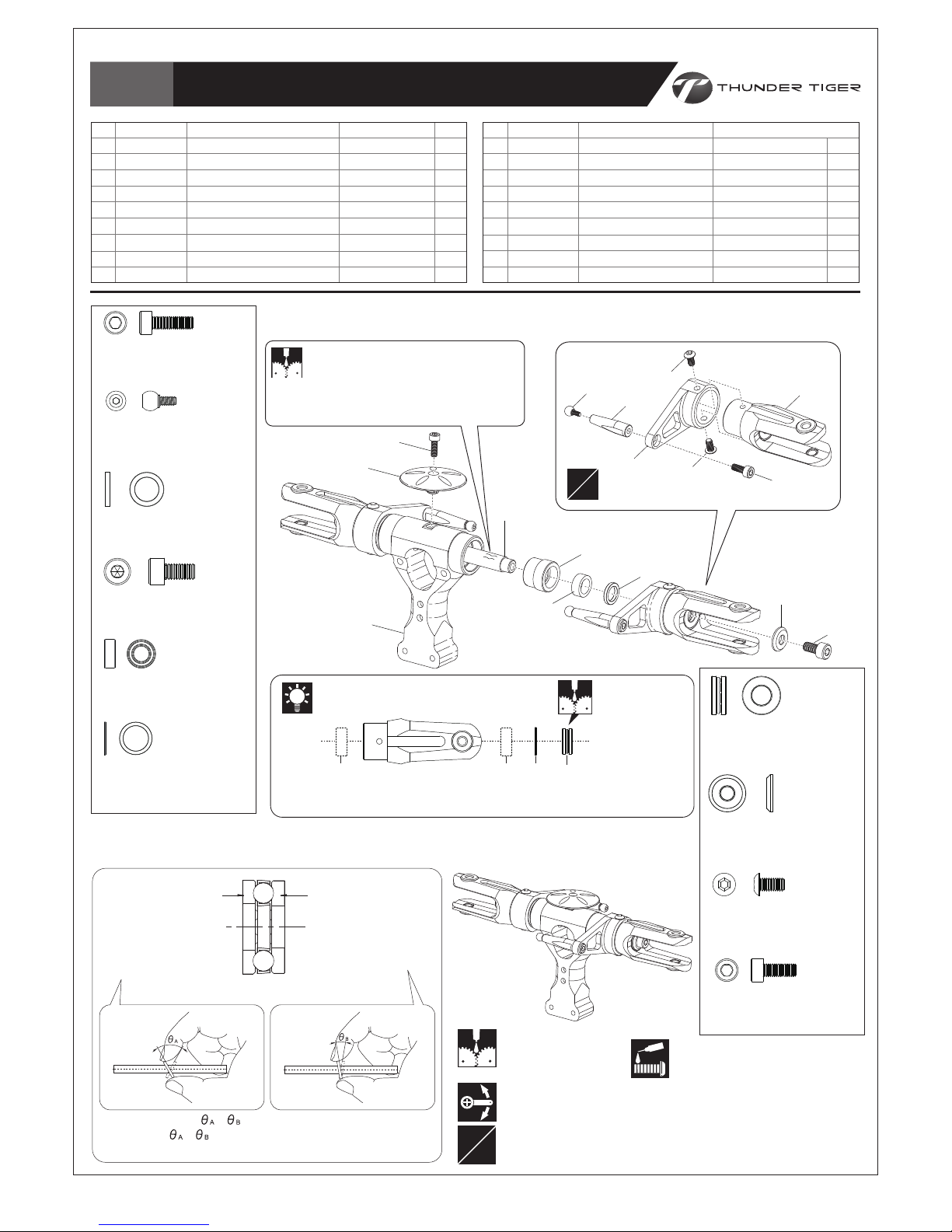

Main Rotor System / 主旋翼機構組裝
Bag A
Large Internal
Diameter
always go toward the
Main Rotor Hub
內徑較大的一側，面向
主旋翼中心座組。（內
側）
Small Internal
Diameter
always go toward the
Blade
內徑較小的一側，面向
主旋翼組（外側）。
HMV1370ZZWY
BEARING,d7xD13xW5
滾珠軸承,d7xD13xW5
BK2216
THRUST WASHER,d10xD13xW0.5
止推墊片,d10xD13xW0.5
HMX0612
THRUST BEARING,d6xD12xW4.5
止推軸承,d6xD12xW4.5
BK2525
FLAP COLLAR,d7xD10xW1.5
避震軸環,d7xD10xW1.5
HMC4-8B
SOCKET SCREW M4×8
內六角螺絲M4×8
Apply threadlocker
使用螺絲防鬆膠
Completed View
組裝完成
Assemble left and right side the same way
左右側組件相同
LR
Ensure smooth, non-binding movement when assembling
確認組件靈活度
Checking Tips: >
轉動角度： >
（轉動角度大者，內孔大；轉動角度小者，內孔小）
No.
1
2
3
4
5
6
7
8
9
Qty
2
2
2
2
2
4
2
2
1
Material No. Description 名稱 No.
10
11
12
13
14
15
16
17
18
QtyMaterial No. Description 名稱
(10)
(18)
(17)
(16)
(9)
(11) (13)
(14)
(6) (1)
(5) (3)
(2) (6) (4)
Diagram for Thrust Bearing Assembly
止推軸承安裝示意圖
(12)
(7)(15)(15) (8)
Apply grease
使用潤滑油膏(黃油)
BV2574
BK2575
BK2576
HMC3-8B
BK0649-1
HSA3-6
BK2216
HMX0612
BK2214
BK2573
BK2572
BK2525
BK0435
HMC4-8B
HMV1370ZZWY
BK2510
BK2182
HMC25-8B
金屬旋翼轉座組
無平衡翼金屬轉座擺臂
無平衡翼金屬連接座
內六角螺絲, M3×8
內六角連接頭螺絲(A)
半圓頭內六角螺絲, M3x6
止推墊片, d10xD13xW0.5
止推軸承,d6xD12xW4.5
強化固定軸(D7)
外避震墊圈, 7mm
內避震墊圈,7mm
避震軸環, d7xD10xW1.5
墊圈, d4xD11xW1.7
內六角螺絲, M4×8
滾珠軸承, d7xD13xW5
金屬主旋翼固定座
金屬旋翼頭制動器
內六角螺絲, M2.5×8
METAL MAIN ROTOR GRIP SET
FL METAL ROTOR GRIP LEVER
FL METAL ROTOR GRIP POST
SOCKET SCREW, M3×8
LINKAGE BALL(A)
BUTTON HEAD SOCKET SCREW, M3X6
THRUST WASHER, d10xD13xW0.5
THRUST BEARING,d6xD12xW4.5
HARDENED FEATHERING SHAFT
OUTER DAMPER, 7mm
INNER DAMPER, 7mm
FLAP COLLAR, d7xD10xW1.5
WASHER, d4xD11xW1.7
SOCKET SCREW, M4×8
BEARING, d7xD13xW5
METAL MAIN ROTOR HUB
METAL HEAD BUTTON
SOCKET SCREW, M2.5×8
2
2
2
2
2
4
1
1
1
Assemble the main rotor pitch housing as drawing
主旋翼轉座組裝示意圖
The bearings (#15) come with the grips which had been assembled by Factory.
主旋翼夾座內軸承 (#15) 已由原廠壓配完成。
HMC3-10B
SOCKET SCREW,M3x10
內六角螺絲,M3x10
HMC25-8B
SOCKET SCREW,M2.5x8
內六角螺絲,M2.5x8
BK0649-1
LINKAGE BALL(A)
內六角連接頭螺絲(A)
HSA3-6
BUTTON HEAD SOCKET SCREW,M3x6
半圓頭內六角螺絲,M3x6
BK0435
WASHER,d4xD11xW1.7
墊圈,d4xD11xW1.7
Secure all screws shown on this page with a drop of thredlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
Apply some amount of silicon oil or
Vaseline on the Spindle for easy
assembly.
在橫軸上塗抹此許矽膠油脂或凡士林可
使組裝更為容易。
LR

-7-
2
2
2
2
2
2
1
1
1
1
2
1
1
2
2
4
2
2
2
Main Rotor Head Linkage Rod Installation / 主旋翼頭連桿組裝
Bag A
76
40
(A)x2
(6)
(7)
(7)
95mm
No.
11
12
13
14
15
16
17
18
19
QtyMaterial No. Description 名稱
HMV6800ZZY
BEARING,d10xD19xW5
滾珠軸承,d10xD19xW5
HME4-3B
SET SCREW,M4x3
無頭內六角螺絲,M4x3
BK1925
BALL LINK
單頭連接桿
Scale=1:1 (unit:mm)
Apply threadlocker
使用螺絲防鬆膠
BK0088
BK0171
HMS15
BK0016-1
BK0616
HMM3Z
BV2188A
BK2209
BK2277
WASHER, d3xD5xW0.5
PIN
E RING
WASHOUT LINKAGE
SOCKET SCREW, M3x20
NYLON NUT, M3
METAL SWASHPLATE
SWASHPLATE CONTROL ROD
HARDENED MAIN SHAFT
墊片, d3xD5xW0.5
插銷
E型扣環
連接座
內六角螺絲(半牙), M3x20
止鬆螺帽,M3
金屬十字盤組
十字盤穩定桿
強化主軸
No.
1
2
3
4
5
6
7
8
9
10
QtyMaterial No. Description 名稱
BK2236
BK2219
HMV6800ZZY
BK2206
HME4-3B
BK2596
BK1925
HSA3-14
BK0077
BV2508
UPPER BRG
FRAME SPACER
BEARING, d10xD19xW5
MAIN SHAFT LOCK RING
SET SCREW, M4x3
LINKAGE ROD, 52L
BALL LINK
BUTTON HEAD SOCKET SCREW, M3x14
COLLAR, d3xD4xW6
FB Metal CONTROL LEVER SET
上軸承座
六角連接支柱
滾珠軸承, d10xD19xW5
止檔圈
無頭內六角螺絲, M4x3
連接桿, 52L
單頭連接桿
半圓頭內六角螺絲, M3x14
軸環, d3xD4xW6
無平衡翼金屬控制搖臂組
The length may vary when using different servos, please re-adjust the length as actual condition.
搭配不同品牌伺服機時，連桿長度或有不同，調機時，請再依實際狀況進行微調。
Secure all screws shown on this page with a drop of thredlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
HMS15
E RING
E型扣環
HSA3-14
BUTTON HEAD SOCKET SCREW,M3x14
半圓頭內六角螺絲,M3x14
BK0077
COLLAR,d3xD4xW6
軸環,d3xD4xW6
BK0088
WASHER,d3xD5xW0.5
墊片,d3xD5xW0.5
BK0616
SOCKET SCREW, M3x20
內六角螺絲(半牙), M3x20
HMM3Z
NYLON NUT, M3
止鬆螺帽, M3
BK0171
PIN
插銷
(A)
(7)
(6)
(1)
(2) (3) (4)
(5)
(5)
(8)
(9)
(10) (11)
(15)
(15)
(16)
(17)
(18)
(19)
(12)
(13)
(14)
The distance
form the Lock
Ring to the end of the Main Shaft is
about 95.0 mm.
The actual position may need to be
adjusted after mounting the head into
the frames to eliminate the play,
therefore, do not secure the screw #5
tightly at this step.
主軸末端至止擋圈距離約為95.0 公釐。
當旋翼頭安裝至側板時，實際位置可能需調
整，此步驟可暫不鎖緊螺絲#5。

-8-

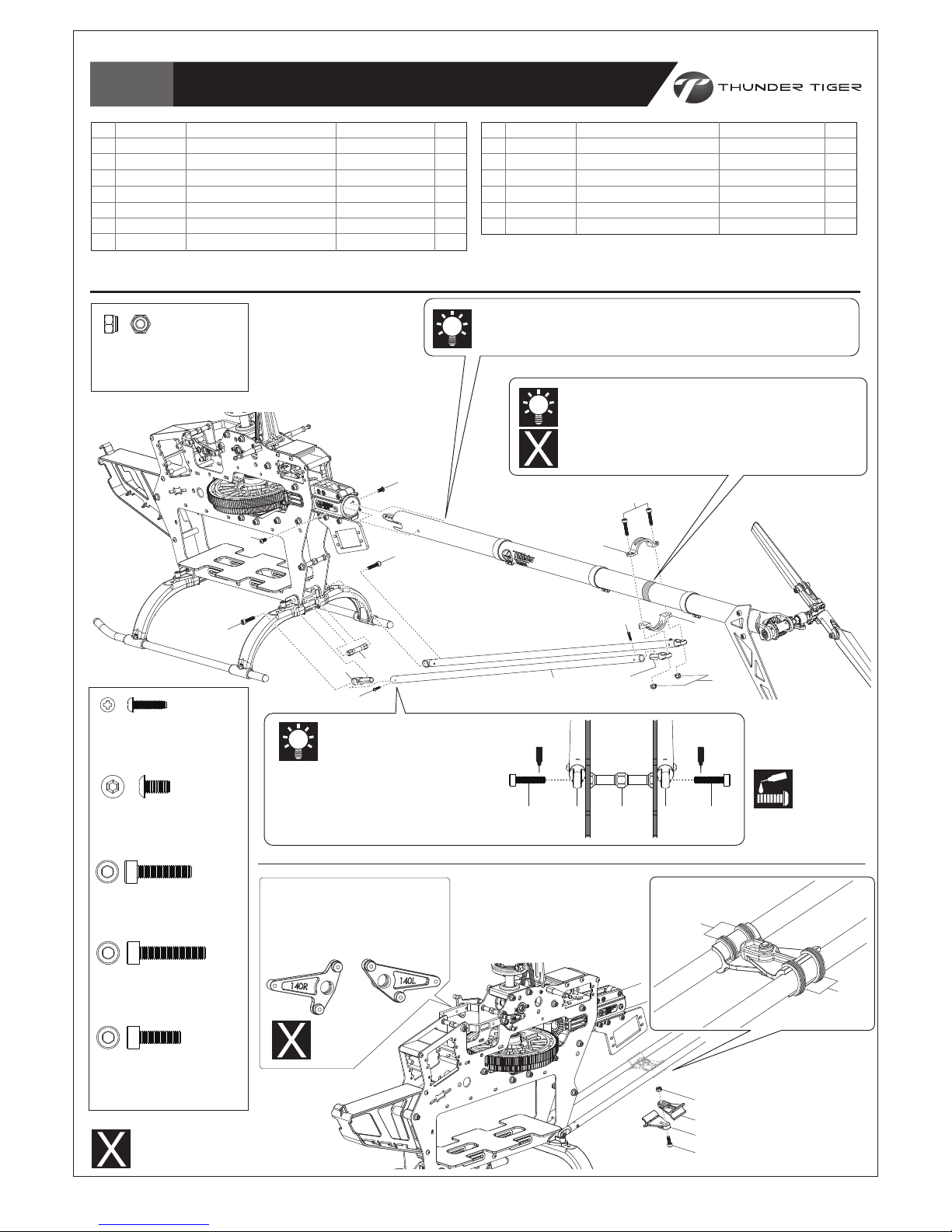

Tail Boom Bracket Assembly / 尾管固定座組裝
Bag B
No.
1
2
3
4
5
6
7
8
9
QtyMaterial No. Description 名稱 No.
10
11
12
13
14
15
16
17
QtyMaterial No. Description 名稱
Assemble the Tail Boom Bracket
as drawing. Secure the Screws
but do not tighten at this step.
參考圖示組裝尾管固定座，螺絲只需
稍事固定，暫無需鎖緊。
HMC3-20B
SOCKET SCREW,M3x20
內六角螺絲,M3x20
HMM3Z
NYLON NUT,M3
止鬆螺帽,M3
BK2509
WASHER, d12xD14.5xW0.2
墊片, d12xD14.5xW0.2
(5)
(5)
(5)
(17)
(16)
(4)
(1)
(13)
(14)
(9) (11)
(12)
(15)
(6)
(7)
(10)
(9)
(8)
Completed View
組裝完成
(2)
(3)
(3)
BK2531
BK2532
BK2219
HMC3-20B
HMM3Z
BV2269
BK2268
BK2509
BV2265
BK2583
BK2267
BK2506
BK2554
BD7143
HMY2-12
BK0539-1
HMC3-25B
尾管固定座(左)
尾管固定座(右)
六角連接支柱
內六角螺絲, M3x20
止鬆螺帽, M3
傘齒輪固定座組
傘齒輪B-25T
墊片, d12xD14.5xW0.2
軸傳軸承座組
軸傳尾驅動輪-22T
傘齒輪 A-25T
軸傳驅動軸
軸套
傳動軸固定螺絲(長)
軸承滾針, d2x12
伺服機固定板
內六角螺絲, M3x25
TAIL DRIVE GEAR-22T
TAIL GEAR-A
TAIL DRIVE GEAR SHAFT
COLLAR
FIXED SCREW
PIN, d2x12
SERVO MOUNT
SOCKET SCREW, M3x25
TAIL BOOM BRACKET-L
TAIL BOOM BRACKET-R
FRAME SPACER
SOCKET SCREW, M3x20
NYLON NUT, M3
TAIL GEAR MOUNT SET
TAIL GEAR-B
WASHER, d12xD14.5xW0.2
BEARING BLOCK SET
1
1
4
3
6
1
1
2
2
1
1
1
1
1
1
1
3
HMC3-25B
SOCKET SCREW,M3x25
內六角螺絲,M3x25
BD7143
FIXED SCREW
傳動軸固定螺絲(長)
HMY2-12
PIN, d2x12
軸承滾針, d2x12
Check the mesh of Gears (#7&
#10) after this step accomplished,
if the mesh is too much play, please
add the Washers (#8) to eliminate
the play for a proper mesh.
完成尾管固定座組裝步驗後，請檢查齒
輪間隙 (#7& #10) ，若間隙過大，請
加裝所附墊片 (#8) 進行調整，以獲得
適當的齒輪間隙。

-9-
Main Frame / 本體組裝
Bag C+D
HMC2-4B
內六角螺絲,M2x4
SOCKET SCREW,M2x4
No.
1
2
3
QtyMaterial No. Description 名稱 No.
4
5
QtyMaterial No. Description 名稱
(4)
(2)
(1)
(3)
(3)
(5)
(2)
(1)
Completed View
組裝完成
Left Frame / 左側板
Right Frame / 右側板
Completed View
組裝完成
Apply threadlocker
使用螺絲防鬆膠
BK2255
HMC2-4B
BK2551
BV2238
BV2237
機身側板
內六角螺絲,M2x4
橡膠墊圈
升降舵墊片座組(左)
升降舵墊片座組(右)
ELEVATOR WASHER MOUNT SET(L)
ELEVATOR WASHER MOUNT SET(R)
SIDE FRAME
SOCKET SCREW,M2x4
RUBBER GROMMETS
2
4
4
1
1
(3)
(3)
Must be purchased separately
改裝品需另購

-10-

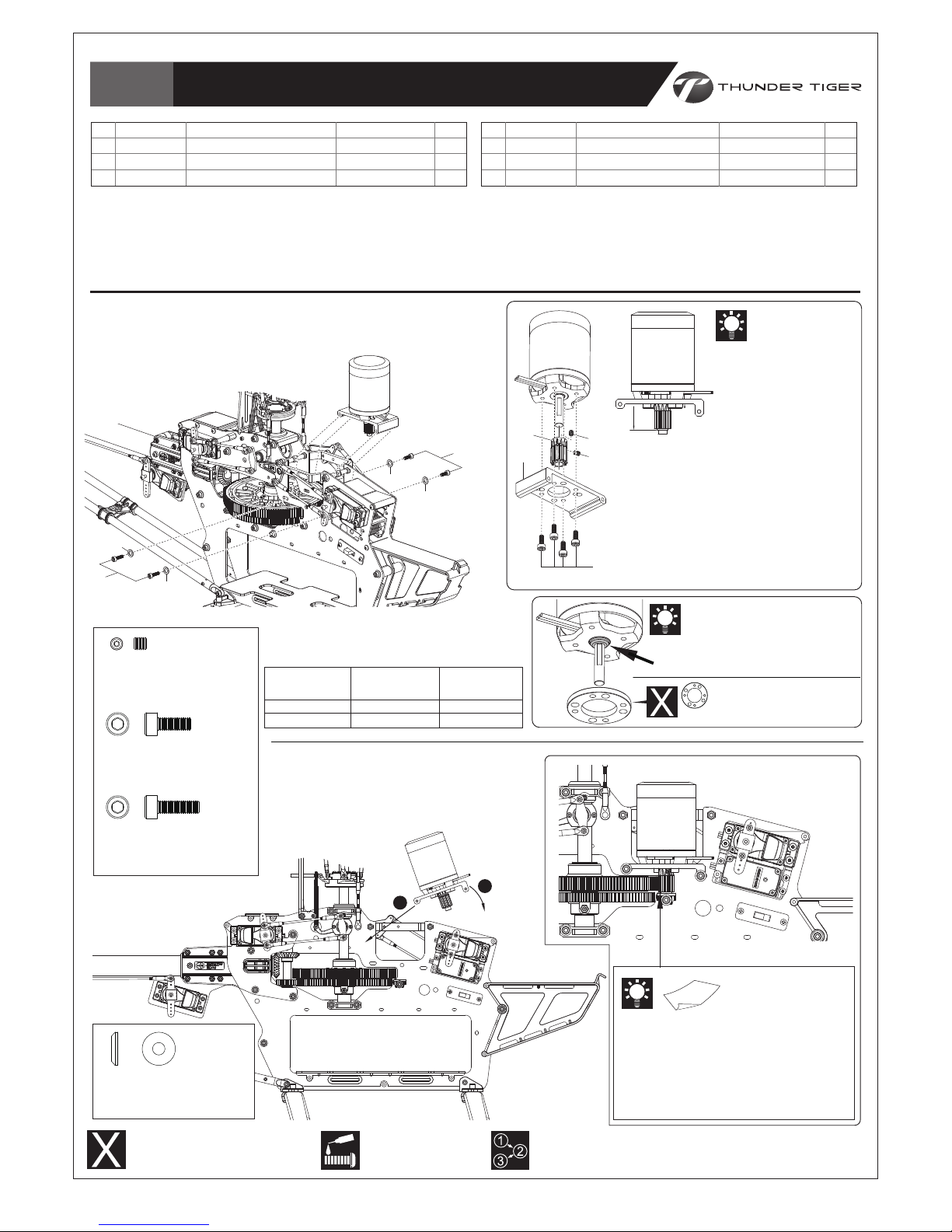

Main Frame / 本體組裝
Bag D
BK0087
WASHER,d3xD8xW1.4
墊片,d3xD8xW1.4
HMC3-10B
SOCKET SCREW,M3x10
內六角螺絲,M3x10
HNX3-12B
S.B.H SELF TAPPING SCREW
半圓頭內六角自攻螺絲
Apply threadlocker
使用螺絲防鬆膠
HMC6800ZZY
BEARING, d10xD19xW5
滾珠軸承, d10xD19xW5
No.
1
2
3
4
5
QtyMaterial No. Description 名稱 No.
6
7
8
9
10
QtyMaterial No. Description 名稱
(2)
(1)
(7)
(7)
(5)
(7)
(9)
(10)
(8)
(3)
(3)
BK2225
HMV6800ZZY
BK2219
BV2262
BK2270
BK2273
HNX3-12B
HMC3-10B
BK0087
BK2259
下軸承座
滾珠軸承, d10xD19xW5
六角連接支柱
馬達下座組
接收機座
控制搖臂座
半圓頭內六角自攻螺絲
內六角螺絲, M3x10
墊片, d3xD8xW1.4
伺服機座B
LOWER BRG
BEARING, d10xD19xW5
FRAME SPACER
LOWER MOTOR MOUNT SET
RECEIVER TRAY
CONTROL ARM TRAY
S.B.H SELF TAPPING SCREW
SOCKET SCREW,M3x10
WASHER,d3xD8xW1.4
SERVO FRAME B
1
1
6
1
1
2
10
22
18
1
(3)
(3) (3)
(4)
(6)
Completed View
組裝完成
(7)
(3)
(8)
(8)
(9) (3)
(7)
(6)
(7)
(7)
(7)
(7)
Secure all screws shown on this page with a drop of thredlocker except the screws #7.
除螺絲＃7之外，本頁顯示之螺絲請使用適量防鬆膠鎖固。

-11-
BK0023
BK0084
BK2514
HME3-3B
HME3-8B
BK2571
BK0649-1
BK2515
HMC3-10B
BK2261
BK0064T
BK0065
HME4-5B
HMC3-14B
BK2258
BK2274
BK2253
HNX3-12B
升降舵連接座
固定銷,D2x22.8
金屬升降舵控制臂
無頭內六角螺絲,M3x3
無頭內六角螺絲,M3x8
無平衡翼升降舵推拉桿, 4757
內六角連接頭螺絲(A)
控制臂軸環,d3xD5xW4.2
內六角螺絲,M3x10
腳架
底座圓管
圓管塞
無頭內六角螺絲,M4x5
內六角螺絲,M3x14
底盤
電池座
六角支柱
半圓頭內六角自攻螺絲
ELEVATOR CONTROL ARM LINK
PIN ,D2x22.8
METAL ELEVATOR CONTROL ARM
SET SCREW.M3x3
SET SCREW,M3x8
FL ELEVATOR LEVER ROD, 4757
LINKAGE BALL(A)
COLLAR,d3xD5xW4.2
SOCKET SCREW,M3x10
LANDING SKID
SKID PIPE
SKID PIPE END CAP
SET SCREW,M4x5
SOCKET SCREW,M3x14
BOTTOM FRAME
BATTERY TRAY
FRAME SPACER
S.B.H SELF TAPPING SCREW
1
1
1
1
1
1
2
1
3
2
2
4
4
4
1
1
1
6

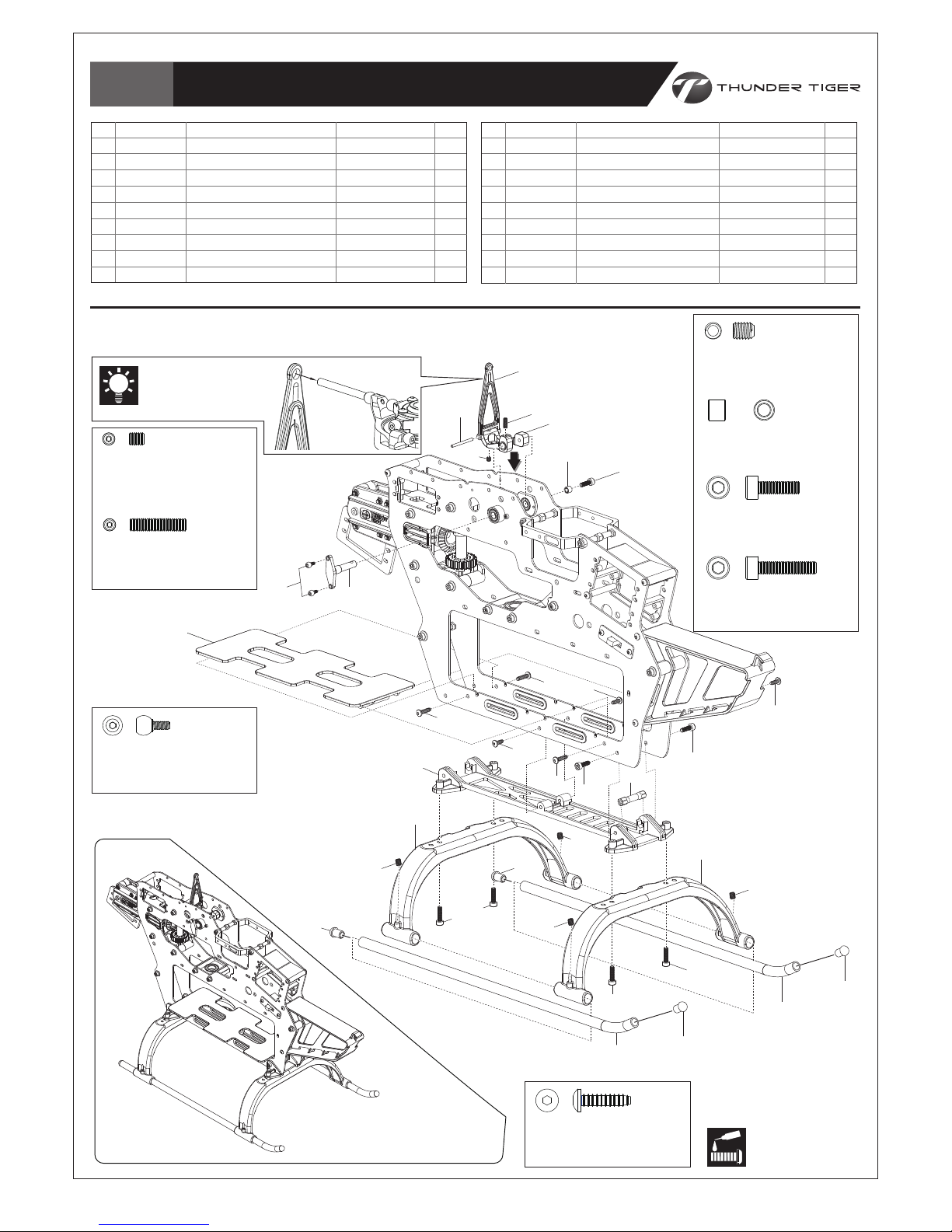

Landing Skid / 腳架組組裝
Bag E
HME3-3B
SET SCREW.M3x3
無頭內六角螺絲,M3x3
HME4-5B
SET SCREW,M4x5
無頭內六角螺絲,M4x5
HME3-8B
SET SCREW,M3x8
無頭內六角螺絲,M3x8
BK0649-1
LINKAGE BALL(A)
內六角連接頭螺絲(A)
BK2515
COLLAR,d3xD5xW4.2
控制臂軸環,d3xD5xW4.2
HMC3-10B
SOCKET SCREW,M3x10
內六角螺絲,M3x10
Apply threadlocker
使用螺絲防鬆膠
HMC3-14B
SOCKET SCREW,M3x14
內六角螺絲,M3x14
The larger hole goes toward
the swashplate.
較大孔面朝十字盤
HNX3-12B
S.B.H SELF TAPPING SCREW
半圓頭內六角自攻螺絲
(16)
(18)
(9)
(18)
(18)
(18) (9)
(17)
(15)
(18) (18)
No.
1
2
3
4
5
6
7
8
9
QtyMaterial No. Description 名稱 No.
10
11
12
13
14
15
16
17
18
QtyMaterial No. Description 名稱
Completed View
組裝完成
(3)
(9)
(7)
(13)
(13)
(11) (12)
(12)
(12)
(12)
(13)
(13)
(10)
(10)
(14)
(14)
(14)
(5)
(1)
(2)
(8)
(11)
(6)
(4)
Secure all screws shown on this page with a drop of thredlocker except the screws #13, 14 & 18.
除螺絲＃13, 14及18之外，本頁顯示之螺絲請使用適量防鬆膠鎖固。

-12-
No.
1
2
3
4
5
6
QtyMaterial No. Description 名稱
(1)
(2)
(3)
(4) (4)
(5)
(6)
Apply threadlocker
使用螺絲防鬆膠
BK2282
BV2281
BK2581
HSA3-8
BK2524
BK2582
單向軸套
單向離合組
主齒輪, 135T
半圓頭內六角螺絲,M3x8
主齒輪墊片
軸傳尾驅動主齒,100T
ONE WAY BEARING SHAFT
ONE WAY CLUTCH HOUSING
MAIN GEAR, 135T
BUTTON HEAD SOCKET SCREW,M3x8
MAIN GEAR WASHER
AUTOROTATION TAIL DRIVE PULLEY,100T
1
1
1
4
1
1
BV2281
Main Gear Set / 主齒輪組裝
Bag F
HSA3-8
BUTTON HEAD SOCKET SCREW,M3x8
半圓頭內六角螺絲,M3x8
BK2524
MAIN GEAR WASHER,d14.2xD19xW0.5
主齒輪墊片,d14.2xD19xW0.5
Note the chamfer
should point up.
注意有倒角端朝上
HMC3-10B
SOCKET SCREW,M3x10
內六角螺絲,M3x10
BK0087
WASHER,d3xD8xW1.4
墊片,d3xD8xW1.4
BK1197
MAIN SHAFT BOLT,M3x20
內六角半牙螺絲,M3x20
BK2290
COLLAR,d10xD14xW9
軸環,d10xD14xW9
HMM3Z
NYLON NUT,M3
止鬆螺帽,M3
No.
7
8
9
10
11
QtyMaterial No. Description 名稱
1. Insert the Main Shaft into Main Gear Set, Main Gear Washer & Lower Bearing Block.
2. Line up the holes of the Autorotation Tail Drive Gear, One Way Bearing Shaft & Main
Shaft, and then insert the Socket Screw to fix them with a Nut. Add a drop of threadlocker
when securing, but do not over tighten.
3. Adjust the position of Lock Ring to eliminate play of the Main Shaft, and then secure the
set screws tightly with a drop of threadlock.
1. 將主軸依序穿過主齒輪組、主齒輪墊片及下軸承座。
2. 對正尾驅動齒、單向軸套及主軸上孔位後，穿入內六角螺絲並加上螺帽，並使用適量防鬆劑固定。
注意! 請勿過度緊迫螺絲。
3. 調整止擋環位置以消除主軸間隙後，著以適量防鬆膠鎖固。
(7)
(7)
(8)
(9)
(10) (11)
(8)
HMC3-10B
BK0087
BK1197
BK2290
HMM3Z
內六角螺絲,M3x10
墊片,d3xD8xW1.4
內六角半牙螺絲,M3x20
軸環
止鬆螺帽,M3
SOCKET SCREW,M3x10
WASHER,d3xD8xW1.4
MAIN SHAFT BOLT,M3x20
COLLAR
NYLON NUT,M3
4
4
1
1
1
Secure all screws shown on this page with a drop of thredlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。

Control Arm Set / 控制臂組裝
Bag F+I
HME3-18B
SET SCREW,M3x18
無頭內六角螺絲,M3x18
HMC2-4B
SOCKET SRCEW,M2x4
內六角螺絲,M2x4
HNX3-12B
S.B.H SELF TAPPING SCREW
半圓頭內六角自攻螺絲
HMC3-12B
SOCKET SCREW,M3x12
內六角螺絲,M3x12
BK2248
BK2249
HME3-18B
HMC2-4B
BK2271
HNX3-12B
BV2569-R
BV2570-L
BK2279
BK0649-1
BK0088
BK0077
HSA3-10
BK2552
BK0367
BK2529
HMV1680ZZY
HMC2512B
HMM25Z
相位控制導軌
機殼固定鋁柱
無頭內六角螺絲,M3x18
內六角螺絲,M2x4
陀螺儀座
半圓頭內六角自攻螺絲
120° 無平衡翼控制搖臂組(右), 4757
120° 無平衡翼控制搖臂組(左), 4757
內六角連接頭
內六角連接頭螺絲
墊片, d3xD5xW0.5
軸環, d3xD4xW6
半圓頭內六角螺絲, M3x10
尾驅動軸
尾驅動連接棒
傳動軸軸承套
滾珠軸承, d8xD16xW5
內六角螺絲, M2.5x12
止鬆螺帽, M2.5
PHASING CONTROL TRACK
CANOPY RETAINING POST
SET SCREW,M3x18
SOCKET SRCEW,M2x4
GYRO TRAY
S.B.H SELF TAPPING SCREW
120° FB CONTROL ARM SET-R, 4757
120° FB CONTROL ARM SET-L, 4757
HEX POST
LINKAGE BALL
WASHER, d3xD5xW0.5
COLLAR, d3xD4xW6
BUTTON HEAD SOCKET SCREW, M3x10
TAIL DRIVE SHAFT
TAIL DRIVE SHAFT LINKER
TAIL DRIVE SHAFT BRG
BEARING, d8xD16xW5
SOCKET SCREW,M3x12
NYLON NUT,M2.5
1
2
2
2
1
4
1
1
2
4
2
2
2
1
2
1
1
2
2
Left Side
左側
No.
1
2
3
4
5
6
7
8
9
10
QtyMaterial No. Description 名稱 No.
11
12
13
14
15
16
17
18
19
QtyMaterial No. Description 名稱
(2)
(1)
(5)
(6)
(6)
(11)
(7)
(12)
(10)
(13)
(10)
(3)
(4) (9)
Apply threadlocker
使用螺絲防鬆膠
(12)
(10)
(10)
(4)
(13)
(11)
(8)
(9)
(3) (2)
Apply C.A Glue
使用快乾膠黏合
Secure all screws shown on this page with a drop of
thredlocker
except the screws #4 and 6.
除螺絲＃4及6之外， 本頁顯示之螺絲請使用適量防鬆膠鎖固。
Note the “120L”/”120R” mark on the arms.
請按照控制臂左、右方向安裝。
Nose
機頭
Tail
尾座
350mm / 13.78”
(15)
(14)
(19)
(18)
(18)
(19)
1. 將軸承擠壓入橡膠軸套內。
2. 參考圖示，塗抹些許防鬆膠將尾傳動軸接頭
鎖在尾傳動軸，但勿過度鎖緊。
3. 在尾傳動軸上軸承固定位置前方，塗抹少量
快乾膠，迅速滑動軸承至定位固定；該定位
大約距離軸傳動接頭350mm / 13.78”處。
4. 塗抹些許矽膠油脂或凡士林於橡膠軸套表面
上，稍後將尾驅動軸組裝入尾管時，會較為
容易。
(16)
(17)
The hole with a round chamfer
goes toward the tail。
有倒角的孔徑朝向尾座。
CA
CA
1. Attach the Bearing into the Rubber Bearing Support.
2. Screw the Shaft End onto the Tail Drive Shaft with a drop of threadlocker
as the drawing, but do not over tighten.
3. Add a drop of thin CA glue on the Tail Drive Shaft next to where the
bearing should be, and then slide the bearings over the position quickly;
the distance from the Shaft Drive End to the Rubber Shaft Bearing
Support is approx. 350mm / 13.78”.
4. Apply some amount of silicon oil or Vaseline onto the rubber surface for
easy install into the tail boom later.
HMM25Z
NYLON NUT,M2.5
止鬆螺帽,M2.5
BK0077
COLLAR,d3xD4xW6
軸環,d3xD4xW6
BK0649-1
LINKAGE BALL
內六角連接頭螺絲
Right Side
右側
-13-

-14-
TAIL PITCH CONTROL SLIDER BUSHING
BEARING,d6xD10xW3
TAIL PITCH CONTROL SLIDER
TAIL PITCH CONTROL FORK
PHILLIPS MACHINE SCREW,M2x8
LINK BALL , Ø4.8
TAIL ROTOR SHAFT
SET SCREW,M3x3
TAIL ROTOR HUB
METAL TAIL GRIP
BEARING, d5xD10xW3
COLLAR, d2xD3xW4.2
SOCKET SCREW, M2×10
PIN, D2x8.8
TAIL PITCH CONTROL LINK
SOCKET SCREW, M2.5x6
WASHER, d2.8xD5xW0.5
WASHER, d4xD6xW0.5
BEARING, d4xD9xW4
THRUST BEARING, d4xD9xW4
2
2
2
2
2
2
4
2
2
2
1
2
1
1
1
1
1
2
1
2
Tail Rotor System / 尾旋翼機構組裝
Bag G
1. Note the orientation of the Thrust Bearings; please
refer page 6, Diagram for Thrust Bearing Assembly.
2. Line up the concave of Tail Rotor Shaft and the hole
of Hub when securing the Tail Rotor Hub onto the Tail
Rotor Shaft.
3. Assemble the tail unit as drawing. Secure the screws
with a drop of threadlocking but not over tighten,
ensure the moveable parts run effortlessly.
1. 請參考第 6 頁止推軸承安裝示意圖，注意安裝方向性。
2. 將尾旋翼固定座鎖上尾旋翼主軸時，請注意軸上凹槽需對
正固定座上螺絲孔。
3. 依圖示順序組裝。使用適量防鬆劑固定，但請勿過度鎖緊
，確保每個可動機構皆作動順暢。
No.
1
2
3
4
5
6
7
8
9
10
QtyMaterial No. Description 名稱 No.
11
12
13
14
15
16
17
18
19
20
QtyMaterial No. Description 名稱
(6)
(7)
(5)
(1)
(2) (3)
(2)
(4)
(8)
(8)
(13)
(9)
(12)
(11) (10)
(20)
(17) (16)
(18)
(19)
(15)
(14)
Completed View
組裝完成
Apply threadlocker
使用螺絲防鬆膠
BK0028
HMV1060ZZY
BK0027
BK0025
HMF2-8N
BK0075
BK2280
HME3-3B
BK2284
BK2580
HMV1050ZZWY
BK0082
HMC2-10B
BK0083
BK0026
HMC25-6B
HMO26
BK2276
HMV940ZZY
HMX0409Y
尾旋翼控制軸套
滾珠軸承,d6xD10xW3
尾旋翼控制滑座
尾旋翼控制座
圓頭十字螺絲(細),M2x8
連接頭 , Ø 4.8
尾旋翼橫軸(軸傳)
無頭內六角螺絲,M3x3
尾旋翼T型座
金屬尾旋翼座
滾珠軸承, d5xD10xW3
軸環, d2xD3xW4.2
內六角螺絲, M2×10
固定銷 , D2x8.8
尾旋翼連接頭
內六角螺絲, M2.5x6
墊片,d2.8xD5xW0.5
尾旋翼轉座墊片,d4xD6xW0.5
滾珠軸承,d4xD9xW4
止推軸承,d4xD9xW4
Ensure smooth, non-binding movement when assembling
確認組件靈活度
Apply grease
使用潤滑油膏(黃油)
HMF2-8N
PHILLIPS MACHINE SCREW,M2x8
圓頭十字螺絲(細),M2x8
HMC2-10B
SOCKET SCREW,M2×10
內六角螺絲,M2×10
HMC25-6B
SOCKET SCREW,M2.5×6
內六角螺絲,M2.5×6
HME3-3B
SET SCREW,M3x3
無頭內六角螺絲,M3x3
BK0083
PIN,D2x8.8
固定銷,D2x8.8
HMO26
WASHER,d2.8xD5xW0.5
墊片,d2.8xD5xW0.5
BK0082
COLLAR,d2xD3xW4.2
軸環,d2xD3xW4.2
BK2276
WASHER,d4xD6xW0.5
尾旋翼轉座墊片,d4xD6xW0.5
HMV1060ZZY
BEARING,d6xD10xW3
滾珠軸承,d6xD10xW3
HMV1050ZZWY
BEARING,d5xD10xW3
滾珠軸承,d5xD10xW3
HMV940ZZY
BEARING,d4xD9xW4
滾珠軸承,d4xD9xW4
Secure all screws shown on this page with a drop of thredlocker
except the screws #5.
除螺絲＃5之外， 本頁顯示之螺絲請使用適量防鬆膠鎖固。
HMX0409Y
THRUST BEARING, d4xD9xW4
止推軸承,d4xD9xW4

-15-
Tail Rotor System / 尾旋翼機構組裝
Bag H+I
Apply threadlocker
使用螺絲防鬆膠
Check the mesh of #7 & #8, please
add the Washers (#9) for a proper
mesh if too much play.
請檢查#7及#8的齒輪間隙，間隙過大時
請酌加墊片(#9)。
HMC25-8B
SOCKET SCREW, M2.5x8
內六角螺, M2.5x8
HMC1350ZZY
BEARING, d5xD13xW4
滾珠軸承, d5xD13xW4
HMV6701ZZY
BEARING, d12xD18xW4
滾珠軸承, d12xD18xW4
BA1144-1
WASHER, d5xD8xW0.15
軸承墊片, d5xD8xW0.15
BK2291
COLLAR, d15xD18x6.8L
軸環, d15xD18x6.8L
HMY2-10
PIN, d2x10
固定銷, d2x10
HMV740ZZY
BEARING, d4xD7xW2.5
滾珠軸承, d4xD7xW2.5
BK0077
COLLAR, d3xD4xW6
軸環, d3xD4xW6
HMC3-10B
SOCKET SCREW, M3x10
內六角螺絲, M3x10
HMC3-6B
SOCKET SCREW, M3x6
內六角螺絲, M3x6
HMC3-8B
SOCKET SCREW, M3x8
內六角螺絲, M3x8
BK0649-2
LINKAGE BALL(B)
內六角連接頭自攻螺絲(B)
HMC3-16B
SOCKET SCREW, M3x16
內六角螺絲, M3x16
HMM3Z
NYLON NUT(M3)
止鬆螺帽(M3)
HNN2-6B
TAPPING SCREW(W/WASHER) M2×6
圓頭墊圈自攻螺絲 M2×6
HME3-4B
SET SCREW,M3x4
無頭內六角螺絲,M3x4
Apply C.A Glue
使用快乾膠黏合
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
QtyMaterial No. Description 名稱 No.
15
16
17
18
19
20
21
22
23
24
25
26
27
QtyMaterial No. Description 名稱
BK2594-1
BK2595-1
HMC25-8B
HMV1350ZZY
HMV6701ZZY
BK2291
BK0372
BK0373-2
BA1144-1
HMY2-10
BK2512
HMV740ZZY
BK0649-2
BK0077
HMC3-10B
BK2190
HMC3-6B
BK2530
HMC3-8B
BK2556
BK2559
HNN2-6B
HMC3-16B
HMM3Z
BK0404-B
HME3-4B
BK0088
金屬尾座
尾旋翼控制桿座
內六角螺絲, M2.5x8
滾珠軸承, d5xD13xW4
滾珠軸承, d12xD18xW4
軸環, d15xD18x6.8L
尾齒輪/INPUT-20T
尾齒輪/OUTPUT-20T
軸承墊片, d5xD8xW0.15
固定銷, d2x10
尾旋翼控制桿
滾珠軸承, d4xD7xW2.5
內六角連接頭自攻螺絲(B)
軸環, d3xD4xW6
內六角螺絲, M3x10
碳纖維垂直尾翼
內六角螺絲, M3x6
尾管止檔塊
內六角螺絲, M2x5
碳纖尾管
固定環
墊圈自攻螺絲, M2×6
內六角螺絲, M3x16
止鬆螺帽(M3)
尾旋翼(黑)
無頭內六角螺絲, M3x4
墊片, d3xD5xW0.5
METAL TAIL UNIT HOUSING
METAL TAIL PITCH CONTROL HOUSING
SOCKET SCREW, M2.5x8
BEARING, d5xD13xW4
BEARING, d12xD18xW4
COLLAR, d15xD18x6.8L
TAIL INPUT GEAR
TAIL OUTPUT GEAR
WASHER, d5xD8xW0.15
PIN, d2x10
TAIL PITCH CONTROL LEVER
BEARING, d4xD7xW2.5
LINKAGE BALL(B)
COLLAR, d3xD4xW6
SOCKET SCREW, M3x10
CARBON VERTICAL FIN
SOCKET SCREW, M3x6
TAIL STOPPER
SOCKET SCREW, M3x8
CARBON TAIL BOOM
ROD GUIDE
TAPPING SCREW, M2×6
SOCKET SCREW, M3x16
NYLON NUT(M3)
TAIL BLADE(BLACK)
SET SCREW M3x4
WASHER, d3xD5xW0.5
1
1
1
2
2
1
1
1
1
1
1
2
1
1
1
1
2
1
1
1
3
3
2
2
2
1
1
(17)
(17)
(20)
(21)
(21)
(21)
(22)
(22)
(22)
(16)
(18)
(19)
(15)
(14)
(12)
(11)
(13)
(12)
(8)
(9)
(26)
(10)
(24)
(23)
(23)
(1)
(4)
(4) (2)
(3)
(6)
(5)
(5)
(7)
(27)
(25)
(25)
(24)
Secure all screws shown on this page with a drop of thredlocker except the screws #13, 22 & 23.
除螺絲＃13,22及23之外，本頁顯示之螺絲請使用適量防鬆膠鎖固。
BK0088
WASHER,d3xD5xW0.5
墊片,d3xD5xW0.5

-16-
Tail Unit / 尾部總成組裝
Bag H+I
No.
1
2
3
4
5
6
7
QtyMaterial No. Description 名稱 No.
8
9
10
11
12
13
QtyMaterial No. Description 名稱
BK2253
HMC3-14B
HSA3-6
BK2563
BK2564
BK0524-T
BK0447
HMJ2-8N
HMC3-16B
HMM3Z
BK2553
HMC3-10B
HNJ-1
六角支柱
內六角螺絲, M3x14
半圓頭內六角螺絲, M3x6
金屬固定座(上)
金屬固定座(下)
尾管支撐架
尾管支撐架接頭
自攻螺絲(細), M2x8
內六角螺絲, M3x16
止鬆螺帽, M3
支撐架
內六角螺絲, M3x10
束帶(小)
FRAME SPACER
SOCKET SCREW , M3x14
BUTTON HEAD SOCKET SCREW, M3X6
METAL TAIL SUPPORT BRACKET(UPPER)
METAL TAIL SUPPORT BRACKET(LOWER)
TAIL SUPPORT ROD
TAIL SUPPORT ROD END
SELF TAPPING SCREW, M2x8
SOCKET SCREW, M3x16
NYLON NUT, M3
SUPPORT BRACKET
SOCKET SCREW, M3x10
NYLON STRAP,100mm
1
2
2
1
1
2
4
4
2
3
2
1
4
HSA3-6
BUTTON HEAD SOCKET SCREW, M3X6
半圓頭內六角螺絲, M3x6
HMC3-14B
SOCKET SCREW,M3x14
內六角螺絲,M3x14
HMM3Z
NYLON NUT,M3
止鬆螺帽,M3
HMC3-16B
SOCKET SCREW,M3x16
內六角螺絲,M3x16
HMC3-10B
SOCKET SCREW,M3x10
內六角螺絲,M3x10
HMJ2-8N
SELF TAPPING SCREW-M2x8
自攻螺絲(細)-M2x8
This hole (Left & Right side
both) is design for 140°Control
Arms(PV1409)
此孔位（左右二側）用於140°控
制搖臂（PV1409）
(3)
(3)
(1)
(10)
(10)
(11)
(11)
(12)
(13)
(13)
(5)
(6)
(8)
(8)
(7) (7)
(7)(2) (1) (2)(7)
(2)
(2)
(4)
(9)
Ensure the setting screws (#3) line up to the retaining hole.
鎖固時，請確認鎖固螺絲#3正確對正定位孔。
Secure the screws into the Frame
Spacer when attaching the Tail
Support Rod End on the Main Frames.
安裝尾管支撐桿於側板上時，請注意需將
鎖固螺絲鎖固於六角固定支柱上。
Rear View 後視圖
Must be purchased separately
改裝品需另購
Stick some cycles of thin tape properly onto
the position where the Brackets clip to prevent
any indentation on the tail boom caused by
over tighten or vibration.
纏繞適當圈數薄膠帶於尾管固定座夾持位置上，可
避免因夾持過緊或機體震動而造成尾管上壓痕。
Apply threadlocker
使用螺絲防鬆膠

-17-
Servo Installation / 伺服機裝配
Bag J
No.
1
2
3
QtyMaterial No. Description 名稱 No.
4
5
QtyMaterial No. Description 名稱
Attach the Servos onto the Servo Trays
of Main Frame Set as drawing.
參考圖示將伺服機裝入主側板組上伺服機座。
(1)
(4)
(4)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
//
//
The distance from the
center of the servo
horn to both sides of
the linkage balls should
be the same.
伺服機擺臂中心至兩邊球
頭距離必需相等。
(3)
(3)
(3)
(3)
(1)
(5)
(5)
HSE2614N
BUTTON PHILLIPS TAPPING SCREW, M2.6X14
扁圓自攻螺絲( 粗 ) , M2.6X14
HSE2614N
BK0104
BK2205
扁圓自攻螺絲, M2.6x14
伺服機固定片
伺服機墊塊
BUTTON PHILLIPS TAPPING SCREW, M2.6X14
SERVO MOUNTING
SERVO BLOCK
8
8
4
HSE2620N
BK3132
扁圓自攻螺絲( 粗 ) , M2.6X20
伺服機螺帽
BUTTON PHILLIPS TAPPING SCREW, M2.6X20
SERVO NUT
8
2
HSE2620N
BUTTON PHILLIPS TAPPING SCREW, M2.6X20
扁圓自攻螺絲( 粗 ) , M2.6X20
Must be purchased separately
改裝品需另購

-18-
Linkage Rod Installation / 連桿組裝
Bag I+J
BK0086
BALL LINK, d4.8x20
單頭連接桿, d4.8x20
Assemble the Linkage Rods as drawings. The linkage length is measured by the center of
the 2 Ball Links. These drawings are printed actual size; you can lay the linkage sets on the
left drawings to measure the correct length.
請參考圖示組裝連桿及連桿頭。連桿長度距離的計算應以兩端連桿頭中心點為基準。圖示尺寸與實物
相同，您可直接對照左方圖示以快速獲得正確長度。
The length may vary when using different servo, please re-adjust the length as actual condition.
連桿長度可能因搭配伺服機品牌不同而有所差異，可依實際情況調整。
No.
1
2
3
QtyMaterial No. Description 名稱 No.
4
5
QtyMaterial No. Description 名稱
(3)
(C)
55
76.6
79.9
82.6
(A) x2
(B) x2
(C) x2
(D) x2
30
55
55
64
Scale=1:1 (unit:mm)
(4)
(4)
(5)
BK0086
BK2555
BK0092
BK0436
BK0294
單頭連接桿 , d4.8x20
雙頭推拉桿, 580mm
連接桿, 30mm
連接桿, 55mm
連接桿, 64mm
BALL LINK, d4.8x20
TAIL SERVO LINKAGE ROD, 580mm
LINKAGE ROD, 30mm
LINKAGE ROD, 55mm
LINKAGE ROD, 64mm
18
1
2
4
2
(D)
(1)
(1)
(2)
(A)
(B)

-19-
Power Motor Installation / 動力馬達安裝
Bag K
Secure all screws shown on this page with a drop of thredlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
Motor Recommended for Stock Gear Ratio:
使用原廠設定齒比時，馬達KV值建議：
For proper mesh, insert a paper strip
between the Pinion and Main Gear,
and then push the Motor/Main Gear
together. Remove the paper strip.
在驅動齒輪及主齒盤插入一紙片可取得兩者
間適當的間隙，完成後請記得抽出紙片。
Paper strip
紙片
No.
1
2
3
QtyMaterial No. Description 名稱 No.
4
5
6
QtyMaterial No. Description 名稱
(1)
(1)
(2)
(2)
(5)
(6)
(3)
(4) (6)
1
2
HMC3-10B
BK0087
BK2260
BK2584
HMC3-8B
HME4-3B
內六角螺絲, M3x10
墊片, d3xD8xW1.4
馬達上座
馬達齒-15T
內六角螺絲, M3x8
無頭內六角螺絲, M4x3
SOCKET SCREW,M3x10
WASHER,d3xD8xW1.4
UPPER MOTOR MOUNT
MOTOR PINION-15T
SOCKET SCREW,M3x8
SET SCREW M4×3
4
4
1
1
4
2
Must be purchased separately
改裝品需另購
BK2557
MOTOR MOUNT ADAPTOR
馬達固定座墊片
HMC3-8B
SOCKET SCREW,M3x8
內六角螺絲,M3x8
HMC3-10B
SOCKET SCREW,M3x10
內六角螺絲,M3x10
The motor pinion comes with
the kit is 15T, which is
applicable both to 10S and
12S power. Note the actual
configuration may vary due to
the efficiency of motors.
套件內附15T馬達齒，可適用於
10S及12S動力設定；請注意實際搭配可能因馬達效率值
而有所不同。
Applicable to a 6 mm diameter as standard, and 25
mm long shaft & above is recommended; The
Motor Mount for both M4x30 mm and M3x25/ 30
mm bolt position
標準使用6 mm圓徑及建議長度25 mm以上軸心之馬達
。馬達螺絲鎖固位置可分別適用於M4x30 mm及M3x25/
30 mm規格。
16.5mm
Apply threadlocker
使用螺絲防鬆膠
Assemble in right order
依標示順序組裝
HME4-3B
SET SCREW M4×3
無頭內六角螺絲 M4×3
Power動力
Gear Raito齒輪比
10S
12S
Gear Raito齒輪比
(135T/15T)
9
9
Applicable motor
適用馬達
600~680KV
520~580KV
Add the Motor Mount Adaptor
when mounting if the shaft of the
motor features a stage.
當馬達主軸具有錐度時，請加裝馬達
固定座墊片。
(2)
(2)
BK0087
WASHER,d3xD8xW1.4
墊片,d3xD8xW1.4
