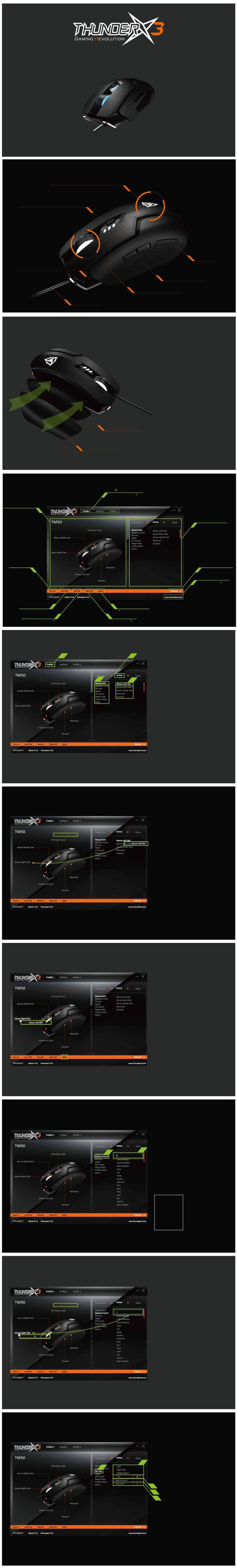

ThunderX3 TM30 User manual

TM30
THUNDERX3 User Manual
Braided Cable
4 DPI Segment
With 4 Different Colors
Side Key
Avago 3310 Chipset
MAX 10000 DPI
16.8 Million Colors
Click an action and drag the action box
to a key of your preference.
※To reselect or cancel, press the right
mouse click.
Press left mouse click to swap to the new
action.
Click “Apply”to confirm the change.
You can repeat the steps to assign other
fuctions or actions for other keys.
Function: Mouse Event
1. Select from one of the three profiles
2. Click “Button”
3. Select a main function.
For example：Mouse Event
4. Choose an action for that function.
For example：Mouse Left Click
Function: Keyboard Event (to execute a
keyboard action with a mouse click)
1. Select “Keyboard Event”
2. Choose a preset action from the list or
record your own.
Double click on
“Double Click Start Recording Hotkey”
Type in a key for a combination of keys.
For example: an “A” or “Ctrl+__(any letter)”
Keys that can be recorded are shown below
(1) F1~F12
(2) Shift
(3) Ctrl
(4) Ctrl+
(5) Win
(6) Alt
(7) Number key
(8) Word key
Click the action and drag the action box
to a key of your preference.
※To reselect or cancel, press the right
mouse click.
Press left mouse click to swap to the new
action.
Click “Apply”to confirm the change.
Function: Fire key
1. Select “Fire Key”
2. Assign fire key position/s
3. Assign a keystroke action to the mouse
4. Set the repeat times per mouse click
5. Set the delay time between each click
Click the action and drag the action box
to a key of your preference.
Chapter Two : Button
2
1 2
34
12
2
1
2
2
2
3
4
5
Chapter One : Interface
Information Window
Displays current
settings on this mouse
Prole Selection
Save up to 3 proles
Action Window
Save as
Save settings
Restore
Restore current prole
only
Reset all proles
Conrmation of change
Load File
Load saved settings
Reset All
Apply
Language Selection
ThunderX3 Website
Hyperlink to ofcial
website
Choose a language
Choose and assign
an action
Main functions
Actions

3000DPI
6000 DPI
10000DPI
1500 DPI
※When clicking on Restore or Reset all,
Macros will not be deleted. Macros will have
to be deleted from within the Macro setting
dialog window.
To assign a Macro to a mouse key
1. Click “DPI Settings”
2. DPI setting window shows four existing
DPI settings.
1. Adjust X and Y axes simultaneously. 2. Click to disconnect X and Y relation.
3. Click to shut off this DPI channel. 4. Click “Save”to save settings.
1. Click “New”to create a new Macro
2. Click to name the new Macro
3. You have the options to choose delay times
between each key stroke:
* to ignore delay
* to record delay time between each key stroke
* set a fixed delay time between each key stroke
4. Click “Record” to start recording
5. Press the desired keys on the leyboard to
record into a Macro
6. Press “Record” again to stop recording
7. Click “Apply” to confirm the setting
To delete a Macro
1. Select the Macro name
2. Click “Delete”
Function: Macro
1. Select “Macro”
2. Choose “Macro Settings”
Click the newly set Macro and drag the box
to a key of your preference.
※To reselect or cancel, press the right
mouse click.
Press left mouse click to swap to the new
Macro.
Click “Apply” toconfirm the change.
You can repeat the steps to create as many
Macros as you like.
1. Select from one of the three profiles
2. Click “Effect”
3. Select from one of the three light effects
or simply switch off the LED
4. Set the speed of the flash tempo
5. Set the brightness of the LED
6. Select LED color
7. Click “Apply” to confirm the change.
1. Select from one of the three profiles
2. Click “Performance”
3. Set your preferred DPI setting
4. Set the report rate
5. Set the acceleration speed
6. Set the scrolling speed of the scroller
7. Click “Apply” to confirm the change.
1 7
264/5
3
2
1
3
4
5
6
7
2
1 2
2
1 2
3
4
5 6
7
1
2
1
2
Chapter Four : Performance
Chapter Three : Effect
