Tiny Audio C-SMART User manual

INSTALLATION AND
USER MANUAL
FOR
Csmart

2
3
1. INTRODUCTION
Csmart is a universal 3in1 solution that offers DAB+, hands free and
Bluetooth audio for all cars. Easy to use with our free mobile application
(supports both iOS and Android) or with our Bluetooth low energy (BLE)
remote control (optional accessory).
Package contents
► Csmart device
► Power harness
► Universal microphone
► Power cable with 2-pin Micro-Fit for active antenna with
external power source
► Installation accessories
Csmart connectors:
MIC in – Microphone connector
Aux-out –
3,5mm Jack auxiliary
output to connect the device to
the head unit through AUX
SMB ANT. – Antenna connector
with phantom power support
Active ANT 12V – 12V Power
2. INSTALLATION
Power supply
First of all, you will need to connect the power cable of the Csmart. In
order to give power to the device, please use the included car side
power cable and connect the 3 power leads as follows:
► Red: +12V Battery (permanent 12V)
► Purple: +12V Switched (ACC or
ignition)
► Black: Ground (GND)
Fitting the microphone
The microphone works best when it is kept away from all noise sources
(open windows or speakers) but is located close to the driver: installing
it at the central interior light or the rear view mirror, so to the centre of
the windscreen are two options that can produce high sound quality.
There is also a clip to help you mount the microphone. The optimal
place for the mic depends on several things, so it is recommended to try
different places before finalizing the installation.
Fitting the DAB antenna
► The DAB reception and performance depends on many factors, both on
MIC in AUX-out SMB ANT.
output for antennaswith external
power support
DC in – Connector of the main
power harness
USB Charging – USB connector
for charging smartphones
Status LED – Status LED
Aux-in – 3,5mm Jack auxiliary
the vehicle and other external conditions.
► Before you start the antenna installation and/or the product testing,
please make sure that you have a good DAB coverage and reception.
Important notes:
► If your vehicle comes with metalized windscreen (e.g.
windscreen heating) an external antenna is required.
Active
ANT. 12V
DC in USB
Charging
Status AUX-in
LED
input for music playback from
external audio devices

4
5
► The DAB module supports both amplified and nonamplified aerials.
For amplified antennas we support phantom power through the SMB
antenna connector and also 12V power is provided by the DAB
receiver via the 2-pin molexconnector.
► Read the manual of the antenna carefully and follow the instructions in
order to find the right place for installation.
► Always test (read next chapter) the DAB functions before finalizing the
installation.

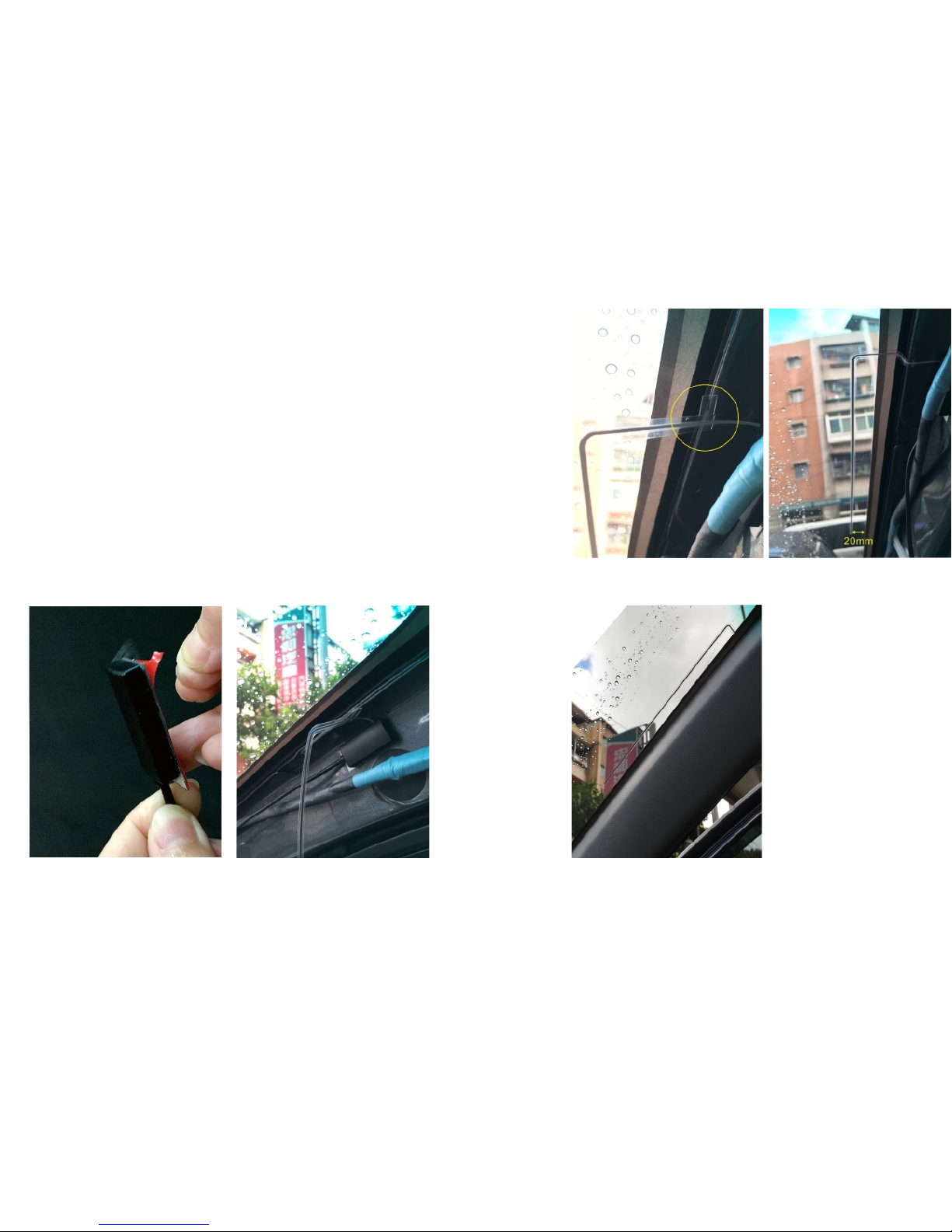

Antenna Installation
An active antenna is included with the Csmart. To achieve the
best performance, it is important that it is installed correctly.
Remove the protective film from
the amplifier.
Attach the amplifier to the A-pillar
The gap between the car and
antenna should be 20mm.
Finish up the installation.
Remove the protective film
from the antenna.

4
5
Bluetooth setup (pairing)
The Csmart has two different Bluetooth chips on board. A low energy
chip for the DAB application (appear as Csmart control) and a classic
Bluetooth chip for hands free and music streaming (appear as Csmart
hands free). The low energy chip connects to your phone
automatically without pairing after you start the TinyDAB application.
Please be sure that the Bluetooth of the phone is ON.
► To connect to the classic Bluetooth, you need to pair your phone with
the Csmart
in the Bluetooth menu of your phone.
► If your phone is asking for Bluetooth PIN during pairing you need to
enter 8888.
The pairing process for classic Bluetooth connection is the following:
a) Power up your Csmart by turning the ignition ON
b) Go to ‘Bluetooth Settings’ on your smartphone
c) Switch Bluetooth ON
d) See the list of available devices
e) Connect to Csmart hands free when it appears on the device
list
3. USAGE WITH APPLICATION
Our DAB application for Csmart is available in the Apple store for
Apple iPhones, iPads and iPod Touch devices and in the Google Play
store for Android phones and tablets.
Get your APP now!
3.1 First steps
Open the application and make sure that your Csmart is powered on.
When all these conditions are met, the app connects to the nearest
device automatically.
After the connection, the application will
switch to the ‘Now Playing’ screen and do
a scan automatically so you will see all the
available stations listed.
In case of first usage, you need to do some
basic settings before you can listen and
enjoy DAB music.
Main menu
To go to the main screen of the application
you need to tap on the logo on the top left
corner.

6
7
You will see four options on the main screen:
► Now Playing
► Manage stations
► Source selection button
► Set things
Settings
This is where you need to do your basic settings before using the
Csmart device for the first time. Let’s start by setting the frequency!

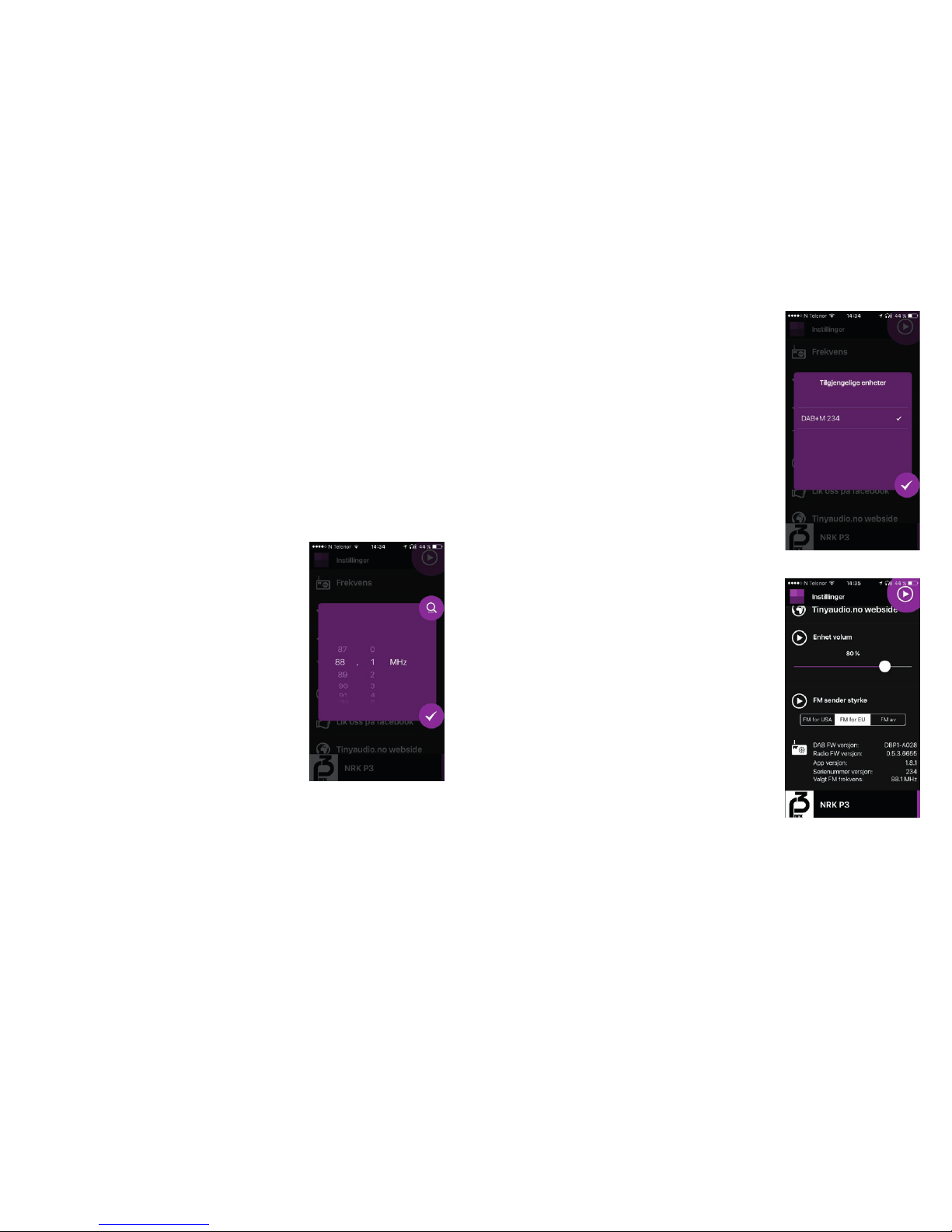

Setting FMfrequency
First of all, you need to seek for a free FM
frequency on your car radio. If you found
one where you do not hear other stations,
you need to go into the ‘Set things’ menu of
the application and tap on ‘Frequency’.
In the pop-up menu you can set the same
frequency. After you click on the tick logo,
you should hear the DAB on the radio on
that frequency, also you should see the
name of the currently played DAB station
on the display of the radio as RDS.
You can also use automatical frequency setup
if you tap on the little magnifying icon on the
top right corner of the pop-up menu. In this
case the device automatically searches for free FMfrequency and sets
the device there. After that you will see the exact frequency in a pop-
up menu and the app will drop you back to the ‘Set things’ menu.
Available devices
If there are more available devices within
range, then you can switch between those
devices in this menu.
Device volume
If you experience difference between the
volume of your Csmart device and other
sources, you can easily adjust the volume
until you get the same volume level.
This can be done with the slide bar in the
‘Settings’ menu.
FM setup
This is where you can set the FM standards
of the device.
If you use the Csmart through AUX input
then please select FM OFF.

8
9
Device and App. information
On the bottom of the ‘Set things’ menu, you can find all of the
information regarding your device and your application.

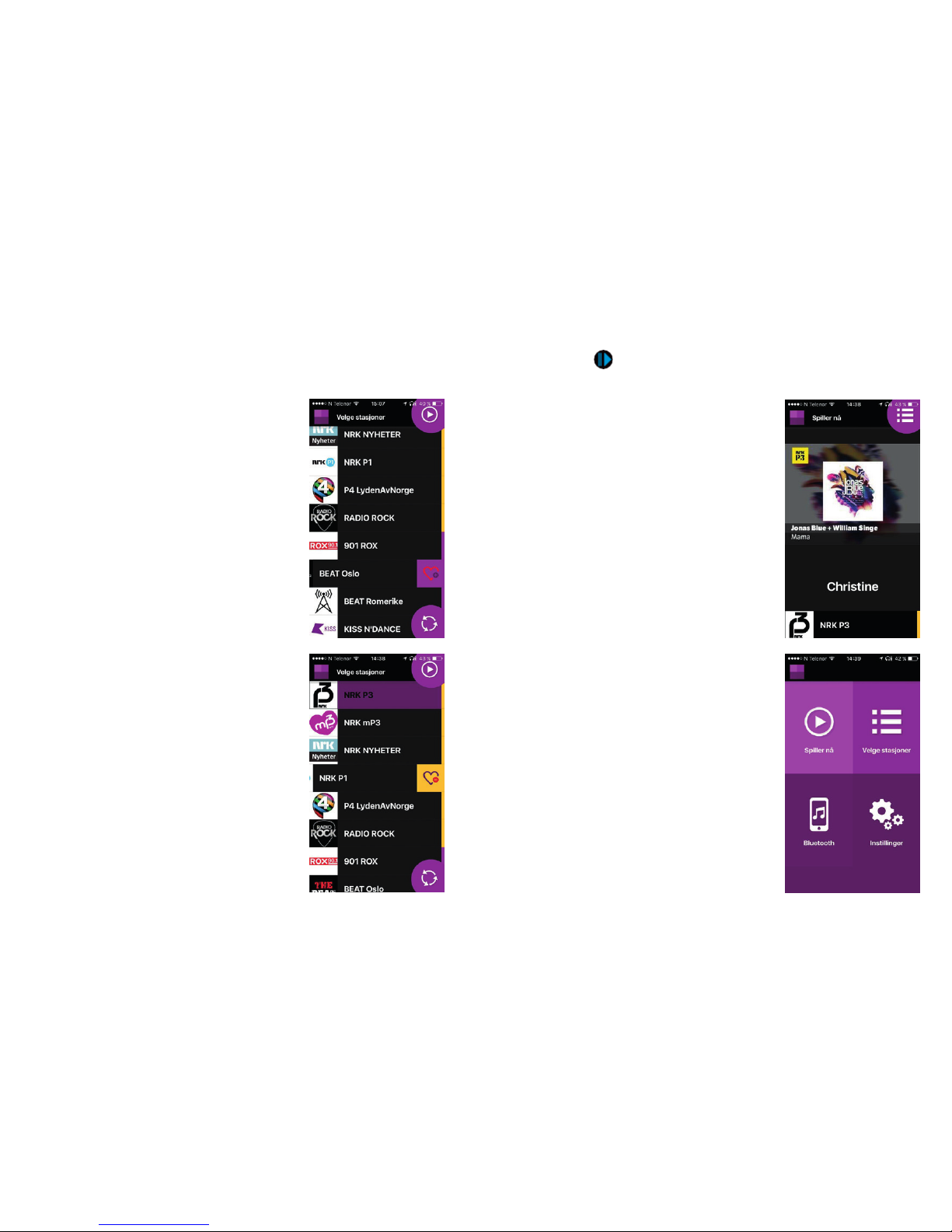

3.2 Managing DAB+
Manage stations
This menu is where you can list all of the
available DAB stations in alphabetical order.
The application allows you to set unlimited
favourite stations. In order to do so, you need
to swipe the channel to the left then click on
the yellow heart icon.
The favourite stations will be marked
with a yellow line on the right side and the
currently played station is marked in a yellow
background.
The order of the favourite stations can be
changed by the user. You just need to drag
and drop your favourite station to the place
where you would like to see it.
All of this information is stored in the
application on the phone which means all
users can have personalized favourites list of
their own.
Removing stations from the favourites is the
same process as you added it. You just need
to swipe it to the left and tap on the yellow
heart.
In the ‘Manage stations’ menu, you can start
a DAB scan by tapping on the refresh icon in the bottom right corner
of the display.
If you press the button, you can go directly to the ‘Now Playing’ screen.
Now Playing
In this screen you can get all of the
information sent by the currently played DAB
broadcaster, and you can also see the logo of
the station.
If you swipe the current slide show to the left
or right, you can switch between previous and
next DAB stations.
All favourite stations will be marked in yellow.
If you press the icon on the top right corner,
you can jump directly to the ‘Manage stations’
menu.
3.3 Managing sources
There’s also a button for selecting your
preferred source. You only need to tap on the
main screen’s bottom left icon to set it, that
will be your active source until you change it.
In case of AUX or Bluetooth audio source you
will see only the logo of the source in the
‘Now Playing’ menu.
The ‘Manage stations’ will be active in case of
all sources and if you select a DAB station the
source will switch to DAB automatically.

10
11
4. USAGE WITH BLUETOOTH
REMOTE CONTROL (BRC1DAB)
The Bluetooth remote control for DAB is an optional accessory for the
Csmart. The remote control makes the usage of the DAB devices as
simple as the usage of an FM stereo.
4.1 First steps
If you plan on using your Csmart together with the remote control but
without the DAB application, first you need to set up your DAB device.
To do that, please follow these steps:
Automatic Scanning
You can also start an automatic FM frequency scan. To use this
option, you need to do the following:
► Turn the ignition ON,
► Press and hold the button for 3seconds,
► Press the button.
After these steps, the device will be looking for a free frequency and will
set it automatically. This frequency can be found if you do an FM scan with
your radio.
4.2 Managing DAB+
You can perform a DAB scan by pressing the button. During the
Bluetooth pairing
The remote control will connect automatically to the nearest Csmart
device.
Setting FM frequency
Manual Scanning
In order to set the FM frequency, you need to follow the next steps:
► Turn the ignition ON,
► Press and hold the button for 3 seconds,
► Enter the frequency (from 87.6 [876] to 107.9 [1079]),
► Press the button to store the valid frequency,
► Switch to the selected frequency on your radio.
scanning process you should see ‘DAB scan’ on the radio screen.
Navigation between stations
By pressing the and buttons, you can jump to the next or previous
station.
If you press and hold these buttons, you can skip five stations at a time
(alphabetically).
Presets
You can store presets to button 1-9. To store the currently played
station, you need to press and hold one of the numerical buttons for 3
seconds.
After this, you can switch to that station directly by short pressing the
same button.

12
13
4.3 Managing sources
With the button you can toggle between three available sources DAB,
AUX and Bluetooth audio.
Auxiliary sources
The device gives you the possibility to listen to music from an external
source through a 3,5mm Jack connector. In order to mute theDAB radio
5. IMPORTANT NOTES
Tiny Audio Csmart provides you a simpler and safer way to use your
phone in the car, however please always consider safety first and comply
with the traffic regulations and laws that apply. Do not use your phone if
it can distract your attention from driving.
6. DISCLAIMER AND
and use the Auxiliary input of the device, you need to press the
In this mode you should see “AUX” on the RDS display.
Bluetooth audio sources
button.
WARRANTY
If your Csmart product begins to behave in an unpredictable way, please
immediately disconnect the device physically and have it checked by
It is also possible to switch to Bluetooth audio source with the button.
If this is the active source then you will be able to listen to all the music
stored on yourphone or you can listen online streams from your phone
through the Csmart on your head unit. In this mode you can use the
and and the buttons of the remote to control the music playback
from your phone.
Hands free calls
In case of incoming hands free calls, you can pick up the call by pressing
the button and hang up or reject the call with the button.
a qualified electrotechnician. Tiny Audio and its authorized
distributors, as well as retailers are not liable for any incidental,
consequential or indirect damages or loss and do not assume liability for
any diagnostic fees. Using handheld devices while driving may be subject
to government legislations. Please make sure that using a Tiny Audio
device is in line with the applicable traffic laws. Tiny Audio does not
assume liability for events resulting from any illegal or irresponsible usage
of these handheld devices.
Tiny Audio reserves the right to modify its products or specifications
without prior notice.

14
15
WARRANTY
Tiny Audio devices carry a one-year limited warranty that protects you
from defects in material and workmanship of products sold by Tiny
Audio or its authorized distributors and retailers. Tiny Audio does not
warrant any installation work or assume liability for any damage
caused bynegligence, improper installation or operation. For warranty
claims, proof of purchase is required.
SUPPORT
If you need further assistance in using your Tiny Audio product, please
contact your local supplier or visit our website www.tinyaudio.com

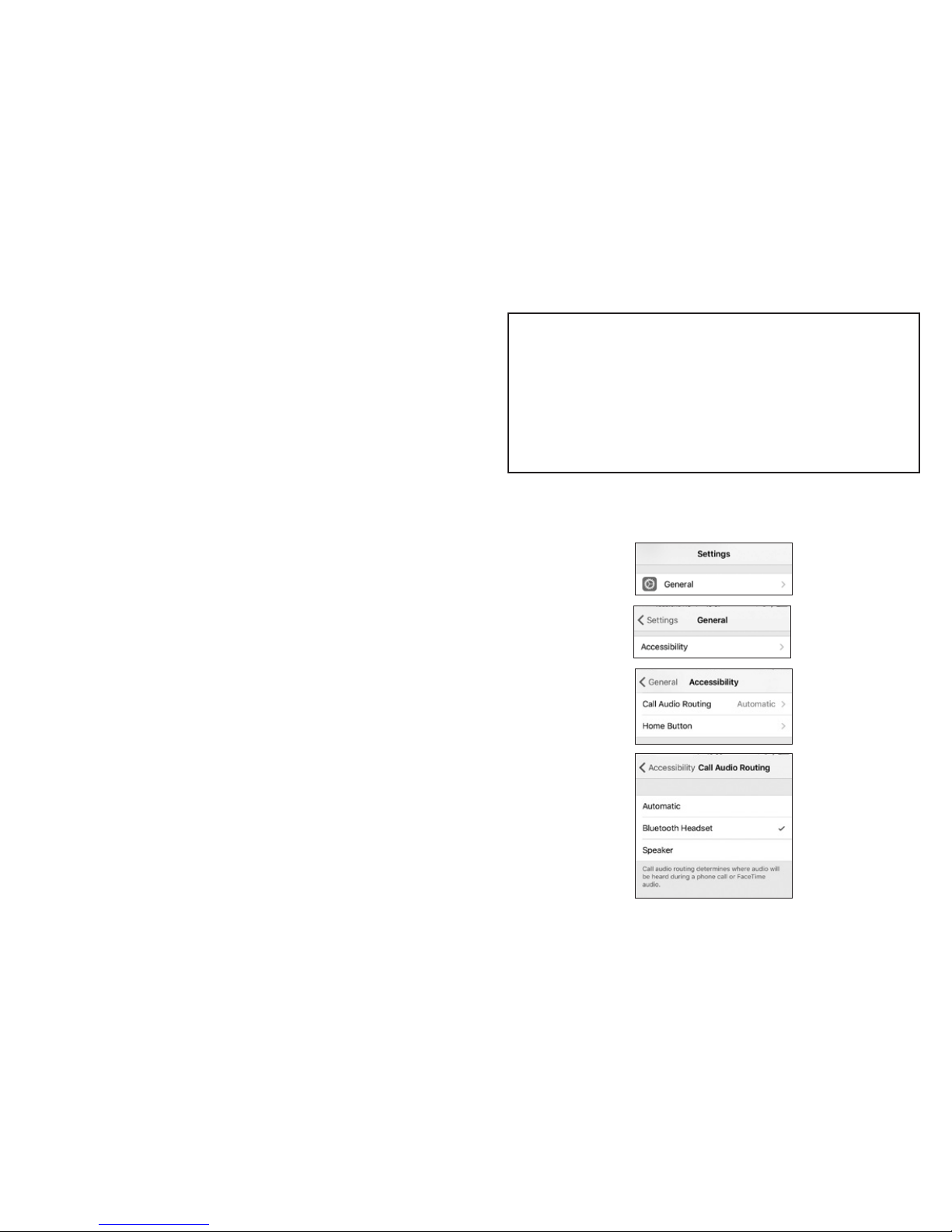

You can find these settings if you follow the next steps on your phone:
Settings/General/Accessibility/Call Audio Routing/Bluetooth
Headset (check)
IMPORTANT FOR iPHONE USERS
To hear your phone calls through the car speakers (and not your
phone speakers) further settings modifications may be required for
iPhone users. In case you experience that the call can be heard only
on the phone itself or the sound switching to the speakers with a few
second delay, then please modify the ‘Call Audio Routing’ settings.
To find and modify the above mentioned settings, please follow
these steps:
