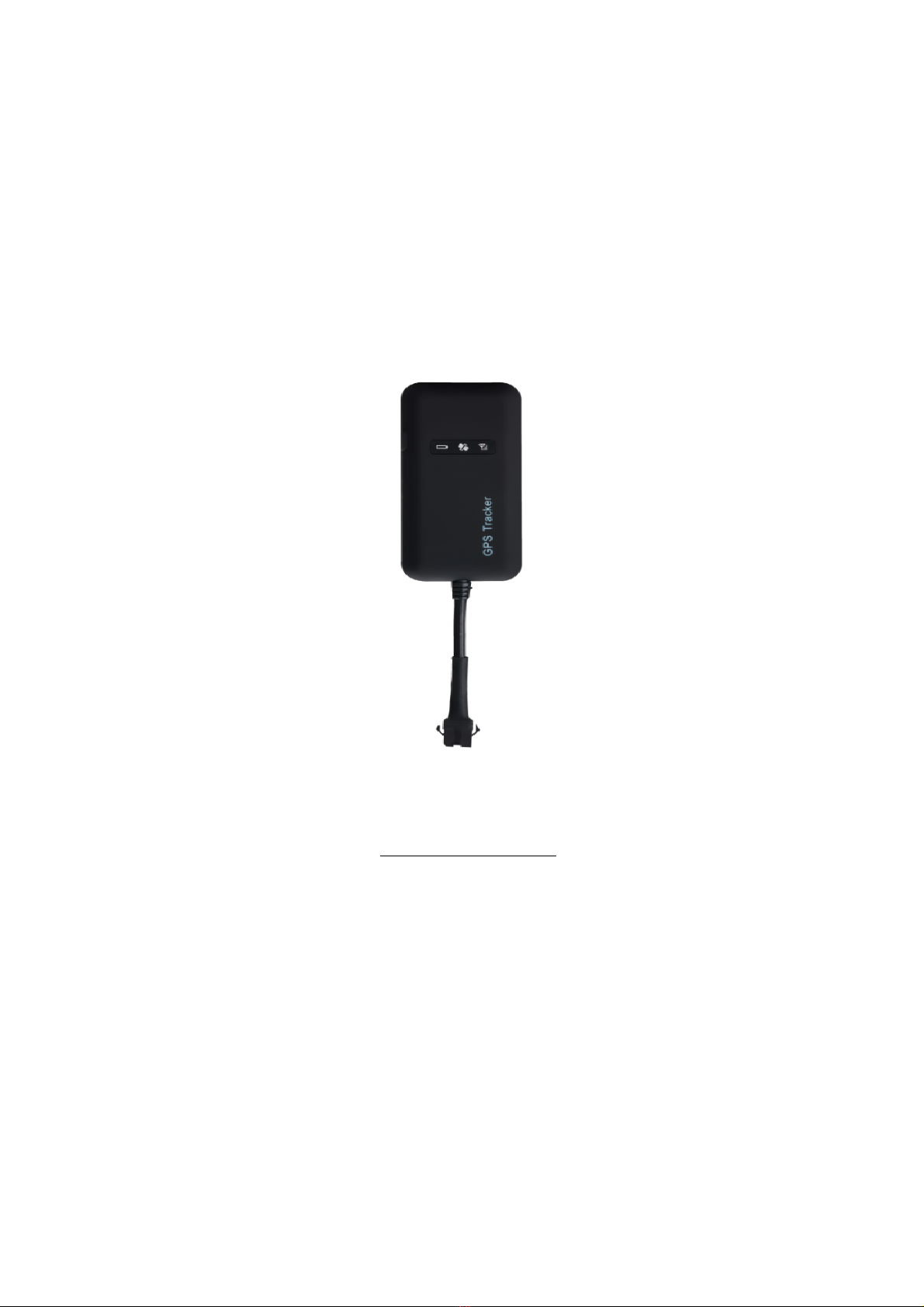

Tirol GT02 User manual

GPS TRACKER USER
MANUAL
PREFACE
Thank you for purchasing GPS tracker. This manual shows how to operate the device
smoothly in details, please make sure to read this manual carefully before using the
device. Please be noted that any update of the manual is made without prior notice.
Each time the update of the manual will be released in the latest product sales. The
manufacturer won’t assume any legal responsibility for any errors or omissions made
in this manual.

1. SUMMARY
Working based on existing GSM/GPRS network and GPS satellites, this product can
locate and monitor any remote targets by SMS, APP and Internet. It adopts the most
advanced technology of GPS and AGPS dual positioning.
Specifications
Content
Specs.
Dim.
90mm x 45mm x16mm
Weight
46g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz
GPS sensitivity
-159dBm
GPS accuracy
5m
Work voltage
12V-36v
Time To First Fix
Cold status 45s
Warm status 35s
Hot status 1s
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +55°C
Humidity
5%--95% non-condensing
Main functions
·GSM quad-band frequency;
·Real time tracking by SMS/GPRS;

·Over speed alarm ;
·move alarm
·Geo-fence alarm
·Built-in backup battery to realize power failure alarm;( optional)
·Cut vehicle oil or circuit alarm (optional).
·ACC ignition and flame out inform (optional)
·Add Smart sleep save power Mode
·Add AGPS function,receive GPS signals faster
·Add built-in storage memory
·
2.Hardware Description
2.1) device front side towards the sky. When install in car, if the windscreen glued by
metal thermal insulation layer or heating layer, it will reduce the GPS receive signal
and lead to GPS work disorder.

The GPS tracker must be installed by professional personnel

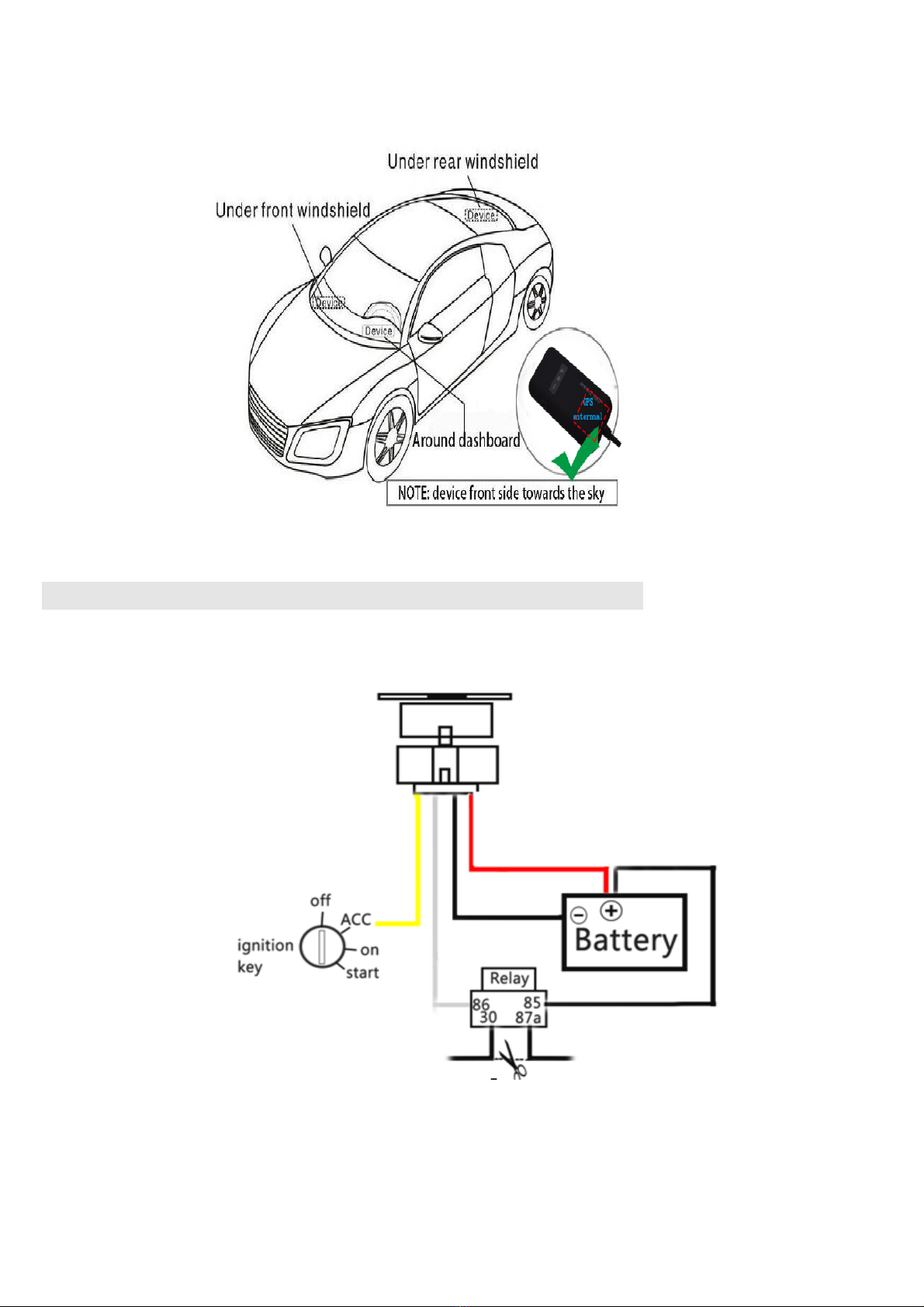

2.2 Device wiring requirements

Device default is 2pin
1)red wire connect power positive+,
2)black wire connect power negative-,
3) Yellow wire connects to ACC
4) White wire connects to relay white wire
INDICATOR LIGHT
STATUS
MEANING
green light -Solid
GSM signal connection
green light -Flash
searching GSM signal
Blue light -Solid
GPS signal connection
Blue light -Flash
searching gps signal
Note: All led will turn off after 10 minutes for best hide.if you call the device sim
card number,so the led will turn on work again. Connect 12V-36 v voltage of the
power supply
3. Notices:
1. GPS tracking can be worked outdoor. Must have a mobile phone signal and have
GPS signal, can block GPS satellite signal when there are metal and building above
the GPS tracker
2.Please make sure GSM SIM card(2G GSM network or compatibility 2G GSM
network) supports making calls, sending messages, GPRS network.
3.Please make sure GSM SIM card is with sufficient balance.
4.Please make sure the GSM card has opened the call shows and turned off the call

transfer.
5.Please insert the GSM phone card correctly. Cancel the PIN code
6. a cording to the user manual to operation
4.Quick using
1) Open the rubber cover, insert the SIM card to the slot.
2) Put device outdoor ,connect to power supply 9V/36V ,
3) Dialing device number, it will hang up and receive Google Maps link of position
or sending message “smslink123456” to SIM card in tracker
5. SMS Command instruction
NOTE:
1)Device default password:123456)
2)use of mobile phones send messages to the tracker about all set command
3) The “+” in the command, please don’t type “+”, space means press
the space keyboard on your cell phone

4)After admin number setting, all alarm message will send authorization number
other cell-phone number send command will not reply
5) If you want standby time longer, pls don't open move alarm, and platform for
real-time location tracking.etc
6)The default mode is “GPRS”, Send SMS “sms+password” to the tracker, and it will
reply “sms ok!”close GPRS mode, replace SIM mode

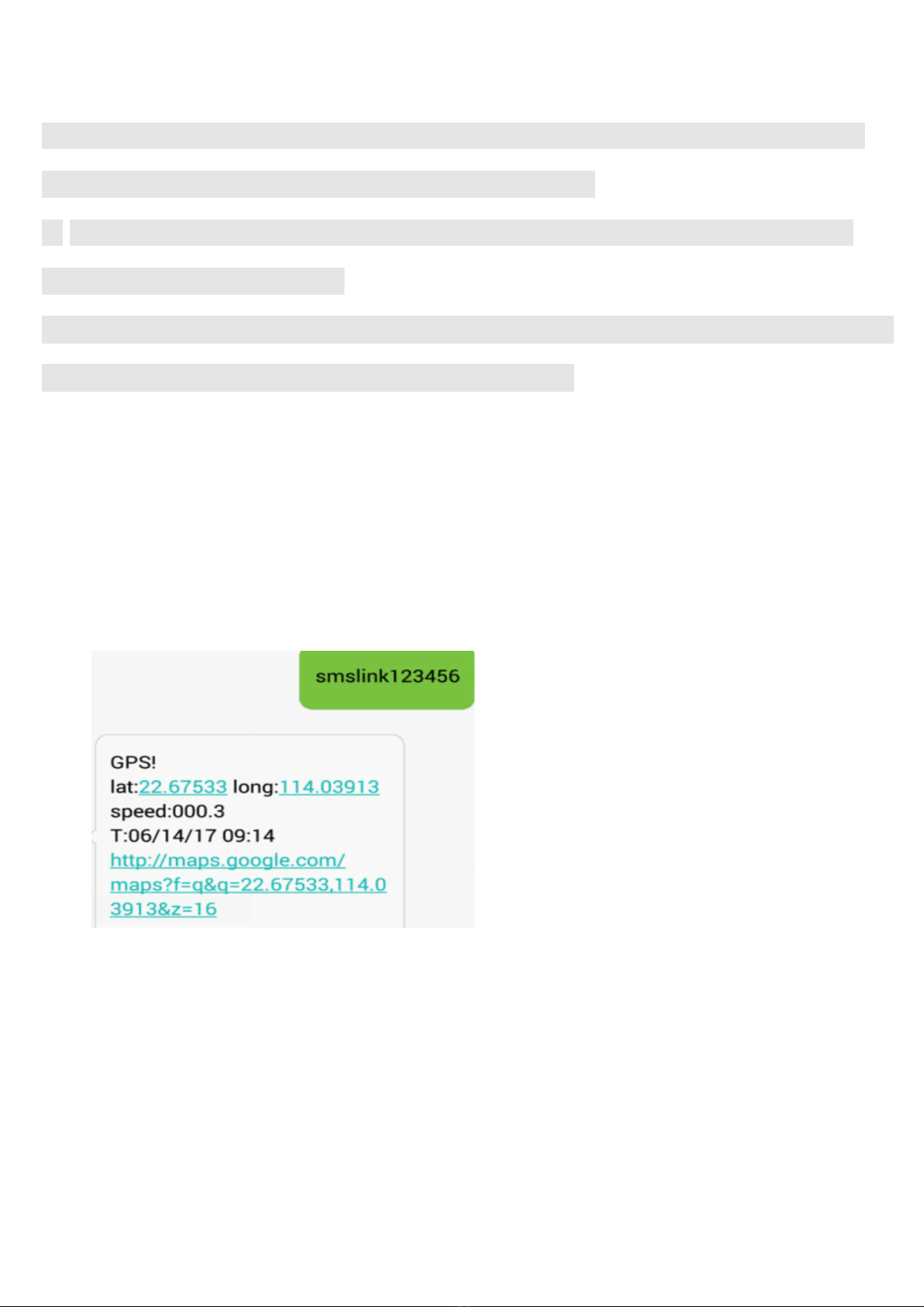

5.1. Call the mobile number in tracker, you will receive a Google Maps link of
position, or sending message “smslink123456” to SIM card in tracker .
e.g:
EXPLANATION OF PARAMETERS/CODES IN SMS MESSAGE

Pic（1）have gps signal Pic(2)no gps signal
Pic 1：Replied real-time tracking information under GPS satellites signal.
uLat:22.67533 lon:114.03913 Positioning of the latitude and longitude values.
uSpd：000.3 This refers to the device moving speed. The unit is km/h.
uT:06/14/17 09:14 real-tracking time, the Default is London time. You can set
a time zone by sms command
Google Link: This is the link to the Google map showing the position of the device.
Pic 2：Replied LBS information without GPS satellites signal.
usmcc:27a4 1223: Real-time LBS data.
uTime:08/00/00 LBS positioning time.
If you receive positioning information is picture 2, please go out the outdoor and
Walk around with gps tracker,for receive The satellite signal
5.2. Admin number setting (support 5pcs admin number )
After admin number setting, all alarm message will send authorization number
Set the first authorization number, then set the second, third, fourth and fifth
authorization numbers use the first authorization mobile phone number
device has two ways alarm, the first ways (SMS + platform): way123456 1
the Second way, (SMS+ platform+call): way123456 2
If you choose the second mean:

Alarm information will be sent to your Mobile phone by SMS/ call and will be sent t
o the platform by gprs also

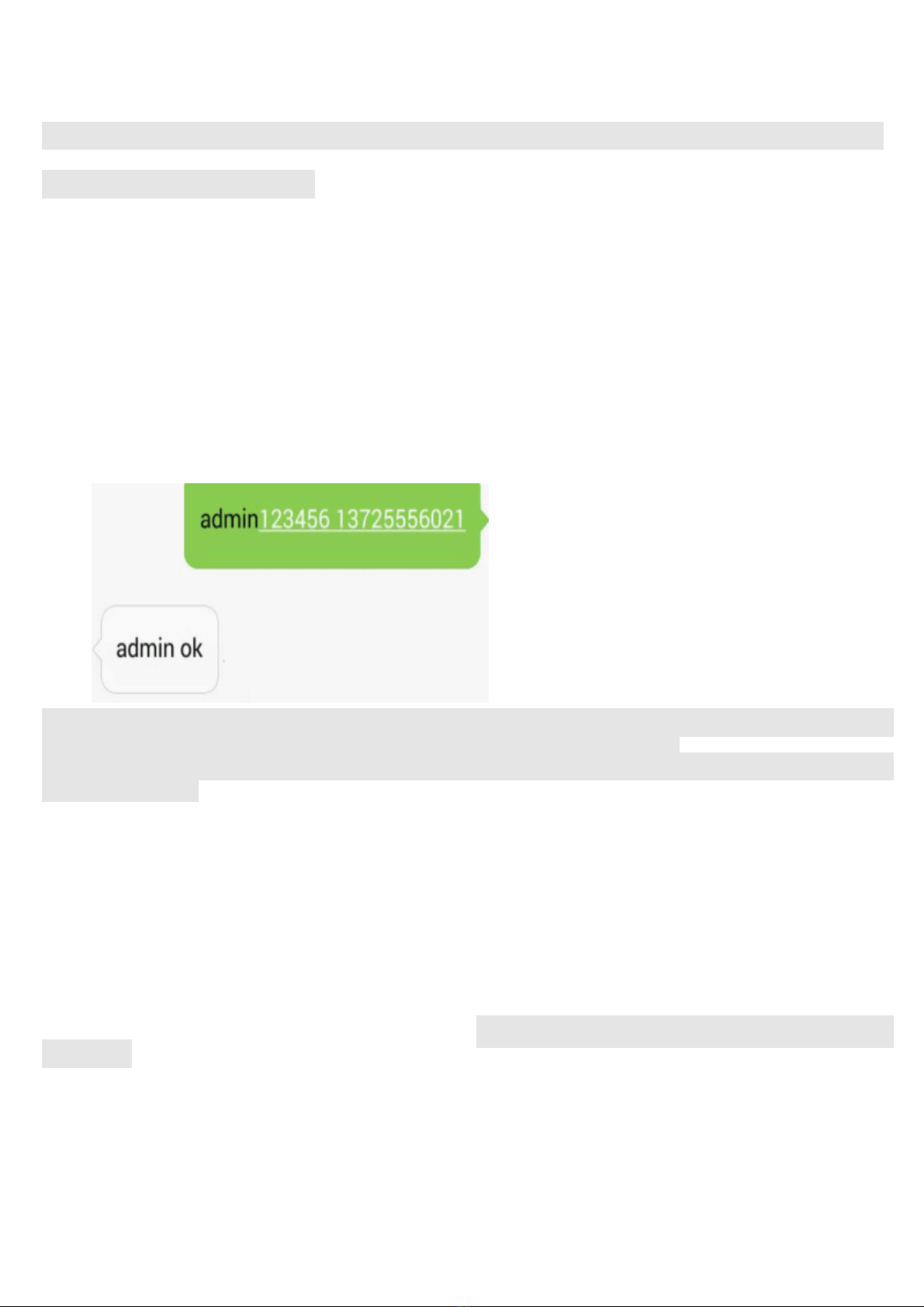

Command: admin123456+space+ phone number（This phone number is your own
mobile phone number , not the mobile number in tracker .）
Reply：admin ok
E.g：admin123456 13725556021
Note: support 5pcs admin number , Set the first authorization number,then use use
the first authorization number to set other authorization number,
If the authorization number forget or lost, you can send reset123456 to Restore the
factory Settings
Admin number Canceling:
Command ：noadmin123456 13725556021
Reply：noadmin ok
5.3. Over-speed Alarm setting（It works only in continuous positioning mode.）
Over-speed Alarm setting:
Command ：speed123456+space+ speed（Suppose speed is 70km/h）note: not less
60KM/H
Reply：speed ok
E.g：

When the unit speed is over 70km/h, it will send message “speed alarm!” to the
admin number .
Over-speed Alarm canceling ：
Command ：nospeed123456
Reply：nospeed ok
5.4. move Alarm setting (It works only in getting gps signal, the scope is a circle
that radius 200meters)
Command：move123456
Reply：move ok
E.g：
move alarm Canceling:
Command：nomove123456
Reply：nomove ok
5.5 Terminal (local) Time Setting(factory setting GMT 0)
Command：time +space+zone123456+space +local time zone
Reply：time ok!
E.g：time zone123456 1

NOTE:( 1 is east 1, - 1 is west 1, 30 is half the time zone)

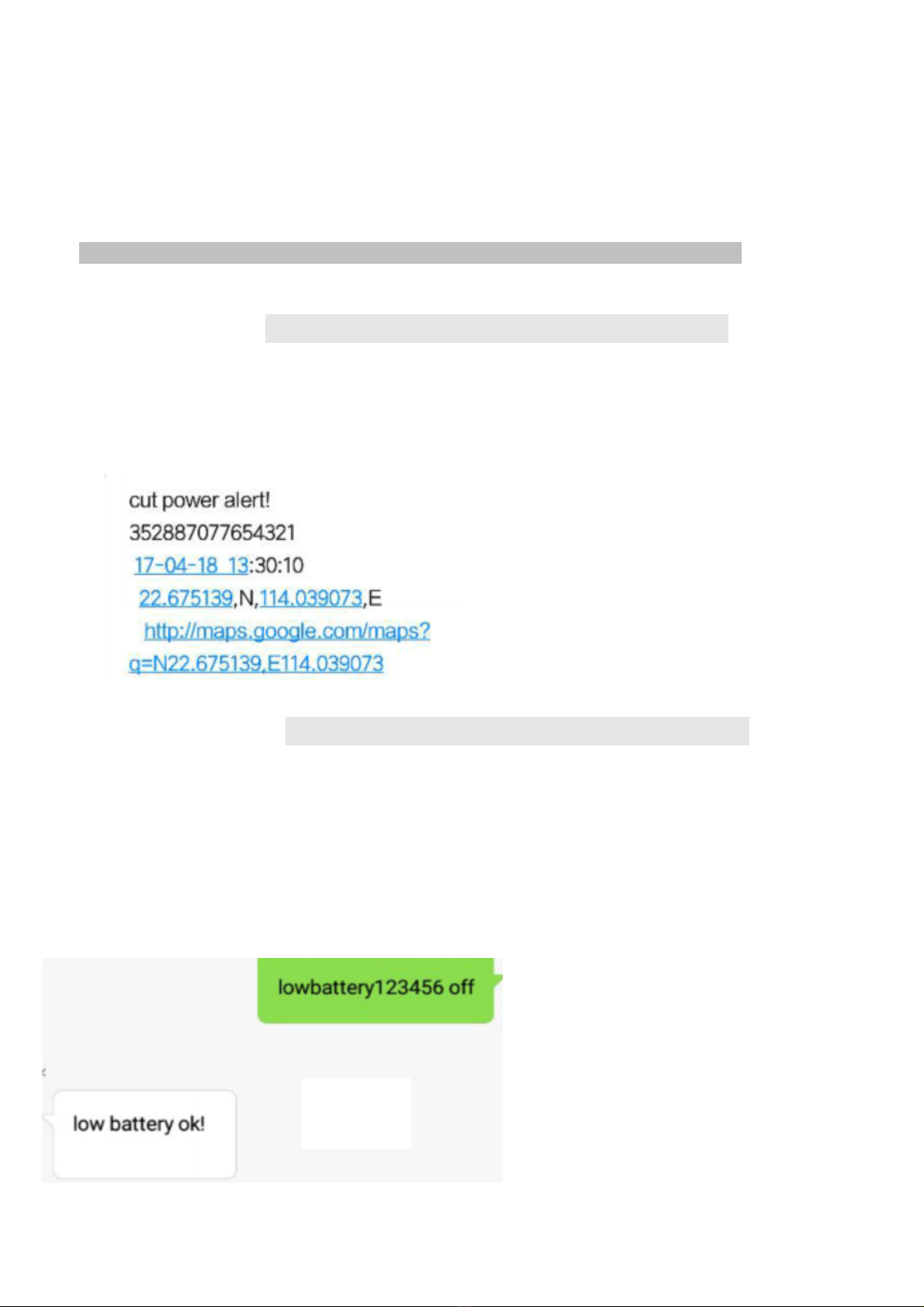

5.6 cut Power alarm(option, The default not have this function)
If device have built-in battery.it will send alarm after the power failure
This function activates by default
5.7 Low battery alarm (option, The default not have this function)
This function activates by default.it will send alarm once battery lower than 30%
level of full power
canceling low battery alarm
Command :“lowbattery+password+space+off”

set effective send SMS “lowbattery+password+space+on”
5.8 ACC working alarm (optional 4pin )
1) send "ACC+password" to tracker to turn on ACC function(tracker will report
the Acc status)
E.g：
2) Canceling ACC function
5.9 Cut off the Oil and Power Setting(option, The default not have this function)
1)Command:*cut+password*(it*will*be*executed*and*stop*the*car*when*the*
speed*is*less*than*20KM/H)*
Reply : stop engine success
E.g

2) resume the Oil and Power System
Command: resume+password
Reply : resume engine succeed
E.g
6.0 device to restart
Command: reboot123456
Reply: after 20s will reboot ok!
E.G
6.1 change Time upload interval( default 10s)
Command：fix010s***n123456
Reply: t010***n ok

(010 s is every 10 seconds send data to platform, Can change the upload time
interval)
6.2 Change the password
Command: password123456 888888
Reply :password OK
Note: 123456 is the old password(default ),888888 is the new password,it must the 6
digits Arabic numerals
6.3 Restore the factory Settings
Command：reset123456
Reply：supervisor instruction setting Factory, ok!
6.4check imei
Command: imei123456
Reply : IMEI number

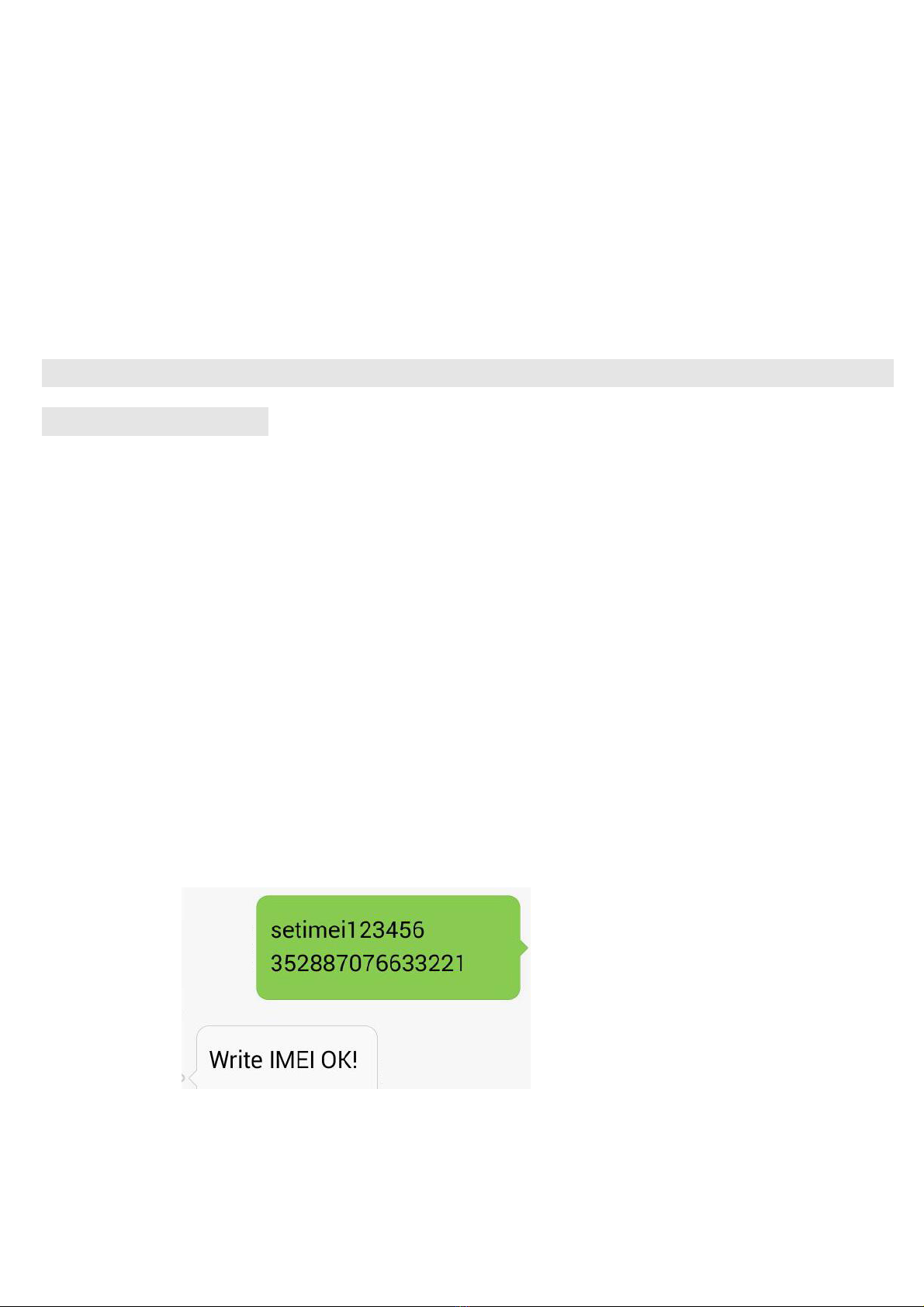

6.5 change IMEI number
Command: setimei123456+space+ new imei number
E.G: setimei123456 352887076633221
7. If you need real-time tracking by APP or website ,pls Operating as
follows

NOTE:If you need a platform position, please use phone send “gprs123456” to
device
7.1:Support Android & IOS APP tracking
If you need real-time tracking by APP ,please scan APP on web platform
OR Download :“dagps”
1).scan QR code---open with browser--- choose Android or Iphone ---Download--
installation app

7.2:support Website tracking
Open www.gps110.org
Use IMEI login, default password 123456.
PC login APP login

NOTE:If you insert the correct SIM card and open GPRS, device in outdoor, still not
online.Please set the APN commands
SMS1:APN123456+space+Apn name ( APN name pls ask the sim card
company ,for example tell you the apn name is ABC,so send APN123456 ABC)
If have the APN user name and password, need plus APN user name and password
behind the APN name)
Eg:APN123456+space+APNname+space+APNuser name+space+ APNpassword
If device online in platform, no need set apn commands
7.3 register Administrator account and tracking multiple devices

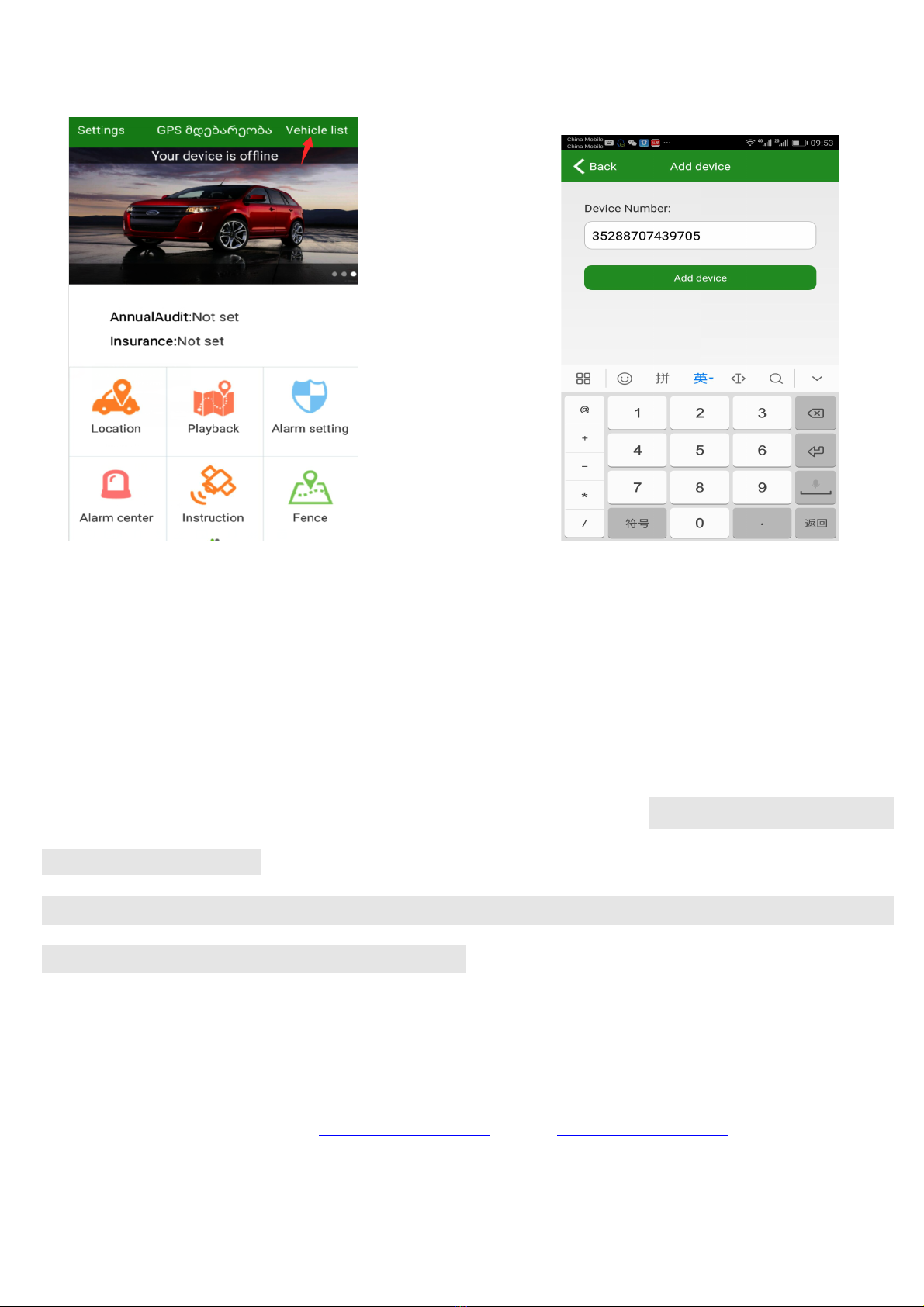

operation ：register APP accounts--- Fill in the APP---login in registered
accounts vehicle list----add device---fill in IMEI--OK
Registration fill in

Click vehicle list add device
If you add more than two , continue to add IMEI number
8. If use the other platform, start on line tracker(Use the default platform,
don't need to operate 7)
in advance Using mobile phone send SMS commands to device and set online
platform (please set DNS and port,set apn)
SMS1: adminip123456 +space+ip+space+port
or adminip123456+space +DNS+space+ port
E.g: adminip123456 www.gps110.org 7018(www.gps110.org is DNS,7018 is
port)

SMS2:APN123456+space+Apn name (APN name pls ask the sim card company ,for
example tell you the apn name is ABC,so send APN123456 ABC)
If have the APN user name and password, need plus APN user name and password
behind the APN name)
Eg:APN123456+space+APNname+space+APNuser name+space+ APNpassword
If device online in platform, no need set apn commands
9. FAQ and processing methods.
FAQ
Instructions/Solutions
Fail to turn it
on
Please check if connect to power supply 9V/36V and red light if
Solid
No GSM signal
Please check if SIM card installed correctly and have money,
if there a mobile phone GSM signal
lPlease check if SIM card is 2G or Compatible 2G GSM
network. And have to mobile phone signal
lDon’t turn on the PIN code
lno calls can be diverted
lPlease check if voltage of the power is normal
l
lPlease check if voltage of the power is normal
电源电压是否正常
No GPS
A more open view of the sky is recommended to make sure the
device can receive the GPS signal normally.in outdoor and take
device to walk around
or take device to walk around
normally.in outdoor
No reply to
SMS command
Password wrong or the format is wrong. restore factory settings
send messages “reset123456”
No reply to
calling & No
alarm message
Authorized / admin phone number is incorrect or has not set up

SMS position
OK, cannot the
APP and web
platform
position
Pls check if APN is correctly set. And set the correct APN
Platform
position is
difference and
the actual
position.
position time don't update or no GPS signal: call the device phone
number and receive the position message. If it shows like Pic 2,
pls make sure the device can receive the GPS signal normally.in
outdoor,and take device to walk around, make sure sim normal
