Titan Implement, LLC 3 5100 Series Landscape Rakes
[phone] January 2016
Pre-Delivery Checklist
The Dealer should inform the Purchaser of this product of the Warranty terms, provisions, and procedures that are
applicable. The Dealer and Purchaser should review the contents of the Operation and Parts Manual including
safety equipment, safe operation and maintenance, review the Safety Signs on the implement (and tractor, if
necessary), and the Purchaser’s responsibility to train their operators in correct operating procedures.
• MOUNTED IMPLEMENTS: I have explained that Defl ectors, Guards, or Shields must be installed and
maintained in good repair, and that the operator is responsible for watching out for persons in the work area.
PRE-DELIVERY SERVICE
CHECK AND ADJUST AS REQUIRED
See Operator’s Manual for Details
Inspection Performed - Warranty and Safety Procedures Explained - Installation Complete
IMPLEMENT
 Review Procedure to Adjust Landscape Rake
 Make Sure All Hardware is Properly Tightened
ATTACHMENTS and INSTALLATION
 Make Sure All Bolts, Pins, and Nuts are Properly
Installed and Tightened
I have thoroughly instructed the purchaser on the above-described equipment. This review included the Operation
and Parts Manual contents, equipment care, adjustments, safe operation, and applicable warranty policy.
Date__________________ Dealer Rep. Signature_________________________________________
The above equipment and Operation and Parts Manual have been received by me, and I have been thoroughly
instructed as to equipment care, adjustments, safe operation, and applicable warranty policy.
Date__________________ Purchaser’s Signature_________________________________________
IMPLEMENT TO TRACTOR CONNECTIONS
 Make Sure A-Frame Pivot and Links are Properly
Installed
 Make Sure Lift Arms are Adjusted Equally
 Complete all Pre-Operation Checks
SAFETY ITEMS
 Make Sure Protective Shields are Properly Installed
 Review Operation and Parts Manual (Supplied)
 Make Sure Tractor PTO Shield is Installed
 Make Sure S.M.V. Sign is Installed, if Needed
(Customer Supplied)
Cut Here to Remove Page or Make Copies of This Page

Titan Implement, LLC 5 5100 Series Landscape Rakes
[phone] January 2016
Table of Contents
1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Specifi cations . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4 Intended Usage . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.5 Operator Orientation . . . . . . . . . . . . . . . . . . . . . 7
1.6 Serial Number Location (Typical) . . . . . . . . . . . 7
1.7 Product Improvements . . . . . . . . . . . . . . . . . . . 7
1.8 Disposal of Equipment at End of Useful Life . . . 7
1.9 Unanswered Questions . . . . . . . . . . . . . . . . . . . 7
2. SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Safety Alert Symbols . . . . . . . . . . . . . . . . . . . . . 8
2.3 Safety Icon Nomenclature . . . . . . . . . . . . . . . . . 9
2.3.1 Personal Protection/Important
Information . . . . . . . . . . . . . . . . . . . . . . . 9
2.3.2 Prohibited Actions . . . . . . . . . . . . . . . . . 9
2.3.3 Hazard Avoidance . . . . . . . . . . . . . . . . . 9
2.4 General Safety Instructions . . . . . . . . . . . . . . . 10
2.5 Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.6 OSHA Training Requirements . . . . . . . . . . . . . 11
2.7 Operation Safety . . . . . . . . . . . . . . . . . . . . . . . 11
2.8 Transporting Safety . . . . . . . . . . . . . . . . . . . . . 11
2.9 Storage Safety. . . . . . . . . . . . . . . . . . . . . . . . . 11
2.10 Maintenance Safety. . . . . . . . . . . . . . . . . . . . . 11
2.11 Federal Laws and Regulations . . . . . . . . . . . . 12
2.12 Sign-Off Form . . . . . . . . . . . . . . . . . . . . . . . . . 13
3. NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . 14
4. OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1 User Safety Training . . . . . . . . . . . . . . . . . . . . 15
4.2 Tractor Requirements . . . . . . . . . . . . . . . . . . . 16
4.2.1 Tractor Safety Devices. . . . . . . . . . . . . 16
4.2.2 ROPS and Seat Belt . . . . . . . . . . . . . . 16
4.2.3 3-Point Hitch . . . . . . . . . . . . . . . . . . . . 16
4.3 Attaching to Tractor . . . . . . . . . . . . . . . . . . . . 17
4.4 Setting the Landscape Rake . . . . . . . . . . . . . . 17
4.4.1 Leveling the Landscape Rake . . . . . . . 17
4.4.2 Setting Rake Angle . . . . . . . . . . . . . . . 18
4.4.3 Rake Reversing (Pushing Rake) . . . . . 18
4.4.4 Setting Rake Pitch . . . . . . . . . . . . . . . . 18
4.4.5 Setting Rake Tilt. . . . . . . . . . . . . . . . . . 18
4.4.6 Checking Clearance to Tractor . . . . . . 18
4.5 Initial Setup Checklist . . . . . . . . . . . . . . . . . . . 18
4.6 Implement Break-In . . . . . . . . . . . . . . . . . . . .19
4.6.1 General Operating Instructions . . . . . . 19
4.7 Detaching From Tractor . . . . . . . . . . . . . . . . . 20
5. TRANSPORTING. . . . . . . . . . . . . . . . . . . . . . . 21
5.1 Transporting Safety (Road) . . . . . . . . . . . . . . . 21
6. STORAGE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.1 Storage Safety. . . . . . . . . . . . . . . . . . . . . . . . . 22
6.2 Placing In Storage . . . . . . . . . . . . . . . . . . . . . . 22
6.3 Removing From Storage . . . . . . . . . . . . . . . . 22
7. SERVICE AND MAINTENANCE . . . . . . . . . . 23
7.1 Maintenance Safety. . . . . . . . . . . . . . . . . . . . . 23
7.2 Tine Replacement . . . . . . . . . . . . . . . . . . . . . . 24
7.3 Welding Repairs . . . . . . . . . . . . . . . . . . . . . . . 24
7.4 Bolt Torque Requirements. . . . . . . . . . . . . . . . 25
7.5 Service Record . . . . . . . . . . . . . . . . . . . . . . . . 26
8. WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9. PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5100 Series Landscape Rakes 6 Titan Implement, LLC
January 2016 [phone]

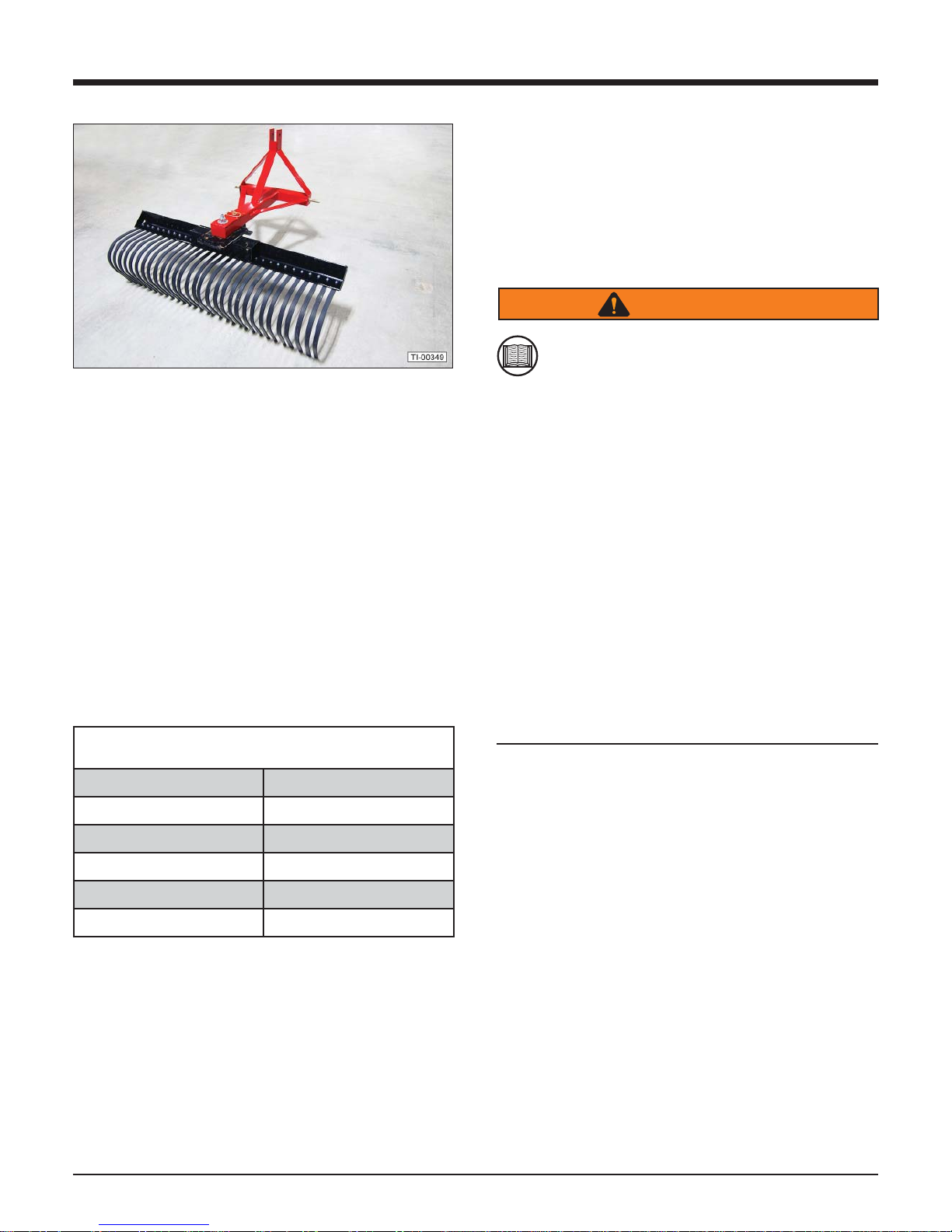

1. INTRODUCTION
1.1 Welcome
5100 Series Landscape Rake
Congratulations on your choice of a Titan Implement
landscape rake. This equipment has been designed
and manufactured to meet the needs of discerning
users.
The Titan Implement landscape rake is designed to
loosen, level, and clear soil.
Many features incorporated into this landscape rake
are the result of suggestions made by customers
like you. Read this manual carefully to learn how to
operate the landscape rake safely and how to adjust it
to provide maximum operating effi ciency.
By following the operating instructions in conjunction
with a good maintenance program, your Titan
Implement landscape rake will provide many years of
trouble-free service.
This manual covers Titan Implement landscape
rake models:
Model Working Width
5104 48”
5105 60”
5106 72”
5107 84”
5108 96”
1.2 Safe Operation
Safe, effi cient, and trouble-free operation of your
landscape rake requires that you, and anyone else
who will be using or maintaining the unit, read and
understand the information contained within this
Manual.
Use this manual for reference and for new operators or
owners.
WARNING
Read And Understand Manual
To prevent personal injury or even death, be
sure you read and understand all of the
instructions in this manual and other related OEM
equipment manuals! The landscape rake, if not
used and maintained properly, can be dangerous to
users unfamiliar with its operation. Do not allow
operating, maintaining, adjusting, or cleaning of this
landscape rake until the user has read this manual
and has developed a thorough understanding of the
safety precautions and functions of the unit.
This landscape rake is designed for the specifi c
purpose of loosening, leveling, or clearing soil.
DO NOT modify or use this landscape rake
for any application other than that for which
it was designed.
Landscape rakes maintained or operated improperly,
or by untrained personnel, can be dangerous;
exposing the user and/or bystanders to possible
serious injury or death.

Titan Implement, LLC 7 5100 Series Landscape Rakes
[phone] January 2016
1.3 Specifications
Model 5104 5105 5106 5107 5108
Horsepower
Required 15-45 20-45 25-45 30-45 35-45
Working Width 48" 60" 72" 84" 96”
Tines per Foot 6
Weight (Lbs.) 158 180 229 251 285
Mainframe 4” x 4” Angle
Angle Adjustment 5 Position, Fwd & Rev
A-Frame Material 3/8"
Quick Hitch YES
Hitch CAT I
Specifi cations subject to change without notice.
1.4 Intended Usage
Do not use this landscape rake for any other purpose
than its intended use of loosening, leveling, and
clearing soil.
1.5 Operator Orientation
The directions left, right, front, and rear, as mentioned
throughout this manual, are as seen from the tractor
operator’s seat and facing in the direction of travel.
1.6 Serial Number Location (Typical)
The serial number decal is located on the front of the
frame.
Model Number ______________________________
Serial Number ______________________________
1.7 Product Improvements
Because Titan Implement, LLC maintains an ongoing
program of product improvement, we reserve the
right to make improvements in design or changes in
specifi cations without incurring any obligation to install
them on units previously sold.
1.8 Disposal of Equipment at End of Useful
Life
The Titan Implement, LLC landscape rake has been
designed for the specifi c purpose of moving material for
loosening, leveling, and clearing soil. When this unit
is no longer capable of doing its designed purpose, it
should be dismantled and scrapped. Do not use any
materials or components from this unit for any other
purpose.
1.9 Unanswered Questions
If you have any questions not answered in this manual,
require additional copies, or the manual is damaged,
please contact your dealer or:
Titan Implement, LLC
P.O. Box 649
232 Industrial Lane
Decatur, TN 37322
Phone: [phone]
Fax: [phone]
The manual is also available for download at:
www.titanimplement.com
1. Select “Products”.
2. Select “Landscape Rakes”.
3. Click the “Specs., Manuals, Warranty” tab.
4. Click “Download Manual”.

5100 Series Landscape Rakes 8 Titan Implement, LLC
January 2016 [phone]
2. Safety
2.1 General
Safety of the operator and bystanders is one of the
main concerns in designing and developing a new
piece of equipment. Designers and manufacturers
build in as many safety features as possible. However,
every year many accidents occur which could have
been avoided by a few seconds of thought and a more
careful approach to handling the equipment.
Most work-related accidents are caused by failure to
observe basic safety rules or precautions. An accident
can often be avoided by recognizing potentially
hazardous situations before an accident occurs. As
you assemble, operate, or maintain the landscape
rake (unit), you must be alert to potential hazards.
You should also have the necessary training, skills,
and tools to perform any assembly or maintenance
procedures.
Improper operation and maintenance of this unit could
result in a dangerous situation that could cause injury
or death.
If you have any questions not answered in this manual
or require additional copies or the manual is damaged,
please contact your dealer or:
Titan Implement, LLC
P.O. Box 649
232 Industrial Lane
Decatur, TN 37322
Phone: [phone]
Fax: [phone]
WARNING
Do not assemble, operate, or maintain the
unit until you read and understand the
information contained in this manual.
Safety precautions and warnings are provided
in this manual. If these hazard warnings are
not heeded, bodily injury or death could occur
to you or to other persons.
Titan Implement, LLC cannot anticipate every possible
circumstance that might involve a potential hazard.
The warnings in this manual are, therefore, not all-
inclusive. If a method of assembly, operation, or
maintenance not specifi cally recommended by us is
used, you must satisfy yourself that it is safe for you
and for others. You should also ensure that the unit will
not be damaged or be made unsafe by the methods
that you choose.
The information, specifi cations, and illustrations in this
manual are based on the information that was available
at the time this material was written and can change at
any time without notice.
2.2 Safety Alert Symbols
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
This manual contains DANGERS, SAFETY
INSTRUCTIONS, CAUTIONS, IMPORTANT NOTICES,
and NOTES which must be followed to prevent
the possibility of improper service, damage to the
equipment, personal injury, or death. The following key
words call the readers’ attention to potential hazards.
Hazards are identifi ed by the “Safety Alert Symbol”
and followed by a signal word such as “DANGER”,
“WARNING”, or “CAUTION”.
DANGER
Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
This signal word is limited to the most extreme
situations.
WARNING
Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
NOTICE
Indicates that equipment or property damage can result
if instructions are not followed.
SAFETY
INSTRUCTIONS
Safety instructions (or equivalent) signs indicate
specifi c safety-related instructions or procedures.
Note: Contains additional information important to a
procedure.

Titan Implement, LLC 9 5100 Series Landscape Rakes
[phone] January 2016
2.3 Safety Icon
Nomenclature
Pictorial icons signal a type of
hazard and warn of personal
protection issues, prohibited actions,
and hazard avoidance.
2.3.1 Personal Protection/
Important Information
Read the manual
Maintenance procedure
Clear Vision
Eye protection
Fire extinguisher
First aid kit
Hand protection
Head protection
Hearing protection
Inspect equipment
OEM
OEM
OEM parts only
Protective shoes
Remove key
Set parking brake
STOP Stop engine
THINK
SAFETY! Think safety
Transmission in park
Use proper support
Use proper tools
Visibility
Rollover protection
Wear seat belt
Weight rating
2.3.2 Prohibited Actions
Do not alter or modify
Use proper tools
Do not weld
No alcohol
No drugs
No smoking
No young children
No riders
2.3.3 Hazard Avoidance
Crush hazard
Crush hazard (chock
wheels)
Crush hazard (foot)
Defective or broken part
Cutting edge contact
hazard (hand)
Cutting edge contact
hazard (foot)
Pinch point hazard
Rollover protection
Safety alert symbol
Sharp object hazard
Stay Clear
Slipping injury
Tripping injury

5100 Series Landscape Rakes 10 Titan Implement, LLC
January 2016 [phone]
2.4 General Safety Instructions
The owner/operator is responsible for the SAFE use
and maintenance of the landscape rake. Make sure
anyone who is operating, maintaining, or working
around the landscape rake is familiar with the operating
and maintenance procedures and related SAFETY
information contained in this manual. This manual will
take you step-by-step through your working day and
alerts you to all good safety practices that should be
used while using the landscape rake.
In addition to the design features of the landscape
rake, including safety signs, accident prevention is
dependent upon the awareness, concern, prudence,
and proper training of the people involved in the
operation, maintenance, and storage of the landscape
rake.
In addition to this safety section, refer also to safety
messages and instructions in each of the appropriate
sections of this manual.
These general safety instructions apply to the overall
use and maintenance of the landscape rake.
More specifi c instructions on safety are found in the
operation, maintenance, and storage sections of this
manual. Refer to these sections before performing any
of these tasks.
WARNING
Failure to comply with the following safety
instructions could result in serious injury and
possibly even death if they are not understood and
followed.
Provide User with Literature
Titan Implement, LLC landscape rake owners
must provide operator instructions to anyone
using the landscape rake before use, and at least
annually thereafter. Refer to “2.6 OSHA Training
Requirements” on page 11.
Stay Clear
Clear the area of people, especially small
children, before using the landscape rake.
Under no circumstances should young children be
allowed to work with or around the landscape rake.
Impaired User Hazard
Do not attempt to assemble, operate, or
maintain this landscape rake under the
infl uence of drugs or alcohol. Consult your doctor
before using this landscape rake while taking
prescription medications.
WARNING
Crush Hazard
Do not allow anyone to ride on the
tractor or the landscape rake. Falling
or crushing hazards can result in severe injuries or
death.
Damaged Parts Hazard
Do not use the landscape rake if any parts
are damaged. If the landscape rake has a
defect, immediately stop using it and remedy the
problem before continuing.
CAUTION
The following safety instructions are provided to
help prevent potential injury. Not following these
instructions could result in minor to moderate injury.
Personal Protection Equipment
When using this landscape rake, wear appropriate
personal protective equipment. This list may
include, but is not limited to:
• Protective shoes with slip resistant soles
• Protective goggles, glasses, or face shield
• Protective clothing and gloves
• Safety vest (when operating near roads)
• Hearing protection
Hearing Loss
Prolonged Exposure To Loud Noise May
Cause Permanent Hearing Loss!
Working environments with noise-producing
equipment can cause partial to permanent hearing
loss. We recommend using hearing protection any
time noise levels exceed 80 decibels (dB). Noise
levels over 85 dB, on a long-term basis, can cause
severe hearing loss. Noise levels over 90 dB over a
period of time can cause permanent and even total
hearing loss.
Hearing loss from loud noise is cumulative over a
lifetime without hope of natural recovery.
Crush Hazard
The tractor should be equipped with a
Roll Over Protective Structure (ROPS)
and a seat belt. A crushing hazard can occur if the
driver is ejected from the seat while the tractor is in
motion. Fasten the seat belt whenever the tractor is
moving.

Titan Implement, LLC 11 5100 Series Landscape Rakes
[phone] January 2016
SAFETY
INSTRUCTIONS
The following safety instructions are provided to
help prevent injury or limit equipment damage.
First Aid Kit
Have a fi rst aid kit available for use should
the need arise and know how to use it.
Fire Extinguisher
Have a fi re extinguisher available for use
should the need arise and know how to use it.
THINK
SAFETY! Think SAFETY!
Work SAFELY!
2.5 Training
Anyone who will be using and/or maintaining the
landscape rake must read, clearly understand,
and follow ALL safety, operation, and maintenance
information presented in this manual and other related
OEM manuals.
If you do not understand any information in this
manual, see your dealer or contact Titan Implement
before proceeding.
Do not use or allow anyone else to use this landscape
rake until all information has been reviewed. Annually
review this manual before the season start-up.
Make periodic reviews of SAFETY and OPERATION of
the landscape rake a standard practice. An untrained
operator is not qualifi ed to use this landscape rake.
2.6 OSHA Training Requirements
The following training requirements have been taken
from Title 29, Code of Federal Regulations Part
1928.57 (a) (6). www.osha.gov.
Operator instructions. At the time of initial assignment
and at least annually thereafter, the employer shall
instruct every employee who operates an agricultural
tractor and implements in the safe operating practices
and servicing of equipment with which they are or will
be involved, and of any other practices dictated by the
work environment.
2.7 Operation Safety
Refer to “4.1 User Safety Training” on page 15 for
safety recommendations related to using the landscape
rake. All applicable safety recommendations in other
sections should also be followed.
2.8 Transporting Safety
Refer to “5.1 Transporting Safety (Road)” on page 21
for safety recommendations related to transporting the
landscape rake. All applicable safety recommendations
in other sections should also be followed.
2.9 Storage Safety
Refer to “6.1 Storage Safety” on page 22 for safety
recommendations related to storing the landscape
rake. All applicable safety recommendations in other
sections should also be followed.
2.10 Maintenance Safety
Refer to “7.1 Maintenance Safety” on page 23 for
safety recommendations related to maintaining the
landscape rake. All applicable safety recommendations
in other sections should also be followed.

5100 Series Landscape Rakes 12 Titan Implement, LLC
January 2016 [phone]
2.11 Federal Laws and Regulations
IMPORTANT FEDERAL LAWS AND REGULATIONS
CONCERNING EMPLOYERS, EMPLOYEES AND OPERATORS
This section is intended to explain in broad terms the concept and eff ect of the following federal laws and
regulations. It is not intended as a legal interpretation of the laws and should not be considered as such.
U.S. PUBLIC LAW 91-596 (The Williams-Steiger Occupational Safety and Health Act of 1970) OSHA
This Act Seeks:
“ ... to assure so far as possible every working man and woman in the nation safe and healthful working conditions and to
preserve our human resources ... “
DUTIES
Sec. 5(a) Each Employer -
(1) shall furnish to each of its employees employment and a place of employment which are free from
recognized hazards that are causing or are likely to cause death or serious physical harm to its
employees.
(2) shall comply with occupational safety and health standards promulgated under this Act.
(b) Each employee shall comply with occupational safety and health standards
and all rules, regulations, and orders issued pursuant to this Act which are
applicable to his or her own actions and conduct.
OSHA Regulations
Current OSHA regulations state in part: “At the time of initial assignment and at least annually thereafter, the
employer shall instruct every employee in the safe operation and servicing of all equipment with which the
employee is, or will be involved.” These will include (but are not limited to) instructions to:
Keep all guards in place when the machine is in operation;
Permit no riders on equipment;
Stop engine, disconnect the power source, and wait for all machine movement to stop before servicing,
adjusting, cleaning, or unclogging the equipment, except where the machine must be running to be
properly serviced or maintained, in which case the employer shall instruct employees as to all steps and
procedures which are necessary to safely service or maintain equipment.
Make sure no one is within 300 feet of machinery before starting the engine, engaging power,
or operating the machine.
EMPLOYEE TRACTOR OPERATING INSTRUCTIONS:
1. Securely fasten your seat belt if the tractor has a ROPS.
2. Where possible, avoid operating the tractor near ditches, embankments, and holes.
3. Reduce speed when turning, crossing slopes, and on rough, slick, or muddy surfaces.
4. Stay off slopes too steep for safe operation.
5. Watch where you are going, especially at row ends, on roads, and around trees.
6. Do not permit others to ride.
7. Operate the tractor smoothly - no jerky turns, starts, or stops.
8. Hitch only to the drawbar and hitch points recommended by tractor manufacturers.
9. When tractor is stopped, set brakes securely and use park lock if available.
Child Labor Under 16 Years Old
Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility to
know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment Standard
Administration, Wage & Home Division, Child Labor Bulletin #102).

Titan Implement, LLC 13 5100 Series Landscape Rakes
[phone] January 2016
2.12 Sign-Off Form
Titan Implement, LLC follows the general Safety
Standards specifi ed by the Farm Equipment
Manufacturers Association (FEMA), and the American
National Standards Institute (ANSI). Anyone who will
be using and/or maintaining the landscape rake must
read and clearly understand ALL safety, operation and
maintenance information presented in this manual.
Do not use or allow anyone else to use this landscape
rake until all information has been reviewed. Annually
review this manual before the season start-up.
Make periodic reviews of SAFETY and OPERATION of
the landscape rake a standard practice. An untrained
operator is not qualifi ed to use this landscape rake.
Sign-Off Form
Date User’s Signature Owner’s Signature
This sign-off sheet is provided for your records to
show that all personnel who will be working with the
equipment have read and understand the information in
this Operator’s Manual and Parts Book and have been
instructed in the operation of the equipment.

5100 Series Landscape Rakes 14 Titan Implement, LLC
January 2016 [phone]

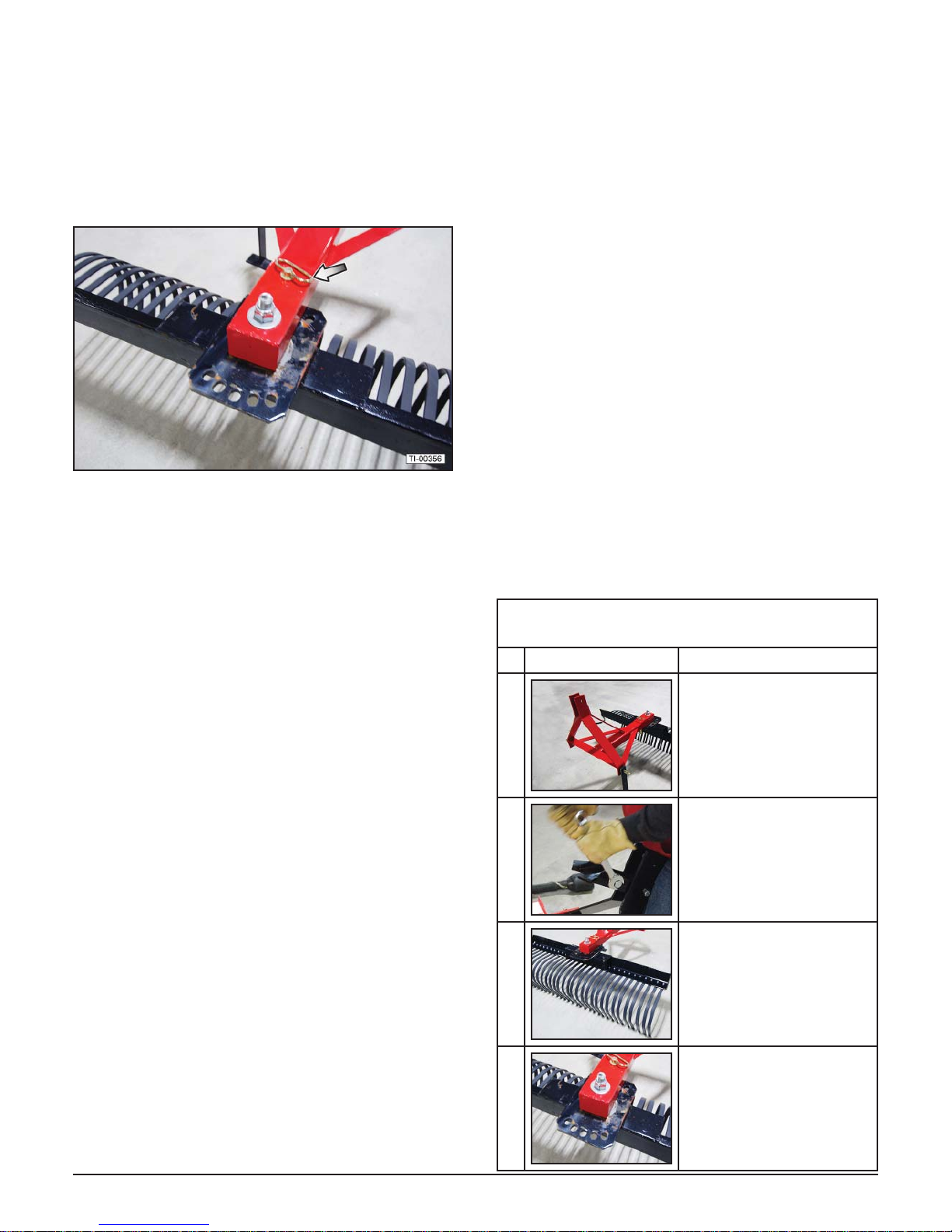

3. Nomenclature
Item Description
1 A-Frame
2 Angle Adjustment Pin
3 Rake Bottom
4 Tines
5 CAT l 3-Point Hitch Pins

Titan Implement, LLC 15 5100 Series Landscape Rakes
[phone] January 2016
4. Operation
4.1 User Safety Training
Refer to “2.4 General Safety Instructions” on page
10 for general user safety training requirements.
WARNING
STOP
Roll Away Hazard
Before leaving the
tractor seat, make sure
the engine is stopped, the transmission is placed in
park, the key is removed, and the parking brake is
set.
The weight of the tractor, plus the implement,
if it rolls onto a person, can cause serious
crushing injury or death.
Crush Hazard
The tractor should be equipped with
a Roll Over Protective Structure
(ROPS) and a seat belt. A crushing hazard can occur
if the driver is ejected from the seat while the tractor
is in motion. Fasten the seat belt whenever the
tractor is moving.
Stay Clear
Clear the work area of all unnecessary people
and obstructions to prevent personal injury.
Tine Contact Hazard (hand)
To avoid serious injury or death, keep away
from ground engaging components. Do
not put hands under landscape rake.
Tine Contact Hazard (foot)
To avoid serious injury or death, keep away
from ground engaging components. Do not
put feet under landscape rake.
THINK
SAFETY! Operating the Tractor
Before attaching the landscape rake to the
tractor, be familiar with its controls and how
to stop quickly in the event of an emergency. Read
and understand this manual and the one provided
with your tractor before operating the landscape
rake.
SAFETY
INSTRUCTIONS
The following safety instructions are provided to
help prevent injury or limit equipment damage.
THINK
SAFETY! Train Unfamiliar Users
It is the landscape rake owner’s
responsibility to make sure any person
using the landscape rake, especially if it is loaned or
rented, has been thoroughly trained on its proper
and safe use.
Be certain only physically-able persons will use the
landscape rake.
Untrained users expose themselves and bystanders
to possible serious injury or death.
If the elderly are assisting with the work, their
physical limitations need to be recognized and
accommodated.
Never allow children to operate equipment.

5100 Series Landscape Rakes 16 Titan Implement, LLC
January 2016 [phone]

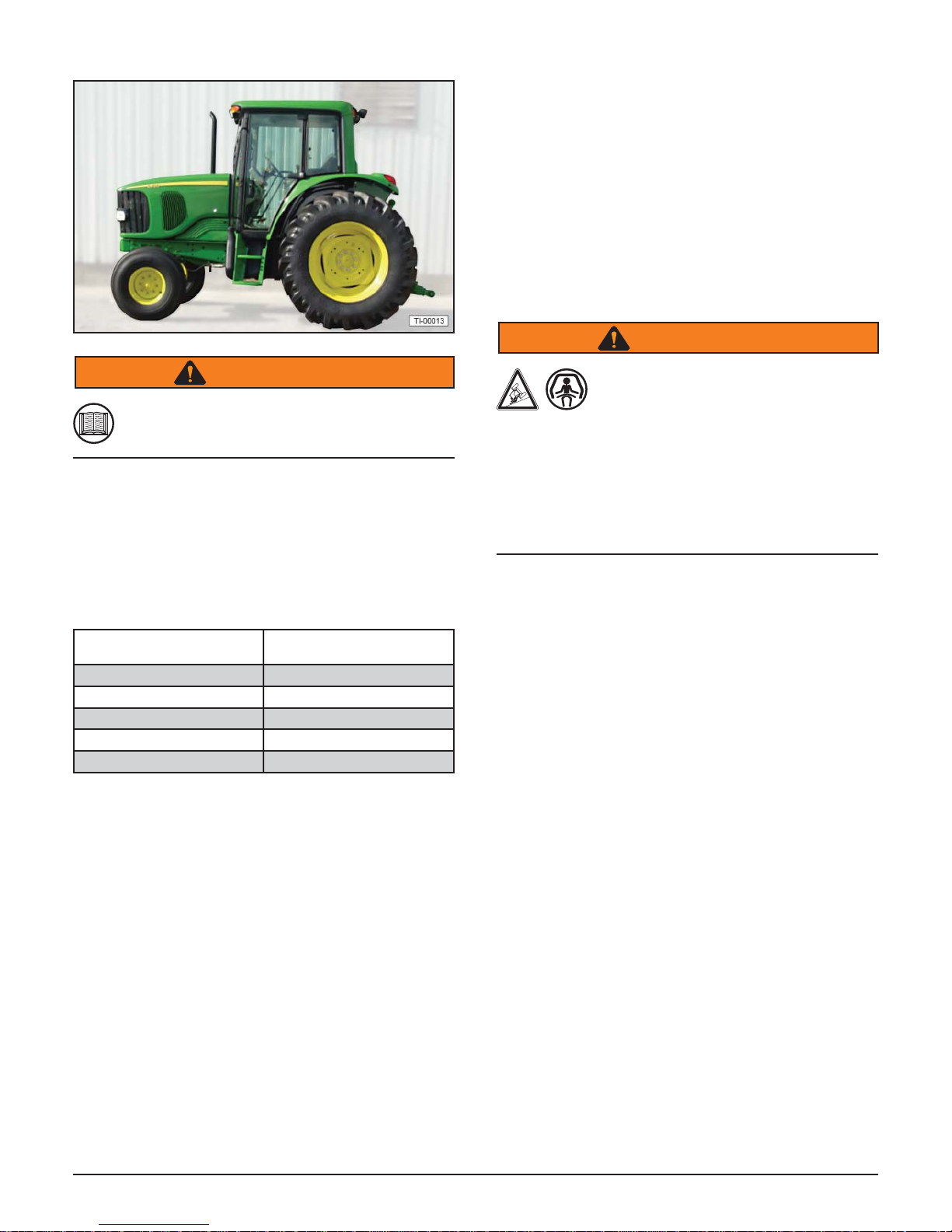

4.2 Tractor Requirements
WARNING
Tractor Owner/Operator Manual
Always refer to the tractor Operator’s Manual
to ensure compatibility and maximum safety.
The tractor used to operate the landscape rake must
have the power capacity to lift and pull the landscape
rake at a ground speed between 2 and 5 MPH.
Use the chart to select the tractor horsepower
appropriate for your landscape rake. Do not use a
tractor of more than the recom mended HP to prevent
damaging landscape rake components.
Model Recommended
HP
5104 15-45
5105 20-45
5106 25-45
5107 30-45
5108 35-45
The tractor must be matched to the weight of the
landscape rake. A minimum of 20% of the combined
tractor and equipment weight should be on the front
wheels. This will ensure adequate stability during
transport and operation.
Always review the “controls” section of the tractor
Operator’s Manual to be familiar with the location,
settings, and function of the tractor controls. Be
familiar with all controls before using this equipment.
4.2.1 Tractor Safety Devices
If transporting or operating the tractor and implement
near a public roadway, the tractor must be equipped
with proper warning lighting and a Slow Moving Vehicle
(SMV) emblem, which are clearly visible from the
rear of the unit. Lights and a SMV emblem must be
attached directly to the implement if the visibility of the
tractor warning signals is obscured.
Never operate the tractor PTO with the PTO master
shield missing or in the raised position.
4.2.2 ROPS and Seat Belt
WARNING
Rollover Hazard
To avoid serious injury or death from
falling off tractor, equipment runover,
rollover, or crushing:
1) Use ROPS equipped tractor.
2) Keep ROPS locked in the UP position.
3) Only operate the equipment when seated in the
tractor seat.
4) Always fasten seat belt when operating the tractor
and landscape rake.
The tractor must be equipped with a Roll Over
Protective Structure (ROPS) (tractor cab or roll-bar)
and seat belt to protect the operator from falling off the
tractor, especially during a roll-over where the driver
could be crushed and killed. Only operate the tractor
with the ROPS in the raised position and seat belt
fastened.
4.2.3 3-Point Hitch
These landscape rakes are designed to be mounted on
a tractor CAT I 3-Point or Quick Hitch.
Refer to the tractor Operator’s Manual for the category
of the tractor being used. If the hitch does not conform
to ASABE CAT I dimensions, the landscape rake may
not fi t or raise properly. Consult an authorized dealer
for possible modifi cation procedures to mount non-
conforming hitches. Depending on the hitch category,
certain size pins are used to attach the implement to
the tractor. CAT I hitches require 7/8” lower and 3/4”
upper diameter hitch pins.
Install the lift arm stabilizer or shorten the stop chains
to place the arms into the non-sway con fi guration.
Refer to the tractor manual for details.

Titan Implement, LLC 17 5100 Series Landscape Rakes
[phone] January 2016
4.3 Attaching to Tractor
Use caution when connecting the landscape rake to
the tractor. The landscape rake should be securely
resting on the ground or setting on blocks. Keep hands
and feet away from the tines and clear of pinch points
between the tractor hitch arms and landscape rake
hitch pins.
WARNING
Crush Hazard
Crush hazard between hitch and implement.
Do not allow anyone to stand between the hitch
and implement during hook-up operations.
Never operate the hydraulic 3-point lift controls
while someone is directly behind the tractor.
1. Shorten or remove the tractor drawbar to avoid
interference when raising and lowering the
landscape rake.
2. Board the tractor and start the engine. Position the
tractor with the 3-point lift arms positioned at the
same height and to the outside of the landscape
rake hitch pins.
Note: Set the 3-point lift control to “Position Control”
so that the lift arms maintain a constant height
when attaching the landscape rake. See the
tractor Operator’s Manual for correct settings
when attaching 3-point equipment.
3. Turn off the tractor engine and dismount.
4. One lift arm at a time, insert hitch pin through the lift
arm holes and install retaining pin.
5. Walk around to the opposite side and repeat the
procedure for the remaining lift arm and hitch pin.
6. Extend or retract the 3-point top link to align its end
hole with the hole of the landscape rake’s top link.
Insert the top link hitch pin and insert the retaining
pin into the hitch pin.
7. Adjust any lower link check chains, guide blocks,
or sway blocks to prevent the landscape rake from
swaying side-to-side and possible contact with the
tractor rear tires.
4.4 Setting the Landscape Rake
Properly setting the landscape rake is essential for
effi cient and safe operation. A properly set landscape
rake will loosen, level, and clear the soil evenly, while
requiring minimal tractor work.
Note: The landscape rake must be attached to the
tractor and raised off the ground to make the
following adjustments.
WARNING
Crush Hazard
Make adjustments to the landscape rake after
it has been properly attached to the tractor
and secured with solid supports.
Never work around equipment supported by
hydraulics.
Hydraulics can drop equipment instantly if controls
are actuated, or if hydraulic lines burst even when
power to the hydraulics is shut off .
Unexpected Movement Hazard
When the adjustment pins are
removed, the landscape rake may
swing downhill, resulting in severe injury or death
from crushing or pinching. Park the tractor on level
ground before making any adjustments. Stay clear
of moving parts. Keep fi ngers away from adjustment
holes.
4.4.1 Leveling the Landscape Rake
1. Use the adjustment on the tractor 3-point hitch lift
arm to level the landscape rake from side-to-side.
2. Adjust the top link to level the landscape rake from
front-to-back.

5100 Series Landscape Rakes 18 Titan Implement, LLC
January 2016 [phone]
4.4.2 Setting Rake Angle
1. On all models, holes are provided for angling
the landscape rake on each side of center in 15°
increments up to 30°.
2. Remove the hairpin and clevis pin, swing the
landscape rake left or right to the desired position,
and re-install the pin and hairpin.
4.4.3 Rake Reversing (Pushing Rake)
1. On all models, holes are provided for angling the
landscape rake in the reverse position on each side
of center in 15° increments up to 30°.
2. Remove the hairpin and clevis pin, rotate the
landscape rake 180° to the desired reverse position,
and re-install the pin and hairpin.
4.4.4 Setting Rake Pitch
1. Pitch can be adjusted by lengthening or shortening
the tractor’s top center 3-point link. Increasing the
pitch will increase the landscape rake’s ability to dig.
2. Lengthen the center 3-point link to increase
thelandscape rake pitch while traveling forward.
Shorten the center 3-point link to decrease the pitch.
3. If backfi lling, shorten the center 3-point link to
increase the landscape rake pitch and lengthen the
center 3-point link to decrease the pitch.
4. To help protect the landscape rake from damage
while backfi lling, lengthen the tractor’s center 3-point
link until the landscape rake moves across the top
of the ground without forcing itself into the soil.
4.4.5 Setting Rake Tilt
The landscape rake may be tilted so one end is lower
than the other by adjusting the tractor’s lower 3-point
arms.
4.4.6 Checking Clearance to Tractor
5. Raise the landscape rake off the ground and angle it
as far as possible towards the right rear tractor tire.
Refer to “4.4.2 Setting Rake Angle” on page 18.
6. Return to the tractor and slowly raise the 3-point lift
arms fully up and down to make sure the landscape
rake does not contact the tractor tire, drawbar, or
any other equipment on the tractor.
a. Move or remove the drawbar if it interferes with
the landscape rake.
b. Set the tractor control lever stop to restrict
lifting height if the landscape rake interferes
with the tractor tire.
4.5 Initial Setup Checklist
Effi cient and safe operation of the landscape rake
requires that every user read and understand
the operational instructions and all related safety
instructions outlined in this manual.
This checklist is provided for the user/owner. It is
important for both personal safety and to maintain the
mechanical condition of the landscape rake that this
checklist is followed.
Initial Setup Checklist
(prior to using for the fi rst time)
✔Location Task
Make sure the landscape
rake is properly mounted to
the 3-point hitch. Refer to
“4.3 Attaching to Tractor” on
page 17.
Make sure all hardware
is properly installed and
tightened. Refer to “7.4 Bolt
Torque Requirements” on
page 25.
Check the condition of the
Tines. Refer to “7.2 Tine
Replacement” on page 24.
Check the landscape rake
setup. Adjust if needed.
Refer to “4.4 Setting the
Landscape Rake” on page
17.

Titan Implement, LLC 19 5100 Series Landscape Rakes
[phone] January 2016
4.6 Implement Break-In
Although there are no operational restrictions on
the landscape rake when used for the fi rst time, it is
recommended that the following mechanical items be
checked:
1. After 1/2 hour of operation:
a. Check all fasteners and tighten if necessary.
b. Make sure that the tines are in good condition.
2. After 10 hours of operation:
a. Go to the normal servicing and maintenance
schedule, as defi ned in the Maintenance
Section.
4.6.1 General Operating Instructions
Operate the landscape rake only in conditions where
you have clear visibility in daylight or with adequate
artifi cial lighting. Never operate the landscape rake in
darkness or foggy conditions where you cannot clearly
see at least 300 feet.
Inspect the landscape rake for potential problems or
damage. Do not use the landscape rake if it needs
repairs of any type. Use only an appropriately sized
tractor to pull the landscape rake. Refer to “4.2 Tractor
Requirements” on page 16. When transporting or
travelling to and from work sites, make sure that the
landscape rake is in the fully raised position and not
in contact with the ground. Select a safe speed and
transport to your work site in such a manner that faster
moving vehicles can pass you safely. A slow moving
vehicle sign should be employed when using a public
road or right-of-way.
Thoroughly inspect the work area for stones, branches,
debris, buried utility cables, pipelines, sprinkler heads,
and any other hard objects that may be struck. Never
operate the landscape rake in an area that you have
not inspected and removed debris or foreign material.
Clear the area of bystanders, especially small children.
Make sure that you can clearly see and identify
passersby, steep slopes, ditches, and drop-off s. Also
make certain that all irrigation heads, utility outlets, and
other obstacles that cannot be removed are properly
marked. Watch for trees, low hanging limbs, power
lines, and other overhead obstacles while you are
operating. Use care to avoid hitting these items. If
you are unable to clearly see these type of items,
discontinue operating the landscape rake.
Do not operate the landscape rake, or drive the tractor
into material that is burning, or areas that recently burnt
and may contain hot spots. Tire damage can occur
when driving over hot material. Oil and grease on the
tractor and landscape rake could ignite, resulting in
equipment destruction.
At the work site, lower the landscape rake with the
3-point hitch control lever so that it is just barely off
the ground. Lock the tractor brake to prevent rolling,
shut off the tractor, and remove the ignition key before
dismounting. Make the necessary angle and pitch
adjustments to the landscape rake to achieve the
desired results.
• Changing the landscape rake angle to left or
right will distribute extraneous and oversized
material in furrows to the left or right.
• Increasing the pitch angle of the landscape
rake by lengthening the top link will make the
landscape rake more aggressive on the soil.
• Decreasing the pitch angle of the landscape
rake by shortening the top link will make the
landscape rake less aggressive on the soil.
After making the initial adjustments and settings,
board the tractor and select a gear and engine rpm
that will produce a ground speed safe and suitable
for the ground and operating conditions. Lower the
landscape rake into operating position and begin
working. Make any additional adjustments as needed.
Some experimentation may be needed to achieve the
desired results. Always operate safely and follow all
the instructions in this manual.

5100 Series Landscape Rakes 20 Titan Implement, LLC
January 2016 [phone]
4.7 Detaching From Tractor
1. Move the landscape rake to a level storage location.
Park the tractor, place the transmission in park or
neutral, and apply the parking brake. Lower the
landscape rake, shut down the engine, and remove
the key before exiting the tractor.
2. Make sure the landscape rake is resting securely on
the ground and the hitch frame is on blocks before
attempting to disconnect it from the tractor.
WARNING
Crush Hazard
Keep feet and hands from under the
landscape rake and clear of any pinch points
caused by the tractor hitch arms and landscape rake
hitch pins. Never operate the hydraulic 3-point lift
controls while someone is directly behind the
tractor.
3. Extend or retract the tractor 3-point hitch top link to
remove tension on the top link hitch pin. When the
pin is loose and easy to rotate, remove the pin from
the landscape rake. Disconnect the lift arms.
Note: Support stand not included.
