KUHN GMD44 User manual

GMD44 _760001 _xxxxxx
Last update
Release date: 17 - 01 - 2014 (17:20:45)
Revision index :
Page 1/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

GMD44 _760001 _xxxxxx
Machine view and glossary (Cutterbar)
Mark
Description
1
Disk
2
Disk with cone
3
Knives
4
Disk housing
5
Swath shield holder
6
Upper gear case
7
Set of gearwheels
8
Lower gear case
9
Guard angle bracket
10
Disk skid
11
Wear skids
12
Reinforcements
13
Angles
Page 2/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

Copyright 2012 KUHN S.A.
Page 3/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

GMD44 _760001 _xxxxxx
Safety instructions
Introduction
The machine must only be operated, maintained and repaired by qualified persons who are familiar with
the machines' operation and understand safety regulations and procedures for preventing accidents.
The operator must follow the safety instructions in this manual and in the warnings posted on the machine.
The operator is also obliged to respect current legislation concerning accident prevention, work safety
and public traffic circulation.
The intended use of the machine includes following all operation, maintenance and repair
recommendations given by the manufacturer, and using only genuine spare parts, equipment and
accessories, as recommended by the manufacturer.
The manufacturer is not held liable for any damage resulting from machine applications other than those
specified by the manufacturer. Any use other than the designated operation is at the risk and
responsibility of the operator.
The manufacturer is not held liable for any damage or accident resulting from machine modifications
carried out by the operator himself or by a third party without previous written agreement from the
manufacturer.
Read and follow the safety instructions
Before using the machine, carefully read all the
safety instructions in this manual and the
warnings placed on the machine.
Page 4/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

../../ Illustrations/59900400 - 34.eps.png
Before starting work, the operator must be familiar with all machine controls, handling devices and their
functions. It is too late to learn once work has been started!
Never let anyone operate the machine who is not trained to do so.
Precautions to be taken before carrying out any operations on the machine
Before leaving the tractor or before adjusting,
maintaining or repairing the machine,
disengage the PTO drive, turn off the engine, remove ignition key and wait until all moving parts have
come to a complete stop and apply park brake.
Precautions to take before using the machine
Do not wear loose clothing which could
become caught up in moving parts.
Wear appropriate protective clothing (gloves,
shoes, goggles, helmet, ear defenders, etc.).
Ensure that all operating controls (ropes,
cables, rods, etc) are placed so as they cannot
be operated unintentionally and cause damage
or injury.
Before operating the machine, check tightness
of nuts and bolts, particularly on components
that the machine uses to process material (tines, forks, blades, knives, etc). Retighten if necessary.
Before operating the machine, ensure that all the safety guards are firmly in place and in good condition.
Immediately replace any worn or damaged guard.
Precautions when driving
Page 5/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

Tractor handling, stability, performance and
braking efficiency are all affected by weight
distribution, trailed or mounted implements,
additional ballast and driving conditions. It is
therefore of great importance that the operator
exercises caution in every given situation.
Drive speed must be adapted to ground
conditions as well as to roads and paths.
Always avoid abrupt changes of direction.
Be particularly cautious when turning corners,
paying attention to machine overhang, length,
height and weight.
Never use a narrow track tractor on very uneven or steeply sloping ground.
Never leave the tractor seat while the machine is operating.
Carrying people or animals on the machine when working or in transport is strictly forbidden.
Precautions when driving on public roads
Dimensions
Depending on the dimensions of the machine, contact the relevant authorities to ensure that it can be
legally transported on public roads.
If the machine is over the maximum legal size, follow the local regulations for special transportation of
oversize equipment.
Page 6/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

Gross weight and weight per axle
Check that the tractor's authorized gross weight
as well as its lift capacity and maximum weight
per axle are not exceeded.
The front axle load (1) must never, under any
circumstances, be less than 20 % of the
tractor's unladen weight. If necessary, add
ballast weights to the front or to the rear to
preserve the steering and braking efficiency.
Additional information
Transport position
Before transporting the machine on public roads, place the machine into its transport position, according
to the instructions in this manual.
Lights and indicators
Before transporting the machine on public
roads, ensure that all legally required lights and
indicators are in place.
Ensure that lights and indicators are clean and in good working order. Replace any missing or broken
equipment.
Maximum speed
Always obey current regulations for driving on roads.
Page 7/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

Always keep to the legal speed limit for driving a tractor - machine assembly on public roads.
Precautions when coupling
Before attaching the machine, make sure that it
cannot accidentally start moving (chock the
wheels) and that the parking stand is in the right
position.
The machine must only be attached to the hitch
points provided for this purpose.
Never stand between the tractor and the
machine when operating the three point
linkage.
Do not stand between the tractor and the machine without ensuring that the parking brake is applied.
Hydraulic circuit
Caution! The hydraulic circuit is under high
pressure. Maximum pressure at work: 200 bar.
Before connecting hoses to the tractor
hydraulics, ensure that tractor and machine
circuits are not under pressure. Before
disconnecting a hose, depressurize the
hydraulic circuit.
To avoid making incorrect connections, mark
hydraulic couplers and corresponding hoses
with colors. WARNING! Functions could be
reversed (for example: lift/lower) and cause
Page 8/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

accidents.
Regularly check the hydraulic hoses. In case of normal wear, replace the hydraulic hoses every 5 years.
Damaged or worn hoses must immediately be replaced. When replacing the hydraulic hoses, only use
hoses with the specification recommended by the manufacturer of the machine.
To locate a leak, use appropriate means. Protect body and hands from liquid under pressure.
Any liquid under pressure (particularly oil from hydraulics) can penetrate the skin and cause severe injury.
If injured, see a doctor immediately, there could be danger of infection.
Before any adjustments, maintenance or repairs are carried out, lower the machine to the ground,
depressurize the hydraulics, turn off the engine, remove ignition key and wait until all moving parts have
come to a complete stop.
PTO shaft
Use only PTO shafts supplied with the machine or recommended by the machine manufacturer.
The protective shield of the tractor PTO stub, the PTO shaft guards and the protective shield of the
machine input shaft must always be in place and in good condition.
Make sure that the PTO shaft guards are secured with the safety chains provided.
Any worn or damaged guards must be
replaced immediately. A worn guard or an
unprotected PTO shaft can cause a serious or
even a lethal accident.
Do not wear loose clothing that could be caught in the rotating PTO shaft.
Before attaching or removing a PTO shaft, or before doing any work on the machine, disengage the PTO
drive, turn off the engine, remove ignition key and wait for all moving parts have come to a complete stop.
Page 9/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

If the primary PTO shaft is equipped with a torque limiter or a free wheel, these must be fitted on the
machine side.
Ensure that the PTO shaft is always correctly fitted and locked into place.
Before connecting the PTO shaft, ensure that the PTO speed (rotational frequency) and direction of
rotation are in line with the machine manufacturer's recommendations.
Before engaging the PTO drive, make sure all people and animals are clear from the machine. Never
engage the PTO drive when the tractor engine is stopped.
When uncoupling the machine, rest the PTO shaft on the support specially provided, and replace
protective shield on the PTO stub of the tractor.
Read and follow the instructions in the operator's manual provided with the PTO shaft.
Precautions during maneuvers
When moving the machine from the transport position to the working position and vice versa, make sure
that nobody is within the machine pivoting area.
Remote controlled components
Danger of crushing and shearing can exist when components are operated by hydraulic or pneumatic
controls. Keep away from these danger zones.
Hydro - pneumatic accumulator
Page 10/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

A hydro - pneumatic accumulator contains
nitrogen under pressure (risk of suffocation in
closed rooms).
Repairs, maintenance or commissioning may
only be carried out by competent persons. Wait
for the accumulator to cool down before handling it. Only use nitrogen to precharge it.
Depressurize the gas and fluid sides of the hydraulic accumulator before opening it.
It is strictly forbidden to weld, grind or drill onto a hydro - pneumatic accumulator.
Make sure that the accumulator and its' fittings are in good condition.
Safety decals
Safety warnings are placed in safety decal form on various parts of the machine. They are there to warn
you of potential dangers and to tell you how to avoid accidents.
Always keep the safety decals clean and readable, and replace them when they are worn, damaged,
missing or illegible.
Waste disposal
Respect the environment! Never spill pollutants
(oil, grease, filters, etc.) on the ground, never
pour them down the drain and never discard
them in any other place where they could
pollute the environment.
Never throw away or burn a tire.
Always take waste to specialized recycling or waste disposal centers.
Page 11/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

Precautions for maintenance and repair work
Before leaving the tractor or before adjusting,
maintaining or repairing the machine,
disengage the PTO drive, turn off the engine,
remove ignition key and wait until all moving
parts have come to a complete stop and apply
park brake.
Rest the machine on the ground, release the
pressure from the hydraulic circuit and leave the machine to cool down.
Make sure that the parts of the machine that need to be lifted for maintenance or repair work are firmly
propped up.
Before any work is done on the electric circuit or before any electric welding is carried out on the attached
machine, disconnect the machine from the tractor electrical circuit. Also disconnect alternator and battery
terminals.
Repairs on elements under pressure or tension (springs, pressure accumulators, etc.) must only be
carried out by competent persons with regulation equipment.
Wear appropriate protective clothing (gloves, shoes, goggles, helmet, ear defenders, etc.).
Do not solder, weld or use a blow torch near fluids under pressure or flammable components.
For your own safety and for correct machine operation, only use original manufacturer parts.
It is strongly recommended to have your machine checked by your Kuhn dealer after each season,
especially tools and their attaching hardware.
Projection of stones and foreign objects
Page 12/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

For driver safety, always use a tractor
equipped with a cab. Keep the ground to mow
free of foreign bodies. Avoid mowing on stony
or rocky grounds. If this is not possible, take
extra safety precautions, such as:
Fit polycarbonate screens inside the tractor cab's side and rear windows, or install narrow mesh guards on their
exterior.
Increase the cutting height to avoid contact with stones or rocks.
Never start the machine when there are people nearby.
Even when the machine is used properly, objects may be thrown. Stones and other foreign objects thrown
by the moving parts can travel a considerable distance. Keep all persons and animals away from the
danger zone.
The protection covers help reducing risks of projections. Therefore, make sure that all mower protection
devices are in place and good condition prior to using the machine.
Regularly check the condition of the protection covers. Immediatly replace any worn, damaged or missing
cover.
Precautions for machine use
Disk mower Mower conditioner:
After each use, check the cutting tools (disks, knives) and their attachment hardware in accordance with
the instructions given in the present manual. Immediately replace any worn, damaged or missing cutting
tool or element. To do this, use the tool outfit supplied with the machine. For your safety, only use genuine
KUHN parts !
Regularly check the condition of the protection covers. Immediatly replace any worn, damaged or missing
cover. Before engaging the PTO drive, lower the machine on the ground. Make sure all the guards are in
Page 13/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

place. Keep all persons and animals away from the danger zone.
Stay a safe distance from the Gyrorake when rotors are moving.
Never work in reverse.
After disengaging the PTO drive, cuttings tools can continue rotating for some time. Stay away from the
machine until all moving parts have come to a complete standstill.
If the machine hits an obstacle, disengage the PTO drive, stop the tractor engine, remove the ignition key
and wait for all moving parts to come to a complete standstill. Check the entire machine for any damage
before resuming work.
Gyrorake:
Before using the machine, check tools (tines) and their attachment hardware in accordance with the
instructions of the present manual.
Check the guards regularly. Immediately replace any damaged or missing elements.
Before engaging the pto drive, lower the rotors onto the ground. Make sure all the guards are in place.
Keep all persons and animals away from the danger zone.
Stay a safe distance from the machine when the cutting tools are in movement.
Never reverse while raking.
After the power source has stopped, the rotors can continue turning for a time. Stay away from the
machine until all moving parts have come to a complete standstill.
If the machine hits an obstacle, disengage the PTO drive, stop the tractor engine, remove the ignition key
and wait for all moving parts to come to a complete standstill. Check the entire machine for any damage
before resuming work.
Page 14/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

Shredders Hedge and Grass Cutters:
Before using the shredder, inspect shredding tools (knives, rotors) and their attachment hardware in
accordance with the instructions given in the present manual. Immediatly replace any worn, damaged or
missing guard plate/cover. Before engaging the pto drive, lower the shredder onto the ground. For your
safety, only use genuine KUHN parts !
Regularly check the condition of the guard plates/covers. Make sure all the guards are in place. Keep all
persons and animals away from the danger zone.
Stay a safe distance from the machine when the cutting tools are in movement.
Never work in reverse.
After disengaging the PTO drive, cuttings tools can continue rotating for some time. Stay away from the
machine until all moving parts have come to a complete standstill.
If the machine hits an obstacle, disengage the PTO drive, stop the tractor engine, remove the ignition key
and wait for all moving parts to come to a complete standstill. Check the entire machine for any damage
before resuming work.
Copyright 2012 KUHN S.A.
Page 15/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

GMD44 _760001 _xxxxxx
Stability of the tractor-spreader unit (Appendix A EN 14017)
Introduction
The example refers to a solid fertilizer spreader mounted on a tractor.
Due to the machine's mass and products
contained in the hopper, the tractor - spreader
unit can become unstable. In order to check the
total stability, the following relation can be applied to calculate the minimum ballasting at the front IF, min ,
which enables obtaining a weight on the front axle equal to 20 % of the tractor's tare:
The calculation takes into account the rear mounted equipment and the front - rear combinations.
T
E
[kg]
Tractor tare
T
F
[kg]
Load on the front axle of the weight empty tractor
T
R
[kg]
Load on the rear axle of the weight empty tractor
I
R
[kg]
Combined weight of the rear fitted equipment ant the rear
ballasting
Page 16/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

Copyright 2012 KUHN S.A.
I
F
[kg]
Combined weight of the front mounted equipment and the front
ballasting
a [m]
Distance between the center of gravity of the front mounted
equipment/front ballasting combination and the front axle center
of gravity
b [m]
Tractor wheelbase
c [m]
Distance between the rear axle center and the center of the
lower links
d [m]
Distance between the center of the lower links and the center of
gravity of the rear mounted equipment/rear ballasting
combination
See tractor operator's manual
See price and/or equipment operator's manual
To measure
Page 17/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

GMD44 _760001 _xxxxxx
Maintenance plan
Copyright 2012 KUHN S.A.
Cutterbar draining and refilling
Lateral gearbox draining
Page 18/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

GMD44 _760001 _xxxxxx
Cutterbar draining and refilling
Required equipment
Preliminary operations
Operating procedure
Main operations
Never use an oil of viscosity SAE90 in the cutterbar.
Before draining oil, operate the machine for a few
minutes so that the oil warms up.
Step 1.
The cutterbar is lubricated with 1.750.46 of extreme - pressure gear oil with viscosity grade SHELL SPIRAX A and
SAE80W90 grade API.
1
30 min
8
Page 19/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.

Copyright 2012 KUHN S.A.

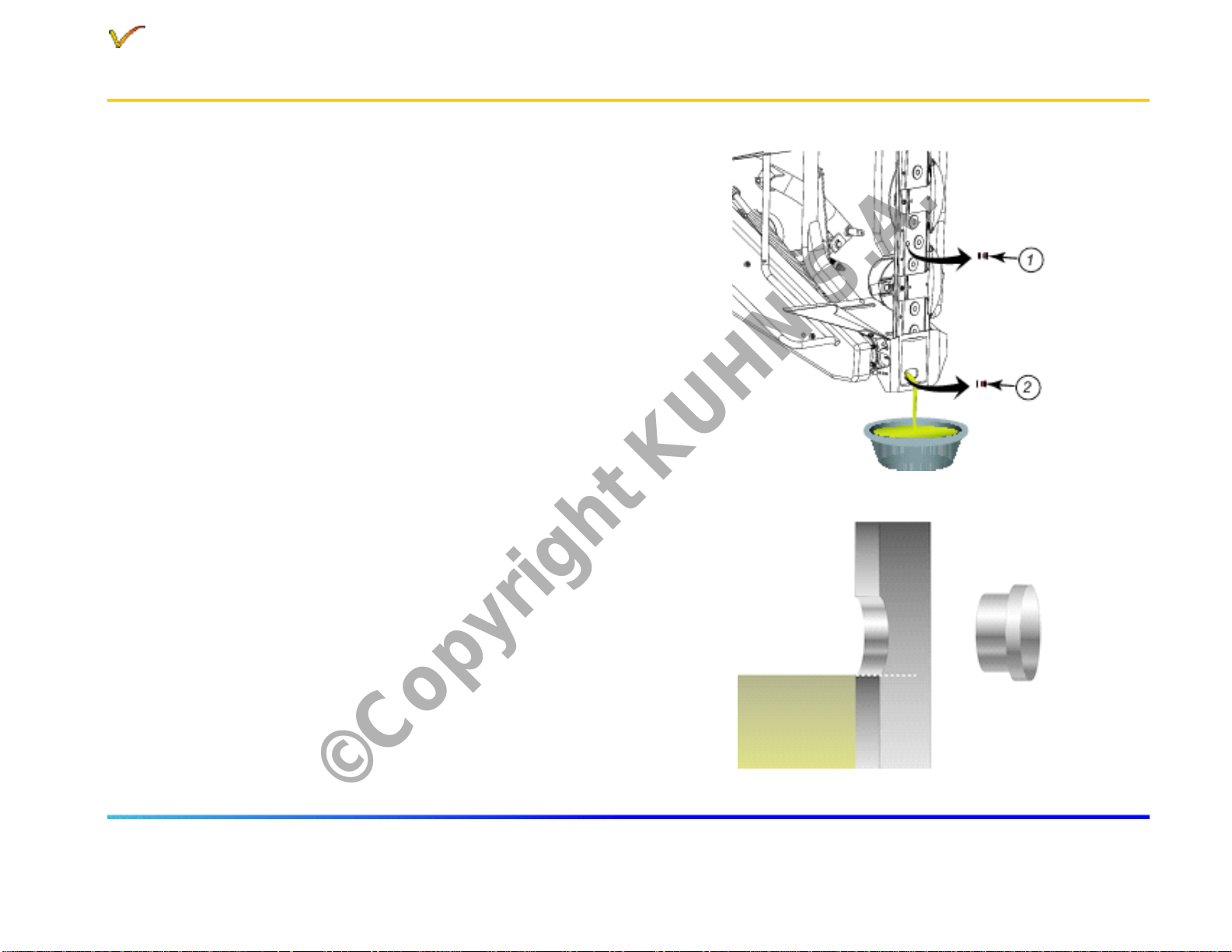

From the transport position:
Place a container of sufficient capacity under drain plug.
Remove filler plug (1) and its washer.
Remove drain plug (2) and its washer.
Allow oil to drain completely.
Wait for dripping to stop.
Clean and reinstall drain plug (2) and its washer.
Replace if necessary.
Pour the correct oil quantity and quality through the
opening of the filler plug.
The oil must reach the lower edge of the filling hole.
Clean and reinstall filler plug (1) and its washer. Replace
if necessary.
When draining and refilling, it is recommended to use either a mineral base oil with viscosity grade SAE80W90 and API
grade GL5, or a synthetic base oil, type PAO (Poly - Alpha - Olefins) with a viscosity grade equivalent to SAE80W90.
Page 20/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
©Copyright KUHN S.A.
