Titan Implement 9300BU Series Guide

Titan Implement, LLC 3 9300BU Bale Unroller
[phone] January 2016
Pre-Delivery Checklist
The Dealer should inform the Purchaser of this product of the Warranty terms, provisions, and procedures that are
applicable. The Dealer and Purchaser should review the contents of the Operation and Parts Manual including
safety equipment, safe operation and maintenance, review the Safety Signs on the implement (and tractor, if
necessary), and the Purchaser’s responsibility to train their operators in correct operating procedures.
• MOUNTED IMPLEMENTS: I have explained that Defl ectors, Guards, or Shields must be installed and
maintained in good repair, and that the operator is responsible for watching out for persons in the work area.
PRE-DELIVERY SERVICE
CHECK AND ADJUST OR LUBRICATE AS REQUIRED
See Operation and Parts Manual for Details
Inspection Performed - Warranty and Safety Procedures Explained - Installation Complete
LUBRICATION
 Grease All Zerks
ATTACHMENTS & INSTALLATION
 Make Sure All Bolts, Pins, and Nuts Are Properly
Installed and Tightened
I have thoroughly instructed the purchaser on the above-described equipment. This review included the Operation
and Parts Manual contents, equipment care, adjustments, safe operation, and applicable warranty policy.
Date__________________ Dealer Rep. Signature_________________________________________
The above equipment and Operation and Parts Manual have been received by me, and I have been thoroughly
instructed as to equipment care, adjustments, safe operation, and applicable warranty policy.
Date__________________ Purchaser’s Signature_________________________________________
IMPLEMENT TO TRACTOR CONNECTIONS
 Make Sure A-Frame Pivot and Links are Properly
Installed
 Make Sure Lift Arms are Adjusted Equally
 Complete All Pre-Operation Checks
SAFETY ITEMS
 Make Sure Protective Shields are Properly Installed
 Review Operation and Parts Manual (Supplied)
 Make Sure Tractor PTO Shield is Installed
 Make Sure S.M.V. Sign is Installed, if Needed
(Customer Supplied)
Cut Here to Remove Page or Make Copies of This Page

9300BU Bale Unroller 4 Titan Implement, LLC
January 2016 [phone]

Titan Implement, LLC 5 9300BU Bale Unroller
[phone] January 2016
Table of Contents
1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Specifi cations . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4 Intended Usage . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.5 Operator Orientation . . . . . . . . . . . . . . . . . . . . . 7
1.6 Serial Number Location. . . . . . . . . . . . . . . . . . . 7
1.7 Product Improvements . . . . . . . . . . . . . . . . . . . 7
1.8 Disposal of Equipment at End of Useful Life . . . 7
1.9 Unanswered Questions . . . . . . . . . . . . . . . . . . . 7
2. SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Safety Alert Symbols . . . . . . . . . . . . . . . . . . . . . 8
2.3 Safety Icon
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3.1 Personal Protection/
Important Information. . . . . . . . . . . . . . . 9
2.3.2 Prohibited Actions . . . . . . . . . . . . . . . . . 9
2.3.3 Hazard Avoidance . . . . . . . . . . . . . . . . . 9
2.4 General Safety Instructions . . . . . . . . . . . . . . . 10
2.5 Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.6 OSHA Training Requirements . . . . . . . . . . . . . 11
2.7 Operation Safety . . . . . . . . . . . . . . . . . . . . . . 11
2.8 Transporting Safety . . . . . . . . . . . . . . . . . . . . . 11
2.9 Storage Safety. . . . . . . . . . . . . . . . . . . . . . . . . 11
2.10 Maintenance Safety. . . . . . . . . . . . . . . . . . . . . 11
2.11 Federal Laws and Regulations . . . . . . . . . . . . 12
2.12 Sign-Off Form . . . . . . . . . . . . . . . . . . . . . . . . . 13
3. NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . 14
4. OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 Tractor Requirements . . . . . . . . . . . . . . . . . . . 16
4.2.1 Tractor Safety Devices. . . . . . . . . . . . . 16
4.2.2 ROPS and Seat Belt . . . . . . . . . . . . . . 16
4.2.3 3-Point Hitch . . . . . . . . . . . . . . . . . . . . 16
4.3 Attaching to Tractor . . . . . . . . . . . . . . . . . . . . 17
4.4 Setting the Bale Unroller . . . . . . . . . . . . . . . . . 17
4.5 Initial Setup Checklist . . . . . . . . . . . . . . . . . . . 18
4.6 Implement Break-In . . . . . . . . . . . . . . . . . . . .18
4.7 General Operating Instructions . . . . . . . . . . . . 19
4.8 Lifting a Bale . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.9 Traveling With a Bale . . . . . . . . . . . . . . . . . . .19
4.10 Unrolling a Bale . . . . . . . . . . . . . . . . . . . . . . . . 20
4.11 Detaching From Tractor . . . . . . . . . . . . . . . . . 20
5. TRANSPORTING. . . . . . . . . . . . . . . . . . . . . . . 21
5.1 Transporting Safety (Road) . . . . . . . . . . . . . . . 21
6. STORAGE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.1 Storage Safety. . . . . . . . . . . . . . . . . . . . . . . . . 22
6.2 Placing In Storage . . . . . . . . . . . . . . . . . . . . . . 22
6.3 Removing From Storage . . . . . . . . . . . . . . . . . 22
7. SERVICE AND MAINTENANCE . . . . . . . . . . 23
7.1 Maintenance Safety. . . . . . . . . . . . . . . . . . . . . 23
7.2 Greasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.3 Welding Repairs . . . . . . . . . . . . . . . . . . . . . . . 24
7.4 Bolt Torque Requirements. . . . . . . . . . . . . . . . 25
7.5 Service Record . . . . . . . . . . . . . . . . . . . . . . . . 26
8. WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9. PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.1 9300BU Bale Unroller . . . . . . . . . . . . . . . . . . . 31

9300BU Bale Unroller 6 Titan Implement, LLC
January 2016 [phone]
1. INTRODUCTION
1.1 Welcome
9300BU Bale Unroller
Congratulations on your choice of a Titan Implement
bale unroller. This equipment has been designed and
manufactured to meet the needs of discerning users.
The Titan Implement bale unroller is designed to
transport and unroll round bales.
Many features incorporated into this bale unroller are
the result of suggestions made by customers like you.
Read this manual carefully to learn how to operate the
bale unroller safely and effi ciently.
By following the operating instructions in conjunction
with a good maintenance program, your Titan
Implement bale unroller will provide many years of
trouble-free service.
1.2 Safe Operation
Safe, effi cient, and trouble-free operation of your bale
unroller requires that you, and anyone else who will be
using or maintaining the unit, read and understand the
information contained within this Manual.
Use this manual for reference and for new operators or
owners.
WARNING
Read And Understand Manual
To prevent personal injury or even death, be
sure you read and understand all of the
instructions in this manual and other related OEM
equipment manuals! The bale unroller, if not used
and maintained properly, can be dangerous to users
unfamiliar with its operation. Do not allow operating,
maintaining, adjusting, or cleaning of this bale
unroller until the user has read this manual and has
developed a thorough understanding of the safety
precautions and functions of the unit.
This bale unroller is designed for the specifi c purpose
of transporting and unrolling round bales. DO NOT
modify or use this bale unroller for any application
other than that for which it was designed.
Bale unrollers maintained or operated improperly,
or by untrained personnel, can be dangerous;
exposing the user and/or bystanders to possible
serious injury or death.

Titan Implement, LLC 7 9300BU Bale Unroller
[phone] January 2016

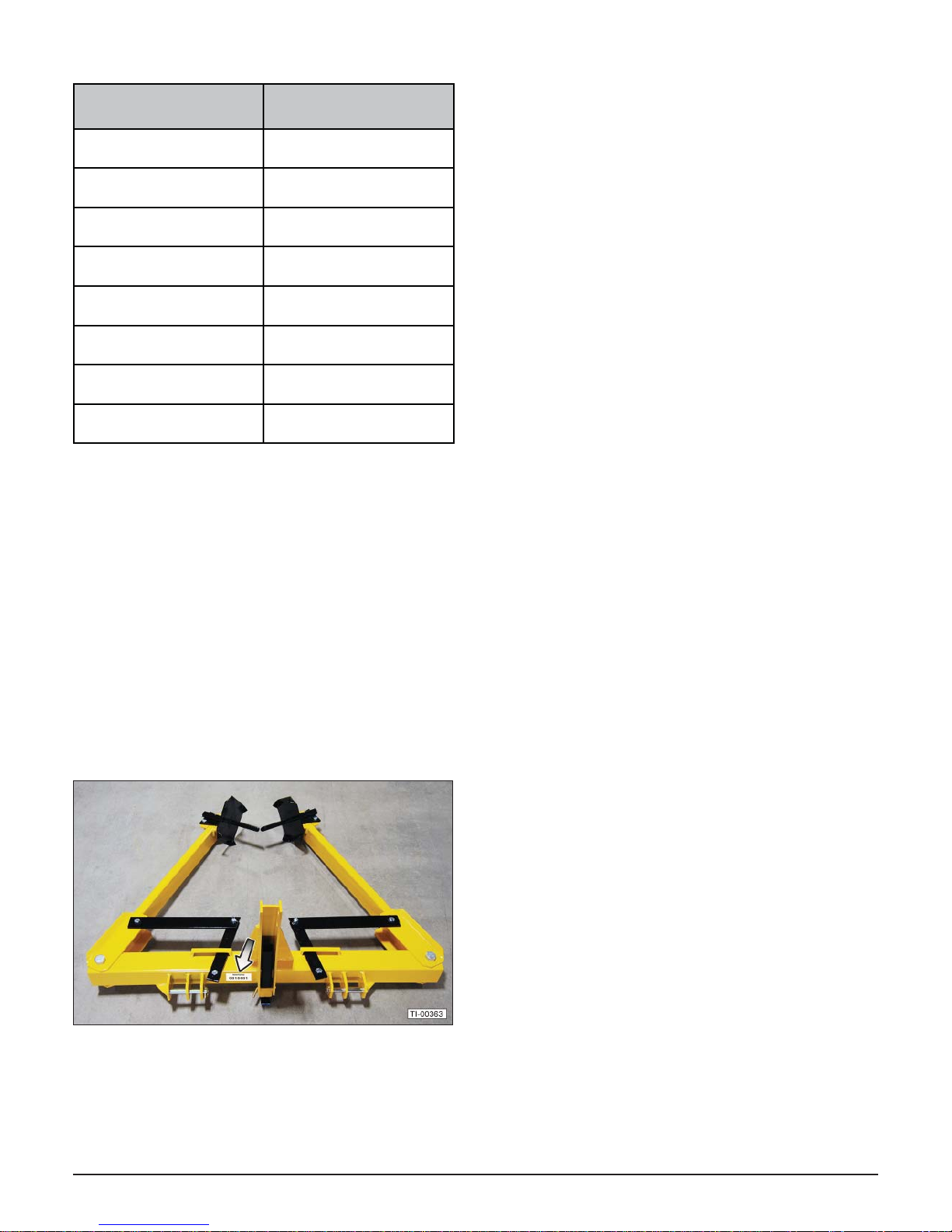

1.3 Specifications
Model 9300BU
Recommended HP 25 - 65
Hitch CAT l & ll
Quick Hitch Compatible Yes
Cylinder Standard
Hoses Standard
Weight
375 Lbs
Capacity 2200 Lbs
Bale Width Adjustable, 4’, 5’, or 6’
Specifi cations subject to change without notice.
1.4 Intended Usage
Do not use this bale unroller for any other purpose than
its intended use of transporting and unrolling round
bales.
1.5 Operator Orientation
The directions left, right, front, and rear, as mentioned
throughout this manual, are as seen from the tractor
operator’s seat and facing in the direction of travel.
1.6 Serial Number Location
The serial number decal is located on the front of the
frame.
Model Number ______________________________
Serial Number ______________________________
1.7 Product Improvements
Because Titan Implement, LLC maintains an ongoing
program of product improvement, we reserve the
right to make improvements in design or changes in
specifi cations without incurring any obligation to install
them on units previously sold.
1.8 Disposal of Equipment at End of Useful
Life
The Titan Implement, LLC bale unroller has been
designed for the specifi c purpose of transporting and
unrolling round bales. When this unit is no longer
capable of doing its designed purpose, it should be
dismantled and scrapped. Do not use any materials or
components from this unit for any other purpose.
1.9 Unanswered Questions
If you have any questions not answered in this manual,
require additional copies, or the manual is damaged,
please contact your dealer or:
Titan Implement, LLC
P.O. Box 649
232 Industrial Lane
Decatur, TN 37322
Phone: [phone]
Fax: [phone]
The manual is also available for download at:
www.titanimplement.com
1. Select “Products”.
2. Select “Bale Unrollers”.
3. Click the “Specs., Manuals, Warranty” tab.
4. Click “Download Manual”.

9300BU Bale Unroller 8 Titan Implement, LLC
January 2016 [phone]
2. Safety
2.1 General
Safety of the operator and bystanders is one of the
main concerns in designing and developing a new
piece of equipment. Designers and manufacturers
build in as many safety features as possible. However,
every year many accidents occur which could have
been avoided by a few seconds of thought and a more
careful approach to handling the equipment.
Most work-related accidents are caused by failure to
observe basic safety rules or precautions. An accident
can often be avoided by recognizing potentially
hazardous situations before an accident occurs. As
you assemble, operate, or maintain the bale unroller
(unit), you must be alert to potential hazards. You
should also have the necessary training, skills,
and tools to perform any assembly or maintenance
procedures.
Improper operation and maintenance of this unit could
result in a dangerous situation that could cause injury
or death.
If you have any questions not answered in this manual,
require additional copies, or the manual is damaged,
please contact your dealer or:
Titan Implement, LLC
P.O. Box 649
232 Industrial Lane
Decatur, TN 37322
Phone: [phone]
Fax: [phone]
WARNING
Do not assemble, operate, or maintain the
unit until you read and understand the
information contained in this manual.
Safety precautions and warnings are provided
in this manual and on the unit. If these hazard
warnings are not heeded, bodily injury or
death could occur to you or to other persons.
Titan Implement, LLC cannot anticipate every
possible circumstance that might involve a potential
hazard. The warnings in this manual and on the
unit are, therefore, not all-inclusive. If a method of
assembly, operation, or maintenance not specifi cally
recommended by us is used, you must satisfy yourself
that it is safe for you and for others. You should also
ensure that the unit will not be damaged or be made
unsafe by the methods that you choose.
The information, specifi cations, and illustrations in this
manual are based on the information that was available
at the time this material was written and can change at
any time without notice.
2.2 Safety Alert Symbols
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
This manual contains DANGERS, SAFETY
INSTRUCTIONS, CAUTIONS, IMPORTANT NOTICES,
and NOTES which must be followed to prevent
the possibility of improper service, damage to the
equipment, personal injury, or death. The following key
words call the readers’ attention to potential hazards.
Hazards are identifi ed by the “Safety Alert Symbol”
and followed by a signal word such as “DANGER”,
“WARNING”, or “CAUTION”.
DANGER
Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
This signal word is limited to the most extreme
situations.
WARNING
Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
NOTICE
Indicates that equipment or property damage can result
if instructions are not followed.
SAFETY
INSTRUCTIONS
Safety instructions (or equivalent) signs indicate
specifi c safety-related instructions or procedures.
Note: Contains additional information important to a
procedure.

Titan Implement, LLC 9 9300BU Bale Unroller
[phone] January 2016
2.3 Safety Icon
Nomenclature
Pictorial icons signal a type of
hazard and warn of personal
protection issues, prohibited
actions, and hazard avoidance.
2.3.1 Personal Protection/
Important Information
Read the manual
Maintenance procedure
N
I
NG
AR
Damaged hazard label
Eye protection
Fire extinguisher
First aid kit
Hand protection
Head protection
Hearing protection
OEM
OEM
OEM parts only
Protective shoes
Remove key
Set parking brake
STOP Stop engine
THINK
SAFETY! Think safety
Transmission in park
Use proper support
Use proper tools
Visibility
Rollover protection
Wear seat belt
Weight rating
Clear vision
2.3.2 Prohibited Actions
Do not alter or modify
Use proper tools
Do not weld
No alcohol
No drugs
No smoking
No young children
No riders
2.3.3 Hazard Avoidance
Crush
hazard
Crush hazard (chock
wheels)
Crush hazard (foot)
Defective or broken part
Explosive separation
hazard
Fire hazard
Bale spike contact
hazard (hand)
Bale spike contact
hazard (foot)
Pinch point hazard
Rollover protection
Safety alert symbol
Sharp object hazard
Slipping injury
Stay clear
0Zero pressure
Tripping injury
High-pressure fluid
hazard
Hose damage
High-Pressure Hazard

9300BU Bale Unroller 10 Titan Implement, LLC
January 2016 [phone]
2.4 General Safety Instructions
The owner/operator is responsible for the SAFE use
and maintenance of the bale unroller. Make sure
anyone who is operating, maintaining, or working
around the bale unroller is familiar with the operating
and maintenance procedures and related SAFETY
information contained in this manual. This manual will
take you step-by-step through your working day and
alerts you to all good safety practices that should be
used while using the bale unroller.
In addition to the design features of the bale unroller,
including safety signs, accident prevention is
dependent upon the awareness, concern, prudence,
and proper training of the people involved in the
operation, maintenance, and storage of the bale
unroller.
In addition to this safety section, refer also to safety
messages and instructions in each of the appropriate
sections of this manual.
These general safety instructions apply to the overall
use and maintenance of the bale unroller.
More specifi c instructions on safety are found in the
operation, maintenance, and storage sections of this
manual. Refer to these sections before performing any
of these tasks.
WARNING
Failure to comply with the following safety
instructions could result in serious injury and
possibly even death if they are not understood and
followed.
Provide User with Literature
Titan Implement, LLC bale unroller owners
must provide operator instructions to anyone
using the bale unroller before use, and at least
annually thereafter. Refer to “2.6 OSHA Training
Requirements” on page 11.
Stay Clear
Clear the area of people, especially small
children, before using the bale unroller.
Under no circumstances should young children be
allowed to work with or around the bale unroller.
Impaired User Hazard
Do not attempt to assemble, operate, or
maintain this bale unroller under the
infl uence of drugs or alcohol. Consult your doctor
before using this bale unroller while taking
prescription medications.
WARNING
Crush Hazard
Do not allow anyone to ride on the
tractor or the bale unroller. Falling or
crushing hazards can result in severe injuries or
death.
Damaged Parts Hazard
Do not use the bale unroller if any parts are
damaged. If the bale unroller has a defect,
immediately stop using it and remedy the problem
before continuing.
CAUTION
The following safety instructions are provided to
help prevent potential injury. Not following these
instructions may result in minor to moderate injury.
Personal Protection Equipment
When using this bale unroller, wear appropriate
personal protective equipment. This list may
include, but is not limited to:
• Protective shoes with slip resistant soles
• Protective goggles, glasses, or face shield
• Protective clothing and gloves
• Safety vest (when operating near roads)
• Hearing protection
Hearing Loss
Prolonged Exposure To Loud Noise May
Cause Permanent Hearing Loss!
Working environments with noise-producing
equipment can cause partial to permanent hearing
loss. We recommend using hearing protection any
time noise levels exceed 80 decibels (dB). Noise
levels over 85 dB, on a long-term basis, can cause
severe hearing loss. Noise levels over 90 dB over a
period of time can cause permanent and even total
hearing loss.
Hearing loss from loud noise is cumulative over a
lifetime without hope of natural recovery.
Crush Hazard
The tractor should be equipped with a
Roll Over Protective Structure (ROPS)
and a seat belt. A crushing hazard can occur if the
driver is ejected from the seat while the tractor is in
motion. Fasten the seat belt whenever the tractor is
moving.

Titan Implement, LLC 11 9300BU Bale Unroller
[phone] January 2016
SAFETY
INSTRUCTIONS
The following safety instructions are provided to
help prevent injury or limit equipment damage.
N
I
NG
AR Safety Signs
Replace any missing or hard-to-read safety
signs or instructional labels. Use care when
washing or cleaning the bale unroller.
Replacement safety sign locations and part numbers
are provided in this manual and are available from
an authorized dealer parts department or the factory.
First Aid Kit
Have a fi rst aid kit available for use should
the need arise and know how to use it.
Fire Extinguisher
Have a fi re extinguisher available for use
should the need arise and know how to use it.
THINK
SAFETY! Think SAFETY!
Work SAFELY!
2.5 Training
Anyone who will be using and/or maintaining the bale
unroller must read, clearly understand, and follow
ALL safety, operation, and maintenance information
presented in this manual, other related OEM manuals,
and the safety signs
If you do not understand any information in this
manual, see your dealer or contact Titan Implement
before proceeding.
Do not use or allow anyone else to use this bale
unroller until all information has been reviewed.
Annually review this manual before the season start-
up.
Make periodic reviews of SAFETY and OPERATION
of the bale unroller a standard practice. An untrained
operator is not qualifi ed to use this bale unroller.
2.6 OSHA Training Requirements
The following training requirements have been taken
from Title 29, Code of Federal Regulations Part
1928.57 (a) (6). www.osha.gov.
Operator instructions. At the time of initial assignment
and at least annually thereafter, the employer shall
instruct every employee who operates an agricultural
tractor and implements in the safe operating practices
and servicing of equipment with which they are or will
be involved, and of any other practices dictated by the
work environment.
2.7 Operation Safety
Refer to “4.1 Safety” on page 15 for safety
recommendations related to using the bale unroller. All
applicable safety recommendations in other sections
should also be followed.
2.8 Transporting Safety
Refer to “5.1 Transporting Safety (Road)” on page 21
for safety recommendations related to transporting the
bale unroller. All applicable safety recommendations in
other sections should also be followed.
2.9 Storage Safety
Refer to “6.1 Storage Safety” on page 22 for safety
recommendations related to storing the bale unroller.
All applicable safety recommendations in other
sections should also be followed.
2.10 Maintenance Safety
Refer to “7.1 Maintenance Safety” on page 23 for
safety recommendations related to maintaining the
bale unroller. All applicable safety recommendations in
other sections should also be followed.

9300BU Bale Unroller 12 Titan Implement, LLC
January 2016 [phone]
2.11 Federal Laws and Regulations
IMPORTANT FEDERAL LAWS AND REGULATIONS
CONCERNING EMPLOYERS, EMPLOYEES AND OPERATORS
This section is intended to explain in broad terms the concept and eff ect of the following federal laws and
regulations. It is not intended as a legal interpretation of the laws and should not be considered as such.
U.S. PUBLIC LAW 91-596 (The Williams-Steiger Occupational Safety and Health Act of 1970) OSHA
This Act Seeks:
“ ... to assure so far as possible every working man and woman in the nation safe and healthful working conditions and to
preserve our human resources ... “
DUTIES
Sec. 5(a) Each Employer -
(1) shall furnish to each of its employees employment and a place of employment which are free from
recognized hazards that are causing or are likely to cause death or serious physical harm to its
employees.
(2) shall comply with occupational safety and health standards promulgated under this Act.
(b) Each employee shall comply with occupational safety and health standards
and all rules, regulations, and orders issued pursuant to this Act which are
applicable to his or her own actions and conduct.
OSHA Regulations
Current OSHA regulations state in part: “At the time of initial assignment and at least annually thereafter, the
employer shall instruct every employee in the safe operation and servicing of all equipment with which the
employee is, or will be involved.” These will include (but are not limited to) instructions to:
Keep all guards in place when the machine is in operation;
Permit no riders on equipment;
Stop engine, disconnect the power source, and wait for all machine movement to stop before servicing,
adjusting, cleaning, or unclogging the equipment, except where the machine must be running to be
properly serviced or maintained, in which case the employer shall instruct employees as to all steps and
procedures which are necessary to safely service or maintain equipment.
Make sure no one is within 300 feet of machinery before starting the engine, engaging power,
or operating the machine.
EMPLOYEE TRACTOR OPERATING INSTRUCTIONS:
1. Securely fasten your seat belt if the tractor has a ROPS.
2. Where possible, avoid operating the tractor near ditches, embankments, and holes.
3. Reduce speed when turning, crossing slopes, and on rough, slick, or muddy surfaces.
4. Stay off slopes too steep for safe operation.
5. Watch where you are going, especially at row ends, on roads, and around trees.
6. Do not permit others to ride.
7. Operate the tractor smoothly - no jerky turns, starts, or stops.
8. Hitch only to the drawbar and hitch points recommended by tractor manufacturers.
9. When tractor is stopped, set brakes securely and use park lock if available.
Child Labor Under 16 Years Old
Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility to
know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment Standard
Administration, Wage & Home Division, Child Labor Bulletin #102).

Titan Implement, LLC 13 9300BU Bale Unroller
[phone] January 2016
2.12 Sign-Off Form
Titan Implement, LLC follows the general Safety
Standards specifi ed by the Farm Equipment
Manufacturers Association (FEMA), and the American
National Standards Institute (ANSI). Anyone who will
be using and/or maintaining the bale unroller must
read and clearly understand ALL safety, operation and
maintenance information presented in this manual.
Do not use or allow anyone else to use this bale
unroller until all information has been reviewed.
Annually review this manual before the season start-
up.
Make periodic reviews of SAFETY and OPERATION
of the bale unroller a standard practice. An untrained
operator is not qualifi ed to use this bale unroller.
Sign-Off Form
Date User’s Signature Owner’s Signature
This sign-off sheet is provided for your records to
show that all personnel who will be working with the
equipment have read and understand the information in
this manual and have been instructed in the operation
of the equipment.

9300BU Bale Unroller 14 Titan Implement, LLC
January 2016 [phone]

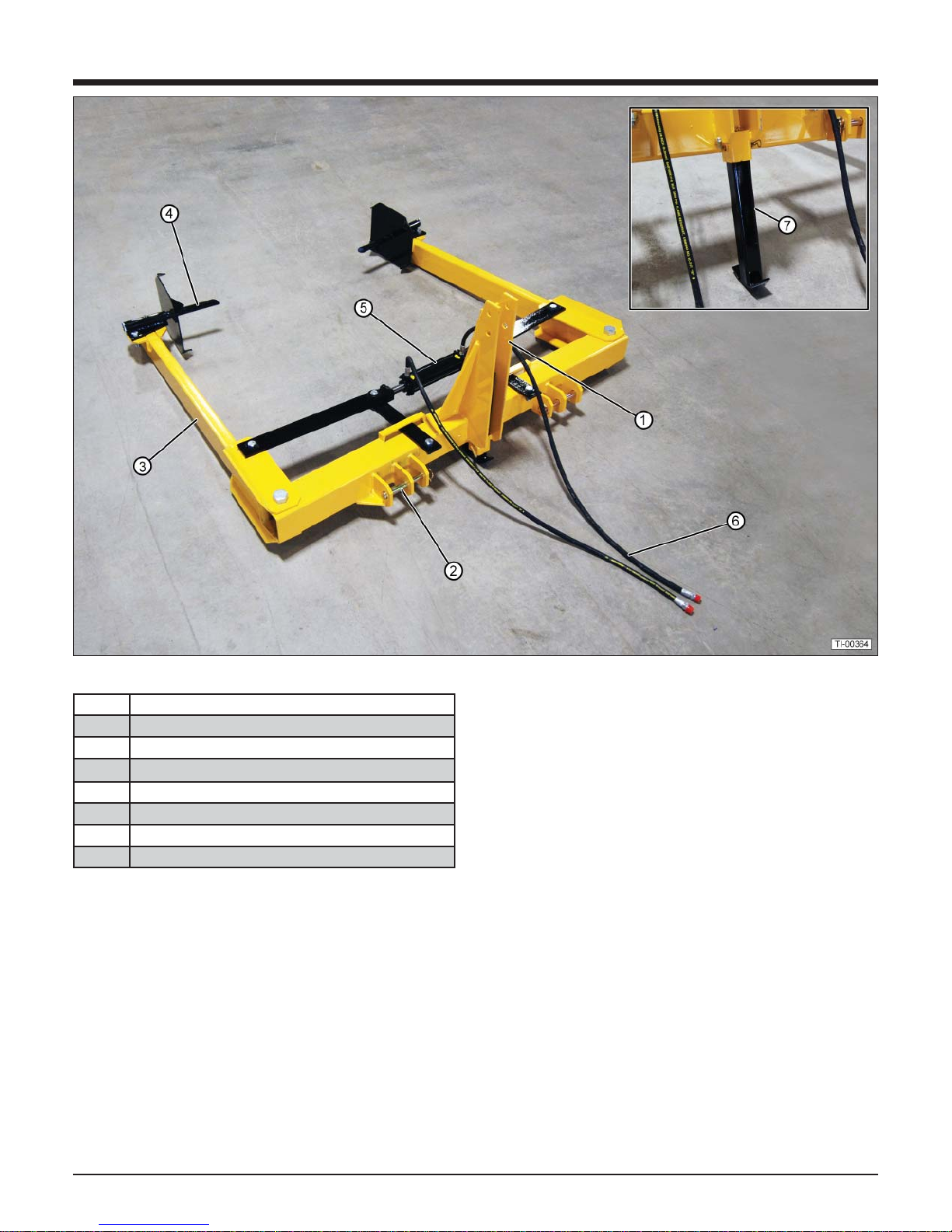

3. Nomenclature
Item Description
1 A-Frame
2 3-Point Hitch Lift Pin and Lynch Pin
3 Articulated Arm
4 Bale Spike
5 Hydraulic Cylinder
6 Hydraulic Hoses
7 Parking Stand

Titan Implement, LLC 15 9300BU Bale Unroller
[phone] January 2016
4. Operation
4.1 Safety
Refer to “2.4 General Safety Instructions” on page
10 for user safety training requirements.
WARNING
STOP
Roll Away Hazard
Before leaving the
tractor seat, make sure
the engine is stopped, the transmission is placed in
park, the key is removed, and the parking brake is
set.
The weight of the tractor, plus the bale
unroller if it rolls onto a person, can cause
serious crushing injury or death.
Crush Hazard
The tractor should be equipped with
a Roll Over Protective Structure
(ROPS) and a seat belt. A crushing hazard can occur
if the driver is ejected from the seat while the tractor
is in motion. Fasten the seat belt whenever the
tractor is moving.
A heavy load can cause your tractor to tip over.
When moving heavy loads, keep the load low, go
slowly around turns, and be sure front of the tractor
is properly counterbalanced with weights.
Stay Clear
Clear the work area of all unnecessary people
and obstructions to prevent personal injury.
Bale Spike Contact Hazard (hand)
To avoid serious injury or death, keep away
from bale spikes.
Crush Hazard
A rolling hay bale is dangerous and could
cause serious injury or death. When moving
large round hay bales to a storage area, make sure
the area is level and that the hay bale will not roll
when released.
SAFETY
INSTRUCTIONS
The following safety instructions are provided to
help prevent injury or limit equipment damage.
THINK
SAFETY! Train Unfamiliar Users
It is the bale unroller owner’s
responsibility to make sure any person
using the bale unroller, especially if it is loaned or
rented, has been thoroughly trained on its proper
and safe use.
Be certain only physically-able persons will use the
bale unroller.
Untrained users expose themselves and bystanders
to possible serious injury or death.
If the elderly are assisting with the work, their
physical limitations need to be recognized and
accommodated.
Never allow children to operate equipment.
Fire Hazard
Bales are flammable. To reduce the risk of
fire:
Do not operate the bale unroller, or drive the tractor
into material that is burning, or areas that recently
burnt and may contain hot spots. Tire damage can
occur when driving over hot material. Oil and grease
on the tractor and bale unroller could ignite, or the
bale could ignite, resulting in equipment destruction.

9300BU Bale Unroller 16 Titan Implement, LLC
January 2016 [phone]
4.2 Tractor Requirements
WARNING
Tractor Owner/Operator Manual
Always refer to the tractor Operator’s Manual
to ensure compatibility and maximum safety.
The tractor used to operate the bale unroller must have
the power to lift and pull the bale while traveling at a
ground speed between 2 and 5 MPH.
The power required to operate the bale unroller is
determined by the tractor PTO horsepower. Operating
the bale unroller with a tractor that does not have
adequate power may damage the tractor engine.
Model Recommended
Min. HP
9300BU 25 - 65
Always review the “controls” section of the tractor
Operator’s Manual to be familiar with the location,
settings, and function of the tractor controls. Be
familiar with all controls before using this equipment.
4.2.1 Tractor Safety Devices
If transporting or operating the tractor and implement
near a public roadway, the tractor must be equipped
with proper warning lighting and a Slow Moving Vehicle
(SMV) emblem which are clearly visible from the rear of
the unit. Lights and a SMV emblem must be attached
directly to the implement if the visibility of the tractor
warning signals are obscured.
Never operate the tractor PTO with the PTO master
shield missing or in the raised position.
4.2.2 ROPS and Seat Belt
WARNING
Rollover Hazard
To avoid serious injury or death from
falling off tractor, equipment runover,
rollover, or crushing:
1) Use ROPS equipped tractor.
2) Keep ROPS locked in the UP position.
3) Only operate the equipment when seated in the
tractor seat.
4) Always fasten seat belt when operating the tractor
and bale unroller.
The tractor must be equipped with a Roll Over
Protective Structure (ROPS) (tractor cab or roll bar)
and seat belt to protect the operator from falling off the
tractor, especially during a roll-over where the driver
could be crushed and killed. Only operate the tractor
with the ROPS in the raised position and seat belt
fastened.

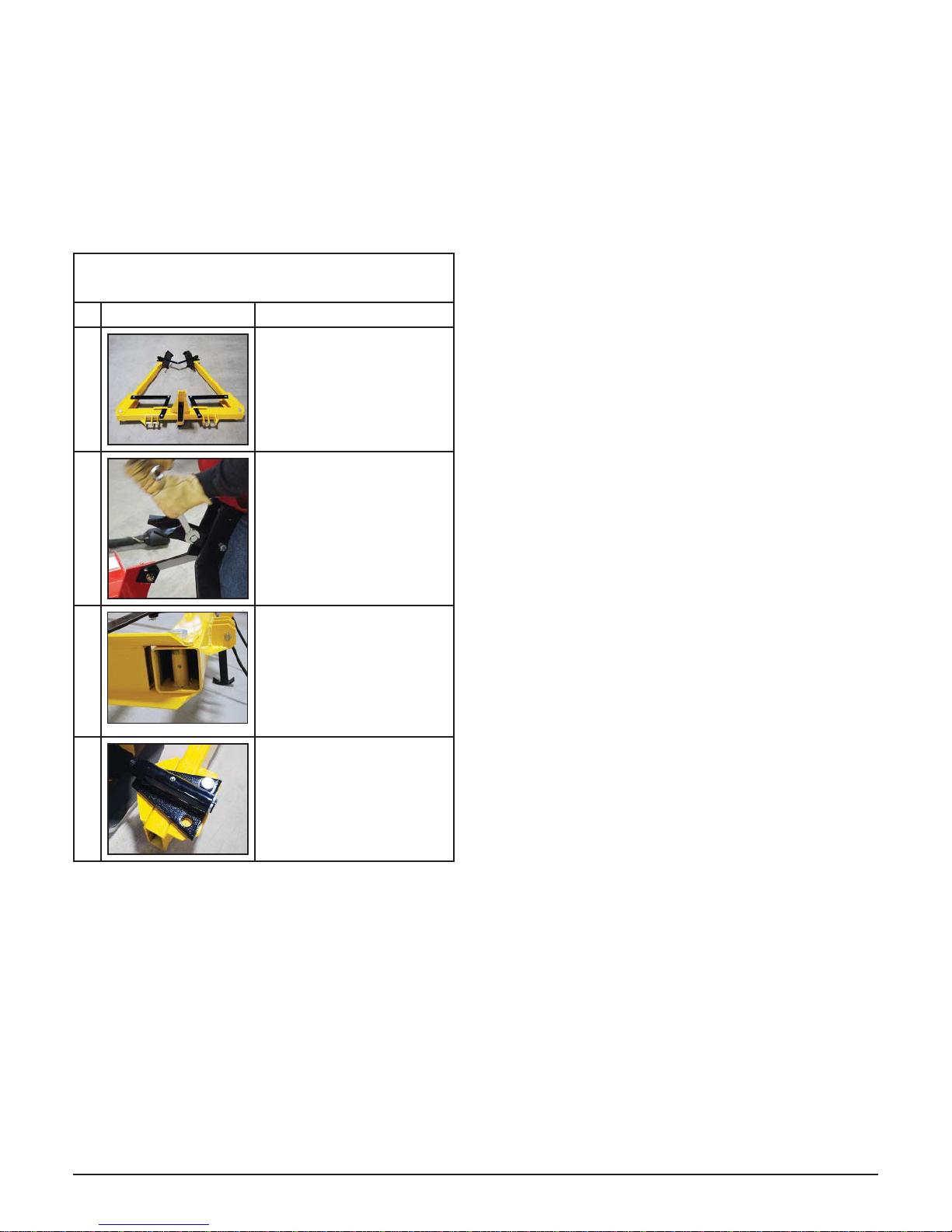

4.2.3 3-Point Hitch
The bale unroller is recommended for use on Category
II tractors with a 3 point hitch or a standard Category II
quick hitch.
It will also work on larger Category I tractors for
handling small size bales, if the Category I tractor is
properly equipped with front end weights.
Refer to the tractor Operator’s Manual for the category
of the tractor being used. If the hitch does not conform
to ASABE CAT I/ll dimensions, the bale unroller may
not fi t or raise properly. Consult an authorized dealer
for possible modifi cation procedures to mount non-
conforming hitches. Depending on the hitch category,
certain size pins are used to attach the implement to
the tractor. CAT I hitches require 7/8” lower and 3/4”
upper diameter hitch pins. CAT Il hitches require 1-1/8”
lower and 1” upper diameter hitch pins.

Titan Implement, LLC 17 9300BU Bale Unroller
[phone] January 2016
4.3 Attaching to Tractor
Use caution when connecting the bale unroller to the
tractor. The bale unroller should be securely resting on
the ground or setting on blocks. Keep hands and feet
from under the bale unroller and clear of pinch points
between the tractor drawbar and bale unroller hitch.
WARNING
Crush Hazard
Do not allow anyone to stand between the
hitch and implement during hook-up
operations.
1. Shorten or remove the tractor drawbar to avoid
interference when raising and lowering the bale
unroller.
2. Board the tractor and start the engine. Position the
tractor with the 3-point lift arms positioned at the
same height and to the outside of the bale unroller
hitch pins.
Note: Set the 3-point lift control to “Position Control”
so that the lift arms maintain a constant height
when attaching the bale unroller. See the tractor
Operator’s Manual for correct settings when
attaching 3-point equipment.
3. Turn off the tractor engine and dismount.
4. One lift arm at a time, insert hitch pin through the lift
arm holes and install retaining pin.
5. Walk around to the opposite side and repeat the
procedure for the remaining lift arm and hitch pin.
6. Extend or retract the 3-point top link to align its end
hole with the hole of the bale unroller’s top link.
Insert the top link hitch pin and insert the retaining
pin into the hitch pin.
7. Connect the hydraulic hoses to the tractor hydraulic
system. Support the hoses so that they cannot
contact the tractor when turning, or drag on the
ground.
Note: Quick disconnect hydraulic couplers are not
supplied with the unit. If desired, these may be
procured from a local equipment dealer.
8. Raise the bale unroller using the tractor hydraulics,
and retract the parking stand.
9. Adjust any lower link check chains, guide blocks,
or sway blocks to prevent the bale unroller from
swaying side-to-side and possible contact with the
tractor rear tires.

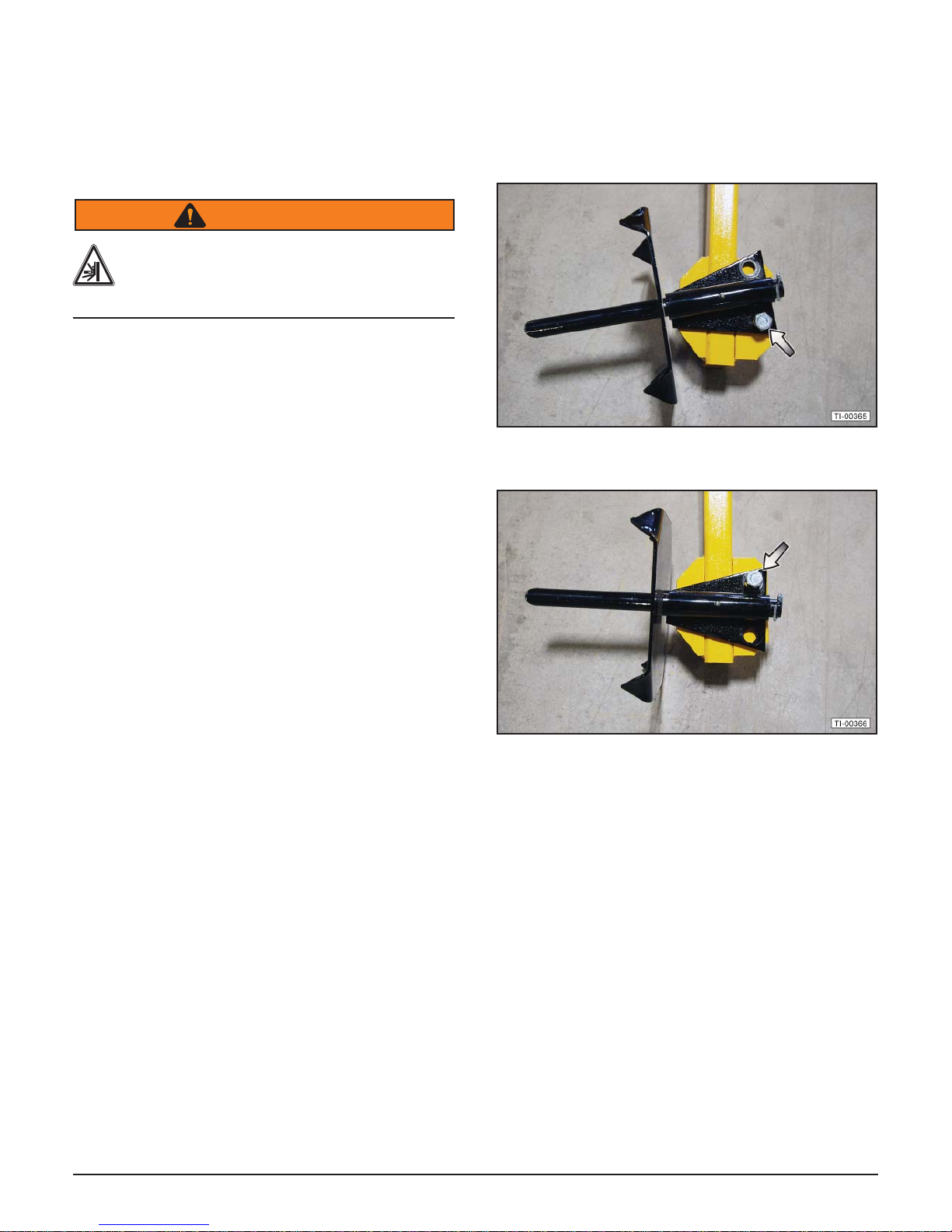

4.4 Setting the Bale Unroller
The bale spikes can be set in one of two positions, for
handling 4’ bales, or 5’ and 6’ bales.
1. Install the bolt in the hole nearest to the end of the
arm for handling 4’ bales.
2. Install the bolt in the hole farthest from the end of
the arm for handling 5’ or 6’ bales.

9300BU Bale Unroller 18 Titan Implement, LLC
January 2016 [phone]
4.5 Initial Setup Checklist
Effi cient and safe operation of the bale unroller requires
that every user read and understand the operational
instructions and all related safety instructions outlined
in this manual.
This checklist is provided for the user/owner. It is
important for both personal safety and to maintain
the mechanical condition of the bale unroller that this
checklist is followed.
Initial Setup Checklist
(prior to using for the fi rst time)
✔Location Task
Make sure the bale unroller
is properly attached to
the tractor. Refer to “4.3
Attaching to Tractor” on page
17.
Make sure all hardware
is properly installed and
tightened. Refer to “7.4 Bolt
Torque Requirements” on
page 25.
Lubricate all grease zerks
Refer to “7.2 Greasing” on
page 24.
Make sure the bale unroller is
set for the proper bale size.
Adjust if needed. Refer to
“4.4 Setting the Bale Unroller”
on page 17.
4.6 Implement Break-In
Although there are no operational restrictions on
the bale unroller when used for the fi rst time, it is
recommended that the following mechanical items be
checked:
1. Before operating:
a. Charge the hydraulic cylinder.
b. After charging the cylinder, check the oil level
in the tractor’s hydraulic reservoir.
2. After 1/2 hour of operation:
a. Tighten all fasteners if necessary.
b. Check bale spikes to make sure they are still
secured.
c. Lubricate all grease fi ttings.
3. After 10 hours of operation:
a. Go to the normal servicing and maintenance
schedule, as defi ned in the Maintenance
Section.

Titan Implement, LLC 19 9300BU Bale Unroller
[phone] January 2016
4.7 General Operating Instructions
Make sure all operators have read all the safety
warnings and precautions in this manual and those
in the tractor Operator’s Manual. Be sure the tractor
is properly counterbalanced with weights before
attempting to lift any load with the bale unroller.
Inspect the bale unroller for potential problems or
damage. Do not use the bale unroller if it needs
repairs of any type.
Operate the bale unroller only in conditions where you
have clear visibility in daylight or with adequate artifi cial
lighting. Never operate the bale unroller in darkness
or foggy conditions where you cannot clearly see at
least 300 feet in front and to the sides of the tractor and
bale unroller. Clear the area of bystanders, especially
small children. Make sure that you can clearly see and
identify passersby, steep slopes, ditches, drop-off s,
overhead obstructions, power lines, debris, and foreign
objects. If you are unable to clearly see these type of
items, discontinue operating the bale unroller.
Before using the bale unroller, raise the parking
stand and secure it in the raised position. Make sure
the hydraulic hoses are undamaged, are properly
supported, and cannot contact the tractor, or drag on
the ground. The bale unroller can be tilted by adjusting
the top link. This adjustment range allows you to vary
the height to best handle your size bales.
Before attempting to move or unroll a bale, remove
any material that has become entangled in the spikes.
Examine the bale and determine which way it is
wrapped. The bale needs to be gripped so it will unroll
from the bottom as the tractor moves forward.
Avoid operating the tractor in reverse direction when
possible. Check to make sure there are no persons
behind the bale unroller, and use extreme care when
maneuvering in reverse.
4.8 Lifting a Bale
1. Position your tractor square with the bale and open
the clamp arms all the way.
2. Back the tractor until the spikes are close to the
center of the bale. Bales should be gripped at the
center of the ends of the bale only.
3. Close the clamp arms until the bale is gripped
securely between the spikes and raise the tractor’s
3-point hitch.
NOTICE
In cold weather, a bale frozen to the ground may
exceed the lifting capacity of the bale unroller.
Damage to the bale unroller may occur. This type of
damage is not covered under the warranty.
4.9 Traveling With a Bale
1. Stay alert and watch for trees, low hanging limbs,
power lines, and other overhead obstacles while you
are operating. Use care to avoid hitting these items.
2. Keep the bale close to the ground while traveling.
3. Continually scan all sides for pedestrians, animals,
and other traffi c.
4. Always drive at a safe speed and slow down when
making turns. Avoid sudden braking.
5. Be sure to slow down when traveling over rough or
hilly terrain.
6. Leave enough clearance when turning to avoid
making contact with obstacles such as buildings,
trees, or fences.
7. When traveling over a ramp or incline, keep the bale
on the “uphill” side of the tractor.
8. Avoid making turns on grades, ramps, and inclines.
9. Raise or lower a bale only when stopped, never
while travelling.
10. Whenever possible, avoid transporting loads on
public roadways. If it is necessary to transport on
public roadways, transport in such a way that faster
moving vehicles may pass you safely. Make sure
that the load does not block the tractor’s SMV sign.
11. Plan your route to avoid heavy traffi c.

9300BU Bale Unroller 20 Titan Implement, LLC
January 2016 [phone]
4.10 Unrolling a Bale
1. Remove the wrap and any twine or netting from the
bale before unrolling.
WARNING
Make sure brakes are securely set before getting off
the tractor.
NEVER place any part of your body under the raised
bale when removing twine or netting from the bale.
2. Lower the bale to the ground and drive forward
slowly to unroll the bale.
3. As the bale unrolls, it may be necessary to continue
lowering the bale to keep it in contact with the
ground.
4. Look forward to avoid any obstacles or livestock that
might be in the way.
5. When the desired amount of hay has unrolled, raise
the 3-point hitch and the bale will stop unrolling.
6. Drive the tractor outside the feeding area, and
release the remaining portion of the bale, if any, for
feeding at a later time.
4.11 Detaching From Tractor
1. Move the bale unroller to a level storage location,
extend the parking stand, and lower it to the
ground or onto blocks. Park the tractor, place
the transmission in park or neutral, and apply the
parking brake. Shut down the engine, remove the
key, and wait for all motion to come to a complete
stop before exiting the tractor. Before disconnecting
the bale unroller, the PTO must be disengaged and
blade rotation at a complete stop.
2. Make sure the bale unroller is resting securely on
the ground or blocks, and the wheels are chocked
before attempting to disconnect it from the tractor.
WARNING
Crush Hazard
Keep feet and hands from under the bale
unroller and clear of any pinch points caused
by the tractor hitch arms and bale unroller hitch
pins. Never operate the hydraulic 3-point lift controls
while someone is directly behind the tractor.
3. Extend or retract the tractor 3-point hitch top link to
remove tension on the top link hitch pin. When the
pin is loose and easy to rotate, remove the pin from
the top link. Disconnect the lift arms.
4. Disconnect the hydraulic hoses from the tractor.
Store the hoses on the bale unroller A-Frame.
CAUTION
Explosive Separation Hazard
Be sure all hydraulic pressure is relieved
before disconnecting hydraulic line or fi ttings
between the bale unroller and the tractor
hydraulic system.
