Titan TTK550LWM User manual

Original instructions: MNL_TTK550LWM_V1
RIDE-ON MOWER
OWNER’S MANUAL
WARNING!
Read this manual carefully before
using the machine.
TTK550LWM
EN
Supported by
For all your Warranty,
Parts and Service needs
0845 601 4221
www.servicelink.org.uk

Congratulations on your purchase of a TITAN Ride On Lawnmower. We want you to
continue getting the best performance from it so this handbook includes information
on safety, handling and care. Please retain this handbook in case you need to refer
to any of the information in the future.Your TITAN Ride On Lawnmower comes with a
1 year guarantee, so should it develop a fault within this period contact the Service
Link helpline on 0845 601 4221.
GUARANTEE
This product has been manufactured to a high quality standard. It is guaranteed against faulty
materials and workmanship for 12 months from purchase, please retain your till receipt as proof
of purchase.
If the product is found to be defective within the relevant time period, we will either replace all
defective parts or, at our discrection, replace the unit free of charge with the same item or items
of a greater value and/or specication.
This guarantee does not cover defects caused by or resulting from:
– Misuse, abuse or neglect,
– Trade, professional or hire use,
– Repairs attempted by anyone other than our authorised repair centre (call 0845 601 4221);
– Damage caused by foreign objects, substances or accident.
This guarantee does not eect your statutory rights. Screwx.
> What is Service Link? Service Link is an aftersales help and advice helpline with a
national network of garden machinery repair specialists.
> How can we help you? Here at Service Link we can help with all your trouble shooting,
warranty, parts and service needs. Call us and speak to one of our advisors and if
required, visit one of our 450 centres across the UK and Ireland.
> How can you contact us? In the unlikely event that this product does require our help
please contact the helpline on 0845 601 4221 in the UK or 1800806149 in Rol. Lines are
open Monday-Saturday 9am to 5pm and Sundays 10am to 4pm. Also nd us online at
www.servicelink.org.uk
Service Link
2
TTK550LWM by TITAN
GB
IE

Let’s get
started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started...
Your product
Technical data
Accessory list
Safety instructions
Unpacking and assembly
In more detail...
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
EC declaration of conformity
3
GB
IE
TTK550LWM by TITAN

Your product
Your product
IDENTIFICATION OF THE MACHINE
The identication label located under the seat
has the essential data of each machine.
The serial number (6) must be quoted
when you require technical assistance or
spare parts.
1. Acoustic power level according to
directive 2000/14/EC
2. Conformity mark according to
directive 2006/42/CE
3. Year of manufacture
4. Operating engine power and speed
5. Type of machine
6. Serial number
7. Weight in kgs
8. Name and address of Manufacturer
9. Type of transmission (if indicated)
10. Article Code
The example of the declaration of conformity can
be found on the penultimate page of the manual.
Write your machine’s serial
number here (6)
IDENTIFICATION OF MAIN COMPONENTS
Various main components can be seen on the machine and these have the following
functions:
11. Cutting deck: this is the guard enclosing the rotating blade.
12. Blade: this is what cuts the grass. The wings at the ends help convey the cut grass
towards the collector channel.
13. Collector channel: this is the part connecting the cutting deck to the grass-catcher.
14. Grass-catcher: as well as collecting the grass cuttings, this is also a safety element in
that it stops any objects drawn up by the blade from being thrown outside of the
machine.
15. Rear discharge guard (available separately): this can be tted in place of the
grass-catcher and prevents objects drawn up by the blade from being thrown outside of
the machine.
16. Side discharge chute (if provided): it prevents objects drawn up by the blade from
being thrown away from the machine.
17. Engine: this moves the blade and drives the
wheels. It is fully described in a specic
booklet.
18. Battery Electric Start: provides the
energy for starting the engine. It is fully
described in a specic booklet.
19. Driver seat: this is where the machine
operator sits. It has a sensor for detecting the
presence of the operator which is a safety
device.
20. Pictograms for regulations and safety: give
reminders on the main provisions for working
safely.
4
TTK550LWM by TITAN
GB
IE
Getting started...

Technical data
Technical and legal
informations
Electric Start
Electrical system ......................... 12 V
Battery ...................................... 7.2 Ah
Front tyres .............................. 11 x 4.00-4”
or ........................................ 13 x 5.00-6”
Rear tyres .............................. 13 x 5.00-6”
or ........................................ 15 x 5.50-6”
Front tyre pressure
tyres 11 x 4.00-4” ....................... 1.5 bar
tyres 13 x 5.00-6” ....................... 1.5 bar
Rear tyre pressure
tyres 13 x 5.00-6” ....................... 1.5 bar
tyres 15 x 5.50-6” ....................... 1.0 bar
Overall weight ...................... 120 - 135 kg
Inside turning circle (minimum
diameter of uncut grass) .............. 1. 55 m
Cutting height
tyres 11” - 13” ..................... 30 - 64 mm
tyres 13” - 15” ..................... 30 - 76 mm
Cutting width ................................. 65 cm
Grass-Cacher capacity ............. 140 litres
Mechanical transmission
Tyres 11”-13”
Forward speed (approximate)
in Forward gear ......... 1.4 - 5.5 km/h
in Reverse ......................... 1.7 km/h
Tyres 13”-15”
Forward speed (approximate)
in Forward gear ......... 1.5 - 6.2 km/h
in Reverse ......................... 2.0 km/h
Hydrostatic transmission
Tyres 11”-13”
Forward speed (approximate)
in Forward gear ............ 0 - 5.6 km/h
in Reverse ......................0 - 2.7 km/h
Tyres 13”-15”
Forward speed (approximate)
in Forward gear ............ 0 - 6.2 km/h
in Reverse ..................... 0 - 3.0 km/h
Maximum noise and vibration levels 1)
Operator ear noise
pressure level ....................... db(A) 85.5
– Measurement uncertainty ... db(A) 1.0
Measured
acoustic output level .............. db(A) 97.7
– Measurement uncertainty ... db(A) 0.5
Guaranteed
acoustic output level .............. db(A) 98
Vibration level in the
driver’s seat ........................... m/s
2
1.02
– Measurement uncertainty .. m/s
2
1.91
Steering wheel
vibration level ........................ m/s
2
5.38
– Measurement uncertainty .. m/s
2
2.39
1) Indicative values: eective values can be
found in the “Declaration of Conformity”.
5
GB
IE
Getting started...
TTK550LWM by TITAN

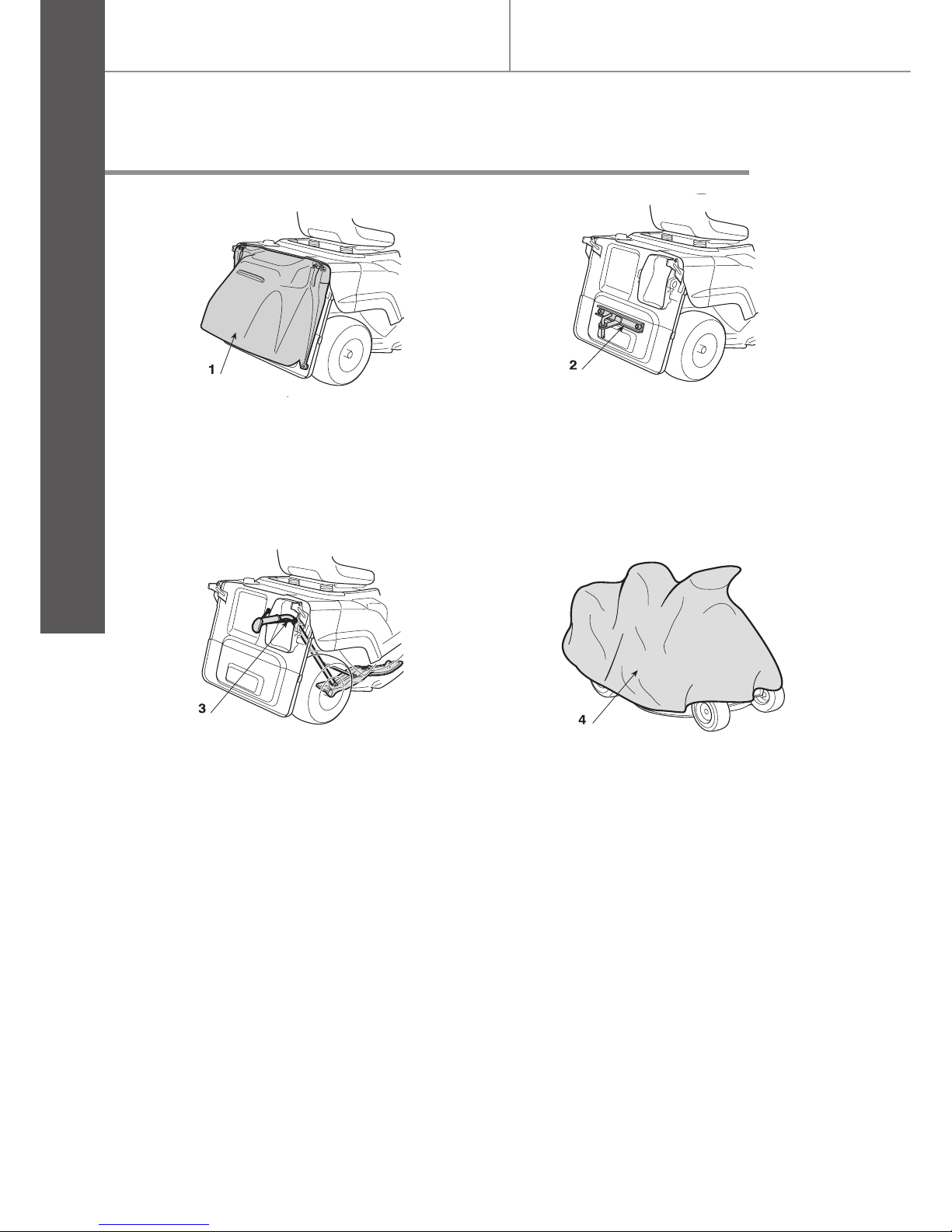

Accessory list (Available separately)
Accessory list
1. REAR DISCHARGE GUARD KIT
For use in place of the grass-catcher
when the cuttings are not to be
collected.
3. KIT FOR “MULCHING”
It nely chops the grass cuttings and
leaves them on the lawn, instead of
collecting them in the grass-catcher.
2. TOWING HITCH
For towing a small trailer.
4. “CLOTH COVER
Protects the machine
from dust when not in use.
6
TTK550LWM by TITAN
GB
IE
Getting started...

Safety instructions
Safety instructions

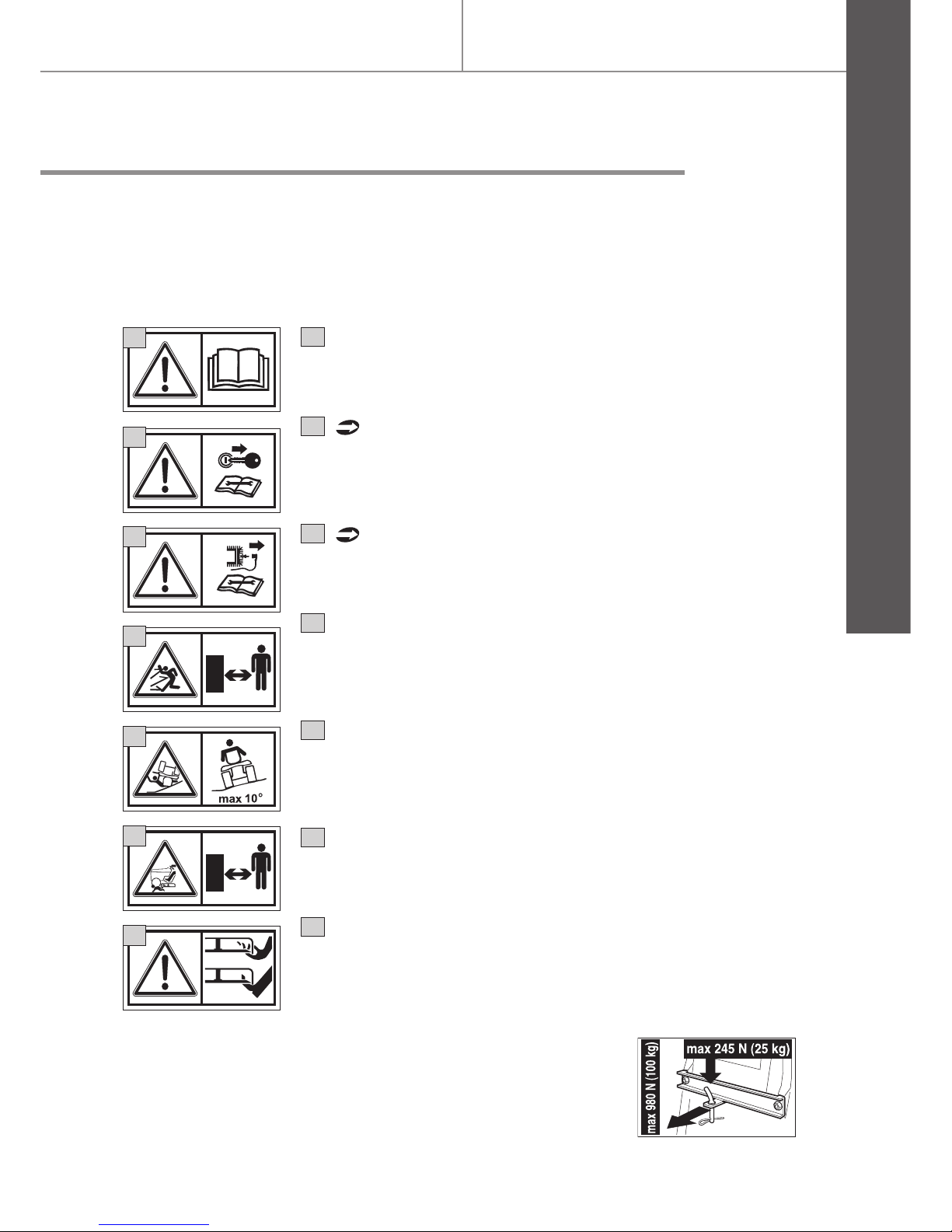

SAFETY DECALS
Your machine must be used with care. Pictograms have been placed on the machine to
remind you of the main precautions to be taken during use.
If placed on a label, they are considered an integral part of the machine.
If a decal should fall o or become illegible, contact your retailer to replace it. Their meaning is
explained below.
REGULATIONS FOR TOWING
A kit for towing a small trailer is available on request. This accessory
is to be tted following the instructions pro vided.
When using the towing kit, do not exceed the recommended loads
stated on the label and follow the safety instructions.
7
GB
IE
Getting started...
TTK550LWM by TITAN
1Warning: Read Owner’s Manual before operating this
machine.
2a
Electric Start
Warning: remove the key and read the instructions
before carrying out any maintenance or repairs.
2b
Manual start
Warning: disconnect the spark plug cap and read the
instructions before carrying out any maintenance or repairs.
3Danger! Ejected objects: Keep bystanders away.
4Danger! Machine rollover: Do not use this machine on
slopes greater then 10°.
5Danger! Dismemberment: Make sure that children stay clear
of the machine all the time when the engine is running.
6Risk of being cut. Blade in movement. Do not insert hands or
feet inside the blade housing.
2a
2b
3
4
5
1
6

General safety
DESCRIPTION OF THE MACHINE AND ITS RANGE OF USE
This machine is a garden tool and precisely a ride-on mower.
The machine is equipped with an engine which drives a cutting unit protected by a casing, as
well as a transmission unit that moves the machine.
The operator is able to operate the machine and use the main controls, always seated in the
operator’s position.
The devices tted on the machine stop the engine and the cutting device within a few
seconds, should the operator behave in a manner that does not comply with the necessary
safety precautions.
Intended use
This machine was designed and built to cut grass.
The use of special accessories provided for by the Manufacturer as original equipment or
which may be purchased separately, allows this work to be done in various operating modes,
illustrated in this manual or the instructions that accompany the single accessories.
Likewise, the intended use can be amplied to include other functions by applying
supplementary tools (if provided for by the Manufacturer), abiding by the restrictions and
conditions indicated in the instructions accompanying the equipment.
Improper use
Any other usage not in keeping with the above mentioned ones may be hazardous and harm
persons and/or damage things. Examples of improper use may include, but are not limited to:
– transporting people, children or animals on the machine or on a trailer;
– towing or pushing loads without the use of the specic accessory for towing;
– use of the machine for riding over unstable, slippery, icy, stoney, rough, marshy ground or
puddles that do not allow the consistency of the ground to be assessed;
– using the blades on surfaces other than grass;
– use of the machine for leaf or debris collection.
Improper use of the machine will invalidate the warranty, relieve the Manufacturer from all
liabilities, and the user will consequently be liable for all and any damage or injury to himself
or others.
Safety instructions
HELPLINE
0845 601 4221
or visit
www.servicelink.org.uk
This product is supported by Service
Link. If you have been unable to find the
information you require above please
call the Service Link helpline. Here you
will find 1-2-1 help and advice from
garden machinery repair specialists.
8
TTK550LWM by TITAN
GB
IE
Getting started...

Additional safety
Safety instructions
HOW TO READ THE MANUAL
The manual describes several machine models that can mainly dier in:
– type of drive: mechanical or hydrostatic;
– electric or manual start-up;
– presence of accessories or ttings
The symbol “ ” highlights all the dierences in usage and is followed by the indication of
the version that it refers to.
The symbol “ ” refers to another part of the manual where further information can be
found.
Some paragraphs in the manual contain information of particular importance and these are
highlighted at various levels of emphasis, and signify the following:
NOTE or
IMPORTANT These give details or further information on what has already been
said, and are aimed at preventing damage to the machine or causing damage.
Non-observance will result in the risk of injury to oneself or
others.
Non-observance will result in the risk of serious injury or
death to oneself or others.
SAFETY REGULATIONS
Read carefully before using the machine.
A) TRAINING
1) Read the instructions carefully. Be familiar with the controls and the proper use of the
equipment. Learn how to stop the engine quickly.
2) Never allow children or people unfamiliar with these instructions to use the machine. Local
regulations may restrict the age of the operator.
3) Do not use the machine if the operator has taken medicine or substances that may impair
his ability to react and be attentive.
4) Keep in mind that the operator or user is responsible for accidents or hazards occurring to
other people or their property.
5) Do not carry passengers.
6) The operator of a machine must carefully follow the driving instructions, particularly:
– the need for care and concentration when using machines;
– that control of a machine sliding on a slope will not be regained by the application of the
brake.The main reasons for loss of control are:
– insucient wheel grip;
– being driven too fast;
– inadequate braking;
– the type of machine is unsuitable for its task;
– lack of awareness of the eect of ground conditions, especially slopes;
9
GB
IE
Getting started...
TTK550LWM by TITAN

Safety instructions
7) The machine is equipped with a series of safety microswitches and devices which must
never be removed, altered or tampered with. Removing these devices invalidates the
warranty and the manufacturer declines any responsibility.
B) PREPARATION
1) While mowing, always wear substantial footwear and long trousers. Do not operate the
equipment when barefoot or wearing open sandals.
2) Thoroughly inspect the area where the equipment is to be used and remove all objects
which may be thrown by the machine (stones, sticks, metal wire, bones, etc.)
3) WARNING: DANGER! - Engine fuel is highly ammable:
– store fuel in containers specically designed for this purpose;
– refuel using a funnel and outdoors only. Do not smoke while refuelling or whenever
handling the fuel;
– add fuel before starting the engine. Never remove the cap of the fuel tank or add fuel while
the engine is running or when the engine is hot;
– if fuel is spilt, do not attempt to start the engine but move the machine away from the area
of spillage and avoid creating any source of ignition until the fuel has evaporated and the
fumes dispersed;
– replace caps of all fuel tanks and containers securely.
4) Replace faulty silencers.
5) Before using, always carry out a visual inspection, particularly of the blade, seeing that the
screws and cutter assembly are not worn or damaged. Replace a worn or damaged blade
and screws as a set to preserve balance.
6) Before working, attach the discharge opening guards (grass-catcher, side discharge
guard or rear discharge guard).
C) OPERATION
1) Do not operate the engine in a conned space where dangerous carbon monoxide fumes
can collect.
2) Mow only in daylight or with good articial light in good visibility conditions. Keep persons,
children and animals away from the working area.
3) If possible, avoid mowing wet grass. Avoid working in the rain and when there is a
thunderstorm risk.
4) Before starting the engine, disengage the blade and put the transmission in “neutral”.
5) Be very careful near ravines, ditches or embankments.
6) Do not use on slopes of more than 10° (17%).
7) Remember there is no such thing as a “safe” slope. Travel on grass slopes requires
particular care. To guard against overturning:
– do not stop or start suddenly when going up or downhill;
– engage the drive slowly and always keep the machine in gear, especially when travelling
downhill;
– machine speeds should be kept low on slopes and during tight turns;
– stay alert for humps and hollows and other hidden hazards;
– never mow across the face of the slope.
8) Exercise extreme caution when operating in reverse.
9) Use care when pulling loads or using heavy equipment:
– use only approved drawbar hitch points;
– limit loads to those you can safely control;
– do not turn sharply. Use care when reversing;
– use counterweight(s) or wheel weights whenever advised in the instructions manual.
10) Stop the blade rotating and put the cutting deck into the highest position before crossing
surfaces other than grass.
11) Never use the machine to cut grass if the guards are defective, or without the grass-
catcher, the side discharge guard or the rear discharge guard in place.
10
TTK550LWM by TITAN
GB
IE
Getting started...

Safety instructions
12) Do not change the engine governor settings or overspeed the engine.
13) Before leaving the operator’s position:
– disengage the blade;
– go into neutral and apply the parking brake;
– stop the engine and remove the key
(Electric start).
14) Disengage the blade, stop the engine and remove key ( Electric start):
– before carrying out any work beneath the cutting deck or unclogging the collector channel;
– before checking, cleaning or working on the machine;
– after striking a foreign object. Inspect the machine for damage and make repairs before
restarting and operating the machine;
– if the machine starts to vibrate abnormally (immediately check and remove the cause of the
vibration).
15) Disengage the blade when transporting or not in use. Disengage the blade and wait for it
to stop before emptying the grass-catcher.
16) Stop the engine and disengage the blade:
– before refuelling;
– every time the grass-catcher is removed or replaced;
– each time the side discharge chute is removed or re-tted.
17) Reduce the throttle setting before stopping the engine and turn the fuel o at the end of
mowing, following the instructions in the manual.
18) Do not put hands or feet near or under rotating parts. Keep clear of the discharge
opening at all times.
D) MAINTENANCE AND STORAGE
1) Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.
Regular maintenance is essential for safety and for maintaining performance levels.
2) Never store the equipment with fuel in the tank inside a building where fumes may reach a
ame or a spark or a source of extreme heat.
3) Allow the engine to cool before storing in an enclosed space.
4) To reduce the re hazard, keep the engine, exhaust silencer, battery compartment and
fuel storage area free of grass, leaves, or excessive grease. Always empty the grass-catcher
and do not leave garden rubbish containers inside a room.
5) Frequently check the side discharge guard, or the rear discharge guard, the grass-catcher
and the suction grid for wear and deterioration.
6) For reasons of safety, do not use equipment with worn or damaged parts. Parts are to be
replaced and not repaired. Use genuine spare parts (the blade should always bear the sym-
bol «GGP»). Parts which are not of an equivalent quality can damage the equipment and may
adversely aect your safety.
7) If the fuel tank has to be drained, this should be done outdoors and when the engine is
cool.
8) Wear strong work gloves when removing and reassembling the blade.
9) Check the blade’s balance after sharpening.
10) When the machine is to be parked, stored or left unattended, lower the cutting deck.
11) The ignition key must never be left inserted in the machine, or where children or persons
not familiar to the machine may reach it. Before any maintenance or repair, remove the
ignition key ( Electric start).
11
GB
IE
Getting started...
TTK550LWM by TITAN

Before you start
Unpacking and assembly
For storage and transport reasons, some components of the machine are not directly
installed in the factory, but have to be assembled after their removal from the packing. Final
assembly is carried out by following these simple instructions.
IMPORTANT For transport reasons the machine is supplied without engine oil or
fuel. Before starting up the engine, ll with oil and fuel following the instructions given in the
engine booklet.
Unpacking and completing the assembly should be done
on a at and stable surface, with enough space for machine handling and its
packaging, always making use of suitable equipment.
UNPACKING
When unpacking the machine, take care to gather all individual parts and ttings and do not
damage the cutting deck when taking the machine o the base pallet.
The standard packing contents:
– the machine;
– dashboard cover;
– steering wheel column caster;
– steering wheel;
– seat;
– blade engagement lever extension
– grass-catcher components;
– the lower part of the back plate;
– “mulching” accessory components (if provided);
– the side discharge chute (if provided):
– equipment to be used to complete assembly of the various machine components
(in separate bags for each use);
– instructions manual and machine documents.
In addition,
Electric Start
– a battery charger (if present);
– 2 starter keys;
– a spare 10A fuse, to be kept in case of necessity.
NOTE To prevent damage to the cutting deck, raise it to its maximum
height and take utmost care when taking the machine o the pallet.
Hydrostatic transmission
To make it easier to get the machine o the pallet and to move it, the drive disengage
lever should be put in position «B»( page 22, section 23.).
Disposal of the packaging should be done in accordance with the local regulations in force.
FITTING THE REAR PLATE
12
TTK550LWM by TITAN
GB
IE
Getting started...

Before you start
Additional safety
• Use equipment marked “A”.
Apply plates (1) to the two supporting brackets (2)
and (3), as shown in the gure.
Screw (4) the two brackets (2) and (3) to the
chassis supports, taking care they are in the
correct right and left positions.
Mount the lower part (5) of the rear plate and
screw (6) it to the lower brackets without
tightening the screws completely.
Hydrostatic transmission
Make sure the release lever (7) is inserted in
the rear plate groove correctly and that it runs
freely.
Tighten screws (6).
FITTING THE DASHBOARD
AND STEERING WHEEL
• Use equipment marked “B”.
Put the machine on a at surface and
straighten the front wheels.
Fit the caster (3) on the steering column (2),
making sure the plug (1) is correctly tted
into the caster seat.
Fit the steering column extension (3a) in the
hole in the caster (3).
13
GB
IE
Getting started...
TTK550LWM by TITAN

Fit the dashboard cover (5) making sure all fastenings click into their respective housings
correctly.
Fit the steering wheel (6) onto the caster (3) with all the spokes directed towards the seat.
Fit the steering wheel fastening it with the screws (7-a/b/c) supplied, in the indicated order.
Fit the steering wheel cover (8) clicking the three fasteners into place.
FITTING THE SEAT
• Use equipment marked “C”.
Fit the seat (1) onto the plate (2) using the
screws (3-a/b/c).
ASSEMBLY OF THE BLADE ENGAGEMENT
LEVER EXTENSION
• Use equipment marked “C”.
Tighten the knob (1) on the extension (2), then
screw the extension (2) onto the end of the lever (3).
Before you start
14
TTK550LWM by TITAN
GB
IE
Getting started...

Before you start
CONNECTING THE BATTERY
Electric Start
The battery (1) is located under the seat and can be reached by moving the cover (2).
Connect the battery connector (3) to the machine connector (4) and arrange the wire (5)
so that it is held rmly in place (7).
Using the connector (6), charge the battery following instructions in the booklet then put
the cover (2) back.

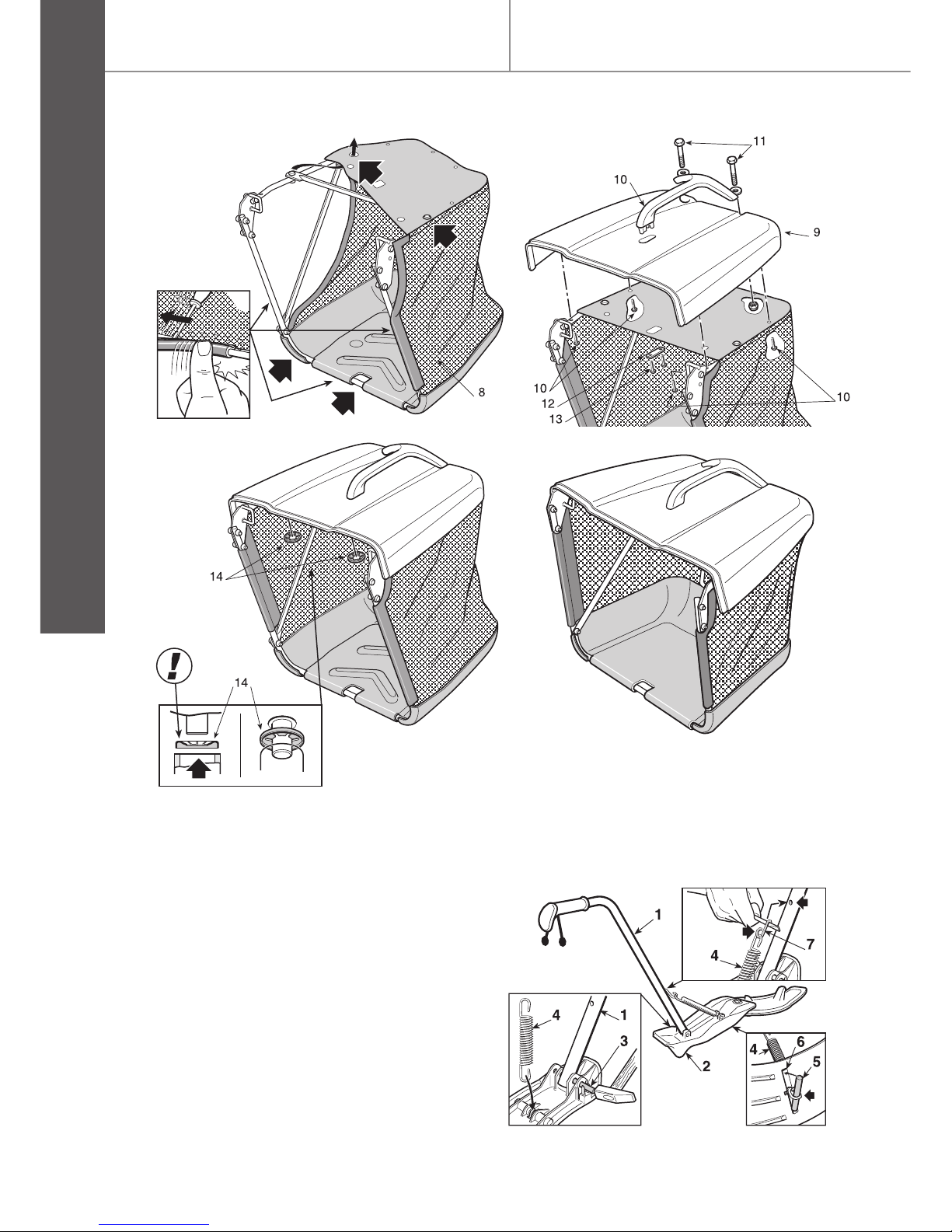

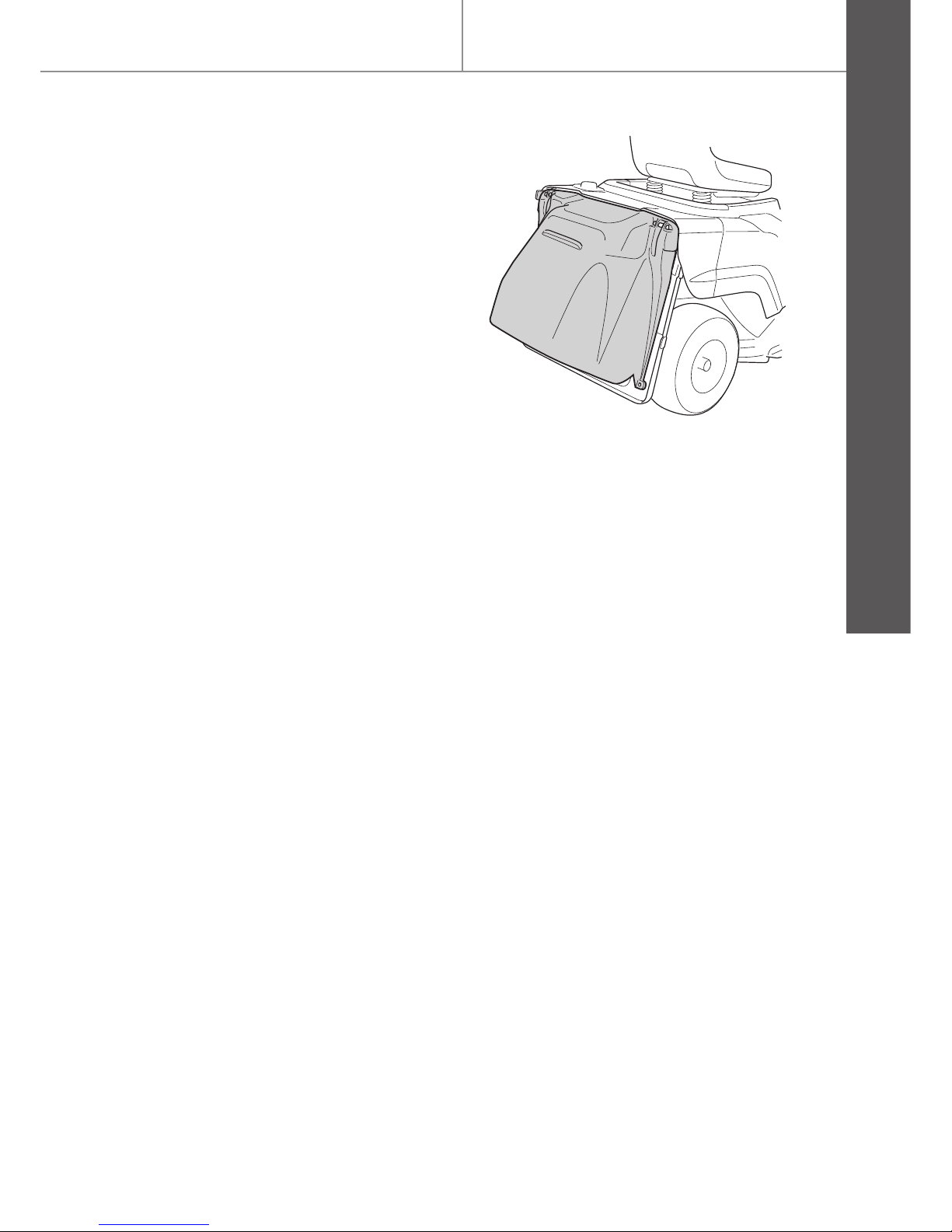

FITTING THE GRASS-CATCHER
• Use equipment marked “D”.
Fit the grass catcher
following sequences
illustrated in the
gures.
15
GB
IE
Getting started...
TTK550LWM by TITAN

Before you start
FITTING THE “MULCHING” ACCESSORY (if provided)
• Use equipment marked “E”.
Fit the handle (1) on the deector cap (2) using
the pin (3) pushing it to the end with a hammer.
Insert an end of the spring (4) in the deector
cap (2) opening and fasten it with the pin (5)
inserted in the specic deector cap (2) seat
(6).
Insert the other end of the spring (4) in the wid-
est part of the hook (7).
Using a screwdriver, fasten the narrowest part
of the hook (7) to the hole in the handle (1).
16
TTK550LWM by TITAN
GB
IE
Getting started...

Before you start
ASSEMBLY OF THE REAR DISCHARGE
GUARD (if provided)
Follow sequences on the instructions sheet
supplied.
17
GB
IE
Getting started...
TTK550LWM by TITAN

In more
detail...
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
EC declaration of conformity
In more detail...
18
TTK550LWM by TITAN
GB
IE

1. STEERING WHEEL
Turns the front wheels.
2. PARKING BRAKE LEVER
This lever is to stop the machine from moving when it has been parked
and must always be engaged before leaving the machine.
– The brake is engaged by fully pressing the pedal (11 - 21) and moving
the lever to position «A». When you take your foot o the pedal it will be
blocked by the lever in the down position.
– To disengage the parking brake, press the pedal again so that the lever
returns to position «B».
Operation
In more detail...
19
GB
IE
TTK550LWM by TITAN

Operation
3. BLADE ENGAGEMENT AND BRAKE LEVER
This lever has two positions, as shown on the label:
Position «A» = Blade disengaged
Position «B» = Blade engaged
– If the blade is engaged when safety conditions have not
been complied with, the engine shuts down.
– On disengaging the blade (Pos. «A»), a brake is
simultaneously activated which stops it rotating in ve
seconds.
4. CUTTING HEIGHT ADJUSTING LEVER
This lever has several positions so the cut can be regulated at
various heights.
– To go from one position to another, move the lever sideways
and put it back in one of the stop notches.
Electric Start
5. KEY IGNITION SWITCH
This key operated control has three positions:
«OFF» everything is switch ed o;
«ON» activates all parts;
«START» engages the starter motor
– On being released at the «START» position, the key will
automatically return to «ON».
6. ACCELERATOR LEVEL
Regulates the engine’s rpm. The positions are indicated on a plate showing the following
symbols:
«CHOKE» (if tted) = cold starting
«SLOW» for minimum engine speed
«FAST» for maximum engine speed
– The «CHOKE» position (if tted) enriches the mixture so must only be used for the
necessary time for cold starting.
– When moving from one area to another, put the lever in a position between «SLOW»
and «FAST».
– When cutting, go to the «FAST» position.
In more detail...
20
TTK550LWM by TITAN
GB
IE
