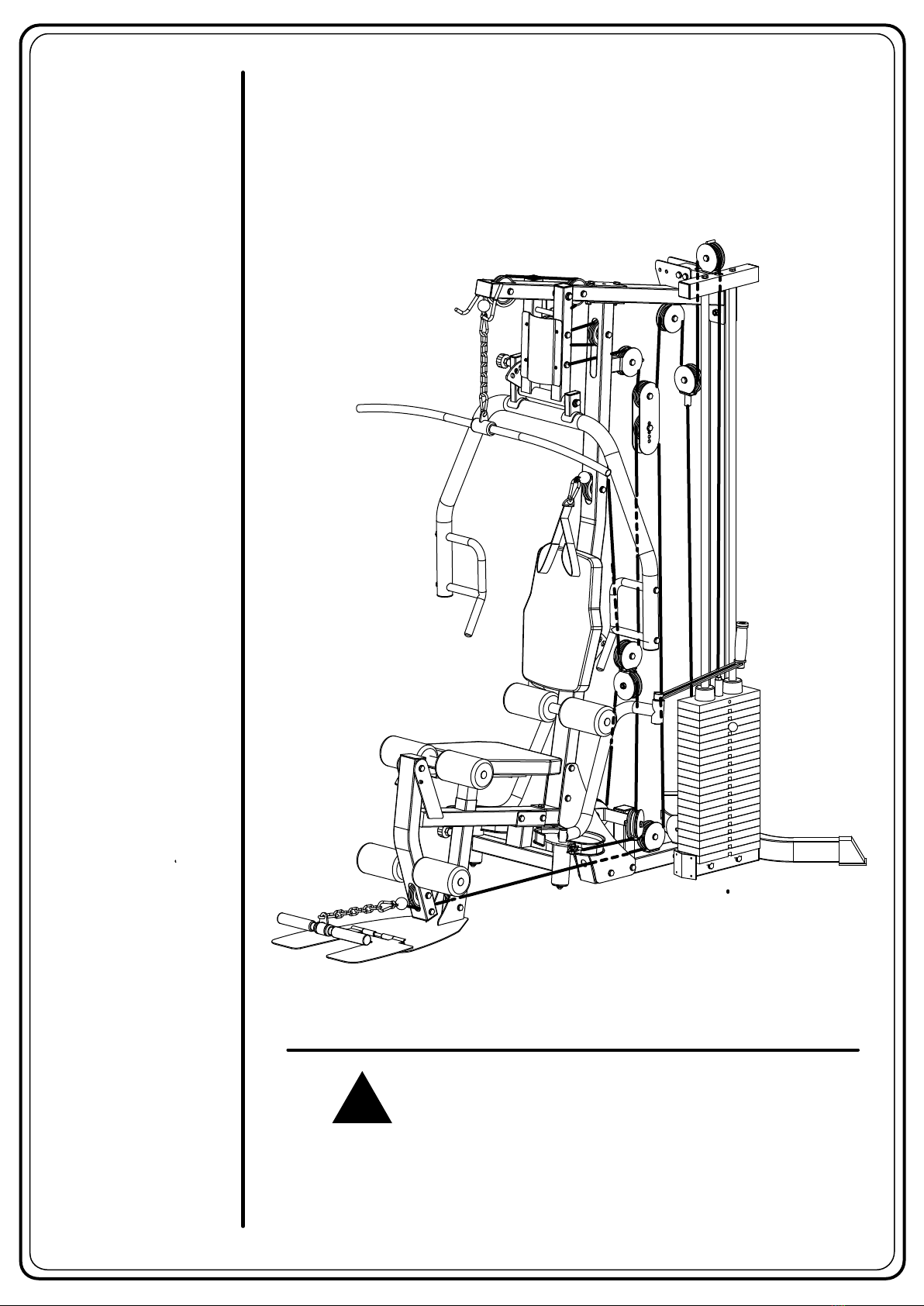

Titanium Strength 486 MG User manual

MULTI GYM WITH BUTTERFLY
Model #: 486 MG
OWNER’S MANUAL
Caution: Read all precautions and
instructions in this manual before using
this equipment. Save this manual for
future reference.
!

Contents
Assembly Instructions
Contents
Before You Begin
Assembly Steps
1
2
3-16
Parts & Hardware List 17-19
Exercise Instructions 20-26
Page 1

Assembly Instructions
This exercise equipment is built for optimum safety. Be sure to read the
entire manual before you assemble or operate your equipment. Please note the
following safety precautions:
1. Keep children and pets away from the equipment at all times. Do not
leave children unattended in the same room with the equipment.
2. Only one person at a time should use the equipment.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms STOP the workout at once.
CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the equipment on a clear, level surface. DO NOT use the equip-
ment near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT
wear robes or other clothing that could become caught in the equipment.
7. Use the equipment only for its intended use as described in this manual.
DO NOT use attachments not recommended by the manufacturer.
8. Before using the equipment, always do stretching exercises to properly warm
up.
9. Never operate the equipment if it is not functioning properly.
Before You Begin

Assembly Instructions
Page 3
STEP 1 - Parts & Hardware List
Part # Description Qty. Remarks
1 Front Upright 1
2 Front Base 1
3 Central Main Base 1
4 Rear Base 1
5 Rear Uprights 1
14 Backrest Adjuster 1
15 Turnover Foot Plate 1 Pre-assembled
16 Foot Plate Rooler 1 Pre-assembled
17 Base Foot Plate 1
19 Guide Rod 2
25 Backrest 1
28 Pop Pin 1
29 Lock Knob 1
31 End Cap 50x70 2
32 Inner Caps 50x70 1 Pre-assembled
H8-3 Hex Bolt M8x25 2
H10-11 Hex Bolt M10x65 2
H10-13 Hex Bolt M10x75 5
H10-17 Hex Bolt M10x95 4
H10-19 Hex Bolt M10x105 1
N10 Lock Nut M10 11
W8 Flat Washer M8 2
W10 Flat Washer M10 23

Assembly Instructions

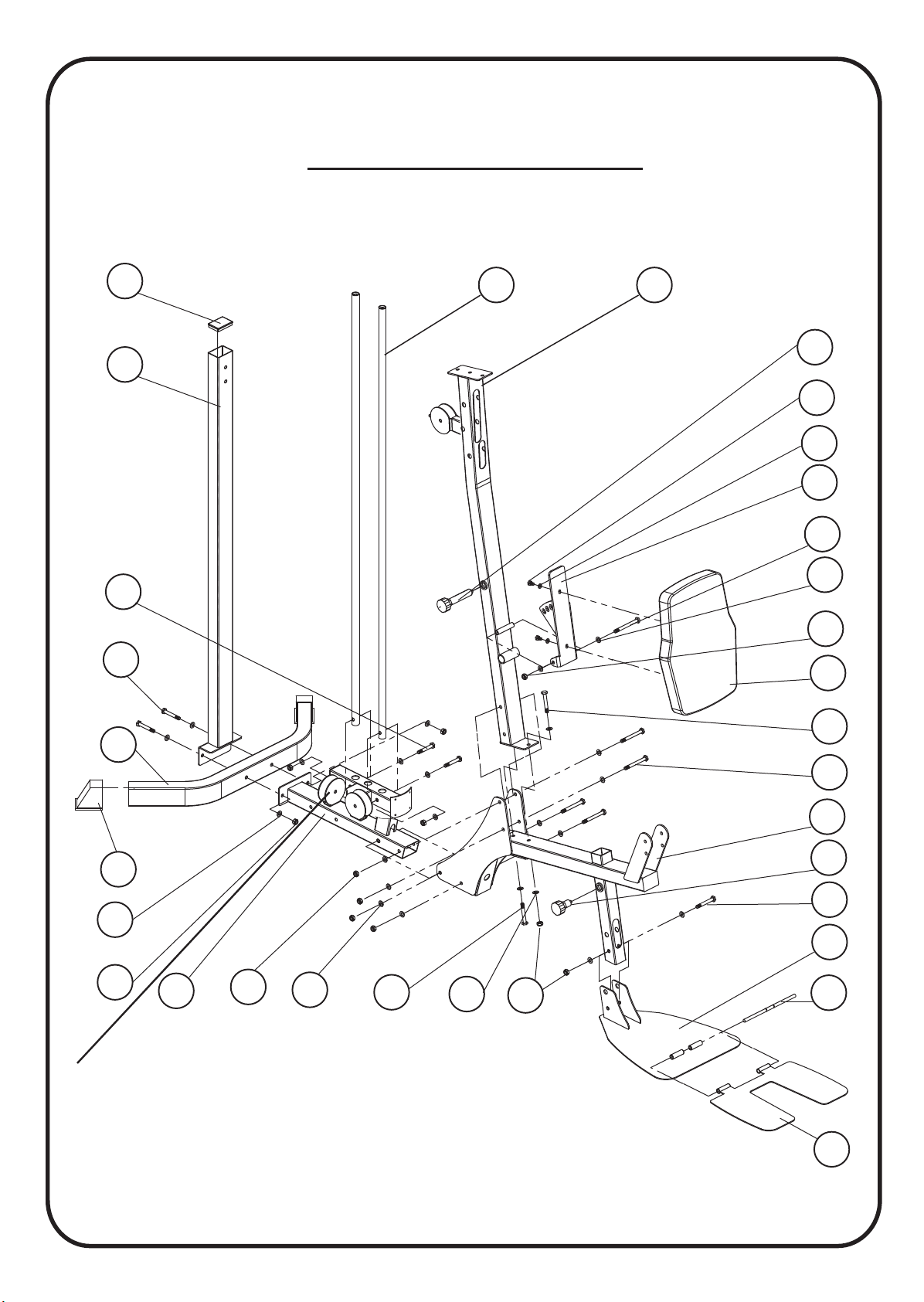

STEP 1
Page 4
15
16
29
2
25
14
28
1
H10-11
4
31
19
H10-13H10-13
x2
x2
x4
17
2x
2x
H10-19H10-19
H8-3H8-3
x2
H10-17H10-17
H10-13H10-13
H10-13
W8
N10
x2
W10
32
5
H10-13
8x
W10
3
8x
W10
5x
W10
4x
N10
4x
N10
2x
N10
Note: This pulley housing is used only for connecting
with attachment Leg Press or Free Cable. It is
NO USE when assembly only the single Home Gym.

Assembly Instructions
Page 5
STEP 2 - Parts & Hardware List
Part # Description Qty. Remarks
6 Top Frame 1
7 Weight Stack Top Frame 1
12 Leg Extension Arm 1
13 Seat Adjuster 1
20 Weight Plate 10LB 20
21 Top Weight Plate 1
22 Select Rod 1 Pre-assembled
23 Select Pin 1
24 Rubber Bumper 2
26 Seat 1
30 L-shape Lock Pin 1
32 Inner Caps 50x70 1 Pre-assembled
33 Inner Caps 50x50 3 Pre-assembled
38 Iron Plate (long) 1
39 Iron Plate (short) 1
A10-3 Allen Bolt M10x25 2
H8-8 Hex Bolt M8x50 2
H10-11 Hex Bolt M10x65 1
H10-13 Hex Bolt M10x75 6
H10-15 Hex Bolt M10x85 1
H10-18 Hex Bolt M10x100 1
N10 Lock Nut M10 7
W8 Flat Washer M8 2
W10 Flat Washer M10 17

Assembly Instructions
STEP 2
Page 6
13
6
7
12
21
20
22
23
24
26
30
33
39
32
2x
38
H10-13
x6
5x
N10
13x
W10
2x
A10-3
H8-8
x2
x2
W8
H10-18
x4
W10
N10
H10-11
2x
33
H10-15
x2

Assembly Instructions
Page 7
STEP 3 - Parts & Hardware List
Part # Description Qty. Remarks
8 Press Arm Hanger 1
9 Press Arm 1
10 Left Hand Grip 1
11 Right Hand Grip 1
18 Foam Roller Tube 3
27 Foam Roller 6
28 Pop Pin 1
34 Inner Caps 45x45 2 Pre-assembled
35 Inner Caps 25x50 2 Pre-assembled
36 Inner Caps Dia50 2 Pre-assembled
37 Inner Caps Dia25 6 Pre-assembled
40 Pivot Shaft Dia20 1
41 Pivot Shaft Dia16 1
42 Copper Bushing Dia20 2 Pre-assembled
43 Copper Bushing Dia16 2 Pre-assembled
44 Big Flat Washer D26*D10.5 4
A10-1 Allen Bolt M10x15 4
A10-3 Allen Bolt M10x25 4
W10 Flat Washer M10 4

Assembly Instructions
STEP 3
Page 8
8
9
10
11
18
36
27
28
43 34 41 44
44
40
42
35
37
A10-1
A10-1
A10-3
x4
W10
x4
x2
x2
x2
x2
x2
x2
x2 x2 2x
x3
x6
x6

Assembly Instructions
Page 9
STEP 4 - Parts & Hardware List
Part # Description Qty. Remarks
42 Copper Bushing Dia20 4 Pre-assembled
61 Pec Arm Carriage 1
62 Pec Arm Assembly Left 1
63 Pec Arm Assembly Right 1
64 Pec Handle Assembly 2
65 Knurl Handle 2 Pre-assembled
66 Pivot Bearings 4 Pre-assembled
67 Big Flat Washer D30*D10.5 6
A10-1 Allen Bolt M10x15 4
H10-17 Hex Bolt M10-95 2
N10 Lock Nut 4
W10 Flat Washer 4

Assembly Instructions
STEP 4
Page 10
61
A10-1
x4
W10
x2
x4
N10
66 x4
67 x2
63
x2
67 x2
42 x4
64 x4
65 x4
67 x2
H10-17
2x
62
A10-1

Assembly Instructions
Page 11
STEP 5 - Parts & Hardware List
Part # Description Qty. Remarks
45 Pulley 19
46 Cable Assembly 1
47 Cable Assembly 1
48 Cable Assembly 1
49 Pulley Bushing (long) 10
50 Pulley Bushing (short) 2
53 Lat Bar 1
54 Lat Bar Grip 2 Pre-assembled
55 Straight Bar 1
56 Straight Bar Grip 2 Pre-assembled
57 Snap Clip 5
58 Chain 2
59 Ab Crunch Strap 1
68 Cable Assembly 1
69 Adjustable pulley Bracket 2
70 Single Pulley Housing 1
71 Crossing Double Pulley Housing 1
A10-3 Allen Bolt M10-25 1
A10-38 Allen Bolt M10-200 2
H10-4 Hex Bolt M10x30 2
H10-8 Hex Bolt M10x50 9
H10-9 Hex Bolt M10x55 2
H10-13 Hex Bolt M10x75 1
H10-15 Hex Bolt M10x85 5
N10 Lock Nut M10 22
W10 Flat Washer M10 32

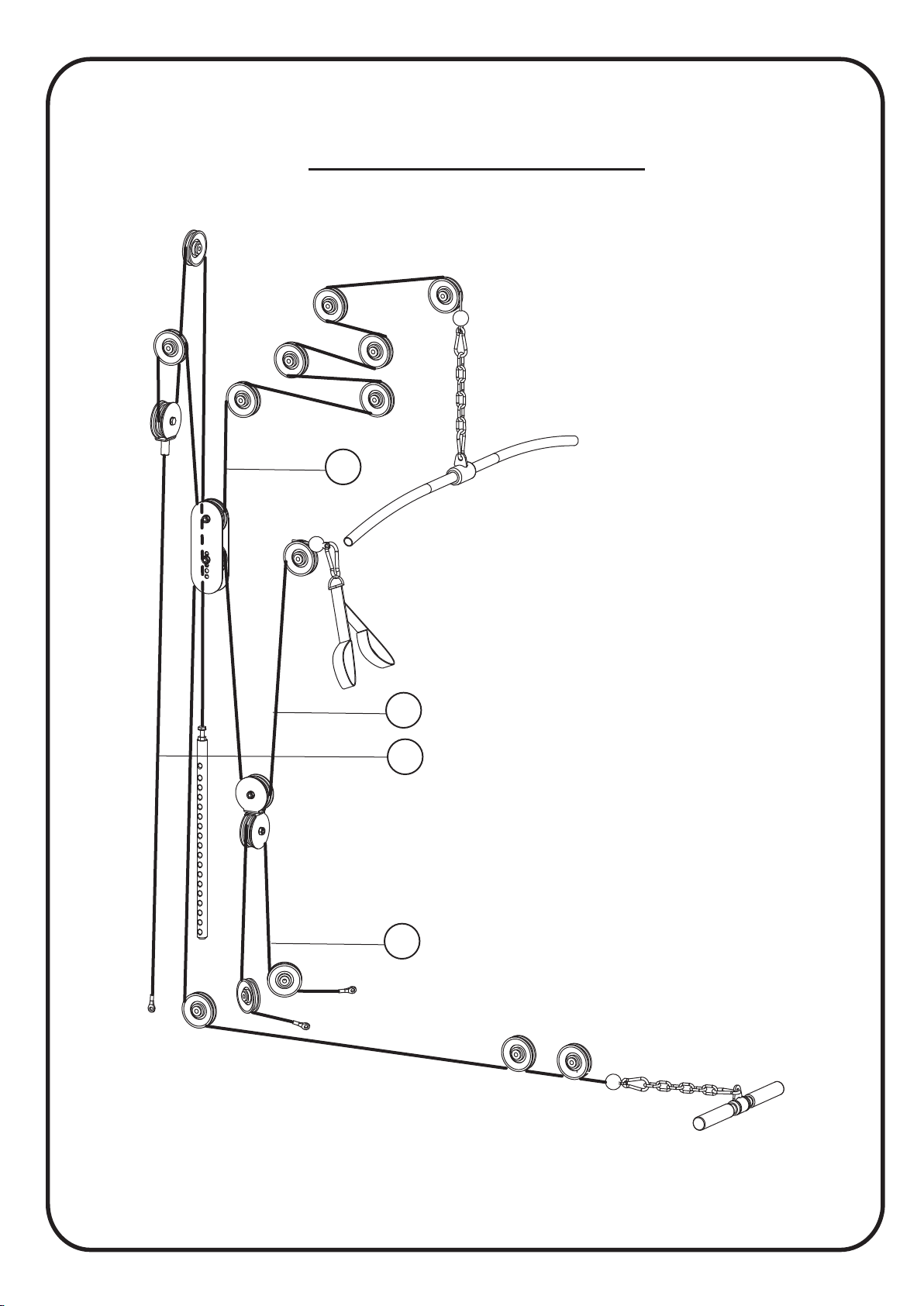

Cable Loop Diagram
STEP 5
Page 12
47
48
46
Note: This cable is useful only when assembling
only the single Home Gym. When adding
attachment Leg Press or Free Cable to the
Gym, remove this cable, use the connecting
cable from the attachment package!
68

STEP 5
Page 13
Cable Loop Diagram

Assembly Instructions
STEP 5
Page 14
46
x19
H10-15H10-15
57
58
53
54
59
47
56
55
48
W10
N10
45
x5
x2
x2
x2
A10-38A10-38
x2
49
50 x2 49 x2
x4
x8
x16
12x
H10-8H10-8
x6
H10-15H10-15
H10-13H10-13
N10
x4
2x
W10
x12
H10-9H10-9
A10-3A10-3
N10
6x
2x
H10-8H10-8
H10-8H10-8
W10
x4
H10-4H10-4
x2
68
71
69
70

Assembly Instructions
Page 15
STEP 6 - Parts & Hardware List
Part # Description Qty. Remarks
51 Weight Stack Shroud 1
52 Decorate Plate 1 Pre-assembled
A10-3 Allen Bolt M10x25 2
P5-1 Philip Screw M5x15 4 Pre-assembled
W10 Flat Washer M10 2

Assembly Instructions
STEP 6
Page16
52
A10-3
x2
W10
51
x2
P5-1
x4

Page 17
Parts & Hardware List
Part # Description Qty. Remarks
1 Front Upright 1
2 Front Base 1
3 Central Main Base 1
4 Rear Base 1
5 Rear Uprights 1
6 Top Frame 1
7 Weight Stack Top Frame 1
8 Press Arm Hanger 1
9 Press Arm 1
10 Left Hand Grip 1
11 Right Hand Grip 1
12 Leg Extension Arm 1
13 Seat Adjuster 1
14 Backrest Adjuster 1
15 Turnover Foot Plate 1 Pre-assembled
16 Foot Plate Rooler 1 Pre-assembled
17 Base Foot Plate 1
18 Foam Roller Tube 3
19 Guide Rod 2
20 Weight Plate 10LB 20
21 Top Weight Plate 1
22 Select Rod 1 Pre-assembled
23 Select Pin 1
24 Rubber Bumper 2
25 Backrest 1
26 Seat 1
27 Foam Roller 6
28 Pop Pin 2
29 Lock Knob 1
30 L-shape Lock Pin 1
31 End Cap 50x70 2
32 Inner Caps 50x70 2 Pre-assembled
33 Inner Caps 50x50 3 Pre-assembled
34 Inner Caps 45x45 2 Pre-assembled
35 Inner Caps 25x50 2 Pre-assembled
36 Inner Caps Dia50 2 Pre-assembled
37 Inner Caps Dia25 6 Pre-assembled
38 Iron Plate (long) 1
39 Iron Plate (short) 1
40 Pivot Shaft Dia20 1

Page 18
Parts & Hardware List
Part # Description Qty. Remarks
41 Pivot Shaft Dia16 1
42 Copper Bushing Dia20 6 Pre-assembled
43 Copper Bushing Dia16 2 Pre-assembled
44 Big Flat Washer D26*D10.5 4
45 Pulley 19
46 Cable Assembly 1
47 Cable Assembly 1
48 Cable Assembly 1
49 Pulley Bushing (long) 1
50 Pulley Bushing (short) 1
51 Weight Stack Shroud 1
52 Decorate Plate 2 Pre-assembled
53 Lat Bar 1
54 Lat Bar Grip 2 Pre-assembled
55 Straight Bar 1
56 Straight Bar Grip 2 Pre-assembled
57 Snap Clip 5
58 Chain 2
59 Ab Crunch Strap 1
60 Single Handle 1
61 Pec Arm Carriage 1
62 Pec Arm Assembly Left 1
63 Pec Arm Assembly Right 1
64 Pec Handle Assembly 2
65 Knurl Handle 2 Pre-assembled
66 Pivot Bearings 4 Pre-assembled
67 Big Flat Washer D30*D10.5 6
69 Adjustable pulley Bracket 2
70 Single Pulley Housing 1
71 Crossing Double Pulley Housing 1

Page 19
Parts & Hardware List
Part # Description Qty. Remarks
A10-1 Allen Bolt M10x15 8
A10-3 Allen Bolt M10x25 9
A10-38 Allen Bolt M10-200 2
H8-3 Hex Bolt M8x25 2
H8-8 Hex Bolt M8x50 2
H10-4 Hex Bolt M10x30 2
H10-8 Hex Bolt M10x50 9
H10-9 Hex Bolt M10x55 2
H10-11 Hex Bolt M10x65 3
H10-13 Hex Bolt M10x75 12
H10-15 Hex Bolt M10x85 6
H10-17 Hex Bolt M10x95 6
H10-18 Hex Bolt M10x100 1
H10-19 Hex Bolt M10x105 1
N10 Lock Nut M10 44
W8 Flat Washer M8 4
W10 Flat Washer M10 84
P5-1 Philip Screw M5x15 4 Pre-assembled
