Titanium Strength Acqua Rower User manual

Titanium Strength Acqua Rower
USER GUIDE

2

3
Introduction
Congratulations on your purchase of the Rower.
GYMCOMPANY SPAIN is proud to present the Rower as a home use product
featuring patented Adjustable Fluid Resistance.
Follow all instructions carefully for correct assembly, tank filling, water treatment,
service and safety.
Check contents of Box 1 and 2 to ensure all parts are present and correct prior to
assembly.
Training with The Rower
1. As with any piece of fitness equipment, consult a physician before beginning
your Rower exercise program.
2. Follow instructions provided in this manual for correct foot position and basic
rowing techniques.
1. Keep hands and fingers away from moving parts, as indicated in this manual.
2. The Rower can stand vertically for storage. Make sure a secure location is
chosen, such as the corner of a room or against a wall on an even, secure
surface.
Note: If the storage area is not level, an additional fixture is required (sold separately)
to keep the Rower stable with vertical storage position.
CAUTION

4
Contents
Safety ................................................................................... 5
Assembly .............................................................................. 7
Rower Box 1 & 2 Contents....................................................... 8
Assembly Instructions ............................................................. 9
Operation Instructions ............................................................... 12
Monitor Operation ...................................................................... 15
Detaching the Rower Belt .......................................................... 18
Reattaching the Rower Belt ....................................................... 19
Maintenance .............................................................................. 20
Troubleshooting .......................................................................... 21
International Warranty .......................................................... 22

5
Safety
Safety Information
• Before using this product, it is essential to read this ENTIRE operation manual and ALL
instructions. The Rower is intended for use solely in the manner described in this
manual.
• UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT
• As with any piece of fitness equipment, consult a physician before beginning your
Rower exercise program.
• Please be aware that any fitness regime, before being undertaken, is best preceded by
a physical checkup from a certified physician.
• Injuries to health may result from incorrect or excessive training.
• WARNING Heart rate monitoring systems may be inaccurate. Over exercise may
result in serious injury or death. If you feel faint, stop exercising immediately.
• Stop the machine immediately if any signs of excessive wearing is present on the belts,
pulleys and bungee cords. Do not use unit until said parts are repaired or replaced.
• Do not allow children unattended access to the machine.
• The Rower can stand vertically for storage. When doing so, please follow the
instructions given in the manual.
• Please keep hands away from moving parts, as indicated by the warning label on the
Main Frame of your machine.
• If any of the adjustment devices are left projecting, they could interfere with the
user’s movement.
• Do not store in freezing conditions with water in the tank as it can expand and crack
the components.
Installation
• Place on a stable, flat surface in a horizontal position during use for maximum
stability.
• Check all belts, pulleys and bungee cords regularly for signs of wear, and replace if
needed.
• Check regularly and follow all instructions for maintenance as specified in this manual.
• Replace immediately any defective parts and do not operate unit until all repairs are
complete.

6
Safety
Proper Usage
• Do not use any equipment in any way other than designed or intended by the
manufacturer. It is imperative that GYMCOMPANY SPAIN equipment is used
properly to avoid injury.
• Injuries may result if exercising improperly or excessively. It is recommended that all
individuals consult a physician prior to commencing an exercise program. If at any time
during exercise you feel faint, dizzy or experience pain, STOP EXERCISING and consult
your physician.
• Keep body parts (hands, feet, hair, etc.), clothing and jewelry away from moving parts
to avoid injury.
• Follow instructions provided in this manual for correct foot position and basic rowing
techniques.
Inspection
• DO NOT use or permit use of any equipment that is damaged and/or has worn or broken
parts. For all GYMCOMPANY SPAIN equipment use only replacement parts supplied by
GYMCOMPANY SPAIN.
• Cables and belts pose an extreme liability if used when frayed. Always replace any cable
or belt at first sign of wear (consult GYMCOMPANY SPAIN if uncertain).
• EQUIPMENT MAINTENANCE - Preventative maintenance is the key to smooth operating
equipment as well as to keep your liability to a minimum. Equipment needs to be
inspected at regular intervals.
• Ensure that any person(s) making adjustments or performing maintenance or repair of
any kind is qualified to do so.
• DO NOT ATTEMPT TO USE OR REPAIR ANY ACCESSORY APPROVED FOR USE WITH THE
GYMCOMPANY SPAIN EQUIPMENT WHICH APPEARS TO BE DAMAGED OR WORN.
• Check all belts, pulleys and bungee cords regularly for signs of wear, and replace if needed.
• Check regularly and follow all instructions for maintenance as specified in this manual.
• Replace immediately any defective parts and do not operate unit until all repairs are
complete.
Operating Warnings
• Keep children away from the equipment. Parents or others supervising children must
provide close supervision of children if the equipment is used in the presence of children.
• Do not allow users to wear loose fitting clothing or jewelry while using equipment. It is
also recommended to have users secure long hair back and up to avoid contact with
moving parts.
• All bystanders must stay clear of all users, moving parts and attached accessories and
components while machine is in operation.
• WARNING Do not insert fingers into tank!
• CAUTION After rowing exercise, please allow the unit to sit for 5 minutes before
standing it up for storage.
• CAUTION Do not fill past the calibration mark as indicated on the tank level sticker
or water spillage can occur.
• WARNING Never operate this Rower without feet properly secured in Footstraps,
or without the sliding portion of the Slider Footplate locked into position!

7
Assembly
Transport Wheels
Durable belt
drive with active
recoil system Ergonomic handle design
Seat Frame
Secure heel capture
Product Highlights
Specifications
Live area and Training area
Note: Rower is not suitable for therapeutic purposes.
The live area shall be not less than 60cm (23.62”) greater than the training area in the directions from
which the equipment is accessed. The live area must also include the area for emergency dismount.
Product Class: HC
Braking System: Speed Independent
Product Net Weight: 35.16kg (77.51lb)
Product Gross Weight: 44.35kg (97.78lb)
Minimum Safe Operating Surface Area: 333cm (131.09”) x 172cm (67.71”)
Dimensions: 2160mm (85.04”) Length x 520mm (20.47”) Width x 570mm (22.44”) Height
Maximum User Weight: 150kg (330lb)
Compact Footprint: 2,160mm x 520mm or upright 520mm x 570mm

8
Rower Box 1 & 2 Contents
Item Qty. Description Item Qty. Description
1 1 Main Frame 12 4 M6x15mm Bolt
2 1 Rear Brace 13 4 M8x35mm Bolt
3 2 Left / Right Side Rail 14 4 M8x45mm Bolt
4 1 13mm Spanner 15 4 M10x29.5mm Bolt
5 1 Rower Seat 16 1 4mm Allen Key
6 1 Bungee Hook Mount 17 1 5mm Allen Key
7 2 Transport Wheel Assembly 18 1 6mm Allen Key
8 4 M6 Washer 19 2 AA Batteries
9 12 M8 Washer 20 4 Water Treatment Tablet
10 4 M10 Washer 21 1 User Guide
11 4 M8 Nyloc Nut 22 1 Siphon
Box 1 Contents Box 2 Contents

9
Assembly Instructions
REQUIRED
Side Rail Left / Right [2]
Rear Brace [3]
Bungee Hook Mount [6]
4x M8 Washer [9]
4x M8x35mm Bolt [13]

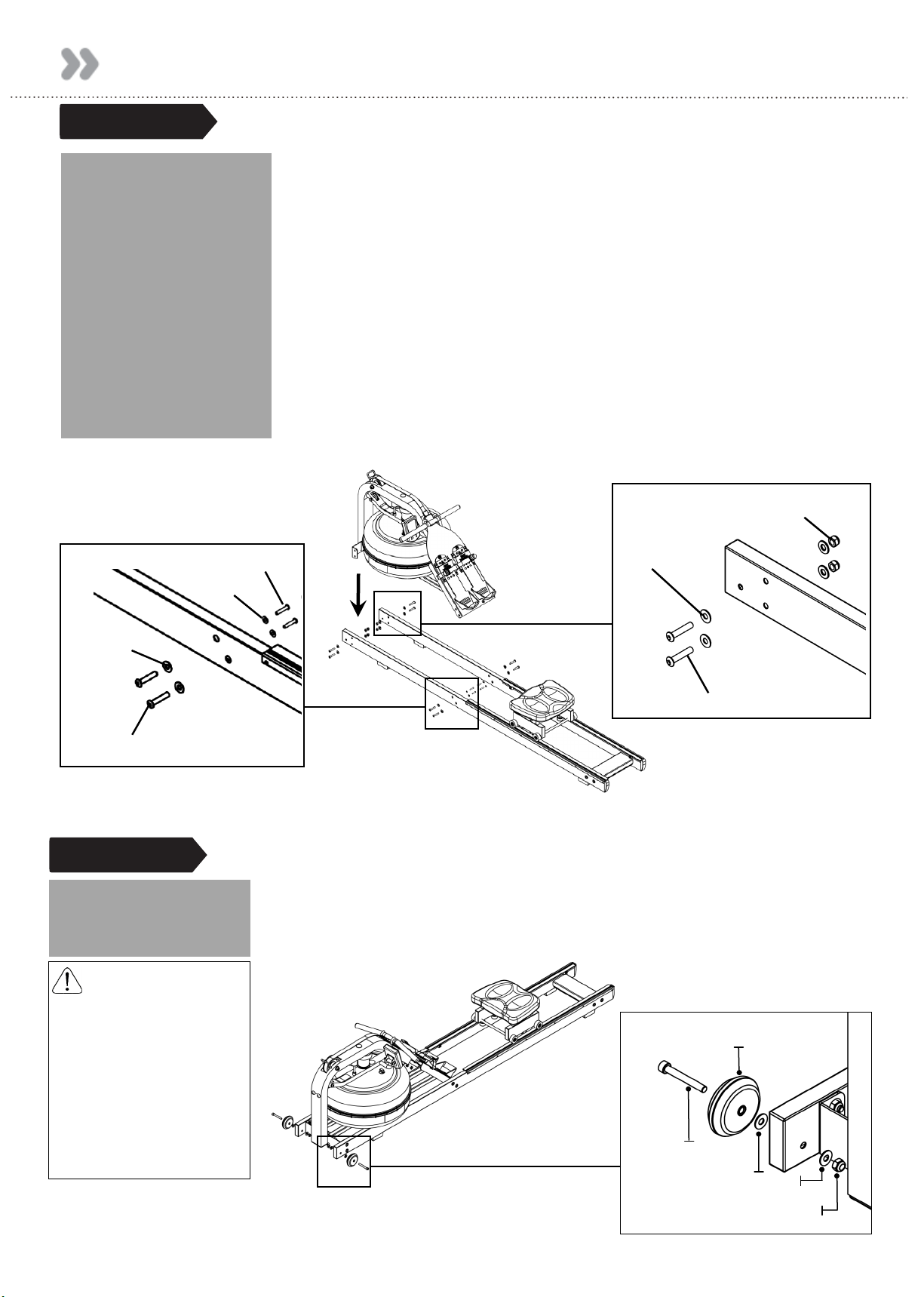

STEP 1 Installing the Rear Brace to Side Rails
Rear Brace (Underside)
a) Start with the Rear Brace and on the underside you will find a
Pre-installed Bolt.From the hardware kit, take the Bungee
Hook Mount[6] and install it onto the Rear Brace as shown.
Note the orientation of the Brace and Hook must be correct
in order to hold the end of the Bungee Shock Cord as depicted
by the arrow in the illustration, which points toward the front
of Rower.
b) Connect the Side Rail Left and Side Rail Right[2] using 4x
M8x35mm Bolt[13], 4x M8 Washer[9] .DO NOT OVER
TIGHTEN.
Tip: Bumpstops facing inside of Rail for correct assembly
orientation.
WARNING
Rotate Rear Brace to
correct orientation before
assembly onto the Side
Rails.
Pre-Installed Bolt
Bungee Hook Mount
M8x35mm Bolts
M8 Washer
a)
Towards front of Rower b)
STEP 2 Mounting Rower Seat and Upper Main Frame
REQUIRED
Left / Right Side Rail [2]
Rower Seat [5]
To install the Rower Seat, spread the Left/Right Side Rail[2]
slightly and drop the Rower Seat[5] into the track.
Note: Seat indentation must face rearward.
Left/Right Side Rail
Rower Seat
Seat Indentation

10
Assembly Instructions
STEP 3 Mounting Rower Seat and Upper Main Frame
Install the Main Frame[1] onto the Side Rail Assembly[2] as
shown.
a) Install all M10x29.5mm Bolts[15] and M10 Washer[10] first
from the outside to hold the Main Frame in position, secure
the Main Frame from the inside with the M6x15mm Bolts[12]
and M6 Washers[8]
b) Install 4x M8x45mm Bolt[14], 8x M8 Washer[9], and 4x M8
Nyloc Nut[11] .
Secure the Footboard first, then the Front Lower Bracket . DO
NOT TIGHTEN. You may find that the Front Lower Bracket Bolts
can be difficult to access. You can tighten these Bolts completely
once the Rower is standing in the vertical position so for the
moment, simply align and loosely thread lower Bolts/Nuts.
Note: Clean wheels and tracks weekly with a soft dry cloth in
order to decrease the rate of wear on both wheels and track.
2
REQUIRED
Main Frame [1]
Side Rails Assembly [2]
4x M6 Washer [8]
8x M8 Washer [9]
4x M10 Washer [10]
4x Nyloc Nut [11]
4x M6x15mm Bolt [12]
4x M8x45mm Bolt [14]
4x M10x29.5mm Bolt [15]
Mount the Transport Wheel Assembly[7] onto the Side Rail
Assembly[2].
Note: One Washer on outside and one Washer on the inside of
the side rail.
Installing the Transport Wheel AssemblySTEP 4
WARNING
Note: Transport wheels
must be mounted on the
outside of Side Rails as
shown.
Do not over tighten the
Transport Wheel Axle as
it may inhibit Transport
Wheel rotation.
REQUIRED
Transport Wheel
Assembly [7]
M8 Washer
Transport Wheel
M8 Nyloc Nut
M8x60mm Bolt
M8x45mm Bolts
M8 Nyloc Nut
M8 Washer
b)
M10x29.5mm Bolts
M10 Washer
a)
M6 Washer
M6x15mm Bolts

11
Assembly Instructions
Once the Bungee Cord is attached to the
Rear Brace, tighten the Bolts holding the
Footboard, the Main Frame to Side Rail Bolts
as they are easier to access from the vertical
position.
Lower the Rower back to the Horizontal
position and test for proper bungee recoil.
Check Seat Rollers/Runners for dirt or debris
before sitting on the Rower Seat. Small
objects captured between the Seat Rollers
and Runners can damage the Wheels or
running surface. Check Runners for debris
prior to each use and clean regularly.
Note: The Rower Frame Bolts require periodic
checking for tightness. Do this at the end of
the first month of use and again after every
12 months
Choose a suitable location when standing the
product for storage.
Install supplied 2x AA batteries and check
monitor function. Details regarding can be
found in the Monitor section of this manual.
Choose a flat, level surface on which to use
your Rower, to avoid rocking and potential
premature wear.
Pull Bungee Cord and Hook Bungee End onto
the Bungee Hook Mount[6] as shown.
Do not cut Bungee
tie wrap before
Bungee Cord is
attached to rear
of the Rower as
shown here.
STEP 5 Completing the Rower Assembly
Tighten Frame
Bolts securely
once Rower is
standing.DO
NOT OVER
TIGHTEN.

12
INITIAL WATER TREATMENT
Add 1 x Water Treatment Tablet per full tank. DO NOT, UNDER ANY CIRCUMSTANCE,
USE A WATER TREATMENT TABLET OTHER THAN THOSE SUPPLIED WITH YOUR UNIT.
Your unit purchase includes 4 x Water Treatment Tablets, which is sufficient for
several years of use. To purchase additional Water Treatment Tablets, please consult
your nearest regional dealer/distributor.
Operation Instructions
WARNING
Do not overfill the Tank
beyond the maximum
indicated level of 17
liters. Refer to the
Tank level decal on the
lower side of the Tank.
REQUIRED
Siphon [22]

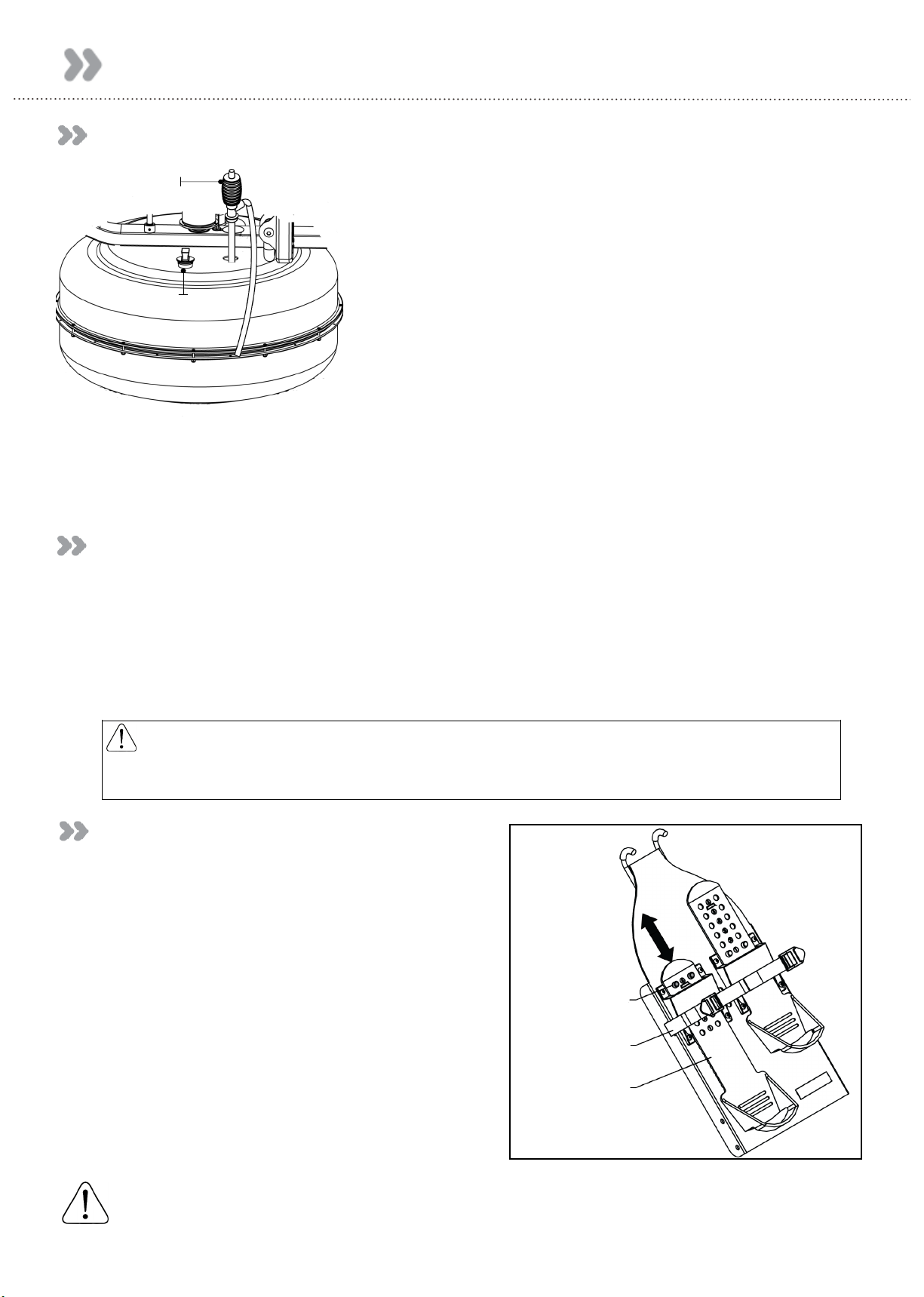

Tank Filling and Water Treatment Procedures
a) Remove rubber fill plug from the top of the Tank.
b) Place a large bucket of water next to the Rower.
Position the Siphon[22] with rigid hose in the bucket, and
flexible hose in the Tank.
Note: Make sure small breather valve on siphon is closed before
filling.
c) Squeeze siphon to begin filling. Important: Do not overfill
Tank
d) When full, open the valve on the top of the siphon to allow
excess water to escape.
e) Once filling is completed follow the water treatment schedule
below, then replace the Tank plug.
CAUTION
In areas where tap wa-
ter quality is known to
be poor, recommends
the use of distilled wa-
ter.
Siphon
Tank Plug

13
Operation Instructions
Removing/Changing Tank Water
a) Remove Tank Plug.
b) Insert rigid end of siphon into the Tank, and flexible
hose into a large bucket.
Siphon
Tank Plug
Note:
◎The valve on top of the proper drainage.
◎Water treatment will preclude the need to change
Tank water if the treatment schedule is maintained.
Additional Water Treatment Tablet is required only
when discoloration appears in the water.
◎Exposure to full sunlight reduces the life of the
Water Treatment Tablets. Storing the Rower away
from direct sunlight will extend the time between
water treatments.
Adjust Footplates
The Footplate Slider accommodates most foot sizes,
and is designed to keep your feet securely in place as
you row. The feet should be positioned so that the foot
strap covers the section of the foot naturally bend as
row. (e.g. The board of the foot)
TO ADJUST:
Lift the top of the Footplate from the mounting pegs
and slide vertically between 1-6 to suit your foot
length. Secure by hooking the Footplate back onto
the mounting pegs and pushing down firmly to lock it
into position. Place feet on the foot plates and tighten
the Footstraps to ensure your feet sit firmly against
the heel captures.
Note: The heel capture should bend to allow your foot
to pivot naturally as you row.
WARNING: Never operate this Rower without feet properly secured in Footstraps,
or without the sliding portion of the Footplate Slider locked into position!
Footstrap
Mounting
Footplate Slider
Do not use any water treatment other than the tablets supplied with this unit.
For replacement tablets, contact your local BODYPOWER SPORTS PLC distributor.
Water treatment schedules for the ROWER will vary according to the fluid Tanks
exposure to sunlight, but expect 8-12 months near a bright, sunlit window and 2
years or more for a darker location. At the point of finding the water slightly
cloudy, add a Water Treatment Tablet.
Long Term Water Treatment and Basic Operation
CAUTION
It is strongly recommended that a drop cloth be used under the fluid tank
whenever the tank plug is opened for water treatment.

14
Operation Instructions
Start Rowing

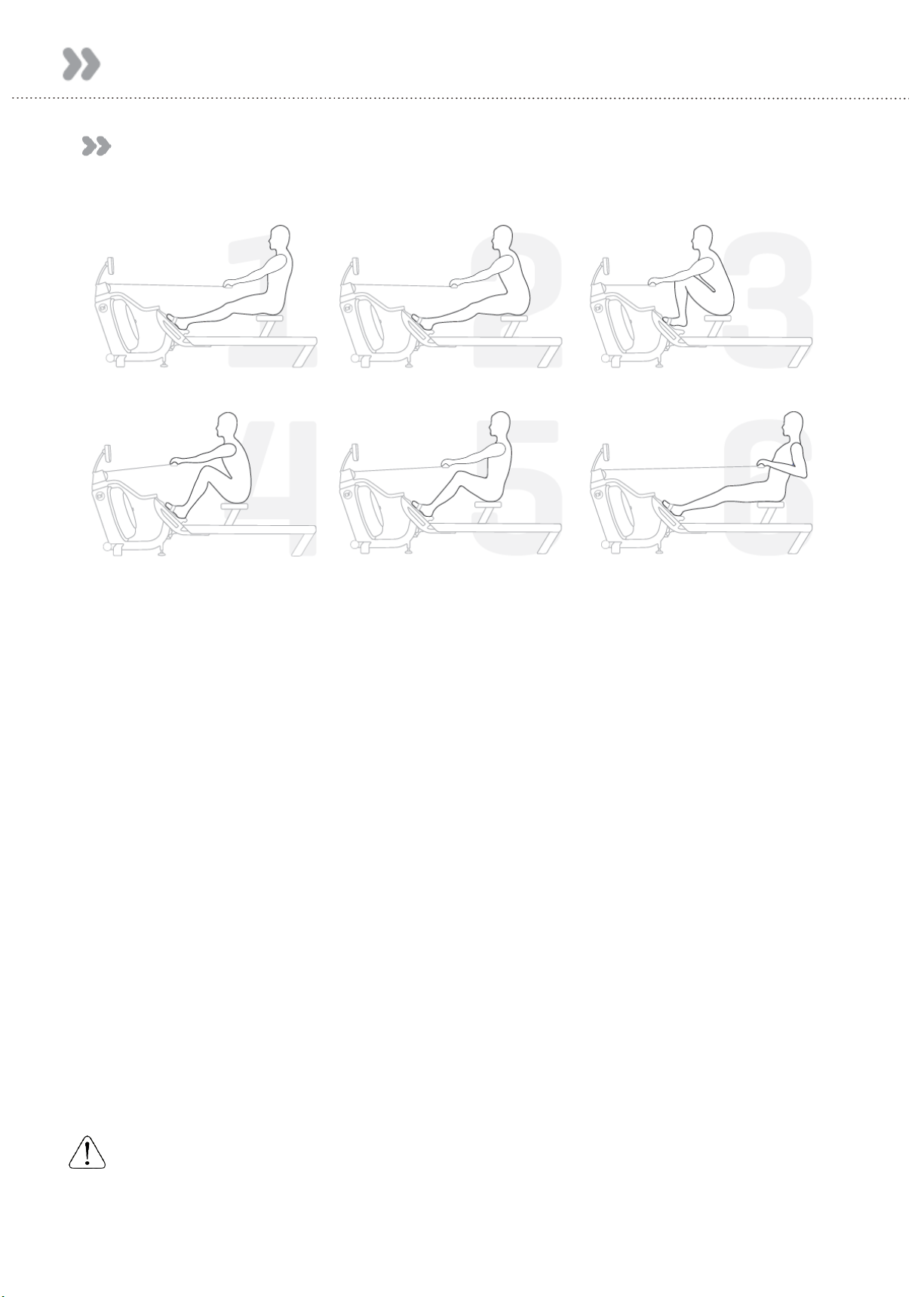

There are six phases to completing a rowing stroke
1. Sit with straight legs and back, leaning forward slightly at the hips with arms out
straight and hands level with the lower ribs. Swing back.
2. Legs and back straight, leaning slightly forward from the hips, arms out in front.
Lean and slide forward.
Note: Hands should now be around your knees, keeping legs straight.
3. Legs come forward, aiming to get the shins vertical. Back is still straight, and
posture leaning slightly forward with arms still out front. Now drive hard, this is
the CATCH.
4. Knees partially straightened so Seat is now at mid-point of travel, back and arms
still straight. Maintain the stroke.
5. Knees are nearly straight, back is still straight but now leaning slightly back from
the hips. Arms straight. Now squeeze through.
6. Legs now fully extended. Back straight and leaning slightly back, now pull with the
arms so they are close to the chest, forearms horizontal and elbows close in to
the rib cage. This is the FINISH.
CAUTION Always consult a doctor before beginning an exercise program.
Stop immediately if you feel faint or dizzy.

18
Detaching the Rower Belt
1. To detach Belt, simply pull beyond the range of the
normal rowing stroke until the Belt detaches from
the Belt Bungee Pulley.
Tip: You’ll hear the Velcro separating just before the
belt detaches.
2. Unhook the Bungee Shock Cord from the Rear Brace.
Then, push out the Inner Clip from the Bungee Hook.
Pull the Bungee through the Inner Clip until free. This
will allow for the Bungee Shock Cord to be threaded
completely out of the Main Frame and up to the Belt
Bungee Pulley where it will be re-attached once the
Rower Belt is in the proper position.
1.
2.
Bungee Hook
Inner Clip

19
Reattaching the Rower Belt
STEP 1
Begin reattaching the Rower Belt by threading
around the Rower Belt Pulley with the Velcro side
facing upward as illustrated.
Next, thread the Belt around the Idle Wheel as
shown. Once around the Idle Wheel, attach the
Rower Belt to the Belt/Bungee Pulley. There is
an obvious “lip” at the attachment point.
STEP 5
Wind the Rower Belt onto the Belt/Bungee Pulley
until the Rower Handle is as it’s furthest forward
position.
Rethread the Bungee Shock Cord (on opposite
side of the Idle Wheel) back through the Bungee
Pulleys and tie off at the Attachment Point.
Recoil tension will decrease over time as the Bungee Shock Cord
stretches. To increase recoil tension, simply push the Inner Clip
out of the Bungee Hook from behind, pull the required amount of
bungee through the Inner Clip and replace the Inner Clip into the
Bungee Hook as shown below.
Hint: Before reattaching the Inner Clip/
Bungee Hook, tie a slip knot under slight
tension at the lower bungee pulley. This
will keep the Bungee under tension while
reassembling the Bungee Hook.
Bungee Hook
Inner Clip
STEP 2
Velcro Facing Upward
Idle Wheel
Rower Handle
Belt/Bungee Pulley
STEP 3
STEP 4
Bungee Shock Cord
Bungee Pulley

20
Maintenance
Item Time Frame Instructions Notes
Seat and Seat
Rails
Weekly Wipe down Seat Rails and Seat
wheels with lint free cloth.
Frame Weekly Wipe down Frame with lint free cloth.
Tank and Water
Treatment
12 months to 2
years
Follow instructions as specified in the
“Water Treatment Procedure” section
of this manual.
Bungee Cord
Check every
hundred hours for
correct tension
and for signs of
wear.
The Bungee Cord should last for
many years. If a Bungee Cord change
is required, please contact your local
service representative
Rowing Belt
Check every
hundred hours for
correct tension
and for signs of
wear.
The Rowing Belt should provide
many years of trouble free use.
If a Rowing Belt change is required,
please contact your local service
representative
All preventive maintenance activities must be performed on a regular basis. Performing
routine preventive maintenance actions can aid in providing safe, trouble-free operation
of all GYMCOMPANY SPAIN equipment.
GYMCOMPANY SPAIN is not responsible for performing regular inspection and
maintenance actions for your machines. Instruct all personnel in equipment inspection
and maintenance actions and also in accident reporting and recording.

21
Troubleshooting
Fault Probable Cause Solution
Water changes color
or becomes cloudy.
Rower is in direct
sunlight or has not
had water treatment.
Local tap water is of
poor quality.
Change Rower location to reduce
direct exposure to sunlight. Add
water treatment or change tank
water as directed in the Water
Treatment section of this manual.
Consider using distilled water to
refill tank.
Rower Belt slipping off
Belt/ Bungee Pulley.
Bungee not under
enough tension.
Recoil not strong
enough
Tighten Bungee Cord following
the instructions in "Reattaching
the Rower Belt" section of this
manual at “Step 5”.
Inconsistent readings
on the Rower
Monitor for 500meter
split time and SPM
(strokes per minute).
Sensor gap
Faulty Sensor
Sensor has moved out
of position
Wiring harness
Use the battery cover of the
monitor as a “Gap Tool” to check
the gap between Sensor head and
Magnetic ring, or see if the Sensor
head has moved out of position.
The Rower Monitor
does not illuminate
after battery
installation.
Batteries installed
incorrectly or need
replacing.
Replace/reinstall batteries in
correct position and try again.
If the LCD screen fails to
illuminate, try rotating the
batteries slightly in the monitor.
If this fails, contact your local
service center.
The Rower Monitor
screen illuminates, but
does not register
when rowing.
Loose or failed
connection.
Sensor gap too wide
Check that the Monitor Lead is
connected properly. If it is
connected then contact your local
service center. Check Sensor gap.

22
International Warranty
HOME USE
GYMCOMPANY SPAIN Limited warrants that the Titanium Strength Acqua Rower purchased from
an authorized agent and in its undamaged original packaging, is free from defects in materials and
workmanship. GYMCOMPANY SPAIN Limited or its agent will, at their discretion, repair or replace
parts that become defective within the warranty period, subject to the specific inclusions and
exclusions below.
Main Frame –5 Year Limited Warranty
GYMCOMPANY SPAIN will repair or replace the Metal Main Frame of the Rower should it fail due to
any defect in materials or workmanship within 5 years of the original purchase. Warranty does not
apply to frame coating.
Polycarbonate Tank & Seals –5 Year Limited Warranty
GYMCOMPANY SPAIN will repair or replace the polycarbonate tank or seals should they fail due to
any defect in materials or workmanship within 5 years of the original purchase.
Mechanical Components (of a non-wearing nature) –2 Year Limited Warranty
GYMCOMPANY SPAIN will repair or replace any mechanical component should it fail due to any
defect in materials or workmanship within 2 years of the original purchase.
Specific Inclusions
Seat Frame
Seat Rails
Shaft and Impeller Assembly
All Other Components (of a wearing nature) –1 Year Limited Warranty
GYMCOMPANY SPAIN will repair or replace any component should it fail due to any defect in
materials or workmanship within 1 year of the original purchase.
Specific Inclusions
Bungee Recoil Cord
Hand Grips & Footstraps
Polyester Rowing Belt
Seat and Seat Runners
All Pulleys, Rollers & Bearings
All rubber components
Monitor & Speed Sensor (excluding replaceable batteries)
Footplates (pivoting & sliding)
General Exclusions
Damage to the finish of any part of the machine
Damage due to neglect, abuse, incorrect assembly or use of the machine
Any charges for freight or customs clearance associated with the return or dispatch of parts
Any damage to or loss of goods during transport of any kind
Any labour cost associated with a warranty claim
General Conditions
 The serial number of the machine must be correctly registered with GYMCOMPANY SPAIN
Limited or one of its appointed distributors
 GYMCOMPANY SPAIN Limited reserve the right to examine any part where replacement
is claimed under warranty
 Warranty period applies only to the original purchaser from the date of purchase and is not
transferable
 The product must be returned to your place of purchase in original packaging with transportation,
insurance and associated charges paid for by you and risk of loss or damage assumed by you
 GYMCOMPANY SPAIN makes no other warranties except as stated here and expressly disclaims
all warranties not stated in this warranty. Neither GYMCOMPANY SPAIN nor its associates shall
be responsible for incidental or consequential damages
 Manufacturer's warranty automatically commences upon sale of the product to end user or
upon the expiration of one (1) year from month of manufacture, whichever occurs first

23
