Matrix VS-S22 User manual

OWNERS MANUAL
Versa Single-Station Strength
VS-S22 Pec Fly/Rear Delt

Table Of Contents
Safety, General Care & Maintenence ..............................................3
Getting Started (Product Specifications).......................................5
Assembly Information .......................................................................6
Markings ..............................................................................................7
Parts List .............................................................................................8
Installation & Assembly: Value Line
Part 1 Weight Stack to User Frame Assembly...............................10
Part 2 Weight Stack Cable Assembly .............................................11
Part 3 Lower Right Arm Assembly .................................................12
Part 4 Lower Left Arm Assembly....................................................4
Part 5 User Frame Cable Assembly................................................16
Part 6 Upper Arm Assembly............................................................17
Part 7 Pad Assembly .........................................................................20
Part 8 Plastics Assembly..................................................................22
Installation & Assembly: Optional Kits
Part 9 Premium Kit Assembly..........................................................25

3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or
supervising personnel on proper usage of the equipment.
It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
PROPER USAGE
Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that Matrix
equipment be used properly to avoid injury.
Keep hands and feet clear at all times from moving parts to avoid injury.
CHECK FOR DAMAGED PARTS
1. DO NOT use any equipment that is damaged and or has worn or broken parts. Use only replacement parts supplied by your
country’s local Matrix dealer.
2. MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They contain important information.
If unreadable or missing, contact your Matrix dealer for a replacement.
3. SECURING EQUIPMENT: All equipment MUST be secured to the floor to stabilize and eliminate rocking or tipping over. This
must be performed by a licensed contractor.
4. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping your
liability to a minimum. Equipment needs to be inspected at regular intervals.
5. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.
Matrix dealers will provide service and maintenance training at our corporate facility upon request.

4
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This product contains chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW
THESE PRECAUTIONS TO AVOID INJURY!
1. Never allow children on strength training equipment. Teenagers must be supervised at all times while using this
equipment.
2. All warnings and instructions should be read and proper instruction obtained prior to use.
3. Use this equipment for its intended purposes only.
4. NEVER allow resistance straps, ropes or other means be attached to this equipment, as this may result in serious
injury.
5. NEVER use this equipment for support during stretching, as this may result in serious injury.
6. Cease exercise if you feel faint or dizzy. Obtain a medical exam before beginning an exercise program.
7. Keep body, hair, clothing and accessories free and clear of all moving parts.
8. Inspect the machine before use. DO NOT use machine if it appears damaged or inoperable.
9. Check to see that the selector pin is completely inserted into the weight stack.
10. NEVER use this machine with the weight stack pinned in an elevated position.
11. NEVER use dumbells or other means to incrementally increase the weight resistance. Only use the means provided
directly from the manufacturer.
12. This equipment should only be used in supervised areas where access and control are regulated by the owner.

5
GETTING STARTED
TECH SPECS
Overall dimensions 60”L X 60”W X 66”H
Weight Light Stack = 492 lbs (224 kg), Heavy Stack = 542 lbs (256
kg)
Shipping weight 342 lbs (156kg)
WARRANTY (Valid in USA only)
Frame (not coatings) 10 years
Structural parts 10 years
Weight stacks 5 years
Pulleys 5 years
Pivot bearings 5 years
Any items not specified 3 years
Labor (excluding upholstery/cables/grips) 3 years
Upholstery/cables/grips/springs 1 year
ACTION FREQUENCY
Clean Upholstery Daily
Inspect Cables Daily
Clean Guide Rods Monthly
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Machine As Needed
Clean Grips As Needed
Lubricate Guide Rods As Needed
Upholstery & Grips should be cleaned with a non-ammonia based cleaner or a mild soap and water. Guide rods should be
lubricated with Teflon based lubricant. Apply the lubricant to a cotton cloth and then apply up and down the guide rods.
MAINTENANCE CHECKLIST

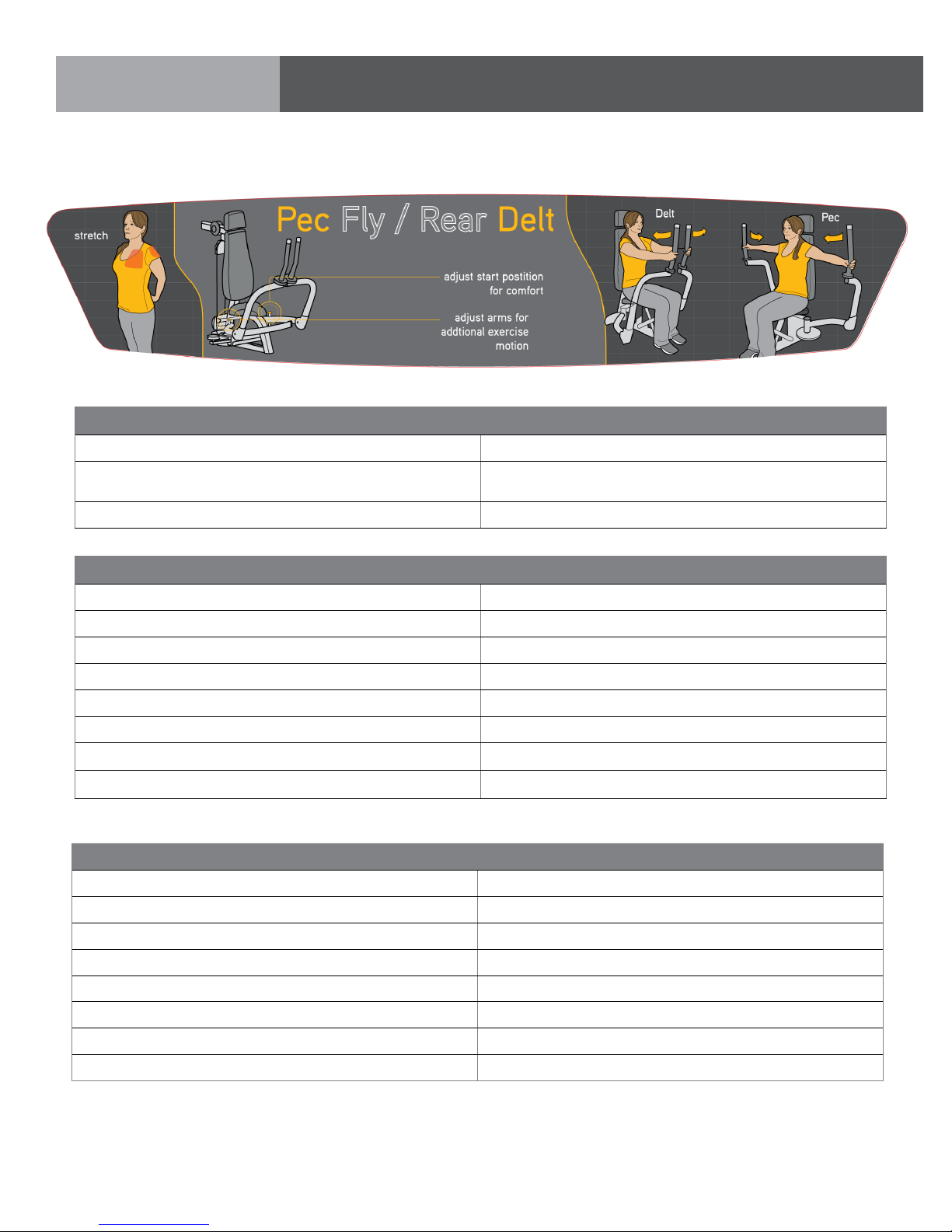

EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST
EXERCISE PLACARD
PRODUCT SPECIFICATIONS

6
ASSEMBLY
UNPACKING | TOOLS REQUIRED
UNPACKING
Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your
Matrix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the
machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. Carefully unpack
the unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
The weight of the product is 342 lbs. (156 kg) not including the weight stack. The standard weight stack for this machine
is 150 lbs. (68 kg) & the heavy stack is 200 lbs. (91kg). To avoid injury to yourself and prevent damage to the frame
components, be sure to have proper assistance removing the frame pieces from this box. Please be sure to install the
equipment on a stable base, properly level the machine and leave at least two feet of clearance to enter and exit the
machine. Maximum user weight for this machine is 300 lbs.
TOOLS REQUIRED FOR ASSEMBLY
3MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench
5MM L-Shaped Allen Wrench
6MM L-Shaped Allen Wrench
8MM L-Shaped Allen Wrench
10MM L-Shaped Allen Wrench
Phillips & Standard Screwdrivers
8MM Open-End Wrench
13MM Open-End Wrench
17MM Open-End Wrench.
19MM Open-End Wrench
Adjustable Wrench
Blue Locktite 242 must be used on all fasteners that are not assembled with Nylock Nuts

7
MARKINGS

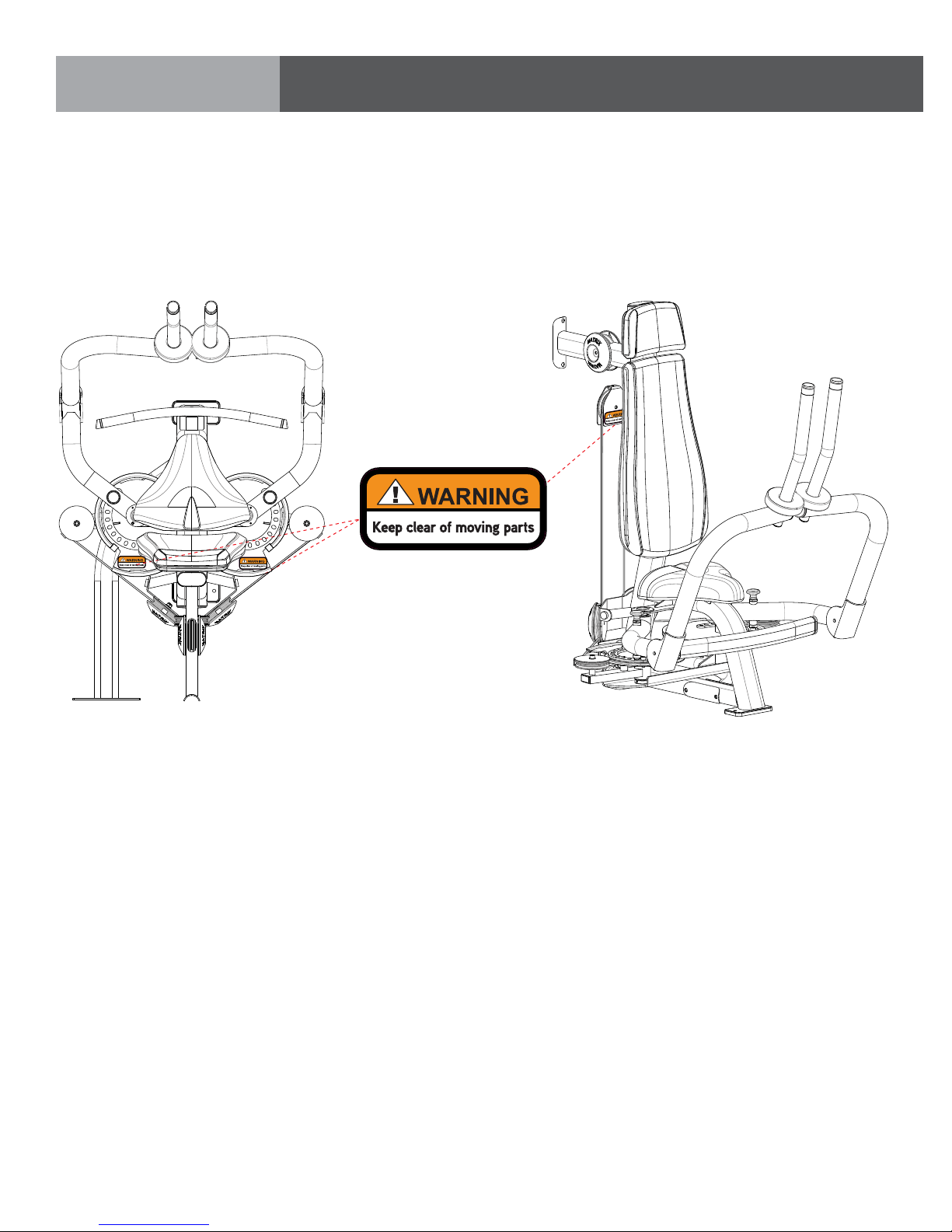

WARNING LABEL LOCATIONS

8
Parts List
ID DESCRIPTION QTY
1 M10 X 125L Socket Head Cap Screw 2
2 M10 Flat Washer 17
3 Wide Cupped Flange 1
4 M10 Nylock Nut 3
5 Lower Connecting Tube 1
6 M10 X 20L Socket Head Cap Screw 5
7 User Frame 1
8 Upper Connecting Tube 1
9 Weight Stack Frame 1
10 M10 X 50L Socket Head Cap Screw 1
11 Cable Retaining Clip 1
12 Weight Stack Cable 1
13 Pulley 1
14 Floating Pulley Bracket 1
15 Lower Right Arm Assembly 1
16 Wave (Spring) Washer 2
17 Right CAM Assembly 1
18 Axle (Ø20 mm X 250L) 2
19 Spacer (Ø45 mm OD Ø30 mm ID) 4
20 Right Swingarm Assembly 1
21 Axle Locking Sleeve 2
22 M5 X 10L Socket Head Cap Screw 6
23 M5 Flat Washer 6
24 Cap 2
25 M5 X 16L Socket Head Cap Screw 2
26 Lower Left Arm Assembly 1
27 Left CAM Assembly 1
28 Left Swingarm Assembly 1
29 User Frame Cable 1
30 Upper Right Arm Assembly 1
31 M10 Flat Washer (Ø35 mm) 2
32 Axle (Ø25 mm X 69.4L) 2

9
ID DESCRIPTION QTY
33 M10 X 15L Socket Head Cap Screw 4
34 Upper Left Arm Assembly 1
35 M10 X 75L Socket Head Cap Screw 4
36 Head Pad 1
37 Back Pad 1
38 Pad 1
39 M10 X 20L Hex Bolt 4
40 Front Shroud 1
41 Rear Shroud 1
42 M8 X 25L SHC 4
43 Large M8 Flat Washer (Ø20 mm) 4
44 Top Cap 1
45 Top Cap Cover 2
PREMIUM KIT COMPONENTS
1P Wing 1
2P Rep Counter 1
3P Towel Hook 1
4P Premium Pullpin 2
Parts List

10

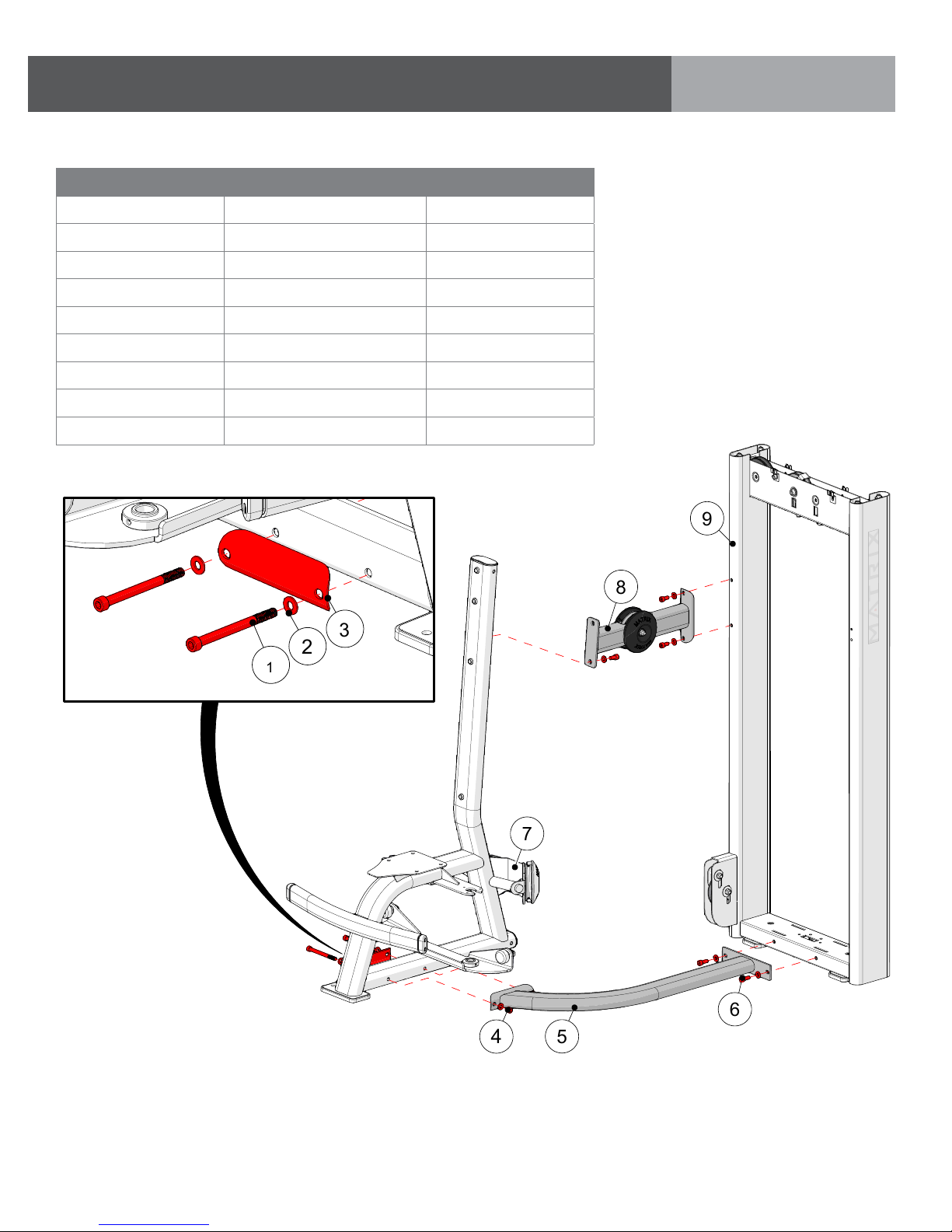

PART 1: USER FRAME ASSEMBLY
STEP 1 | USER FRAME TO WEIGHT STACK ASSEMBLY INSTRUCTIONS & NOTES
7
9
6
5
8
4
3
2
1
ID DESCRIPTION QUANTITY
1 M10 X 125L SHC 2
2 M10 Flat Washer 9
3 Wide Cupped Flange 1
4 M10 Nylock Nut 2
5 Lower Connecting Frame 1
6 M10 X 20 SHC 5
7 User Frame 1
8 Upper Connecting Frame 1
9 Weight Stack Frame 1
Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
ASSEMBLY

11
ASSEMBLY
STEP 1 | FLOATING PULLEY ASSEMBLY INSTRUCTIONS & NOTES
PART 2: WEIGHT STACK CABLE ASSEMBLY
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 2
4 M10 Nylock Nut 1
10 M10 X 50L SHC 1
11 Cable Retaining Clip 1
12 Weight Stack Cable 1
13 Pulley 1
14 Floating Pulley Bracket 1
13
11
4
2
12
10
14
12
12

12

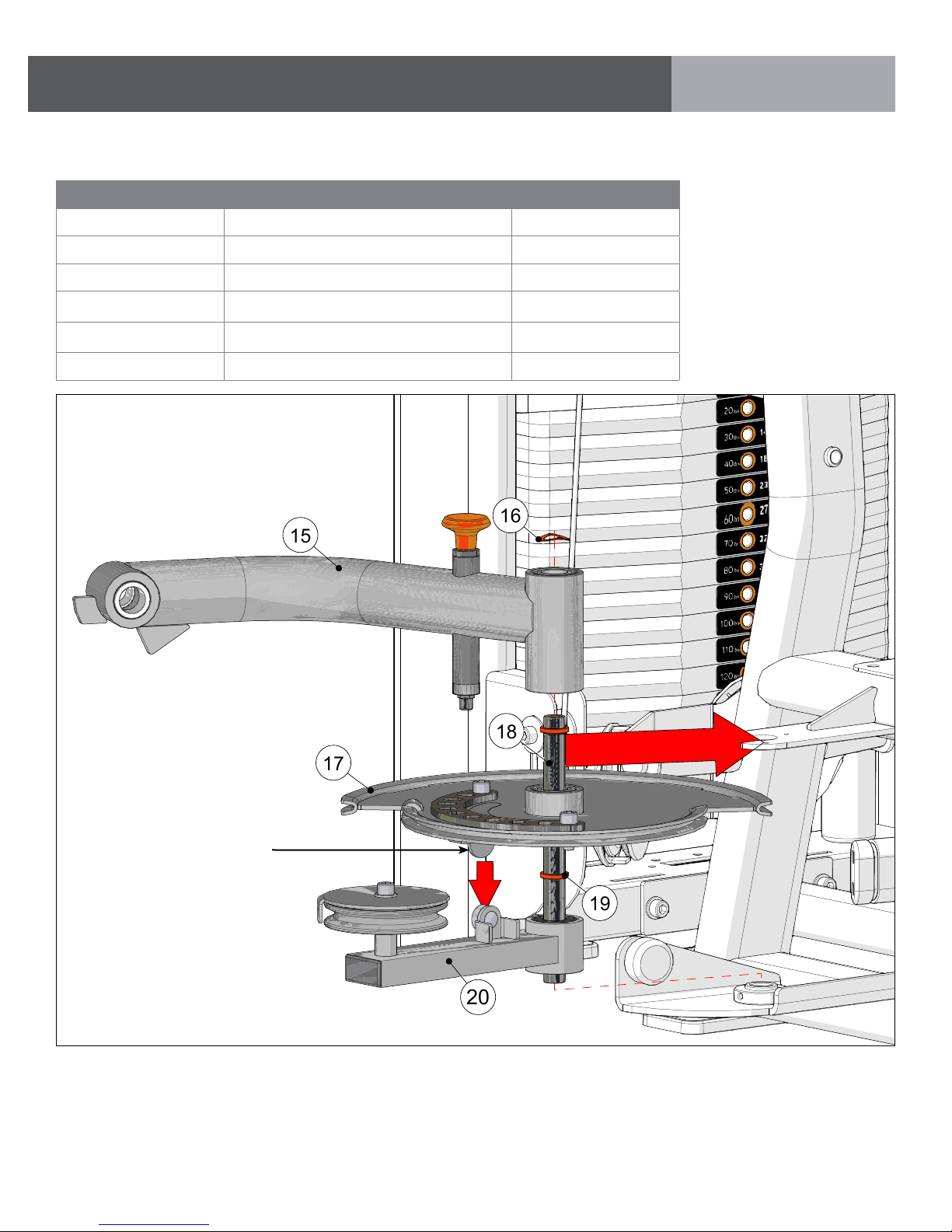

PART 3: LOWER RIGHT ARM ASSEMBLY
STEP 1 | RIGHT ARM TO FRAME ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
15 Lower Right Arm Assembly 1
16 Wave (Spring) Washer 1
17 Right CAM Assembly 1
18 Axle (Ø20 X 250L) 1
19 Spacer (Ø45 mm OD/Ø30 mm ID) 2
20 Right Side Swingarm Assembly 1
ASSEMBLY
Assemble components in the order shown and slide assembly into place.
NOTE: Threaded end of axle must be up
17
15
19
18
16
20
CAM must be assembled
so the stop tab is behind
the swingarm bumper

13
PART 3: LOWER RIGHT ARM ASSEMBLY
ASSEMBLY

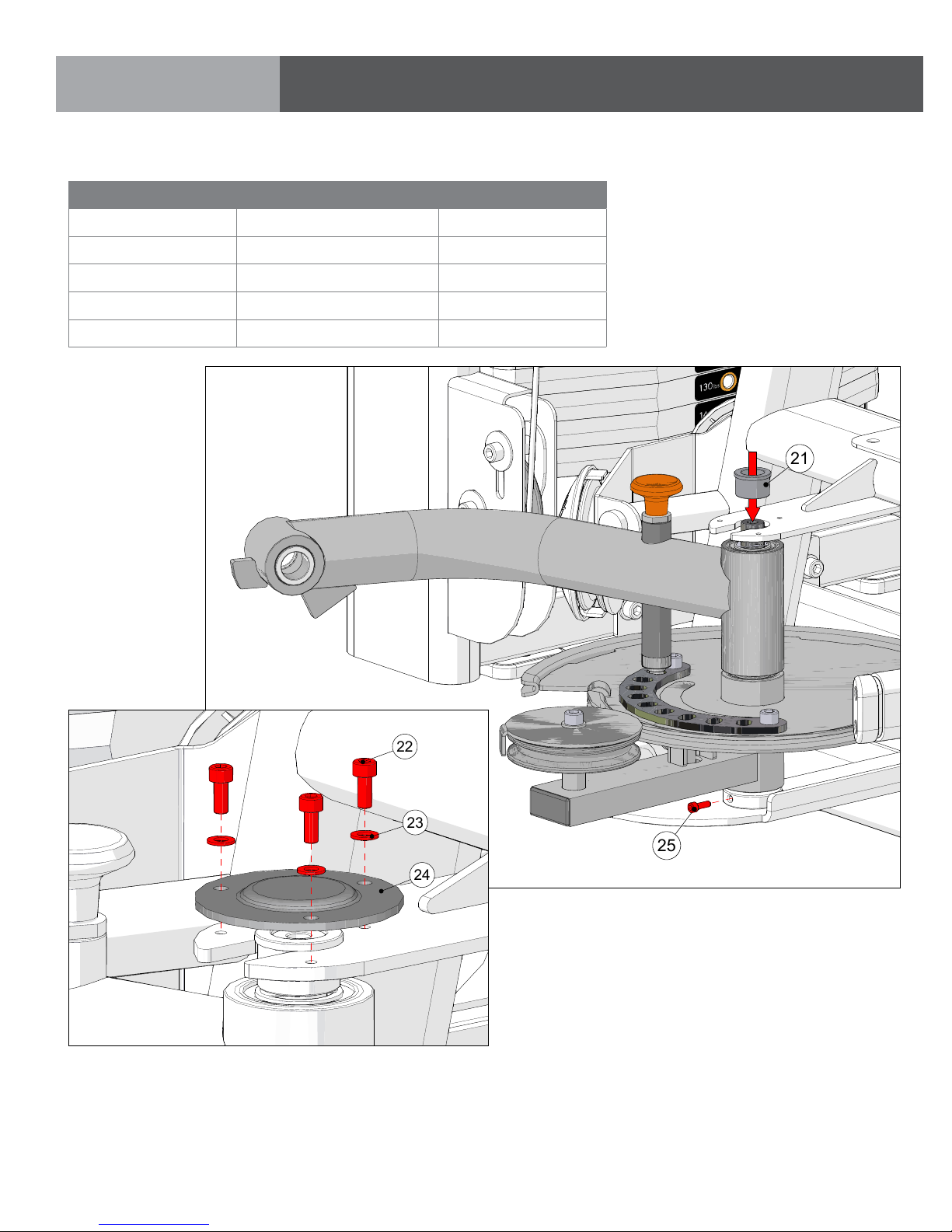

STEP 2 | RIGHT ARM TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
21 Axle Locking Sleeve 1
22 M5 X 10L SHC 3
23 M5 Flat Washer 3
24 Cap 1
25 M5 X 16L SHC 1
25
21
23
24
22
Tighten to 7 N-m/5 ft-lbs. to lock axle in place
Press item 21 in place to lock the assembly. Then cap assembly with cover as shown. Torque to : 7 N-m/5 ft-lbs.

14
STEP 1 | LEFT ARM TO FRAME ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
16 Wave (Spring) Washer 1
18 Axle (Ø20 X 250L) 1
19 Spacer (Ø26.5 mm OD/Ø20.5 mm ID) 2
26 Lower Left Arm Assembly 1
27 Left CAM Assembly 1
28 Left Side Swingarm Assembly 1
ASSEMBLY
Assemble components in the order shown and slide assembly into place.
NOTE: Threaded end of axle must be up
27
26
19
18
16
28
PART 4: LOWER LEFT ARM ASSEMBLY

15
ASSEMBLY
STEP 2 | LEFT ARM TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
21 Axle Locking Sleeve 1
22 M5 X 10L SHC 3
23 M5 Flat Washer 3
24 Cap 1
25 M5 X 16L SHC 1
PART 4: LOWER LEFT ARM ASSEMBLY
Press item 21 in place to lock the assembly. Then cap assembly with cover as shown. Torque to : 7 N-m/5 ft-lbs.
25
21
23
24
22
Tighten to 7 N-m/5 ft-lbs. to lock axle in place

16
PART 5: USER FRAME CABLE ASSEMBLY
STEP 1 | USER FRAME CABLE ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
29 User Frame Cable 1
ASSEMBLY
29

17
ASSEMBLY
STEP 1 | UPPER ARMS TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES
PART 6: UPPER ARM ASSEMBLY
30
34
2
32
31
33
Assemble upper arms as shown.
Tighten to 77 N-m/57 ft-lbs.
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 2
30 Upper Right Arm Assembly 1
31 M10 Flat Washer (35 mm Diameter) 2
32 Axle (Ø25 X 69.4L) 2
33 M10 X 15L SHC 4
34 Upper Left Arm Assembly 1
Locate knurled end of axles and large
washers as shown

18
PART 6: UPPER ARM ASSEMBLY
STEP 2 | UPPER ARMS LIMIT ADJUSTMENTS INSTRUCTIONS & NOTES
ASSEMBLY
90 Deg
115 Deg
Outer Limit
90 Deg
Inner Limit
See Detail A on page 19
Note: Outer limit position maintains a clearance of 35 mm between each arm and
the front weight stack shroud

19
PART 6: UPPER ARM ASSEMBLY
ASSEMBLY
STEP 2 | UPPER ARMS LIMIT ADJUSTMENTS INSTRUCTIONS & NOTES
Outer Limit Set Screw
Loosen jam nut to make
limit adjustment, and then
retighten
Inner Limit Set Screw
Detail A

20
ASSEMBLY
STEP 1 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 4
35 M10 X 75L SHC 4
36 Head Pad 1
37 Back Pad 1
37
36
2
35
Install the pad as shown.
Tighten to 27 N-m/20 ft-lbs.
PART 7: PAD ASSEMBLY
