TJ TJ-BX01E User manual

Manual
Portable Dryer

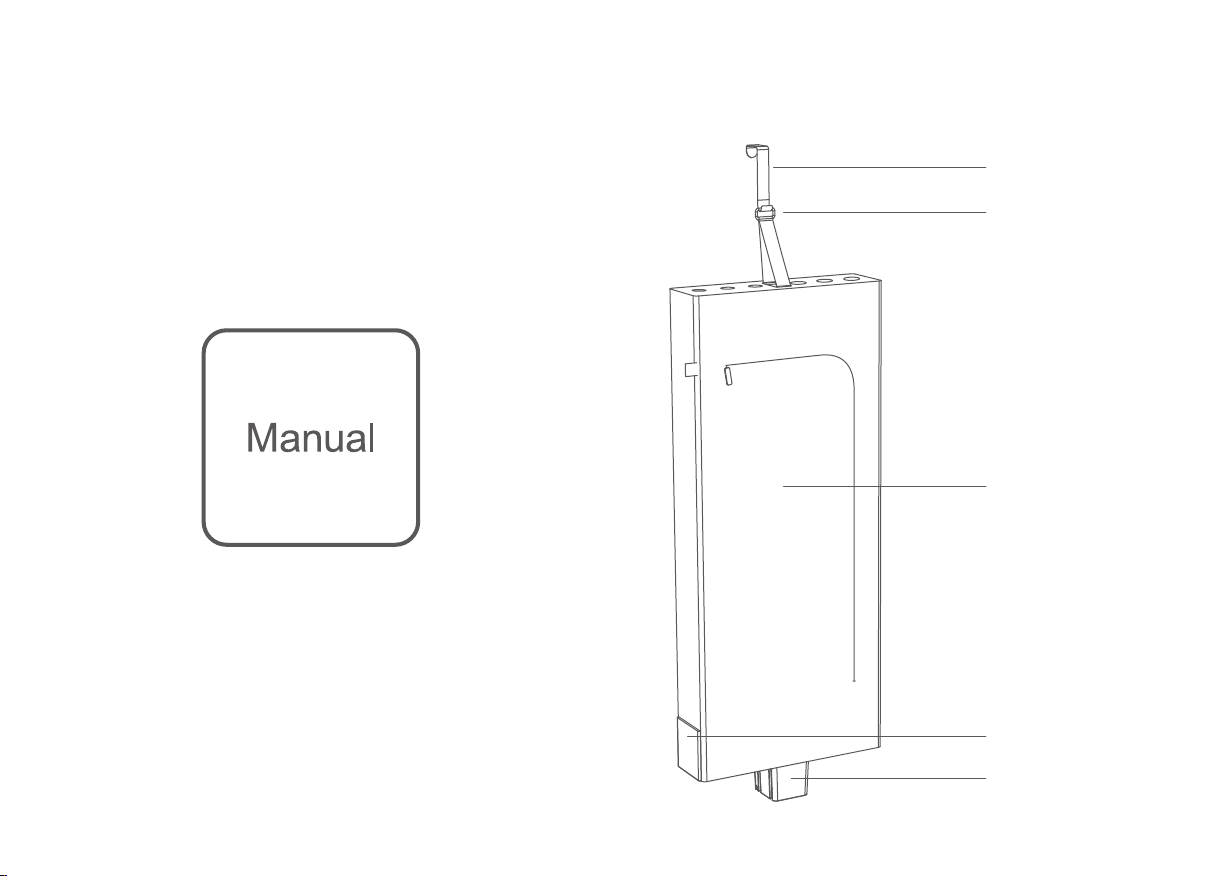

Product Introduction
Door hook
Lantern ring
Fabric covering
Main engine
Receiving Bag
1

Upper bracing pieces Under bracing piece
Waterproof cover
Time display
Touch key
Air outlet
Air inlet
Power cord
Wi-Fi indicator
Storage bag
The product includes
Fabric covering
Door hook
Upper bracing pieces
Under bracing piece
Main engine
Storage bag
User manual
registration card
2 3

Use of the product
Use of main engine
The main engine is designed with three touch keys:
power, longer time and shorter time. Click the touch key
to select the corresponding function.
After startup, the default drying time is 120 minutes.
Short touch the longer time or shorter time keys to adjust
the drying time (add or reduce 30 minutes each time).

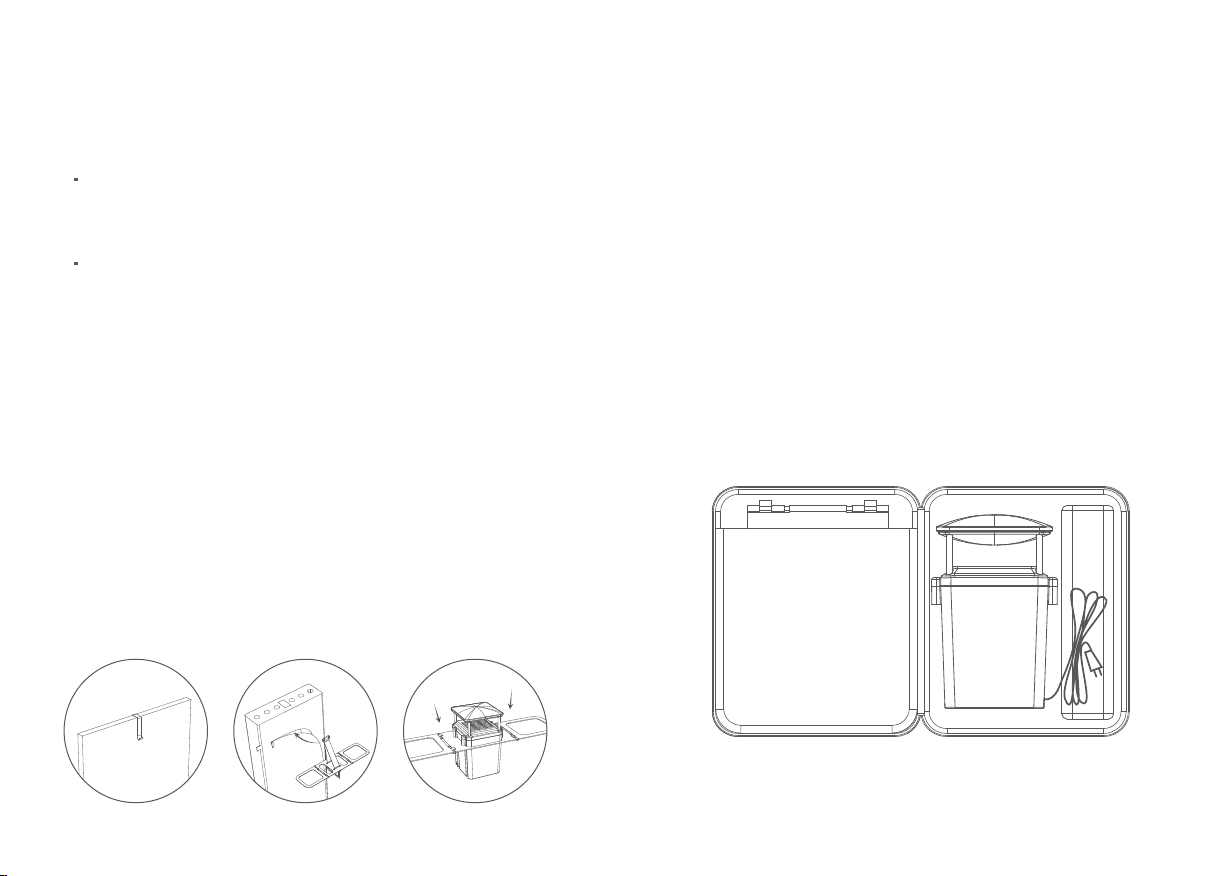

Assembly steps
Take out the accessories from the storage bag;
Fix the door hook on the top of the door (horizontally and
medially);
Open the upper bracing pieces, fit the lantern ring into
the top of the fabric covering, and hang it on the door
hook;
Open the under bracing piece and put it into the bottom
of the fabric covering;
Place the power cord through the under bracing piece,
and place the main engine into the detent of the bracing
piece to complete the assembly.
Successively detach: main engine, under bracing piece,
upper bracing pieces, door hook and fabric covering;
Fold the fabric covering neatly (the folding size can be
1/3 of the space of the storage bag);
Place the fabric covering and door hook in one side of
the storage bag;
Bundle the power cord of main engine and place the
main engine in the other side of the storage bag (with the
main engine’ s back side up);
Fold the upper and under bracing pieces, and place
these on the storage strap at the top of the storage bag;
Zip up the zipper of the storage bag to complete the
storage.
1.
2.
3.
4.
5.
6.
·
·
4 5
1.
2.
3.
4.
5.
Storage steps

6 7
Instructions for use
Do not use this product outdoors or in the bathroom.
Check if the power and voltage conforms to what are
marked on label of the machine before use.
The product is only applicable for drying washed textile
fabrics.
Do not touch the air outlet and bracing pieces when the
machine is working to avoid scalds.
Do not block the air inlet/outlet when the machine is
working. The air inlet should be placed at a distance of at
least 30 cm from the ground.
The product is only applicable for drying cloths with a
high temperature resistance of at least 75 ° C and the
rated weight (including the weight of water) is no more
than 2.5 kg.
If the power line is damaged, it must be replaced by
professional maintenance personnel to avoid danger.
The drying time should not exceed 360 minutes. If it has
been used for 360 minutes in a single running time, it
should be powered off and restarted after 30 minutes.
When the machine is in normal use or idle time, it should
be kept a distance of at least 1.5 m from the fire.
Please use a damp cloth or dry cloth to clean the
product. Do not directly wash with water.
Before drying, please dewater (or wring) the clothes to
·
·
·
·
·
·
·
·
·
·
reduce water drops, and prevent water from entering the
machine and leading to faults.
Precautions
Check if the voltage conforms to what it is marked on
label of the machine before use. Please turn off the
power before pulling the plug from the power outlet. Do
not pull the power plug with a wet hand.
Check if the power cord and plug are damaged before
using the machine. Do not overbend or pull the power
cord.
The power cord is a special power cord. Randomly
replacing it may cause poor contact or electric shock.
Do not block or cover the air inlet/outlet to avoid high
temperatures, because this may cause machine faults.
Please make sure the door hook is installed firmly on the
top of the door.
Please make sure the bracing pieces and fabric covering
are completely opened before starting the machine, in
order to avoid any accident.
Please make sure the door leaf hanging this product can
sustain a weight of at least 5 kg.
Keep the product away from curtains or other
inflammables when in use. The safe distance between
clothes dryers and inflammables is at least 0.5 m.
·
·
·
·
·
·
·
·
·

8 9
Do not spray a volatilizer or insecticide on this product,
because it may cause deterioration and damage of the
machine shell, which may lead to electric leakage,
electric shock and other dangers.
Do not put foreign bodies into the main engine, or touch
the air outlet or its surrounding with your hands when in
use to avoid electric leakage, electric shock, scald, or
other dangers.
Do not use this machine in a place with unattended
children, elderly people with mobility difficulties, or
people with disabilities, in order to avoid accidents.
Do not use or store the product in the wet and dusty
place for a long time, because it may cause shell
corrosion, electric leakage, or other accidents.
Do not use the product in the kitchen with gasoline, oil
paint, acid-base oil, or lampblack, or place with
inflammables, in order to avoid fire and other accidents.
·
·
·
·
·
Maintenance and storage
The user shall clean and maintain the fabric covering and
main engine regularly.
Do not use high-temperature water or steam to clean the
fabric covering to avoid damaging the material of the
fabric covering.
·
·
After maintenance and cleaning, please store the product
in a cool and dry place.
The machine only needs external maintenance and clean-
ing. Do not dismount the main engine randomly. Other-
wise, the user shall be responsible for the consequence.
The maintenance and cleaning should be carried out after
the main engine is powered off, the device and bracing
pieces cool completely, and the power cord is pulled out.
Do not wipe the machine with diluent, methylbenzene,
acid lotion, kerosene, alcohol, or other chemical solvents.
·
·
·
·

10 11
Troubleshooting
Malfunction Possible
reasons Solutions
Running failure
The machine
keeps running
after shutdown
Accidentally touched the
dropout fuse on the
bottom of the main
engine
Please restart the machine.
Check if the main machine is
operated correctly. If the main
engine is dumped, please adjust it
to the correct direction.
The heat dissipation of the device
lasts for approximately 1 minute.
Please wait.
Accidentally touched the
dump switch of the main
engine
The draught fan is
working to dissipate the
heat of the device
Pull out the power cord and restart
the machine to check it.
Operation trouble
The main engine
keeps running
after 2 minutes
of shutdown
Check if foreign matters cover or
block the air inlet/outlet.
Foreign matters block
the air inlet/outlet
Excessive noise
Dewatering the clothes before
drying can shorten the drying time.
The clothes are not
wrung or dewatered
Zip the zipper of fabric covering
tightly.
The zipper of fabric
covering is not zipped
tightly
It is suggested to dry not more than
3 pieces of clothing at one time to
maintain a certain space among
clothes.
Dry too many clothes at
one time, causing very
small space
Too long drying
time
Specification
Product model: TJ-BX01E
Running time: 0-360 minutes
Rated voltage: 110 V~
Rated frequency: 50 Hz
Rated power: 600 W
Product net weight: 2.25kg
Storage bag size: 230*200*135mm

Declaration of hazardous substances
Indicates that the content of hazardous substances in all uniform materials of the part is
within the limit specified in the GB/T 26572 Standard.
Indicates that the content of hazardous substances in certain homogeneous materials of
the component exceeds the limit specified in the GB/T 26572 Standard.
Hazardous Substances
Parts
Pb Hg Cd Cr (VI) PBB PBDE
Electronic
components
Hardware
Plastic
components
Printing
materials
Motor
PCB board
Power cord
components
Heating
elements
Enclosure
Composite filter
elements
Oscillator
This list is compiled according to SJ/T 11364.
Note: All parts marked with “×” means that some hazardous substances exceed the
standard, since the limited current technology level of the industry cannot provide a
replacement or reduction for the present.
12
