TL Electronic SlimLine PT 1082 Series User manual

,QWHO


UG
*HQ&RUH¥LLL&38
µµµ+LJK3HUIRUPDQFH
)DQOHVV3DQHO3&
:LWK9*$',2/$1
M1
ÐÐ2DQUHBD Manual for
IndustrialÐ/@MDK PC
2lHLLine /3Ðxxa
TL Electronic GmbH
Bgm.-Gradl-Str. 1
85232 Bergkirchen-Feldgeding
Germany
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
www.tl-electronic.de

!
!
Intel®Core™ 3rd Gen. Mobile
i3/i5/i7 High Performance
15”/17”/19” Fanless Embedded PC
COPYRIGHT NOTICE & TRADEMARK
All trademarks and registered trademarks mentioned herein are the property of their
respective owners.
This manual is copyrighted in Sep. 2013. You may not reproduce or transmit in any
form or by any means, electronic, or mechanical, including photocopying and
recording.
DISCLAIMER
This user’s manual is meant to assist you in installing and setting up the system. The
information contained in this document is subject to change without any notice.
CE NOTICE
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.

!
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
You are cautioned that any change or modifications to the equipment not expressly
approve by the party responsible for compliance could void your authority to operate
such equipment.
CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
WARNING! Some internal parts of the system may have high electrical voltage. And therefore
we strongly recommend that qualified engineers can open and disassemble the system. The
LCD and touch screen are easily breakable, please handle them with extra care.

Contents
!
TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION
1-1 About This Manual.................................................................... 1-2
1-2 System Illustration...................................................................... 1-3
1-3 System Specifications................................................................. 1-9
1-4 Safety Precautions...................................................................... 1-11
CHAPTER 2 SYSTEM CONFIGURATION
2-1 Jumper & Connector Quick Reference Table............................. 2-2
2-2 Component Locations................................................................ 2-3
2-3 How to Set Jumpers................................................................... 2-5
2-4 Clear CMOS Data Selection…………………………………... 2-7
2-5 CFast Voltage Selection............................................................. 2-7
2-6 COMPorts & Connectors….......................……..……………... 2-8
2-7 COM Ports RI & Voltage Selection…..........…..…………....... 2-9
2-8 COM2 RS232/422/485 Selection............................................... 2-10
2-9 COM2 Auto Detect Selection.................................................... 2-11
2-10 DIO Connector…….............……………………...................... 2-11
2-11 Flash Descriptor Override Selection…………………………... 2-12
2-12 Front Panel Connector & Selection…………………………… 2-13
2-13 Internal Keyboard & Mouse Connectors.................................... 2-14
2-14 Hardware Power Failure Selection.…………………………… 2-14
2-15 JUSB Port Connector………………………………………….. 2-15
2-16 LAN Connector………………………………………………... 2-15
2-17 Printer Port…………………………………………………….. 2-16
2-18 LVDS Connector……………………………………................ 2-17
2-19 LVDS Inverter Connector……………………………………... 2-17
2-20 LVDS Panel Brightness Control Selection……………………. 2-18
2-21 LVDS Voltage Selection………………………………………. 2-18
2-22 Power Input Connector………………………………………... 2-19
2-23 SATA & SATA Power Connectors…………………………… 2-20

Contents
!
2-24 Audio Connector………………………………………………. 2-21
2-25 System Fan Connector ………………………………............ 2-22
2-26 USB 3.0 Connector……………………………………………. 2-22
2-27 VGA Connector……………………………………………….. 2-23
2-28 SIM Card Slot…………………………………………………. 2-23
CHAPTER 3 SOFTWARE UTILITIES
3-1 Introduction................................................................................ 3-2
3-2 Intel
®
Chipset Software Installation Utility…..…….................. 3-3
3-3 Intel
®
USB3.0 eXtensible Host Controller Utility...................... 3-4
3-4 Intel
®
Management Engine Components Utility........................ 3-5
3-5 VGA Driver Utility.................................................................... 3-6
3-6 LAN Driver Utility…………………………………………….. 3-7
3-7 Sound Driver Utility…………………………………………… 3-8
3-8 Touchscreen Driver Utility……………………………………. 3-9
CHAPTER 4 AMI BIOS SETUP
4-1 Introduction................................................................................ 4-2
4-2 Entering Setup............................................................................ 4-4
4-3 Main……................................................................................... 4-6
4-4 Advanced…………………….........................…....................... 4-7
4-5 Chipset…………….................................................................... 4-27
4-6 Boot..……………….................................................................. 4-35
4-7 Security………………………………………………………... 4-36
4-8 Save & Exit……………………………………………………. 4-37
APPENDIX A SYSTEM DIAGRAMS
Exploded Diagram for Basic Construction............................................ A-2
Exploded Diagram for Front Panel………............................................ A-3
Exploded Diagram for Mainboard…………………............................. A-9
Exploded Diagram for Heatsink Cover………...................................... A-11
Exploded Diagram for HDD…………...………................................... A-13

Contents
!
APPENDIX B TECHNICAL SUMMARY
Block Diagram...................................................................................... B-2
Interrupt Map......................................................................................... B-3
DMA Channels Map……...................................................................... B-8
I/O Map................................................................................................. B-9
Watchdog Timer Configuration…………..…………………………... B-13
Flash BIOS Update……………………………………………………. B-15
!

Page:1-1
INTRODUCTION!
!!
!
This chapter gives you the information for this system. It
also outlines the System specification.
Section includes:
zAbout This Manual
zSystem Specifications
zSafety Precautions
Experienced users can skip to chapter 2 on page 2-1
for Quick Start.
CHAPTER
1 !

Chapter 1 Introduction
Page: 1-2
1-1. ABOUT THIS MANUAL
Chapter 1 Introduction
This chapter introduces you to the background of this manual, and the specifications
for this system. The final page of this chapter will indicate how to avoid damaging this
board.
Chapter 2 Hardware Configuration
This chapter outlines the component locations and their functions. In the end of this
chapter, you will learn how to set jumper and how to configure this card to meet your
own needs.
Chapter 3 Software Utilities
This chapter contains helpful information for proper installations of the VGA utility,
LAN utility, and Sound utility.
Chapter 4 BIOS Setup
This chapter indicates you how to set up the BIOS configurations.
Appendix A System Diagrams
This appendix gives you the exploded diagrams and part numbers of the system.
Appendix B Technical Summary
This appendix gives you the information about the Technical maps, Watchdog-timer
configuration, and Flash BIOS Update.

Chapter 1 Introduction
Page: 1-3
1-2. SYSTEM ILLUSTRATION
Front View Rear View
Top View
Bottom View
Unit: mm
2KHL+HMDÐ/3Ða

Chapter 1 Introduction
Page: 1-4
Side View Quarter View
Unit: mm

Chapter 1 Introduction
!
!!
!
!
!!
!
Page: 1-5
Front View Rear View
Top View
Bottom View
Unit: mm
2KHL+HMDÐ/3Ða

Chapter 1 Introduction
Page: 1-6
Side View Quarter View
Unit: mm

Chapter 1 Introduction
!
!!
!
!
!!
!
Page: 1-7
Front View Rear View
Top View
Bottom View
Unit: mm
2KHL+HMDÐ/3Ða

Chapter 1 Introduction
!
!!
!
!
!!
!
Page: 1-8

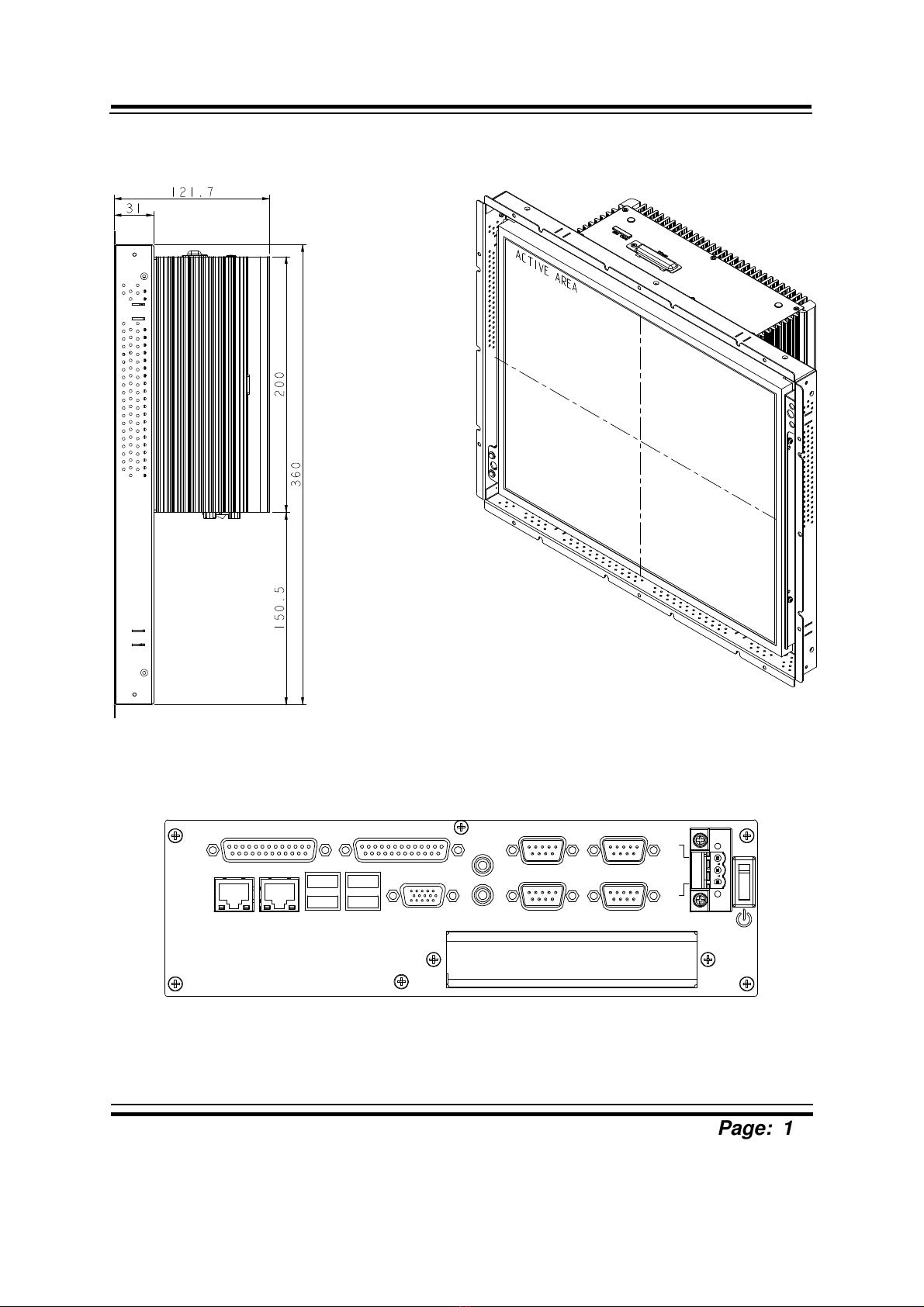

Side View Quarter View
I/O View
DIO LPT
LAN1 LAN2 USB3.0
VGA
Mic In
COM1 COM3
COM2 COM4
GND 9-36V
DC
Line
Out
Unit: mm

Chapter 1 Introduction
!
!!
!
!
!!
!
Page: 1-9
1-3. SYSTEM SPECIFICATION
System
CPU Support Intel
®
Core™ 3
rd
Gen. Mobile i3/i5/i7 (rPGA-988)
processor on board
Chipset Intel
®
HM76/QM77
OS Support Microsoft Windows XP/7
Memory Support 2 x 204pin DDR3 SO-DIMM, support DDR3/DDR3L
1600/1333/1066 up to 8GB/slot
Watchdog 1~255s Watchdog timer
Drive Bay 2 x 2.5” SATA HDD
Power Supply DC-in 9~36V
Front Bezel Aluminum
IP65 Front panel only
Mounting Type
VESA 100/Wall Mount
Net Weight 7.5 kg
9 kg
11.5 kg
Dimension 408 x 308 x 128 mm
448 x 352 x 136 mm
471 x 396 x 131 mm
Certificate FCC/CE
I/O Ports
Serial Port 4 x COM ports (pin-9 is RI/5V/12V selectable):
COM1/3/4 for RS-232
COM2 for RS-232/422/485
USB 4 x USB 3.0
Parallel Port 1 x DSUB-25
VGA 1 x VGA
LAN 2 x LAN (10/100/1000 Mbps), support Wake-on-LAN:
LAN1: Intel
®
82579LM
LAN2: Intel
®
82583V
PT 15
PT 17
PT 19
PT 15
PT 17
PT 19
PT 15
PT 17
PT 19

Chapter 1 Introduction
!
!!
!
!
!!
!
Page: 1-10
Audio High Definition:
1 x Line-out
1 x MIC-in
Digital I/O 1 x DSUB-25 (8in/8out)
Expansion slot 1 x Mini-PCIe slot (for WLAN module & 3G module)
1 x SIM card slot
1 x CFast card slot
1 x PCIe(4x), 10W/slot max. (Optional)
Display
LCD Panel Size 15”
17”
19”
Resolution 1024 x 768 XGA 400nit LED backlight
1280 x 1024 SXGA 350nit LED backlight
1280 x 1024 SXGA 300nit LED backlight
Touchscreen ( 5W Analog resistive (USB interface)
Environment
Operation Temp.
(with ambient airflow)
General: 0~ 45°C
CFast card (Wide Temp. Grade, w/o
audio): 0~ 50°C
Storage Temp. -20 ~ 80°C
Humidity 10 ~ 90%
PT 15
PT 17
PT 19
PT 15
PT 17
PT 19

Chapter 1 Introduction
!
!!
!
!
!!
!
Page: 1-11
1-4. SAFETY PRECAUTIONS
Follow the messages below to avoid your systems from damage:
1. Keep your system away from static electricity on all occasions.
2. Prevent electric shock. Don’t touch any components of this card when the card is
power-on. Always disconnect power when the system is not in use.
3. Disconnect power when you change any hardware devices. For instance, when
you connect a jumper or install any cards, a surge of power may damage the
electronic components or the whole system.
!

Page 2-1
HARDWARE
CONFIGURATION
** QUICK START **
CHAPTER
2
Helpful information describes the jumper & connector settings, and
component locations.
Section includes:
zJumper & Connector Quick Reference Table
zComponent Locations
zConfiguration and Jumper settings
zConnector’s Pin Assignments

Chapter 2 Hardware Configuration
Page: 2-2
2-1. JUMPER & CONNECTOR QUICK REFERENCE TABLE
JUMPER/CONNECTOR NAME
Clear CMOS Data Selection JP5
CFAST Voltage Selection JP8
COM Ports COM1, COM2, COM3, COM4
COM Ports RI & Voltage Selection JP15, JP16, JP17, JP18
COM2 RS232/422/485 Selection JP13
COM2 Auto Detect Selection JP12
Digital I/O Connector DIO1
Flash Descriptor Override Selection JP3
Front Panel Selection PWRBTN1, HDDLED1, SYSRST1,
PWRLED1
Internal Keyboard & Mouse Connectors KB1, MS1
Hardware Power Failure Selection JP7
JUSB Connector JUSB1
LAN Connectors LAN1, LAN2
Printer Connector LPT1
LVDS Connector LVDS1
LVDS Inverter Connector INV1
LVDS Panel Brightness Control JP21
LVDS Voltage Selection JP19
Power Input Connector PWR_IN1, ATX_PWR1
SATA & SATA Power Connectors SATA1, SATA_PWR1, SATA2,
SATA_PWR2
Audio Connectors AUDIO1, LINE_IN1
System Fan Connector SYS_FAN1
USB3.0 Connectors USB1, USB2
VGA Connector VGA1
SIM Card Slot SIM1

Chapter 2 Hardware Configuration
Page: 2-3
2-2. COMPONENT LOCATIONS
5
10
15
1
6
11
VGA1
LAN2LAN1
M_PCIE1
SP1
1
JP6
1
JP5
1
JP21
2
3
4
JP19
12
56
1
5
JP20
DIO1
1
2
19
20
1
JP3
1
JP4
JP10
12
87
KB1
1
MS1
1
JP22
1
1
SYS_FAN1
JP14
12
1211
1
IR1
SYSRST1
1
1
1
11
1
2
9
10
PWRLED1
HDDLED1
PWRBTN1
1
SIM1
LPT1
26
13
1
14
JP7JP8
JP9
JP13
1
2
9
10
1
JP12
JP17
1
2
5
6
JP18
1
2
5
6
1
2
5
6
1
2
5
6
JP15 JP16
USB1 USB2
1
2
3
4
ATX_PWR1
2
SO_DIMM2
SO_DIMM1
72
74
204
1
71
73
203
2
72
74
204
1
71
73
203
AUDIO1
15
69
18
14
15
10
15
69
18
14
15
10
COM1/2 COM3/4
3
1
2
4
PWR_IN1
19
USB5
210
1
LINE_IN1
Battery
Intel
®
Core™
3rd Gen.
Mobile i3/i5/i7
(rPGA-988)
Intel
®
HM76/
QM77
A1
A9
B1
B9
A1
A9
B1
154
21 24
SIO
Connectors, Jumpers and Components Locations
