Winmate 7'' S-Series User manual

Please read these instructions carefully before using this product, and save this manual for future use

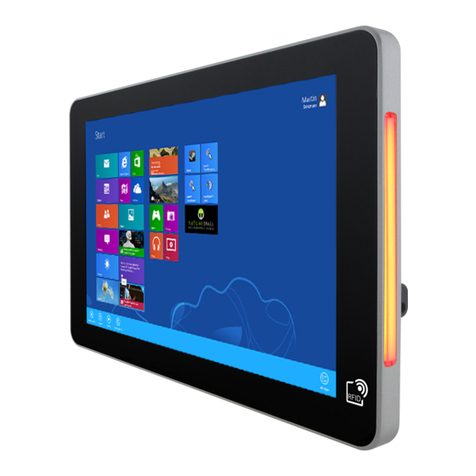

10.1" S-Series HMI
W10IB3S-PCH2AC-PoE (With LED Light Bar)
W10IB3S-PCH2-PoE (Without LED Light Bar)
Slim-line
User Manual
Version 1.5
Document Part Number: 9152111I100M

USER MANUAL CONTENTS
- 2 -
CONTENTS
PREFACE...................................................................................................... - 5 -
ABOUT THIS USER MANUAL........................................................................... 12
CHAPTER1: INTRODUCTION....................................................................... - 15 -
1.1 Product Features...................................................................................- 15 -
1.2 Package Contents..................................................................................- 16 -
1.3 Product Overview .................................................................................- 18 -
CHAPTER 2: GETTING STARTED .................................................................. - 20 -
2.1 Powering On..........................................................................................- 20 -
2.1.1 AC Adapter Components........................................................- 20 -
2.1.2 Power Considerations ............................................................- 21 -
2.1.3 Connecting the Power............................................................- 21 -
2.2 Connector Pinouts ................................................................................- 22 -
2.2.1 Power Connector....................................................................- 22 -
2.2.2 Ethernet Connector................................................................- 22 -
2.2.3 Serial Port Connector .............................................................- 22 -
2.2.4 USB 2.0 and USB 3.0 Connector.............................................- 23 -
2.2.5 Digital I/O Connector..............................................................- 23 -
2.3 Configuring Serial Port Settings ............................................................- 23 -
2.4 Turning On and Off the Device .............................................................- 24 -
CHAPTER 3: OPERATING THE HMI DEVICE .................................................. - 26 -
3.1 Operating System..................................................................................- 26 -
3.2 System Settings.....................................................................................- 26 -
3.2.1 Hot Tab Menu.........................................................................- 26 -
3.2.2 Utilities....................................................................................- 27 -
3.2.3 Brightness...............................................................................- 27 -
3.2.4 Volume ...................................................................................- 27 -
3.2.5 LED Light Bar........................................................................... - 27 -
3.2.6 Performance...........................................................................- 28 -
3.2.7 Touch Lock..............................................................................- 28 -
3.3 Using HF RFID Reader ...........................................................................- 29 -
3.3.1 HF RFID Reader Location........................................................- 29 -

USER MANUAL CONTENTS
- 3 -
3.3.2 Trigger Setting ........................................................................- 30 -
3.3.3 Settings...................................................................................- 31 -
3.3.4 RFID Output Settings ..............................................................- 32 -
2.4.2 Writing Mode......................................................................- 32 -
3.4 Using Front Camera ..............................................................................- 33 -
3.4.1 Opening the Camera ..............................................................- 33 -
3.4.2 Shooting Photos .....................................................................- 34 -
3.4.3 Recording Videos....................................................................- 35 -
3.4.4 Camera Settings......................................................................- 36 -
3.3 How to Enable Watchdog .....................................................................- 37 -
CHAPTER 4: DRIVER INSTALLATION ............................................................- 39 -
4.1 Installing Chipset Driver........................................................................- 39 -
4.2 Installing Graphics Driver......................................................................- 42 -
4.3 Installing Intel Sideband Fabric Device (Intel MBI) Driver (Windows 8)- 43 -
4.4 Installing Intel Trusted Engine Interface (Intel TXE) Driver ..................- 44 -
4.5 Installing Intel Network Connections....................................................- 45 -
4.6 Installing Audio Driver...........................................................................- 46 -
4.7 Installing USB 3.0 Driver (Windows 7) ..................................................- 47 -
CHAPTER 5: BIOS SETUP.............................................................................- 49 -
5.1 When and How to Use BIOS Setup .......................................................- 49 -
5.2 BIOS Functions ......................................................................................- 50 -
5.2.1 Main Menu .............................................................................- 51 -
5.2.2 Advanced Menu .....................................................................- 53 -
5.2.3 Chipset Menu .........................................................................- 71 -
5.2.4 Security Menu ........................................................................- 72 -
5.2.5 Boot Configuration.................................................................- 73 -
5.2.6 Save& Exit...............................................................................- 75 -
5.3 Using Recovery Wizard to Restore Computer ......................................- 77 -
CHAPTER 6: MOUNTING.............................................................................- 79 -
6.1 Cable Mounting Considerations ...........................................................- 79 -
6.2 Safety Precautions ................................................................................- 79 -
6.3 Mounting Guide....................................................................................- 80 -

USER MANUAL CONTENTS
- 4 -
6.3.1 Panel Mounting ......................................................................- 80 -
6.3.2 VESA Mounting.......................................................................- 81 -
6.3.3 Front Side Wall Mounting ......................................................- 85 -
6.3.4 Glass Wall Mounting ..............................................................- 87 -
CHAPTER 7: TECHNICAL SUPPORT.............................................................. - 89 -
7.1 Software Developer Support ................................................................- 89 -
7.2 Problem Report Form ...........................................................................- 90 -
APPENDIX A: PRODUCT SPECIFICATIONS.................................................... - 92 -
APPENDIX B: LED LIGHT BAR ADJUSTMENT................................................ - 95 -
APPENDIX C: CHANGING TOUCH RESOLUTION ........................................... - 99 -

USER MANUAL PREFACE
- 5 -
PREFACE
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in
any form or by any means, electronic or mechanical, for any purpose, without the
prior written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their
respective owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including
circuits and/or software described or contained in this manual in order to improve
design and/or performance. We assume no responsibility or liability for the use of
the described product(s) conveys no license or title under any patent, copyright, or
masks work rights to these products, and make no representations or warranties
that these products are free from patent, copyright, or mask work right
infringement, unless otherwise specified. Applications that are described in this
manual are for illustration purposes only. We make no representation or guarantee
that such application will be suitable for the specified use without further testing or
modification.

USER MANUAL PREFACE
- 6 -
Warranty
Our warranty guarantees that each of its products will be free from material and
workmanship defects for a period of one year from the invoice date. If the customer
discovers a defect, we will, at his/her option, repair or replace the defective product
at no charge to the customer, provide it is returned during the warranty period of
one year, with transportation charges prepaid. The returned product must be
properly packaged in its original packaging to obtain warranty service. If the serial
number and the product shipping data differ by over 30 days, the in-warranty
service will be made according to the shipping date. In the serial numbers the third
and fourth two digits give the year of manufacture, and the fifth digit means the
month (e. g., with A for October, B for November and C for December).
For example, the serial number 1W16Axxxxxxxx means October of year 2016.
Customer Service
We provide a service guide for any problem by the following steps: First, visit the
website of our distributor to find the update information about the product.
Second, contact with your distributor, sales representative, or our customer
service center for technical support if you need additional assistance.
You may need the following information ready before you call:
Product serial number
Software (OS, version, application software, etc.)
Description of complete problem
The exact wording of any error messages
In addition, free technical support is available from our engineers every business
day. We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products.

USER MANUAL PREFACE
- 7 -
Advisory Conventions
Four types of advisories are used throughout the user manual to provide helpful
information or to alert you to the potential for hardware damage or personal injury.
These are Notes, Important, Cautions, and Warnings. The following is an example of
each type of advisory.
NOTE:
A note is used to emphasize helpful information
IMPORTANT:
An important note indicates information that is important for you to
know.
CAUTION/ ATTENTION
A Caution alert indicates potential damage to hardware and explains how
to avoid the potential problem.
Unealerted’ attention indique un dommage possible à l’équipement et
explique comment éviter le problem potentiel.
WARNING!/AVERTISSEMENT!
An Electrical Shock Warning indicates the potential harm from electrical
hazards and how to avoid the potential problem.
Un Avertissement de Choc Électriqueindique le potentiel de chocssur
des emplacements électriques et comment éviterces problèmes.
ALTERNATING CURRENT / MISE À LE TERRE!
The Protective Conductor Terminal (Earth Ground) symbol indicates the
potential risk of serious electrical shock due to improper grounding.
Le symbole de Miseà Terre indique le risqué potential de choc
électrique grave à la terre incorrecte.

USER MANUAL PREFACE
- 8 -
Safety Information
WARNING! / AVERTISSEMENT!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surges. Only experienced electronics
personnel should open the PC chassis.
Toujours débrancher le cordon d’alimentation du chassis lorsque
vous travaillez sur celui-ci. Ne pas brancher de connections lorsque
l’alimentation est présente. Des composantes électroniques
sensibles peuvent être endommagées par des sauts d’alimentation.
Seulement du personnel expérimenté devrait ouvrir ces chassis.
CAUTION/ATTENTION
Always ground yourself to remove any static charge before touching
the CPU card. Modern electronic devices are very sensitive to static
electric charges. As a safety precaution, use a grounding wrist strap
at all times. Place all electronic components in a static-dissipative
surface or static-shielded bag when they are not in the chassis.
Toujours verifier votre mise à la terre afin d’éliminer toute charge
statique avant de toucher la carte CPU. Les équipements
électroniques moderns sont très sensibles aux décharges
d’électricité statique. Toujours utiliser un bracelet de mise à la terre
comme précaution. Placer toutes les composantes électroniques
sur une surface conçue pour dissiper les charge, ou dans un sac anti-
statique lorsqu’elles ne sont pas dans le chassis.

USER MANUAL PREFACE
- 9 -
Safety Precautions
For your safety carefully read all the safety instructions before using the
device. Keep this user manual for future reference.
Always disconnect this equipment from any AC outlet before cleaning.
Do not use liquid or spray detergents for cleaning. Use a damp cloth.
For pluggable equipment, the power outlet must be installed near the
equipment and must be easily accessible.
Keep this equipment away from humidity.
Put this equipment on a reliable surface during installation. Dropping it
or letting it fall could cause damage.
The openings on the enclosure are for air convection and to protect the
equipment from overheating.
CAUTION/ATTENTION
Do not cover the openings!
Ne pas couvrir les ouvertures!
Before connecting the equipment to the power outlet make sure the
voltage of the power source is correct.
Position the power cord so that people cannot step on it. Do not place
anything over the power cord.
If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient over-voltage.
Never pour any liquid into an opening. This could cause fire or electrical
shock.
Never open the equipment. For safety reasons, only qualified service
personnel should open the equipment.
All cautions and warnings on the equipment should be noted.

USER MANUAL PREFACE
- 10 -
*Let service personnel to check the equipment in case any of the following
problems appear:
oThe power cord or plug is damaged.
oLiquid has penetrated into the equipment.
oThe equipment does not work well or you cannot get it to work
according to the user manual.
oThe equipment has been dropped and damaged.
oThe equipment has obvious signs of breakage.
Do not leave this equipment in an uncontrolled environment where the
storage temperature is below -20°C (-4°F) or above 60°C (140°F). It may
damage the equipment.
CAUTION/ATTENTION
Use the recommended mounting apparatus to avoid risk of
injury.
Utiliser l’appareil de fixation recommandé pour éliminer le
risque de blessure.
WARNING!/AVERTISSEMENT!
Only use the connection cords that come with the product
.When in doubt, please contact the manufacturer.
Utiliser seulement les cordons d’alimentation fournis avec le
produit. Si vous doutez de leur provenance, contactez le
manufacturier.
WARNING!/AVERTISSEMENT!
Always ground yourself against electrostatic damage to the
device.
Toujours vérifier votre mise à la terre afin que l’équipement
ne se décharge pas sur vous.
Cover workstations with approved anti-static material. Use a wrist strap
connected to a work surface and properly grounded tools and equipment.
Use anti-static mats, heel straps, or air ionizer for added protection.
Avoid contact with pins, leads, or circuitry.
Turn off power and input signals before inserting and removing connectors or
test equipment.
Keep the work area free of non-conductive materials, such as ordinary plastic
assembly aids and Styrofoam.
Use filed service tools, such as cutters, screwdrivers, and vacuum cleaners that
are conductive.
Always put drivers and PCB’s component side on anti-static foam.

USER MANUAL PREFACE
- 11 -
Important Information
Federal Communications Commission Radio Frequency Interface Statement
This device complies with part 15 FCC rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class "B"
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
him own expense.
European Union
This equipment is in conformity with the requirement of the following EU
legislations and harmonized standards. Product also complies with the Council
directions.
Electromagnetic Compatibility Directive (2014/30/EU)
EN55024: 2010/ A1: 2015
oIEC61000-4-2: 2009
oIEC61000-4-3: 2006+A1: 2007+A2: 2010
oIEC61000-4-4: 2012
oIEC61000-4-5: 2014
oIEC61000-4-6: 2014
oIEC61000-4-8: 2010
oIEC61000-4-11: 2004
EN55032: 2012/AC:2013
EN61000-3-2:2014
EN61000-3-3:2013
Low Voltage Directive (2014/35/EU)
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/ A2:20

USER MANUAL ABOUT THIS USER MANUAL
- 12 -
ABOUT THIS USER MANUAL
This User Manual provides information about using the Winmate® 10.1” S-Series HMI.
The documentation set for the 10.1” S-Series HMI provides information for specific user
needs, and includes:
10.1” S-Series HMI Quick Start Guide - describes how to get the HMI up and
running.
10.1” S-Series HMI User Manual –contains detailed description on how to use
the HMI, its components and features.
NOTE:
Some pictures in this guide are samples and can differ from actual
product.
Document Revision History
Version
Date
Note
1.1
15-Jan-2016
Update BIOS Setup, mounting solutions,
connector pinouts
1.2
21-Apr-2016
Add Appendix A LED Light Bar
Adjustment with RS-232 Settings
1.3
3-Jun-2016
New Hot Tab user interface, new light
bar interface and new RFID interface.
1.4
17-Aug-2016
Add How to Enable Watchdog, Using
Front Camera.
1.5
17-Mar-2017
Motherboard design change

USER MANUAL CHAPTER 1 INTRODUCTION
- 14 -
INTRODUCTION
This chapter gives you product overview,
describes features and hardware
specification. You will find all accessories
that come with the HMI device in the
packing list. Mechanical dimensions and
drawings included in this chapter.

USER MANUAL CHAPTER 1 INTRODUCTION
- 15 -
CHAPTER1: INTRODUCTION
Interactive and smart automation systems of intelligent buildings are in a fast growing
phase. Winmate multi-touch S-Series HMI is suitable for home automation and room
management systems. Flat surface is easy-to-clean and delivers aesthetically pleasing
look for any interior. The device provides real time update for booking status and
available schedule, or performs as a synchronous display in meetings.
S-Series HMI run on 1.83GHz Intel® Celeron® N2930 processor and support Windows 10
IoT, Windows Embedded 8.1 Industry Pro, Windows Embedded 8Standard, Windows 7
Pro for Embedded Systems, and Windows Embedded Standard 7–WS7P. For easy, quick
and cost effective network installations both models support PoE. These models sealed
with front IP 65 dust and water proof, and IP22 on the back side. Optional HF RFID 13.56
MHz is especially useful in access control applications.
S-Series HMI support an exceptional feature - LED light bar. With the help of red, green,
blue and orange LED indicators you can see the status of the machine or processes afar.
It significantly reduces power consumption by keeping the display turned off.
1.1 Product Features
Winmate® 10.1” S-Series HMI with Intel ® Celeron ® Bay Trail-M N2930 processor
features:
10.1'' 1280 x 800 with Projected Capacitive Multi-Touch (P-CAP)
Fanless cooling system and ultra-low power consumption
PoE standard IEEE 802.3at (25 W)
Dual Gigabit Ethernet
Front IP65 water and dust proof
RGB LED light bar indicators on both sides
Optional HF RFID Reader 13.56 MHz
Optional 2MP Front Camera
Room booking schedule, access control, room information display

USER MANUAL CHAPTER 1 INTRODUCTION
- 16 -
1.2 Package Contents
Carefully remove the box and unpack your HMI device. Please check if all the items listed
below are inside your package. If any of these items are missing or damaged contact us
immediately.
Standard factory shipment list:
10.1” HMI Device
Quick Start Guide
(Hardcopy)
Driver CD & User Manual
Varies by product
specifications
9154111I100A
IB32: 9171111I101Y
AC Adapter
(12V/ 50W)
Power Cable
Terminal Block 3 pin
922D050W12VA
Varies by country
94J602G030K0
VESA Mounting Screws
External USB Cable
82111E240400
948018102100

USER MANUAL CHAPTER 1 INTRODUCTION
- 17 -
Package may include optional accessories based on your order:
VESA Desk Stand
PCVS-V1
VESA Desk Stand
LA-100
VESA Wall Mount Bracket
LA-106
99KK00A0000E
9B0000000128
9B0000000412
Front Side Wall Mount
PCFW-V1
Glass Wall Mount Kit
Right: PCGM-V2R
Left: PCGM-V2L
99KK00A0000C
Right: 99KN00A00010
Left: 99KN00A00011

USER MANUAL CHAPTER 1 INTRODUCTION
- 18 -
1.3 Product Overview
This section describes physical appearance of the HMI device.
Unit: mm
Dimensions (W x L x H): 263.48 x 172 x 35.7 mm
*Digital I/O is an optional connector and may not be present in your model.
**Power Device (PD): IEEE 802.3at (25 W)
***RGB LED light bar only available for the model number W10IB3S-PCH2AC-PoE.
№
Description
№
Description
①
Digital I/O (Optional)*
⑥
RJ-45 (LAN/ PoE)**
②
RJ-45 (LAN)
⑦
2MP Front Camera (Optional)
③
USB 2.0, USB 3.0
⑧
HF RFID Reader (Optional)
④
RS232/422/485
⑨
LED Status Light Bar***
(Only for W10IB3S-PCH2AC-PoE)
⑤
12V DC Terminal Block
(Phoenix Type)
⑩
1 Watt Speaker

USER MANUAL CHAPTER 2 GETTING STARTED
- 19 -
GETTING STARTED
This chapter tells you important information
on power supply, adapter and precautions
tips. Pay attention to power considerations.

USER MANUAL CHAPTER 2 GETTING STARTED
- 20 -
CHAPTER 2: GETTING STARTED
This chapter provides information on how to connect the HMI device to the source of
power, connector pinouts and the guideline to turn on/off the HMI device.
2.1 Powering On
2.1.1 AC Adapter Components
Safety Precautions:
Do not use the adapter in a high moisture environment
Never touch the adapter with wet hands or foot
Allow adequate ventilation around adapter while using
Do not cover the adapter with paper or other objects that will reduce cooling
Do not use the adapter while it is inside a carrying case
Do not use the adapter if the cord is damaged
There are NO serviceable parts inside
Replace the unit if it is damaged or exposed to excess moisture
While using the AC Adapter always:
Plug-in the power cord to easy accessible AC outlet
Plug-in the AC adapter to a grounded outlet
AC Adapter
(12V/ 50W)
Power Cord
Terminal Block to DC Jack
ALTERNATING CURRENT / MISE À LE TERRE!
This product must be grounded. Use only a grounded AC outlet.
Install the additional PE ground wire if the local installation
regulations require it.
Ceproduit doit êtremis à la terre. Utiliser seulement un cordon
d’alimentation avec mise à la terre. Si les règlementslocaux le
requiert, installer des câbles de mise à la terresupplémentaires.
