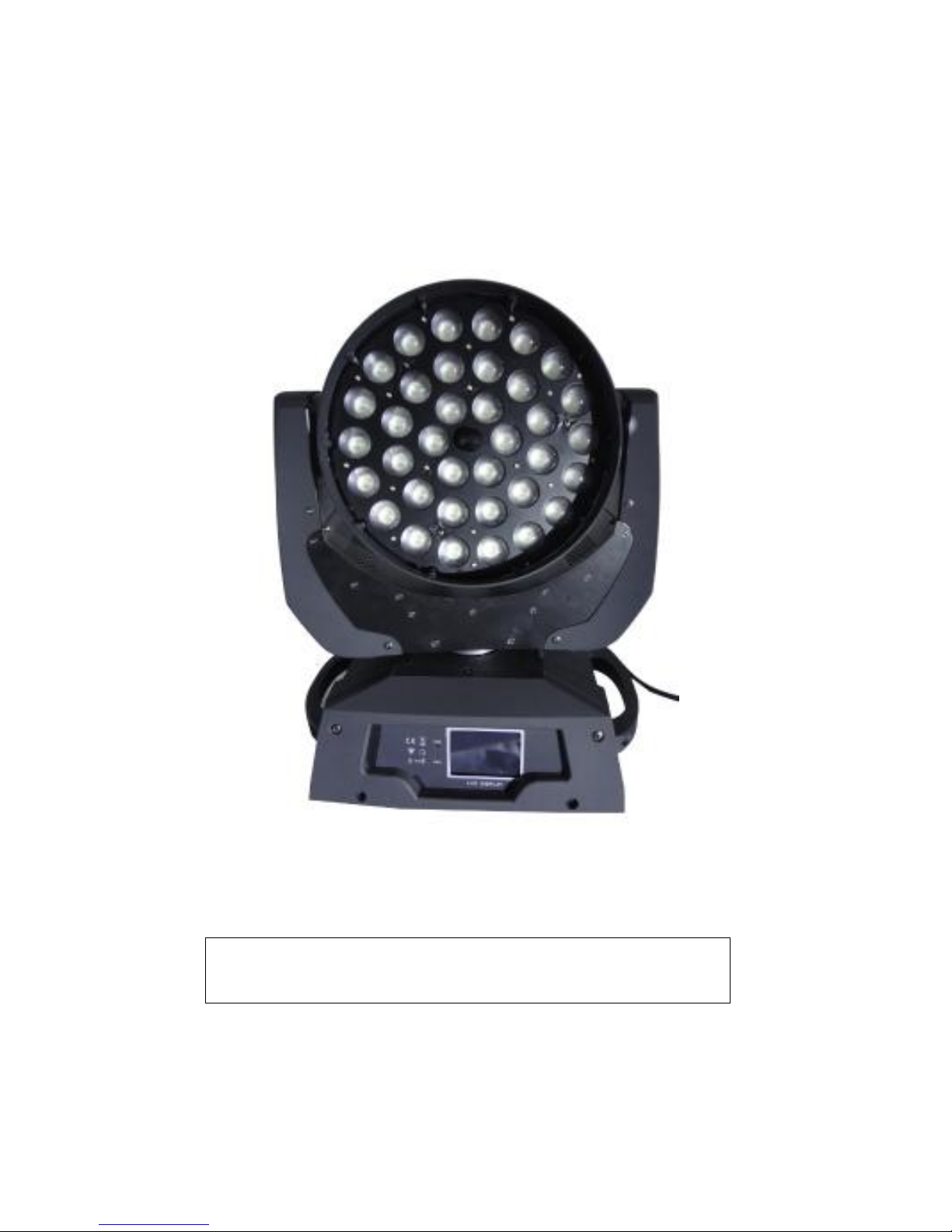

TM 87 36pcs 4 in 1 LED Moving Head zoom User manual

36pcs 4 in 1 LED Moving Head zoom
User Manual
This manual contains important information.
Please read before operating fixture.

1
1 SECURITY TIPS
WARNING!!! To reduce the risk of fire, electric shock, or
injury to persons, follow these important safety instructions:
 non-professionals, not to disassemble the light arbitrarily and
lighting accessories inside.
 rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ
(to be selected).
 not beam irradiate the flammable materials, flammable materials
and the lamp should be maintained at least 1M over the distance.
 lamps used in ambient temperature: -15 ℃-40 ℃, the highest
temperature of the surface of the lamp: 60 ℃.
 to keep away from the liquid substance and humid environment.
 before using the lights must ensure the good grounding, can not
install charging and remove any parts.
 the installation of lamps, must be fixed screw fasteners with
additional security cable and regular inspection.
 lamps consecutive working hours is not recommended more than
10 hours.
 should stop using the lights in time when happens unusual
conditions during the process
 lamp parts of the rotation, external accessories and paste parts
should be regular inspected, such as the emergence of loose and
rock, should be reinforced in a timely manner to prevent the
accident.
 lamps adopt strong winds to refrigerate, it is easy to accumulate the
dust, so you have to clean it weekly especially the cooling air
opening, otherwise the dust will plug leading to poor light
2 TECHNOLOGY REFERENCE
Input Voltage: AC90-260V 50/60Hz
LED Quantities: 36PCS 10W 4-IN-1 LEDs (R, G, B, W)

2
Control Signal: DMX512, master-slave and sound activated or
auto operation
Control Channel: 16/24DMX channels
Power Consumption: 360W
60,000 hours life span for LEDs and low power consumption
Intelligent temperature sensor for LEDs(over heat protection)
Zoom 10º to 60º High efficiency 8 degree optic lens
Color range with 16.7 millions additive RGBW colors
High light output as 950LUX@ 7M at full
0-100% smooth linear dimmer with flicker free
20t/s strobe effect with variable speed
Pre-programmed random strobe and pulse effects
18CH DMX channels
Built-in programs with macro effects
DMX512, master-slave and sound activated controllable or auto
operation
High definition blue TFT LCD display
Quiet, smooth and fast PAN/TILT movement
Low noise and efficient FAN cooling system
540° PAN and 270° TILT movement
Scan position memory, auto reposition after unexpected
movement
Compact size with only 4.9KG body and 310mm in height
IEC power connector
45℃ max ambient temperature
IP20 protection rating
3-Pin XLR DMX input/output
Dimensions: 332(D)*235(W)*445(H)mm
Packing Dimensions:425(D)*295(W)*400(H)mm
Net Weight: 9kg
Gross Weight: 11kg

3

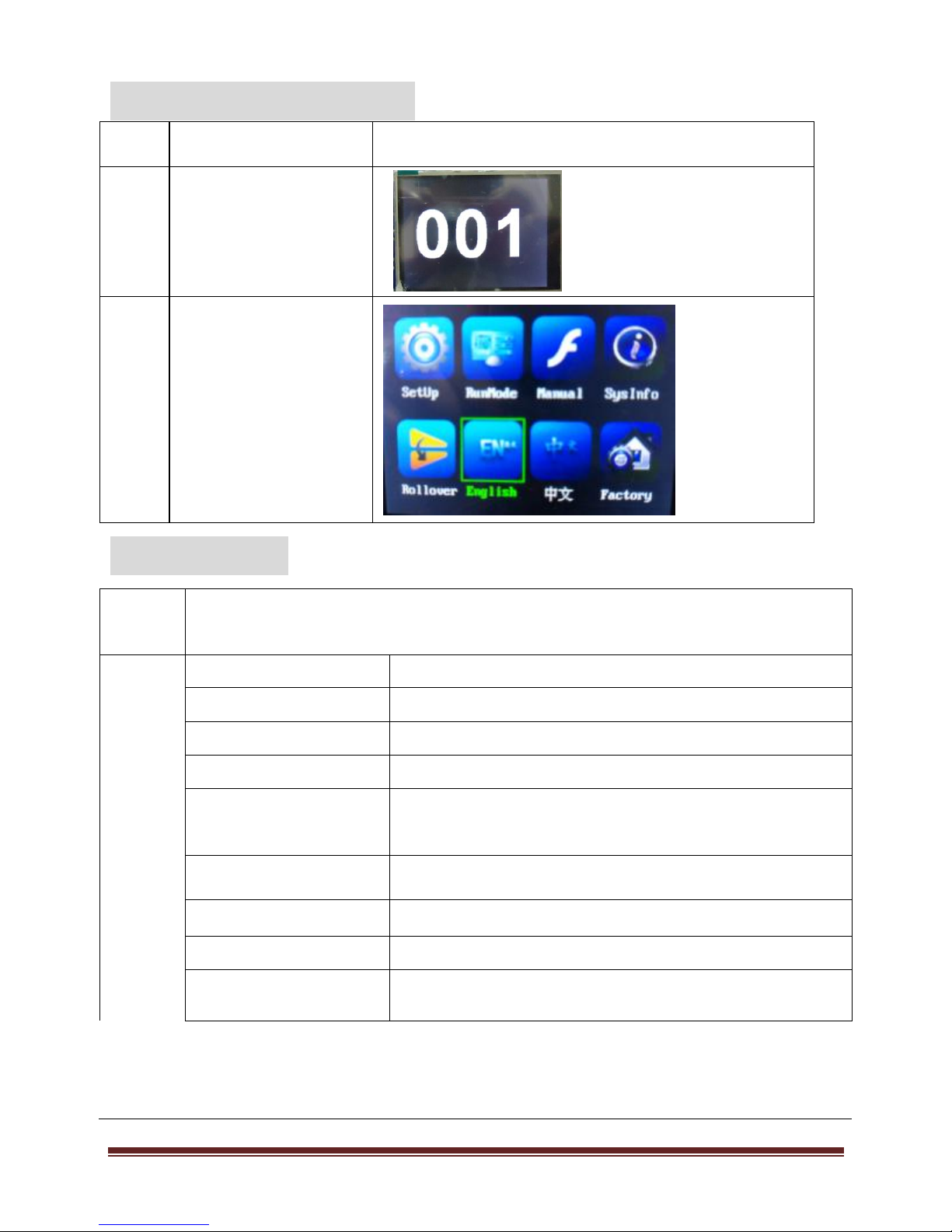

3 Board Instruction
No
English display
description
1
DMX512
ADDRESS
001 SHOW
2
Main Interface
3.1 SetUp
Item
description
SetUP
DMX Address
001-512
FraderDelay
ON/OFF
CodeWheel
ON/OFF
NoDMXSingle
KEEP/CLEAR
ScreenSaver
ON/ turn off light in 30s
OFF light on all the time
PanReverse
ON/OFF
TiltReverse
ON/OFF
LoadDefault
ON/OFF
Return

4
3.2 RunMode
RunM
ode
DMX24
ON/OFF
DMX16
ON/OFF
SoundMode
ON/OFF
AutoMode1
ON/OFF
AutoMode 2
ON/OFF
AutoMode 3
ON/OFF
AutoMode 4
ON/OFF
Return
3.3 Manual
Item
Description
Reset
YES/NO
Pan
0-255
Adjust Pan motor
Tilt
0-255
Adjust Tilt motor
Focus
0-255
Adjust focus motor
First Lamp
0-255
RGBW dark--light
Second
Lamp
0-255
RGBW dark--light
Third Lamp
0-255
RGBW dark--light
Fouth Lamp
0-255
RGBW dark--light
Return
3.4 SysInfo
Item
Description
SoftVer
V1.00
RunTime
Machine working time
OnTime
Machine working time ,one time
Temperature
Inside

5
FanStatus
Return
3.5 Rollover
The screen rollover 180degrees
3.6 English
Language : English
3.7 中文
Language : English
3.6 Factory
Factory set password:4852
Item
Description
PanOffest
0-255
Pan Motor adjust
TiltOffest
0-255
Tilt Motor adjust
FocusOffext
0-255
FocusMotor adjust
First Lamp
0-255
RGBW dark--light
Second Lamp
0-255
RGBW dark--light
Third Lamp
0-255
RGBW dark--light
Fouth Lamp
0-255
RGBW dark--light
TempSwitchSet
ON/OFF
TemperatureSet
0-100
LOGO Set
LOGO1 Display : DMX address
LOGO2 Display : LOGO
LOGO3 empty
Return

6
4DMX CHANNEL SHEET
4.1 24CH
No
Function
description
CH 1
Pan
（0-255）Upside adjustment corotation,
downside adjustment inversion
CH 2
Tilt
（0-255）Upside adjustment corotation,
downside adjustment inversion
CH 3
Speed Pan and Tilt
（0－255）.Fast--Slow
CH4
total dimmer
（0－255）
R.G.B.W total dimmer, linear dimmer, from
dark to brightness.
CH5
First R dimmer
R dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH6
First G dimmer
G dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH7
First B dimmer
B dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH8
First W dimmer
W dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH9
Second R dimmer
R dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH10
Second G dimmer
G dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH11
Second B dimmer
B dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH12
Second W dimmer
W dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH13
Third R dimmer
R dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH14
Third G dimmer
G dimmer，（ 0－255）linear dimmer, from

7
dark to brightness
CH15
Third B dimmer
B dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH16
Third W dimmer
W dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH17
total strobe
(0-10) No function
(11－255）, from slow to fast.
CH18
Focus
（0--255）Focus from 0 to max
continuously changing
CH19
Color selection
(0-10) No function
(11－210）,color selection
(211-225),jump change
(226-240) gradual change
(241-255) color pulse
CH20
Color change speed
(0-255) from slow to fast
CH21
Pan fine tuning
X 16BIT（0－255）.
CH22
Tilt fine tuning
Y 16BIT（0－255）.
CH23
Rest
(0-254) No function
255 Rest
CH24
Empty
4.2 16CH
No
Function
description
CH 1
Pan
（0-255）Upside adjustment corotation,
downside adjustment inversion
CH 2
Tilt
（0-255）Upside adjustment corotation,
downside adjustment inversion
CH 3
Speed Pan and Tilt
（0－255）.Fast--Slow
CH4
total dimmer
（0－255）
R.G.B.W total dimmer, linear dimmer, from
dark to brightness.

8
CH5
First R dimmer
R dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH6
First G dimmer
G dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH7
First B dimmer
B dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH8
First W dimmer
W dimmer，（ 0－255）linear dimmer, from
dark to brightness
CH9
total strobe
(0-10) No function
(11－255）, from slow to fast.
CH10
Focus
（0--255）Focus from 0 to max
continuously changing
CH11
Color selection
(0-10) No function
(11－210）,color selection
(211-225),jump change
(226-240) gradual change
(241-255) color pulse
CH12
Color change speed
(0-255) from slow to fast
CH13
Pan fine tuning
X 16BIT（0－255）.
CH14
Tilt fine tuning
Y 16BIT（0－255）.
CH15
Rest
(0-254) No function
255 Rest
CH16
Empty
5 FIXED EQUIPMENT
Please keep the equipment far away from the flammable objects like
finishing material, etc. keep at least 0.5m distance from the flammable
objects.

9
Warning: using two lamp clamps fix the equipment on the bottom of the
lamp holder according to the instruction. to make sure the place of
install the lamp is safe and suitable ,and the installation point that have
chosen is safety and reliable.
The place of installing the lamp must support the 10 times weight of the
lamp itself. And test the pensile place and make sure the place isn’t out
of the shape.
Must install the second protection when fixing the equipment like
proper protective screening. The second protection is used to prevent
drop off and lost of lamp and components.
Lamps can directly install the lamp holder , which is shown in the
figure:
6MAIN MACHINE CONNECTION
Please checking the power equipment supported.
Please put the plug of power source wire connect with the main power
source .
( EU )Wire
Wire(America)
Direction of
wire
General marks
Brown
Light blue
Yellow/Green
Black
White
Green
Live
Neutral
Earth
L
N

10

