TMG TMG-MVE12 User manual

1200KG MINI
COMPACT EXCAVATOR
PRODUCT MANUAL
v2023.12.22
TMG-MVE12
Please read and understand the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: [email protected]

This sign denotes a safety warning.
The information behind the sign include important safety information.
Please read and understand this information to prevent personal injuries or deaths.
The machine owner or employer is responsible for instructing every operator to operate all equipment correctly and safely in
detailed manner. All personnel operating this machine shall sufficiently understand the contents of this manual.
Before operating the machine, all operation personnel must receive the guidance on related functions of excavator.
Before operating this machine in a working site, learn and practice how to use the machine controls correctly in a safe and
spacious place.
The improper methods during operations, checking, and maintenance of machine will result in injuries or deaths.
Before any operation, checking, or maintenance of machine, please read and understand this manual.
Please always carry this manual with you. It’s preferable to preserve this manual on the machine. If this manual is lost or
damaged, please immediately order a new manual from a dealer. At the transfer of this machine, please ensure to hand this
manual over to the new owner.
The machine supplied by Ken stone Heavy Machinery conforms to the local standards and specifications of the country exported.
If your machine is purchased from other country or from an individual or company of other country, this machine is probably not
installed with the safety devices or safety standards required for the operations of this machine in your country. If you have any
doubt on the compliance of your machine with the relevant standards and regulations in your country, please contact a Ken stone
dealer.
SIGNAL WORDS
The safety information on this manual and machine identifications is indicated by words “Danger”, “Warning”, and “Notice”. The
meanings of these signal words are as below:
Important: The word “Importance” is intended to alert the operation and maintenance personnel of the possible damages of
machine and its components.
It’s impossible for us to predict all possibly existed dangers. Therefore, the warnings in this manual or on this machine can’t
cover all possible accidents. Therefore, during the operations of machine, ensure to take cautions and abide by all conventional
safety measures to prevent harms to machine, operation personnel, or other personnel.
SAFETY WARNING SIGNS
DANGER
“Danger” denotes high dangerous level, for which the negligence will result in death or serious injury.
WARNING
“Warning” denotes medium danger level, for which the negligence will probably result in death or serious injury.
NOTICE
“Notice” denotes low danger level, for which the negligence will result in minor or medium injuries.

INTRODUCTION
Foreword
This manual describes the operations, checking, and maintenance of this machine and the safety descriptions to be observed
during operations. Should you have any doubt, please contact a dealer or service provider of Ken stone Heavy Machinery.
●In some details, this manual probably differs from the manual attached on the machine in use.
●Please be noted that the information contained in this manual and the parameters of machine are subject to changes without
further notice.
The manual is in the circular manual box behind the seat
Serial number
Important: Do not disassemble the machine nameplate with serial number. Observe the serial numbers of machine and engine
and record them in the blank area below.
Machine No.: Engine No.:
Front, Rear, Left, and Right
The front, rear, left, and right of the machine indicated in this manual are based on
the status sitting in the driver seat, with the bulldozing blade visible in the front.
Designated Operations
This machine is mainly applied for following operations:
●Digging
●Ditching
●Side ditching
●Leveling
●Loading
Right
Rear
Left
Front

Product Features
●Small size, flexible operation
●Can be equipped with a variety of attachments
●Track width "flexible machine width structure"
Run-in period
For the first 100 hours of the new machine (as indicated by the timer), please follow the instructions below:
Using the new machine without run-in will deteriorate acceleration performance and probably shorten the life of machine.
●Sufficiently warm up the engine and hydraulic oil.
●Avoid heavy-load and rapid operations.Maintain the load at approximately 80% of maximum load capacity during operations.
●Do not start, accelerate, steer, or stop suddenly, unless it’s really necessary.
Notes about Reading of This Manual
Please be noted that the descriptions and graphics contained in this manual probably are not applicable for your machine in
use. The numbers in graphics are marked by circles. The same numbers in the descriptions are marked in parentheses. (For
instance: ①→(1))
Signs used in this manual
The meanings of the signs used in this manual are as below.
, …. Prohibition ……. Lock ……Unlock
Noise and vibration
A-Weighted emission sound pressure level at the operator's position measured according to work cycle procedures specified in
“ISO 6396 “ is 78dB(A), The hands and arms are exposed to a weighted root mean square acceleration that is less than 2.5 m/s2.
The body is exposed to a weighted root mean square acceleration that is less than 0.5 m/s2.
Measurements are obtained on a representative machine using the procedures in the following standards: ''ISO 2631-1" ''ISO
5349-1" ''ISO 5349-2"

Signal words.........................................................................................................................................................2
Introduction...........................................................................................................................................................3
Safety....................................................................................................................................................................8
General Precautions.......................................................................................................................................................................8
Precautions during Preparations..................................................................................................................................................11
Safety Measures at Start ........................................................................................................................................................12
Operation Precautions..................................................................................................................................................................13
Precautions for Parking................................................................................................................................................................18
Precautions during Transport.......................................................................................................................................................19
Precautions for maintenance.......................................................................................................................................................20
Safety Signs..................................................................................................................................................................................26
Controls...............................................................................................................................................................28
Component Name.................................................................................................................................................................... 2 8
Start key, Maintenance cover.......................................................................................................................................................30
Fuse case, Fuel filling port, Seat...................................................................................................................................................30
Electrical control panel.................................................................................................................................................................31
Switches.......................................................................................................................................................................................32
Joysticks and Pedals....................................................................................................................................................................33
Accessory.....................................................................................................................................................................................35
Operations...........................................................................................................................................................36
Before Start of Operations...........................................................................................................................................................36
Start and Stop of Engine..............................................................................................................................................................36
Operations of Machine................................................................................................................................................................38
Operations of Procedures............................................................................................................................................................44
Parking of This Machine..............................................................................................................................................................49
Treatment in Cold Weather.........................................................................................................................................................50
Handling of Rubber Tracks..........................................................................................................................................................50
Transportation.....................................................................................................................................................53
Loading and Unloading................................................................................................................................................................53
Lifting of Machine ..................................................................................................................................................................54
Fixing of Machine........................................................................................................................................................................55
Maintenance........................................................................................................................................................56
Overview......................................................................................................................................................................................56
Service Data.................................................................................................................................................................................57
Critical Safety Parts....................................................................................................................................................................62
Maintenance List.........................................................................................................................................................................63
Walk-Around Checking................................................................................................................................................................64
Daily routine checking (Every 10h)..............................................................................................................................................65
After first 50h (For new machine only)........................................................................................................................................68
Every 50h.....................................................................................................................................................................................69
Every 250h...................................................................................................................................................................................72
Every 1000h.............................................................................................................................................................................7 5
Every 1500h.............................................................................................................................................................................7 6
TABLE OF CONTENTS

Every 2000h.................................................................................................................................................................................77
As accessory...............................................................................................................................................................................78
Maintenance during Long-Time Parking......................................................................................................................................81
Troubleshooting..................................................................................................................................................82
Symptoms that are not malfunctions..........................................................................................................................................82
Engine Overheating......................................................................................................................................................................82
No Battery Power.........................................................................................................................................................................83
Burnout of Fuse...........................................................................................................................................................................84
Restart after Refueling.................................................................................................................................................................85
Flashing of Warning Lamps.........................................................................................................................................................85
Other Symptoms.........................................................................................................................................................................86
Towing.........................................................................................................................................................................................87
Parameters..........................................................................................................................................................88
Basic Parameters........................................................................................................................................................................88
Overall Dimensions of Machine...................................................................................................................................................88
Operating Range..........................................................................................................................................................................89
Lifting power................................................................................................................................................................................89
Accessories.........................................................................................................................................................90
General Safety Measures.............................................................................................................................................................90
Precaution...................................................................................................................................................................................91
Hydraulic Breaking Hammer........................................................................................................................................................91
Exploded View & Parts List..................................................................................................................................94
Exploded View--Front Operation, Upper Frame, Lower Frame Assembly....................................................................................94
Parts List-- Front Operation, Upper Frame, Lower Frame Assembly............................................................................................94
Exploded View--Engine Assembly...............................................................................................................................................95
Parts List--Engine Assembly........................................................................................................................................................95
Exploded View--Front Operating Device Assembly-1..................................................................................................................96
Parts List--Front Operating Device Assembly-1..........................................................................................................................96
Exploded View--Front Operating Device Assembly-2 (Boom Cylinder)........................................................................................97
Parts List--Front Operating Device Assembly-2 (Boom Cylinder)................................................................................................97
Exploded View--Front Operating Device Assembly-3 (Arm Cylinder)..........................................................................................97
Parts List--Front Operating Device Assembly-3 (Arm Cylinder)..................................................................................................98
Exploded View--Front Operating Device Assembly-4 (Bucket Cylinder)......................................................................................98
Parts List--Front Operating Device Assembly-4 (Bucket Cylinder)..............................................................................................98
Exploded View--Roll Cage Assembly...........................................................................................................................................99
Parts List--Roll Cage Assembly..................................................................................................................................................99
Exploded View--Front Hood Valve Operating Device...................................................................................................................99
Parts List--Front Hood Valve Operating Device.........................................................................................................................100
Exploded View--Front Hood Valve Operating Device-1 (Multi-way Valve Assembly)................................................................100
Parts List--Front Hood Valve Operating Device-1 (Multi-way Valve Assembly)........................................................................101
Exploded View--Seat assembly.................................................................................................................................................101
Parts List--Seat assembly..........................................................................................................................................................101
Exploded View--Lighting (Swivel Arm Mounted) and Lamps (rear lighting)..............................................................................102
Parts List--Lighting (Swivel Arm Mounted) and Lamps (rear lighting)......................................................................................102
Exploded View--Upper Frame Assembly....................................................................................................................................102
Parts List--Upper Frame Assembly............................................................................................................................................103

Exploded View--Upper Frame Assembly-1 (Swing Cylinder).....................................................................................................103
Parts List--Upper Frame Assembly-1 (Swing Cylinder).............................................................................................................103
Exploded View--Diesel Fuel Tank Assembly..............................................................................................................................104
Parts List--Diesel Fuel Tank Assembly......................................................................................................................................104
Exploded View--Fuel Oil System................................................................................................................................................104
Parts List--Fuel Oil System........................................................................................................................................................104
Exploded View--Cooling System................................................................................................................................................105
Parts List--Cooling System .......................................................................................................................................................105
Exploded View--Air Intake System.............................................................................................................................................105
Parts List--Air Intake System.....................................................................................................................................................106
Exploded View--Exhaust System...............................................................................................................................................106
Parts List--Exhaust System.......................................................................................................................................................106
Exploded View--Throttle Control System...................................................................................................................................106
Parts List--Throttle Control System...........................................................................................................................................107
Exploded View--Retractable Lower Frame Assembly-1.............................................................................................................107
Parts List--Retractable Lower Frame Assembly-1.....................................................................................................................107
Exploded View--Retractable Lower Frame Assembly-2 (Dozer Blade Cylinder)........................................................................108
Parts List--Retractable Lower Frame Assembly-2 (Dozer Blade Cylinder)................................................................................108
Parts List--Retractable Lower Frame Assembly-3 (Central Swivel Joint)..................................................................................108
Exploded View--Retractable Lower Frame Assembly-3 (Central Swivel Joint)..........................................................................109
Exploded View--Retractable Lower Frame Assembly-4.............................................................................................................109
Parts List--Retractable Lower Frame Assembly-4.....................................................................................................................109
Exploded View--Retractable Lower Frame Assembly-5 (Telescopic Cylinder)..........................................................................110
Parts List--Retractable Lower Frame Assembly-5 (Telescopic Cylinder)..................................................................................110
Exploded View--Retractable Lower Frame Assembly-6.............................................................................................................110
Parts List--Retractable Lower Frame Assembly-6.....................................................................................................................111
Exploded View--Hydraulic Pipeline Assembly...........................................................................................................................111
Parts List--Hydraulic Pipeline Assembly...................................................................................................................................111
Exploded View--Hydraulic Pipeline Assembly (Valve Part of the Front Hood)-1.......................................................................112
Parts List--Hydraulic Pipeline Assembly (Valve Part of the Front Hood)-1...............................................................................112
Parts List--Hydraulic Pipeline Assembly (Valve Part of the Front Hood)-2...............................................................................112
Exploded View--Hydraulic Pipeline Assembly (Valve Part of the Front Hood)-2.......................................................................113
Exploded View--Hydraulic Pipeline Assembly (Valve Part of the Front Hood)-3.......................................................................113
Parts List--Hydraulic Pipeline Assembly (Valve Part of the Front Hood)-3...............................................................................114
Exploded View--Grease Lubrication Pipeline Assembly(Upper Frame Part)..............................................................................114
Parts List--Grease Lubrication Pipeline Assembly(Upper Frame Part)......................................................................................114
Exploded View--Travel Motor....................................................................................................................................................115
Parts List--Travel Motor............................................................................................................................................................116
Exploded View--Swing Motor.....................................................................................................................................................117
Parts List--Swing Motor.............................................................................................................................................................117
Body Main Wiring Harness........................................................................................................................................................118
Fuse Box Wiring Harness...........................................................................................................................................................118

GENERAL PRECAUTIONS
You are liable to abiding by the safety laws and regulations of relevant departments and fulfilling the
operations, checking, and maintenance of machine.
As a matter of fact, all accidents are caused by the non-compliance with basic safety rules and precautions.
Most accidents can be avoided by authenticating the potential dangers in advance.
Please read and understand all safety information related to the prevention of accidents. Please ensure to operate the machine
only after you have understood how to operate, check, and maintain the machine correctly.
Abiding by All Safety Regulations
●The machine must be operated, checked, and maintained by trained and qualified personnel.
●During the operations, checking, and maintenance of machine, ensure to understand and abide by all rules, regulations,
precautions, and safety measures.
●Do not operate, check, or maintain the machine under the adverse influence of alcohol, drug, medicine, or fatigue or under
sleepy status.
Upon detection of machine abnormality
During the operations, checking, or maintenance of machine, upon detection of any machine abnormality (Such as noise,
vibration, smell, abnormal instrument, smoking or oil leakage, error warning indication, and abnormal display of electric control
panel), immediately notify a sales or service dealer and take appropriate measure. Do not operate the machine before the
abnormality is solved.
Operating Temperature Range
To maintain the performances and prevent the earlier wear of machine, please abide by the following operating conditions.
●Do not operate the machine when the outside temperature is more than+45℃or less than-15℃
-The operations under+45℃outside temperature will probably result in engine overheating and deteriorated engine
performance. In addition, the hydraulic oil will probably become really hot to harm the hydraulic devices.
-The operations under 15℃outside temperature will probably harden the rubber parts (Such as gaskets) and cause earlier
wear or damage of machine.
-To operate the machine under the condition beyond above-mentioned outside temperature range, please consult with your
sales or service dealer.
Wearing Appropriate Clothing and Protective Appliances
●Do not wear loose clothing or wear decorative articles that will probably hitch to any
joystick or motion part.
●Do not wear oil or fuel contaminated clothing that is easily vulnerable to fire.
●As per the requirements of working environment, wear safety shoes, safety helmet,
safety goggles, filtration mask, thick gloves, ear flaps, and other protective appliances.
During the use of grinding miller, breaking hammer, or compressed air, please wear
appropriate protective appliances, such as safety goggles and filtration mask, as the
splashing of metal chippings or other objects will probably cause serious harms.
●Please use the hearing protection devices during the operations of machine.
Exposure to a high noise environment for a long time will result in harm or even complete loss of hearing.
Installation of Fire Extinguisher and First-Aid Kit
Fulfill the preparations for fire and accident.
●Install the fire extinguisher and first-aid kit and learn how to use them.
●Learn how to extinguish fire and handle accident.
●Know how to contact emergency aid and fabricate the emergency contact list.
SAFETY

No Disassembling of Safety Devices
●Please ensure that all guardrails, shelters, and doors are installed properly and
securely. Before operating the machine, please repair or replace damaged parts.
●Know how to use safety lock handle, seat belt, and other safety devices and
understand the correct operation methods.
●Do not disassemble any safety device, unless for the purpose of checking and repair.
Always keep all safety devices under good working condition.

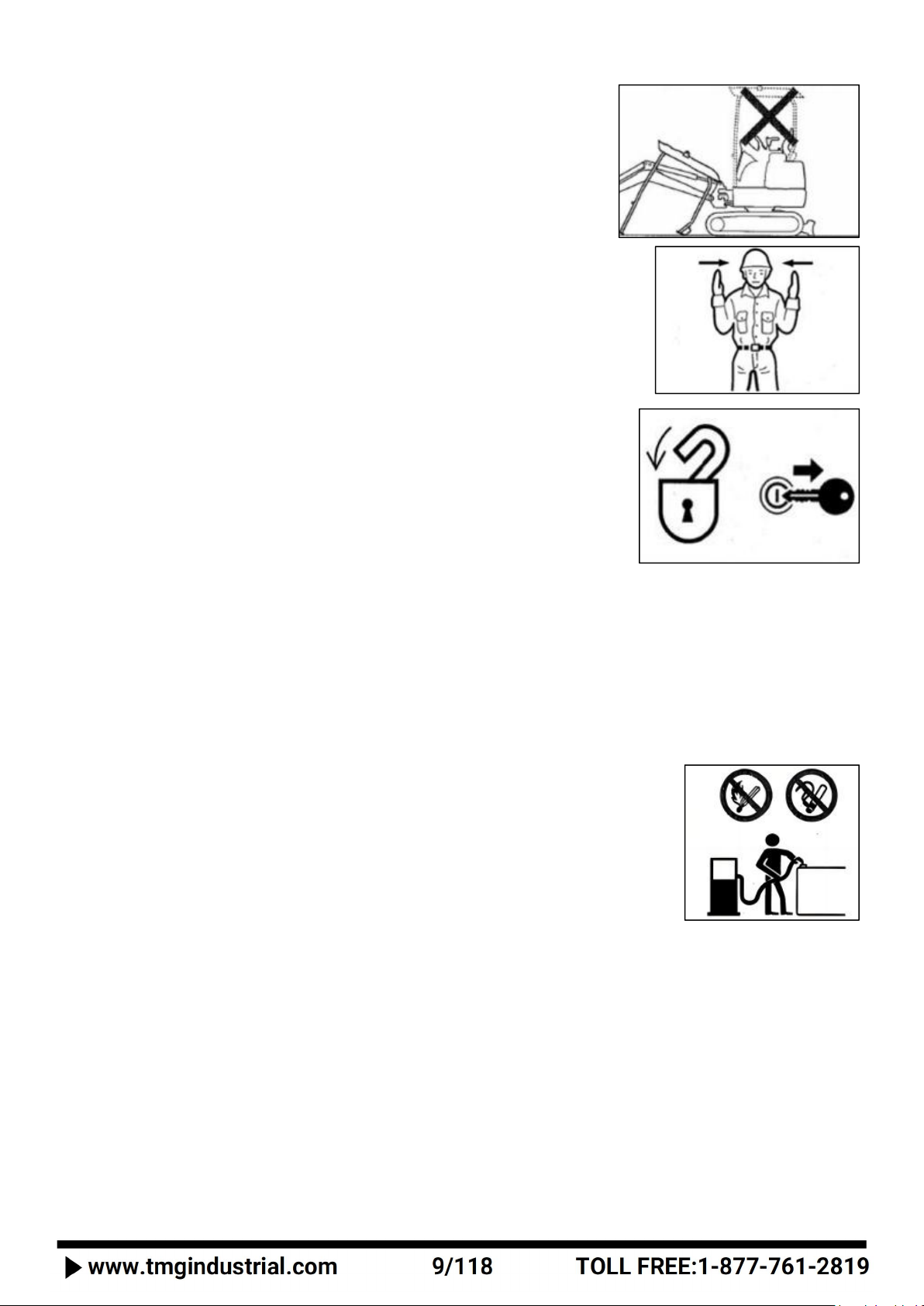

Setup of Signaler and Flagman
Learn how to use the gestures of specific operation needs and designate the person
responsible for making gestures.
●All personnel must completely understand all gestures.
●The operator must respond to the gestures of designated person only. However, the
operator must abide by the stop gesture made by anyone in all cases.
●The signaler must stand in a clearly visible place while making the gestures.
Precautions for Standing up from or Leaving Driver Seat
●Before standing up from the driver seat to open/close windows or disassemble/install
the lower window, lower the working device onto the ground, lift up and lock the safety
lock handle, and stop the engine.
When the safety lock handle is lowered down (Unlocked), the accidental touch of any
joystick will result in sudden movement of machine and cause serious injuries or deaths.
●Please be noted that, even if the safety lock handle is placed at locking position, the bulldozing blade, boom, and auxiliary
hydraulic controls can’t be locked. Do not touch such controls accidentally.
●While lifting up or lowering down the safety lock handle, take cautions not to touch any joystick.
Before leaving the driver seat, lower the working device onto the ground, lift up the safety lock handle to locking position, and
stop the engine. Meanwhile, ensure to withdraw the key, close the doors and hoods, and carry the key with you and then preserve
it in a designated place.
Guard against Fire and Explosion Dangers
Keep fuel, lubricating oil, grease, and antifreeze away from flame. The fuel is especially inflammable and really dangerous.
●Handle these inflammable away from ignited cigarette, match, lighter, and other flame
or fire source.
●Do not smoke or use open fire while handling fuel or performing the operations of fuel system.
●Do not leave the operation site while filling fuel or lubricating oil.
●Do not disassemble the fuel tank cap or refuel while the engine is running or is not
cooled down. In addition, do not splash fuel to any machine hot surface or electronic system part.
●Immediately clean the overflown fuel or lubricating oil thoroughly.
●Check for leakage of fuel and lubricating oil. Please eliminate the leaks and clean the machine before operations.
●Please move the inflammable to a safe place before polishing or welding operations.
●Do not cut or weld any pipeline or pipe that probably contains inflammable liquid. Please clean thoroughly by non-inflammable
solvent before cutting or welding.
●Remove all wastes and impurities from machine. Ensure that there is no oil contaminated rag or other inflammable on the
machine.
●Handle all solvents and dry chemicals (Foam fire extinguisher) as per the manufacturer’s procedures indicated on the
containers. Operate in a well-ventilated place.
●Never use fuel for cleaning purpose. Always use non-inflammable solvent.
●Please open doors and windows for thorough ventilation during the handling of fuel and the cleaning of oil stain or paint.
●Preserve all inflammable liquids and materials in a safe and well-ventilated place.
●The short-circuit of electric system will probably result in fire. Daily check the wire connections for looseness and damage.
Re-tighten loose connectors and cable clamps. Repair or replace damaged wires.

●Fire accident caused by pipelines: Ensure that the clamps, protection devices, and cushion pads of hoses and pipes are
securely fixed. In event of looseness, the hoses and pipes will be damaged due to vibration or contact with other parts during
operations. This will probably result in spray of high pressure oil to cause fire accident or harms.
Toxic Exhaust Gas from Engine
●Do not operate the engine in an enclosed place with poor ventilation.
●If the natural ventilation is not possible, install ventilation fan, fan, extended exhaust pipe,
or other ventilation device.

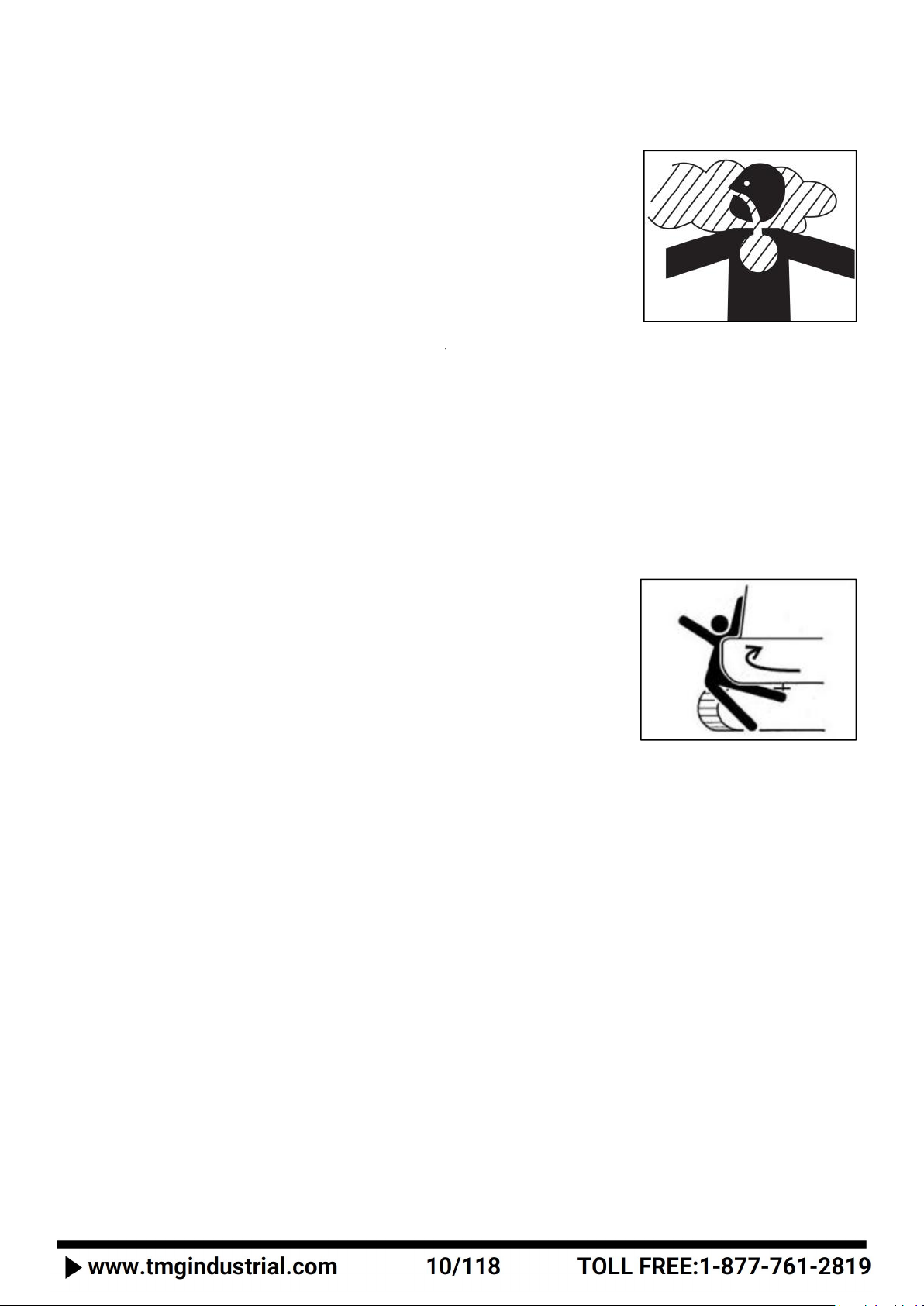

Handling of Asbestos Powders
The inhalation of asbestos powders will probably cause lung cancer. While handling the materials probably containing asbestos,
take the following safety measures:
●Do not sweep by compressed air.
●Avoid polishing or grinding asbestos-contained parts.
●During cleaning, use a vacuum device installed with high-efficiency particulate air filter (HEPA).
●If there is no other method for control of powders, please wear the specified respirator. During indoor operations, please
install a ventilation system with polymer filter.
●During operations, the non-authorized personnel are prohibited to access the working zone.
●Please strictly abide by the rules and environmental standards applicable for this working zone.
Be careful to avoid crushing or cuts
Never place your hand, foot, or other body parts between the superstructure and chassis or
tracks, between machine body and working device, or between cylinder and motion parts.
During movement of machine, these clearances will change to probably cause serious
Injuries or deaths.
Use of Accessories
●Please consult with Ken stone company before installing accessories. Based on the attachment types and their combinations,
the attachments will probably come into contact with the cab or other machine parts. Before use, ensure that the installed
Accessories will not come into contact with other parts.
●Do not use any attachment not approved by Ken stone company. Otherwise, it will probably endanger the safety or cause
adverse influence on operations or life of machine.
●Ken stone company will not be liable for any injury, accident, or product damage arising from the use of non-approved
attachments.
No Modification to Machine
The non-authorized modifications to the machine will cause injuries or deaths.
All non-authorized modifications are prohibited for any part of machine.

PRECAUTIONS DURING PREPARATIONS
Understanding of working zone
Before starting operations, understand the situation of working zone to ensure safety.
●Check the terrain and ground situation of working zone. For indoor operations, check the
building structure and when necessary take safety measures.
●Ensure to keep away from dangers and obstacles such as water ditch, underground
pipelines, trees, cliffs, overhead cables,and roads with falling stone or landslide danger.
●Check the positions of underground gas pipelines, water pipelines, and electric cables
together with administrator. If necessary, discuss with administrator to determine the
detailed safety measures to be taken to ensure safety.
●During operations on road, ensure to take the safety of pedestrians and vehicles into
consideration.
- Use a signaler and/or signals.
- Isolate the working zone against the access of non-authorized personnel.
●Before operations in water or driving through shallow rivers, check the water depth,
ground firmness, and flow rate in advance.
Understand more operation description information with reference to the “Precautions
during Operations”
Checking of Bridge Strength
Please check the permissible load before driving on bridges or structures. If the strength
is insufficient, reinforce the bridges or structures.
Always Keeping Clean Machine
●Eliminate all loose objects and unnecessary devices in the machine.
●Wipe away lubricating oil, grease, mud, snow, and ice, in order to prevent accident due to slip.
●Remove dusts, lubricating oil, and grease from engine portion to prevent fire accident.
●Clean the area around operator's seat and remove all unnecessary objects from the machine.
Daily Checking and Maintenance
The failure to find out or repair the abnormalities or damages of machine will cause accidents.
●Before operations, fulfill the designated checking and when necessary repair immediately.
●In event of operation failure due to malfunction or engine malfunction, immediately stop the
engine as per stop procedure and park the machine securely, till the malfunction is repaired.
Precautions within Cab (If installed)
●Before entering the cab, remove the mud and oil/grease from the shoe bottoms.
Operating the machine pedals with shoe bottoms affixed with mud and oil/grease will result in accidents due to slip.
●Do not place any part or tool around the driver seat.
●Do not place any plastic bottle in the cab or install any sucker on window glasses. The plastic bottle or sucker can play a lens
role to probably cause fire accident.
●Do not use a mobile phone during traveling or operations.
●Do not bring any inflammable or explosive into cab.
●Do not leave a lighter in the cab. The lighter will probably explode along with the rise of room temperature.

SAFETY MEASURES AT START
Safety measures when starting
Support your body weight by three-point safety posture while getting on/off the machine.
●Do not jump on or off the machine. Do not attempt to get on or off a moving machine.
●Before getting on or off the cab, firstly open the door completely to locking position and
check and ensure that the door can’t move further(For machine with cab).
●Face towards the machine, get on/off the footplates, and grab the handrail to support your
weight by three-point safety posture (Hands and feet).
●Do not use safety lock handle or any joystick as handrail.
Before starting machine, keep all non-authorized personnel away from this zone Start the engine only after the
safe start is confirmed by checking the following items.
●Walk around the machine and alert the repair personnel and the personnel walking
around the machine. Start the engine only after it’s confirmed that there is no person
around the machine.

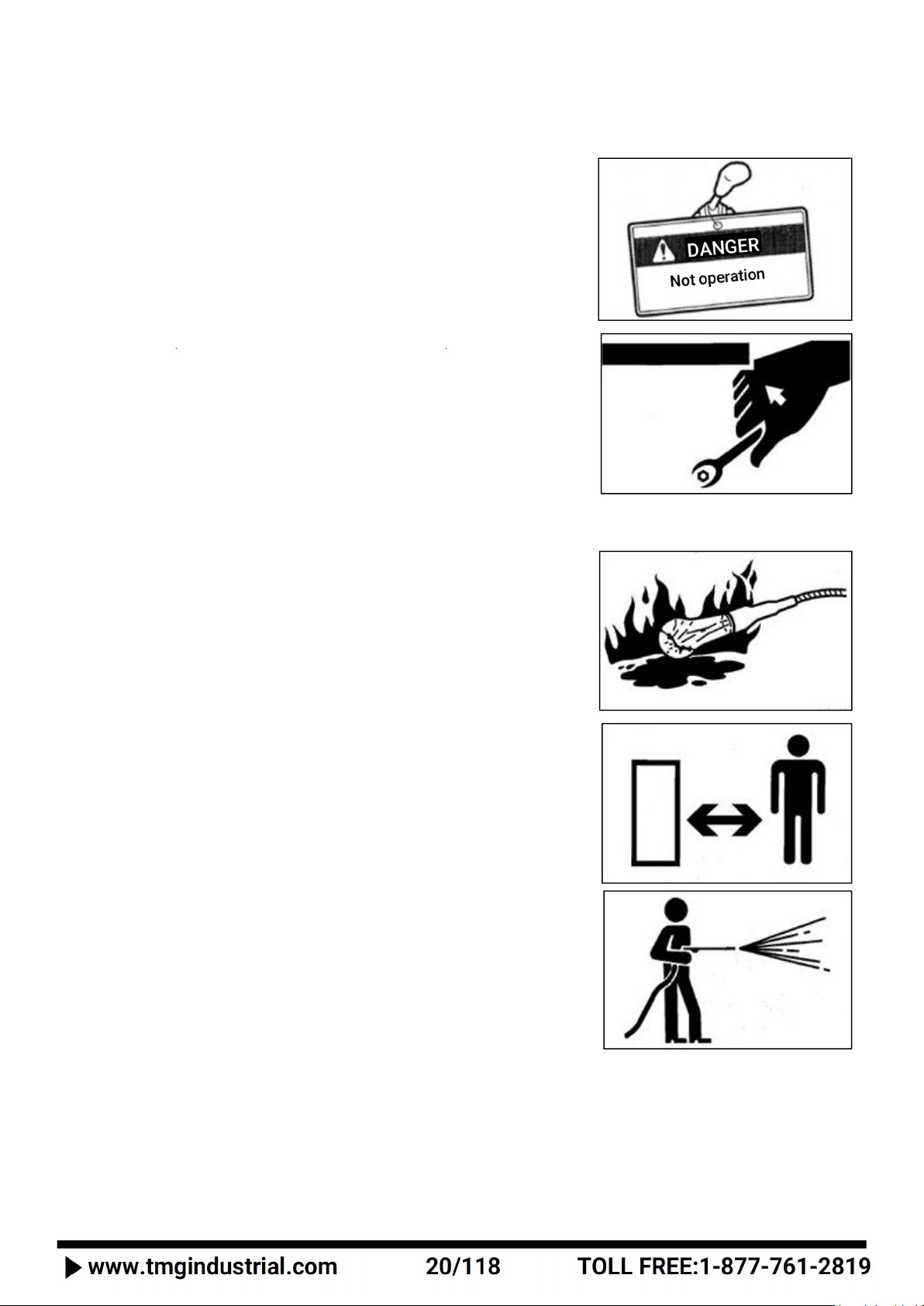

●Check for warning sign “No Operation” or similar sign affixed on cab door, control,
or starter switch. If present, do not start engine or touch any joystick.
●Sound the horn to alert the personnel around machine.
Sit in the driver seat and start the engine.
●Adjust the seat till it’s securely locked.
●Fasten the seat belt.
●Check whether the parking device is actuated and all joysticks and pedals are in neutral.
●Check whether the safety lock handle is at locking position.
●Ensure there is no person near the machine.
●Start and operate the machine only in driver seat.
●Do not attempt to start the engine by short circuiting the terminals of starter device.
Start by Jumper Cable
Start by jumper cable only as per the recommended method. The improper use of
jumper cable will result in battery explosion or unexpected machine motions.
Please refer to “In event of no battery power” to understand more operation description
information.
After Start of Engine
After the start of engine, fulfill following operations and checking in a place without personnel or obstacle. Upon detection of any
malfunction, stop the engine as per the procedure and report malfunction.
Warm up the engine and hydraulic oil.
Check all instruments and warning devices for normal functioning.
Check for presence of noise.
Test the engine speed control.
Operate all control devices to ensure normal functioning.
For Cold Weathers
Take cautions that the frozen ground, footplates, and handrails are slip. Under cold weathers,
do not touch any metal part of machine by bare hands. Your skin will be frozen on metal part to
cause serious injuries.
Do not use ethyl ether or starting fluid on the engine. The starting fluid can cause explosion and
serious injuries or deaths.
Warm up the engine and hydraulic oil.
Operating joysticks without warm-up will result in slow or inappropriate reaction or movement
of machine to cause accident.

OPERATION PRECAUTIONS
Operating Machine with Maximum Track Width
Always operate the machine with extended track width of 950mm, in order to improve
the machine stability to the maximum extent.
Operating the machine with narrow track width (800mm) will probably result in rollover
of machine due to poor stability.
If it’s necessary to operate the machine with narrow track width (800mm), retract the
bucket working device and lower the boom to reduce the gravity center and face the
machine towards front before traveling.
Guarantee of Good Visibility
Checking of Visibility before Operations of Machine
During operations in a dark place, turn on the working lamp and headlamp of machine and when necessary install additional
lighting devices. In event of poor visibility due to severe weathers (Such as fog, snow, rain, and haze), stop the operations of
machine till the visibility turns good.
Clean the windows, mirrors, lamps, and camera to keep good visibility. Adjust the mirrors and camera to optimal positions
to ensure that the driver sitting in the driver seat can see the rear view (Blind spot).
The non-authorized modification or the installation of non-approved attachments will probably impair the visibility. The operator’s
visibility must conform to the requirements of ISO 5006.
Do not carry people on the machine .
All personnel are prohibited to sit on any part of machine at any time during traveling
Or operations of machine.
Checking for Safe and Reliable Working Zone before Operations
Verify the performance limits of machine.
Set up a signaler at the road shoulders, narrow places, or vision-obstructed places.
Do not allow any person to access the turning radius or path of machine.
Sound the horn to indicate your movement intention.
There are blind zones behind the machine.
Before driving backward, check the safety in the area behind machine and ensure there
is no person behind the machine.
Checking of Chassis (Tracks) before Traveling
Before operating the traveling joystick/pedal, ensure that the bulldozing blade is in front
of the driver seat. Please bear in mind that the operation direction of the traveling
joystick/pedal with bulldozing blade behind the driver seat is reverse to that with
bulldozing blade in front of driver seat.
Safe Traveling
The bulldozing blade shall be lifted during traveling. Retract the bucket working device
as shown in above diagram and lift the bucket by 30~40cm off the ground.
Do not slew during the traveling. If it’s necessary to operate the bucket working device
during traveling, operate at sufficiently low speed to ensure the complete control at all
times.

Avoid driving over obstacles whenever possible. If it’s necessary to drive over obstacles,
keep the bucket operating device near the ground and travel at low speed. Do not drive over
any obstacle that will incline the machine by 10° or larger.
On rugged roads, drive the machine at low speed and avoid the sudden startup, stop, and
direction change. Otherwise, the working device will probably come into contact with the
ground to cause unbalance and damage of machine or destruct the structure in surrounding
area.

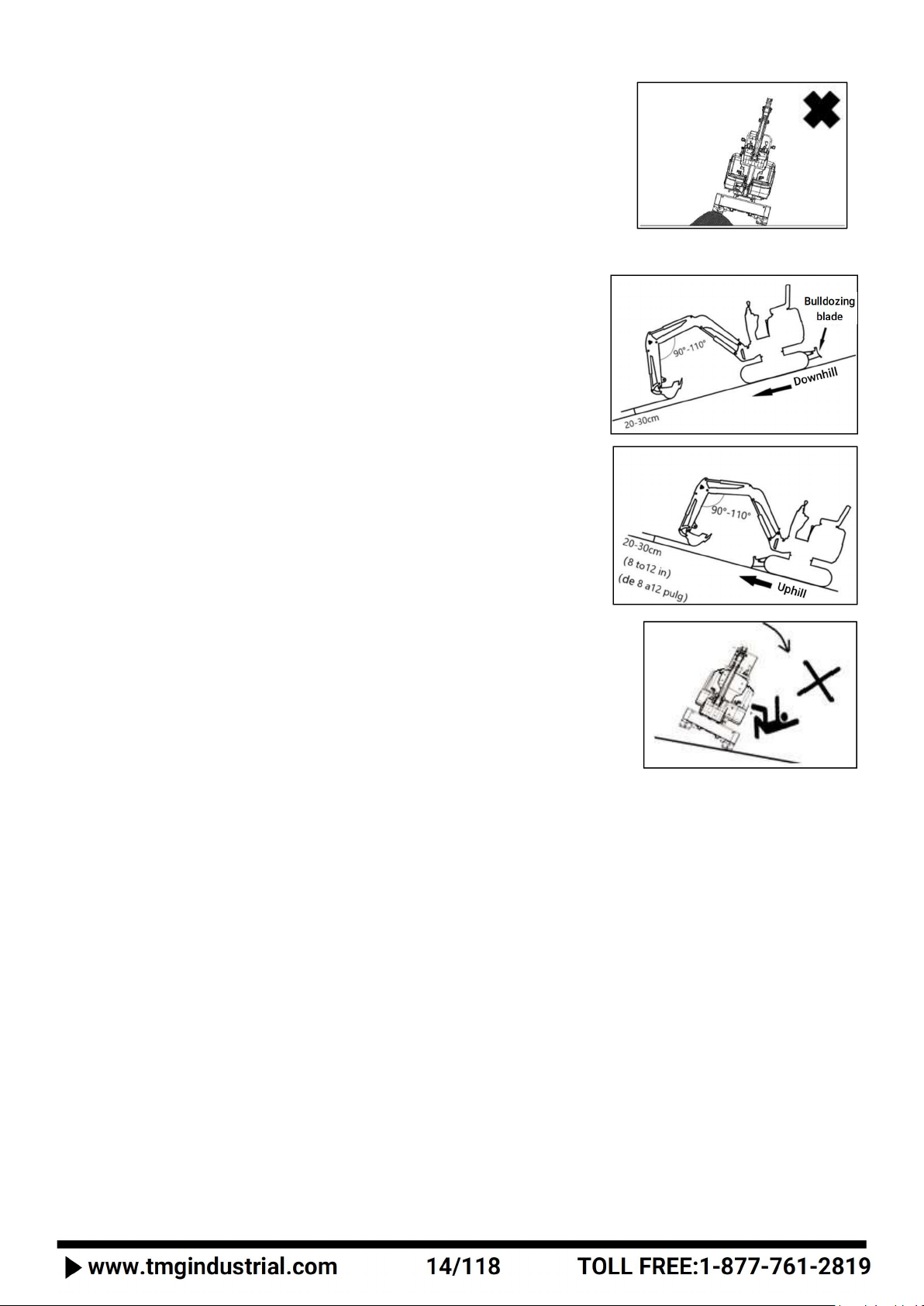

Precautions for Traveling on Slopes
While traveling on slopes, take cautions to prevent the rollover and gliding of machine.
Do not drive the machine on a slope steep enough to cause instability of machine.
Please be noted that, in the actual applications, the performances of machine on a
slope will be deteriorated due to severe working conditions.
Keep the driver seat facing towards the up slope direction while climbing up a slope.
Keep the driver seat facing towards the down slope direction during down slope
traveling. In both cases, pay special attention to the ground ahead of the
While traveling on a slope, lower the bucket to 20~30cm off the ground. While climbing
up a steep slope, extend the bucket working device to the front position. In event of an
emergency, lower the bucket onto the ground and stop the engine of machine.
When walking on slopes or ramps, drive slowly. Reduce engine speed when going
downhill. Do not reverse the machine down a slope.
Do not change direction on slopes or cross slopes. First return to the flat surface, and
then take another path.
When walking on a gentle slope covered with grass or dead leaves, or when walking on wet
metal plates or frozen ground, the machine may slip. Make sure that the machine does not
stop laterally on a slope.
If the machine stalls on a slope, return the operating levers to the neutral position, and then
restart the engine.
Special Cautions for Operations of Machine on Ice/Snow
While traveling on snowy or icy roads, drive at low speed and avoid the sudden startup, stop, and direction change.
In snowy regions, the road curbs and the roadside objects are buried in the snow to become invisible. In addition, there is a
danger of machine rollover or collision with covered objects. Therefore, always operate with cautions.
There is a danger of rollover or snow entrapment while driving the machine into thick snow. Drive with cautions and do not drive
over road curbs or entrap in the snow.
For frozen soil surface, the ground becomes soft when the temperature rises, which will probably result in rollover of machine
and entrapment of operator in the machine.
While parking the machine on a unstable ground, lower the bulldozing blade.

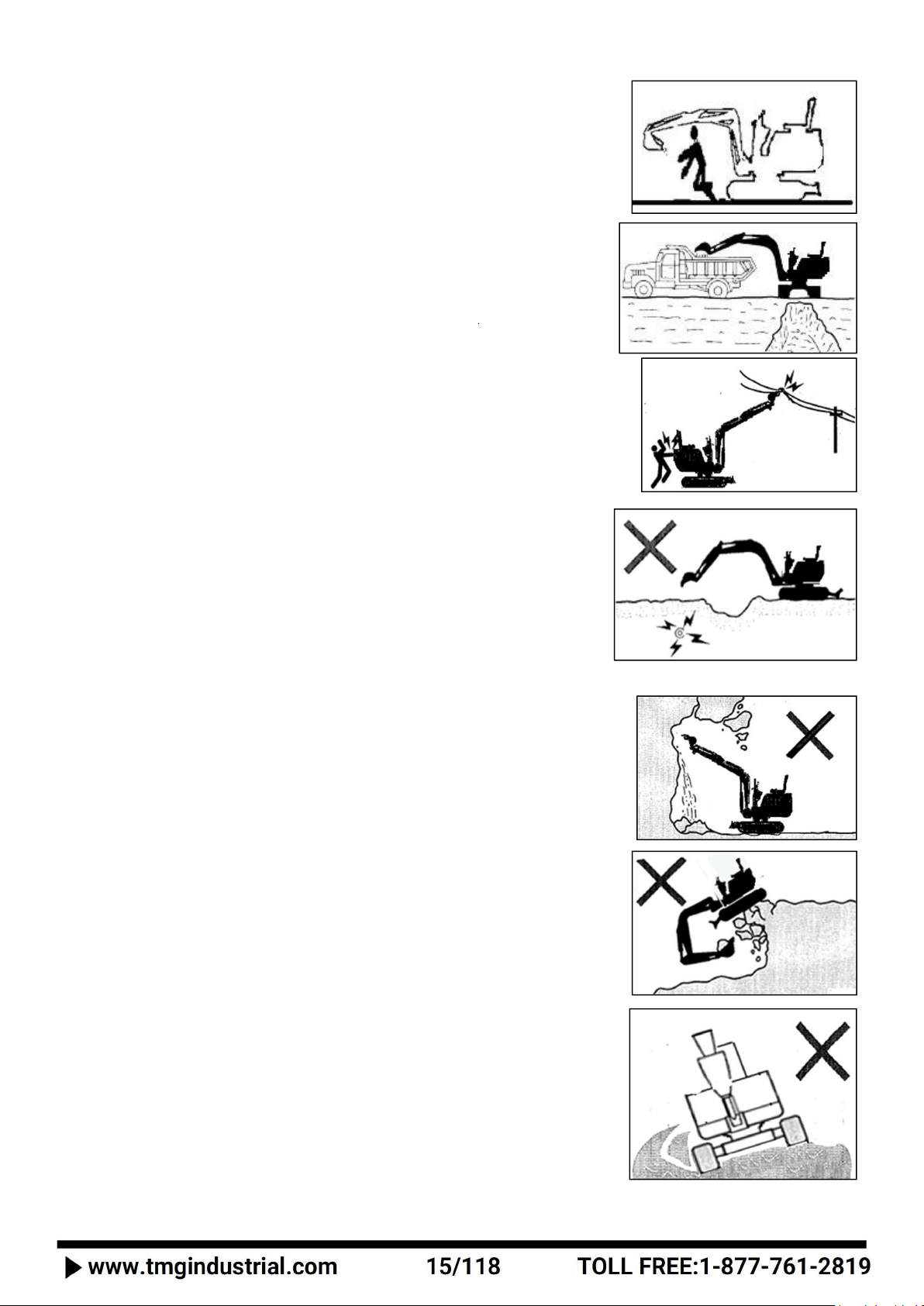

No Movement of Bucket over Personnel
Moving the bucket over the personnel has a danger of splashing of loaded material
or the sudden falling of bucket.
Guarantee of Driver’s Safety during Loading
Do not load before the driver reaches a safe place.
Do not swing or position bucket above personnel or cab.
Load from the backdoor of trucks.
Keeping a Safe Distance from Overhead
High-Voltage Cables
Never close any part or loaded material of machine to high-voltage cables, unless all
safety measures specified by local and national authorities are already taken. There is
a danger of electric shock and death when any person approaches to the machine that
is discharging electric spark or is near or in contact with power supply.
Always keep a safe spacing between machine and high-voltage cables.
Before starting operations, please verify the relevant operation safety procedures with
local power grid.
Consider all electric cables as high-voltage cables. Even if it’s known or believed that
the power supply is cut off or the cable is clearly grounded, consider such cables also
as live cables.
If the machine is too close to high-voltage cables, set up a signaler to sound warnings.
Keep all personnel within operation zone away from machine and loaded material.
Pay special attention to the underground high- voltage cables.
Close Observation on Dangerous Working Conditions
Never dig on the bottom of any high embankment. It’s really dangerous because such
operation will probably result in surface collapse.
Do not operate in any place with falling stone danger.
Keep a safe spacing between machine and edge of digging site. Do not dig the ground
ahead of machine.
During the operations near a cliff or road curb, to ease the escape in any event, form a
right-angle between tracks and cliff or road curb and place bulldozing blade in the front.
Do not access any soft ground area. This will probably result in inclination of machine
due to dead weight to cause rollover or ground entrapment.

Keep away from unstable ground (Cliffs, road curbs, and deep ditches). If the ground
collapses due to machine weight or vibration, there is a possible danger of machine falling
or rollover. Please bear in mind that the soil turns infirm after heavy rain or explosion.
The ground on the top of embankment and the ground around and on top of the dug
ditches are also infirm.
Do not perform demolition operations beneath the machine. There is a possible falling
danger of machine when the ground becomes unstable.
Before the operations on the top of any building or other structure, check the strength and
structure. It will cause serious harms or destruction if the building or structure collapses.
Do not perform demolition operations above your head. There is a falling damage of
damaged parts or collapse danger of building to cause serious harms or destruction.
Do not perform the demolition operations by the impact force of bucket working
device. The splashed material fragments and the damaged bucket working device
have a danger of serious harms.

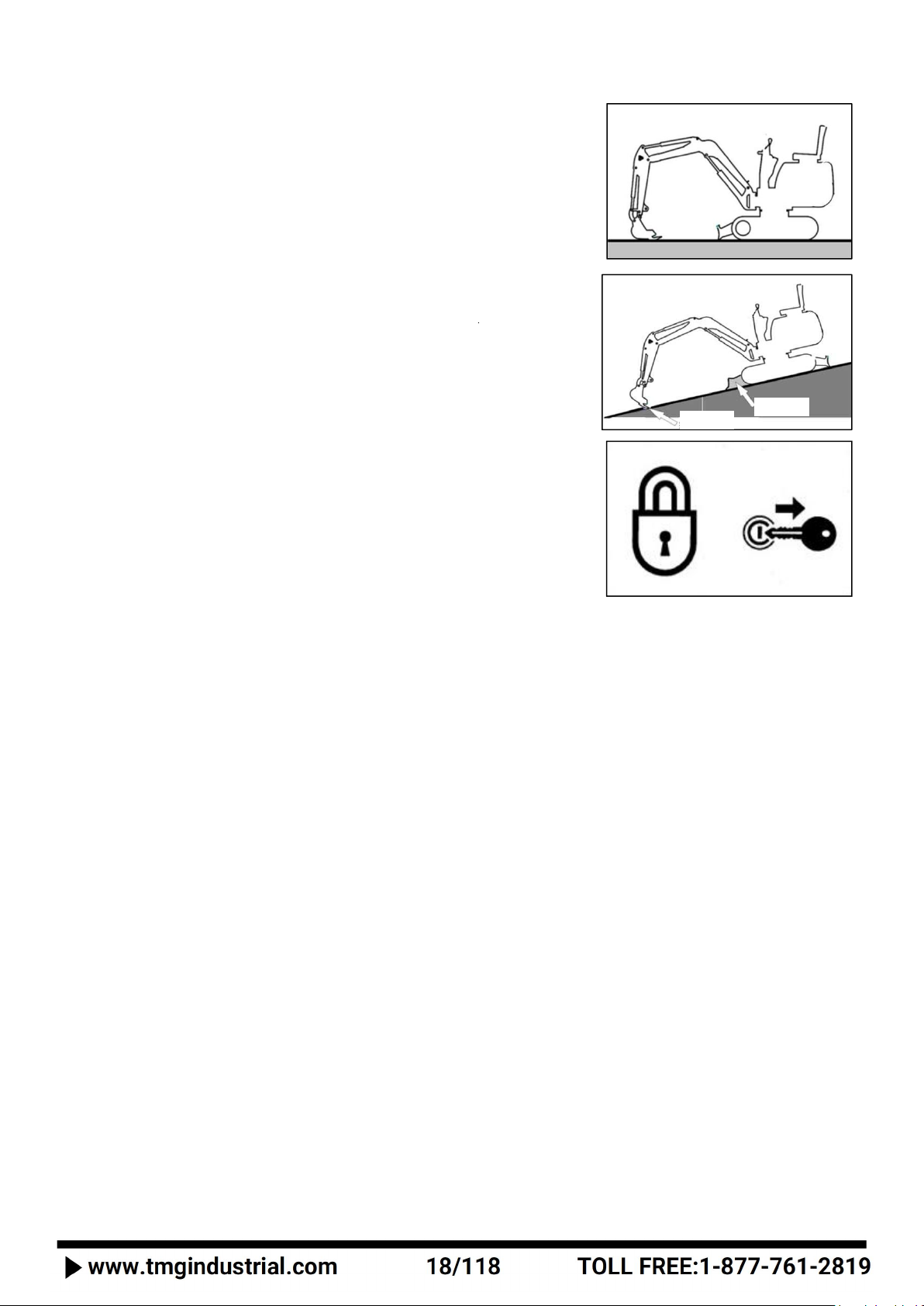

Danger during Operations on Slopes
During operations on slopes, slewing or operating the working device can probably
result in instability or rollover of machine.
Avoid operations on slopes whenever possible.
Leveling operation zone
If the bucket is fully loaded with material, avoid slewing towards the down slope
direction. Otherwise, it will deteriorate the machine stability and probably result
in rollover.
No Lateral Slewing (Swing) with Bucket Heavily Loaded
The machine is more vulnerable to rollover in lateral direction than longitudinal
direction.Do not laterally slew (swing) when the bucket working device is heavily
loaded. Especially, do not laterally slew (swing) on a slope. When the machine is
equipped with breaking hammer, grinder, or extended bucket arm, the attachment
end is heavier than that with standard bucket. For machine with such heavy end, do
not face the bucket arm (boom) towards down slope direction for digging or towards
lateral direction for operations.
Landfill

Please pay attention to the objects above your head
During operations under bridges, in tunnels, near cables, or indoors, guard the boom
and bucket arm against impact with any overhead object.
Not Designed for Lifting Application
This machine is specially designed for digging operations. Therefore, it’s not
installed with safety devices for lifting operations. Take special cautions while
using this excavator for lifting operations.
Do not overload during lifting. The overload will result in rollover of machine to cause
serious injuries or deaths.
All rated lifting capacities are based on the condition of using this machine on a firm
and level ground. The user’s is recommended to reserve an appropriate allowance for specific working conditions, in order to
ensure the safe lifting operations. The soft or uneven ground, non-level status, lateral load, dynamic or sudden load, dangerous
environment, and personnel experience are included. Before operating the machine, the operation personnel and other personnel
shall be really familiar with the Operation Manual. The safe operation regulations of the machine shall be strictly followed in all
cases.
If the chain or lifting device is incorrectly connected, the bucket connecting rod or the lifting device will probably fail to cause
serious injuries or deaths.
While using this machine as a crane, do not attempt to pull out a stump from the ground. For this application, the load applied
onto the machine is completely unknown.
Do not allow any person to stand on or beneath the lifted object or close to the operation zone.
Please pay attention to flying objects
This machine is not installed with any protective device to guard the operator against the harms of flying objects. Do not operate
this machine in any dangerous place in which the operator is probably subject to the impact of flying objects.
Precautions for Towing
During towing, the improper operations, the incorrect use of rope, or the improper checking will
cause serious injuries or deaths.
The breakage or cracking of rope can cause danger. Use wire ropes compatible with the towing force.
Do not use any kinked, twisted, or even damaged rope.
Do not suddenly apply heavy load onto the rope.
Please wear safety gloves during the handling of rope.
Ensure that an operator is assigned each on the towing machine and the towed machine.
Do not operate the towing operation on a slope. Keep all personnel away from the rope during towing.
Please refer to the section “Towing” to understand more description information.
20°or less

PRECAUTIONS FOR PARKING
Safe parking
●Stop the machine on a level, solid, and safe ground. Set the parking device.
●If it’s necessary to park the machine or tilt the machine on a slope, securely
park the machine and block the machine against movement.
While parking the machine in a street, use gratings, warning signs, or lamps to
keep the visible even in the night, in order to prevent the impact with other vehicles.
●Complete the following operations before leaving the machine:
Lower the bucket and bulldozing blade onto the ground.
Lift up the safety lock handle to the locking position.
Stop the engine and withdraw the starter key.
Lock the cab and hood and carry the key with you.
Stopper
dug into

PRECAUTIONS DURING TRANSPORT
Safe loading/unlocking of machine
The machine will probably roll over or fall off during loading and unloading. Ensure to
take the following safety measures:
Select a solid and level ground and keep a sufficient spacing from the road curb.
Fix the ramps of sufficient strength and dimensions to the cargo body of truck.
The inclination of the ramps shall not exceed 15°. If the ramps deflect downward
excessively, please support the ramps by supports or cushion blocks.
Do not load or unload the machine by working device. Otherwise, it will probably result in rollover or falloff of machine.
Keep the truck cargo body and the ramps clean without oil, sand, ice/snow, or other impurity, in order to prevent the side slip of
machine. Clean the tracks.
Block the wheels of transport truck by wedges to prevent movement. While loading or unloading the machine, drive the machine
slowly in 1st gear (low speed) as per the signals of the signaler.
Do not change direction on ramps.
Do not slew/swing on ramps. Otherwise the machine will probably roll over.
Slewing (swinging) the machine on the cargo body of truck will probably result in unstable legs of machine. Therefore, operate
slowly. If possible, lock the cab doors after loading. Otherwise the cab doors will probably open during the transport.
Plug securely the tracks by wedges and then fix the machine to the truck cargo body securely by ropes or chains.
Safe Lifting of Machine
Master and utilize the correct lifting gestures.
Daily check the lifting device for damaged and missing parts and when necessary replace.
Please use the ropes of sufficient capacity for the machine weight during lifting.
Lift the machine as per the procedure described below. Do not operate by any other method, otherwise it will probably result in
unbalance of machine.
Please refer to the section “Lifting of Machine” to understand more description information.
Do not operate the lifting if there is any operator on the machine.
Operate slowly during lifting to prevent the rollover of machine.
During lifting, keep all personnel away from working zone. Do not move the machine over any person.
Safe Transport of Machine
During the transport of machine, understand and abide by all applicable safety rules, vehicle codes, and traffic regulations.
Take the length, width, height, and weight of the transport truck with loaded machine into consideration, in order to select the
best transport route.
During the transport, do not start up or stop the transport truck suddenly or drive at high speed. Otherwise, it will result in
movement or unbalance of loaded machine.
Stop block
Ramp
15°or less
Fix to suspension parts
Distance between

PRECAUTIONS FOR MAINTENANCE
Warning Information of “No Operation” Sign
During the checking or maintenance of machine, the start of engine or the touch of
any joystick by non-authorized personnel will probably result in serious injury
accidents.
Before maintenance, please stop the engine and withdraw and carry the key.
Affix warning information “No Operation ” to an eye-catching place such as starter
switch and joystick.
Use of Correct Tools
Do not use any damaged or deteriorated tool or any tool designed for other
application. Use tools suitable for related operations.
Periodically Replaced Critical Safety Parts
Replace the fuel hoses periodically. The fuel hoses will wear gradually along with time,
even if no wear symptom is visible.
Upon detection of any wear symptom, replace the fuel hose, regardless of the replacement schedule.
To understand more details, please refer to the section “List of Critical Safety Parts”.
Explosion-Proof Lamps
While checking the fuel, lubricating oil, coolant, and battery electrolyte, please use
explosion- proof lamps to prevent fire and explosion. Otherwise, it will probably
result in explosion to cause serious injury accidents.
No Access of Non-Authorized Personnel
During operations, the non-authorized personnel are prohibited to access the working
zone. Take cautions during grinding, welding, and use of hammer. You will probably
be injured by the flying fragments from the machine.
Preparations of Working Zone
Select a stable and level working zone. Ensure the appropriate illumination conditions.
For indoor operations, keep well ventilated. Remove obstacles and dangerous goods.
Clear slippery areas.
Always Keeping Clean Machine
Please clean the machine before maintenance. Stop the engine before cleaning the
machine. Cover the electric parts against water ingress. The water ingress into the electric parts will probably result in short-
circuit or malfunction. Do not clean the battery, electronic control units, sensors, connector, or cabby water or steam.
Stop of Engine before Maintenance
While the machine is working or the machine is not working but the engine is running, avoid lubricating or further adjusting the
machine.
If the maintenance requires the running of engine, assign two operators for teamwork and keep contact with each other.
