RHINO RHINO 95C User manual

© 2011 Alamo Group Inc. $0.00
95C
Published 01/11 Part No. F-4145
OPERATOR’S MANUAL
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]
BACKHOE
This Operator's Manual is an integral part of the safe operation of this machine and must
be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety
and Operation Instructions contained in this manual before operating the equipment. C01-
Cover

TO THE OWNER/OPERATOR/DEALER
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the
potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety
equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!!Read the safety messages on the implement and shown in your manual. Observe the rules of safety
and common sense!
WARRANTY INFORMATION:
Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form in full and return it to
within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card and on the Warranty Form that you retain.
The use of “will-fit” parts will void your warranty and can cause catastrophic failure with possible injury or death.
LEA EL INSTRUCTIVO
Si No Lee Ingles, Pida Ayuda a Alguien Que Si
Lo Lea Que Le Traduzca Las Medidas de
Seguridad.

TABLE OF CONTENTS
SAFETY SECTION ............................................................................................................................... 1-1
General Safety Instructions and Practices ................................................................................................1-2
Connecting and Disconnecting Safety Instructions and Practices ............................................................1-5
Equipment Operation Safety Instructions and Practices ...........................................................................1-6
Transporting Safety Instructions and Practices .......................................................................................1-11
Storage Safety Instructions and Practices ..............................................................................................1-13
Maintenance Safety Instructions and Practices ......................................................................................1-13
Concluding Safety Instructions and Practices .........................................................................................1-14

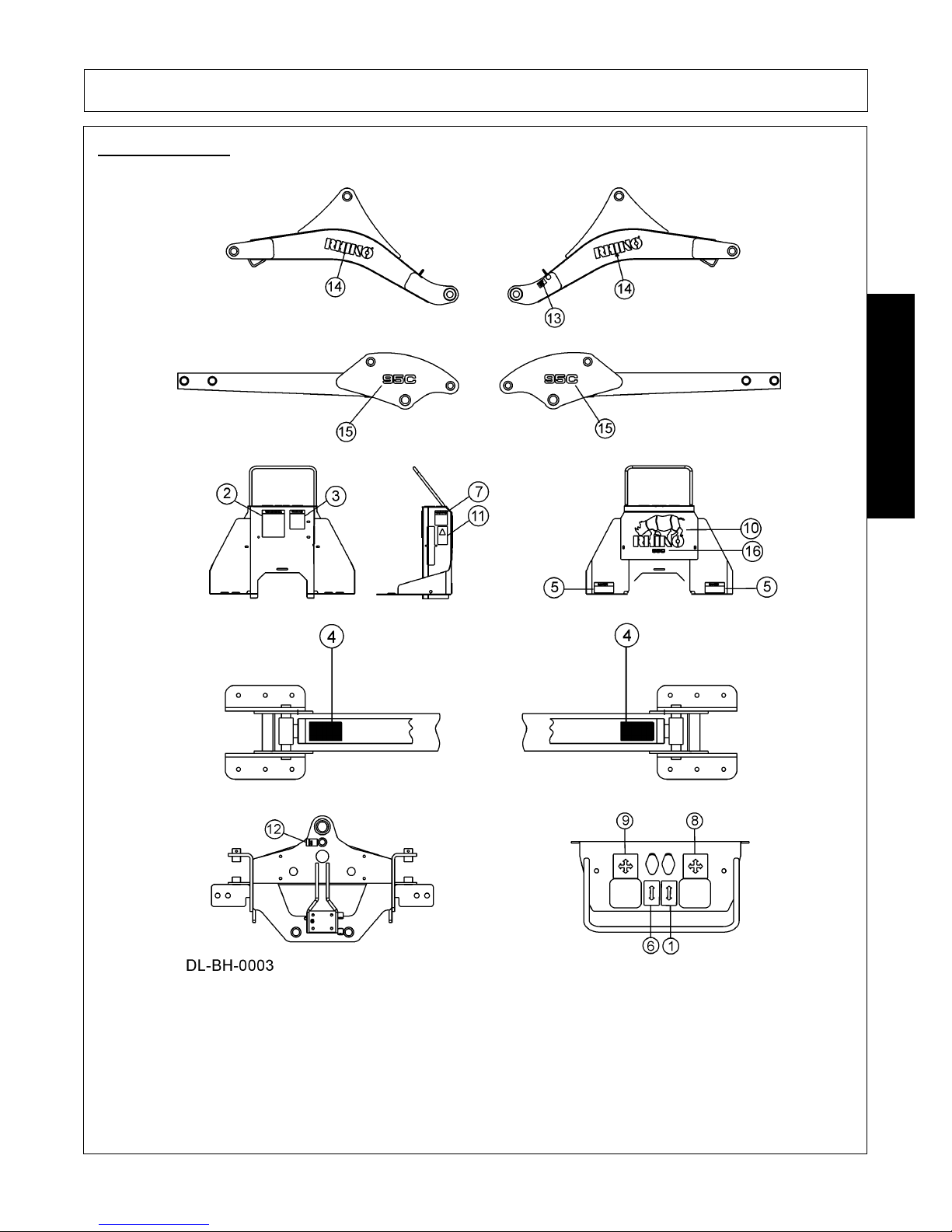

Decal Location ........................................................................................................................................1-15
Decal Description ....................................................................................................................................1-17
Federal Laws and Regulations ................................................................................................................1-19
INTRODUCTION SECTION ................................................................................................................. 2-1
SPECIFICATIONS ....................................................................................................................................2-3
ASSEMBLY SECTION ......................................................................................................................... 3-1
INSTALLING PUMP KIT (Optional) ..........................................................................................................3-2
INSTALLING THREE POINT ADAPTER (Option) ....................................................................................3-3
MOUNTING BACKHOE TO TRACTOR ....................................................................................................3-4
OPERATION SECTION ....................................................................................................................... 4-1
PRE-OPERATION CHECKLIST ...............................................................................................................4-2
OPERATING DIRECTIONS ......................................................................................................................4-2
ENGINE SPEED .......................................................................................................................................4-2
CONTROLS ..............................................................................................................................................4-2
BOOM/SWING ..........................................................................................................................................4-2
CROWD/BUCKET .....................................................................................................................................4-2
LEFT HAND STABILIZER .........................................................................................................................4-3
RIGHT HAND STABILIZER ......................................................................................................................4-3
OPERATING BACKHOE ..........................................................................................................................4-3
FILLING BUCKET .....................................................................................................................................4-4
DUMPING BUCKET ..................................................................................................................................4-4
TRENCHING BETWEEN A BUILDING & OPEN EXCAVATORS ............................................................4-4
SIDE SLOPE EXCAVATING OR TRENCHING ........................................................................................4-5
MISCELLANEOUS ....................................................................................................................................4-6
FINISHING STRAIGHT WALLS ................................................................................................................4-6
BACKFILLING ...........................................................................................................................................4-7
SEAT ADJUSTMENT ................................................................................................................................4-7
MOUNTING AND DISMOUNTING BUCKETS .........................................................................................4-7
PLACING THE STABILIZERS ..................................................................................................................4-8
SWING LOCK ...........................................................................................................................................4-8
BOOM LOCK ............................................................................................................................................4-8
STABILIZER LOCK ...................................................................................................................................4-8
TRANSPORTING THE BACKHOE ...........................................................................................................4-8
REMOVAL FROM TRACTOR - STORAGE ..............................................................................................4-9
MAINTENANCE SECTION .................................................................................................................. 5-1
CYLINDER SERVICE ...............................................................................................................................5-2
CYLINDER DISASSEMBLY ......................................................................................................................5-2
CYLINDER ASSEMBLY ............................................................................................................................5-2
BEGINNING OF SEASON ........................................................................................................................5-3
HYDRAULIC HOSES ................................................................................................................................5-3
HYDRAULIC SYSTEM RESERVOIR .......................................................................................................5-3
BUCKET TOOTH POINTS ........................................................................................................................5-4
TIGHTENING NUTS AND BOLTS ............................................................................................................5-4

LUBRICATION ..........................................................................................................................................5-4
LUBRICATION CHART .............................................................................................................................5-4
HYDRAULIC TROUBLESHOOTING ........................................................................................................5-5
VALVE SERVICE ......................................................................................................................................5-7
MAIN RELIEF REPLACEMENT .............................................................................................. 5-7
SPOOL SEAL INSTALLATION ............................................................................................... 5-7
TORQUE SETTINGS ................................................................................................................................5-7
PARTS LIST ..............................................................................................................................................5-9
PROPER TORQUE FOR FASTENERS .................................................................................................5-10

Safety Section 1-1
SAFETY SECTION

SAFETY
F-4145 01/11 Safety Section 1-2
© 2011 Alamo Group Inc.
SAFETY
General Safety Instructions and Practices
A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to
the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and
observing certain precautions. The first section of this manual includes a list of Safety Messages that, if
followed, will help protect the operator and bystanders from injury or death. Read and understand these Safety
Messages before assembling, operating or servicing this Implement. This equipment should only be operated
by those persons who have read the manual, who are responsible and trained, and who know how to do so
responsibly.
The Safety Alert Symbol combined with a Signal Word, as seen below, is used throughout this
manual and on decals which are attached to the equipment. The Safety Alert Symbol means:
“ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal Word
are intended to warn the owner/operator of impending hazards and the degree of possible injury
faced when operating this equipment.
Indicates an imminently hazardous situation that, if not avoided, WILL result in DEATH OR
VERY SERIOUS INJURY.
Indicates an imminently hazardous situation that, if not avoided, COULD result in DEATH
OR SERIOUS INJURY.
Indicates an imminently hazardous situation that, if not avoided, MAY result in MINOR
INJURY.
Identifies special instructions or procedures that, if not strictly observed, could result in
damage to, or destruction of the machine, attachments or the environment.
NOTE: Identifies points of particular interest for more efficient and convenient operation or repair.(SG-1)
Practice all usual and customary safe working precautions and above all---remember safety is
up to YOU. Only YOU can prevent serious injury or death from unsafe practices.
READ, UNDERSTAND, and FOLLOW the following Safety Messages. Serious injury or death may
occur unless care is taken to follow the warnings and instructions stated in the Safety Messages.
Always use good common sense to avoid hazards. (SG-2)
Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las medidas
de seguridad. (SG-3)

SAFETY
F-4145 01/11 Safety Section 1-3
© 2011 Alamo Group Inc.
SAFETY
Never operate the Tractor or Implement until you have read and completely
understand this Manual, the Tractor Operator’s Manual, and each of the Safety
Messages found in the Manual or on the Tractor and Implement. Learn how to
stop the tractor engine suddenly in an emergency. Never allow inexperienced or
untrained personnel to operate the Tractor or Implement without supervision.
Make sure the operator has fully read and understood the manuals prior to
operation. (SG-4)
Never allow children to operate, ride on, or come close to the Tractor or
Implement. Usually, 16-17 year-old children who are mature and responsible can
operate the implement with adult supervision, if they have read and understand
the Operator’s Manuals, been trained in proper operation of the tractor and
Implement, and are physically large enough to reach and operate the controls
easily. (SG-11)
Never allow children to play on or around Tractor or Implement. Children can slip or fall off the
Equipment and be injured or killed. Inadvertent contact with controls can cause the Implement to shift
or fall crushing themselves or others. (SG-25)
DO NOT use drugs or alcohol immediately before or while operating the Tractor
and Implement. Drugs and alcohol will affect an operator’s alertness and
coordination and therefore affect the operator’s ability to operate the equipment
safely. Before operating the Tractor or Implement, an operator on prescription or
over-the-counter medication must consult a medical professional regarding any
side effects of the medication that would hinder their ability to operate the
Equipment safely. NEVER knowingly allow anyone to operate this equipment
when their alertness or coordination is impaired. Serious injury or death to the
operator or others could result if the operator is under the influence of drugs or
alcohol. (SG-27)
Always read carefully and comply fully with the manufacturer’s instructions when
handling oil, solvents, cleansers, and any other chemical agent. (SG-22)
Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals
known to the state of California to cause cancer and birth defects or other reproductive harm. (SG-30)
Never run the Tractor engine in a closed building or without adequate ventilation. The exhaust fumes
can be hazardous to your health. (SG-23)

SAFETY
F-4145 01/11 Safety Section 1-4
© 2011 Alamo Group Inc.
SAFETY
Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known
to the state of California to cause cancer, birth defects or other reproductive harm. (SG-31)
The operator and all support personnel should wear hard hats, safety shoes,
safety glasses, and proper hearing protection at all times for protection from injury
including injury from items that may be thrown by the equipment. (SG-16)
PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT
HEARING LOSS! Tractors with or without an Implement attached can often be
noisy enough to cause permanent hearing loss. We recommend that you always
wear hearing protection if the noise in the Operator’s position exceeds 80db.
Noise over 85db over an extended period of time will cause severe hearing loss.
Noise over 90db adjacent to the Operator over an extended period of time will
cause permanent or total hearing loss. NOTE: Hearing loss from loud noise
[from tractors, chain saws, radios, and other such sources close to the ear] is
cumulative over a lifetime without hope of natural recovery. (SG-I7)
Repeated or substantial breathing of hazardous dusts, including crystalline silica,
could cause fatal or serious respiratory disease including silicosis. Concrete,
masonry, many types of rock, and various other materials contain silica sand.
California lists respirable crystalline silica as a substance known to cause cancer.
Operation of this equipment under certain conditions may generate airborne dust
particles that could contain crystalline silica. In those conditions, personal
protective equipment including an appropriate respirator must be used. If
excessive dust is generated, a dust collection or suppression system should also
be used during operation. (SG-41)
Use extreme caution when getting onto the Implement to perform repairs, maintenance and when
removing accumulated material. Only stand on solid flat surfaces to ensure good footing. Use a
ladder or raised stand to access high spots which cannot be reached from ground level. Slipping and
falling can cause serious injury or death. (SG-33)
Use caution and wear protective gloves when handling sharp objects such as blades, knives, and
other cutting edges. Be alert to worn component surfaces which have sharp edges. Sharp surfaces
can inflict severe laceration injuries if proper hand protection is not worn. (SG-37)

SAFETY
F-4145 01/11 Safety Section 1-5
© 2011 Alamo Group Inc.
SAFETY
Connecting and Disconnecting Safety Instructions and Practices
For your protection while operating or servicing equipment, wear relatively tight and belted clothing to
avoid entanglement in moving parts. Tie up and protect long hair that could become entangled in
machinery. Remove all jewelry including necklaces, rings and watches which can get caught in
machinery or on corners or edges of the equipment. Serious injury can result from entanglement with
the machinery. (SG-42)
Use extreme care when loading, carrying or handling any agricultural fertilizers,
chemicals or biological residue. Follow the manufacturer’s handling instructions
and wear appropriate Personal Protective Equipment including gloves, safety
glasses and respirator when required. If you are using a tractor equipped with a
cab, make sure the cab is rated for appropriate environmental exposure. Be safe
and always wear proper protection. Short or long term exposure to certain
chemicals and materials can result in serious injury or death. (SL-19)
Do not stand or allow bystander or coworkers between the Backhoe and the
tractor while installing or disconnecting the Backhoe from the tractor. Keep hands
and body clear of the Backhoe and the Backhoe mounts. Serious injury or death
can result from a person being crushed between the tractor and Backhoe. (SBH-32)
Only mount the backhoe on a tractor that is listed on the mounting instructions. Never mount on a
tricycle steering front axle. Move the tractor front and rear wheels to the widest spacing and add the
recommended rear tractor ballast to prevent tractor tip over. Keep the tractor tires properly inflated.
Maintain at least 20% of the total Tractor and Backhoe weight on the front axle. Always wear your
seatbelt and make sure the ROPS structure is fully deployed to prevent serious injury or death from
the tractor tipping over. (SBH-18)
Make sure the Backhoe is properly attached to the tractor and the retaining pins securely lock the
Backhoe into position. Improper mounting of the Backhoe onto the tractor can result in the Backhoe
falling causing serious injury. (SBH-22)
Make sure all tractor and Backhoe guards are in place and properly functioning. (SBH-26)
Make sure the hydraulic quick disconnects are fully seated into the connections. Do not use the
Backhoe if the hydraulic connection is leaking. Leaking oil could allow the Backhoe to fall resulting in
a serious crushing injury. (SBH-21)

SAFETY
F-4145 01/11 Safety Section 1-6
© 2011 Alamo Group Inc.
SAFETY
Equipment Operation Safety Instructions and Practices
Make sure all air is purged from the hydraulic system before using the Backhoe. Air in the system can
cause the Backhoe to respond sluggishly or with unexpected movement. The air can be purged from
the cylinder lines by fully cycling the cylinders several times from the fully closed to fully open
position. Sudden or unexpected movement or dropping of the Backhoe and attachment could result in
serious injury. (SBH-29)
Never interfere with factory-set hydraulic calibrations. Any change in calibration could cause a
failure of the equipment and may result in injury. (SBH-13)
Backhoe mounting bolts and nuts must be kept tightened. Retighten the bolts and nuts after the first
10 minutes of operation, and every 8 hours after that. (SBH-39)
Do not lean over controls. Engage and disengage the boom and stabilizer transport locks and the
swing lock pin with the engine off. Do not operate the backhoe control from outside of the operator’s
area. (SBH-40)
Do not use the backhoe hydraulic control levers as grab handles. Activation of the control levers can
cause unexpected movement of the boom, arm, bucket or stabilizers. Always enter and exit the
backhoe from the ground using the steps and grab handles. (SBH-41)
Operate the tractor only while seated in the tractor seat with the seatbelt fastened. Operate the
backhoe only while seated in the backhoe seat. (SBH-19)
Never allow children or other persons to ride on the Tractor or Implement. Falling
off can result in serious injury or death. (SG-10)
Do not mount or dismount the Tractor while the tractor is moving. Mount the
Tractor only when the Tractor and all moving parts are completelystopped. (SG-12)
Start tractor only when properly seated in the Tractor seat. Starting a tractor in
gear can result in injury or death. Read the Tractor operators manual for proper
starting instructions. (SG-13)

SAFETY
F-4145 01/11 Safety Section 1-7
© 2011 Alamo Group Inc.
SAFETY
Operate this Equipment only with a Tractor equipped with an approved roll-over-
protective system (ROPS). Always wear seat belts. Serious injury or even death could
result from falling off the tractor--particularly during a turnover when the operator could
be pinned under the ROPS. (SG-7)
Operate the Tractor and/or Implement controls only while properly seated in the Tractor seat with the
seat belt securely fastened around you. Inadvertent movement of the Tractor or Implement may
cause serious injury or death. (SG-29)
Movement of the backhoe boom, stabilizers and attachment can create pinch points that can cause
serious crushing injuries. Only operate the backhoe controls while seated in the operator’s seat. Keep
your hands, arms and legs inside the operator’s zone. Stop operating the backhoe if any bystanders
or coworkers come within 25 feet of the backhoe. (SBH-42)
Keep bystanders 25 feet away from the tractor and backhoe while operating. The
bystanders could enter the path of the tractor or items could fall from the backhoe
resulting in serious injury to the bystander. Position a barricade perimeter around
the work area. Stop operating the backhoe if any person enters the work area.
(SBH-14)
Prolonged operation may cause operator boredom and fatigue affecting safe operation. Take
scheduled work breaks to help prevent these potentially impaired operating conditions. Never
operate the Implement and Tractor in a fatigued or bored mental state which impairs proper and safe
operation. (SG-32)
Never dig with backhoe unless stabilizers are lowered and properly seated. Do not dig under
stabilizers or tractor with backhoe. Soft ground or sandy soil could cause cave in and tractor rollover.
(SBH-43)
Operate the tractor and Backhoe only in conditions where you have clear visibility in daylight or with
adequate artificial lighting. Never operate in darkness or foggy conditions where you cannot clearly
see at least 100 feet in front and to the sides of the tractor. Make sure you can clearly see bystanders,
ditches, steep slopes, drop-offs, overhead obstructions, power lines, and debris or obstruction in the
travel path. If you are unable to clearly see these types of items discontinue operating. Contact with
unseen vehicles, bystanders, obstructions, or drop-offs can cause serious injury. (SBH-31)

SAFETY
F-4145 01/11 Safety Section 1-8
© 2011 Alamo Group Inc.
SAFETY
Do Not operate this equipment in areas where insects such as bees may attack you and/or cause you
to lose control of the equipment. If you must enter in such areas, use a tractor with an enclosed Cab
and close the windows to prevent insects from entering. If a tractor cab is not available, wear
suitable clothing including head, face, and hand protection to shield you from the insects. Attacking
insects can cause you to lose control of the tractor, which can result in serious injury or death to you
or bystanders. Never dismount a moving tractor. (SG-40)
In case of mechanical difficulty during operation, place the transmission in the park position, set the
parking brake, shut down all power, including the PTO and the engine and remove the key. Wait until
all rotating motion has stopped before dismounting. (SG-39)
If the Backhoe valve controls fail to function properly discontinue use of the tractor and Backhoe until
the controls are properly repaired. Sudden or unexpected movement or dropping of the Backhoe and
attachment could result in serious injury. (SBH-28)
Never leave the Implement and Power Unit unattended while the Implement is in the raised position.
Accidental operation of a lifting lever or a hydraulic failure may cause the implement to suddenly fall
causing serious injury or possible death to anyone who might inadvertently be under the Implement.
Lower the implement carefully to the ground. Do not put hands or feet under lifted components. (SPU-
3)

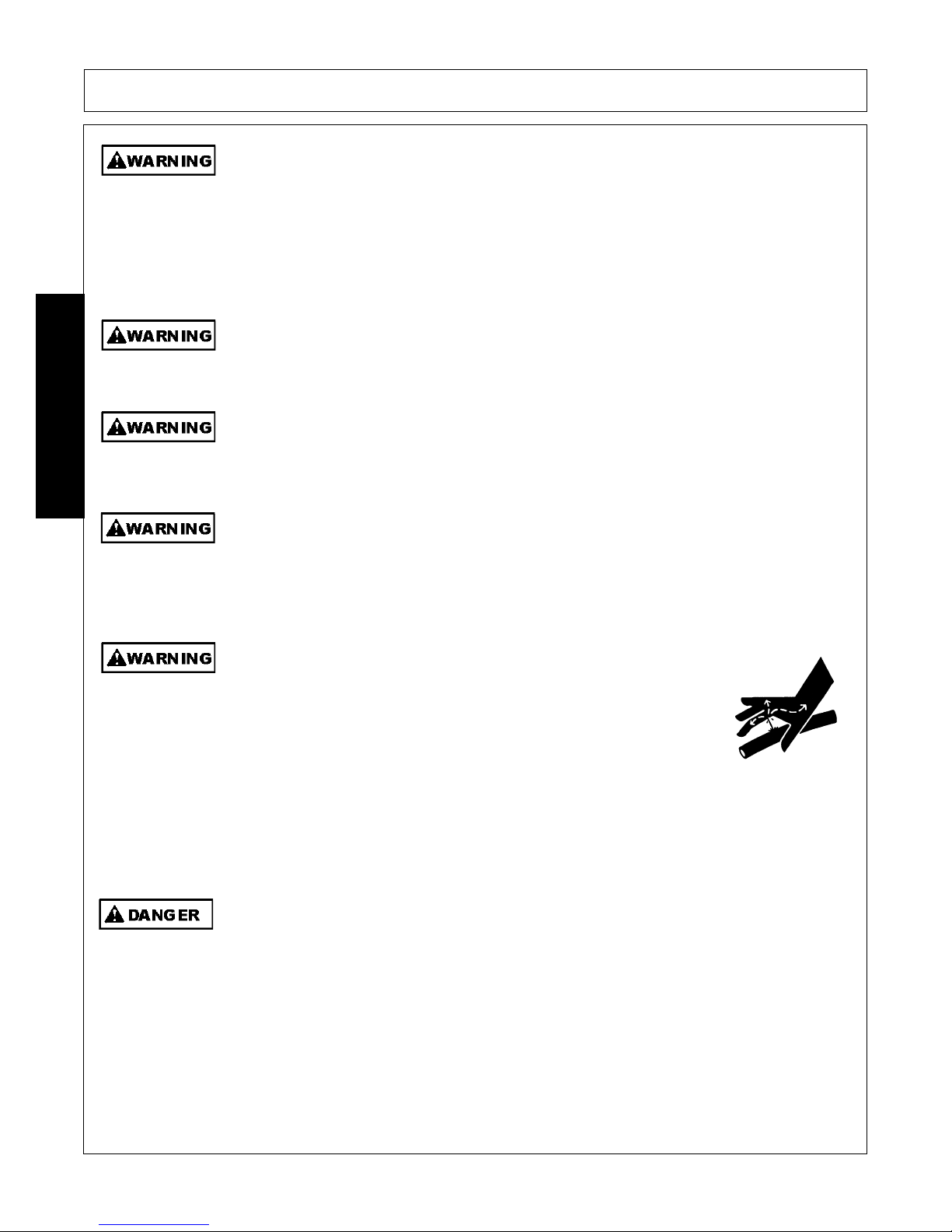

Do not operate this Equipment with hydraulic oil or fuel leaking. Oil and fuel
are explosive and their presence could present a hazard. Do not check for
leaks with your hand! High-pressure oil streams from breaks in the line could
penetrate the skin and cause tissue damage including gangrene. To check for
a hose leak, SHUT the unit ENGINE OFF and remove all hydraulic pressure.
Wear oil impenetrable gloves, safety glasses and use Cardboard to check for
evidence of oil leaks. If you suspect a leak, REMOVE the HOSE and have it
tested at a Dealer. If oil does penetrate the skin, have the injury treated
immediately by a physician knowledgeable and skilled in this procedure. (SG-
15)

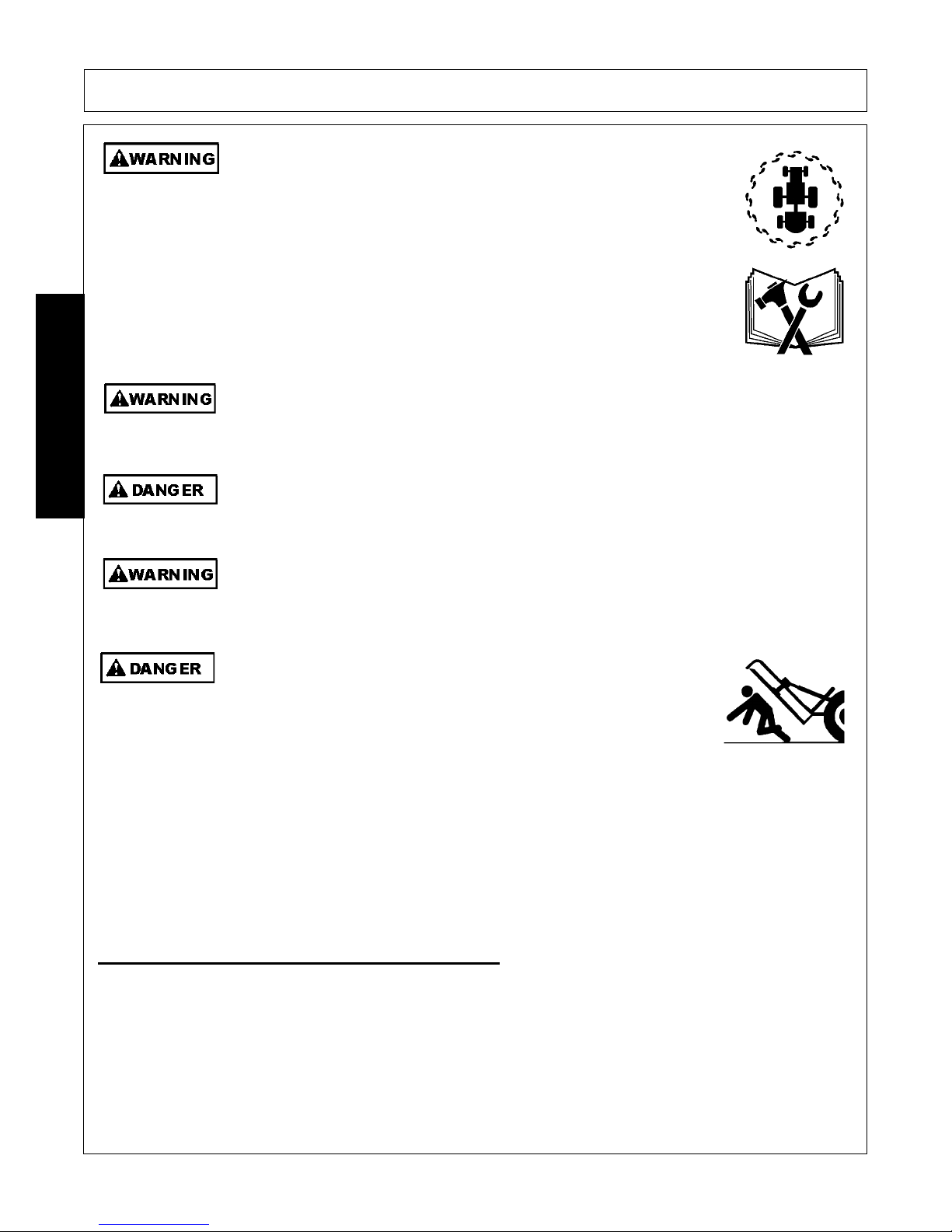

Never walk or work under any raised boom or bucket. The Boom could fall and cause serious bodily
injury or death. Always lower the boom and bucket flat on the ground or support the Boom and bucket
on safety stands. Unload all hydraulic actuators prior to performing any maintenance. To do this, set
the bucket on the ground then kill the tractor engine. Push and pull the control levers in and out
several times to remove pressure. Do not work under raised Boom or Bucket unless components are
securely blocked up to prevent inadvertent dropping. (SBH-7)

SAFETY
F-4145 01/11 Safety Section 1-9
© 2011 Alamo Group Inc.
SAFETY
Avoid contact with hot surfaces including hydraulic oil tanks, pumps, motors, valves and hose
connections. Relieve hydraulic pressure before performing maintenance or repairs. Use gloves and
eye protection when servicing hot components. Contact with a hot surface or fluid can cause serious
injury from burns or scalding. (SG-34)
Avoid contact with hot surfaces of the engine or muffler. Use gloves and eye protection when
servicing hot components. Contact with a hot surface or fluid can cause serious injury from burns or
scalding. (SG-38)
Be sure you have adequate knowledge of the property you will be working on. Take time to make
yourself aware of any area underground lines or cables. Contact with buried lines or cable could
result in serious injury or death. If in doubt about buried utility lines call 811 before digging or 1-800-
258-0808. (SBH-6)
Do not let the Backhoe or attachment contact electrical power lines.
Contact with electrical power lines can result in serious injury or
electrocution. If the backhoe attachment contacts a power line
remain in the tractor seat until the power has been shut off. Stepping
off the tractor can permit electrical current to pass through the body
resulting in electrocution. (SBH-17)
The Boom is designed only to position and operate the Bucket which is attached to it. Never attempt
to lift, pull, or push other solid objects with the boom or bucket. Serious injury could result from a
structural failure when the Boom is used for purposes other than those for which it was designed. (SBH-
9)
Never attach pulling devices to the rear of the backhoe. The unit could tip rearwards causing serious
injury or even death. (SBH-10)
Do not use Backhoe as a jack to raise the tractor tires off the ground. The Backhoe could fail causing
the tractor and Backhoe to fall to the ground resulting in serious injury. (SBH-24)
Do not work from the backhoe or attachments. Do now allow any riders on
the backhoe, tractor or attachments. Falling off could result in serious
injury. (SBH-34)
Use extreme care when digging, transporting or dumping loads that impair or partially block the
operator’s line of sight. Know where you are traveling. Make sure no bystanders are in the area of
travel. If a bystander assists in providing guidance, make sure they are not in the path of travel. Keep
all bystanders 25 feet away from travel path. (SBH-35)

SAFETY
F-4145 01/11 Safety Section 1-10
© 2011 Alamo Group Inc.
SAFETY

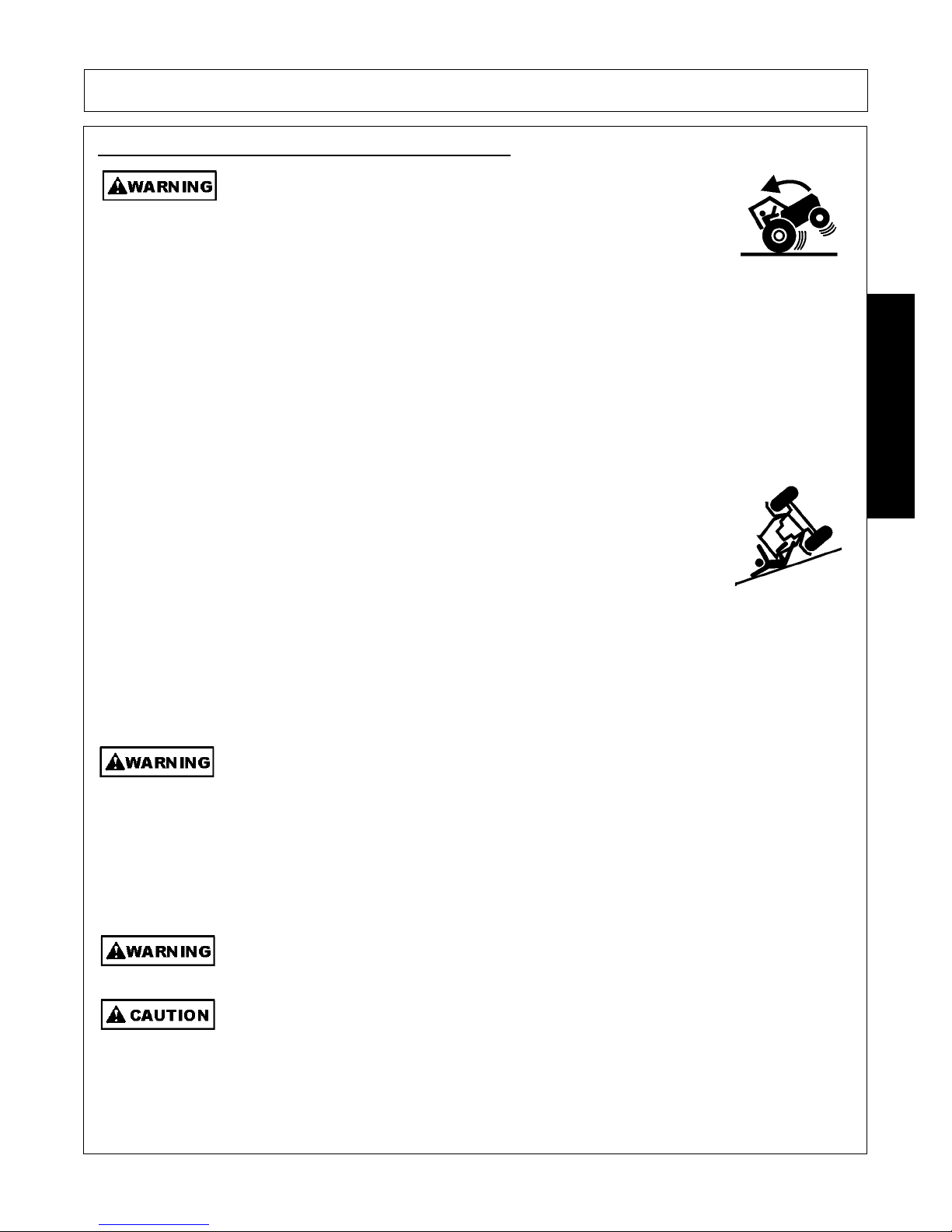

Do not raise the Backhoe on a hillside. Do not transport across
a slope with a raised Backhoe. When the Backhoe is raised,
the center of gravity of the tractor and Backhoe is raised
increasing the potential for the tractor to tip over. Tractor wheel
contact with any wash out, drop off or the ground obstruction
with a raised Backhoe could result in the tractor tipping over
and causing serious bodily injury. (SBH-20)
When the bucket is swung to the side of the tractor, it exerts a movement on the tractor causing the
tractor to rock from side to side. Make sure the stabilizers are lowered to the ground and stabilize the
tractor before swinging the boom.Extreme care should be taken when operating on slopes. Bodily
Harm or Death could result from tractor’s tipping over. (SBH-1)
Avoid full reach and swinging a loaded bucket to the down hill side when operating on slopes. (SBH-2)
Digging with the arm may pull the compact tractor backward. Do not dig too much material at one time.
(SBH-44)
Use extreme care when piling material above 6 feet high. Material could shift and
fall onto the operator or bystanders. The material could crush or suffocate the
operator or bystander resulting in serious injury or death. (SBH-45)
Always lower bucket and stabilizer feet to the ground, and shut off the engine before dismounting from
the unit. (SBH-11)
BEFORE leaving the tractor seat lower the implement, set the parking brake and/
or set the tractor transmission in parking gear, disengage the PTO, stop the
engine, remove the key, and wait for all moving parts to stop. Place the tractor
shift lever into a low range or parking gear to prevent the tractor from rolling.
Never dismount a Tractor that is moving or while the engine is running. Operate
the Tractor controls from the tractor seat only. (SG-9)

SAFETY
F-4145 01/11 Safety Section 1-11
© 2011 Alamo Group Inc.
SAFETY
Transporting Safety Instructions and Practices
Transport only at speeds where you can maintain control of the equipment.
Serious accidents and injuries can result from operating this equipment at high
speeds. Understand the Tractor and Implement and how it handles before
transporting on streets and highways. Make sure the Tractor steering and brakes are in good
condition and operate properly.
Before transporting the Tractor and Implement, determine the proper transport speeds for you and
the equipment. Make sure you abide by the following rules:
Test the tractor at a slow speed and increase the speed slowly. Apply the Brakes smoothly to
determine the stopping characteristics of the Tractor and Implement. As you increase the speed of
the Tractor the stopping distance increases. Determine the maximum transport speed not to exceed
20 mph (30 kph) for transporting this equipment.
Test the equipment at a slow speed in turns. Increase the speed through the turn only after you
determine that the equipment can be operated at a higher speed. Use extreme care and reduce your
speed when turning sharply to prevent the tractor and implement from turning over. Determine the
maximum turning speed for you and this equipment before operating on roads or uneven ground.
Only transport the Tractor and Implement at the speeds which allow you to properly control the
equipment.
Be aware of the operating conditions. Do not operate the Tractor with weak or faulty brakes or worn
tires. When operating down a hill or on wet or rain slick roads, the braking distance increases: use
extreme care and reduce your speed. When operating in traffic always use the Tractor’s flashing
warning lights and reduce your speed. Be aware of traffic around you and watch out for the other
guy. (SG-19)
Be particularly careful when transporting the Implement with the Tractor. Turn curves or go up hills
only at a low speed and using a gradual steering angle. Rear mounted implements move the center of
gravity to the rear and remove weight from the front wheels. Make certain, by adding front ballast, that
at least 20% of the tractor’s weight is on the front wheels to prevent rearing up, loss of steering control or Tractor tip-over.
Slow down on rough or uneven surfaces to prevent loss of steering control which could result in property damage or
possible injury. Dropping implement in transport can cause serious damage to the tractor and/or Implement and possibly
cause the operator or others to be injured or killed. (SBH-38)
Do not drive near the edge of a ditch or excavation. The soil could giveway resulting in loss of control
or rollover. (SBH-46)
Use extra care when turning or stopping. Allow for increased length and weight of added backhoe.
The backhoe adds five to six feet of length in rear of the tractor and significant weight. Allow extra
distance when stopping or turning. Do not allow backhoe or attachment to contact solid objects. (SBH-
16)

SAFETY
F-4145 01/11 Safety Section 1-12
© 2011 Alamo Group Inc.
SAFETY
This Implement may be wider than the Tractor. Be careful when operating or transporting this
equipment to prevent the Implement from running into or striking sign posts, guard rails, concrete
abutments or other solid objects. Such an impact could cause the Implement and Tractor to pivot
violently resulting in loss of steering control, serious injury, or even death. Never allow the Implement
to contact obstacles. (S3PT-12)
Lower the Backhoe to the bed of the truck or trailer when
transporting the tractor and Backhoe with a truck. Measure to
ensure the transport height does not exceed the legal limits.
Contact with overhead obstructions or power lines can cause
property damage or serious injury. (SBH-30)
Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in such a way
as to be clearly visible and legible. When transporting the Equipment use the
Tractor flashing warning lights and follow all local traffic regulations. (SG-6)
Engage boom swing and lift pins. Lock both stabilizers in the raised position. If the backhoe
attachment, such as a bucket, were to drop suddenly and hit the ground while transporting, the tractor
could stop or swing to the side. Immediately resulting in the operator hitting the steering wheel or
flying out of the operator’s seat. Serious injury could result. (SBH-15)
Your driving vision may be reduced or impaired by the tractor, cab, or implement. Before driving on
public roadways identify any limited vision areas, and make adjustments to your operating position,
mirrors, and the implement transport position so that you can clearly see the area where you will be
traveling, and any traffic that may approach you. Failure to maintain adequate vision of the public
roadway and traffic can result in serious injury or even death. (STI-10)
Carry the Backhoe and attachment low when transporting to reduce the
potential of the tractor tipping over. Transport on slopes only at slow
speeds and use gradual turning angles. Tractor wheel contact with any
wash out, drop off or ground obstruction with a raised Backhoe could
result in the tractor tipping over and causing serious injury. (SBH-36)
Always look behind you before backing up. Make sure you are
looking in the direction of travel. A bystander could walk behind
the tractor. Running into a bystander can result in serious injury or
death. (SBH-27)

SAFETY
F-4145 01/11 Safety Section 1-13
© 2011 Alamo Group Inc.
SAFETY
Storage Safety Instructions and Practices
Maintenance Safety Instructions and Practices
Always lower legs and bucket to the ground and engage the swing lock when the Backhoe is not in
use. (SBH-8)
Always store in a stable position with the swing lock and lift ram strap engaged. (SBH-12)
Do not remove the attachment from the Backhoe when the Backhoe is disconnected from the tractor.
The attachment stabilizes the Backhoe. If the attachment is removed, the Backhoe will fall and could
result in serious injury. (SBH-25
Never crawl under or allow children to play around or on a Backhoe that is disconnected from the
tractor. The Backhoe could fall crushing a person resulting in serious injury or death. (SBH-33)
Perform service, repairs and lubrication according to the maintenance section. Ensure the unit is
properly lubricated as specified in the lubrication schedule and all bolts and nuts are properly torqued.
Failure to properly service, repair and maintain this Implement in good operating condition could
cause component failure and possible serious injury or even death. (SG-35)
Relieve hydraulic pressure prior to doing any maintenance or repair work on the
Implement. Place the Implement on the ground or securely blocked up,
disengage the PTO, and turn off the tractor engine. Push and pull the Remote
Cylinder lever in and out several times. Disconnect and remove the Implement
hydraulic hoses from the tractor prior to starting any maintenance or repair
work. (STL-17)
Never attempt to lubricate, adjust, or remove material from the Implement while it is in motion or while
tractor engine is running. (SG-20)

SAFETY
F-4145 01/11 Safety Section 1-14
© 2011 Alamo Group Inc.
SAFETY
Concluding Safety Instructions and Practices
Periodically inspect all moving parts for wear and replace when necessary with
authorized service parts. Look for loose fasteners, worn or broken parts, and
leaky or loose fittings. Make sure all pins have cotter pins and washers. Serious
injury may occur from not maintaining this machine in good working order. (SG-21)
Always maintain the safety signs in good readable condition. If the safety signs are missing,
damaged, or unreadable, obtain and install replacement safety signs immediately. (SG-5)
Do Not fill fuel tank while engine is running. Refuel only after engine has cooled down. If fuel is
spilled, move machine away from the area of the spill and avoid creating any source of ignition until
the gasoline has evaporated. (SG-28)
Do not modify or alter this Implement. Do not permit anyone to modify or alter this Implement, any of
its components or any Implement function. (SG-8)
Never work under the Implement, the framework, or any lifted component
unless the Implement is securely supported or blocked up to prevent sudden
or inadvertent falling which could cause serious injury or even death. (SG-14)
PARTS INFORMATION
Rhino products are designed utilizing specifically matched system components to ensure optimum equipment
performance. These parts are made and tested to Rhino specifications. Non-genuine "will fit" parts do not consistently
meet these specifications. The use of “will fit” parts may reduce equipment performance, void warranties, and present a
safety hazard. Use genuine Rhino parts for economy and safety. (SPRM-2)
SEE YOUR RHINO DEALER
In addition to the design and configuration of this Implement, including Safety Signs and Safety Equipment, hazard control
and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved
in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation
instruction in each of the appropriate sections of the Tractor and Equipment Manuals. Pay close attention to the Safety
Signs affixed to the Tractor and Equipment. (SG-18)

SAFETY
F-4145 01/11 Safety Section 1-15
© 2011 Alamo Group Inc.
SAFETY
Decal Location

SAFETY
F-4145 01/11 Safety Section 1-16
© 2011 Alamo Group Inc.
SAFETY
ITEM PART NO. QTY LEVEL DESCRIPTION
1. 44901 1 OPERATION Right Side Stabilizer Position
2. 45970 2 WARNING To Prevent Bodily Injury
3. 44896 1 WARNING To Prevent Bodily Injury
4. 44897 2 DANGER Crushing Hazard
5. 44895 2 DANGER Crushing Hazard
6. 44900 1 OPERATION Left Side Stabilizer Position
7. 44907 1 WARNING To Prevent Instability
8. 44899 1 OPERATION Dipperstick & Bucket Operation
9. 44898 1 OPERATION Boom Operation
10. 54287 1 LOGO Rhino Logo
11. 48280 1 _________ Universal One Call
12. 44909 1 OPERATION Swing Lock
13. 44908 1 OPERATION Boom Lock
14. 54288 2 LOGO Rhino Logo
15. 54040 2 NAME Model 95C (Big)
16. 54041 1 NAME Model 95C (Small)
