TMG TMG-AFN48 User manual

ATV Tow-behind Finish Mower
PRODUCT MANUAL
Model: TMG-AFN48/AFN60
Please read the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: [e-mail]
Do not return the product to dealer, they are not equipped to handle your requests
www.tmgindustrial.com (USA & Canada)
Toll Free: 1-877-761-2819
WARNING

1
Warnings and Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Owner’s Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
General Safety Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Decals and Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
How to Start The Mower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
How to Stop The Mower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Cutter Deck Height Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tow Bar Offset Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Mower Tips. . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tow Vehicle Recommendations . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Maintenance, Service, and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
How to Change Engine Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
How to Tension and Replace Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Storage . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting and Repair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Bolt Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Illustrated Parts Breakdown and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Page2/3
2
WARNINGS AND SAFETY PRECAUTIONS
Owner’s Responsibility
Accurate assembly and safe and effective use of the mower is the owner’s responsibility.
•Read and follow all safety instructions.
•Carefully follow all assembly instructions.
•Maintain the machine according to directions and schedule included in this operator’s manual.
•Ensure that anyone who uses the mower is familiar with this manual, all controls and safety
precautions.
Important Safety Precautions
Operate the mower according to the safety instructions and recommendations outlined here and inserted
throughout the text. Anyone who uses this mower must read the instructions and be familiar with the
controls.
•Do not allow children to operate this mower. Keep small children away from the area being mowed.
•Do not allow adults to operate the mower without proper instruction.
General Safety Rules
•Read, understand, and follow all instructions of the machine. Be thoroughly familiar with the
controls and the proper use of the mower before starting.
•Familiarize yourself with all of the safety and operating decals on this equipment and on any of
its attachments or accessories.
•Do not put hands or feet near or under rotating parts.
•Only allow responsible individuals, who are familiar with the instructions, to operate the mower.
•Thoroughly inspect the area where the machine is to be used and remove all foreign objects.
Your equipment can propel small objects at high speed causing personal injury or property
damage. Stay away from breakable objects, such as house windows, automobile,
greenhouses, etc.
•Keep the area of operation clear of all persons, particularly small children, and pets.
•Wear appropriate clothing such as a long-sleeved shirt or jacket. Also wear long trousers
or slacks. Do not wear shorts.
•Do not wear loose clothing or jewelry. They can get caught in moving parts.
•Always wear safety goggles or safety glasses with side shields when operating mower to
protect your eyes from foreign objects which can be thrown from the unit.
•Always wear work gloves and sturdy footwear. Wear footwear that will improve footing on
slippery surfaces. Leather work shoes or short boots work well for most people. These will
protect the operator’s ankles and shins from small sticks, splinters, and other debris.
•It is advisable to wear protective headgear to prevent the possibility of being struck by
small flying particles, or being struck by low hanging branches, twigs, or other objects
which may be unnoticed by the operator.
•Do not operate the mower without proper guards or other safety protective devices in place.
•Use this equipment for its intended purpose only.
•See manufacturer’s instructions for proper operation and installation of accessories. Only
use accessories approved by the manufacturer.
•Operate only in daylight or good artificial light.
•Do not operate product when fatigued or under the influence of alcohol, drugs or other
medication which can cause drowsiness or affect your ability to operate this machine
safely.
•Never operate mower in wet grass. Always be sure of your vehicle's traction; keep a
steady pace and do not exceed the recommended maximum speed in this manual.
•Before each use, inspect the throttle control lever. Make sure that it is free and not
damaged. Also check it linkage running to the carburetor for kinks, loose fittings, and
obstructions.
•Stop the rotating mower head when crossing gravel drives, walks, or roads. Wait for the
cutting blades to stop rotating.

Page2/3
3
•Watch for traffic when operating near, or when crossing roads.
•Stop the engine (motor) whenever you leave the equipment, before cleaning, repairing or
inspecting the unit, be sure the mower and all moving parts have stopped. Let the engine
cool, disconnect the starting wire harness plug and remove the ignition key.
•If the equipment should start to vibrate abnormally, stop the engine (motor), disconnect the
starting wire harness plug and remove the ignition key. Check immediately for cause. Vibration is
generally a warning of trouble.
•After striking a foreign object, stop the engine (motor). Disconnect the starting wire harness
plug and remove the ignition key. Inspect the mower for damage. If damaged, repair before
starting and operating the mower.
•Never leave the mower unattended when the engine is running. Disconnect the starting wire
harness plug and remove the ignition key.
•Regularly inspect the mower. Make sure parts are not bent, damaged or loose.
•Allow muffler and engine areas to cool before touching.
•Never operate or have engine running without having mower attached to suitable tow vehicle.
•Prolonged exposure to noise and vibration from gasoline engine powered equipment should
be avoided. Take intermittent breaks and/or wear ear protection from engine noise.
•Check local regulations for age restrictions on use of this machine.
•If the noise or vibrations of the machine increase, stop immediately and perform an inspection.
•The fuel used in this machine is considered extremely flammable and should be handled with
care. When storing extra fuel be sure that it is in an appropriate container and away from any fire
hazards.

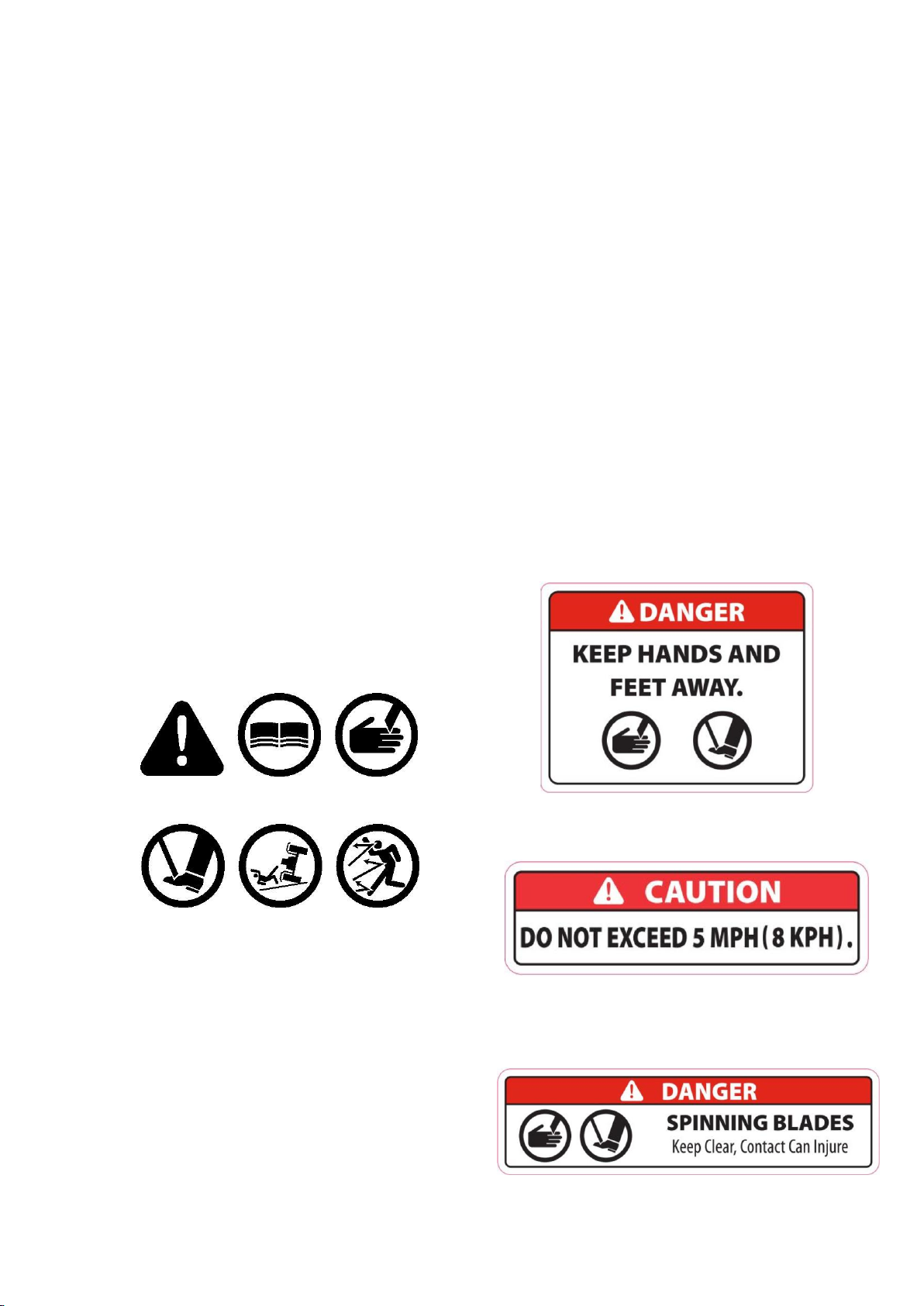

SAFETY DECALS AND WARNINGS
Pictured below are safety and hazard symbols
on the unit or in this manual. Before you operate
your unit, learn and understand the purpose for
each symbol.
ABC
Decal Danger Keep Hands and Feet Away
DEF
Hazard Symbols and Meanings
A: Warning!
B: Read Owner's Manual Before Operating Machine
C: Keep Hands Clear, Contact Can Injure
Decal Caution Do Not Exceed 5 MPH
D: Keep Feet Clear, Contact Can Injure
E:
Go Up And Down Slopes, Not Across Slopes
Sideways
F:
Remove Objects That Could Be Thrown By The
Blade
Should any of the safety labels become
unreadable because of being worn, faded, or
otherwise damaged during the use of your
mower, please use the part number

Page2/3
4
information provided to order a replacement
label.

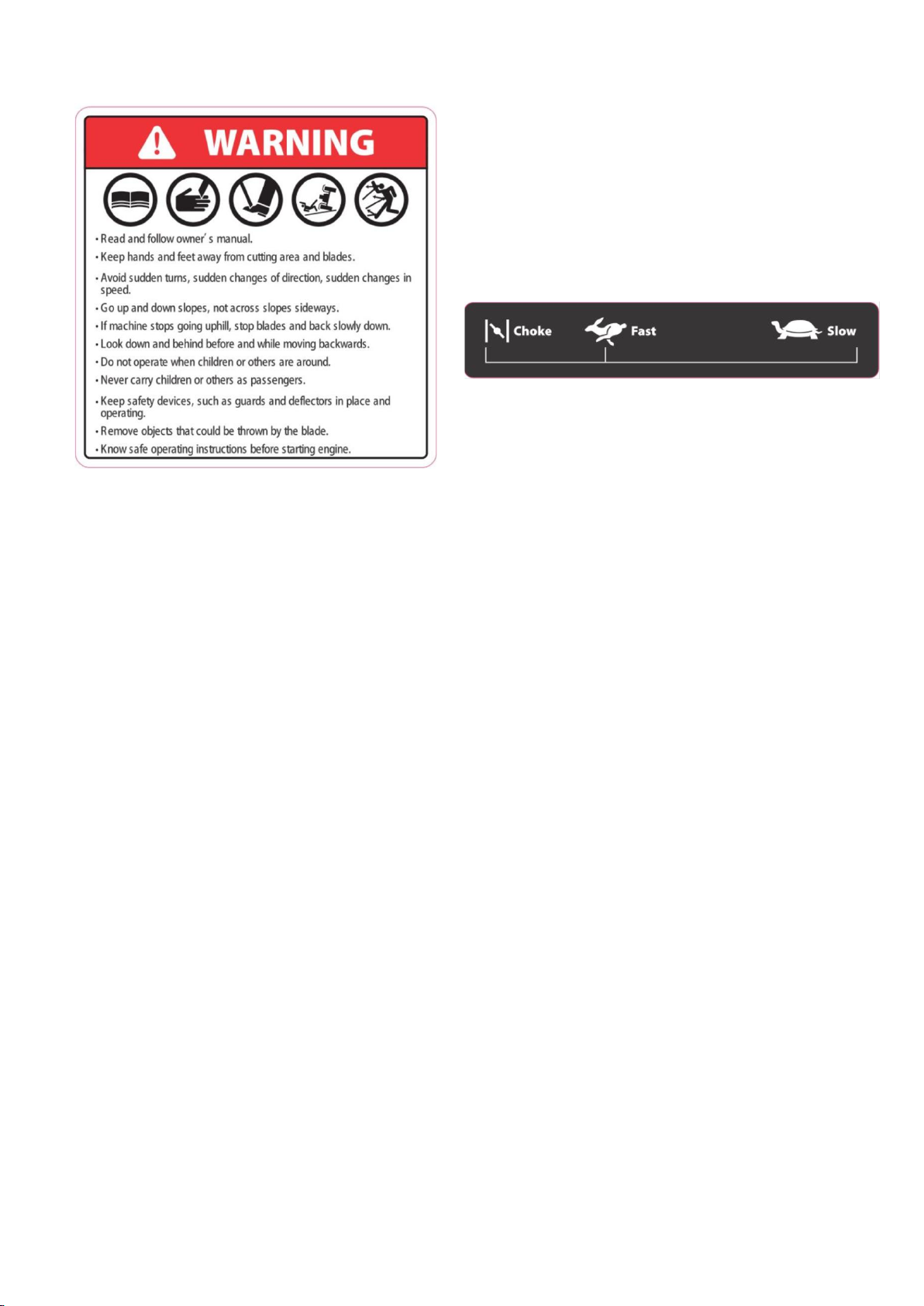

CONTROL AND OPERATING SYMBOLS
Pictured below are control and operating
symbols on the unit or in this manual. Before
you operate your unit, learn and understand
the purpose for each symbol.
Decal Mower Warnings
Decal Throttle And Blade Speed Control
OPERATION
How to Start the Mower
1. Make sure the starting wire harness plug is plugged in.
2. For cold starts, put the throttle control lever to the CHOKE position.
3. Turn the key switch to the center position RUN position and then to the START position for no more
than 5 seconds. Repeat up to 3 times until the engine starts. (If engine fails to start after 3 attempts,
refer to Trouble Shooting Guide). When the engine starts, release the key to the RUN position.
4. Slowly adjust the throttle to the RUN position as the engine warms up. For best performance,
operate the engine with the throttle in the RUN position.
How to Stop the Mower
1. Move the throttle control to the IDLE position.
2. Turn the key to the STOP position. Always remove the key for safety.
NOTE: Do not use the CHOKE position to stop the engine. Engine back fire can occur and can
cause engine damage.
Cutter Deck Height Adjustment
1. To adjust the cutting height:
a. Raise the cutter deck to ensure that all wheel brackets can be removed smoothly after release the
safety lock pin.
b. Through the combination of spacers with different height to get the mowing height you need.
Tow Bar Offset Adjustment
1. Offset the tow bar deck mount degree bracket and tow bar hitch degree brackets as follows:
a. Lift the spring loaded tow bar locking pin knob and turn 90 degrees to lock in the up/disengaged
position.
b. Position the tow bar at the desired numbered offset hole on the deck mount degree bracket.
c. Lift the spring loaded tow bar locking pin knob and turn 90 degrees to lock in the down/engaged
position. Make sure the pin engages completely.
2. Repeat Steps 1 a. - c. to adjust the hitch degree plate.
NOTE: Make sure both the hitch and deck mount degree brackets are indexed into the same
numbered hole.
Mower Tips:
• Never operate outside of tow vehicle recommendations.
• If the weeds or grass are tall and thick, operate the mower at a slower towing speed.

Page2/3
5
• Frequently clean the underside of the mower to remove any grass build up. See the "Maintenance,
Service and Storage" section for details.
• Do not mow on excessively steep slopes. Never use the mower on slopes greater than 20 degrees
using any type of tow vehicle. Do not mow on slopes when the ground is slippery or wet. Mow up and
down the face of the slope, not across.
• Do not operate tow vehicle over 5 mph on flat terrain, or 4 mph on rough terrain while towing the mower.
• Do not use a commercial or non-commercial automobile, truck, sport utility vehicle (SUV) or motorcycle,
as defined by the Wisconsin Department of Motor Vehicles, to tow the ATV Finish Mower. These
vehicles make it difficult to see and control the mower. Use of these tow vehicle types will void the
warranty.
Tow Vehicle Recommendations:
We recommend a tow vehicle be either two or four wheel drive. Some suitable suggestions are listed
below:
• Compact or Sub-compact tractor,
• Utility Vehicle (UTV)
• All-Terrain Vehicle (ATV)
• Lawn/Garden Tractor (17 HP and above and weighing at least 500 lbs.)
• Riding lawn mowers with engines under 17 HP and weighing less than 500 lbs. are not suitable for use
on slopes greater than 5 degrees.
NOTE: Do not operate the tow vehicle outside of the manufacturers recommended operating
instructions or conditions. Lawn and garden tractors work best as tow vehicles when the cutting
deck is removed.
MAINTENANCE, SERVICE, AND STORAGE
How to Change Engine Oil
Be sure the engine is not operating and is located on a level surface before checking or refilling oil.
Engine should be warm for easy removal of oil.
1. Disconnect the starting wire harness plug and remove key from ignition.
2. Position machine on flat, level surface.
3. Open fill port and prop dipstick.
4. Remove drain plug from the engine or extension tube which you configures separately.
5. Empty oil into a suitable oil container and dispose of oil properly per local regulations.
6. Reinsert drain plug to its original position and fill engine with appropriate oil to the top marking on the
dipstick. For proper oil capacity and specification, see the engine manufacturer's instructions.
7. Reinsert dipstick and tighten.
How to Tension and Replace Belt
The belt tension has been preset on the mower. It should be checked after the initial 20-30 minutes of
operation, and with each usage thereafter. If the belt need tightened or replaced, follow these
instructions carefully.
• Disconnect the starting wire harness plug and remove key from the ignition.
• Remove the pulley cover L&R.
• Check belt tension.
• Loosen bolts and nuts on the position adjusting plate and throttle control lever if adjustment or
replacement is necessary.
• Loosen the innermost hex. Nut M16 and tighten the outermost hex. Nut M16 to tension belt, and the
retighten the innermost hex. Nut M16 to lock engine position. This way is suitable for belt adjustment.
Loosen the outermost hex. Nut M16, push engine to loose belt and replace with new belts. Tighten the
outermost hex. Nut M16 to tension belt, and the retighten the innermost hex. Nut M16 to lock engine
position. This way is suitable for belt replacement.
• Retighten bolt and nuts on the position adjusting plate.
• Put the throttle control lever to the CHOKE position, and then retighten bolts and nuts.
• Reinstall the pulley cover L&R.
• Connect the starting wire harness plug before operating your mower.

Page2/3
6
Storage
At the end of the working season or when the mower will not be used for a long period, it
is good practice to clean off any dirt or grease that may have accumulated on the mower
and any of moving parts.
1. Clean as necessary.
2. Check knives for wear and replace if necessary.
3. Inspect mower for loose, damaged or worn parts and adjust or replace as needed.
4. Store unit inside if possible for longer life.
5. Repaint parts where paint is wornor scratched to prevent rust.
6. Replace all damaged or missing decals.
Troubleshooting and Repair
We build quality and durability into the design of our products; but no amount of careful design by us,
and careful maintenance by you, can guarantee a repair-free life for your ATV Finish Mower. Most
repairs will be minor, and easily fixed by following the suggestions in the troubleshooting guide in this
section.
The guide will help you pinpoint the causes of common problems and identify remedies.
For more complicated repairs, you may want to rely on an authorized service center. A parts breakdown
is located toward the end of this manual.
We will always be glad to answer any questions you have, or help you find suitable assistance. To
order parts or inquire about warranty, please contact our local dealer.
Ordering Replacement Parts
Parts can be obtained from the store where the ATV Finish Mower was purchased or direct from the factory.
Please include the following information with your order:
1) Material Code
2) Part description
3) Quantity
4) Model number and serial number
Troubleshooting Guide
Trouble
Cause
Correction
Engine does not start
Starting wire harness plug disconnected
Connect starting wire harness plug
Engine not primed
Prime engine
Defective or incorrectly gapped spark plug
Inspect or replace spark plug
Fuel tank empty
Add fuel
Dirty carburetor or fuel line
Clean carburetor or fuel line
Dirty air filter
Replace air filter
Carburetor out of adjustment
For carburetor adjustment, take the unit to an
authorized service center
Engine flooded
Wait several minutes before starting
Throttle control lever in incorrect position
Move throttle lever to FAST or RUN position
Stale gasoline
Drain old gasoline and add fresh gas
Defective throttle control lever or wire
Inspect lever and wire. Replace if damaged or defective

Page2/3
7
Defective ignition
Inspect ignition and replace if damaged or defective
Battery has no charge
Inspect the fuse in the rubber protective box of the
charging wire and replace if damaged.
Charge and replace if dead, damaged, or defective
Engine runs poorly
Bad spark plug
Replace spark plug
Dirty air filter
Replace air filter
Carburetor out of adjustment
For carburetor adjustment, take the unit to an
authorized service center
Stale gasoline
Drain old gasoline and add fresh gas
Engine cooling system clogged
Clean debris screen and engine cooling fins
Engine overheats
Engine cooling system clogged
Clean debris screen and engine cooling fins
Carburetor out of adjustment
For carburetor adjustment, take the unit to an
authorized service center
Oil level is low
Add oil
Engine will not stop
Ignition failed
Inspect and replace damaged parts
running
Wire disconnected from ignition
Inspect, repair, or replace damaged parts
Poor Mower
Cutter Blades Dull
Sharpen mower cutter blades,
performance
Mower vibrates
Loose nuts or bolts
Check all bolts and nuts, including engine bolts
Broken mower head
Replace broken part
NOTE: Please see the engine manual for a full troubleshooting guide for any engine issues.
Bolt Torque
The tables shown below give correct torque values for various bolts and cap screws. Tighten all
bolts to the torques specified unless otherwise noted. Check tightness of bolts periodically, using
bolt torque chart as a guide. Replace hardware with the same strength bolt.
ENGLISH TORQUE SPECIFICATIONS
Bolt Diameter
Bolt
Torque
SAE 2
N.m lb-ft
SAE 5
N.m lb-ft
SAE 8
N.m lb-ft
1/4”
8
6
12
9
17
12
5/16”
13
10
25
19
36
27
3/8”
27
20
45
33
63
45
7/16”
41
30
72
53
100
75
1/2”
61
45
110
80
155
115
9/16”
95
60
155
115
200
165

Page2/3
8
5/8”
128
95
215
160
305
220
3/4”
225
165
390
290
540
400
7/8”
230
170
570
420
880
650
METRIC TORQUE SPECIFICATIONS
Bolt Diameter
Bolt
Torque
8.8
N.m lb-ft
10.9
N.m lb-ft
M3
0.5
0.4
1.8
1.3
M4
3
2.2
4.5
3.3
M5
6
4
9
7
M6
10
7
15
11
M8
25
18
35
26
M10
50
37
70
52
M12
90
66
125
92
M14
140
103
200
148
M16
225
166
310
229
M20
435
321
610
450
M24
750
553
1050
744
M30
1495
1103
2100
1550
M36
2600
1917
3675
2710
Torque figures indicated above are valid for non-greased or non-oiled threads and heads
otherwise specified. Therefore, do not grease or oil bolts or cap screws unless otherwise
specified in this manual. When using locking elements, increase torque values by 5%.

Page2/3
9
Illustrated Parts Breakdown and Parts List
A. ATV Finish Mower
Part No.
Ref. No.
Part Description
Qty
Remark
1A
4030200001
Mower deck weldment
1
TMG-AFN48
4030200002
TMG-AFN60
2A
Wheel frame mount assy.
2
See page19
3A
7040100008
Plain washer 16
4
4A
7040400008
Spring washer 16
4
5A
7030100008
Hex. Nut M16
4
6A
7010200011
Bolt M16x95
4
7A
4030200008
Deck mount degree barcket
1
8A
7040500003
Nylon washer 16
2
9A
7030500008
Locknut M16
2
10A
7010100034
Bolt M16x50
2
11A
Tow bar assy.
See page20
12A
4020000086
Cap shaft mount
2
13A
4300100003
Safety lock pin
3
14A
4030200006
Hitch mount degree bracket
1
15A
4300500001
Hitch-ball couplers
1
16A
7040100006
Plain washer 12
16
17A
7030500018
Locknut M12
8
18A
7010200012
Bolt M12x75
2
19A
7040300005
Large plain washer 10
7

Page2/3
10
20A
7040100005
Plain washer 10
27
21A
7030500017
Locknut M10
5
22A
7010100013
Bolt M10x25
5
23A
Spindle assy.
3
See page 21
24A
7040400005
Spring washer 10
12
25A
7030100005
Hex. Nut M10
12
26A
7010100019
Bolt M10x35
12
27A
4290200009
blade
3
TMG-AFN48
4290200010
TMG-AFN60
28A
7040100007
Plain washer 14
3
29A
7040400007
Spring washer 14
3
30A
7010100035
Bolt M14x30 –L thread
3
31A
4050000011
Single sheave pulley
2
32A
7040400011
Spring washer 24
3
33A
7030400003
Hex. Nut M24x2 –L thread
3
34A
4050000012
Driven pulley
1
35A
4150100013
Belt
3
TMG-AFN48
4150100012
TMG-AFN60
36A
Engine mount group
1
See page 22
37A
7010100004
Bolt M12x30
6
38A
4010000078
Pulley cover -L
1
TMG-AFN48
4010000074
TMG-AFN60
39A
4100200021
Rubber plug φ35
2
40A
7040300004
Large plain washer
6
41A
7040400004
Spring washer 8
6
42A
7010100007
Bolt M8x20
6
43A
4010000077
Pulley cover -R
1
TMG-AFN48
4010000073
TMG-AFN60
44A
7040100004
Plain washer 8
2
45A
7030500016
Locknut M8
2
46A
Battery box assy.
1
See page 23
47A
4010000076
Discharge guide
1
TMG-AFN48
4010000070
TMG-AFN60

Page2/3

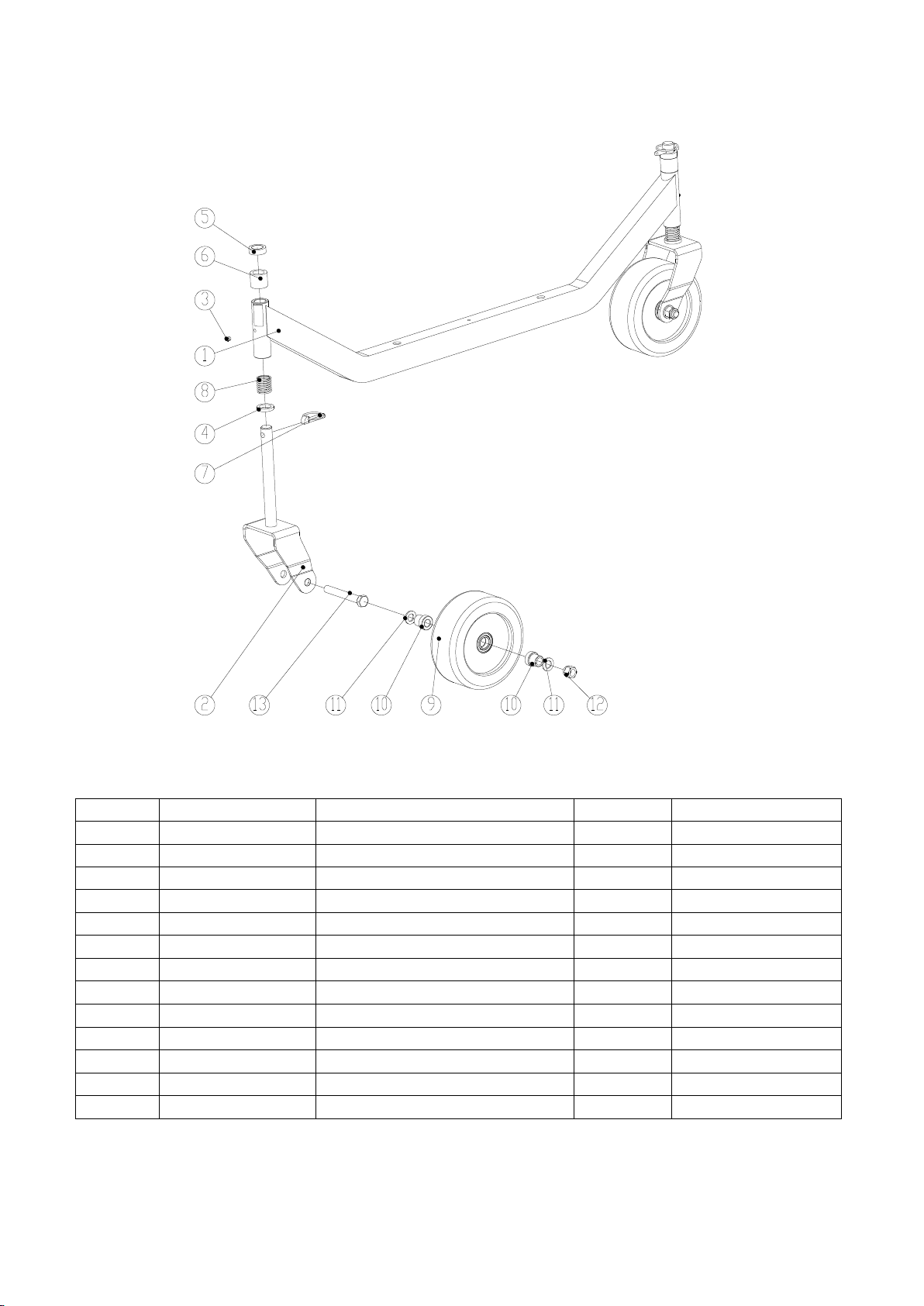

11
B. Wheel Frame Mount Assembly
Part No.
Ref. No.
Part Description
Qty
Remark
1B
4030200004
Wheel frame weldment
1
2B
4030200005
Wheel bracket
2
3B
4300400002
Grease nipple M8
2
4B
4020000081
Spacer H=6
2
5B
4020000082
Spacer H=12
2
6B
4020000083
Spacer H=32
2
7B
4300100004
Safety lock pin
2
8B
4320100002
Damping spring
2
9B
4100700001
Wheel assy.
2
10B
4020000084
Bushing
4
11B
7040100008
Plain washer 16
4
12B
7030500008
Locknut M16
2
13B
7010200029
Bolt M16x120
2

Page2/3
12

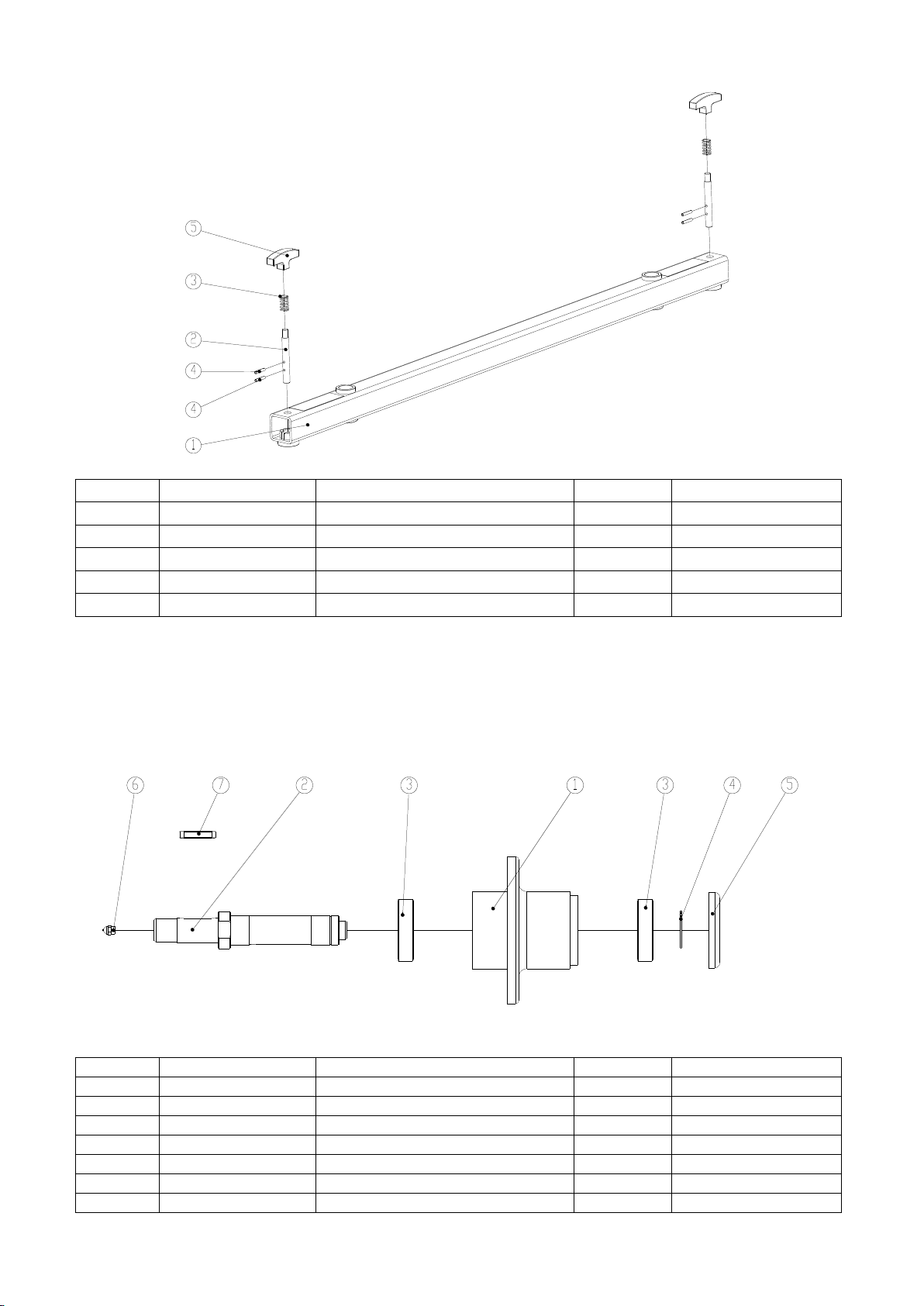

C. Tow Bar assembly
Part No.
Ref. No.
Part Description
Qty
Remark
1C
4030200007
Tow bar weldment
1
2C
4020000085
Tongue latch pin
2
3C
4320100003
Compression spring
2
4C
7100200001
Spring straight pin
4
5C
4100300002
Spacer H=12
2
D. Spindle Assembly
Part No.
Ref. No.
Part Description
Qty
Remark
1D
4020000087
Bearing seat
1
2D
4020000088
Spindle
1
3D
7060100007
Bearing 6206 RZ
2
4D
7090100003
Circlip for shaft φ30
1
5D
4010000071
Protective cover
1
6D
4300400002
Grease nipple M8
1
7D
7080100004
Flat key 8x36
1

Page2/3
13
E. Engine Mount Group
Part No.
Ref. No.
Part Description
Qty
Remark
1E
4030200009
Engine mount bracket
1
2E
4020000089
Driven pulley sleeve
1
3E
4050000013
Driven pulley
1
4E
7040800001
Extra-large plain washer 10
1
5E
7010300006
Bolt 7/16-20UNF 2A
1
6E
4330100001
B & S EPA Engine 344CC
1
7E
4030200010
Position adjusting plate
1
8E
7040100004
Plain washer 8
10
9E
7040400004
Spring washer 8
10
10E
7030100004
Hex. Nut M8
6
11E
7020300004
HSCS M8x45
4
12E
7040100006
Plain washer 12
4
13E
7040300006
Large plain washer
4
14E
7030500018
Locknut M12
4
15E
7010100005
Bolt M12x35
4
16E
7030100008
Hex. Nut M16
2
17E
7010100006
Bolt M8x20
3
18E
4280500001
2 Gallon fuel tank
1
19E
7010100017
Bolt M8x16
1
20E
EPA fuel hose
1
21E
7080100003
Flat key 1/4” x 36
1
22E
4030200023
Fuel tank bracket
1
23E
4330200002
Throttle control lever
1
24E
7020800001
PFHS M5x20
2
25E
7040300002
Large plain washer 5
2
26E
7030500014
Locknut M5
2
27E
4110100007
Ignition wire harness
1
28E
4100200025
Rubber plug φ71.3
1

Page2/3
14

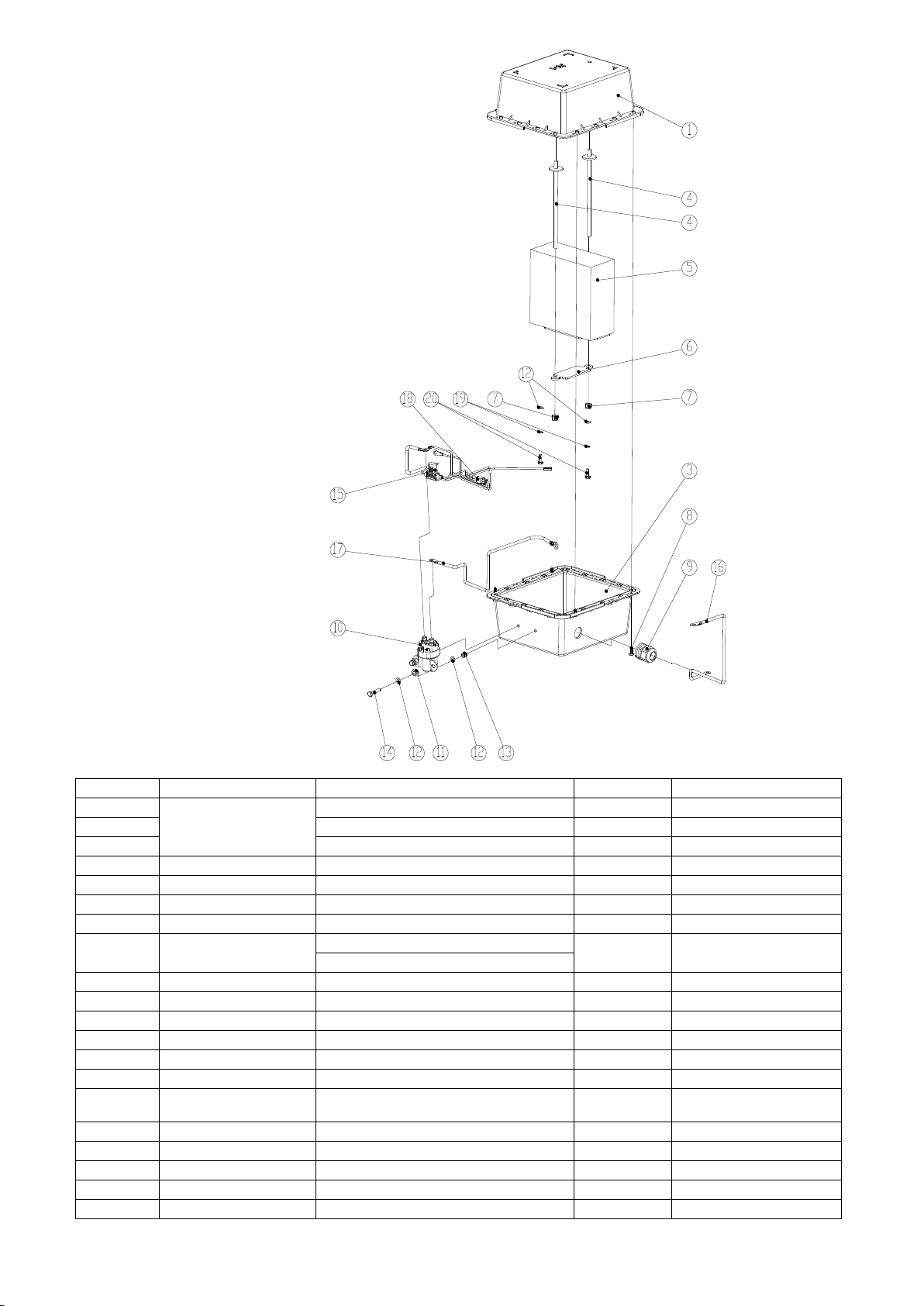

F. Battery Box Group
Part No.
Ref. No.
Part Description
Qty
Remark
1F
4100200022
Battery box - bottom
1
2F
N/A
N/A
N/A
3F
Batter box - top
1
4F
4030200011
Post battery tie down
2
5F
4280400001
Battery
1
6F
4010000075
Plate battery tie down
1
7F
7030500016
Locknut M8
2
8F
Phillips tapping screw
4
ST4.8x16
9F
4120600009
Insulating waterproof sheath φ25
1
10F
4120800001
Solenoid wire mount
1
11F
7030100004
Hex. Nut M8
2
12F
7040100003
Plain washer 6
6
13F
7030500015
Locknut M6
2
14F
7010100003
Bolt M6x30
2
15F
4110100006
Positive wire(combined the charging
line)
1
16F
4110100004
Negative wire
1
17F
4110100005
Starter motor wire
1
18F
4110100008
Starting wire harness
1
19F
7040400003
Spring washer 6
2
20F
7010100036
Bolt M6x16
2
