TMG TMG-SBC73 User manual

72''
Skid Steer
•
•
•
Skid Steer
Brush Mower
www.tmgindustrial.com
Toll
Model:
Please read the product manual completely before
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1-877-761-
2819 or email: [e-mail]
Do not
return the product to dealer, they are not equipped to handle your
requests
PRODUCT MANUAL
(3 blades)
Toll
Free:1-877-761-2819
Model:
TMG
-
S
BC73
Please read the product manual completely before
assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
2819 or email: [e-mail]
return the product to dealer, they are not equipped to handle your
PRODUCT MANUAL

TABLE OF CONTENTS
TO THE OWNER..................................................................................................................................2/14
SAFETY PRECAUTIONS.....................................................................................................................3/14
SKID STEER BRUSH MOWER(3 BLADES) ASSEMBLY....................................................................7/14
OPERATION INSTRUCTIONS.............................................................................................................11/14
MAINTENANCE INSTRUCTIONS.......................................................................................................12/14
STORAGE INSTRUCTIONS................................................................................................................13/14
SPECIFICATIONS................................................................................................................................14/14
www.tmgindustrial.com Toll Free:1-877-761-2819
P 1 / 14

TO THE OWNER
GENERAL COMMENTS
Congratulations for having this skid steer brush mower(3 blades) attachment!
Your skid steer brush mower(3 blades) attachment was carefully designed and
manufactured to give you years of dependable service. Your skid steer brush
mower(3 blades) attachment will require some minor maintenance(such as
cleaning and lubricating) to keep it in top working condition.
Be sure to observe all safety precautions and maintenance procedures as
described in this manual.
ABOUT THIS MANUAL
This manual has been designed to help you do a better and safer job. Read this
manual carefully and become familiar with its contents. Remember, never let
anyone operate this unit without reading the "Safety Precautions" and
"Operation Instructions" sections of this manual. Unless noted otherwise, right
and left sides are determined from the position of the skid steer operator sitting
in the seat facing forward.
SERVICE
When service your skid steer brush mower(3 blades) attachment, please
remember to use only manufacturer replacement parts. Substitute parts may
not meet the standards required for safe, dependable operation. To facilitate
parts ordering, pls. record the model No. and serial No. of the metal plate on
your unit.
www.tmgindustrial.com Toll Free:1-877-761-2819
P 2 / 14

SAFETY PRECAUTIONS
The skid steer brush mower(3 blades) attachments are designed to be easy to
use and maintain. They are operated by the skid steer auxiliary hydraulics. The
skid steer brush mower(3 blades) attachments mount to the toolbar or quick
attach mechanism for easy mounting.
BEFORE OPERATION
1.The operator must read the operation manual carefully before installation,
operation or maintenance. Improper operation will cause the machine damaged
or the operator dead.
2.Read all the safe signs and safe declarations. Obey all the professional safe
terms, local laws or the professional directions.
3.Familiar with the skid steer brush mower(3 blades) attachment about
functions, specs and operation. Replace the to-be-damaged parts in time. Make
sure all the hydraulic installations and couplings connect firmly, and all the
safe signs stick on the suitable positions clearly.
TO THE OPERATOR
WARNING! PROTECT AGAINST FLYING DEBRIS
1. Always wear proper safety glasses, goggles, or a face shield when
driving pins in or out, or when any operation causes dust, flying debris,
or any other hazardous material.
2. Don’t modify the skid steer brush mower(3 blades) attachment casually.
3. Should keep the machine on the flat ground when repair, far away from the
transportation and other dangerous places.
4. Should use the right tools to repair.
5. Don’t operate the machine, unless you are professional, have certificates,
and familiar with its functions, specs and safe operation rules.
6. Must not leave the machine when the machine is running. Must stop the
engine at first and then remove the key if want to leave.
www.tmgindustrial.com Toll Free:1-877-761-2819
P 3 / 14

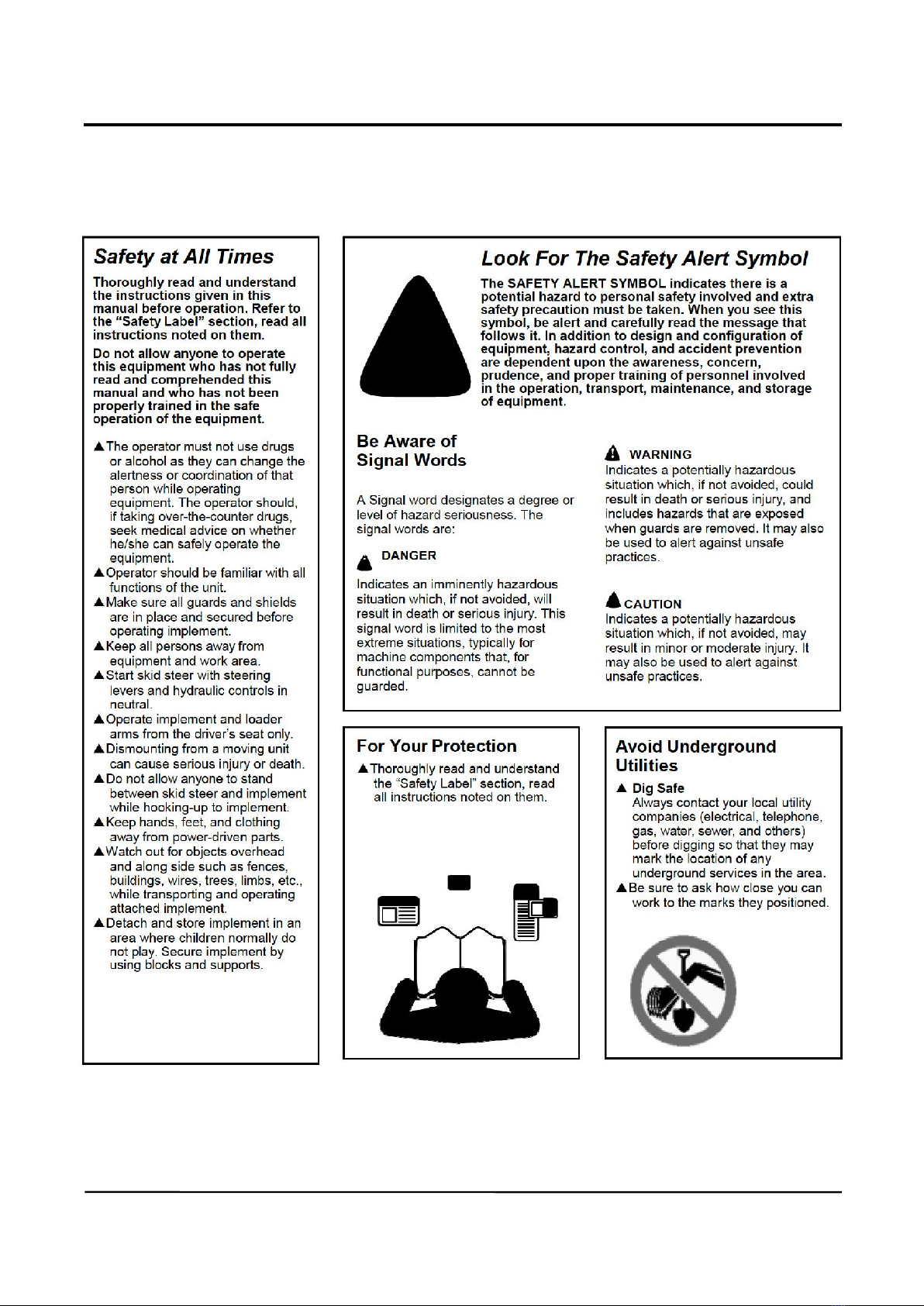

SAFETY PRECAUTIONS
These are common practices that may or may not be applicable to the
products described in this manual.
www.tmgindustrial.com Toll Free:1-877-761-2819
P 4 / 14

SAFETY PRECAUTIONS
www.tmgindustrial.com
SAFETY PRECAUTIONS
Toll Free:1
P 5 / 14
www.tmgindustrial.ca (Canada) Toll Free:1
-877-761-2819

SAFETY PRECAUTIONS
www.tmgindustrial.com
SAFETY PRECAUTIONS
Toll Free:1
P 6 / 14
ada) Toll Free:1
-877-761-2819

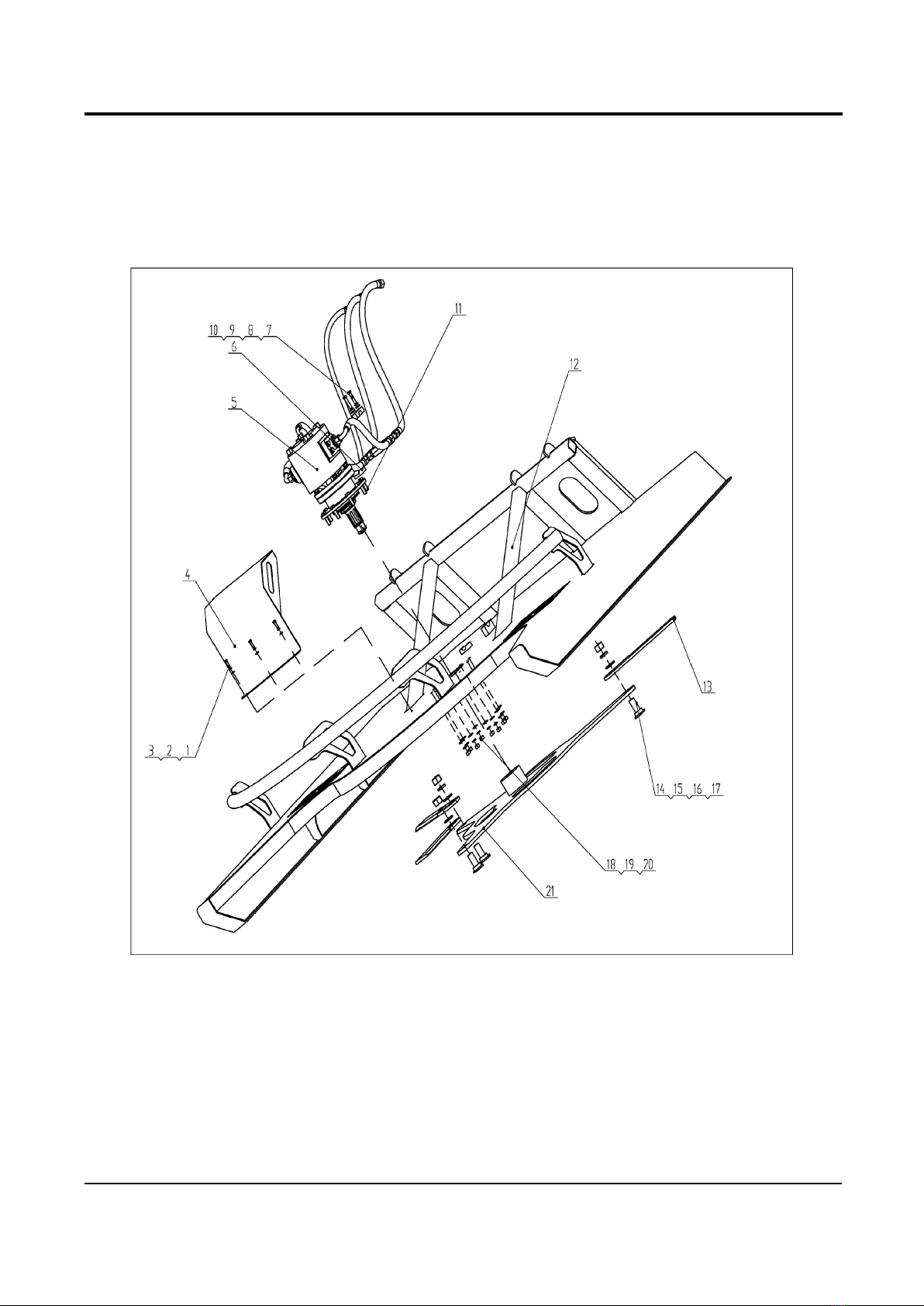

SKID STEER BRUSH MOWER(3 BLADES) ASSEMBLIES
SKID STEER BRUSH MOWER(3 BLADES) ASSEMBLY
www.tmgindustrial.com Toll Free:1-877-761-2819
P 7 / 14

SKID STEER BRUSH MOWER(3 BLADES) ASSEMBLIES
PART NO. S/N. PART DESCRIPTION QTYS NOTE
1 GB/T 5783 HEX HEAD BOLT 3 M8X25
2 GB93 SPRING WASHER D8 3
3 GB97.1 FLAT WASHER D8 3
4 050872III.02 MOTOR COVER 1
5 HYDRAULIC AND TRANSMISSION
ASSEMBLY 1
6 Φ20 SINGLE HOLE PIPE CLAMP 1
7 050872III.00-07 CHECK VALVE PIPE CLAMP 1
8 GB/T 5783 HEX HEAD BOLT 2 M10x45
9 GB93 SPRING WASHER D10 2
10 GB97.1 FLAT WASHER D10 2
11 GB/T5783 HEX HEAD BOLT 8 M12x45
12 050872III.01 FRAME 1
13 0508-DP BLADE 3
14 050872III.00-06 THREADED SHAFT 3
15 GB/T97.1 FLAT WASHER D24 3
16 GB/T93 SPRING WASHER D24 3
17 GB/T6182 LOCK NUT 3 M24
18 GB97.1 FLAT WASHER D12 8
19 GB/T93 SPRING WASHER D12 8
20 GB/T 6170 HEX NUT 8 M12
21 050872III.05 BLADE BASE 1
www.tmgindustrial.com Toll Free:1-877-761-2819
P 8 / 14

SKID STEER BRUSH MOWER(3 BLADES) ASSEMBLIES

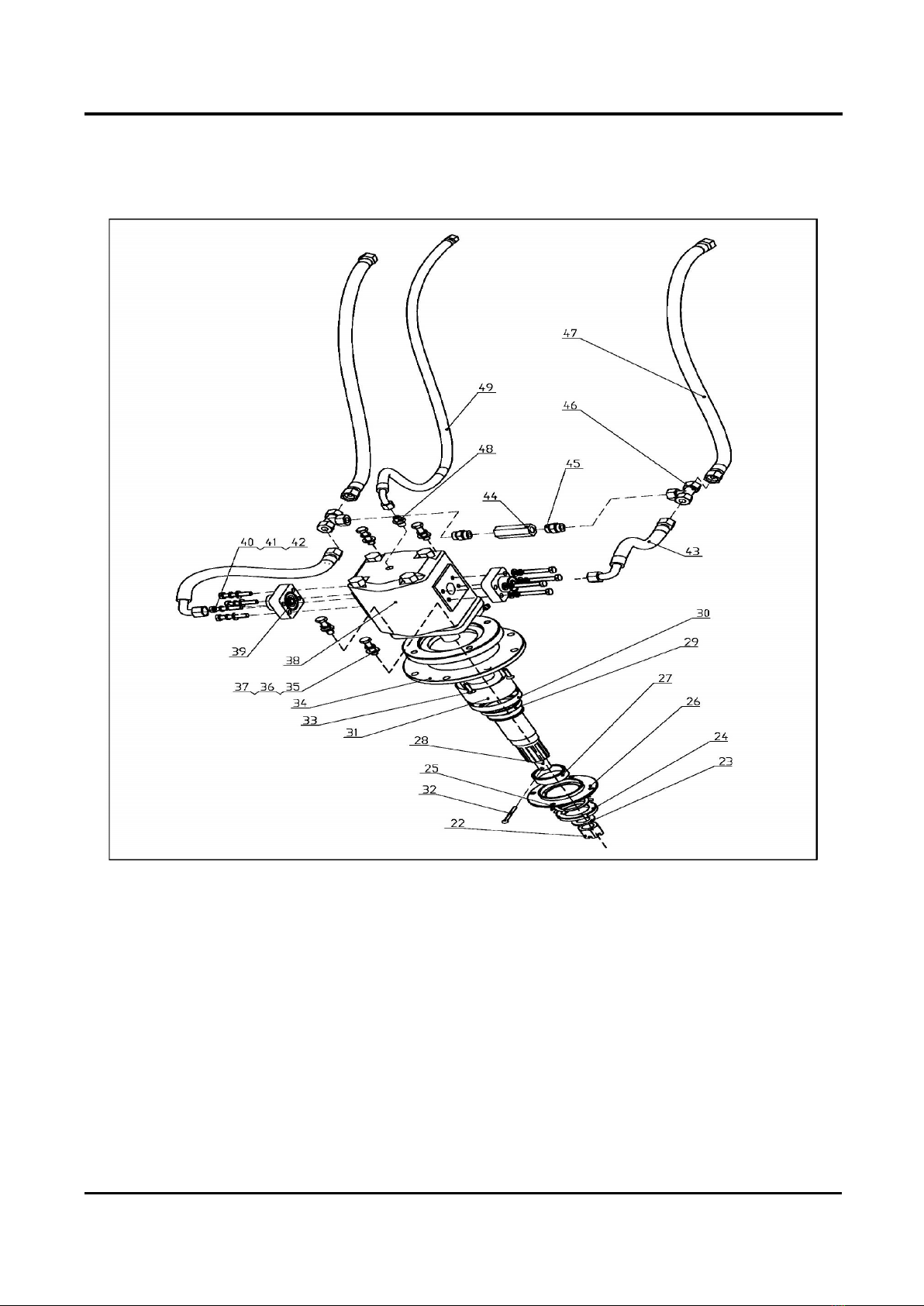

FIGURE A HYDRAULIC AND TRANSMISSION ASSEMBLY
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 9 / 14

SKID STEER BRUSH MOWER(3 BLADES) ASSEMBLIES
PART NO. S/N PART DESCRIPTION QTYS NOTE
22 GB/T6179 TYPE I HEX SLOTTED NUT 1 M24x2
23 050872III.00-04 GASKET 1
24 GB812 ROUND NUT 1 M52
25 GB858 TAB WASHER FOR ROUND NUT 1 D52
26 050872III.00-03 BEARING COVER 1
27 050872III.00-05 BEARING INNER BAFFLE 1
28 050872III.00-01 JOINT SHAFT 1
29 GB9877.1-88 SKELETON OIL SEAL 1 65*80*10
30 050872III.00-02 BEARING OUTER BAFFLE 1
31 051360-01-10 TAB WASHER FOR ROUND NUT 1 D65
32 GB91 SPLIT PIN 1 D5*50
33 GB299 DOUBLE ROW TAPERED ROLLER BEARING 1 352211E
34 050872III.03 BEARING BASE 1
35 GB/T97.1 FLAT WASHER D12 4
36 GB/T93 SPRING WASHER D12 4
37 GB/T5783 HEX HEAD BOLT 4 M12X45
38 050872I.00.01 HYDRAULIC MOTOR CMZ2063-BFPS 1
39 KF20/18L SAE FLANGE JOINT 2
40 GB/T97.1 FLAT WASHER D10 8
41 GB/T93 SPRING WASHER D10 8 M12
42 GB/T5783 HEX HEAD BOLT 8 M10X55
43 F381CACF1181810-600 HOSE 2
44 CI-T04-05-10 TUBULAR CHECK VALVE 1
45 IE18LR1/2 ED END STRAIGHT JOINT 2
46 TZ18L TEE COMBINATION CONNECTOR 2
47 F381CACA181810-2000 HOSE 2
48 IE10LM14*1.5ED END STRAIGHT JOINT 1
49 F381CACF101005-2300 HOSE 1
www.tmgindustrial.com Toll Free:1-877-761-2819
P 10 / 14

OPERATION INSTRUCTIONS
The brush mower can cut off the tall grass and brush up to 2'' in diameter.
1. Attach the mower to the toolbar or quick attach mechanism of your skid
steer loader, raise the back of the unit of the ground about 4'' to allow the
material to clear from under the cutting deck as you travel forward.
2. Place the front skid shoes 1-2inches off the ground. This is the preferred
position for cutting grass and heavy vegetation. Never drive your skid steer
loader with the front of the brush mower tilted to the point your view is
obstructed. Always make sure you can see what you are cutting.
3. Check the work area. Never operate the brush mower in populated areas
where thrown objects could injure persons or damage property. Never raise the
unit and expose yourself or anyone else to the rotating blades. If you can see
the blades then the back of the unit is raised too high.
4. Activate the auxiliary hydraulics with the engine at idle. Increase engine
speed. Supply the power to the brush mower, and let the hydraulic motor work.
5. Be sure the rotary mower is operating smoothly and at full speed, and then
slowly push the skid steer loader forward when the brush mower monitoring
the blade rotation.
6. Return the engine speed to idle and discharge the auxiliary hydraulics.
Remove the brush mower from debris.
www.tmgindustrial.com Toll Free:1-877-761-2819
P 11 / 14

MAINTENANCE INSTRUCTIONS
1. Check the skid steer loader hydraulic system to ensure an adequate level of
hydraulic oil every day.
2. Check all the fasteners loose regularly, and tighten them promptly every day.
3. Check the hydraulic system whether leak, if does, replace the new hose
joints or hoses every day.
3. Check the parts whether damaged, and the solders whether crack, repair
them if necessary every day.
4. Long-time use may let the cutting edge blunt and influence the working
efficiency, and should grind the cutting edge or replace the new ones every
day.
5. After work, should clean the weeds, debris of the disc in time, to keep the
disc rotate flexibly every day.
6. Check the oil level of the motor once a week, fill as necessary with 80-90
weight gear lubricant. Remember don't overfill, as too much lubricant may
rupture the motor seals.
www.tmgindustrial.com Toll Free:1-877-761-2819 P
12 / 14

STORAGE INSTRUCTIONS
1. Clean all the debris, all mud, dirt and grease.
2. Replace all the blades at the same time and don't try to weld or straighten
damaged blades; loss of integrity may result.
3. Inspect the unit for bent, loose, cracked, damaged or missing parts, Order
any parts required, and make the necessary repairs to avoid delays when
starting next season.
4. Tighten all loose nuts, bolts, screws and hydraulic connections.
5. Touch up all the unpainted and exposed areas with paint to prevent rust.
6. Replace security labels and tags if damaged, or in unreadable condition.
7. Connect the hydraulic couplers together or use the oil nuts to block the
hydraulic hoses.
8. Check the motor for proper lubricant level.
9. Apply a rust-preventive spray to all moving parts and to the bottom of the
deck.
10. Should put the device in the dry non-corrosive place. If in nude outside, will
lessen the lifetime of the unit.
www.tmgindustrial.com Toll Free:1-877-761-2819 P
13 / 14

MODEL
TOTAL LENGTH (MM)
TOTAL WIDTH (MM)
TOTAL HEIGHT (MM)
TOTAL WEIGHT (KGS)
CUTTING WIDTH (MM)
MIN.CUTTING HEIGHT (MM)
SYSTEM FLOW (L/MIN)
MAX. PRESSURE (MPA)
CUTTING BLADE NUMBER (PCS)
SPECIFICATIONS
TMG-
SBC7
TOTAL LENGTH (MM)
2045
TOTAL WIDTH (MM)
2030
TOTAL HEIGHT (MM)
530
TOTAL WEIGHT (KGS)
285
CUTTING WIDTH (MM)
1830
MIN.CUTTING HEIGHT (MM)
≥50
SYSTEM FLOW (L/MIN)
60-
80
MAX. PRESSURE (MPA)
18
CUTTING BLADE NUMBER (PCS)
3
www.tmgindustrial.com (US
www.tmgindustrial.com Toll Free:1-877-761-2819
ree:1
P 14 / 14
SBC7
3
2045
2030
1830
80
