Tnt 15560 User manual

INI

TOOLS'n TASKS TM/MC

26-.GALLON OIL-FREE

AiR COMPRESSOR

Model: 15560

218549

TOLL FREE HELPLINE: 1=888=266-7096

FOR SAFE OPERATION, READ AND UNDERSTAND

ALL CONTENTS OF THE iNSTRUCTiON MANUAL

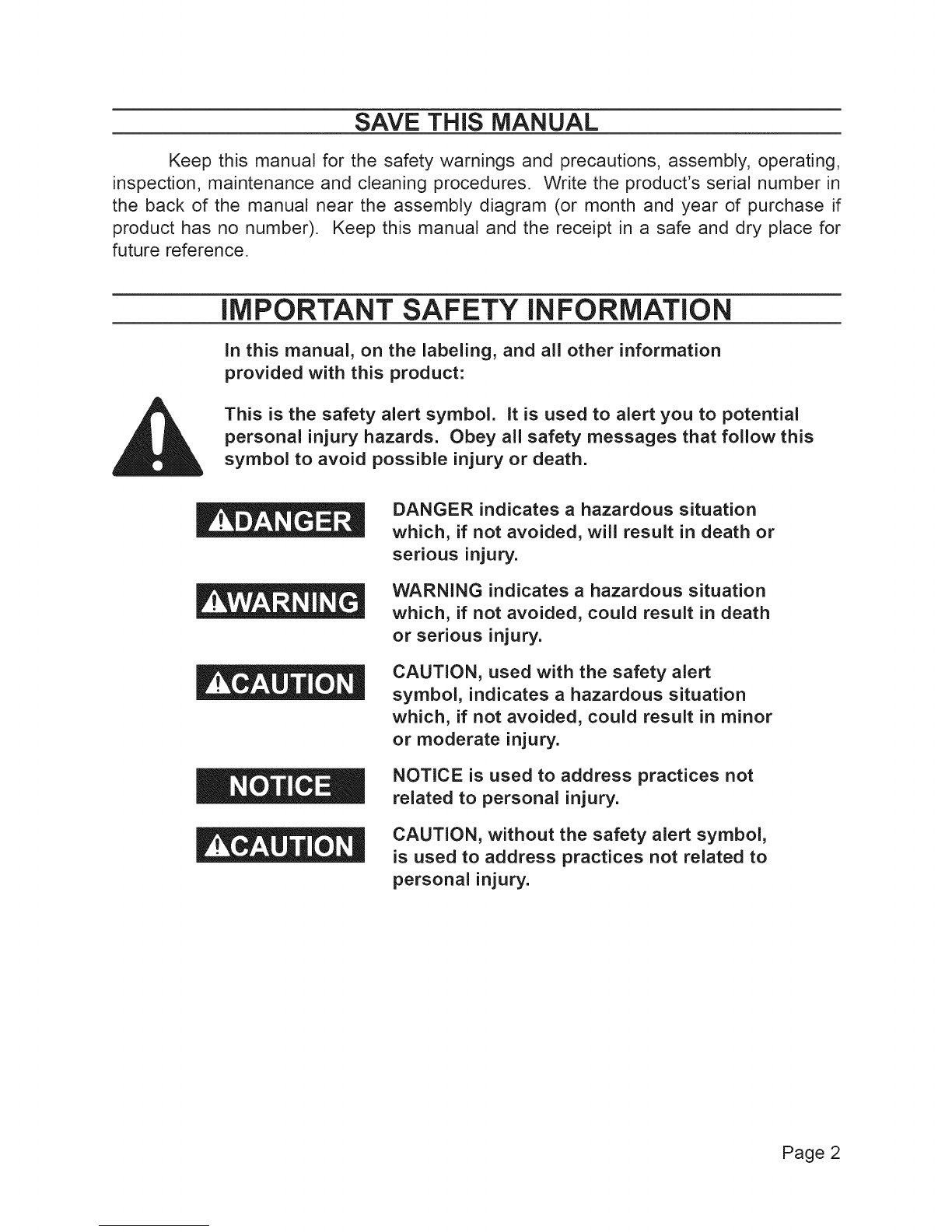

SAVE THiS MANUAL

Keep this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures. Write the product's serial number in

the back of the manual near the assembly diagram (or month and year of purchase if

product has no number). Keep this manual and the receipt in a safe and dry place for

future reference.

IMPORTANT SAFETY INFORMATION

in this manual, on the labeling, and all other information

provided with this product:

This is the safety alert symbol, it is used to alert you to potential

personal injury hazards. Obey all safety messages that follow this

symbol to avoid possible injury or death.

DANGER indicates ahazardous situation

which, if not avoided, will result in death or

serious injury.

WARNING indicates ahazardous situation

which, if not avoided, could result in death

or serious injury.

CAUTION, used with the safety alert

symbol, indicates a hazardous situation

which, if not avoided, could result in minor

or moderate injury.

NOTICE is used to address practices not

related to personal injury.

CAUTION, without the safety alert symbol,

is used to address practices not related to

personal injury.

Page 2

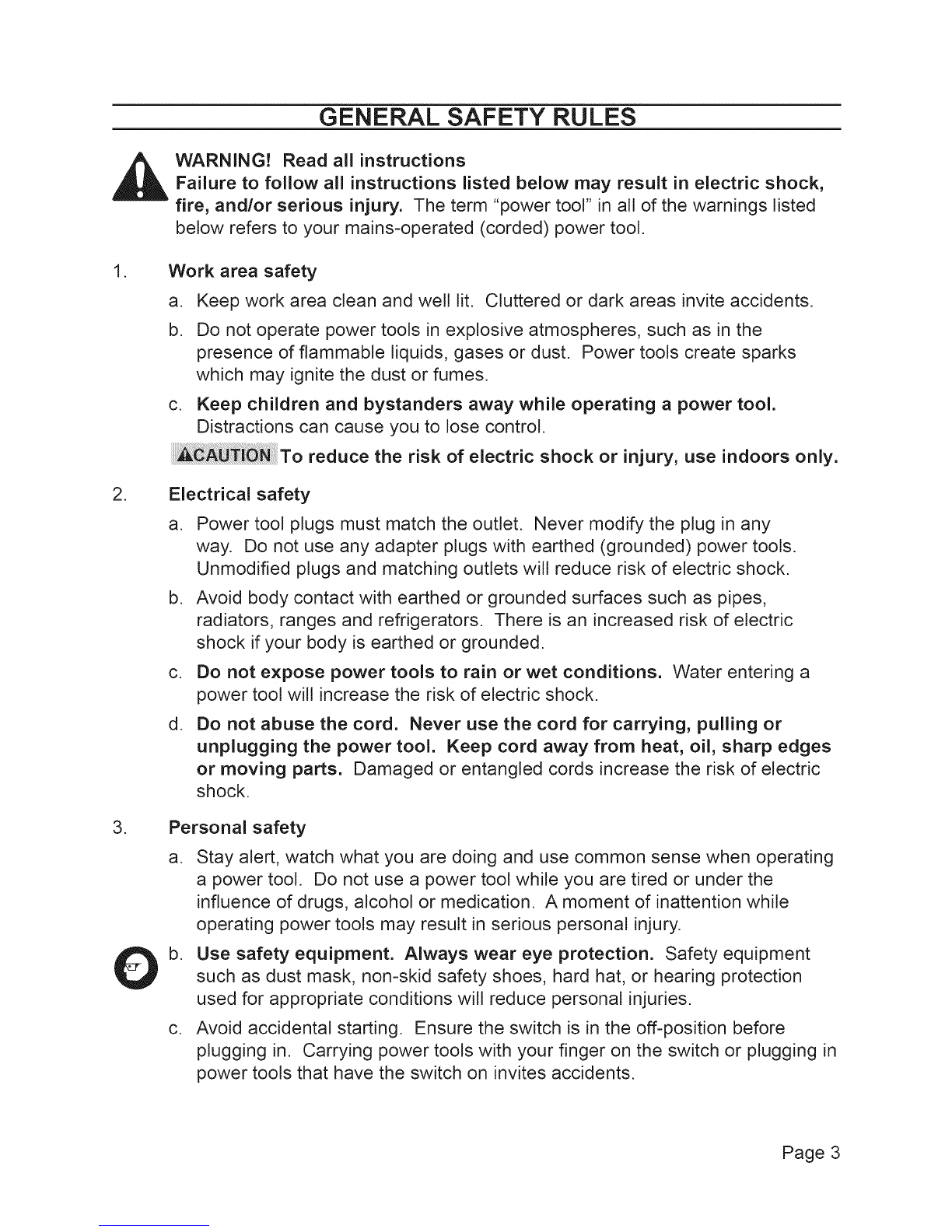

GENERAL SAFETY RULES

WARNING! Read all instructions

Failure to follow all instructions listed below may result in electric shock,

fire, and/or serious injury. The term "power tool" in all of the warnings listed

below refers to your mains-operated (corded) power tool.

Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

_i_ To reduce the risk of electric shock or injury, use indoors only.

Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any

way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a

power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or

unplugging the power tool. Keep cord away from heat, oil, sharp edges

or moving parts. Damaged or entangled cords increase the risk of electric

shock.

Personal safety

a. Stay alert, watch what you are doing and use common sense when operating

a power tool. Do not use a power too! while you are tired or under the

influence of drugs, alcohol or medication. A moment of inattention while

operating power tools may result in serious personal injury.

b. Use safety equipment. Always wear eye protection. Safety equipment

such as dust mask, non-skid safety shoes, hard hat, or hearing protection

used for appropriate conditions will reduce personal injuries.

C. Avoid accidental starting. Ensure the switch is in the off=position before

plugging in. Carrying power tools with your finger on the switch or plugging in

power tools that have the switch on invites accidents.

Page 3

Remove any adjusting key or wrench before turning the power tool on. A

wrench or a key left attached to a rotating part of the power tool may result in

personal injury.

Do not overreach. Keep proper footing and balance at all times. This

enables better control of the power tool in unexpected situations.

Dress properly. Do not wear loose clothing or jewellery. Keep your hair,

clothing and gloves away from moving parts. Loose clothes, jewellery or long

hair can be caught in moving parts.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it

was designed.

Do not use the power tool if the switch does not turn it on and off. Any power

tool that cannot be controlled with the switch is dangerous and must be

repaired.

Disconnect the plug from the power source before making any

adjustments, changing accessories, or storing power tools, Such

preventive safety measures reduce the risk of starting the power tool

accidentally.

Store idle power tools out of the reach of children and do not allow

people unfamiliar with the power tool or these instructions to operate

the power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tools

operation. If damaged, have the power tool repaired before use. Many

accidents are caused by poorly maintained power tools.

Use the power too! in accordance with these instructions and in the manner

intended for the particular type of power tool, taking into account the working

conditions and the work to be performed. Use of the power tool for operations

different from those intended could result in a hazardous situation.

Service

a. Have your power tool serviced by a qualified repair person using only

identical replacement parts. This will ensure that the safety of the power tool

is maintained.

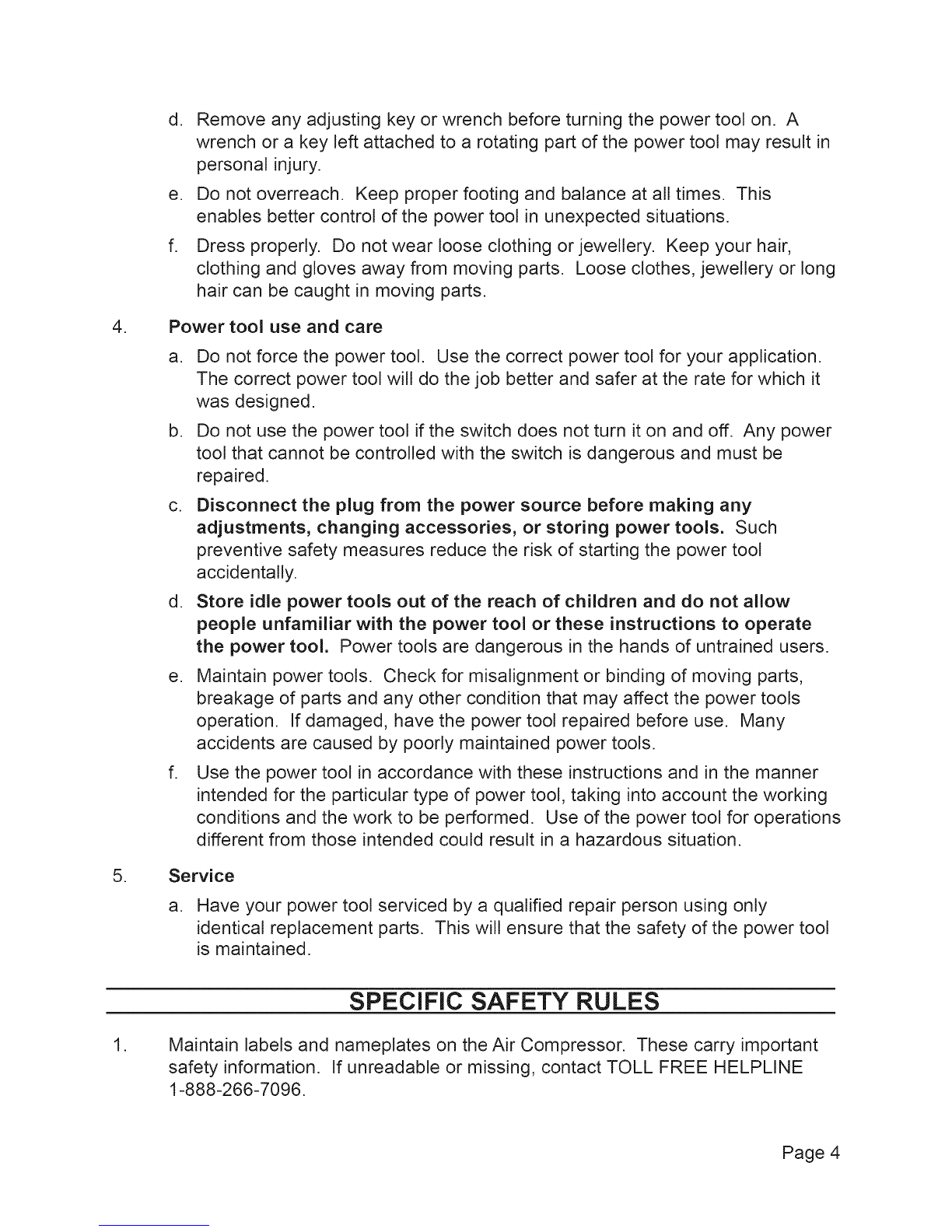

SPECIFIC SAFETY RULES

Maintain labels and nameplates on the Air Compressor. These carry important

safety information. If unreadable or missing, contact TOLL FREE HELPLINE

1-888-266-7096.

Page 4

10.

11.

CAUTION: Your Warranty is voided if you drop the Air Compressor. Always

transport the Air Compressor using its Handle and Wheels.

DANGER! This Air Compressor is NOT equipped and should not be used "as-is"

to supply breathing air. For any application of air for human consumption, you

must fit the Air Compressor with suitable in-line safety and alarm equipment (not

included). This additional equipment is necessary to properly filter and purify

the air to meet minimal specifications for Grade D breathing as described in

Compressed Gas Association Commodity Specification G 7.1-1966, OSHA 29

CFR 1910. 134, and/or Canadian Standards Associations (CSA). In the event

the Air Compressor is used for the purpose of breathing air application and

proper in-line safety and alarm equipment is not simultaneously used, existing

warranties are void, and supplier and manufacturer disclaims any liability

whatsoever for any loss, personal injury, or damage.

DANGER! Never attempt to repair or modify the Air Tank (27). Welding, drilling,

or any other modification will weaken the Tank resulting in damage from rupture

or explosion. Always replace worn, cracked, or damaged Tanks.

WARNING! Never use plastic (PVC) pipe for compressed air; serious injury or

death could result. Any tube, pipe, or hose used must have a pressure rating

higher than 155 PSI. Minimum recommended pipe size: Up to 50 feet long use

1/2" diameter. Greater than 50 feet use 3/4" diameter. Larger diameter pipe is

always better.

CAUTION: DO NOT use an extension cord with this product.

Make sure all tools and equipment used with the Air Compressor are rated to the

appropriate capacity. Do not use any tool or equipment that operates over 155

PSI.

Drain the Air Compressor every day. Do not allow excessive moisture to build up

inside the Air Compressor's Tank. Do not open the Drain Valve (30) with more

than !0 PSI of air pressure in the Tank. Do not unscrew the Drain Valve so that

more than four turns are showing.

Avoid injury. Never direct the Air Outlet Valve (8) at people or animals.

Do not alter or remove the Safety Release Valve (18).

Make sure the Air Compressor is located on a flat, level, sturdy surface capable

of supporting the weight of the Compressor, operator(s), and any additional tools

and equipment.

Do not move or transport the Compressor if the Air Tank (27) is under pressure.

Industrial applications must follow OSHA guidelines.

Page 5

14.

15.

16.

17.

18.

19.

20.

Never stand on the Air Compressor. Serious injury could result if the Compressor

is tipped.

Never leavetheAir Compressor unattendedwhen it is plugged in and running.

Turn off the Compressor,and unplug the unit before leaving.

Do not allow children and other unauthorized people to handle or playwith the Air

Compressor.

Do not modify the factory set pressure shutoff or startup switches. This tool will

do thework betterand safer at the speed and capacity for which it was designed.

Avoid body contact with oils and lubricants used in the Compressor. If

swallowed, seek medical treatment immediately. For skin contact, immediately

wash with soap and water. For eye contact, immediately flush eyes with clean

water.

WARNING: The brass components of this product contain lead, a chemical

known to the State of California to cause birth defects (or other reproductive

harm). (California Health & Safety code § 25249.5, et seq.)

WARNING: The warnings and precautions discussed in this manual cannot

cover all possible conditions and situations that may occur. It must be

understood by the operator that common sense and caution are factors which

cannot be built into this product, but must be supplied by the operator.

GROUNDING iNSTRUCTIONS

This product must be grounded. In the event of a malfunction or breakdown,

grounding provides a path of least resistance for electric current to reduce the risk

of electric shock.

This product is equipped with an electric cord having an equipment=grounding

conductor and a grounding plug. The plug must be plugged into a matching

outlet that is properly installed and grounded in accordance with all local codes

and ordinances.

Do not modify the plug provided. If it will not fit the outlet, have the proper outlet

installed by a qualified electrician.

WARNING:

Improper installation of the grounding plug is liable to result in a risk of electric

shock. When repair or replacement of the cord is required, do not connect the

grounding wire to either flat blade terminal. The wire with insulation having an

outer surface that is green with or without yellow stripes is the grounding wire.

Page 6

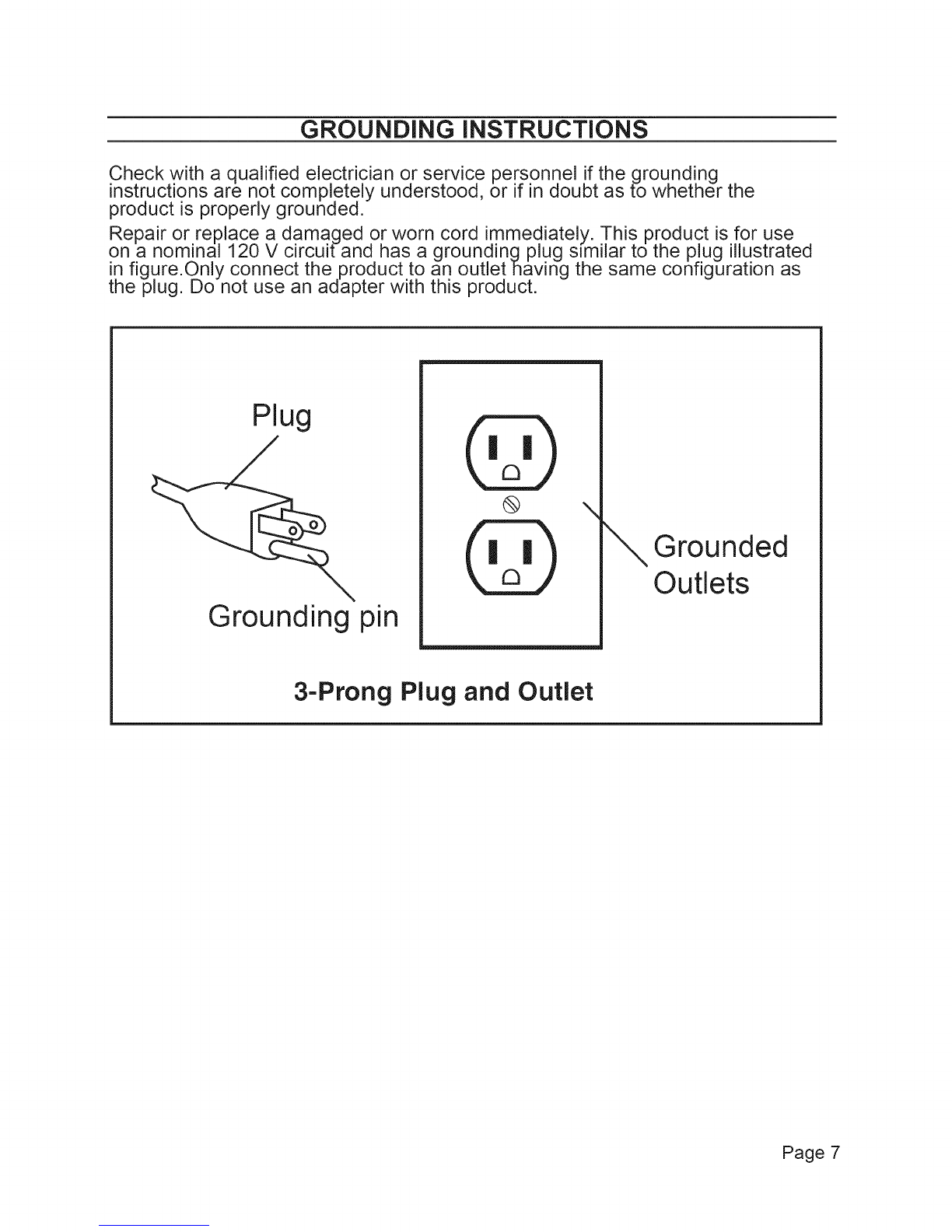

GROUNDING iNSTRUCTiONS

Check with a qualified electrician or service personnel if the grounding

instructions are not completely understood, or if in doubt as to whether the

product is properly grounded.

Repair or replace a damaged or worn cord immediately. This product is for use

on a nominal t20 V circuit and has a grounding plug similar to the plug illustrated

in figure.Only connect the product to an outlet having the same configuration as

the plug. Do not use an adapter with this product.

Plug

Grounding pin

® \

@Grounded

Outlets

3-Prong Plug and Outlet

Page 7

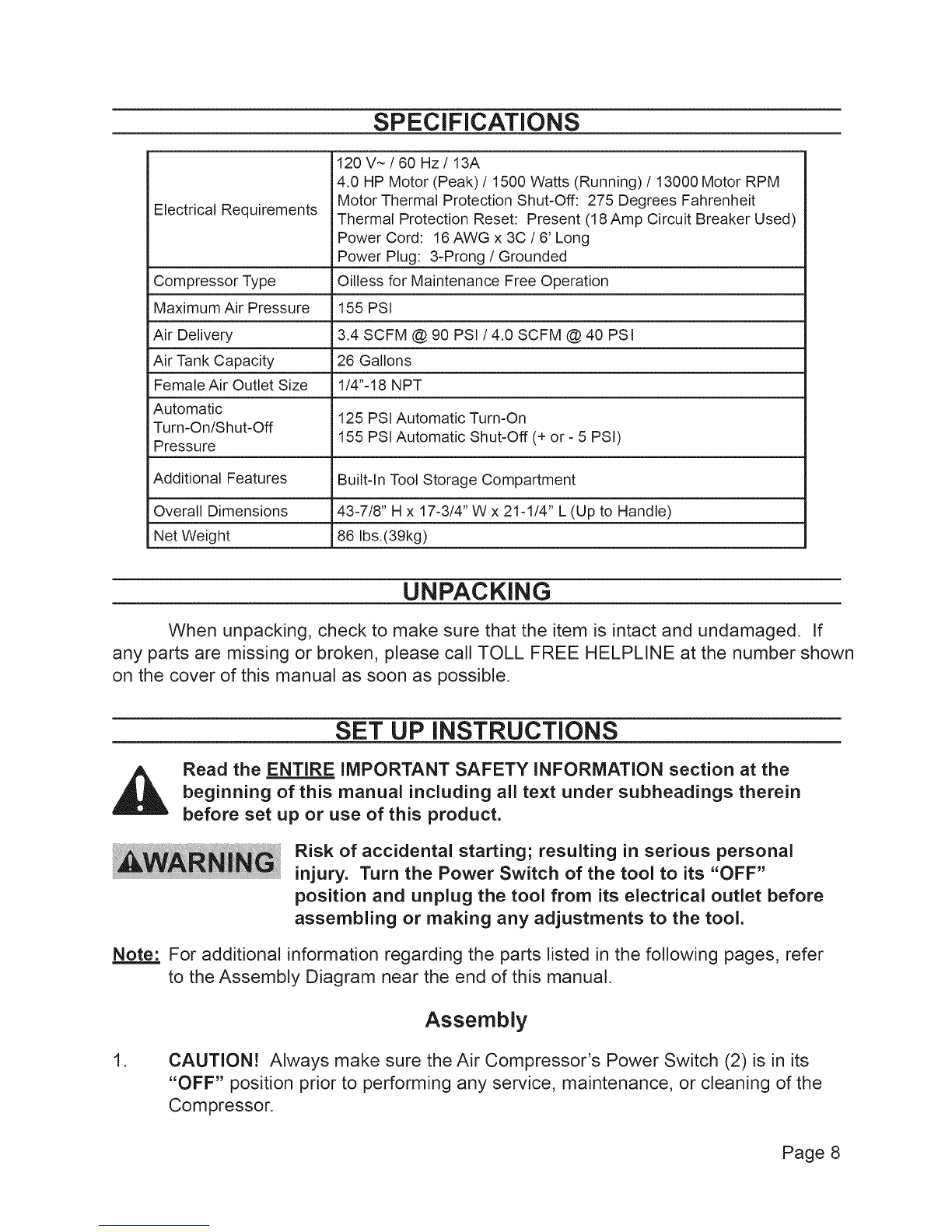

SPECiFiCATiONS

Electrical Requirements

Compressor Type

Maximum Air Pressure 155 PSI

Air Delivery 3.4 SCFM @ 90 PSI /4.0 SCFM @ 40 PSI

Air Tank Capacity 26 Gallons

Female Air Outlet Size 1/4"-18 NPT

Automatic 125 PSI Automatic Turn-On

Turn=On/Shut-Off 155 PSI Automatic Shut-Off (+ or - 5 PSI)

Pressure

Additional Features Built-In Tool Storage Compartment

Overall Dimensions 43-7/8" H x 17-3/4" W x 21-1/4" L (Up to Handle)

Net Weight 86 Ibs.(39kg)

UNPACKING

120 V~ /60 Hz /13A

4.0 HP Motor (Peak) /1500 Watts (Running) /13000 Motor RPM

Motor Thermal Protection Shut-Off: 275 Degrees Fahrenheit

Thermal Protection Reset: Present (18 Amp Circuit Breaker Used)

Power Cord: 16 AWG x 3C /6' Long

Power Plug: 3-Prong /Grounded

Oilless for Maintenance Free Operation

When unpacking, check to make sure that the item is intact and undamaged. If

any parts are missing or broken, please call TOLL FREE HELPLINE at the number shown

on the cover of this manual as soon as possible.

SET UP iNSTRUCTIONS

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the

beginning of this manual including all text under subheadings therein

before set up or use of this product.

Risk of accidental starting; resulting in serious personal

injury. Turn the Power Switch of the tool to its "OFF"

position and unplug the tool from its electrical outlet before

assembling or making any adjustments to the tool.

Note: For additional information regarding the parts listed in the following pages, refer

to the Assembly Diagram near the end of this manual.

Assembly

,CAUTION! Always make sure the Air Compressor's Power Switch (2) is in its

"OFF" position prior to performing any service, maintenance, or cleaning of the

Compressor.

Page 8

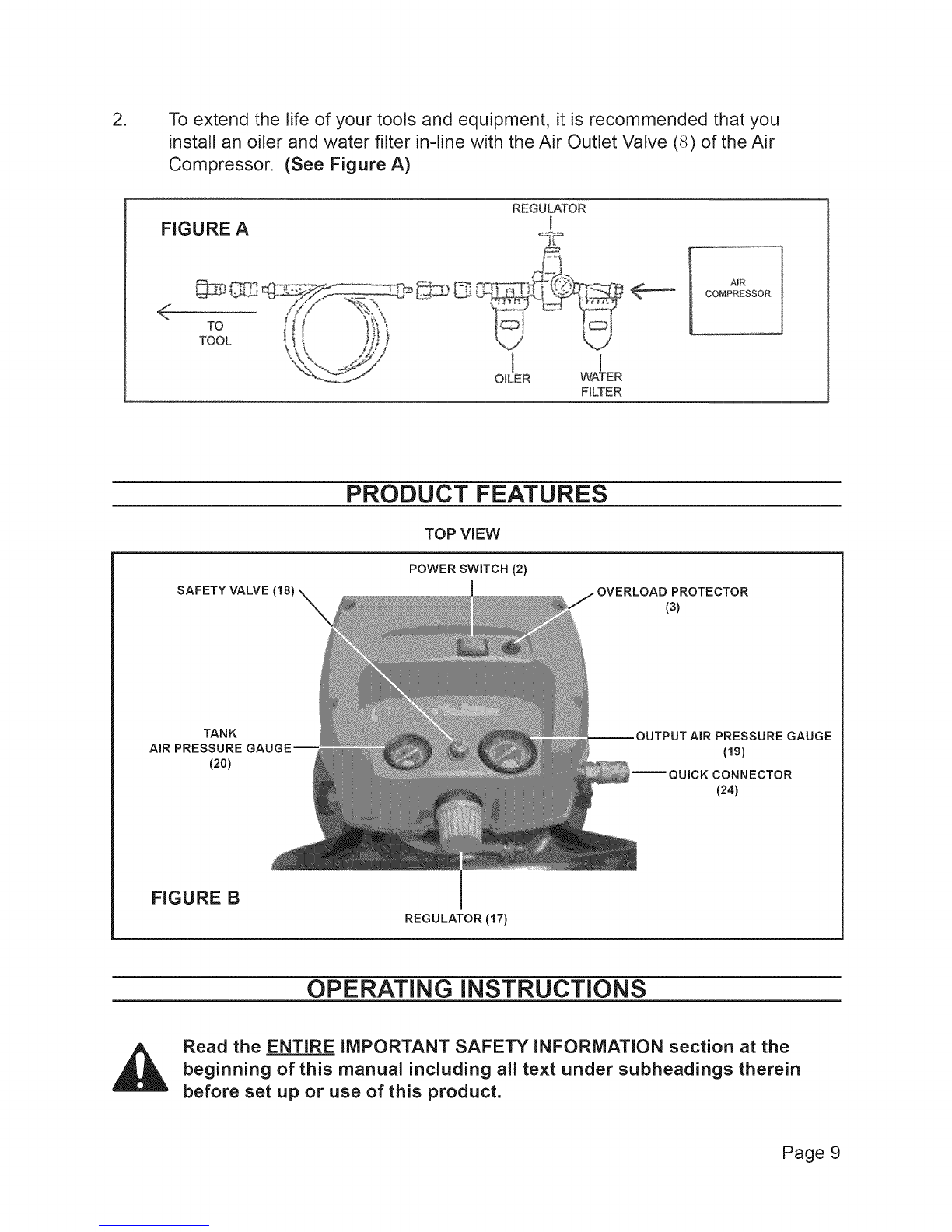

,To extend the life of your tools and equipment, it is recommended that you

install an oiler and water filter in-line with the Air Outlet Valve (8) of the Air

Compressor, (See Figure A)

REGULATOR

FIGURE AI

Tool _!_ /_;1

%:-......._Y,_" I I

OILER WATER

FILTER

AIR

COMPRESSOR

SAFETY VALVE (18)

PRODUCT FEATURES

TOP VIEW

POWER SWITCH (2)

PROTECTOR

(3)

TANK

AIR PRESSURE

120)

PRESSURE GAUGE

(19)

QUICK CONNECTOR

(24)

FIGURE B

REGULATOR (17)

OPERATING INSTRUCTIONS

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the

beginning of this manual including all text under subheadings therein

before set up or use of this product.

Page 9

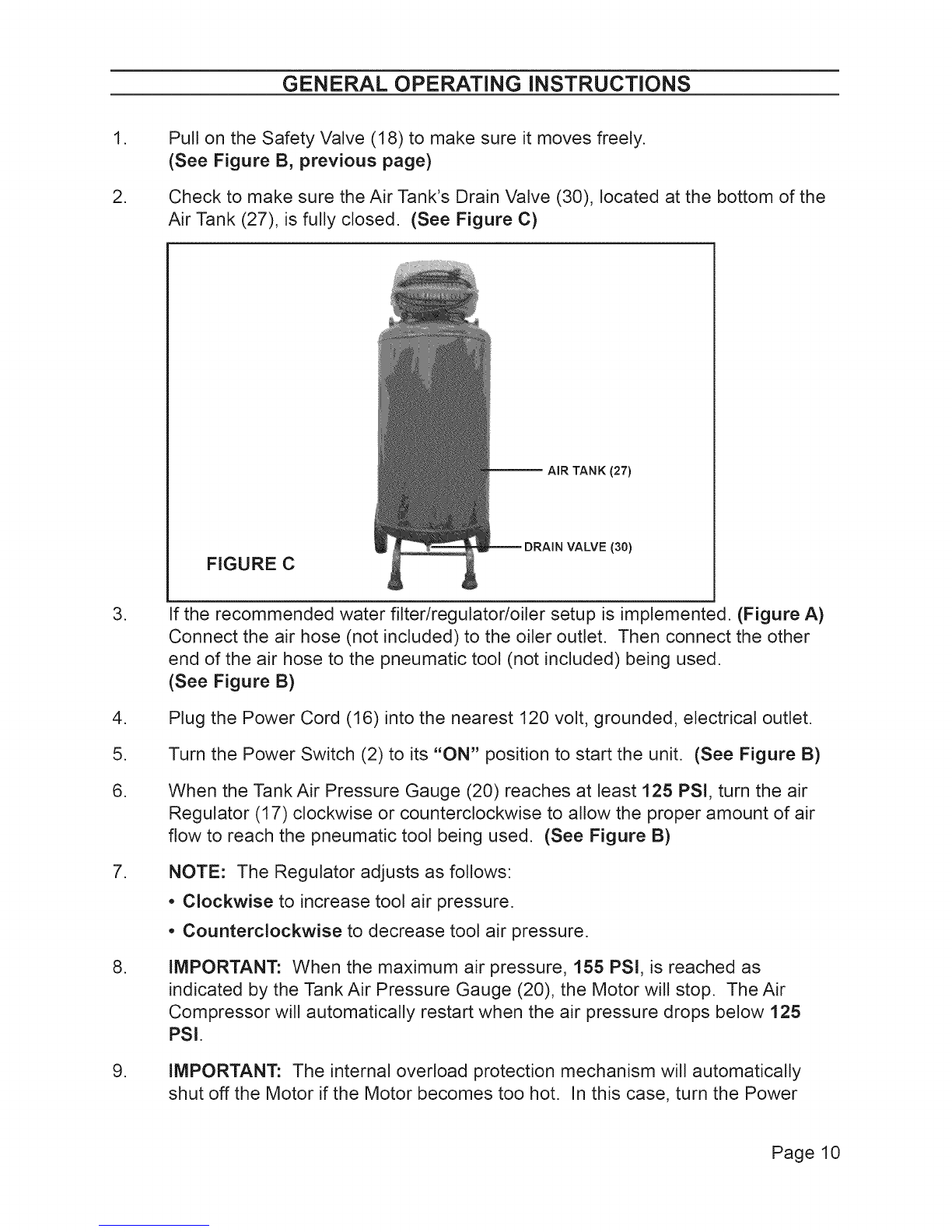

GENERAL OPERATING INSTRUCTIONS

Pull on the Safety Valve (18) to make sure it moves freely.

(See Figure B, previous page)

Check to make sure the Air Tank's Drain Valve (30), located at the bottom of the

Air Tank (27), is fully closed. (See Figure C)

AIR TANK (27)

FIGURE C (30)

If the recommended water filter/regulator/oiler setup is implemented. (Figure A)

Connect the air hose (not included) to the oiler outlet. Then connect the other

end of the air hose to the pneumatic tool (not included) being used.

(See Figure B)

Plug the Power Cord (16) into the nearest 120 volt, grounded, electrical outlet.

Turn the Power Switch (2) to its "ON" position to start the unit. (See Figure B)

When the Tank Air Pressure Gauge (20) reaches at least 125 PSI, turn the air

Regulator (17) clockwise or counterclockwise to allow the proper amount of air

flow to reach the pneumatic tool being used. (See Figure B)

NOTE: The Regulator adjusts as follows:

.Clockwise to increase tool air pressure.

. Counterclockwise to decrease tool air pressure.

IMPORTANT: When the maximum air pressure, 155 PSI, is reached as

indicated by the Tank Air Pressure Gauge (20), the Motor will stop. The Air

Compressor will automatically restart when the air pressure drops below 125

PSI.

IMPORTANT: The internal overload protection mechanism will automatically

shut off the Motor if the Motor becomes too hot. In this case, turn the Power

Page 10

10.

11.

12.

13.

Switch to its "OFF" position. Wait until the Motorcools. Pressthe Overload

Protector (3) button. Then restart theAir Compressor.

Tostop theAir Compressor,turn the Power Switch (2)to its "OFF" position.

Then unplug the Compressor from its electrical outlet. (See Figure B)

Pull the Safety Valve (18) to release any remaining air pressure from the Air Tank

(27). Next, squeeze the trigger on the pneumatic tool to release any remaining

air pressure from the tool. Then, disconnect the air hose from the Air Outlet

Valve (8). (See Figure B)

Remove any moisture from the Air Tank (17) by opening the Drain Valve (30).

Then, retighten the Drain Valve. (See Figure B)

Allow the Air Compressor to completely cool. Then store the Compressor in a

clean, dry, safe location out of reach of children and other unauthorized people.

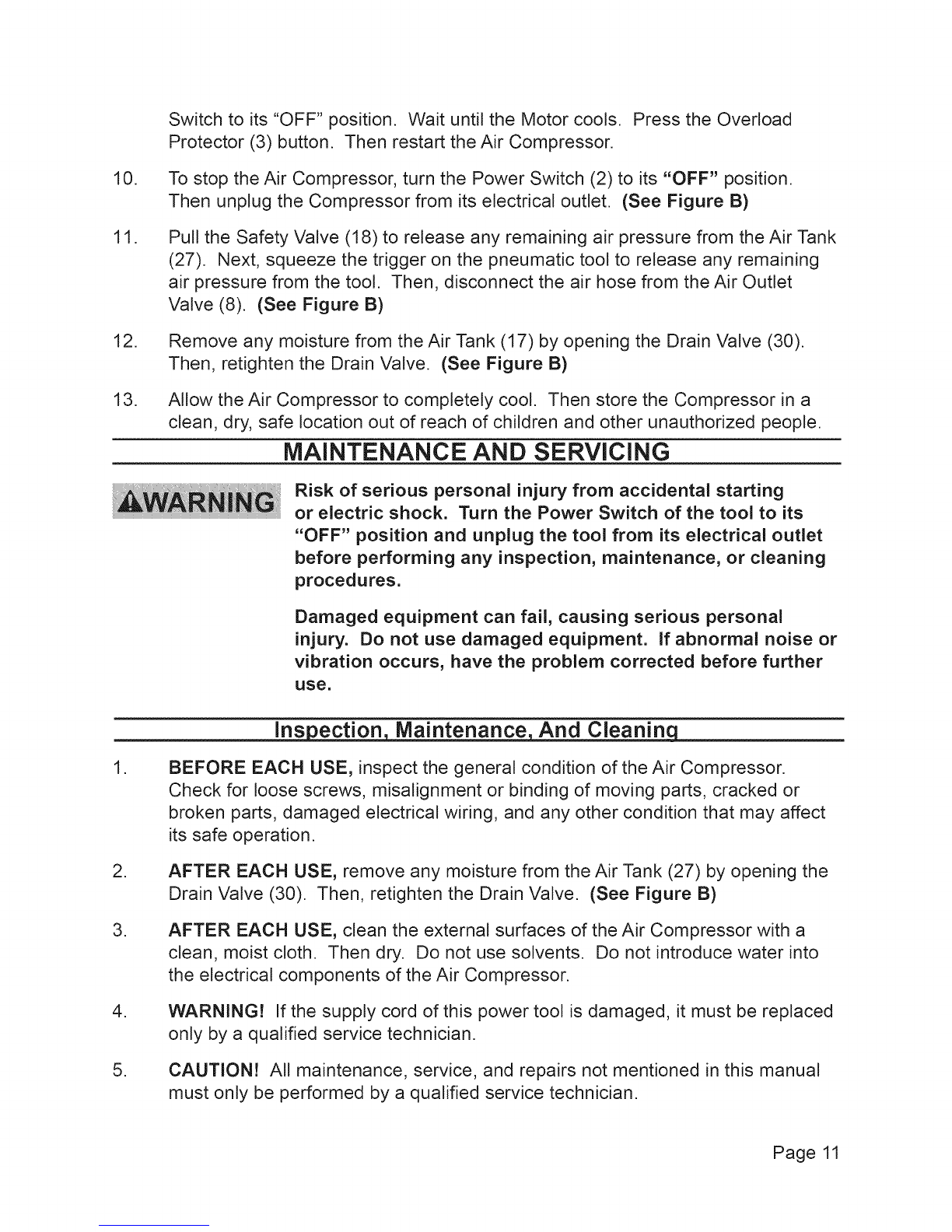

MAINTENANCE AND SERVICING

Risk of serious personal injury from accidental starting

or electric shock. Turn the Power Switch of the tool to its

"OFF" position and unplug the tool from its electrical outlet

before performing any inspection, maintenance, or cleaning

procedures.

Damaged equipment can fail, causing serious personal

injury. Do not use damaged equipment, if abnormal noise or

vibration occurs, have the problem corrected before further

use.

Ins ection Maintenance And Cleanin

BEFORE EACH USE, inspect the general condition of the Air Compressor.

Check for loose screws, misalignment or binding of moving parts, cracked or

broken parts, damaged electrical wiring, and any other condition that may affect

its safe operation.

AFTER EACH USE, remove any moisture from the Air Tank (27) by opening the

Drain Valve (30). Then, retighten the Drain Valve. (See Figure B)

AFTER EACH USE, clean the external surfaces of the Air Compressor with a

clean, moist cloth. Then dry. Do not use solvents. Do not introduce water into

the electrical components of the Air Compressor.

WARNING! If the supply cord of this power tool is damaged, it must be replaced

only by a qualified service technician.

CAUTION! All maintenance, service, and repairs not mentioned in this manual

must only be performed by a qualified service technician.

Page 11

TROUBLESHOOTING

Possible CausesProblem

Air Compressor will

not start,

Low air pressure to

pneumatic tool.

Air pressure too high

to pneumatic tool.

Power Switch not

operating properly.

1. No power at outlet.

2. Cord not connected.

3. Air Tank maximum air pressure

of 155 PSI has been reached.

Compressor Motor will

automatically shut-off.

1. Compressor Regulator not properly

adjusted.

1. Compressor Regulator not properly

adjusted.

1. Damaged Power Switch.

Probable Solutions

Check power at outlet.

Check that cord is plugged in.

Wait until Air Tank air pressure falls

to 125 PSI. Compressor Motor will

then automatically turn on.

1. Turn Regulator clockwise to

increase air flow to pneumatic tool.

1. Turn Regulator counterclockwise to

decrease air flow to pneumatic tool.

1. Immediately disconnect Power

Cord from its electrical outlet.

Do not use Compressor until a

qualified service technician repairs

Power Switch.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY

DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR

DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT

HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS

QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR

DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE

UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER

ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL

PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION

OF REPLACEMENT PARTS THERETO.

Page 12

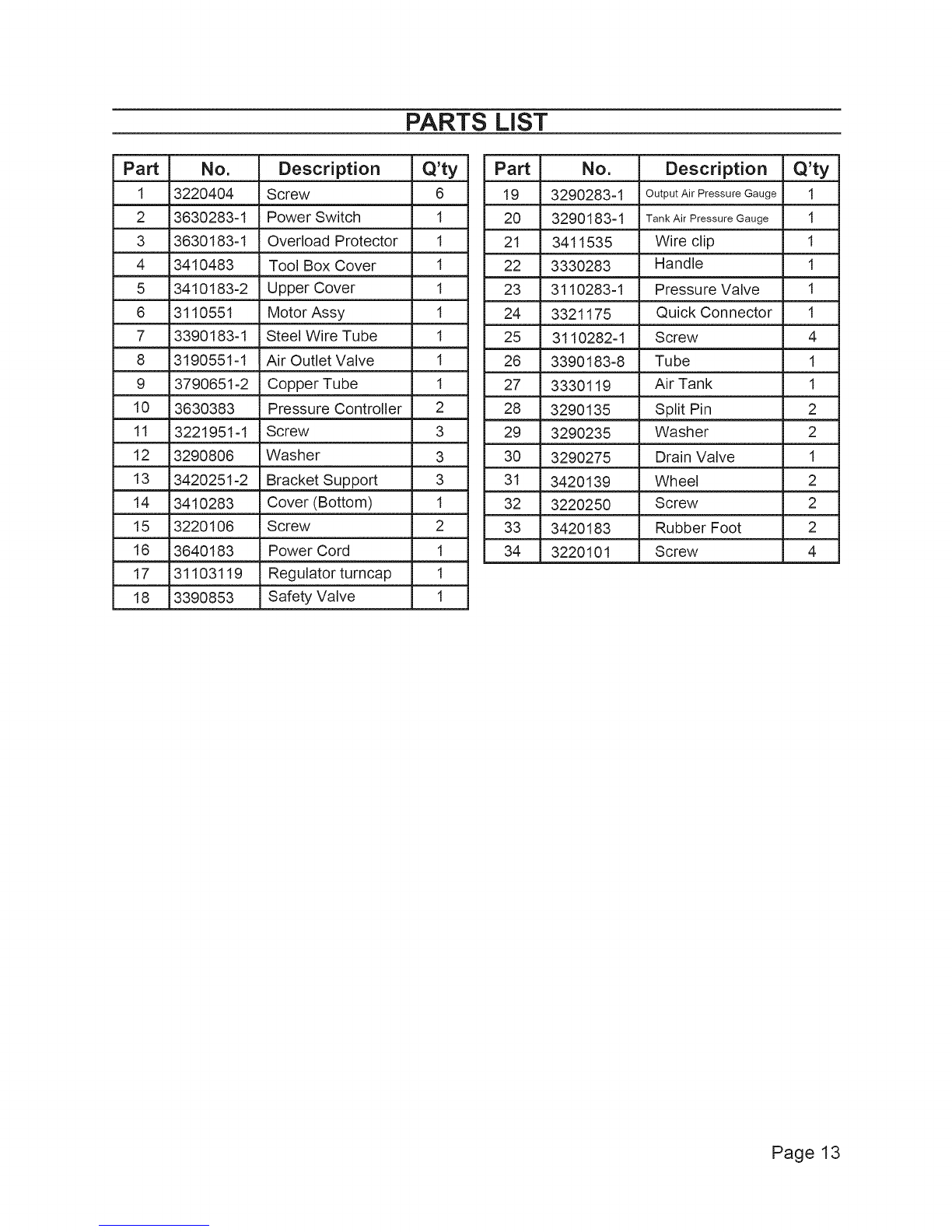

PARTS LiST

Part No. Description Q'ty

1 3220404 Screw 6

2 3630283-1 Power Switch 1

3 3630183-1 Overload Protector 1

4 3410483 Tool Box Cover 1

5 3410183-2 Upper Cover 1

6 3110551 Motor Assy 1

7 3390183-1 Steel Wire Tube 1

8 3190551-1 Air Outlet Valve 1

9 3790651-2 Copper Tube 1

10 3630383 Pressure Controller 2

11 3221951-1 Screw 3

12 3290806 Washer 3

13 3420251-2 Bracket Support 3

14 3410283 Cover (Bottom) 1

15 3220106 Screw 2

16 3640183 Power Cord 1

17 31103119 Regulator turncap 1

18 3390853 Safety Valve 1

Part No. Description Q'ty

19 3290283-1 Output Air Pressure Gauge 1

20 3290183-1 Tank Air Pressure Gauge 1

21 3411535 Wire clip 1

22 3330283 Handle 1

23 3110283-1 Pressure Valve 1

24 3321175 Quick Connector 1

25 3110282-1 Screw 4

26 3390183-8 Tube 1

27 3330119 Air Tank 1

28 3290135 Split Pin 2

29 3290235 Washer 2

30 3290275 Drain Valve 1

31 3420139 Wheel 2

32 3220250 Screw 2

33 3420183 Rubber Foot 2

34 3220101 Screw 4

Page 13

ASSEMBLY DIAGRAM

I 4 3 2 5

24 34 19 18 20 1723 22 25

IiI

Page 14

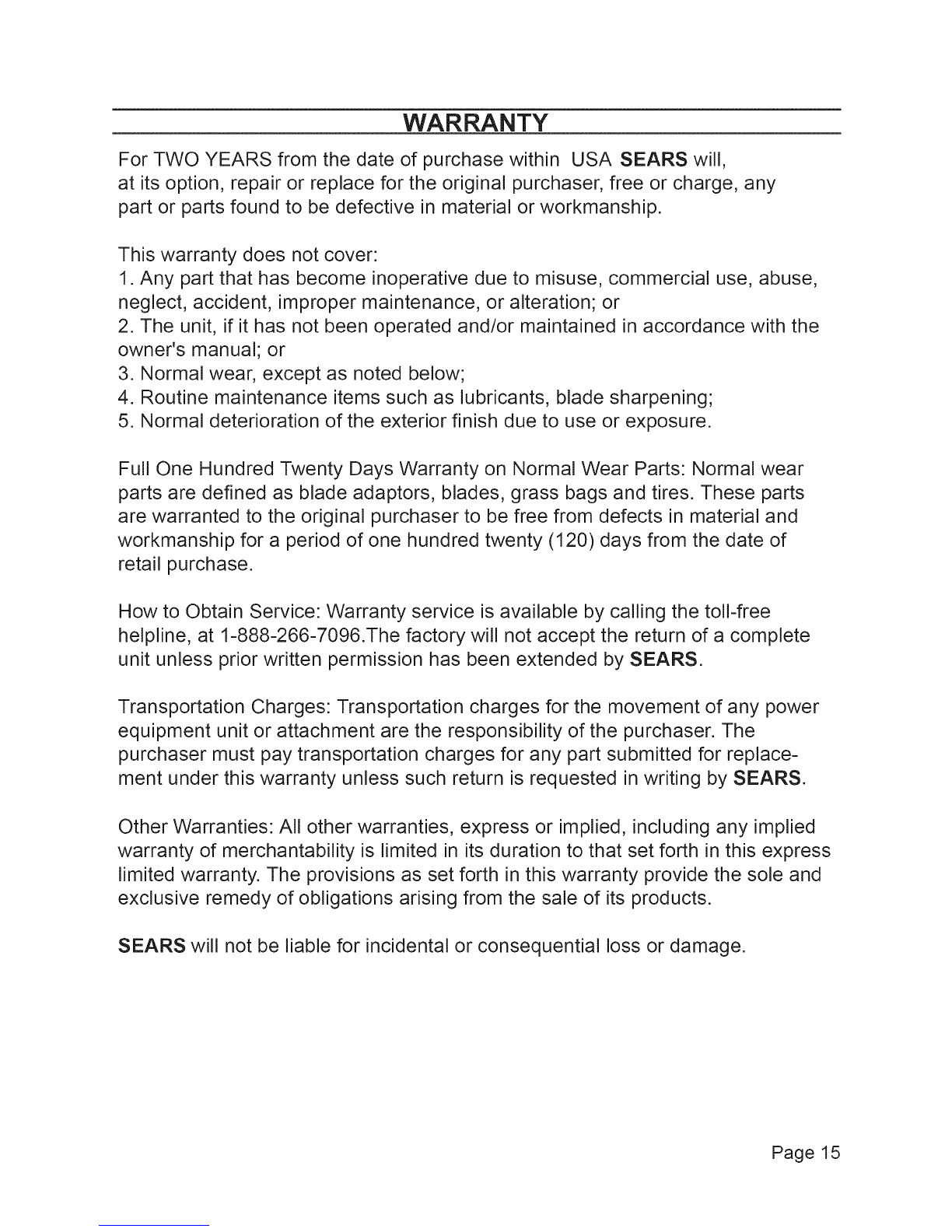

WARRANTY

For TWO YEARS from the date of purchase within USA SEARS will,

at its option, repair or replace for the original purchaser, free or charge, any

part or parts found to be defective in material or workmanship.

This warranty does not cover:

1. Any part that has become inoperative due to misuse, commercial use, abuse,

neglect, accident, improper maintenance, or alteration; or

2. The unit, if it has not been operated and/or maintained in accordance with the

owner's manual; or

3. Normal wear, except as noted below;

4. Routine maintenance items such as lubricants, blade sharpening;

5. Normal deterioration of the exterior finish due to use or exposure.

Full One Hundred Twenty Days Warranty on Normal Wear Parts: Normal wear

parts are defined as blade adaptors, blades, grass bags and tires. These parts

are warranted to the original purchaser to be free from defects in material and

workmanship for a period of one hundred twenty (120) days from the date of

retail purchase.

How to Obtain Service: Warranty service is available by calling the toll-free

helpline, at 1-888-266-7096.The factory will not accept the return of a complete

unit unless prior written permission has been extended by SEARS.

Transportation Charges: Transportation charges for the movement of any power

equipment unit or attachment are the responsibility of the purchaser. The

purchaser must pay transportation charges for any part submitted for replace-

ment under this warranty unless such return is requested in writing by SEARS.

Other Warranties: All other warranties, express or implied, including any implied

warranty of merchantability is limited in its duration to that set forth in this express

limited warranty. The provisions as set forth in this warranty provide the sole and

exclusive remedy of obligations arising from the sale of its products.

SEARS will not be liable for incidental or consequential loss or damage.

Page 15

INI

TOOLS'n TASKS TM/MC

26-.GALLON OIL-FREE

AiR COMPRESSOR

Model: 15560

218549

TOLL FREE HELPLINE: 1=888=266-7096

FOR SAFE OPERATION, READ AND UNDERSTAND

ALL CONTENTS OF THE iNSTRUCTiON MANUAL

SAVE THiS MANUAL

Keep this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures. Write the product's serial number in

the back of the manual near the assembly diagram (or month and year of purchase if

product has no number). Keep this manual and the receipt in a safe and dry place for

future reference.

IMPORTANT SAFETY INFORMATION

in this manual, on the labeling, and all other information

provided with this product:

This is the safety alert symbol, it is used to alert you to potential

personal injury hazards. Obey all safety messages that follow this

symbol to avoid possible injury or death.

DANGER indicates ahazardous situation

which, if not avoided, will result in death or

serious injury.

WARNING indicates ahazardous situation

which, if not avoided, could result in death

or serious injury.

CAUTION, used with the safety alert

symbol, indicates a hazardous situation

which, if not avoided, could result in minor

or moderate injury.

NOTICE is used to address practices not

related to personal injury.

CAUTION, without the safety alert symbol,

is used to address practices not related to

personal injury.

Page 2
