OPERATIONS MANUAL

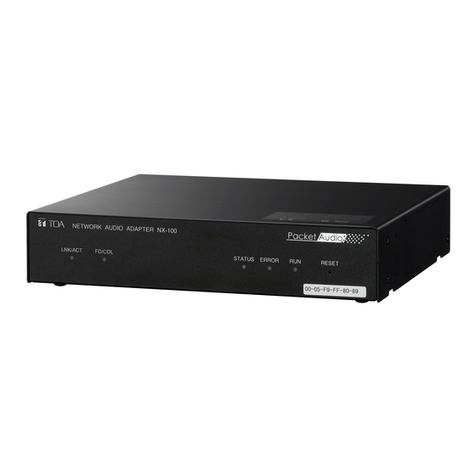

NETWORK AUDIO ADAPTER NX-100
1. OPERATION SCREEN .............................. 2
2. MENU ......................................................... 3
3. MAKING BROADCASTS .......................... 4
4. ERROR MESSAGES (EXAMPLES) .......... 6
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
TABLE OF CONTENTS

2
1. OPERATION SCREEN
(Operation screen example)
(2)
(5)
(1)
(3) (4)
(1) Selection Button
Selects broadcast locations.
(2) Group Button
Simultaneously selects two or more Selection buttons.
(3) Start Button
Starts the broadcast selected with the Selection or Group button.
(4) End Button
Quits broadcasts.
(5) Message Display Area
Displays responses to operations or error contents.

3
2. MENU
2.1. File
Exit: Exits the software program in use.
2.2. Setting
Button setting: Not used during operation. (Used for settings only. Entry of both system name and password
are required to perform the settings.)
Unit settings: Not used during operation. (Used for settings only. Entry of both system name and password
are required to perform the settings.)
2.3. Help
Help: Displays help contents.
Version data: Indicates the version number of the software program in use.

4
3. MAKING BROADCASTS
Step 1. Start the NX-100 Operation Program by double-clicking on the operation program's desktop shortcut
or the "nx100_control.jar" application created in the program's installed folder.
The operation screen is displayed.
(Operation screen example)
Step 2. Press either the Selection or Group button to select broadcast locations.
Multiple locations can be simultaneously selected. Selected buttons are highlighted in white. When
the Group button is pressed, all the Selection buttons programmed into the Group button are also
highlighted in white.

5
Step 3. Press the Start button.
Connection to the pressed Selection button's programmed NX-100 units begins.
If all NX-100 units are connected, the indication "Connection succeed to all designated units.*" is
displayed in the message display area, and the corresponding Selection button changes color to
orange.
* When only a portion of the programmed units is connected, the indication "Connection failure to
some designed units." is displayed.
NX-100 units that are not connected are displayed in the message display area. Depending on the
displayed messages, perform operation again after temporarily terminating the program and waiting a
short time, or after correcting any setting- or unit-related problems. The Selection buttons change to
orange if a connection is made to at least one of the NX-100 units programmed for that button.
Step 4. Broadcasting can begin when the "Connection succeed to all designated units." indication is
displayed.
Step 5. Press the End button after the broadcast is completed.
Step 6. Select [File] →[Exit] to quit the NX-100 Operation program.

200306
4. ERROR MESSAGES (EXAMPLES)
Message Points to Check
•"
OO " connection failure. - Maximum number of connectable
PCs exceeded.
• No start. - Designated unit busy.
•" OO " contact output " XX " already ON.
•" OO " contact output " XX " turned OFF by other contact or PC.
•"
OO " connection failure.
• Connection failure to all designated units.
•" OO " connection failure - Incomplete broadcast.
• No broadcast. - Connection failure to all units.
• Interrupted broadcast to " OO ".
• Interrupted broadcast from " OO ".
•" OO " connection failure. - Invalid system name.
• No start. - Invalid broadcast setting contents.
•" OO " contact output " XX " set to OFF.
Quit operations, and then restart after a
few minutes.
Contact system management
personnel.
Note
In the above messages, "
OO " indicates a unit's name and IP address, and " XX " indicates the channel
number.
