HS Series
Coaxial Array Speakers

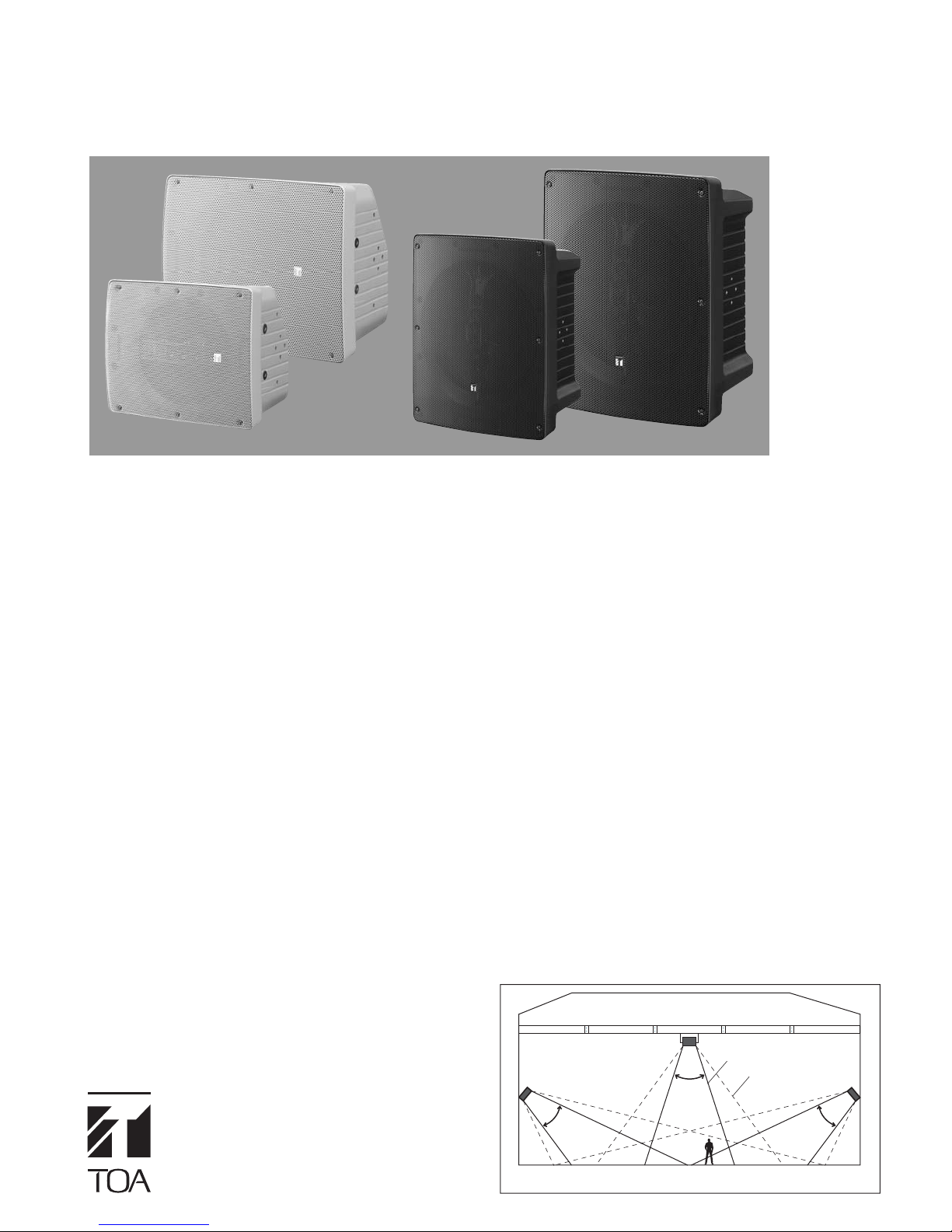

DESCRIPTION
HS-1200WT/1500WT HS-1200BT/1500BT
One of the most difficult speaker requirements to satisfy is a cost-effective mid-size speaker system that offers high quality sound no
matter what the application. TOA HS Series speakers are equipped with 90°×40°directivity control. This useful feature allows tailoring
the speaker's dispersion characteristics to better suit the acoustic environment in which it is installed. The versatile HS-1200/1500
Series are compatible for use with 100V/70V lines for distributed applications. The HS Series speakers are exceptional in offering
useful features at an attractive price.
FEATURES
Large diameter woofer (12"/15") in a compact, lightweight
enclosure
With its compact dimensions and light weight, the HS Series proves
ideal for use in mid to small-size venues, including restaurants and pubs
conference rooms and lecture halls, schools and similar locations, as
well as for temporary installations.
Uniform high quality sound is made possible by mounting the
high frequency driver array in a coaxial configuration with the woofer.
• Extended bass frequencies for rich music reproduction
• Optimal sound delivery with well integrated low and high frequencies
Optimal choice for acoustical problems caused by high
ceilings
that tend to reduce the clarity of sound reproduction, such as
in sports facilities, multi-purpose halls and houses of worship.
Coaxial Tweeter Array delivers accurate directivity control
HS Series speakers are equipped with 90°×40°directivity control. Well-
balanced sound is delivered without treble attenuation to where the
speaker is aimed, filling the acoustic space with clear sound.
Versatile installation
Unobtrusive design makes an ideal choice for permanent
installations.
Optional dedicated mounting brackets facilitates speaker installs on
walls and ceilings.
Accessory handle for easy transportability
Secure floor setting
•Accessory rubber feet for straight positioning.
•Wedge-shape enclosure enables use as a floor monitor.
Lineup:
12"/15" woofer, black and white finishes models are available.
Twin input terminal sets
The speakon terminal is ideal for quick temporary installation and for
testing purposes. The screw terminals are recommended for long-term
installation.
In locations with high ceilings, wide-directivity speakers cause the audio
reaching the listeners to lose clarity due to overlapping of attenuated sounds.
Conceptual Image of Dispersion Pattern
40°
Narrow
directivity
Conventional Speaker
HS Series Speaker

APPEARANCE AND DIMENSIONAL DIAGRAM APPEARANCE AND DIMENSIONAL DIAGRAM
HS-1200BT/1200WT HS-1500BT/1500WT
For wall/ceiling mount
Optional Brackets for HS-1200 Series
For wall/ceiling mount
Optional Brackets for HS-1500 Series
HY-1200HB HY-1200VB
HY-1200HW HY-1200VW
HY-1500HB HY-1500VB
HY-1500HW HY-1500VW
HY-1200VB/
HY-1200VW
[Ceiling installation]
HY-1200HB/
HY-1200HW
HY-1200VB/
HY-1200VW
[Wall installation]
HY-1200HB/
HY-1200HW
HY-1500VB/
HY-1500VW
[Ceiling installation]
HY-1500HB/
HY-1500HW
HY-1500VB/
HY-1500VW
[Wall installation]
HY-1500HB/
HY-1500HW
361
448
120
2–M8
176
320
60°
Front View Side View Rear View
Bottom View Figure of the unit installed
451
560
120 2–M8
241
400
60°
Front View Side View Rear View
Bottom View Figure of the unit installed
The following brackets allow a speaker's horizontal angle to be adjusted.
For ceiling mount For wall mount Impedance Change
HY-C0801W*
HY-C0801*
HY-W0801*
*To be used in conjunction with HY-1200/1500 Series brackets.
Wall/ceiling
mount
bracket
HY-C0801/
HY-C0801W
Wall/ceiling
mount
bracket
HY-W0801/
HY-W0801W
[Rear]
Rotary switch
Rotary switch
The figure represents factory-preset position.
HY-W0801W*

ARCHITECTURAL AND ENGINEERING SPECIFICATIONS
HS-1500BT/1500WT
The speaker shall be the two-way speaker with a sealed box
enclosure with polypropylene and a protective punched front
grill with a surface-treated steel plate. The speaker shall be
compatible with low and high impedance speaker systems
and include a built-in 70V matching transformer. The rear
panel shall have screwdriver-adjustable tap settings of: 60W,
30W, 15W, 7.5W and 8 ohms. The rated input shall be 60W,
the continuous pink noise shall be 100W at 8 ohms and
continuous program shall be 300W at 8 ohms. The speaker
shall feature a 38 cm (15”) woofer and a 6-balanced-dome
tweeters array with a 90°×40°dispersion. Frequency
response shall be 60 to 20k Hz, with crossover at 3k Hz.
Sensitivity shall be rated at 98 dB (1 W, 1 m). The speaker
system shall be designed for both fixed installation uses and
on-the-road and shall be capable of being easily carried with
an accessory handle. Its built-in overload protection circuitry
for tweeter shall cut off a signal when an excessive input
signal is received. Input connections shall be via a speakon
connector or screw terminal.
The speaker system shall weigh 14kg (30.86 lb) and shall
have dimensions of 451(W) ×560(H) ×400(D) mm (17.76” ×
22.05” ×15.75”). The operating temperature range shall be
between –10°C (14°F) and +50°C (122°F). The speakers
shall be easily mounted in vertical or horizontal positions,
with a wide range of optional brackets.
The two-way speaker system shall be a TOA model HS-
1500BT/HS-1500WT or approved equivalent.
The wall/ceiling-mount bracket shall be TOA model HY-
1500HB/HY-1500HW/HY-1500VB/HY-1500VW.
The ceiling-mount bracket used in conjunction with HY-
1500HB/HY-1500HW/HY-1500VB/HY-1500VW shall be
TOA model HY-C0801/HY-C0801W.
The wall-mount bracket used in conjunction with HY-
1500HB/HY-1500HW/HY-1500VB/HY-1500VW shall be
TOA model HY-W0801/HY-W0801W.
HS-1200BT/1200WT
The speaker shall be the two-way speaker with a sealed box
enclosure with polypropylene and a protective punched front
grill with a surface-treated steel plate. The speaker shall be
compatible with low and high impedance speaker systems
and include a built-in 70V matching transformer. The rear
panel shall have screwdriver-adjustable tap settings of: 60W,
30W, 15W, 7.5W and 8 ohms. The rated input shall be 60W,
the continuous pink noise shall be 100W at 8 ohms and
continuous program shall be 300W at 8 ohms. The speaker
shall feature a 30 cm (12”) woofer and a 6-balanced-dome
tweeters array with a 90°×40°dispersion. Frequency
response shall be 70 to 20k Hz, with crossover at 3k Hz.
Sensitivity shall be rated at 97 dB (1 W, 1 m). The speaker
system shall be designed for both fixed installation uses and
on-the-road and shall be capable of being easily carried with
an accessory handle. Its built-in overload protection circuitry
for tweeter shall cut off a signal when an excessive input
signal is received. Input connections shall be via a speakon
connector or screw terminal.
The speaker system shall weigh 10kg (22.05 lb) and shall
have dimensions of 361(W) ×448(H) ×320(D) mm (14.21” ×
17.64” ×12.60”) mm. The operating temperature range shall
be between –10°C (14°F) and +50°C (122°F). The speakers
shall be easily mounted in vertical or horizontal positions,
with a wide range of optional brackets.
The two-way speaker system shall be a TOA model HS-
1200BT/HS-1200WT or approved equivalent.
The wall/ceiling-mount bracket shall be TOA model HY-
1200HB/HY-1200HW/HY-1200VB/HY-1200VW.
The ceiling-mount bracket used in conjunction with HY-
1200HB/HY-1200HW/HY-1200VB/HY-1200VW shall be
TOA model HY-C0801/HY-C0801W.
The wall-mount bracket used in conjunction with HY-
1200HB/HY-1200HW/HY-1200VB/HY-1200VW shall be
TOA model HY-W0801/HY-W0801W.

Polar Response (Horizontal) Polar Response (Vertical)
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 16000Hz
12500Hz
10000Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 4000Hz
3150Hz
2500Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 8000Hz
6300Hz
5000Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 2000Hz
1600Hz
1250Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 1000Hz
800Hz
630Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 500Hz
400Hz
315Hz
HS-1200BT/1200WT
SPL vs. Frequency
Beamwidth vs. Frequency
Impedance vs. Frequency
Phase vs. Frequency
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 16000Hz
12500Hz
10000Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 4000Hz
3150Hz
2500Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 8000Hz
6300Hz
5000Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 2000Hz
1600Hz
1250Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 1000Hz
800Hz
630Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 500Hz
400Hz
315Hz
200
100
50
10
5
1
20 50 100 500 1k 5k 10k 20k
Frequency (Hz)
Impedance (ohm)
110
100
90
80
70
60
50
40
3020 50 100 500 1k 5k 10k 20k
Frequency (Hz)
SPL (dB)
200
100
50
10
20 50 100 500 1k 5k 10k 20k
Frequency (Hz)
Beamwidth (deg)
Hor.
Ver.
180
90
0
-90
-180
20 50 100 500 1k 5k 10k 20k
Frequency (Hz)
Phase (deg)

Polar Response (Horizontal) Polar Response (Vertical)
SPL vs. Frequency
Beamwidth vs. Frequency
Impedance vs. Frequency
Phase vs. Frequency
200
100
50
10
5
1
20 50 100 500 1k 5k 10k 20k
Frequency (Hz)
Impedance (ohm)
110
100
90
80
70
60
50
40
3020 50 100 500 1k 5k 10k 20k
Frequency (Hz)
SPL (dB)
200
100
50
10
20 50 100 500 1k 5k 10k 20k
Frequency (Hz)
Beamwidth (deg)
Hor.
Ver.
180
90
0
-90
-180
20 50 100 500 1k 5k 10k 20k
Frequency (Hz)
Phase (deg)
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 16000Hz
12500Hz
10000Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 4000Hz
3150Hz
2500Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 8000Hz
6300Hz
5000Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 2000Hz
1600Hz
1250Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 1000Hz
800Hz
630Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 500Hz
400Hz
315Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 16000Hz
12500Hz
10000Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 4000Hz
3150Hz
2500Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 8000Hz
6300Hz
5000Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 2000Hz
1600Hz
1250Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 1000Hz
800Hz
630Hz
60°
30°
0°
330°
300°
270°
240°
240°
180°
150°
120°
90°
10
0
-10
-20
-30
-40
-40
-30
-20
-10
0
10 500Hz
400Hz
315Hz
HS-1500BT/1500WT

Specifications are subject to change without notice.
Printed in Japan (0802) 833-61-656-40 u
TOA Corporation
www.toa.jp
Model No. HS-1200BT HS-1200WT HS-1500BT HS-1500WT
Enclosure Sealed type
Rated Input 60W (High impedance)
Power Handling Capacity Continuous pink noise: 100W, Continuous program: 300W
Rated Impedance 8Ω8Ω
100V line: 170Ω(60W), 330Ω(30W), 670Ω(15W) 100V line: 170Ω(60W), 330Ω(30W), 670Ω(15W)
70V line: 83Ω(60W), 170Ω(30W), 330Ω(15W), 670Ω(7.5W) 70V line: 83Ω(60W), 170Ω(30W), 330Ω(15W), 670Ω(7.5W)
Sensitivity 97dB (1W, 1m) 98dB (1W, 1m)
Frequency Response 70 – 20,000Hz 60 – 20,000Hz
Crossover Frequency 3kHz
Directivity Angle Horizontal: 90°, Vertical: 40°
Speaker Component Low frequency: 30cm (12") cone-type, Low frequency: 38cm (15") cone-type,
High frequency: Balanced dome tweeter ×6 High frequency: Balanced dome tweeter ×6
Input Terminal NEUTRIK NL4MP Speakon and M4 screw terminal, distance between barriers: 9mm (0.35")
Operating Temperature –10°C to +50°C (14°F to 122°F)
Finish Enclosure: Polypropylene, black Polypropylene, white Polypropylene, black Polypropylene, white
Punched net: Surface-treated steel plate, black Surface-treated steel plate, white Surface-treated steel plate, black Surface-treated steel plate, white
Dimensions 361 (W) ×448 (H) ×320 (D)mm (14.21" ×17.64" ×12.6") 451 (W) ×560 (H) ×400 (D)mm (17.76" ×22.05" ×15.75")
Weight 10 kg (22.05 lb) 14 kg (30.86 lb)
Accessories Handle ×1, Handle fitting bracket ×2, Handle mounting screw ×2, Rubber foot ×2, Rubber foot mounting screw ×2
Options Mounting bracket: HY-1200VB
(for vertical speaker mounting) HY-1200VW (for vertical speaker mounting) HY-1500VB (for vertical speaker mounting) HY-1500VW (for vertical speaker mounting)
HY-1200HB (for horizontal speaker mounting) HY-1200HW (for horizontal speaker mounting) HY-1500HB (for horizontal speaker mounting) HY-1500HW (for horizontal speaker mounting)
Ceiling mount bracket: HY-C0801 HY-C0801W HY-C0801 HY-C0801W
Wall mount bracket: HY-W0801 HY-W0801W HY-W0801 HY-W0801W
SPECIFICATIONS
