ToCAD QSX 9002DX User manual

SUNPAK LIMITED LIFETIMEWARRANTY
This SUNPAK product has been carefully manufactured,
accurately adjusted, inspected and thoroughly tested before
shipment to assure you of the highest quality.
Should this SUNPAK product require service, we will repair
or replace, at our option, any part or the product itself, which
our examination shows to be defective in material or
workmanship. This warranty does not apply to wear and
tear associated with the normal use of the product.This
warranty is non-transferable.
Repairs will be made to the product at no charge, under the
terms of the warranty as stated above, only when
accompanied by a dated and itemized bill of sale and
nominal handling charge.
Be certain to follow all assembly and/or operating
instructions with this product.This warranty is not valid if the
product has been misused or damaged in any way that is
beyond our control or through normal wear and tear
associated with use.This warranty applies only to the
product and we are not responsible in any way for losses,
damages or any inconvenience caused by equipment failure.
Some states do not allow the exclusion or limitation of
consequential damages, so the above limitation or exclusion
may not apply to you.This warranty gives you specific legal
rights and you may have other rights which may vary from
state to state.
Should service be required, the product should be carefully
packed (in the original packaging if possible ) and sent,
prepaid and insured, along with a check or money order for
$9.95 (shipping and handling), to the address listed below. A
note briefly describing the nature of the defect should also
be enclosed to expedite handling.
Proof of purchase and payment for shipping and handling
must be included for warranty repairs.
Operating Instructions
Congratulations on the purchase of your new
SUNPAK tripod. Your tripod has been designed
to be a sturdy, rugged, and dependable product and
will provide you with many years of reliable service.
Please spend a few moments reviewing these
instructions, so that you can take full advantage
of your tripod’s features and capabilities.
Precautions
· Insure that all levers, handles, knobs and leg
locks are properly tightened, and that all three
legs are fully angled opened before use.
· Do not mount any camera directly onto the head
mount screw located on the bottom of the
tripod’s center column.The screw may be longer
than the tripod socket in your camera, and could
possibly cause damage.
· Do not carry or transport the tripod with the
camera equipment attached (as example but not
limited to: over your shoulder or cradled in your
arms).
· Do not Oil or Grease any part of the tripod.
· Do not use any solvents or thinners to clean your
tripod.Use mild detergent and wipe dry with a
soft, lint-free cloth only.
· Do not store or expose your tripod to
excessive heat or cold or use close to any flame
or fire.
· Do not exceed the load limit for this product.
OWNER’S RECORD
Please complete this section and retain with your original bill
of sale for your records.
Model Number: QSX 9002DX
Purchae Date: _____________________________________
Dealer’s Name: ____________________________________
Address: _________________________________________
City: _____________________________________________
State: _____________ Zip Code: ______________________
ToCAD America Inc.
Sunpak Tripod Division
53 Green Pond Road
Rockaway, NJ 07866
973-627-9600
www.tocad.com

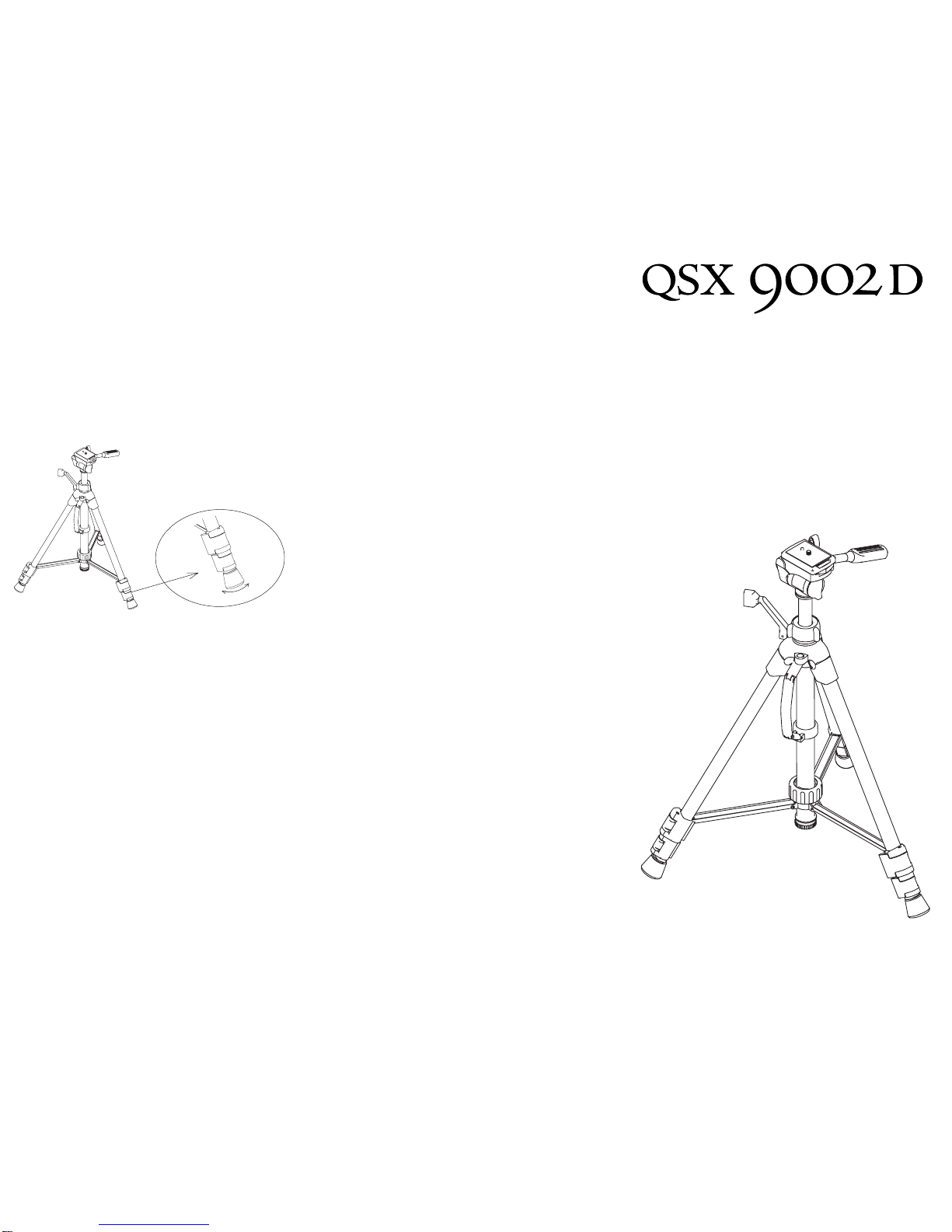

Retractable Leg Spikes
Your QSX 9002D tripod is equipped with
retractable leg spikes for extra stability on outdoor
surfaces. To use the leg spikes, turn each of the
heavy duty rubber leg tips in a clockwise direction
until they stop. To retract the leg spikes, turn the
rubber leg tips in a counterclockwise direction
until they stop.
Note: The leg spikes should only be used
outdoors and caution should be exercised when
handling the tripod with the spikes exposed.

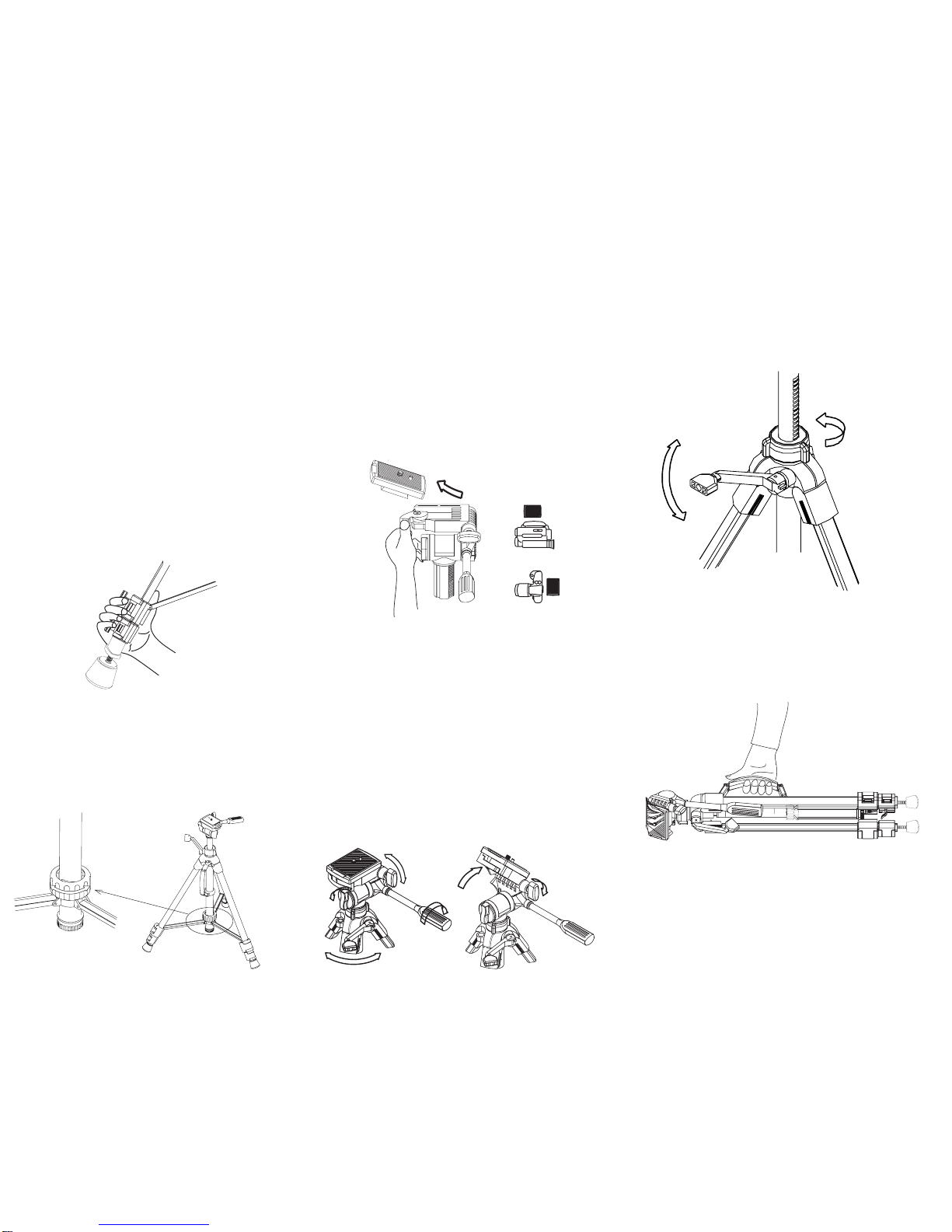

Height andTension Control Adjustments
The QSX 9002D is equiped with a rack and pinon
geared center column for precise height
adjustments.To raise or lower the center column,
loosed the elevation locking collar. Fold out the
elevation crank and turn to the desired height.
Retighten the elevation locking column to secure.
Extending the Legs
Each leg of the QSX 9002D has separate leg
extensions and each segment may be withdawn
as needed. This permits setting your equipment
at a comfortable height and can be very useful
when positioning your tripod for uneven terrain.
To deploy any leg extension, flip the leg lock lever
open in the direction as shown and gently pull on
the leg to extend. To secure, press the leg lock in
the opposite direction until it locks in place. Not
properly securing a leg lock may cause the tripod
leg to retract unexpectedly and result in damage
to the camera and tripod.
QSX 9002D Specifications
Folded Length 24.3 in (61.8 cm)
Maximum Height 64.6 in (164.0 cm)
Center Column Length 12.25 in (31.1 cm)
Weight 3.7 lb (1.67 kg)
Load Capacity 6.6 lb (3.0 kg)
Quick Release Platform
To remove the quick release platform, move the
lock lever outward and lift the platform up and to
the left from the panhead assembly.
Align and attach the platform to the type of
camera that is being used as illustrated below. To
attach the platform and camera to the panhead,
move and hold the quick release lock lever
outward and place the platform into the panhead
saddle. Secure the platform and camera to the
tripod panhead by moving the lock lever firmly into
position.
Opening and Closing theTripod
When opening the tripod, make certain that the
leg bracing locking collar is loosened. All three
braces should then be fully extended by gently
pressing down on any brace until it stops. To
secure, retighten the collar. To close the tripod,
reverse the sequence.
3-Way Panhead
To tilt, loosen the panhead/tilt handle, by turning
the handle conterclockwise. Tilt the panhead as
desired and retighten by turning the panhead/tilt
handle clockwise.
To pan, loosen the pan locking knob, position as
desired and retighten.
For action panning, loosen the pan locking knob
and use the panhead/tilt handle to follow the
action.
To shoot verticals, loosen the vertical tilt locking
knob and rotate clockwise to the vertical positon.
Folding Carry Handle
The QSX 9002D incorporates a built in folding
handle that automatically extends for easy
transportation just about anywhere. When not in
use, it folds conveniently againist the center column.
