CaMate CA80 Series User manual

Installation Guide
CA80 Series
Vari-Angle IR Illuminator
Rev. 1.0
QIG Part no.: L625000100G
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

2
Revision History:
* Rev. 1.0: Initial Release
Package Contents
X3
X1
X2
X2
• The wall-mount (CMA-B04), corner-mount (AM-412), pole-
mount adaptor (AM-311/312), and other brackets are separately
purchased.
• The screws and anchors for securing the illuminator to wall are
user-supplied. Apply M6 anchors or screws.
NOTE:
The 1/4" screws and washers are used to secure the illuminator
to an external camera housing.
• Please avoid eye exposure or apply appropriate protection, such as wearing a pair of Infrared
protection glasses, when working with the product. Always use camera live view to oberve IR
lighting effects.
WARNING:
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance
closer than 2.5 m is not expected.
• Theexternalexiblecableorcordofthisluminairecannotbereplaced;ifthecordisdamaged,
the luminaire shall be destroyed.
• Thelightsourceofthisluminaireisnotreplaceable;whenthelightsourcereachesitsendoflife
the whole luminaire shall be replaced.
• Please make sure Reinforce/Double insulation shall be maintained between LV supply and control
circuits after installation.
• ThisoodlightshallbeusedwithaIEC/EN61347-2-13approvedLEDdriverwithSELVoutput
equaltoratedvoltageoftheluminaire,andoutputpowerofLEDdriversshallbeatleastequalto
rated power of the luminaire.
• Terminalblockisnotincluded.Installationmayrequireadvicefromaqualiedpersonnel.
Dimming
LED
Status
LED
On/Off
T
W
Zoom
50%
20%
10%
100%
75%
50%
25%
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

3
• Do not install the product with unstable brackets, or installed on fragile mount surfces.
• This product shall be used in compliance with local laws and regulation.
• Please avoid using chemical oraerosolcleaninguidstocleantheproduct. Use a clean cloth
slightly moistened with water.
• This product contains no parts repairable by the users. Contact CaMate for services.
• Power off the Illuminator as soon as smoke or unusual odors are detected.
• Do not place the Illuminator on unsteady surfaces.
• Replacing or failing to properly install the waterproof components, e.g., cables or cable glands,
willvoidourIP67warranty.
• Refer to your datasheet for the operating temperature.
• Do not touch the Illuminator during a lightning storm.

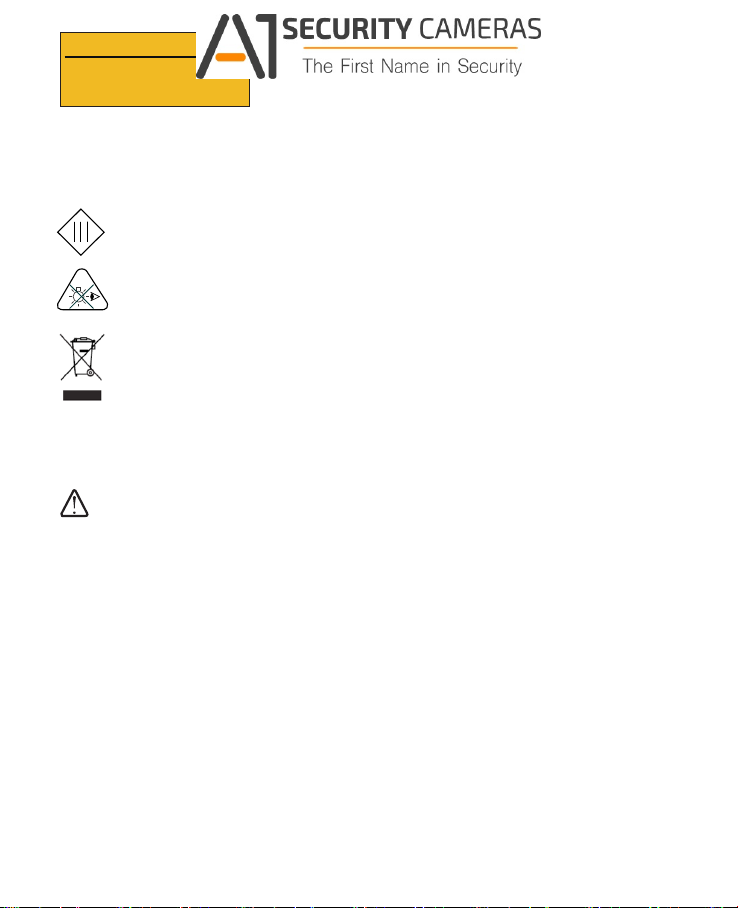

IMPORTANT:
Class III luminaires
Do not stare at the operating light source.
This marking indicates that this product should not be disposed with other household
wastesthroughouttheEU.Topreventpossible harm totheenvironmentorhumanhealth
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse
of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
RISK GROUP 3
WARNING IR emitted from this product,
Do not look at operating lamp.
IRilluminatorsRISKGRORP3/WARNINGIR emitted from this product. /Avoideyeexposure.Use
appropriate shielding or eye protection. Do not look at operating lamp.
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

4
160mm(6.3")
220mm(8.7")
73mm(2.9")
103.8mm(4.1")
134.6mm(5.3")
61.5mm(2.4")
164.6mm(6.5")
59.5mm(2.3")
43mm(1.7")
43mm(1.7")
59mm(2.3")
32mm(1.3")
Mechanical Drawings
134
M6x1
4
64
29.3
8.2
30
82
Standard Small U bracket
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

5
Hardware Overview
I
Reserved mounting holes for
external camera housing
Ubracket
Optionalmountingpointsfor
Ubracket
Light sensor
Combo cable
Dehumidier
membrane
Reserved
Mounting holes
Unit Weight:2.1KG.
Max. Project Area:34684.7mm2.
160mm(6.3")
220mm(8.7")
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

6
Beam angle selectors
These buttons provide quadruple proportions of adjustable
angles from the narrowest, 33%, 66%, to the widest. These angles vary
with different models. When a beam angle is selected, you can use
the fine-tune buttons below to tune for a desired effect.
Angle fine-tune
After a preset beam angle is selected, use these buttons
to fine-tune. T stands for tele, W for wide.
Dimming
LED
Status
LED
On/Off
T
W
Zoom
50%
20%
10%
100%
75%
50%
25%
LED on/off
Unlock
Remote control is disabled by default.
Unlock the remote control by pressing this button for
2 seconds. The control is automatically locked after
being idle for 5 mins.
LED status
The button toggles the LED indicators on or off.
The LEDs are only visible on the non-IR illuminators,
such as w5.
Light sensor sensitivity
These buttons provide direct access to the pre-
defined light sensor thresholds that turn the LEDs on.
LED dimming
These are four pre-defined lighting
strength levels.
LED dimming fine-tune
These buttons can be used to
change the lighting strength levels
from 100% to 20%.
Using the Remote Controller
Dimmin g
LED
Status
LED
On/Off
T
W
Zoo m
50%
20%
10%
100%
75%
50%
25%
15m
Effective range
45° 45°
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

7
Installation
II
U Bracket Positions & Orientation
UsetheincludedallenwrenchtoattachandadjusttheUbrackettoyourneedsattheinstallationsite.
It is highly recommended that the illuminator should be installed at a position higher than 3 meters from
the ground.
IMPORTANT:
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

8
Youmustrstsurveytheinstallationsiteanddeterminetheilluminationdistance.
Usetheremotecontrollertoadjustthebeamangle.
CA8018-1040
Button Beam angle Single mount Double mount Triple mount
Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)
40° 140 101.9 198.0 144.1 242.5 176.5
30° 178 95.4 251.7 134.9 308.3 165.2
20° 250 88.1 353.5 124.7 433.0 152.6
10° 350 61.2 495.0 86.6 606.2 106.1
The factory default for the beam angle selector is always at the Widest angle.
RefertothetablesbelowforthecongurableIRlightbeam anglesandthedenitionsoftheremote
controllerbuttons.Eachbuttonchangestoapresetbeamangle.
Width
Distance
Angle
27°33°
40°
Dimming
LED
Status
LED
On/Off
T
W
Zoom
50%
20%
10%
100%
75%
50%
25%
Example:
CA8018-2040
Button Beam angle Single mount Double mount Triple mount
Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)
40° 170 123.7 240.4 175.0 294.4 214.3
33° 190 112.6 268.7 159.2 329.1 195.0
27° 221 106.1 312.5 150.1 382.8 183.8
20° 280 98.7 396.0 139.6 485.0 171.0
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

9

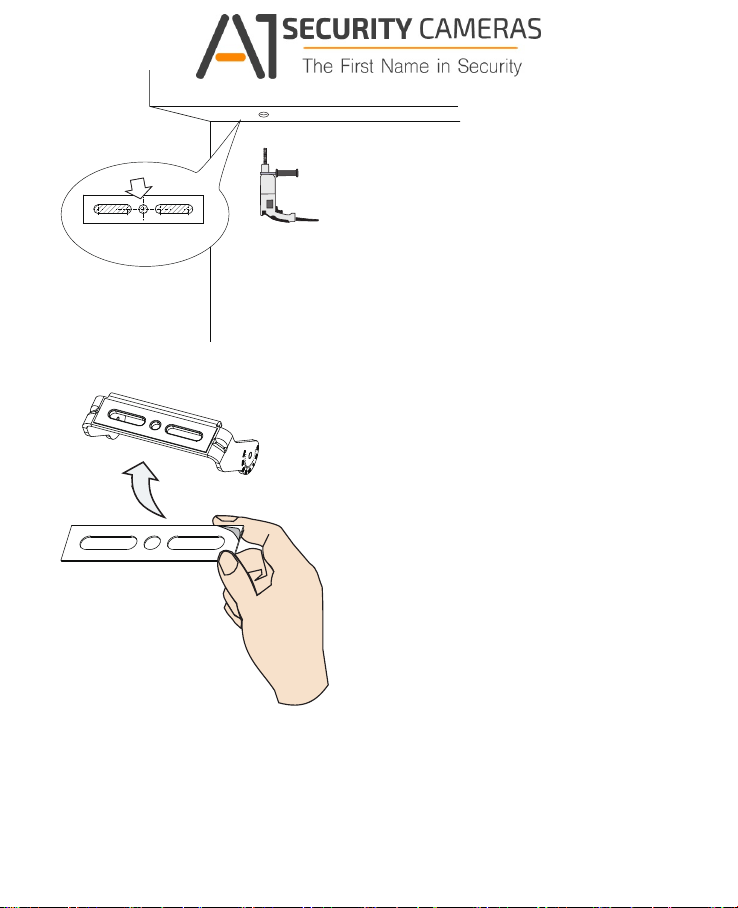

Selectapositionattheinstallationsite.e.g.,underahangingroof.Youcanusethealignmentsticker
and start drilling a hole on the roof.
ApplytheincludedgripstickertotheUbracket.
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

10
M6 anchor
Hammertheanchorin(usersupplied,M6anchorsarerecommended).SecuretheUbrackettoit,such
as securing it using the bolt on a threaded pole.
Securetheilluminatortobracketusingthehexsocketscrews.
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

11
You will need to turn on both the partner camera and illuminator to precisely match the illuminated area
withthecamera'seldofview.Ifnecessary,adjustthebeamangleagain.
TurntheilluminatortowardtheFOVofthepartnercamera,shiftthetiltangle,andthentightenthe
screw and the rear cover to secure the illuminator.
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

12

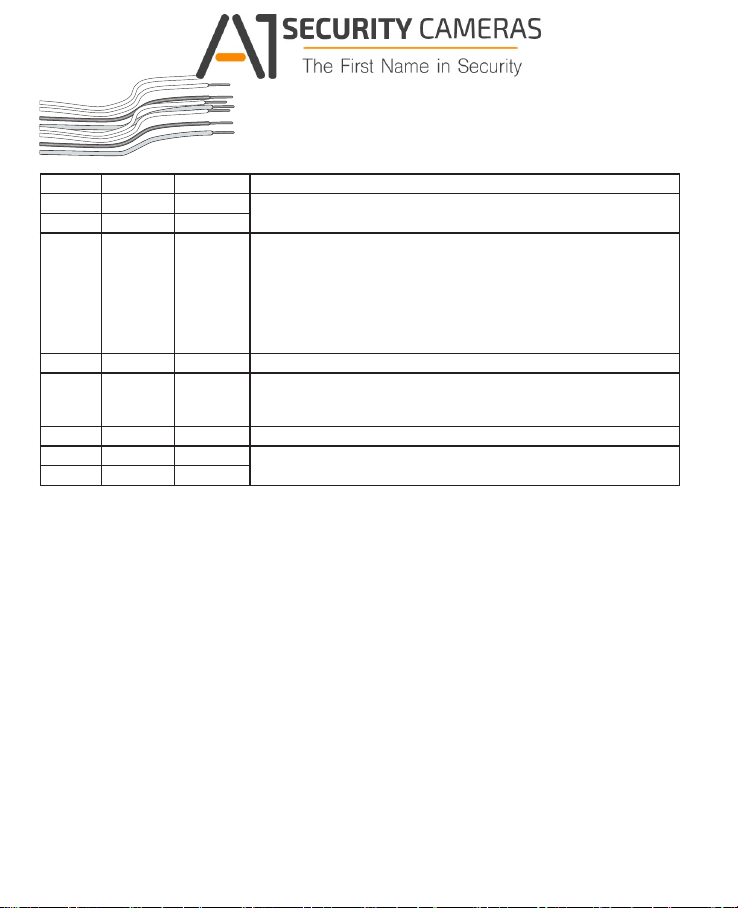

Name Color Gauge Description
V+ Red (20AWG) Power input
(AC/DC 24V ±10% current controlled)
V- Black (20AWG)
DI+ Green (26AWG) LEDON/OFFcontrol
* Dry contact
Logiclevel1(Open)=LEDoff
Logiclevel0(ClosetoGND)=LEDon
*Wetcontact
Logiclevel1:4V~40V=LEDoff
Logiclevel0:0.8VMAX=LEDon
DI- Yellow (26AWG) Ground
DO+ Purple (26AWG) Light sensor status output
1.Open=Day
2.Short=Night(300luxforIRON)
DO- Blue (26AWG) Ground
RS485+ Orange (26AWG) RS485interfacecontrol
RS485- Brown (26AWG)
Cable Pinouts
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

13
External
power source
Relay
NO NC
+3.3V+3.3V
R
R
R
GND GND GND
Switch
+3.3V
R
GND
Fuse/50mA
GND
Camera DI pins
DI+
DI-
DO+
DO-

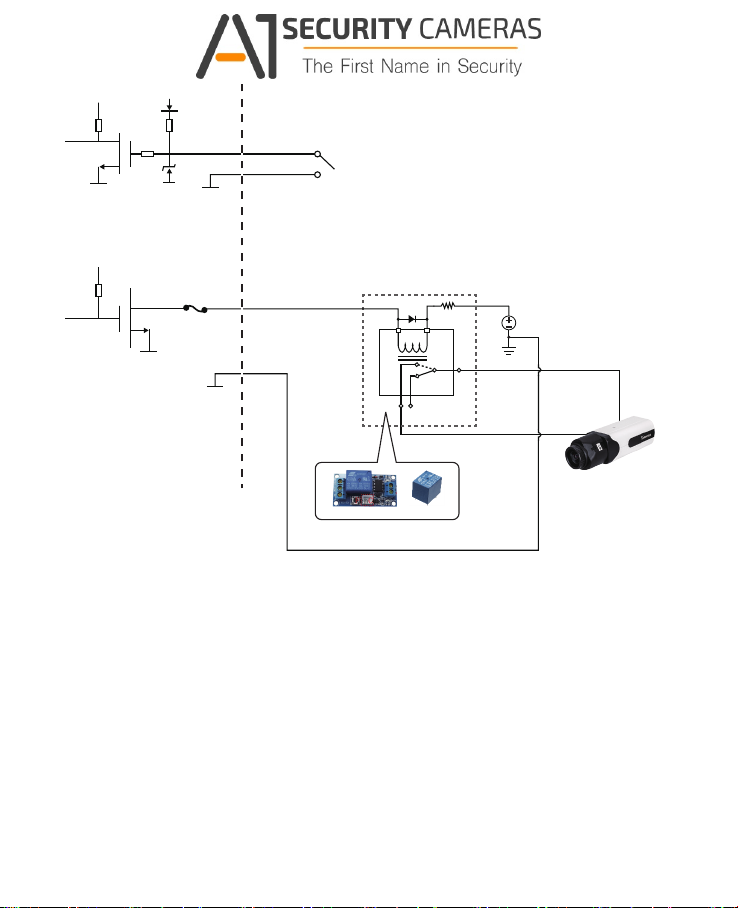

Coordination with Cameras via the DI and DO Pins
IR LED ON/OFF control (Green & Yellow wires)
This mode means that CaMate illuminatorOn/Offcontrolistriggeredbycameraorotheralarmsystem.
Userscandecideusingtheappropriatedry/wetcontactsdependingonwiringcondition.
DI+:Green=TTL+voltage
DI-:Yellow=TTL–voltage(GND)
* Dry contact
Logiclevel1(Open)=LEDoff
Logiclevel0(ClosetoGND)=LEDon
*Wetcontact
Logic level 1: 4V~40V=LEDoff
Logiclevel0:0.8VMAX=LEDon
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

14
Light sensor status output (Purple & Blue wires)
ThismodemeansthatcameraDay/Nightmodeswitchingiscoordinatedwithandistriggeredbythe
illuminator'slightsensorviatheDO(Digitaloutput)connection(connectedtothecamera'sDIpins).
UserscancongurethecameracongurationtocontrolthecorrespondingilluminatorOn/Offstatus.
DO+:Purple=Opendrainoutput,45VMax.(currentmustbeunder100mA)
DO-:Bule=GND
Light sensor status output
1.Open=Day
2.Short=Night(lowerthan300luxforIRtoturnON)
Stand-alone illuminator mode
Thismodemeansthattheilluminator'sOn/Offcontrolistriggeredbyitslightsensor,inthecase,the
default wiring is connecting the green wire with purple wire.

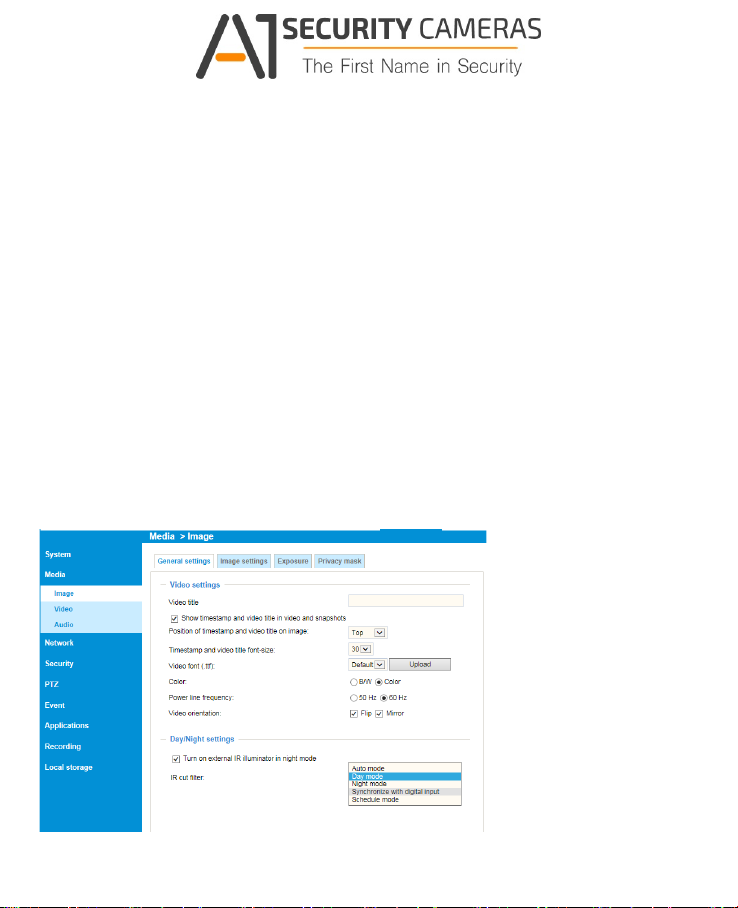

Somecamerashaverelatedsettingsthatneedtheinter-connectionwiththeilluminator.Forexample,
somecamerascomewithanIRcutlterthatneedtobeturnedoffwhenenteringnightmode;or,
automaticallyturnontheadjacentilluminatorwhenenteringnightmode.
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

15
