Tomcat 6 Qt HEPA User manual
SUPERDUTY
VACUUM
Operating Instructions (EN)
& Parts Manual
MODELS:
6 Qt HEPA
10 Qt HEPA
6 Qt Construction HEPA
10 Qt Construction HEPA
6 Qt Aviation/Transport HEPA
10 Qt Aviation/Transport HEPA
Read these Instructions before
using the machine.
Read these Safety Messages
before using the machine.
COMMERCIAL CLEANING EQUIPMENT
Scan With Phone for more Information
www.tomcatequip.com
1711 South Street
Racine, WI 53404 (USA)
(800) 450-9824 | (+001) 262-681-6470 VERSION 16.055
©2016 RPS Corporation TC-VAC-OP-EN
- 2 - SUPERDUTYVAC-OP-EN
INTRODUCTION
This manual is furnished with each new machine. This manual will allow the Operator to get the best performance out
of your RPS manufactured Scrubber-Drier, Sweeper, Burnisher, Orbital Scrubber, or Area Cleaning Machine. Read this
manual thoroughly before operating or servicing the machine.
This machine will provide excellent performance, but the best results will be obtained at the most minimum costs if:
• The machine is regularly maintained - per the machine Preventative Maintenance instructions provided.
• The machine is operated with reasonable care and caution.
• The machine is maintained with manufacturer supplied parts.
ABOUT THIS MANUAL
TABLE OF CONTENTS: Tells you where to look in the manual.
SAFETY MESSAGES: Section contains important information regarding hazard or unsafe practices of the machine. Lev-
els of hazards are identified that could result in product or personal injury, or severe injury resulting in death.
OPERATION CONTROLS / MACHINE COMPONENTS: Shows you the different machine controls and features.
MACHINE SETUP: Tells you how to setup machine from un-boxing to installing attachments.
MACHINE OPERATION: Section is to familiarize the operator with the operation and function of the machine.
MAINTENANCE: This section contains preventative maintenance to keep the machine and it’s components in good work-
ing condition. They are listed in this general order:
• Bags/Filters
• Service Schedule
• Machine Trouble Shooting
TROUBLE SHOOTING: A list of common problems that may occur.
MACHINE SPECS: Tells you Machine Specifications for the various parts of the machine.
MACHINE INSTALL FORM: Should be filled out upon machine installation and faxed to 1-866-632-6961 or on-line at
www.rpscorporation.com.
WARRANTY POLICY: Tells you coverage, exclusions and limitations to warranty.
PARTS: Exploded views of the machine with part breakdowns.

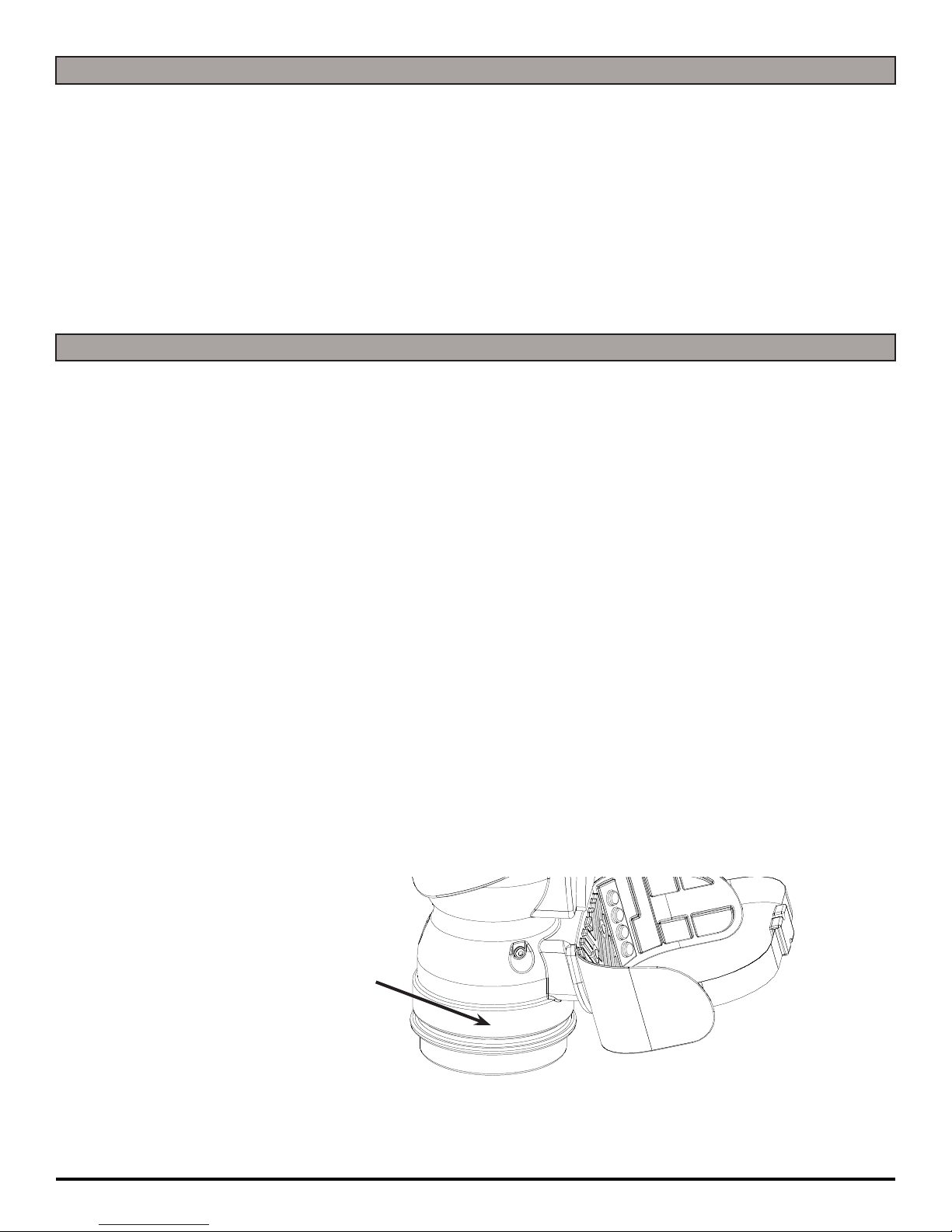

NOTE: The serial number of your machine is located near the base of the machine.
AS OUR POLICY IS ONE OF CONSTANT IMPROVEMENT - ALL INFORMATION AND
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
SERIAL NUMBER
SUPERDUTYVAC-OP-EN - 3 -
TABLE OF CONTENTS
Table of Contents 3
Safety Messages 4
Operation Controls 6
Operation Controls 7
Hose Connections: 7
Pre-Cleaning Checklist: 7
Operating - VacuUming: 7
Backpack Vac PM Records 8
Common Wear Parts 9
SIdewinder Tool Parts: 9
Standard Tool Parts: 9
BackPack Accessories: 9
PARTS SECTION 10
ONBOARD VACUUM 11
6 QT Backpack Vacuum 12
10 QT Backpack Vacuum 13
- 4 - SUPERDUTYVAC-OP-EN
SAFETY MESSAGES
You will see three kinds of safety reminders in this manual:
WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, could result in minor or moderate
injury or damage to this machine or nearby objects. CAU-
TION also can be used to alert against unsafe practices.
NOTICE
NOTICE indicates information considered important, but
not hazard-related. This safety message may be related
to property damage or warranty warnings.
Your safety, and that of others, is very important. Operating this machine safely is an important responsibility.
DO NOT OPERATE THIS MACHINE UNLESS:
• You are trained and authorized to do so
• You have read and understood this Operator’s Manual
WHEN OPERATING THIS MACHINE:
• Do not operate this machine where flammable liquids are present
BEFORE LEAVING THE MACHINE:
• Turn the machine OFF and unplug the power cord
BEFORE SERVICING THE MACHINE:
• Unplug the power cord
SUPERDUTYVAC-OP-EN - 5 -
WARNING
Do not operate this machine around fuels, solvents,
flammable floor finishes, thinners, wood dust or any
flammable materials. Cigarette lighters, pilot lights,
electrical sparks and all other sources of ignition
should be extinguished or avoided. Work areas should
be well ventilated.
WARNING
To avoid electrical shock, do not use this machine if it
has been rained on or sprayed with water.
WARNING
Always turn off this machine and unplug the power
cord before leaving it unattended. Do not allow un-
trained persons to operate this machine.
WARNING
Always wear a dust mask when operating this machine
in Blower mode to avoid inhaling dust created.
WARNING
To avoid electrical shock, do not pull on the power cord
to move the machine or unplug the power cord from
the electrical outlet.
WARNING
Do not remove, paint over or destroy warning decals. If
warning decals become damaged, call 1-262-681-3583
for free replacements.
WARNING
Never operate this machine under the influence of
alcohol or drugs. Do not allow anyone under the age of
18 to operate this machine.
CAUTION
Alterations to this machine may result in personal injury
or property damage, and WILL void the warranty.
- 6 - SUPERDUTYVAC-OP-EN

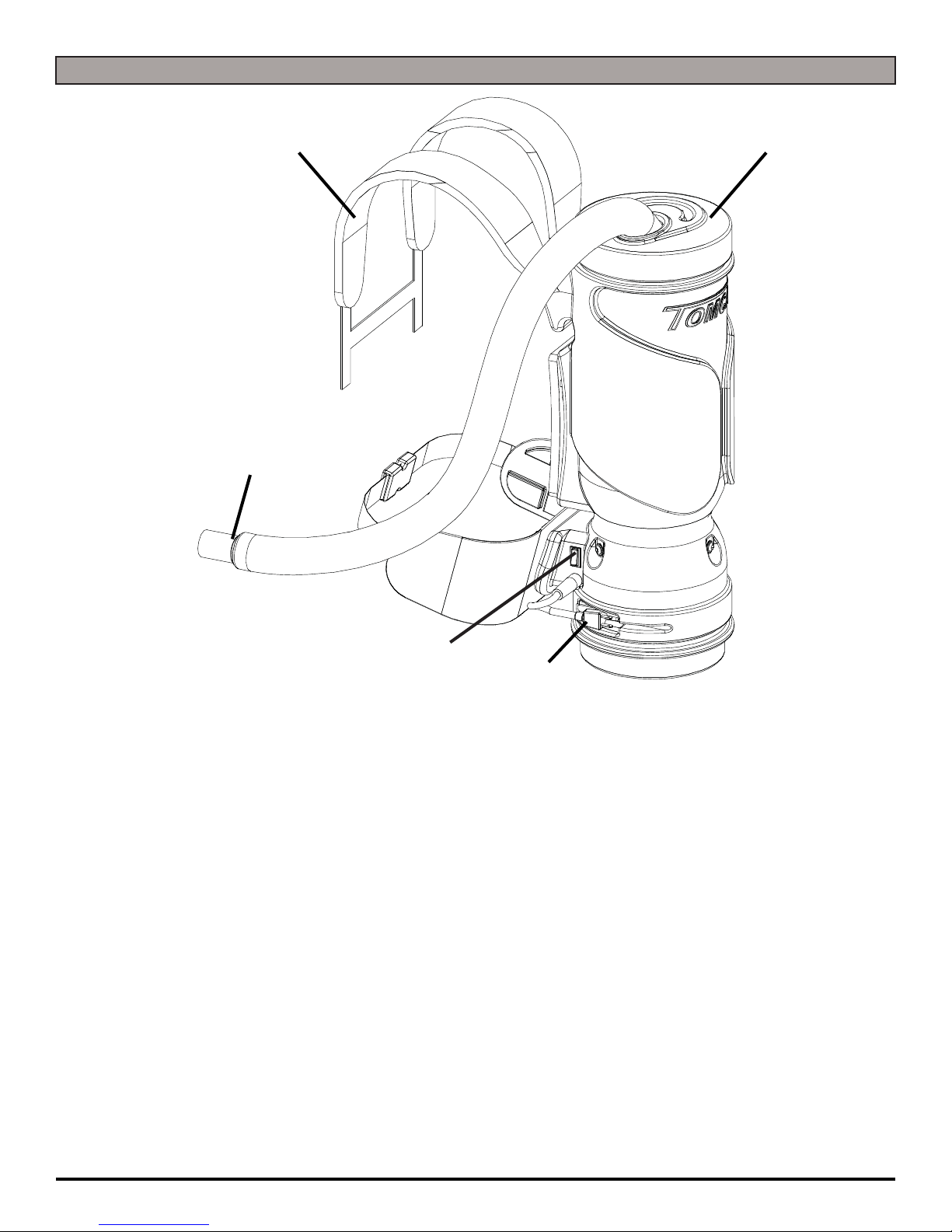

OPERATION CONTROLS
1. POWER SWITCH: Turns the machine ON and OFF
2. POWERCORD RETAINER: Locks the extension cord in place to protect against cords
disconnecting
3. REMOVABLE VAC LID: Vac Lid with built in Particulate Deflector is utilized on the top of
the Vacuum for Suction and on the bottom of the 10 qt Models for Blowing
4. VAC/BLOWER HOSE: Main hose for Vacuum and Blower machine functions
5. BACKSTRAPS: Extra padded and wide shoulder straps with matching waist clip hold
machine securely to operator
1
2
35
4
SUPERDUTYVAC-OP-EN - 7 -
HOSE CONNECTIONS:
If you have a two-piece Wand, you will need to attach the
two pieces by sliding side (A) over end (B) (SEE BELOW).
Standard Wand Tools:
Side Winder Wand Tools:
PRE-CLEANING CHECKLIST:
Read and understand the Safety Messages section on
Pages 3 and 4 before operating the machine.
1. Check and make sure that there is electrical outlets
available for use or large gauge extension cords.
2. Check the condition of the Vacuum exterior, vacuum
filter bags, and tools.
OPERATING - VACUUMING:
1. Move vacuum to work location.
2. Connect machine cord to power source. When
cleaning an area, move so that you are moving
away from the power supply. This will help avoid
entanglement with the cord as well as reduce the need
to move do a different power source.
3. Adjust the shoulder and waist straps to a comfortable
position. Maintain the vacuum tools run flat on the
floor for best usage.
A
B
OPERATION CONTROLS
A
B
- 8 - SUPERDUTYVAC-OP-EN
BACKPACK VAC PM RECORDS
CUSTOMER INFORMATION
CUSTOMER EMAIL
ADDRESS PHONE
CITY STATE ZIP CODE CONTACT
MACHINE INFORMATION
MODEL #: SERIAL #:
WORK ORDER#:
BAG CONDITION
FILTER BAG GOOD WORN NEEDS
REPLACEMENT
CLOTH BAG GOOD WORN NEEDS
REPLACEMENT
CHECK OPERATION AND CONDITION OF: IN SPEC REPAIR PROBLEM
POWER SWITCH
VACUUM MOTOR PERFORMANCE
VISUALLY INSPECT IN SPEC REPAIR PROBLEM
VACUUM HOSES
FLOOR ATTACHMENTS (OPTIONAL)
MACHINE WHEELS (OPTIONAL)
COMMENTS
SERVICING DISTRIBUTOR: ____________________________________
TECHNICIAN’S NAME: ______________________________ DATE: _______________ SIGNATURE: ________________________
CUSTOMER’S NAME: _______________________________ DATE: _______________ SIGNATURE: ________________________
SUPERDUTYVAC-OP-EN - 9 -

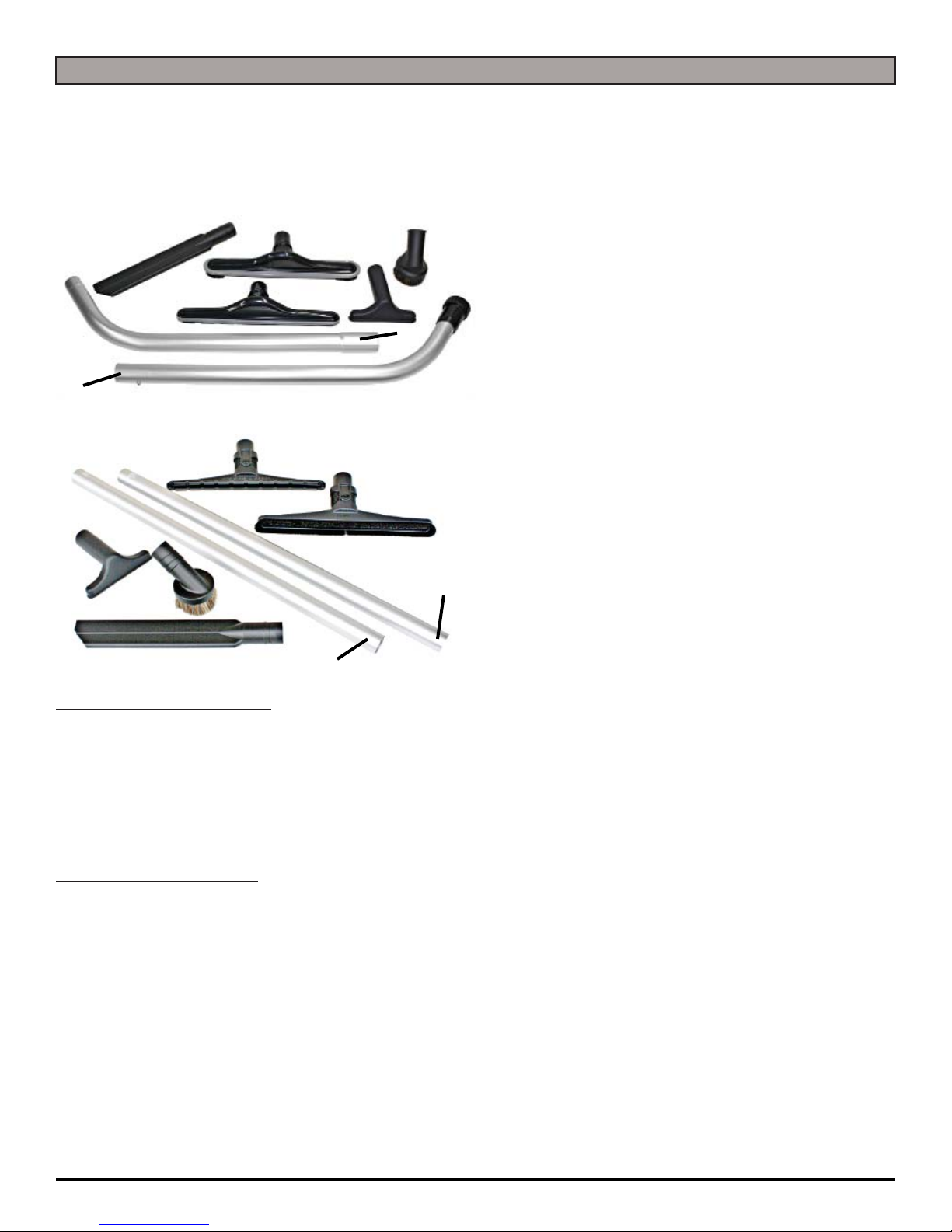

COMMON WEAR PARTS
SIDEWINDER TOOL PARTS:
DESCRIPTION PART #
7 Piece Tool Kit Including 54'' 2 Piece Wand 800-1000
8'' Scalloped Floor Tool 800-1080
15'' Scalloped Floor Tool 800-1150
18'' Scalloped Floor Tool 800-1180
8'' Natural Brush Floor Tool 800-2080
15'' Natural Brush Floor Tool 800-2150
18'' Natural Brush Floor Tool 800-2180
15'' Nylon Brush Floor Tool 800-3150
18'' Nylon Brush Floor Tool 800-3180
15'' Felt Floor Tool 800-4150
18'' Felt Floor Tool 800-4180
Straight 1 Piece Aluminum Wand 800-5000
U Aluminum Wand 800-5010
Straight 2 Piece Aluminum Wand 800-5020
54'' Straight Extension Aluminum Wand 800-5030
STANDARD TOOL PARTS:
DESCRIPTION PART #
S-Bend Wand & 7-Piece Tool Kit 800-8000
15'' Scalloped Floor Tool 800-8100
15'' Nylon Brush Floor Tool 800-8150
54'' S-Bend 2 Piece Aluminum Wand 800-8200
11'' Crevice Tool 800-8250
5'' Upholstery Tool - includes 1.5'' Coupler 800-8300
3'' Round Natural Dusting Brush 800-8350
BACKPACK ACCESSORIES:
DESCRIPTION PART #
Micro Lined Filter Bag 6 Qt, Standard (10pk) 800-5210
Micro Lined Filter Bag 10 Quart, Standard (10pk) 800-5211
Micro Lined Filter Bag 2 Ply 6 Qt, Ultra (10pk) 800-5310
Micro Lined Filter Bag 2 Ply 10 Qt, Ultra (10pk) 800-5311
Micro Lined Filter Bag 3 Ply 6 Qt, Ultimate HEPA (10pk) 800-5410
Micro Lined Filter Bag 3 Ply 10 Qt, Ultimate HEPA (10pk) 800-5411
Cloth Bag w/ Gasket, 6 Quart 800-6021
Cloth Bag w/ Gasket, 10 Quart 800-6020
HEPA Dome Filter 800-9130
- 10 - SUPERDUTYVAC-OP-EN
PARTS SECTION
SUPERDUTYVAC-OP-EN - 11 -
ONBOARD VACUUM
.YJR 5FWY3T 5FWY)JXHWNUYNTS 6Y^
;&('7&(0*9
8<.9(-74(0*7)5)9434++
<*113:9
NSHM5NLYFNQ5T\JW(TWI
)ZFQ(JQQ3TNXJKNQYJWVY
'FHPWJXY5FI\RFIMJXN[J
.SQJYQNIVY
+NSLJW,ZFWI2TYTW
;&(::2-48*
;&(24947
(149-'&,69
-4:8.3,'&(05&(069
,FXPJY2TYTWMTZXNSL
2TYTW2TZSYNSL7NSL
-*5&)TRJ+NQYJW
- +<.)=4)88
- 898=88
- '-8(8=88
;FH2TYTW
;-_
2NHWTQNSJIKNQYJWGFLUQ^
VY:QYWFUP
2NHWTQNSJIKNQYJWGFLUQ^
VY:QYNRFYJ-*5&UP
- 12 - SUPERDUTYVAC-OP-EN

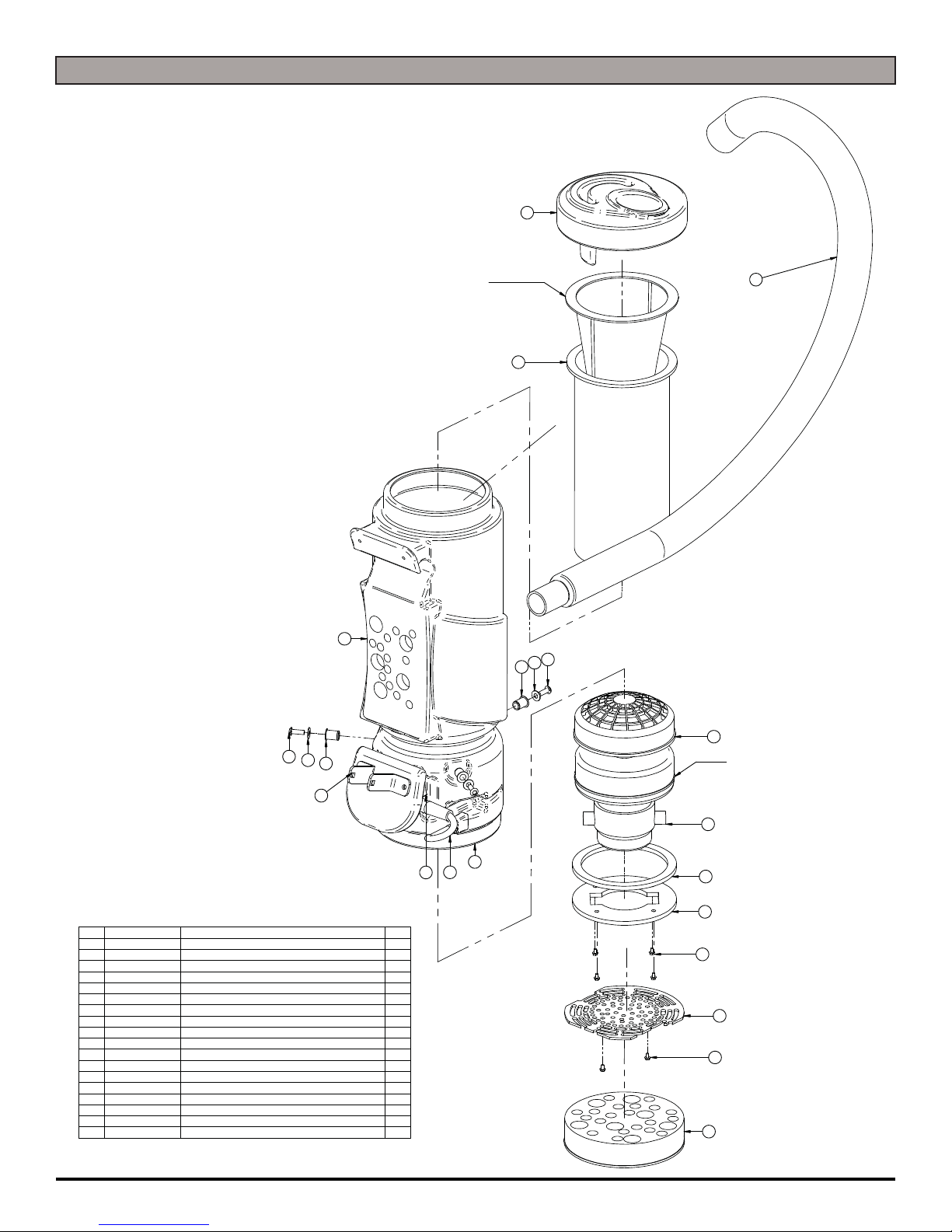

6 QT BACKPACK VACUUM
;FH2TYTW(TSXYWZHYNTS
;-_
;FH2TYTW8ZUJW
;-_
;FH2TYTW(TSXYWZHYNTS
;-_
2NHWTQNSJIKNQYJWGFLUQ^
VY:QYWFUP
2NHWTQNSJIKNQYJWGFLUQ^
VY:QYNRFYJ-*5&UP
.YJR 5FWY3T 5FWY)JXHWNUYNTS 6Y^
8<.9(-74(0*7)5)9434++
<*113:9
NSHM5NLYFNQ5T\JW(TWI
)ZFQ(JQQ3TNXJKNQYJWVY
'FHPWJXY5FI\RFIMJXN[J
.SQJYQNIVY
+NSLJW,ZFWI2TYTW
8-4:1)*7&3)<&.89'*19
;&(::2-48*+9
;&(24947
(149-'&,69
-4:8.3,'&(05&(069
,FXPJY2TYTWMTZXNSL
2TYTW2TZSYNSL7NSL
-*5&)TRJ+NQYJW
- +<.)=4)88
- +3<.)=4)88
- 898=88
- '-8(8=88
SUPERDUTYVAC-OP-EN - 13 -

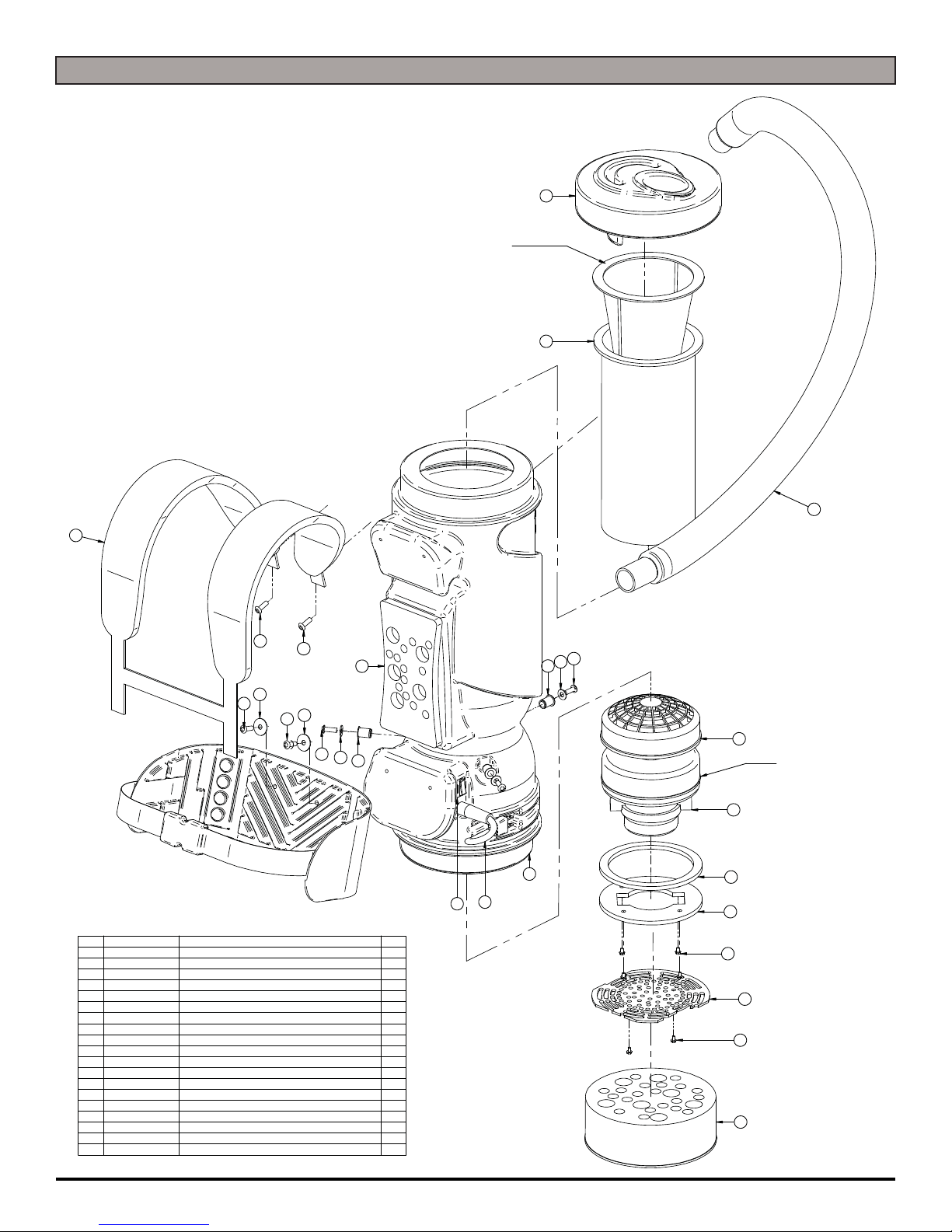

10 QT BACKPACK VACUUM
.YJR 5FWY3T 5FWY)JXHWNUYNTS 6Y^
8<.9(-74(0*7)5)9434++
<*113:9
NSHM5NLYFNQ5T\JW(TWI
)ZFQ(JQQ3TNXJKNQYJWVY
'FHPWJXY5FI\RFIMJXN[J
.SQJYQNIVY
+NSLJW,ZFWI2TYTW
8-4:1)*7&3)<&.89'*19
;&(::2-48*+9
;&(24947
(149-'&,69
-4:8.3,'&(05&(069
,FXPJY2TYTWMTZXNSL
2TYTW2TZSYNSL7NSL
-*5&)TRJ+NQYJW
- +<.)=4)88
- +3<.)=4)88
- 898=88
- '-8(8=88
;FH2TYTW(TSXYWZHYNTS
;-_
;FH2TYTW8ZUJW
;-_
;FH2TYTW(TSXYWZHYNTS
;-_
2NHWTQNSJIKNQYJWGFLUQ^
VY:QYWFUP
2NHWTQNSJIKNQYJWGFLUQ^
VY:QYNRFYJ-*5&UP
BLANK
THIS PAGE WAS INTENTIONALLY LEFT BLANK
BLANK
THIS PAGE WAS INTENTIONALLY LEFT BLANK
© RPS Corporation 2016
1711 South Street
Racine, WI 53404
www.tomcatequip.com
Tel. US: 800-450-9824
Tel. Int: (001) 262-681-6470
