Topaz EZ HD User manual

440843-001 Revision A
TOPAZ®EZ HD
Desktop Video Magnifier
User’s Guide
Freedom Scientific, Inc.
www.FreedomScientific.com

ii
Freedom Scientific, Inc., 11800 31st Court North, St. Petersburg, Florida 33716-1805, USA
www.FreedomScientific.com
© 2016 Freedom Scientific, Inc. All Rights Reserved. TOPAZ®is a trademark of Freedom Scientific, Inc. in the
United States and other countries. Information in this document is subject to change without notice. No part of
this publication may be reproduced or transmitted in any form or by any means electronic or mechanical, for any
purpose, without the express written permission of Freedom Scientific.
To register your product, visit http://www.FreedomScientific.com/Forms/ProductRegistration.
Safety and Maintenance
To keep the unit in good condition and to ensure safe usage, observe the following guidelines:
Do not stare at the operating illumination LED as it may be harmful to the eyes
Power rating: 100-240V~ 1A 47-63Hz
Read the instructions in this user’s guide before attempting to use the unit
Do not attempt to repair the unit or open its case. This product contains no user serviceable parts.
Keep the unit away from wet areas, rain, and other sources of liquids or high humidity. Do not submerge
the unit.
Always operate the unit in a place where the temperature is between 10° and 40° C (50° and 104° F)
Always store the unit in a place where the temperature is between -20° and 65° C (-4° and 149° F)
Always use the unit on a stable, level, hard surface such as a desk or table
When cleaning the screen, camera lens, or self-view lens, unplug the power cord and apply a small
amount of non-abrasive cleanser, such as the following, to a soft, lint-free cloth and gently wipe:
Water
Isopropyl alcohol
Petroleum benzene
Vinegar mixed with water at a concentration of no more than 10 percent vinegar, for example, 1.5
tablespoons of vinegar per cup of water (100 ml per liter)
CAUTION:
Do not apply excessive pressure to the screen, camera, or self-view lens. Do not spray cleanser
directly on these items. Also, do not use any cleanser that contains the following agents: acetone,
ethyl alcohol, ethyl acid, ammonia, or methyl chloride.
When cleaning the rest of the unit, make sure the unit is unplugged. Use a lightly dampened, soft, clean cloth
with water or mild detergent.

iii
Federal Communications Commission (FCC) Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced radio or television technician for help
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Industry Canada (IC) Compliance Statement
CAN ICES-3(B) / NMB-3(B)

iv
Table of Contents
TOPAZ EZ HD at a Glance.............................................................................1
Hardware Description....................................................................................2
Rear Panel Connectors .................................................................................3
Transporting and Moving the Unit................................................................4
Power and Monitor Adjustments..................................................................6
Basic Operation.............................................................................................7
Placing Items on the XY Table....................................................................7
Changing Magnification...............................................................................8
Adjusting Screen and Image Brightness .....................................................8
Changing Screen Colors.............................................................................9
Freezing an Image......................................................................................9
Displaying Firmware Version Number.......................................................10
Troubleshooting ..........................................................................................11
Service and Support....................................................................................12

1
TOPAZ EZ HD at a Glance
The TOPAZ®EZ HD is an easy-to-use desktop video magnifier that provides
clear and sharp magnification of documents, newspapers, photos, and other
items. With simple to use controls, you can make quick magnification, color,
and brightness adjustments to best suit your vision needs.
The high-definition camera produces a clear picture with sharp images and
crisp text. This lets you use a lower magnification to maximize the amount of
information displayed on the screen. It also reduces the need to move the XY
table as much when reading text, looking at pictures, or working on crafts and
other projects.
The unit includes the following features:
Auto Focus, which creates the clearest view without any need to make
adjustments
16 magnification levels with a crisp, sharp image that lets you precisely
adjust text to the size you need
Four color modes; choose the one that is most comfortable for you
One-touch button to freeze images
Widescreen 20-inch or 24-inch LCD monitor
Adjust the height and angle of the monitor for the best view as well as
extra neck and upper back comfort when viewing the screen
Adjustable screen brightness
Two lights on either side of the camera provide object illumination, which
is diffused to prevent glare and reflections when viewing shiny
documents like magazines and photos
Large low-friction XY table moves a full 16 inches from left to right for
easy reading of even large-format documents
XY table’s braking mechanism lets you lock the table movement down
tight when you want it to hold steady
Working distance between XY table and camera: 8.25 inches / 21 cm

2
Hardware Description
1. Power Cord
2. Main Power Switch
3. XY Table
4. XY Table Brake
5. Monitor
6. Power Button
7. Color Select Dial
8. Magnification Dial
9. Brightness Dial
10.Freeze Frame Button

3

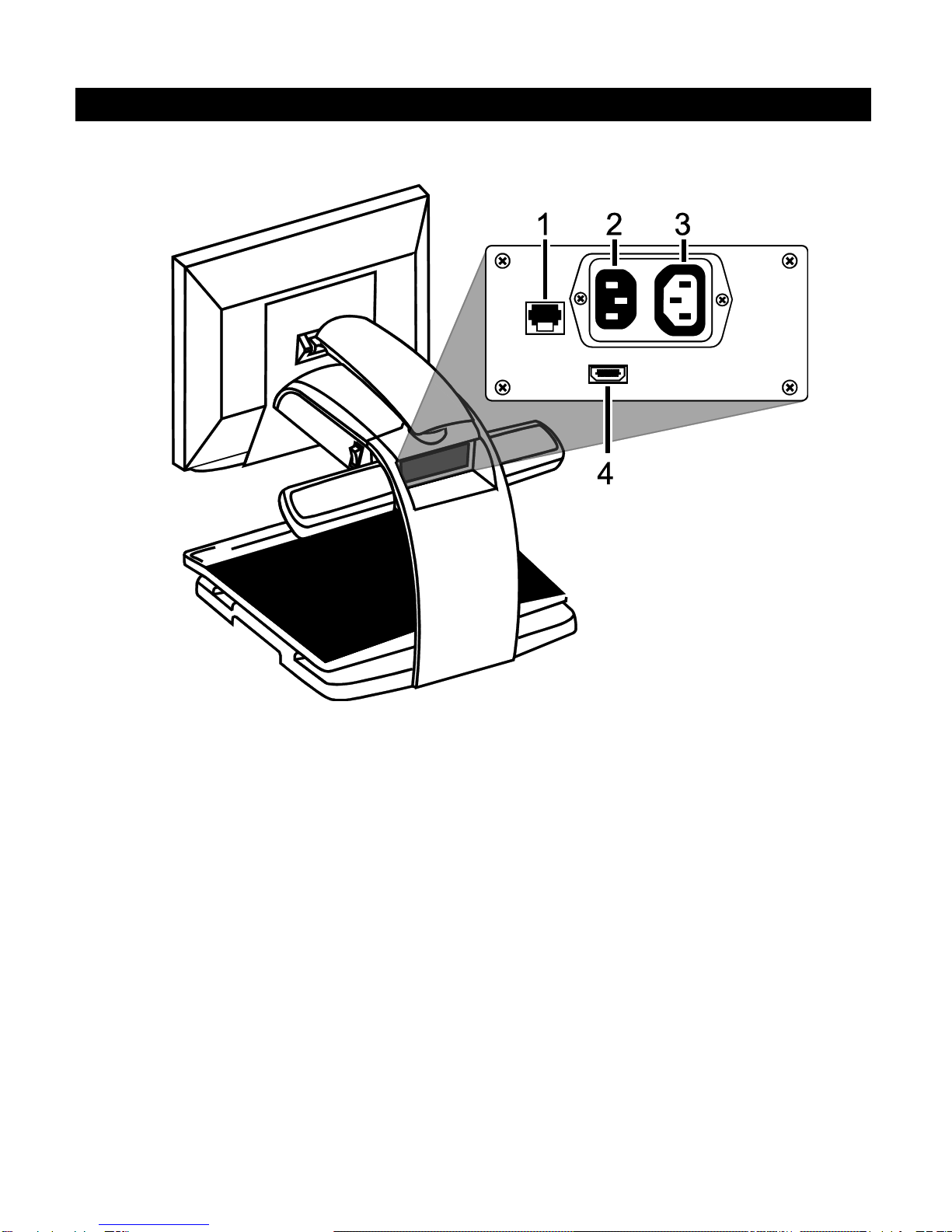

Rear Panel Connectors
1. Control panel jack.
Modular jack that connects the
control panel to the TOPAZ
camera. Do not disconnect cable
unless servicing the unit.
2. AC power connector.
Plug power cord from wall outlet
to TOPAZ.
3. Monitor power connector.
Power cord from monitor to
TOPAZ. There is no need to
remove it under normal operation.
4. Monitor HDMI connector.
Connects the TOPAZ monitor to
the TOPAZ camera. There is no
need to remove it under normal
operation.

4
Transporting and Moving the Unit
When carrying and moving the unit, always lock the monitor arm and XY table
as described in this section.
The unit weighs approximately 41 lbs. (18.6 kgs) to 44 lbs. (20 kgs). Use
caution when lifting and carrying the unit.
1. Monitor Arm Lock
2. XY Table Brake
3. Rear Post
4. Repositioning Grips
Important:
Do NOT lift the unit by its
LCD reading lights.
1. Lock the monitor arm to secure the monitor and prevent it from moving to
the left or right.
Pull pin out to lock.
Note: Monitor arm must be in the
center position before the
pin locks.
Push pin in to unlock.

5
2. Lock the XY table to stop it from moving by pulling the red brake lock
toward you.
3. Lift and carry the unit by the rear post (see figure below) to move it to a
sturdy surface such as a table, desk, or countertop.
One suggested method is to wrap your forearm around the rear post and
then lift.
Important:
Do NOT lift the unit by the LED reading lights.
4. Use the repositioning grips on both sides of the reading table to move
and position the unit to your liking once it is on a sturdy surface.

6

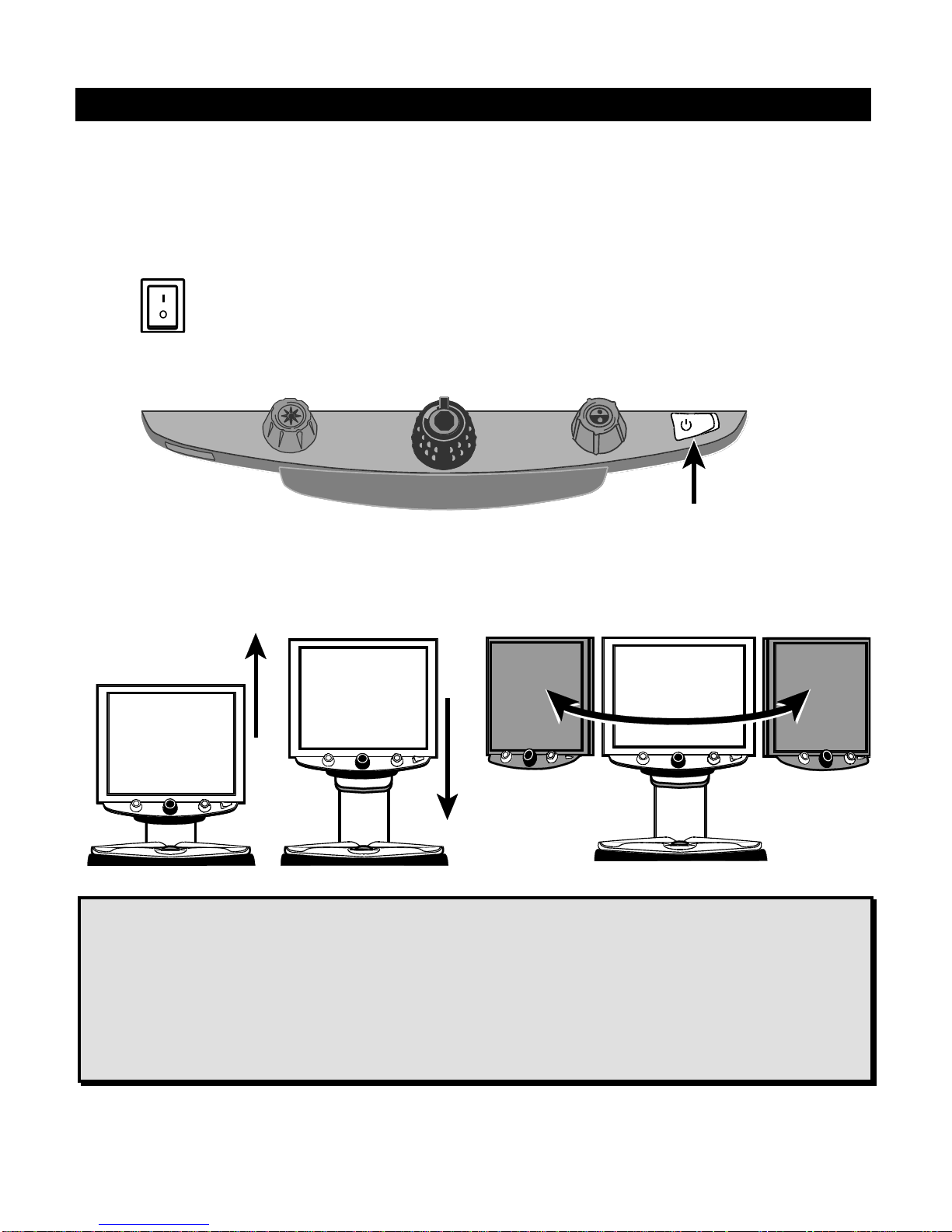

Power and Monitor Adjustments
1. Plug the power cord from the middle power connector on the rear of the unit
to an electrical wall outlet.
2. Press the white main power switch to the ON (1) position. It is located near
the LED reading light on the right side of the unit.
3. Press the green standby power switch on the right side of the control panel.
4. Hold the sides of the monitor with both hands and move it up or down to
change the height, or turn the monitor left or right to adjust the angle for the
best view.
Note: If the monitor does not move to the left or right, make sure to release
the arm lock (push the locking pin in) located at the base of the monitor
arm. Also, make sure that the monitor is raised up so that it freely
moves from left to right.
For arm lock information, refer to Transporting and Moving the Unit as
mentioned earlier on page 4.

7
Basic Operation

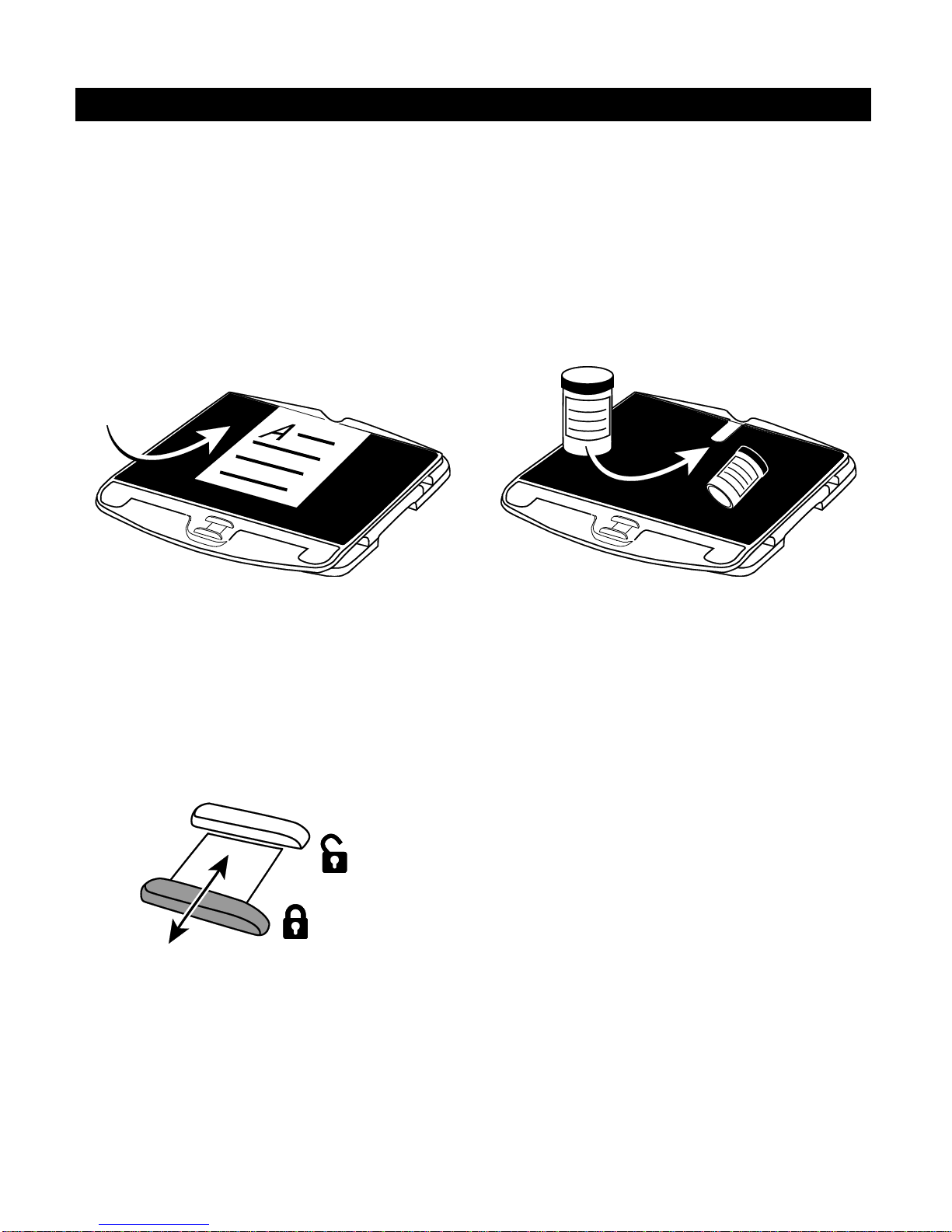

Placing Items on the XY Table
The following describes how to change magnification and brightness, change
color modes, and freeze an image on the screen.
1. Make sure the unit is turned on and that the XY table is visible on the
monitor screen.
2. Place the item that you want to magnify onto the center of the reading table.
If it is a document, move it back so that it touches the rear of the XY table.
To read a cylindrical item, such as a pill bottle, place it in the indentation
located at the rear of the XY table. This prevents the bottle from rolling on
the table.
3. Unlock and move the XY table so that the document or item displays on the
screen.
Note that when the table is unlocked, you can move it back and forth so
that the document’s text moves across the screen making reading easier.

8

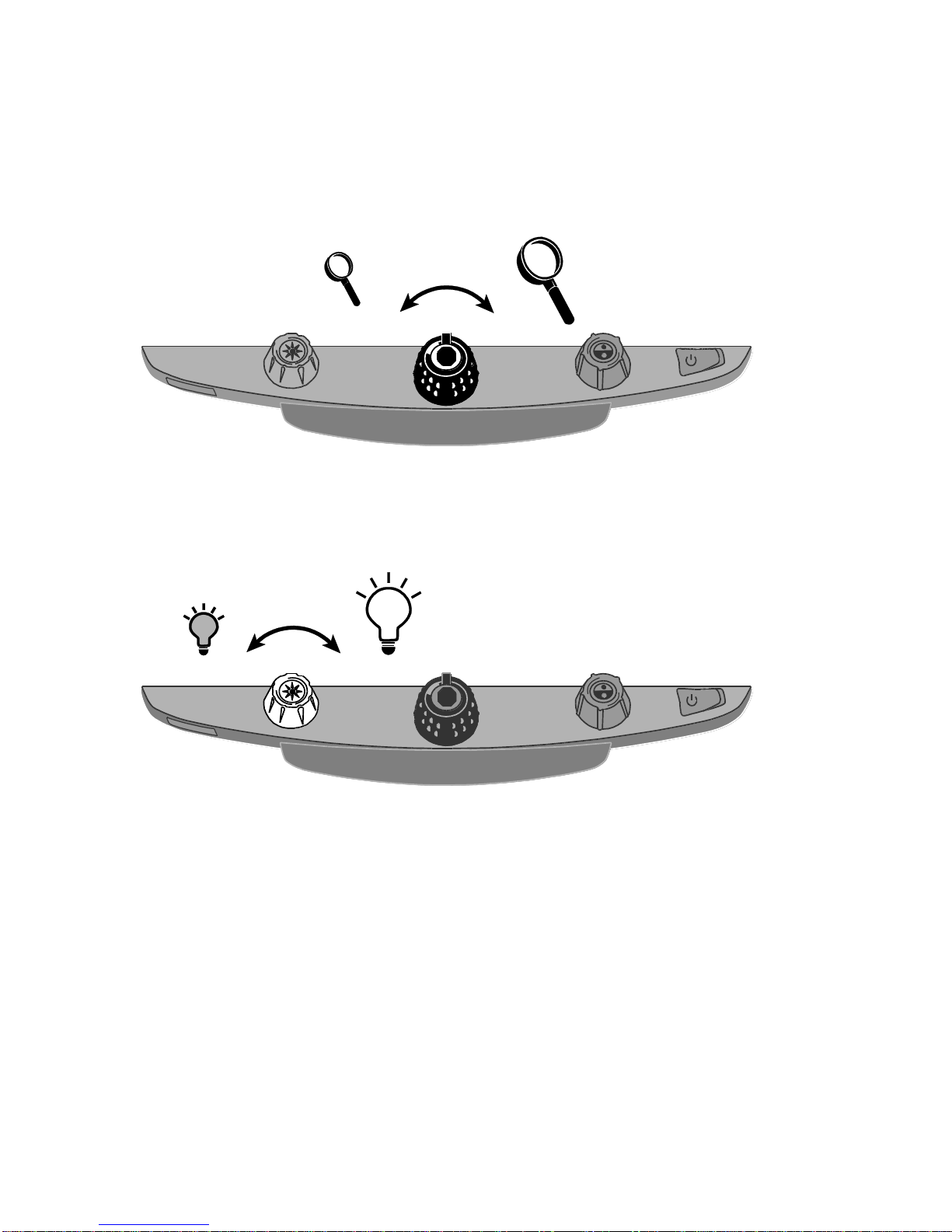

Changing Magnification
Turn the black Magnification dial clockwise to zoom in or counterclockwise to
zoom away from the object that is displayed on the screen.
The unit can display 16 levels of magnification.
Adjusting Screen and Image Brightness
Turn the yellow Brightness dial to adjust brightness.

9
Changing Screen Colors
Turn the blue Color Select dial to choose a color mode that best suits your
vision needs.
A color mode is a pre-defined color combination (for example, white text on a
black background). You can use color modes to reduce glare and provide
contrast to make it easier to read text on the screen.
The unit has four default color modes. You cannot add or delete these items:
True Full Color
High Contrast Full Color
Black on White
White on Black
Freezing an Image
To freeze the current image that is displayed on the screen, do the following:
1. Press the center of the black Magnification dial.
The freeze frame icon appears on the screen:
2. Press it again to turn off Freeze Frame and return to the camera’s live view.

10

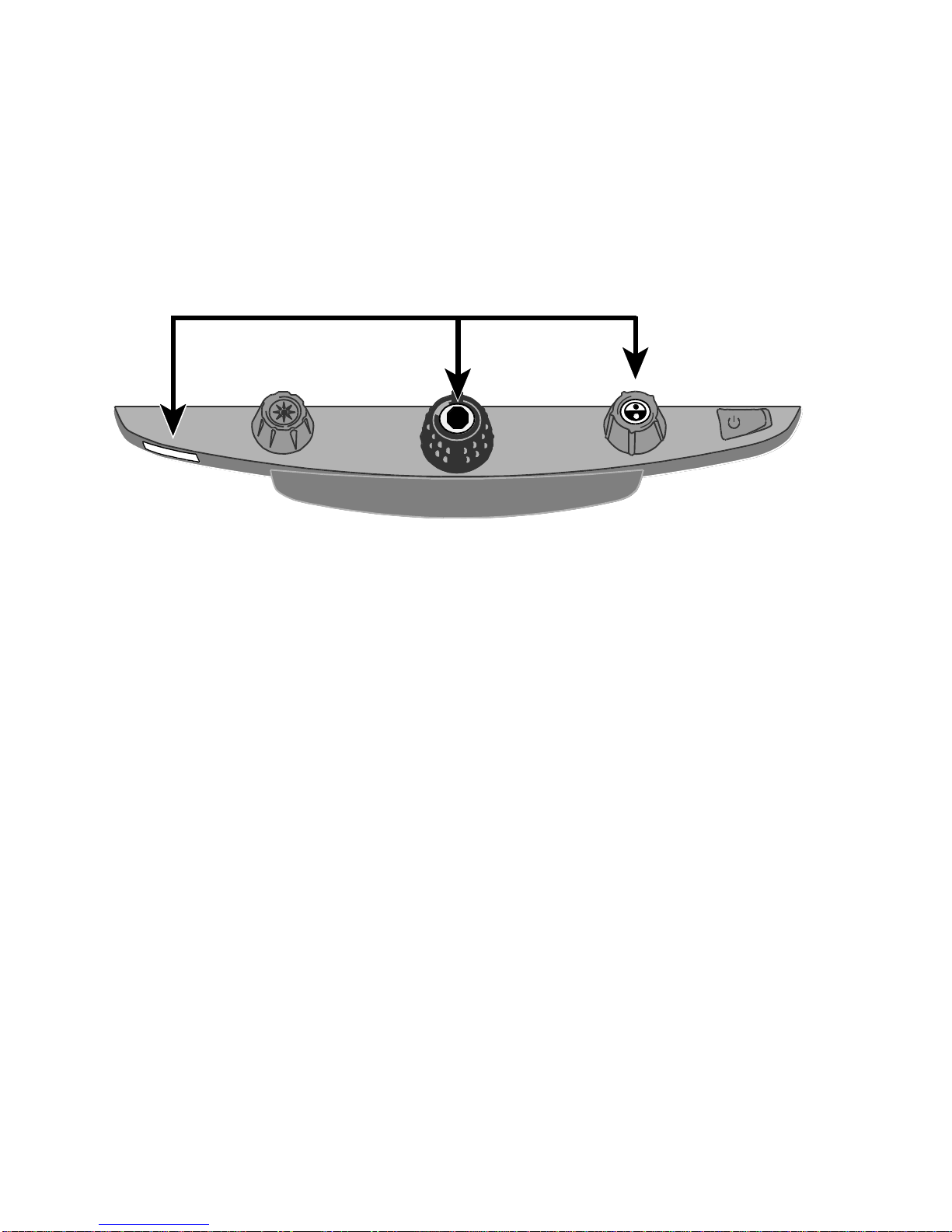

Displaying Firmware Version Number
Press and hold the following dials and buttons simultaneously for five seconds
to display the firmware version number. The word Ver. followed by several sets
of numbers flash one at a time on the screen. The first three sets indicate the
unit’s firmware version.
If you need technical assistance, please have this information available before
contacting Technical Support.
Red Focus Lock button
Center of black Magnification dial
Center of blue Color Select dial

11
Troubleshooting
Problem
Solution
The screen is blank.
Press the unit’s power button.
Make sure the power cable is correctly
connected to the unit and a power outlet.
Reduce magnification.
Adjust brightness.
Switch to a different color mode.
The unit does not power on.
Press the unit’s power button.
Make sure the power cable is correctly
connected to the unit and a power outlet.
Ensure that the power outlets have power
and are not malfunctioning. If the outlets
are connected to a wall switch, make sure
that the switch is on.
The image on the screen is too
bright, or there is a glare from
the screen that makes it
difficult to see.
Reduce brightness.
Switch to a different color mode.
The image on the screen is too
dark.
Increase brightness.
Switch to a different color mode.
There are smudges or
blemishes on the screen.
Clean the screen using a damp, soft, lint-
free cloth.

12
Service and Support
You can contact Freedom Scientific Technical Support to receive technical
assistance. Before contacting Technical Support, it is recommended that you
refer to Troubleshooting on page 11 to try to resolve your problem quickly.
Note: This device has no user-serviceable components. Any unauthorized
attempt to service or replace internal components will void the product
warranty.
To contact Technical Support by Web, visit www.FreedomScientific.com,
choose Support, and complete the form to submit questions.
To contact by e-mail, send questions to Suppo[email protected].
To contact by telephone, U.S. customers can call [phone], Monday
through Friday, from 8:30 AM to 7:00 PM (Eastern Time).
When you call, please have your questions ready and be prepared to provide
the following information:
Product name
Product serial number
What you were doing when the problem occurred
How you tried to solve the problem
Product Registration
Visit www.FreedomScientific.com/Forms/ProductRegistration to register
your product and validate your warranty.
