Topfield FREE TO AIR TF3100FEi User manual

The User’s Manual
Please read this User s Manual carefully.
The menu structure and specification can be changed without notice.
TF3100FEi
TF3100FEP pro
FREE TO AIR
Digital Satellite Receiver
TOPFIELD
- Embedded Positioner

This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates
important instructions
accompanying the product.
CAUTION
RISK ELECTRIC SHOCK
Do NOT OPEN
CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE
INTRODUCTION 4
CONTENTS 5
FEATURES 5
FRONT/ REAR PANELS 6
1) FRONT PANEL 6
2) REAR PANEL 6
REMOTE CONTROL UNIT(RCU) 8
GETTING STARTED 14
FUNCTION GUIDE 15
MENU OPERATIONS 17
1) SYSTEM SETTING 18
2) ORGANIZING CHANNEL 28
3) ORGANIZING FAVORITES 30
4) INSTALLATION 31
* POSITIONER SETTING GUIDE(Positioner model only) 38
5) INFORMATION 50
6) GAME 52
TROUBLE SHOOTING(Q & A) 54
SPECIFICATIONS 55
TABLE OF CONTENTS
Please do not insert metal or alien substance into the slots
for the Modules and Cards.
In doing so can cause damage to the STB and reduce its life span.

WARNING
WARNING Warning WARNING Warning WARNING
Please read the following recommended safety precautions carefully for your safety.
MAINS SUPPLY : 90-250V AC 50/60 Hz.
OVERLOADING : Do not overload wall outlets, extension cords or adapters
as these can result in fire or electrical shock.
LIQUIDS : Keep liquids away from the STB.
The apparatus shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases, shall be placed
on the apparatus.
SMALL OBJECTS : Coins or other small objects must be kept away from the IRD
as they can fall through the ventilation slots of the IRD and
cause serious damage.
CLEANING : Disconnect the IRD from the wall socket before cleaning it.
Use a dry cloth lightly dampened(no solvents) to clean
the exterior of the IRD.
VENTILATION : Do not block the decoder’s ventilation slots.
Ensure that a free airflow is maintained around the IRD.
NEVER stand the IRD on soft furnishings or carpets.
Do not use or store the IRD where it is exposed to direct
sunlight or near a heater. NEVER stack other electronic
equipment on top of the IRD.
ATTACHMENTS : Do not use any attachments that are not recommended as these
may cause hazards or damage the equipment .
CONNECTION TO THE SATELLITE DISH LNB :
Disconnect the IRD from the mains before connecting or
disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE LNB,
SERVICING : Do not attempt to service this product yourself.
Refer all serving to qualified service agents.
LIGHTNING : It is recommended that the IRD should remain connected at all
times to the mains supply and satellite dish (except when
working on the LNB). However, the manufacturer’s
instructions for safeguarding other equipment connected to the
IRD, i, e, TV set, must be followed during lightning storms.
LNB and the modem telephone line are essential.
EARTHING : The LNB cable must be earthed to the system earth for
the satellite dish.
LOCATION : Locate the IRD indoor place properly to prevent lightening,
raining and direct sunlight.

INTRODUCTION
Thank you for purchasing the Digital Satellite Receiver (STB).
This Digital Satellite Receiver is fully compliant with the international DVB
standard and thus transmits digital images, sounds, information guides and teletext
directly to your TV through the satellite. Now you can comfortably see and receive
digitally transmitted music, news, movie and sports satellite broadcasts in your office
or at your home.
In the Channel Search section, both the automatic channel search method and the
manual Search mode are provided. Also it supports DiSEqC 1.2, enabling you to move your
antenna in order to focus your preferred satellite. You can save up to 3500 TV and 1500
Radio channels and work around with the Favorite, Lock, Delete, Move and Sort
functions. The Menu is very modern and supports different languages.
All functions can be carried out using the remote control and some of the functions can
also be carried out using the front panel.
The STB is easy to use and adaptable for future advances. Please be aware that new
software may change the functions of the STB.
If you have any difficulties concerning the operation of your STB, please refer to the
relevant section of this manual, including the ‘Troubleshooting’. This Manual will
provide you with useful information on using the STB.
INTRODUCTION

Please ensure that the following items are included with the STB.
1) Remote control unit
2) Batteries (size AAA)
3) User’s Guide (this document)
Fully Compliant to DVB
Antenna/LNB control
- 22KHz mode On/Off
- 0/12V mode selection
- Automatic FEC Detection
- DiSEqC 1.0 & 1.2 compatible
- Built-In Positioner (High Power Azimuth Control-36DC,5A) ....(Positioner model only)
Satellite/Channel support
- 3500 TV channels, 1500 Radio channels storable
Video/Audio
- Automatic and Manual PAL/NTSC selection
- Multi-lingual Audio support
- Automatic channel search
OSD (On Screen Display) support
- 256 color support.
- Multi-lingual menu text support.
- GMT and Time Offset support
- 10 favorite channel groups support
- Page Up/Page Down available on your channel list
- PIG ( Picture In Graphic ) support
Teletext
- Software emulation mode with always VBI insertion mode on.
Games are embedded.
CONTENTS
FEATURES
CONTENTS/ FEATURES

- STANDBY
The power button of STB (ON / Stand by)
- LED
REMOTE
STANDBY
- CHANNEL
The channel buttons are to change channels.
1) Front Panel
2) Rear Panel
FRONT / REAR PANELS
FRONT/REAR PANELS
(Non-Positioner model)

FRONT / REAR PANELS Positioner model only

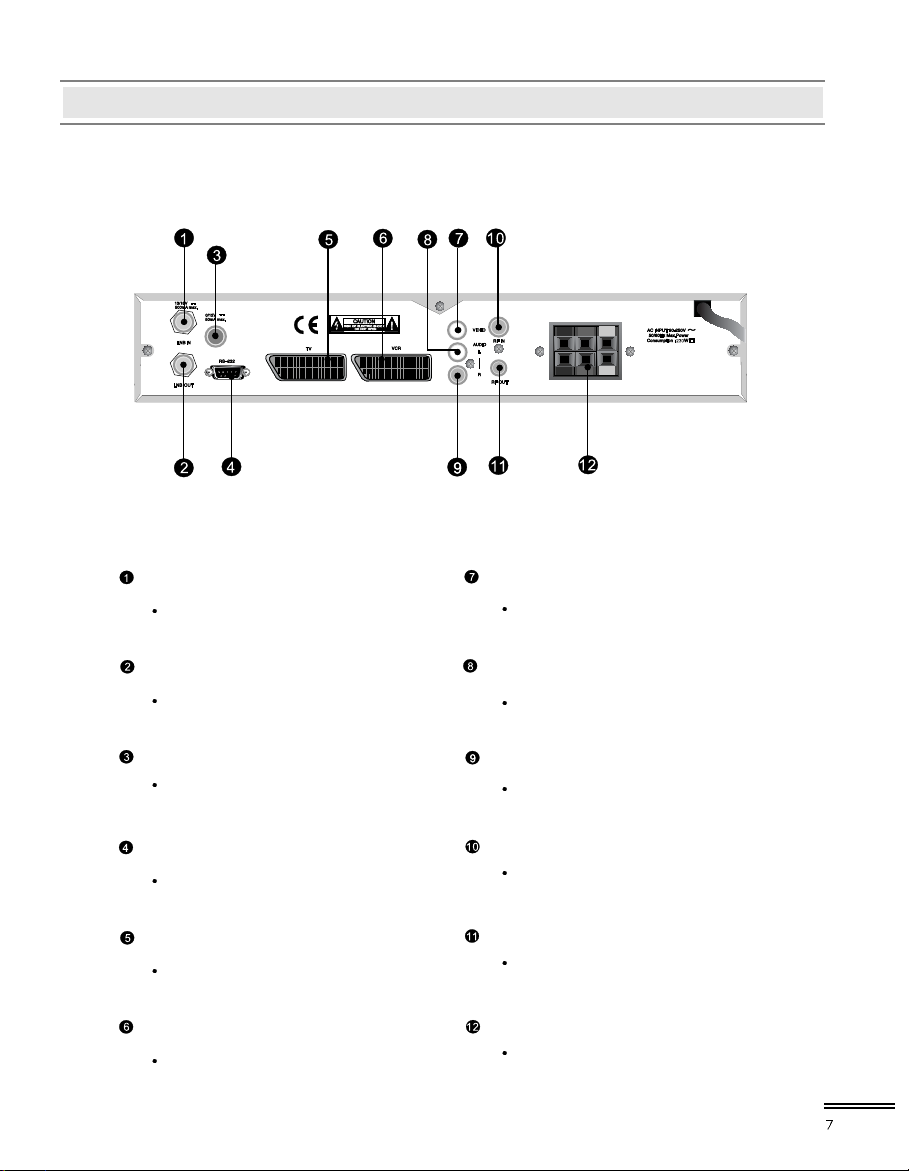

LNB IN
Connects the satellite antenna cable.
LNB OUT
Use it to connect to another STB.
0/12V OUTPUT
Chooses the LNB on the antenna.
RS232
Upgrades the STB Program & software.
TV SCART
Connects the TV SCART.
VCR SCART
Connects the VCR SCART.
VIDEO OUTPUT
Video output (YELLOW).
AUDIO-LEFT INPUT
Audio input (WHITE).
AUDIO-RIGHT INPUT
Audio input (RED).
RF IN
Connects the TV antenna.
RF OUT
Connects the TV.
DISH CONTROL
Connects the actuated dish.
FRONT/REAR PANELS
(Embedded Positioner model)

REMOTE CONTROL UNIT (RCU)

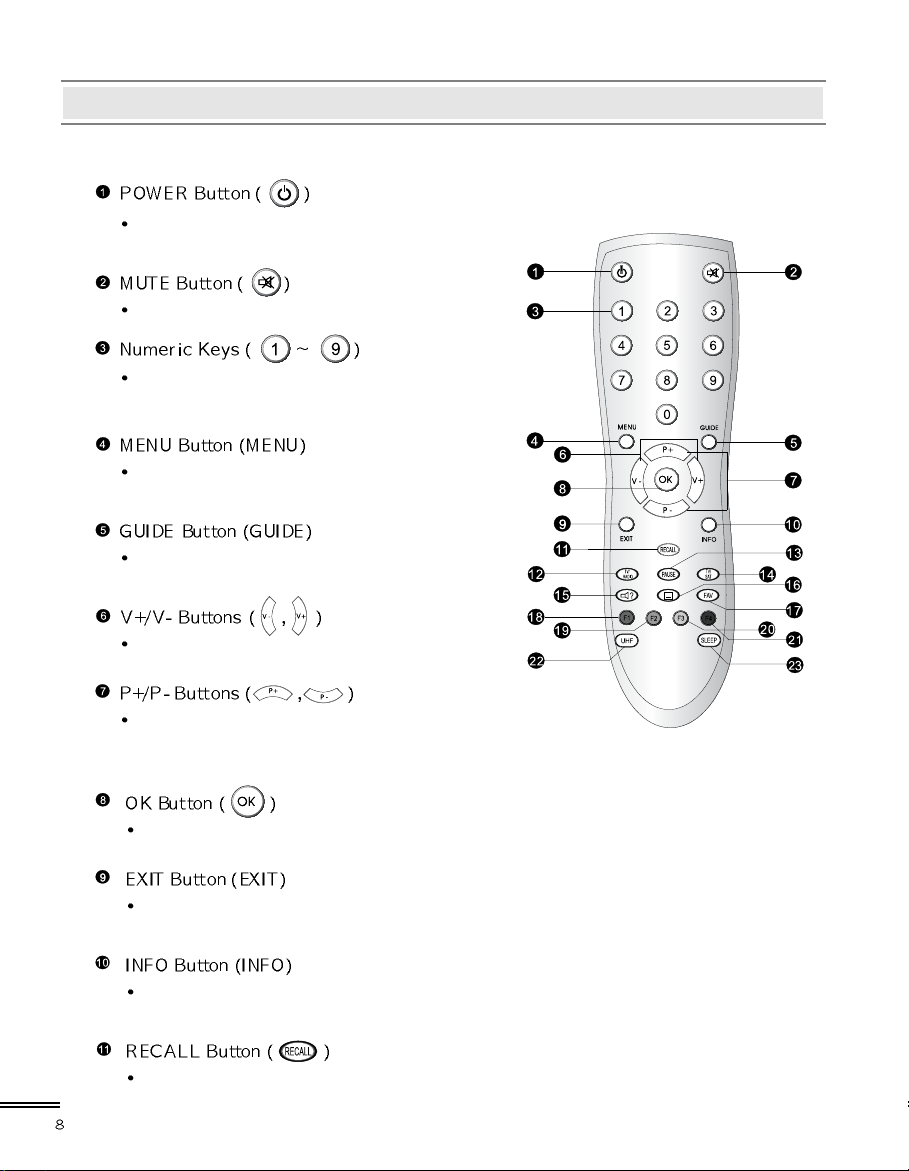

REMOTE CONTROL UNIT
Switches the STB between Operation and
Standby mode.
Enables/ Disables the Audio.
Selects the TV or Radio service channels
and individual menu options.
Displays the Menu on screen or returns to
previous menu from submenu.

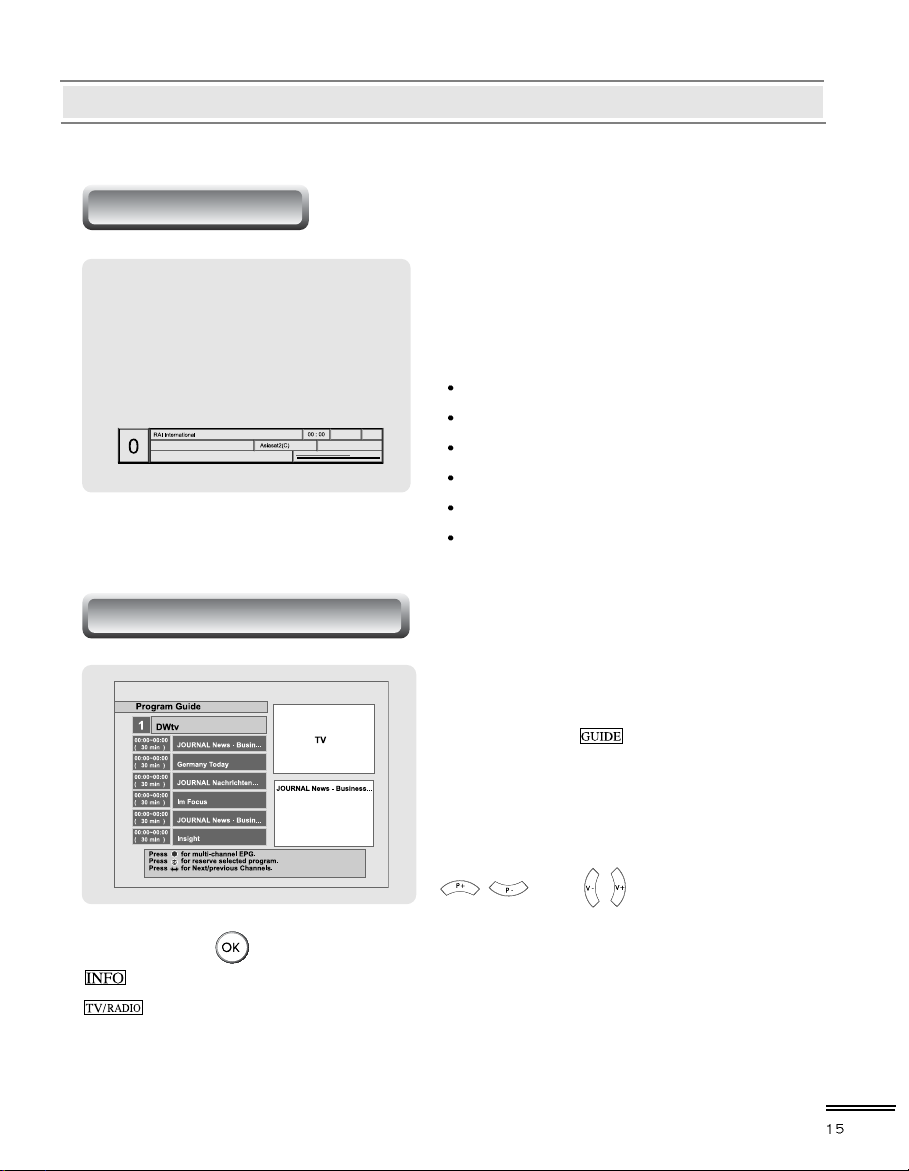

Displays the EPG (Electronic Progam
Guide) on screen only when available.
Adjusts the volume (Increase/Decrease).
Tunes to the next or previous service.
Services up or down through the available
services.
Displays Channel List on screen. Selects the item in the menu mode.
Returns to the previous menu and the screen.
Displays the program information box on the screen and removes it.
Selects the previously viewed channel.

REMOTE CONTROL UNIT
REMOTE CONTROL UNIT (RCU)

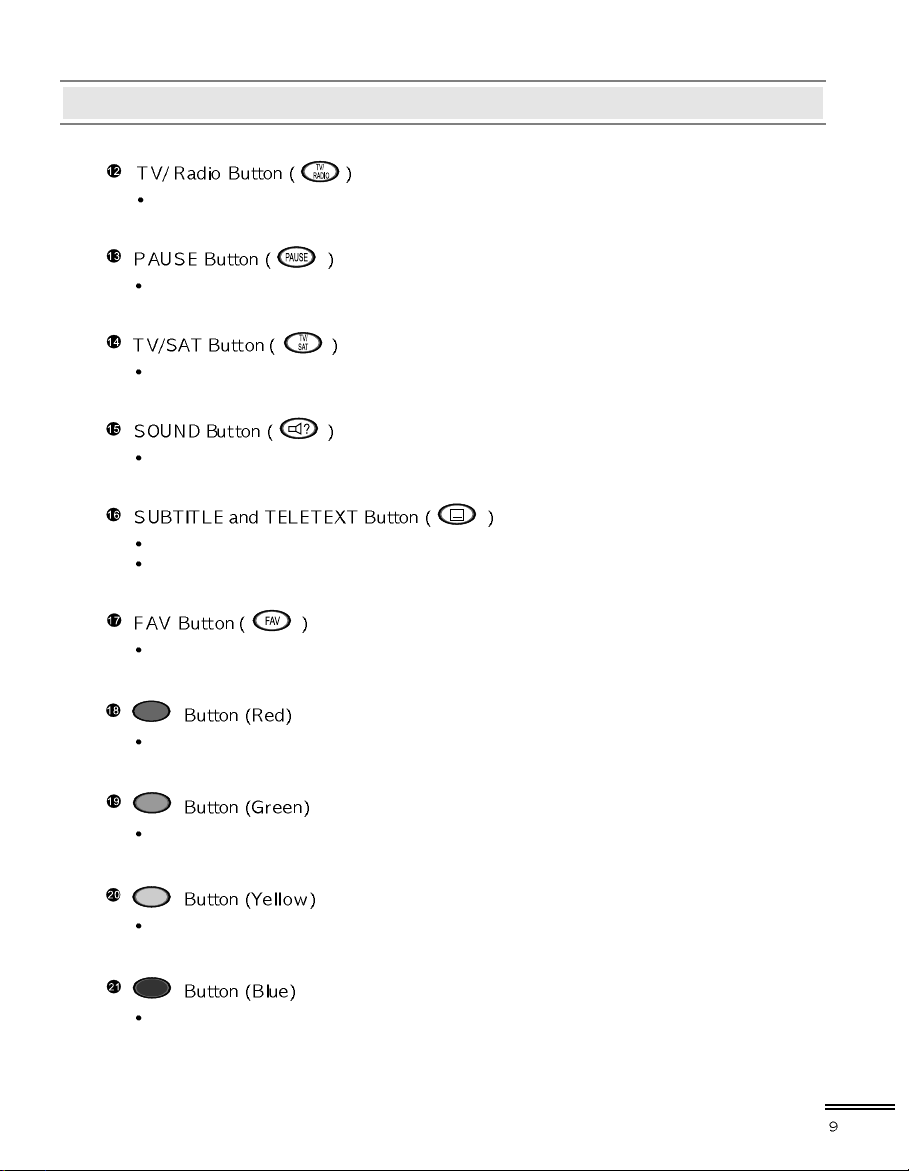

Stills the playing picture.
Changes the terrestrial TV and Satellite mode.
Selects LEFT/RIGHT/MONO/STEREO sound function.
Selects the subtitle language list for the current service.
Enables the teletext with software emulation.
Displays the favorite channel list.
Selects function. (F1)
Selects function. (F2)
Selects function. (F3)
Selects function. (F4)
Selects the TV/Radio mode.

REMOTE CONTROL UNIT (RCU)

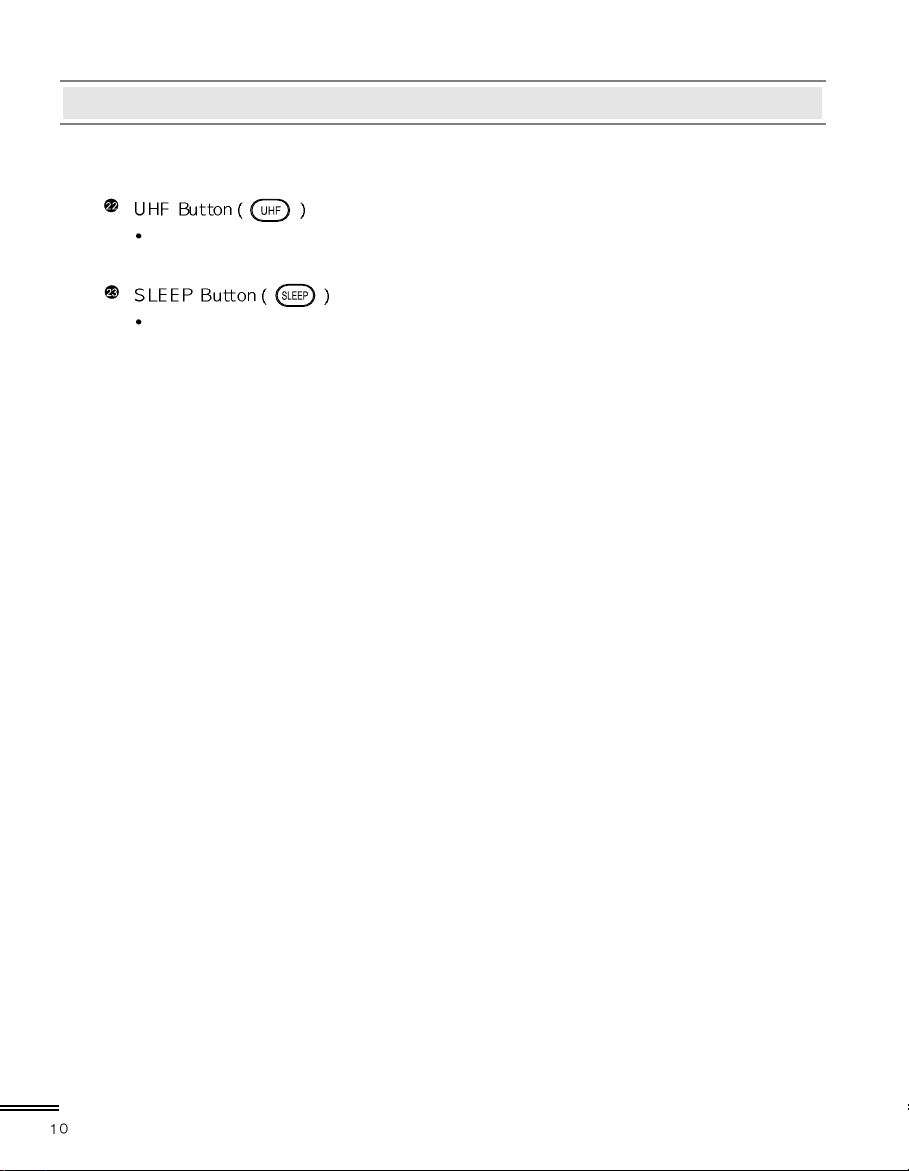

Displays and alters the UHF setting in menu.
Displays sleep time. When sleep time, the power automatically turns to the
OFF mode and the STB to the STANDBY mode.
REMOTE CONTROL UNIT

INSTALLATION
First, connect both the satellite antenna and the TV line to the STB and switch the
power on.
In this manual there are some of the most common ways to connect the equipment:
TV, VCR and STB.
There are several ways of connecting the STB to the existing Audio/TV system.
We recommend using one of the following setups.
If you have problems with your connections and need help, contact your dealer or
Service Provider.
INSTALLATION (Connection)
1) Connection to TV, VCR and Hi-Fi
1-1) Connection to the TV with the SCART
Cable.
Connect one end of the SCART cable to
the TV SCART socket on the STB and
the other end to a SCART socket on the
TV.
1-2) Connection to the VCR with the SCART
Cable.
Connect one end of the SCART cable to
the VCR SCART socket on the STB and
the other end to a SCART socket on the
VCR.

INSTALLATION (Connection)
INSTALLATION
1-3) Connection to the TV with the CINCH
Cable.
Connect one end (3 connectors) of the
CINCH cable to the AUDIO-RIGHT
(red), AUDIO-LEFT (white) and
the VIDEO OUTPUT (yellow) socket
on the STB.
Connect the other end (3 connectors) to
the AUDIO-RIGHT input (red),
AUDIO-LEFT input (white) and the
VIDEO input (yellow) socket on the
TV or Hi-Fi.

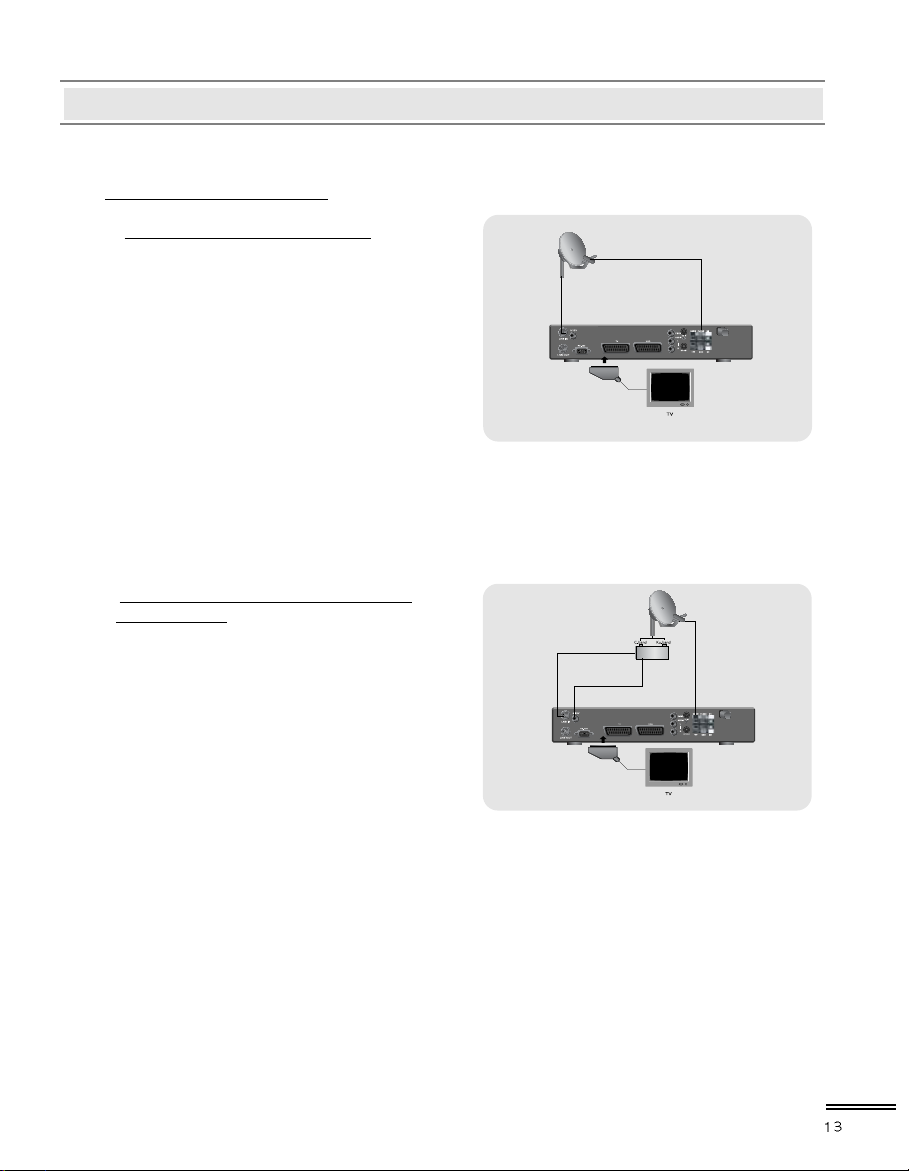

2) Connection to the other Satellite
Receiver.
Connect the satellite cable to the LNB IN
socket on the STB. With a connector, connect
the LNB OUT socket on the STB and the
ANT IN socket of the other STB.
1-4) Connection to the TV using the RF cable.
Connect a terrestrial antenna to RF IN
socket on the STB.
Connect one end of the RF cable to the RF
OUT socket on the STB.
Connect the other end to the ANT IN socket
on the TV.

3-2) Connection to an actuated dish with
C/Ku switch .
Connect the cables from C and ku-band
LNB to 12 Volt C/Ku switch.
Connect the coaxial cable from the
0/12 Volt switch to LNB IN connector.
Connect the power cable which comes
from the 0/12 Volt switch to the 0/12V
connector.
Connect motor wires to M1 and M2.
Switch these connections if the motor
moves to the wrong direction.
Connect sensor wires to PULSE and GND connectors.
Connect a mechanical polarotor to +5V,GND and SKEW connectors.
INSTALLATION
INSTALLATION (Connection) Positioner model only
3. Connection to the dish. (Positioner model only)
3-1) Connection to an actuated dish
Connect the LNB IN socket of the STB
to the LNB.
Connect motor wires to M1 and M2.
Switch these connections if the motor
moves to the wrong direction.
Connect sensor wires to PULSE and
GND connector.
Connect a mechanical polarotor to +5V,
GND and SKEW connectors.
Improper connetion cause malfunction or may break down your STB and Motor

INFO
GUIDE
MENU
MENU
GETTING STARTED
GETTINGSTARTED
Press the Power button to operate the STB from the STANDBY mode.
Now, the Info box will appear for a given time and disappear. Pressing the button,
the Info box will remain on the screen. The display time of the Info box is adjustable
under the InstallationMenu of the MainMenu.
If the current broadcast has EPG (Electronic Program Guide) with it, press the button
to see not only the current channel’s but also other channel’s EPG without any time constraints.
Also, press the button to reserve and save the current service and to watch the broadcast
automatically when it starts.
IMPORTANT: Before taking charge of your new STB, some important technical
settings are essential.
- Adjust your antenna through Dish Setting menu in installation menu.
- First, press the button on the RCU to make the MainMenu appear.
- Go to the LNB Settingmenu under the Channel Searchitem of the
Installationmenu and press button.
- The Default PIN CODE is 0000.
- Choose the right parameters for Satellite Name, LNB Frequency, 22KHz, 12 V,
DiSEqC 1.0, and Motorized System according to your LNB and satellite settings.
If the right Satellite Name and LNB Frequency were not found in the list, call the
dealer for satellite information.
- Then, press the button and go back to the Channel Searchmenu.
- Set the Search Modeto the Automode. (A Manualor Advanced Search
can always be performed later on)
- Select the Start Search...item and press button.
- The search procedure will take a while. Press the button when the searching
process is over (100%) to confirm and save the new channel list.
- For further information, please refer to the LNB Settingitem of the MENU
OPERATIONS on this manual.

Function Guide
FUNCTION GUIDE
Press INFO key on the RCU to see the program
information. The Information box displays as
follows:
Channel Number
Channel Name
Detailed Program Information
Signal Level & Quality
Satellite Information
Information of subtitle and / or teletext
Information Box
EPG (Electronic Program Guide)
schedules. The button makes the reservation for the next program.
button shows extended information of the current program.
button will change the contents of EPG between TV and Radio services.
To use currently showing TV, and Radio
services as well as to use next program
schedules, press button on the
remote control unit.
If EPG is available on programs, you will see
the detailed description of the programs,
start/end time and programs schedules etc.
, and , buttons will be used
to move program and to see next program

EXIT
Function Guide
You can choose a language of subtitle using
button on the RCU.
If a broadcaster provides subtitles, you can see
symbol in the Information Box.
Subtitle
AUTO
Track 01
Track 02
Track 03
Track 04
Track 05
Track 06
Track 07
Track 08
S ound Track
S ound Mod e
Mono
You can choose a language of soundtrack using
button on the RCU when a broadcaster
supports various languages of soundtrack.
Also, it is possible to choose a mode among
Stereo,Mono,Leftand Rightusing the
, buttons on the RCU.
Soundtrack
Teletext
FUNCTION GUIDE
If a broadcaster supports teletext, you can see symbol in the Information Box.
There are VBI insertion mode and software emulation mode in teletext.
In the VBI insertion mode, which is always on, you can watch the teletext with your TV
using the RCU of your TV. To watch teletext with VBI insertion, your TV must support
teletext.
In the software emulation mode, you can watch the teletext even though your TV does
not support teletext. You can watch the teletext using the RCU of STB.
Press button twice to watch the teletext with software emulation mode.
Press button or button to escape from teletext.

MEN
U
MENU OPERATIONS
MENU OPERATIONS
Now this chapter assumes that the STB system has been installed correctly,
meaning:
* The satellite dish for the STB has been installed, connected to the STB and
correctly adjusted to the proper satellite.
* The STB is connected to the TV.
* The RCU has batteries and ready to control the STB.
If the STB has not been installed or connected properly, please refer to the
INSTALLATION(connection) menu on this manual.

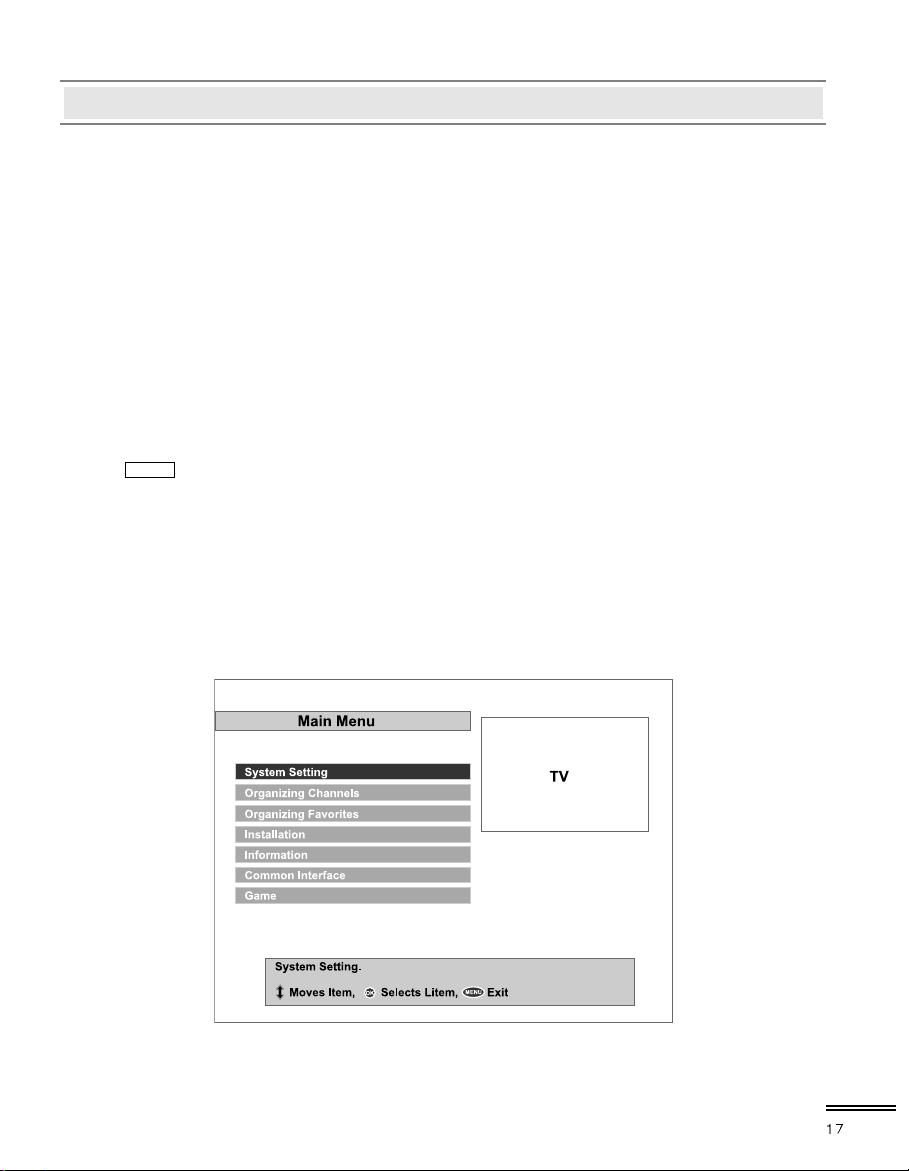

Many of the functions of the STB are available from the MainMenu. Press the
button to open it.

I-1 TIME SETTING
MENU OPERATIONS
I. SYSTEM SETTING
Various time modes can be set, such as the current local time, the Power
On/Off time and the Sleep Time. The exact local present time can be adjusted
by using the GMT, the Time Offsetand the Modesub menus.
PLEASE NOTE: Configure the Local Timebefore adjusting the
Wakeup Time,Power Off Timeor the Sleep Time.
MENU OPERATIONS

A. Local Time Setting
Press the button at Local Time Settingitem in the Time SettingMenu
to open the Local Time Setting menu. Inside the Local Time Settingmenu,
there are 4 sub menus: Mode,Local Time,GMT and Time Offset.
Mode
Bysing the , buttons, you can control the Auto/Manualmode. The Auto
mode automatically updates the time settings by adding the GMT received from
the satellite and the Time Offsetvalue you have inserted. The Automode is
recommended.
Local Time
The Local Timeis adjustable only when the Modeis on the Manualmode.
Adjust the current time, if necessary, by using the numeric buttons and the ,
buttons.
GMT
GMT is referred to the standard time of Greenwich. This cannot be changed.
MENU OPERATIONS
MENU OPERATIONS

Use the , buttons to select the On/Offmode. If the Timeritem
is set to On, the Wakeup Timeitem, the Wakeup channel
item and the Power Off Timeitem becomes adjustable.
The Wakeup Timeitem sets up the time the STB automatically turns on.
Insert the preferable Wakeup Timeby using the numeric buttons and the
, buttons on the RCU. To disable the wakup function, make the Timeritem Off.
B. Timer
C. Wakeup Time
MENU OPERATIONS
Time Offset
The current time of the local area can be inserted. In another words, insert the
time difference of the local time zone from the GMT. For example, if the local
area is Seoul (the time difference from the GMT being 9), insert 9:00. The time
is adjustable by using the , buttons,15 minutes at a time.
MENU OPERATIONS
