Topfield CRC-1400 Service manual

TOPFIELD
CRC-1400
User Reference
High Denition
Digital Cable Receiver
Personal Video Recorder
CONAX CAS7Chipset Pairing

ii
The lightning flash with arrowhead symbol,
in an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to a person.
The exclamation point, in an equilateral tri-
angle, is intended to alert the user to the presence
of important operation and maintenance instruc-
tions in the literature accompanying the product.
Precautions
• Read, keep and follow these instructions.
• Heed all warnings.
• Clean only with a dry cloth.
• Do not block any of the ventilation open-
ings.
• Do not install near any heat sources or in di-
rect sunlight as this will impair cooling.
• Do not operate this product near water. Do
not place any of the objects filled with liq-
uids, such as vases on this unit.
• Do not try to change the plug or defeat its
safety purpose. If the provided plug does
not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
• This product is designed for indoor use
only.
• Place the digital receiver on a firm and level
surface.
• Do not lay any objects such as magazines on
this unit.
• Do not overload power outlets. Doing so
may result in a risk of fire or electrical shock.
• Never open this unit’s casing under any cir-
cumstances, or the warranty will be void.
• Unplug this unit during lightning storms or
when unused for long periods of time.
• Refer all servicing to qualified service per-
sonnel. Servicing is required when the unit
has been damaged in any way, such as
power supply cord or plug is damaged, liq-
uid has been spilled or objects have fallen
into the unit, the unit became wet from rain
or moisture, does not operate normally, or
has been dropped.
• Batteries, including those which contain no
heavy metals, may not be disposed with
other household wastes. Please dispose
of used batteries in an environmentally
sound manner. Find out the legal regu-
lations which apply in your area.
About this user reference
Thank you for purchasing our digital receiver.
Please read this reference carefully before you use
the digital receiver and keep it handy for future ref-
erence.
This User Reference covers the model CRC-1400 .
• Illustrations pictured in this manual may
not be exactly the same as the actual prod-
uct.
• The screenshots used in this manual may
not be exactly the same as those you see on
the actual on-screen displays.
• Designs and specifications of the digital re-
ceiver and other accessories are subject to
change without any notice in order to intro-
duce new features or improve the function-
ality of the product.

CONTENTS iii
Contents
Contents iii
1 Introduction 1
1.1 Features .............................. 1
1.2 Controlling the digital receiver .................. 2
1.2.1 Front panel ........................ 3
1.2.2 Remote control ...................... 6
1.3 Subscription card information .................. 8
2 Setup 9
2.1 Unpacking ............................. 9
2.2 Safety precautions ......................... 9
2.3 Rear panel connections ...................... 10
2.4 Connecting up your digital receiver ............... 12
2.4.1 Connecting to the broadcasting cable .......... 12
2.4.2 Connecting to your television set ............ 13
2.4.3 Connecting to your video recorder ........... 15
2.5 Switching on for the first time .................. 15
3 Service Search 17
3.1 Searching for broadcasting services ............... 17
3.2 Resetting to factory settings ................... 18
3.3 Resetting to user settings ..................... 19
3.4 Clearing the services list ..................... 19

iv CONTENTS
4 Preference Settings 20
4.1 Language settings ......................... 20
4.1.1 Menu language ...................... 20
4.1.2 Subtitle language ..................... 21
4.1.3 Hard of Hearing ..................... 21
4.1.4 Audio language ...................... 21
4.2 Video and audio settings ..................... 22
4.2.1 High definition television ................ 22
4.2.2 Television aspect ratio .................. 23
4.2.3 Colour format ....................... 24
4.2.4 Another video device ................... 24
4.2.5 Audio mode ........................ 25
4.3 Local time setting ......................... 25
4.4 Parental control .......................... 27
4.5 Options for recording ....................... 29
4.6 Options for playback ....................... 30
4.7 Options for on-screen display .................. 31
4.8 Options for the front display ................... 32
4.9 Options for Photo Album ..................... 32
4.10 Options for standby mode .................... 33
4.11 Options for EPG style ....................... 33
5 Every Day Use 35
5.1 Volume control .......................... 35
5.2 Watching television ........................ 35
5.2.1 The services list ...................... 35
5.2.2 The favourite service lists ................ 36
5.2.3 Viewing programme information ............ 37
5.2.4 Selecting audio tracks .................. 38
5.2.5 Selecting subtitle tracks ................. 38
5.2.6 Viewing teletext ...................... 39
5.3 Viewing electronic programme guide .............. 39
5.4 Using time-shift .......................... 40
6 Organising Services 42
6.1 Editing the favourite lists ..................... 42

CONTENTS v
6.2 How to use on-screen keyboard ................. 44
7 Recording and Playback 45
7.1 Recording a programme ..................... 46
7.1.1 Instant recording ..................... 46
7.1.2 Timer recording ...................... 48
7.1.3 Scheduling recordings using the programme guide . . 51
7.1.4 How to make a series recording ............. 52
7.1.5 Recording a time-shifted programme .......... 53
7.1.6 Recording a pay service programme .......... 53
7.2 File archive ............................. 54
7.2.1 To delete a recording ................... 54
7.2.2 To sort recordings ..................... 55
7.2.3 To lock a recording .................... 55
7.2.4 To rename a recording .................. 55
7.2.5 To make a new folder ................... 55
7.2.6 To move a recording to another folder ......... 56
7.3 Playing back a recording ..................... 56
7.3.1 To navigate using the progress bar ........... 57
7.3.2 To play in slow motion .................. 57
7.3.3 To play in fast motion ................... 57
7.3.4 To make a bookmark ................... 58
7.3.5 To play back a recording repeatedly .......... 58
7.3.6 To play back recordings in sequence .......... 59
7.3.7 To play back a scrambled recording ........... 59
7.4 Copying a recording ....................... 60
7.5 Formatting the hard disk ..................... 60
8 Entertainment 61
8.1 Configuring the network setting ................. 61
8.2 Copying files ............................ 62
8.3 Playing back MP3 files ...................... 63
8.4 Viewing image files ........................ 63
8.4.1 How to move a file to the photo album ......... 63
8.5 Playing back a video file ..................... 64
8.6 Playing back YouTube contents (optional) ........... 65

vi CONTENTS
8.7 Sharing image files by Flickr (optional) ......... 66
8.8 SHOUTcast Internet radio (optional) .............. 68
8.9 Weather forecast (optional) ............... 69
9 Firmware Update 70
9.1 From a memory stick ....................... 70
9.2 Over the air(optional) ....................... 71
A Universal Remote Control 72
A.1 Code list for television sets .................... 75
A.2 Code list for DVD players ..................... 89
A.3 Code list for audio-video receivers ............... 91

1 Introduction
1
Chapter 1
Introduction
The CRC-1400 digital receiver is fully compliant with the inter-
national Digital Video Broadcasting (DVB) standard, and thus
is able to receive digital broadcasts of that standard.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all
assigned to their own frequencies; instead, multiple televi-
sion broadcasts are transmitted through a single frequency.
The frequency in digital broadcasting is usually called trans-
ponder or multiplex. To reduce confusion in this manual,
the word service is preferably used than channel as a term
to indicate one television or radio broadcast.
1.1 Features
This digital receiver has the following features:
• Can store up to 2,000 television and radio services.
• Can create lists of your favourite services.

2 Introduction
• Can view information about the current television or ra-
dio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
• You can record up to four services while you are cur-
rently watching another.
• You can record many programmes using a built-in hard
drive with large storage capacity.
• Time-shift is a special technical feature available on this
digital receiver. You can pause a programme you are
watching and resume it again at a later time. Then you
can quickly go to any part of the current programme by
fast forward or rewind search.
• If you have an external hard drive connected to the dig-
ital receiver via the USB port, you can record television
programmes into it.
• You can make a timer recording for a whole series of a
programme at once on the programme guide.
• You can play back video files of various formats includ-
ing Xvid.
• You can use various Web services including YouTube.
(optional)
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control or
the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall
socket, we say that it is in standby mode; on the other hand,
when it is on, it is in active mode. Even when you are not
using the digital receiver, you should keep it plugged into

1 Introduction
1.2 Controlling the digital receiver 3
a wall socket to be in standby mode so that it can run timer
events at any time.
1.2.1 Front panel
The front panel of the digital receiver has buttons to control
the digital receiver, specic lights andadisplay to indicate its
status. The following indicates what they mean.
button switches the digital receiver between standby
and active mode.
Front display shows the current time in standby mode, and
displays the current service in active mode.
MENU button displays the main menu. It is also used to return
to the previous menu from a submenu.
OK button displays the services list. See §5.2.1 for more de-
tails. It is also used to selectamenu item.
CHANNEL ,buttons switch to the previous or next ser-
vice.
VOLUME
Power
,buttons decrease or increase the volume.
You have to insert your subscription card into the front slot to
watch pay services.

4 Introduction

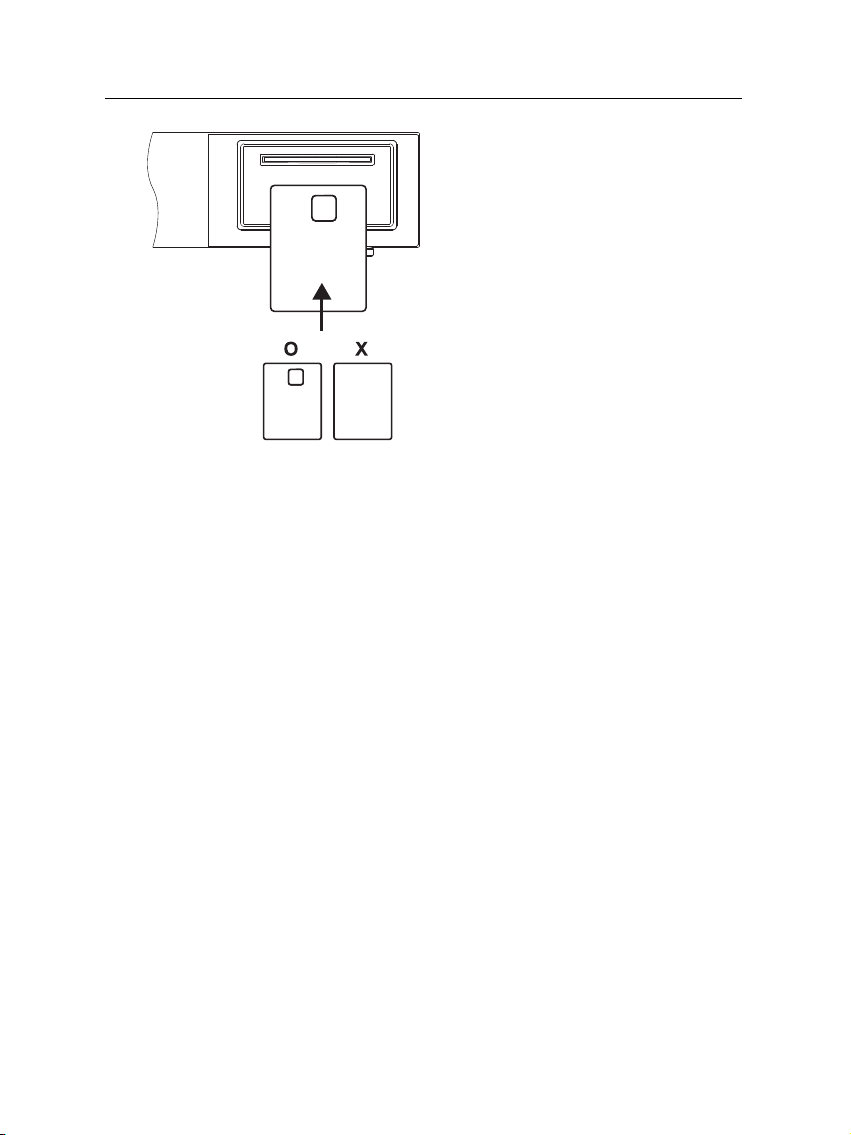

You have to insert your subscription
card into the front slot to watch pay
services. When you insert the subscrip-
tion card, the side on which the chip is
mounted must face upward.

1 Introduction
1.2 Controlling the digital receiver 5
1.2.2 Remote control
41
.
.
.
1button switches the
digital receiver between
standby mode and active
mode.
.
.
.
2mutes the sound. Press
again to switch it back on.
.
.
.
3



TV switches the remote
control to television mode
to operate your television.
.
.
.
4



PVR switches the remote
control to receiver mode to
operate the digital receiver.
.
.
.
5



AUX switches the remote
control to operate your
audio-video receiver.
.
.
.
6



DVD switches the remote
control to DVD mode to op-
erate your DVD player.
.
.
.
7Numeric buttons are used
to enter a service number
for service change or to
specify values for menu op-
tions.
.
.
.
8switches over between
the current service and the
previously viewed one.
.
.
.
9displays the service in-
formation box. It is also
used to display more infor-
mation about a programme.

6 Introduction
.
.
.
10 



VOLUME−,



VOLUME+buttons decrease or increase the
volume.
.
.
.
11 



CHANNEL−,



CHANNEL+buttons switch to the previous or
next service.
.
.
.
12 



OK displays the services list. See §5.2.1 for more details.
It is also used to select a menu item.
.
.
.
13 Navigation buttons are used to navigate in menus or to
change values for menu options.
.
.
.
14 



MENU displays the main menu. It is also used to return to
the previous menu from a submenu.
.
.
.
15 



GUIDE displays the electronic programme guide.
.
.
.
16 



EXIT is used to exit a menu or to hide on-screen informa-
tion.
.
.
.
17 is used to display the list of recorded programmes that
are stored in the internal hard drive. See §7.2 for more
details.
.
.
.
18 



F1 has different functions per menu.
.
.
.
19 



F2 is used to make a bookmark on playback or time-shift.
.
.
.
20 



F4 has different functions per menu.
.
.
.
21 



F3 is used to jump to next bookmark position.
.
.
.
22 



Option has different functions per menu.
.
.
.
23 is used to select a subtitle track.
.
.
.
24 is used to select an audio track and a sound mode.
.
.
.
25 displays teletext.
.
.
.
26 



VF changes video resolution. See §4.2.1 for more details.
.
.
.
27 



AR changes aspect ratio. See §4.2.2 for more details.
.
.
.
28 switches over between television services and radio
services.
.
.
.
29 is used to set a sleep timer in 10 minute increments.
.
.
.
30 is used to start recording.

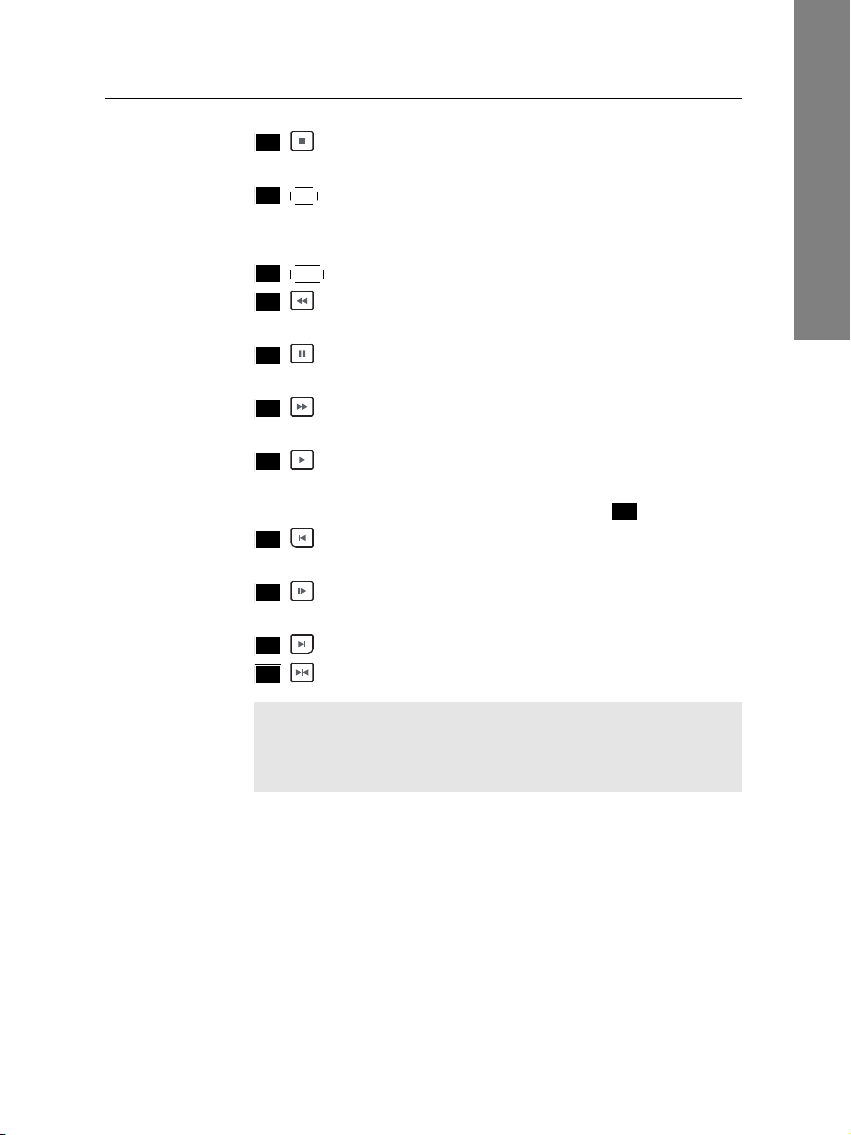

1 Introduction
1.3 Subscription card information 7
.
.
.
31 is used to stop playback, to stop recording, or to jump
back to live television from time-shifted television.
.
.
.
32 



Mswitches the output of the TV SCART socket over be-
tween the digital receiver and the device connected to the
VCR SCART socket. See §4.2.4 for more details.
.
.
.
33 



SAT displays connected devices list.
.
.
.
34 is used to start reverse playback. Subsequent presses
increase the rewind speed.
.
.
.
35 pauses live television or playback of a recorded pro-
gramme.
.
.
.
36 is used to start fast forward playback. Subsequent
presses increase the playback speed.
.
.
.
37 resumes normal playback speed, or displays the
progress bar for navigation on playback or time-shift. To
play a recorded programme, see button .
.
.
17 .
.
.
.
38 is used to jump back to the beginning of the recording
on playback.
.
.
.
39 is used to start slow motion playback. Subsequent
presses change the playback speed.
.
.
.
40 is used to jump to the end of the recording on playback.
.
.
.
41 has different functions per menu.
NOTE
When using the remote control, point it at the remote sensor
on the front panel of the digital receiver.
1.3 Subscription card information
With this digital receiver, you can view pay services scram-
bled with the CONAX conditional access system. Probably
you have a subscription card. If you would like to view infor-
mation in detail about your subscription card, select the Infor-
mation >Conditional Access menu. There you can also check
the messages from the broadcasting operator.

8 Setup
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the fol-
lowing items with the digital receiver.
• Remote control
• Two batteries for the remote control (AAA 1.5 V)
• One HDMI cable
• A copy of the User manual
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
• The mains voltage must range between 90 and 250 volts.
Check it before plugging the digital receiver to the wall
socket. For the power consumption of the digital re-
ceiver, refer to Table 2.1.

2 Setup
2.3 Rear panel connections 9
• The wall socket should be near the equipment. Do not
run an extension lead to the unit.
• The mains plug shall remain readily operable so that it
can be removed easily to disconnect the power.
• When placed in a cabinet, make sure there is a minimum
space of 10 centimetres around it. For the physical spec-
ification of the digital receiver, refer to Table 2.2.
• Protect the power cord from being walked on or pinched.
If the cord is damaged, do not use the digital receiver and
get the cord replaced.
• Refer all servicing to a qualified service technician.
• To maintain proper ventilation, always leave sufficient
space around the digital receiver.
Table 2.1: Power specification
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 30W at maximum in active
Under 1 W in passive standby
Table 2.2: Physical specifications
Size 340×60×265 mm
Weight 2.6 ~ 3.1 kg (may vary due to HDD kind)
Operating temperature 0 to 39 ◦C
Storage relative humidity 5 to 90 %
2.3 Rear panel connections
The CRC-1400 has a wide range of connections on the back.

10 Setup
Check what connections your television set has in comparison
with the digital receiver.
1CABLE IN Cable broadcasting signal input socket
2CABLE OUT Cable broadcasting signal output socket
through the CABLE IN socket for another
digital receiver
3VIDEO Composite video output socket for the tele-
vision set (yellow)
4AUDIO L/R Stereo audio output socket for the televi-
sion set or the audio-video receiver (white/red)
5TV Audio and video output socket for the tele-
vision set
6VCR Audio and video input/output socket for
another device such as a video recorder
7LAN Local area network port
8USB USB port for rmware update and data trans-
fer
9S/PDIF Digital audio output socket for the audio-
video receiver
10 HDMI Audio and video output socket for the high
denition television set
11 ON/OFF Power switch (You have to turn on this switch
rst to use this digital receiver.)
1 3 5 117 9
2 4 6 8 10

2 Setup
2.4 Connecting up your digital receiver 11
Table 2.3: Connectors specifications
HDMI High definition video output
Left & right audio output
Digital audio output
TV CVBS/S-Video video output
Left & right audio output
VCR CVBS video output
Left & right audio output
CVBS/S-Video video input for bypass
Left & right audio input for bypass
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
S/PDIF Digital audio output
USB 2.0 Host (5 V DC, 500 mA)
LAN 10/100 Ethernet
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other devices.
If you have any problem with your setup or need help, contact
your dealer.

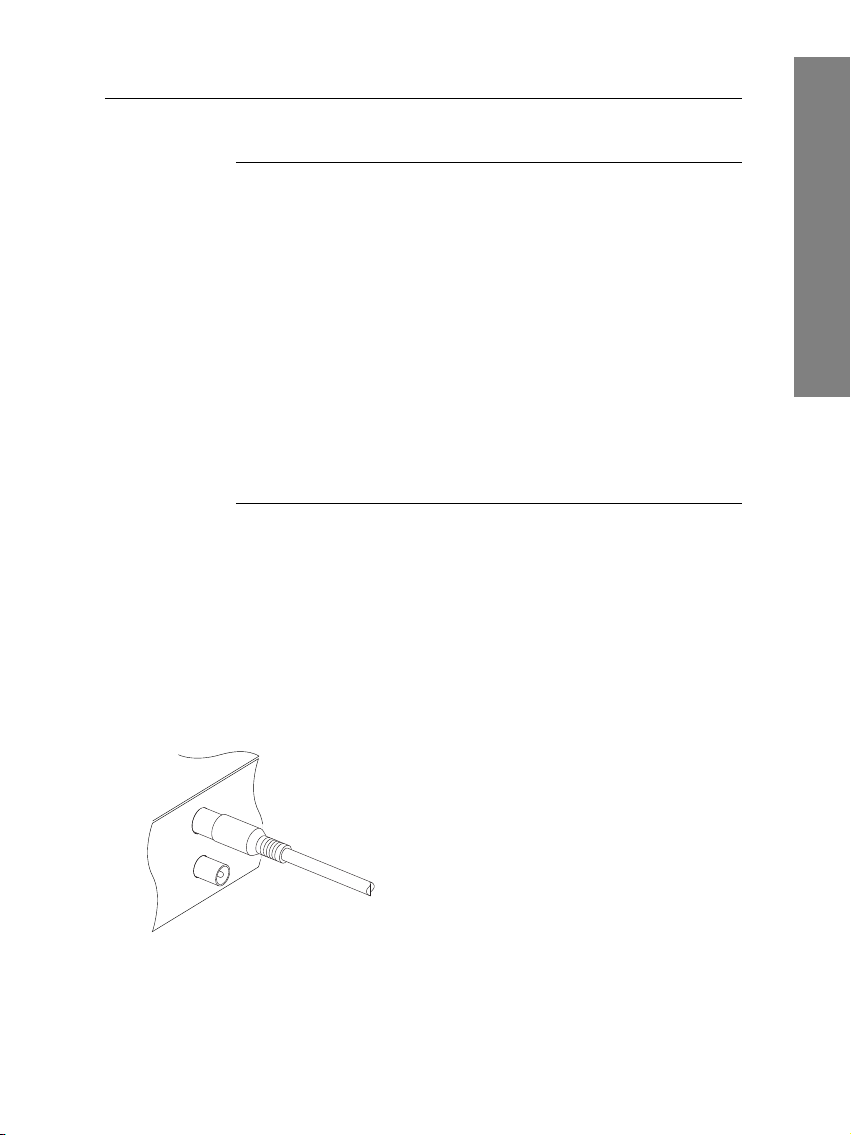

2.4.1 Connecting to the broadcasting cable
Whatever sort of connection you have be-
tween the digital receiver and the television,
you need to connect the digital receiver to the
broadcasting cable so that it can receive digi-
tal television broadcasts. Connect the broad-
casting cable to the CABLE IN connector. If
you have another digital receiver, you may
link it from the CABLE OUT connector.

12 Setup
2.4.2 Connecting to your television set
For all the following connections of the digital receiver, we rec-
ommend you to use the first connector to get the best picture
quality. If your television does not have a matching connector,
then use the next connector in the following order for a better
picture quality.
1. HDMI connector (HDMI)
2. SCART connector (TV)
3. Composite connector (VIDEO)
You should configure audio and video settings after connect-
ing up the digital receiver. See §4.2 for a detailed description.

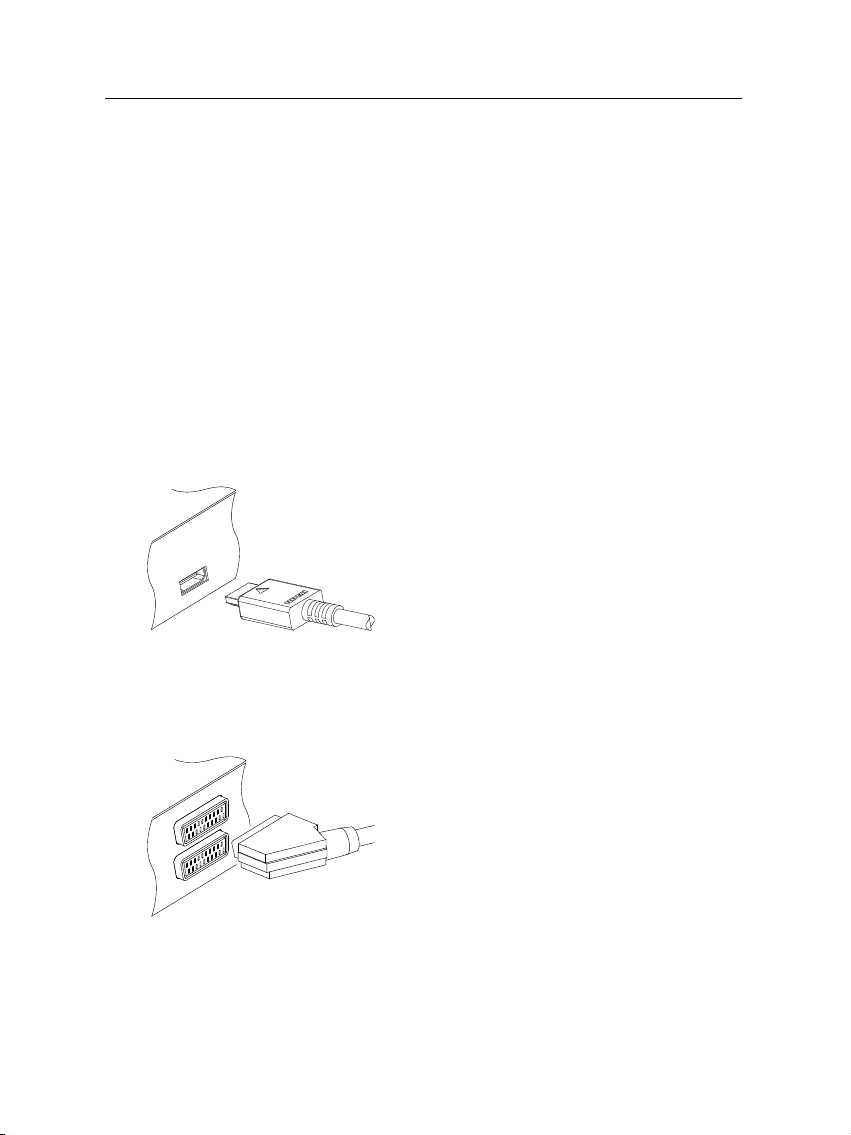

To use the HDMI output
If you have a high definition television set,
you should use an HDMI cable for best re-
sults. Plug one end of the cable into the HDMI
socket on the digital receiver, and plug the
other end into the matching socket on your
television. In this case, you do not have to
make audio connection because it can output
stereo audio or digital audio as well.
To use the SCART output
For best results with a standard television set,
you should use a SCART cable. Plug one end
of the cable into the TV socket on the digital
receiver, and plug the other end into a free
SCART socket on your television.
If you connect with a standard SCART cable, you do not have
to make audio connection because it can output stereo audio
as well. But if you use a conversion cable such as SCART-to-
Component, then you have to make audio connection.

2 Setup
2.4 Connecting up your digital receiver 13
NOTE
You cannot view high definition video by means of the
SCART output.
To use the Composite video output
You need to obtain a Composite video cable
(RCA cable) to use the Composite video out-
put. Plug one end of the cable into the VIDEO
(yellow) socket on the digital receiver, and
plug the other end into the matching socket
on your television.
NOTE
You cannot view high definition video by means of the Com-
posite video output.
To make the audio connection
You need to obtain an audio cable (RCA ca-
ble) to link the audio connectors. Plug one
ends of the cable into the AUDIO L (white)
and AUDIO R (red) sockets on the digi-
tal receiver, and plug the other ends into
the matching sockets on your television or
audio-video receiver.
To enjoy Dolby Digital audio, your television
or audio-video receiver must be able to de-
code Dolby Digital audio, and you need to
obtain an S/PDIF cable.
Plug one end of the cable into the S/PDIF
socket on the digital receiver, and plug the
other end into the matching socket on your
audio-video receiver.

14 Setup
2.4.3 Connecting to your video recorder
The digital receiver can also output video through an auxiliary
SCART connector to another device such as a video recorder.
You need to obtain a SCART cable to link the
auxiliary SCART connector. Plug one end
of the cable into the VCR socket on the digi-
tal receiver, and plug the other end into the
matching socket on your video recorder or
suchlike.
2.5 Switching on for the first time
Now that you have your digital receiver connected, you should
plug it into a wall socket. Ensure that your television set is
turned on and on the correct video channel so that you will be
able to see the display from the digital receiver.
Before switching on the digital receiver, you should insert bat-
teries into the remote control. Open the battery compartment
by removing the lid, and then insert the batteries observing the
polarity, which is marked on the base of the battery compart-
ment.
Press the button on the top left corner on the remote con-
trol. In a little time, you may see a picture displaying a menu.
If you do not see a picture, try pressing the 



VF button on the
remote control. If after several tries you still get no picture,
check that the television is set to the correct input. If the picture
is good, you can skip to §3.1 to search for available television
and radio services. Otherwise, you may need to temporarily
connect the Composite video connector (VIDEO) to your tele-
vision set so that you can see the menu in order to configure
the video settings.
