TOPIC-LIGHT MH-G90 User manual

Topic Light Co., Ltd.

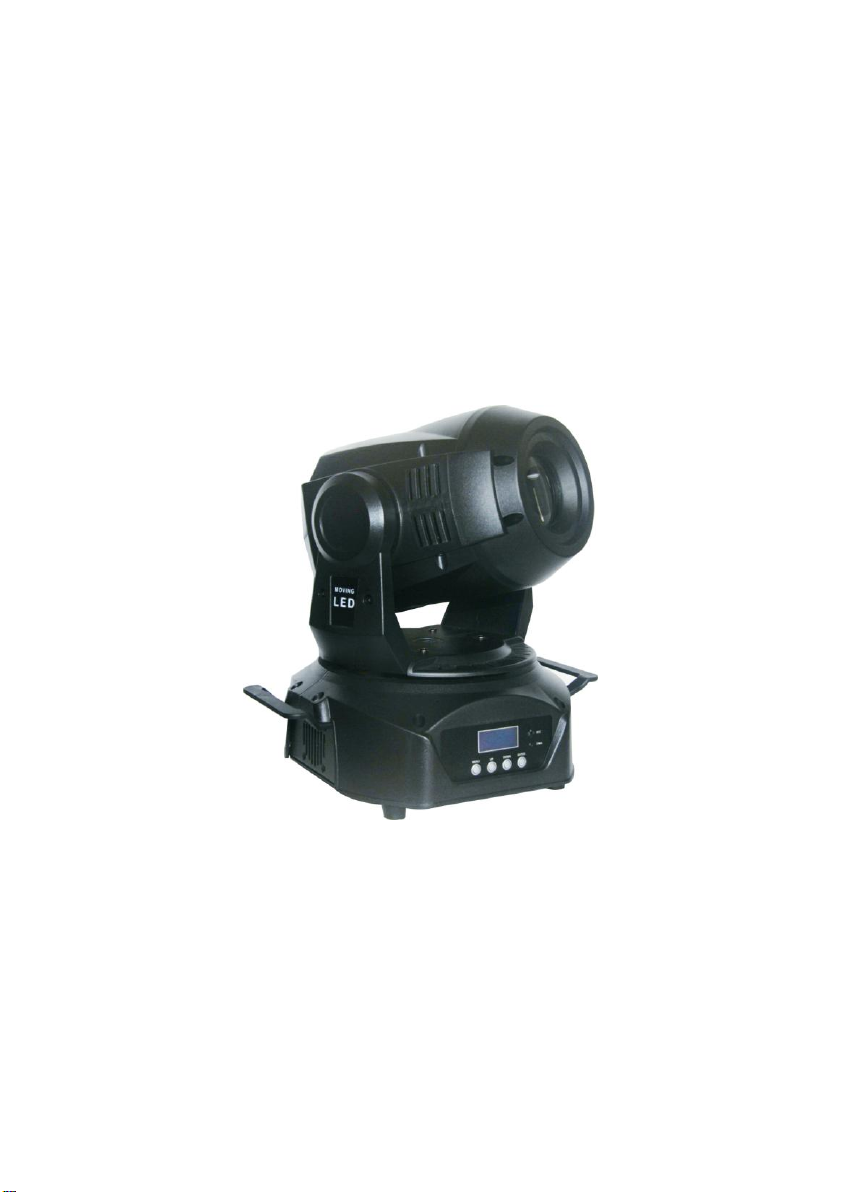

90W LED MOVING HEAD SPOT
USER MANUAL
MH-G90
Thank you very much for choosing our product. For safety purpose, please
read this manual carefully before your operation. This manual included
installation and using information. Please install and operate it according to
this manual.

2
1. Technology Reference
1) Voltage: 100-240V,50-60Hz
2) Power consumption:135W
3) LED: ultra bright 90W LED
4) LED color wheel: Basic 7 colors+ white, can adjust speed rainbow effect
5) Fixed gobo: 8 gobos+ white, Gobo rotating CW and CCW from slow to
fast)
6) Dimmer/Strobe: Dimmer, 1-20t/s
7) Focus: Electronic Focus
8) Pan::540°Tilt: 270
9) Control: DMX 512, 11/14 CHs
10) Working mode: Stand-alone mode, Controller mode, Master/Slave
synchronization mode
11) Other function: Pan/Tilt speed adjustable
Housing: High temperature resistant engineering plastic + aluminum
alloy.
12) Weight: 6.3KG
13) Product Size: 240*245*350mm
14) Packing Size: 350*340*375mm
Accessories
The accessories below were packed with product, please check if they are
once open the package.
Power cable: 1PCS
User manual: 1 PCS
Clamp (Optional): 2PCS
Warning!!!
Please check whether the light with damage by shipment once open the
package before operation. If product with damage by shipment, please do not
operate the light then contact the dealer or supplier.
This product is designed for Indoor use, the IP rate is IP20. Keep the product
in dry environment. Avoid in damp, overheating, or much dusty environment.
Prevent fixture in contact with the water and other liquids.

3
Please do not install the fixture on the surface of combustible substances.
Qualified professionals can install, operate and maintain the fixture, and to
make sure strictly in accordance with the procedures described in this
operating instructions.
The fixture should be installed in a well ventilated place, and the distance
from the wall to keep above 10 cm, at the same time, please check the fan
and the vent is unimpeded.
Do not use the fixture is directly projected on combustible objects, the
distance between the fixture and light objects please keep over 1 meter.
Don't look straight into the light source of the fixture (especially for epilepsy
patients), so as not to cause damage to the eyes!
Please do not open and fix the fixture by yourself.
For electrical parts connected person must have the corresponding
qualifications before operate.
For electrical parts connected person must have the corresponding
qualifications before operate.
Before installation, please make sure the power supply voltage you used and
the voltage of fixture is identified.
Every fixture should be properly grounded and in accordance with the
relevant standard for electrical installation.
Don't dispatch the fixture connected to any other dimming device.
Do not use insulating layer with damage for the power cord, and don't take the
power cord overlap on the other wire. When not use or to clean the fixture,
please unplug the power cord. Don't unplug the plug rudely or drag the
power cord directly.
Keep the bulb clean, do not contact with the glass bulb by hand directly.
Equipped with insurance rope connecting hole at the bottom of the fixture, for
security, please use safety cable to hang the fixture.
There is no any parts for repair inside the fixture. Before starting operation of
the fixture, please check whether all the cover plate (or housing) has been
installed well, whether the screw has been tighten .
Prohibit use the fixture when the cover plate or housing is opened.
If you have any questions or Suggestions, please contact with dealers or

4
supplier
Important: before any installation, maintenance and clean the fixture, please
confirm the power supply is cut off!
Power supply connection
The power cord connection as follows:
L = (live wire) brown wire
E (ground) = yellow/green double color line
N =(middle line) blue line
Connecting power supply, please pay attention to the power supply voltage
and frequency should be marked on the voltage and frequency of fixture.
When more than one moving head light used at the same time, it is
recommended that the power of the fixture, respectively connection, this can
control the fixture ON/OFF separately.
Important: Connect to the power supply, the ground (yellow/green line)
should be safety grounding, electrical installation shall comply with all
relevant standards

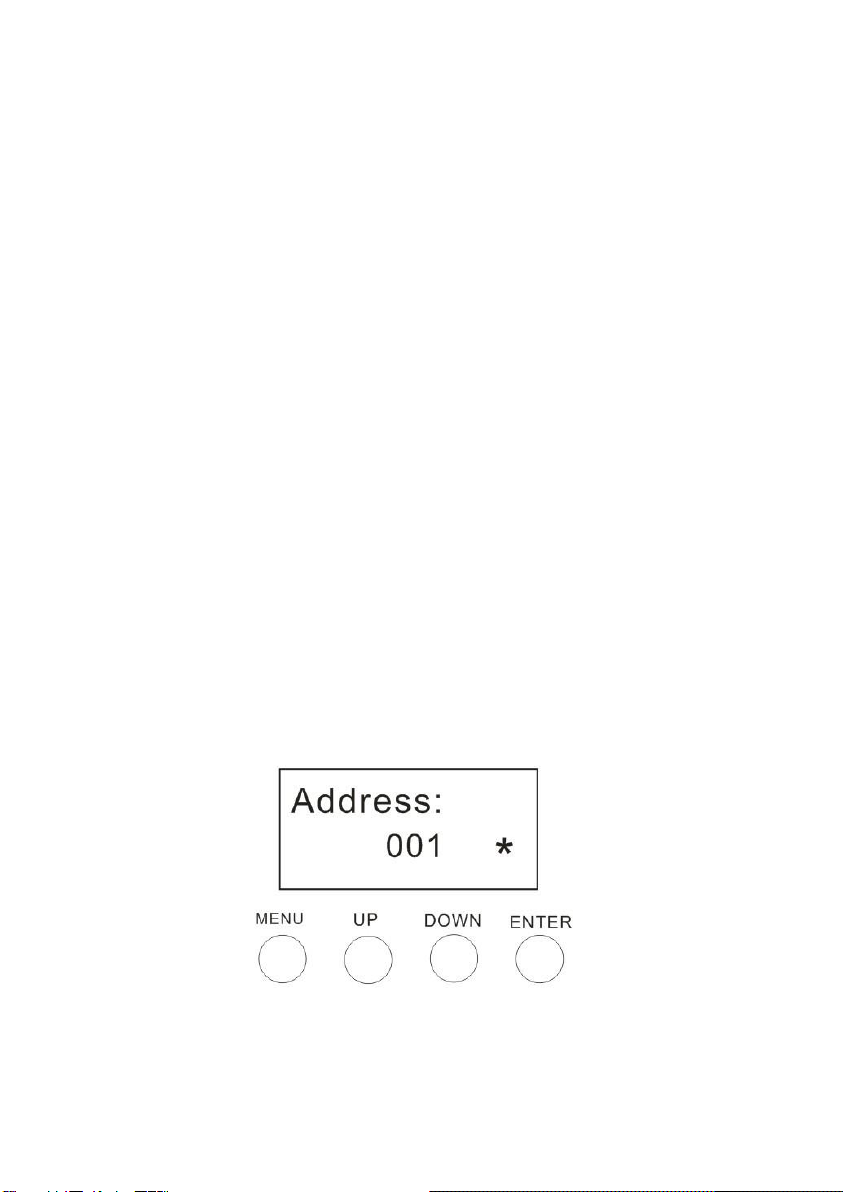

2. Function Setting (LED display instruction)
Mode 1: A001 is factory default setting. In this mode receive DMX512 signal
control. Press ENTER to set ID address. Use UP or DOWN to change the
value of ID address, then press ENTER to save.

5

6
3. DMX CHANNEL CONTROL
There are two modes to get DMX 512 signal for this fixture, the one is
16CHS14 CHs 11CHs. Please find the details as follow:
Basic Mode(16-channel)
DMX CHS
CH value
Function
1CH X rotation
000-255
X rotation 0°-540°
2CH X fine adjustment
000-255
Xfine adjustment
3CH Y rotation
000-255
Y rotation 0°-270°
4CH Y fine adjustment
000-255
Yfine adjustment
5CH X/Y Speed
000-255
XY speed from fast to slow
6CH LED90W Dimmer
000-255
From dark to bright
7CH Strobe
0-5
6-249
250-255
ON
Strobe from slow to fast
ON
8CH 7Color + White
0-9
10-19
20-29
30-39
40-49
50-59
60-69
70-79
80-89
90-99
100-109
110-119
120-129
130-139
140-149
150-169
160-179
white
white & dark blue
dark blue
dark blue & light green
light green
light green & light blue
light blue
light blue & red
red
red & green
green
green & plum purple
plum purple
plum purple & yellow
yellow
yellow & white
undefined

7
180-216
217-255
Forwards rainbow effect from fast
to slow
Backwards rainbow effect from
slow to fast
9CH Focus
000-255
Focus, from near to far
10CH 6 Gobos + White
0-19
20-39
40-59
60-79
80-99
100-119
120-139
140-255
White
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo rotating CW and CCW
from slow to fast)
11CH Gobo1 Shake
0-9
Gobo rotation stop
10-89
Forwards gobo rotation from
fast to slow
10-89
Forwards gobo rotation from
fast to slow
170-255
Forwards Backwards
rotation from slow to fast
12CH Gobo self-rotation
0-19
20-139
140-255
No function
Gobo self-rotating clockwise
from slow to fast
Gobo self-rotating counter-
clockwise from slow to fast
13CH 8 Gobos + White
0-9
10-19
20-39
40-59
60-79
80-99
100-119
120-139
140-159
160-255
White
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo rotating CW and CCW
from slow to fast

8
14 CH Gobo1 Shake
0-9
Gobo rotation stop
10-89
Forwards gobo rotation from
fast to slow
10-89
Forwards gobo rotation from
fast to slow
170-255
Forwards Backwards
rotation from slow to fast
15CH Prism
0-19
20-63
64-255
OFF
ON
Forward Rotating from fast to
slow
16CH Reset
1-199
200-239
240-255
No function
Reset after 3 second
No function
14 Channels mode
DMX CHS
CH value
Function
1CH X rotation
000-255
X rotation 0°-540°
2CH X fine adjustment
000-255
Xfine adjustment
3CH Y rotation
000-255
Y rotation 0°-270°
4CH Y fine adjustment
000-255
Yfine adjustment
5CH X/Y Speed
000-255
XY speed from fast to slow
6CH LED 90W Dimmer
000-255
From dark to bright
7CH Strobe
0-5
6-249
250-255
ON
Strobe from slow to fast
ON
8CH 7Color + White
0-9
10-19
20-29
30-39
40-49
50-59
white
white & dark blue
dark blue
dark blue & light green
light green
light green & light blue

9
60-69
70-79
80-89
90-99
100-109
110-119
120-129
130-139
140-149
150-169
160-179
180-216
217-255
light blue
light blue & red
red
red & green
green
green & plum purple
plum purple
plum purple & yellow
yellow
yellow & white
undefined
Forwards rainbow effect from fast
to slow
Backwards rainbow effect from
slow to fast
9CH Focus
000-255
Focus, from near to far
10CH 6 Gobos + White
0-19
20-39
40-59
60-79
80-99
100-119
120-139
140-255
White
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo rotating CW and CCW
from slow to fast)
11CH Gobo self-rotation
0-19
20-139
140-255
No function
Gobo self-rotating clockwise
from slow to fast
Gobo self-rotating counter-
clockwise from slow to fast
12CH 8 Gobos + White
0-9
10-19
20-39
40-59
60-79
80-99
White
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5

10
100-119
120-139
140-159
160-255
Gobo 6
Gobo 7
Gobo 8
Gobo rotating CW and CCW
from slow to fast
13CH Prism
0-19
20-63
64-255
OFF
ON
Forward Rotating from fast to
slow
14CH Reset
1-199
200-239
240-255
No function
Reset after 3 second
No function
11 Channels Mode
DMX CHS
CH value
Function
1CH X rotation
000-255
X rotation 0°-540°
2CH X fine adjustment
000-255
Xfine adjustment
3CH Y rotation
000-255
Y rotation 0°-270°
4CH Y fine adjustment
000-255
Yfine adjustment
5CH X/Y Speed
000-255
XY speed from fast to slow
6CH LED 90W Dimmer
000-255
From dark to bright
7CH Strobe
0-5
6-249
250-255
ON
Strobe from slow to fast
ON
8CH 7Color + White
0-9
10-19
20-29
30-39
40-49
50-59
60-69
70-79
80-89
white
white & dark blue
dark blue
dark blue & light green
light green
light green & light blue
light blue
light blue & red
red

11
90-99
100-109
110-119
120-129
130-139
140-149
150-169
160-179
180-216
217-255
red & green
green
green & plum purple
plum purple
plum purple & yellow
yellow
yellow & white
undefined
Forwards rainbow effect from fast
to slow
Backwards rainbow effect from
slow to fast
9CH Focus
000-255
Focus, from near to far
10CH 6 Gobos + White
0-19
20-39
40-59
60-79
80-99
100-119
120-139
140-255
White
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo rotating CW and CCW
from slow to fast)
11CH Gobo self-rotation
0-19
20-139
140-255
No function
Gobo self-rotating clockwise
from slow to fast
Gobo self-rotating counter-
clockwise from slow to fast
4. Maintenance
When the lens have fracture and other damage, it should be replaced in time.
when the fixture can't start to run, please check if the fuse of power supply is
burnout, if it is burnout please install the fitted corresponding specification
fuse with 5 x20 T2A / 250 v. 5 mmx20mm). Note it must use the same
specifications fuse. The is installed with overheating protection device, when
it is overheat, the overheating protection device will automatically cut off
power supply. Please check whether the fan running, whether the fan and fan

12
nets have dust jam, find troubleshooting before working. But note that a
qualified technicians can do the repair work.
In order to maintain the gobo wheel smooth rotation and smooth movement, it
is suggested to add grease for the rotation gobo wheel every two months.
Should use good quality grease.
In order to ensure the fixture working well, maintain the cleanness of fixture is
very necessary. It should be clean once every 30 days after cooling the fans.
Internal and external optical lens, reflector and coating color filter cleaning
must be carried out periodically to optimize the output light efficiency. Do not
use any contains chemical solvent cleaning coating color filter
Cleaning the fixture depending on the operating frequency of fixture and the
surrounding environment. Clean with a soft cloth and cleaning products for
glass, suggest to clean the external optical system at least once every 30
days , clean the internal optical system at least once every 30/60 days.
Please do not use alcohol and other organic solvents to wipe housing, lest
cause damage.
5. General troubleshooting
Phenomenon
Solution
Fixture can not start to work
1. Check if the power fuse burnout
Fixture light normally,
but no responding to
the DMX controller
1. Check if the DMX start address is correct
2. Check if the XLR signal cable was
damaged
Fixture work intermittently
Check if the fan work well, Whether dust
blocked fan and fan nets
Dark light, brightness
decreases obviously
1. Check whether the internal and external
optical system clean
Beam is not pure (have a
halo）
Clean the dust and oil of bulb, lens and other
parts
The beam distortion serious
1. Check whether the lens is broken
2. Clean the dust or oil of lens
