TOPMAQ medr3000 User manual

Operator’s Manual

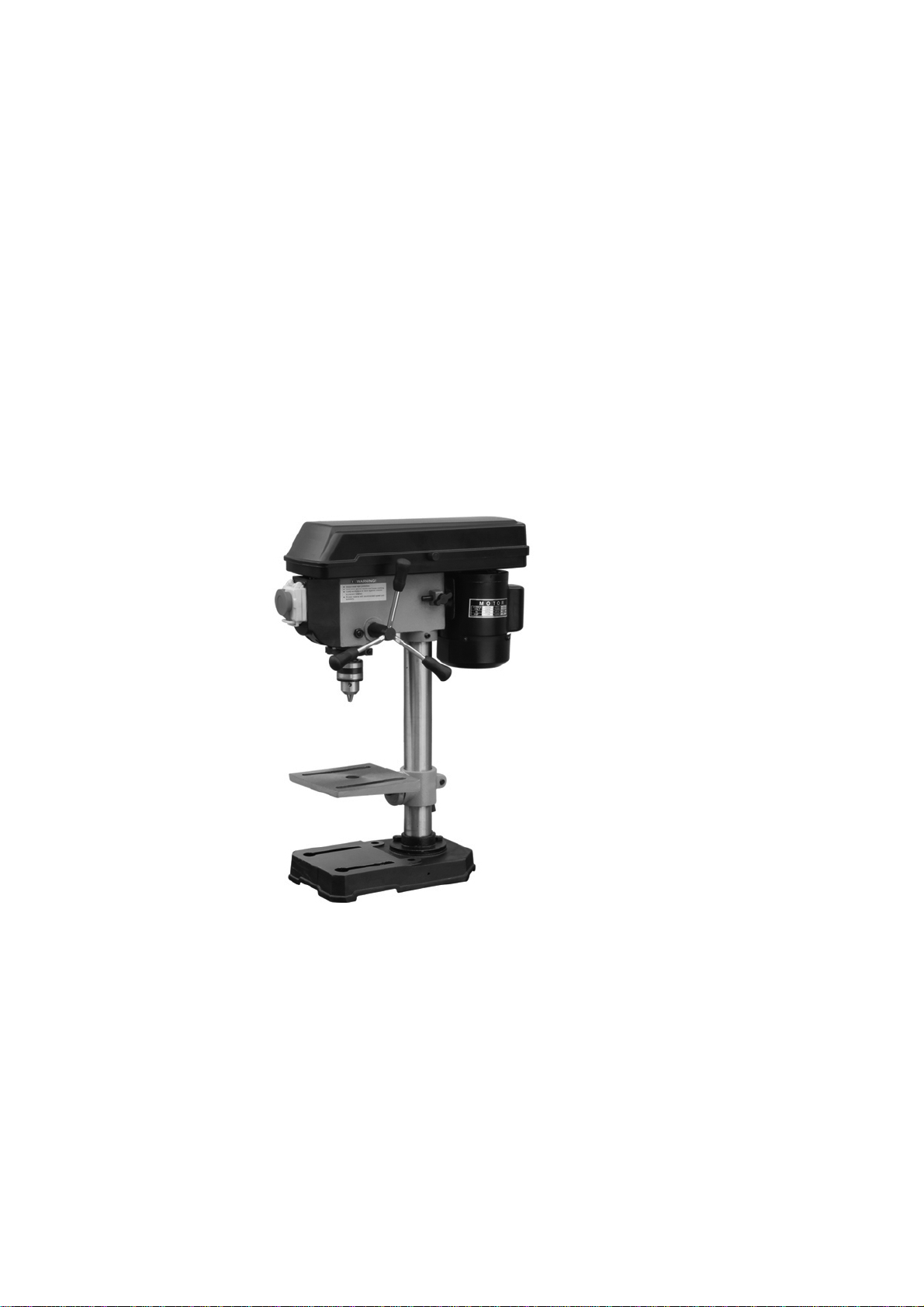

8inch Drill Press
CAUTION: Read and follow all Safety Rules
and Operating Instructions before First Use
of this Product. Keep this manual with tools.

8
Technical Specification
Drill press
Voltage / Frequency: 230V / 50Hz
Motor Power 250W
Chuck 13mm
Spindle Travel 50mm
Spindle Taper B16
Speed Change 5 Speeds
Speed 620-2620 1/min
Dist. Spindle to Column 105mm
Table Size 160x160 mm
Base Size 290x190 mm
Column 46mm
Total Height 590 mm
Net Weight 16 kg
SAFETY
WARNING: To avoid electrical hazards, fire hazards, or damage to the tool, use proper circuit protection.
Use a separate electrical circuit for your tools. To avoid shock or fire, replace power cord immediately if it is worn, cut or
damaged in any way.
GENERAL SAFETY INSTRUCTIONS
WARNING: To avoid mistakes that could cause serious injury, do not plug the Drill Press in until you have read and
understood the following:
1. READ and become familiar with the entire instruction manual. LEARN the tool’s application, limitations and possible
hazards.
2. KEEP GUARDS IN PLACE and in working order.
3. REMOVE ADJUSTING KEYS AND WRENCHES. Form a habit of checking to see that keys and adjusting wrenches
are removed from the tool before turning ON.
4. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
5. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use power tools in damp or wet locations, or expose them to rain.
Keep work area well lighted.
6. KEEP CHILDREN AWAY. All visitors should be kept at a safe distance from work area.
7. MAKE WORKSHOP CHILDPROOF with padlocks.
8. DON’T FORCE THE TOOL. It will do the job better and safer at the rate for which it was designed.
9. USE THE RIGHT TOOL. Do not force tool or attachment to do a job for which it was not designed.
10. USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension
cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will result in a
drop in line voltage and in loss of power that will cause the tool to overheat.
11. WEAR PROPER APPAREL. Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may
get caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair.
12. ALWAYS WEAR EYE PROTECTION. Any Drill Press can throw foreign objects into the eyes that could cause
permanent eye damage. ALWAYS wear Safety Goggles (not glasses). Everyday eyeglasses have only

9
impact-resistance lenses. They ARE NOT safety glasses.
13. SECURE WORK. Use clamps or a vise to hold work when practical. It’s safer than using your hand and it frees both
hands to operate tool.
14. DISCONNECT TOOLS before servicing; when changing accessories such as blades, bits, cutters, and the like.
15. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch is in OFF position before plugging in.
16. USE RECOMMENDED ACCESSORIES. Consult the instruction manual for recommended accessories. The use of
improper accessories may cause serious injury.
17. NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally
contacted.
18. CHECK FOR DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly and perform its intended function – check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its
operation. A guard or other part that is damaged should be properly repaired or replaced.
19. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER “OFF”. Don’t leave tool until it comes to a
complete stop.
20. DON’T OVERREACH. Keep proper footing and balance at all times.
21. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance. Follow instructions for
lubricating and changing accessories.
22. DO NOT use power tools in the presence of flammable liquids or gases.
23. DO NOT OPERATE the tool if you are under the influence of any drugs, alcohol or medication that could affect your
ability to use the tool properly.
24. ALWAYS operate the Drill Press in a well-ventilated area and provide for proper dust removal. Use dust collection
systems whenever possible. Dust generated from certain materials can be hazardous to your health.
SPECIFIC SAFETY INSTRUCTIONS FOR THE DRILL PRESS
WARNING: For your own safety, do not try to use your drill press or plug it in until it is completely assembled and
installed according to the instructions, and until you have read and understood this instruction manual.
1. THIS DRILL PRESS is intended for use in dry conditions, indoor use only.
2. WEAR EYE PROTECTION. USE a face or dust mask along with safety goggles if drilling operation is dusty. USE ear
protectors, especially during extended periods of operation.
3. DO NOT wear gloves, neckties, or loose clothing.
4. DO NOT try to drill material too small to be securely held.
5. ALWAYS keep hands out of the path of a drill bit. Avoid awkward hand positions where a sudden slip could cause your
hand to move into the drill bit.
6. DO NOT install or use any drill bit that exceeds 175mm in length or extends 150mm below the chuck jaws. They can
suddenly bend outward or break.
7. DO NOT USE wire wheels, router bits, shaper cutters, circle (fly) cutters, or rotary planers on this drill press.
8. WHEN cutting a large piece of material, make sure it is fully supported at the table height.
9. DO NOT perform any operation freehand. ALWAYS hold the workpiece firmly against the table so it will not rock or twist.
Use clamps or a vise for unstable workpieces.
10. MAKE SURE there are no nails or foreign objects in the part of the workpiece to be drilled.
11. CLAMP THE WORKPIECE OR BRACE IT against the left side of the column to prevent rotation. If it is too short or the
table is tilted, clamp it solidly to the table.
12. IF THE WORKPIECE overhangs the table such that it will fall or tip if not held, clamp it to the table or provide auxiliary
support.
13. SECURE THE WORK. Use clamps or a vise to hold the work when practical. It’s safer than using your hand and it

10
frees both hands to operate tool.
14. MAKE SURE all clamps and locks are firmly tightened before drilling.
15. SECURELY LOCK THE HEAD and table support to the column, and the table to the table support before operating
the drill press.
16. NEVER turn your drill press ON before clearing the table of all objects (tools, scraps of wood, etc.).
17. BEFORE STARTING the operation, jog the motor switch to make sure the frill bit does not wobble or vibrate.
18. LET THE SPINDLE REACH FULL SPEED before starting to drill. If your drill press makes an unfamiliar noise or if it
vibrates excessively, stop immediately, turn the drill press OFF and unplug. Do not restart the unit until the problem is
corrected.
19. DO NOT perform layout assembly or set up work on the table while the drill press is in operation.
20. USE THE RECOMMENDED SPEED for any drill press accessory and for different workpiece material.
21. WHEN DRILLING large diameter holes, clamp the workpiece firmly to the table. Otherwise, the bit may grab and spin
the workpiece at high speeds. DO NOT USE fly cutters or multiple-part hold cutters, as they can come apart or
become unbalanced in use.
22. MAKE SURE the spindle has come to a complete stop before touching the workpiece.
23. TO AVOID INJURY from accidental starting, always turn the switch OFF and unplug the drill press before installing or
removing any accessory or attachment or making any adjustment.
ELECTRICAL REQUIREMENTS
POWER SUPPLY AND MOTOR SPECIFICATIONS
WARNING: To avoid electrical hazards, fire hazards, or damage to the tool, use proper circuit protection. Use a
separate electrical circuit for your machine. To avoid shock or fire, if power cord is worn or cut, or damaged in any way,
have it replaced immediately.
GROUNDING INSTRUCTIONS
WARNING: This machine must be grounded while in use to protect the operator from electrical shock.
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides a path of least resistance for electric
current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment-grounding
conductor and a grounding plug. The plug MUST be plugged into a matching receptacle that is properly installed and
grounded in accordance with ALL local codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the receptacle, have the proper receptacle installed by a
qualified electrician.
IMPROPER CONNECTION of the equipment-grounding conductor can result in risk of electric shock. The conductor with
green insulation (with or without yellow stripes) is the equipment-grounding conductor. If repair or replacement of the
electric cord or plug is necessary, DO NOT connects the equipment-grounding conductor to a live terminal.
CHECK with a qualified electrician or service person if you do not completely understand the grounding instructions, or if
you are not sure the tool is properly grounded.

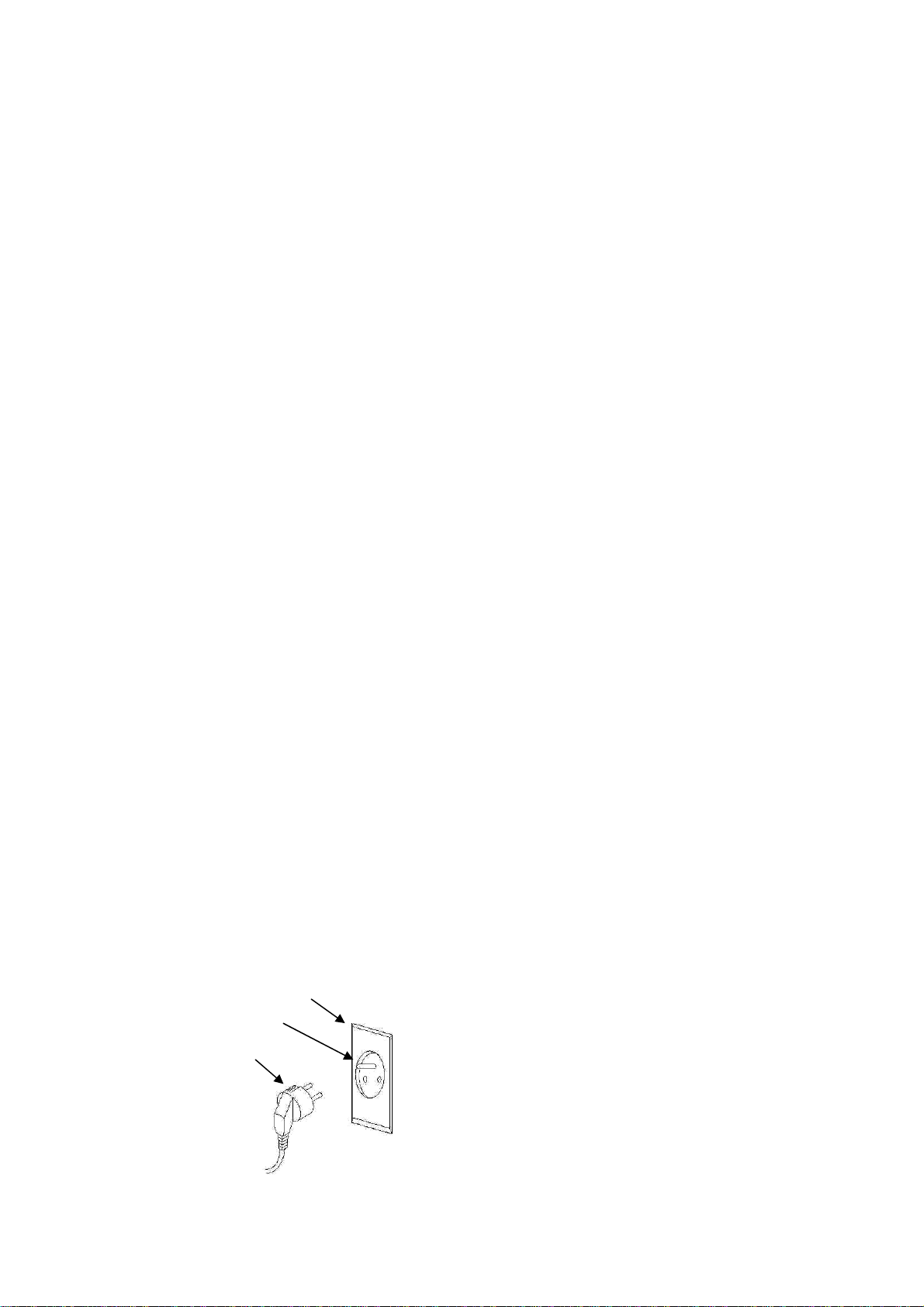

Refer to nether picture:
Properly Ground Outlet
GroundingProng
3-ProngPlug
WARNING: Improper connection of equipment grounding conductor can result in the risk of electrical shock. Equipment

11
should be grounded while in use to protect operator from electrical shock.
WARNING: This machine is for indoor use only. Do not expose to rain or use in damp locations.
GUIDELINES FOR EXTENSION CORDS
USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord,
be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line
voltage, resulting in loss of power and cause overheating.
Be sure your extension cord is properly wired and in good condition. Always replace a damaged extension cord or
have it repaired by a qualified person before using it. Protect your extension cords from sharp objects, excessive heat and
damp or wet areas.
ACCESSORIES AND ATTACHMENTS
RECOMMENDED ACCESSORIES
WARNING: To avoid injury:
• Use only accessories recommended for this machine.
• Follow instructions that accompany accessories. Use of improper accessories may cause hazards.
• Use only accessories designed for this machine to avoid injury from thrown broken parts or workpieces.
• Do not use any accessory unless you have completely read the instruction or operator’s manual for that
accessory.
CARTON CONTENTS
UNPACKING AND CHECKING CONTENTS
Carefully unpack the machine and all its parts, and compare against the illustration following.
WARNING:
• To avoid injury from unexpected starting, do not plug the power cord into a power source receptacle during unpacking
and assembly. This cord must remain unplugged whenever you are assembling or adjusting the machine.
• If any part is missing or damaged, do not plug the machine in until the missing or damaged part is replaced, and
assembly is complete.
• To protect the machine from moisture, a protective coating has been applied to the machined surfaces.
Remove this coating with a soft cloth moistened with kerosene.

12
TABLE OF LOOSE PARTS
Unpack carton; check you machine to see parts listed below:
1. Head assembly X1
2.Base X1
3.Tableassembly X1
4. Table locking handle X1
5.Chuck X1
6.Chuckkey* X1
7.Chuckguardassembly X1
8.Depthstopassembly X1
9. Feed handles X3
10.Hexwrench X1
11.Hexbolt X3
12.Columnassembly X1
* ATTENTION: If your machine is provided with a self-tighten chuck, the chuck key is not necessary and not provided.
ASSEMBLY
1. Position the base on floor or bench. Fix the column assembly to base using hex bolts
2. Slide the table assembly onto the column.
Tighten the locking handle to secure table.

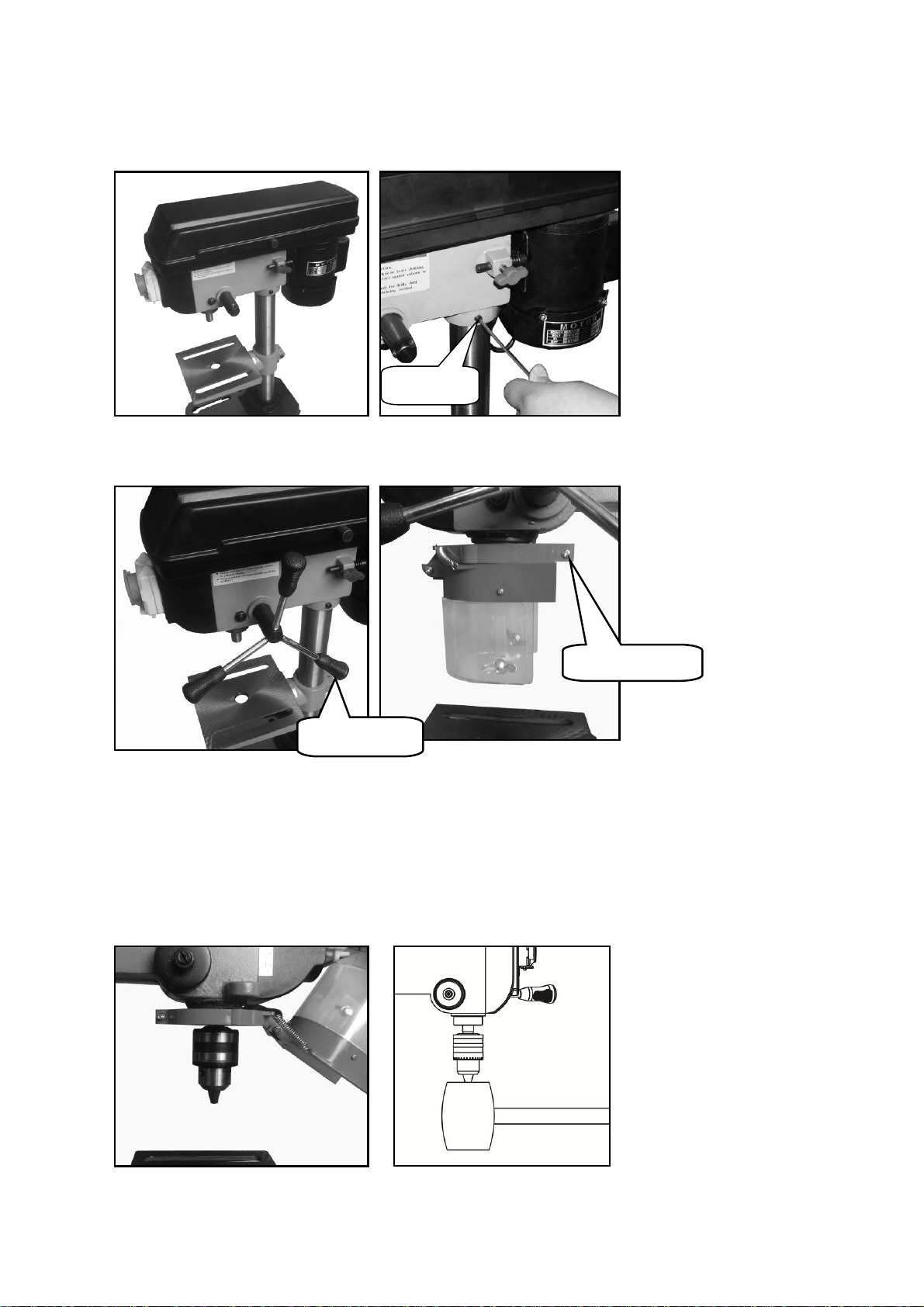

3. Install head assembly
3.1. Carefully lift the head above the column and slide it onto the column

21
Make sure the head slides down over the column as far as possible.
Align the head with the base.
3.2. Using the hex wrench, tighten the set screws in the left and right side of head.
4. Install three feed handles into the hub.
5. Attach the chuck guard assembly to quill and fix it by tighten the pan head screw.
6. Install the chuck
WARNING: Before any assembly of the chuck to the drill press spindle, clean all mating surfaces with a non-petroleum
based product; such as alcohol or lacquer thinner. Any oil or grease used in the packing of these parts must be removed;
otherwise the chuck may come loose during operation.
6.1 Tilt the chuck guard to opening position, push the chuck onto the spindle.
6.2. Using a wood mallet, firmly tap the chuck upward into position on the spindle shaft.
Set screw
Feed handle
Pan head screw

22

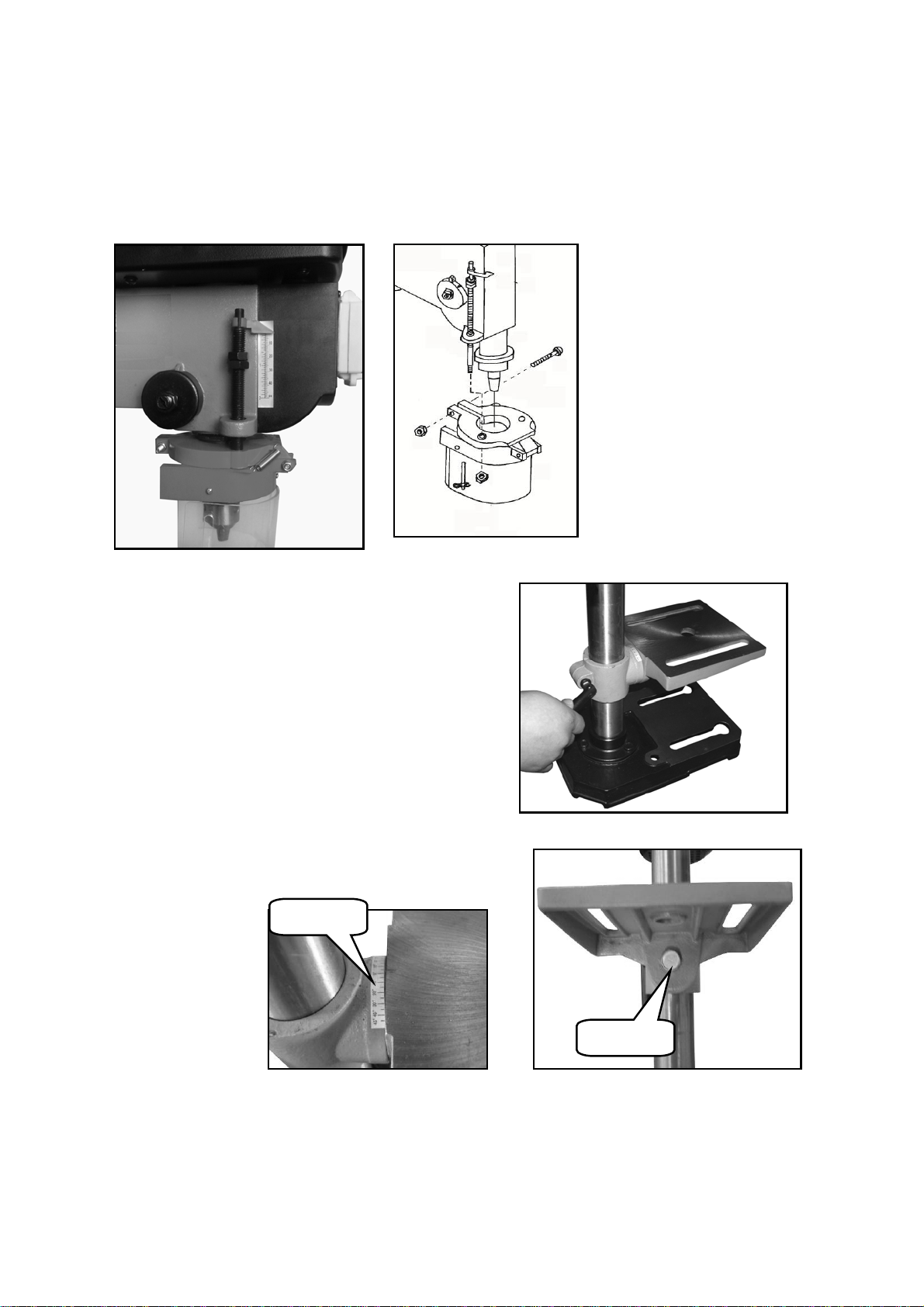

7. Install the depth stop assembly
Slide the end of the threaded rod through the bracket on the side of the head, then through the hole in the top of the
chuck guard. Secure it with the nut provided, from beneath, thereby locking the depth stop to the chuck guard fixed on
the Spindle.
Therefore, as the spindle is moved downwards, the depth stop will move by the same amount. The pointer may be
zeroed by sliding it up or down on its mounting.
ADJUSTMENT
1. Table adjustment
A. Height adjustment
Loosen the table bracket locking handle then adjust table to the
desired position. Retighten the locking handle.
B. Tilting adjustment:
Loosen the hex bolt. Rotate the table to desired angle shown on
the scale. Tighten the hex bolt to secure table tilt.
Hex bolt
Angle scale

23
2. Feed Depth Adjustment
Lower spindle assembly to desired depth and spin down the adjust
nut. Spin down the lock nut and lock it against the adjust nut. The
drill is now set to drill holes to your predetermined depth.
The depth scale shows the depth of spindle drops
3. Speed Adjustment
This drill press has 5 speeds shown in the speed label.
To change the speed, loose the belt tension lock knob, pull the
motor to the front end then change the belt location.
To tighten the belt, push the motor to the rear end and lock the belt
tension lock knob.
4. Quill Spring Adjustment
The quill return spring may need adjustment if the tension causes
the quill to return too rapidly or too slowly.
4.1 Loosen the nut Aand B, make sure that the spring housing C
remains engaged with head casting.
4.2 While firmly holding the spring housing, pull out the housing and
rotate it (counter-clockwise to increase or clockwise to decrease
the spring tension) until the boss Dis engaged with the next notch
on the housing. Turn the nut Buntil it contacts the spring housing,
then back the nut B out 1/4 turn from the spring housing. Tighten
the nut Aagainst the nut B to hold the housing in place.
ATTENSION: The inside nut Bshould not contact spring housing
when tightened.
OPEARTIONS
1. Installing Drill Bit
For key type drill chuck
With the switch “OFF”, open the chuck jaws (1) using the chuck
key (2). Turn the chuck key counterclockwise to open the chuck
jaws (1).
Insert the drill bit (3) into the chuck far enough to obtain
maximum gripping by the jaws, but not far enough to touch the
spiral grooves (flutes) of the drill bit when the jaws are tightened.
Make sure that the drill is centered in the chuck.
Adjust nut
Lock nut
Belt tension lock knob
A
B
C
D

24
Turn the chuck key clockwise to tighten the jaws.
Warning: To avoid injury or accident by the chuck key ejecting forcibly from the chuck when the power is turned ON,
always recheck and remove the chuck key before turning the power ON.
For self-tighten drill chuck
Rotate the chuck body Band the cap A in opposite directions by your hands, then
the chuck jaws Cwill be opened or closed.
Open the chuck jaws and insert the smooth end of drill bit in the chuck as far as it
will go.
Close the chuck jaws to secure the drill bit
2. Positioning Workpiece
To prevent the workpiece or back-up material from being torn from your
hands while drilling, you MUST position it against the LEFT side of the
column. Failure to do this could result in personal injury.
3. Using Vise
For small workpiece that cannot be clamped to the table, use a drill
press vise. The vise must be clamped or bolted to the table.
Warning: The drill press vise MUST be clamped or bolted to the table to
avoid injury from a spinning workpiece, or damaged vise or bit parts.
4. Correct Drilling Speeds
Use the recommended speed for the drill bit and workpiece.
Recommended Operating Speeds for twist drill bits ( 1/min )
Twist drill bit size Material
SOFTWOOD HARDWOOD ACRYLIC BRASS ALUMINUM STEEL
3-5mm 3000 3000 2500 3000 3000 3000
6-10mm 3000 1500 2000 1200 2500 1000
11-16mm 1500 750 1500 750 1500 600
17-25mm 750 500 NR 400 1000 250
NR-Not Recommended
For other type drill bits, please get the recommended operating speed from the drill bit seller.

25
MAINTENANCE
MAINTAINING YOUR DRILL PRESS
WARNING: For our own safety, turn the switch OFF and remove the plug from the power source outlet before
maintaining or lubricating your drill press.
Frequently blow out any dust that accumulates inside the motor with an air compressor or dust vacuum. A coat of paste
wax applied to the table and column will help to keep the surface clean & help avoid rust.
To avoid shock or fire hazard, if the power cord is worn or cut on any way, have it replaced immediately.
LUBRICATION
All of the drill press ball bearings are packed with grease at the factory. They require no further lubrication.
Lower spindle to maximum depth and oil moderately once every three months.
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Machine does not operate 1.Power shortage
2. Interlock switch is off
1.Check the plug
Check the cable
Call for an electrician
2. Check the belt cover is proper closed, and the
interlock switch is on
Noisy operation 1. Incorrect belt tension
2. Dry spindle
3. Loose motor pulley
1. Adjust tension
2. Lubricate spindle
3. Tighten set screw in pulley
Bit burns or smokes 1. Incorrect speed
2. Chips not coming out of hole
3. Dull bit
1. Change speed
2. Retract bit frequently to clear chips
3. Sharpen or replace bit
Excessive drill bit run out or
wobble
1. Bent bit
2. Bit not properly installed in
chuck
3. Chuck not properly installed
4. Worn spindle bearings
1. Replace bit
2. Install bit properly
3. Install chuck properly
4. Replace bearings
Drill bit binds in workpiece 1. Workpiece pinching bit or
excessive feed pressure
2. Improper belt tension
1. Support or clamp workpiece, decrease feed
pressure
2. Adjust tension
Workpiece torn loose from
hand
1. No supported or clamped
properly 1. Support or clamp workpiece properly

26
Assembly diagram
