Torin BIG RED TR6375E User manual

OWNER’S MANUAL
PNEUMATIC CREEPER SEAT
Item: TR6375E
Questions, problems, missing parts? Before returning to your retailer, call our customer service department at
1-888-44-TORIN (1-888-448-6746), 8 a.m.- 5 p.m., PST, Monday-Friday.
Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure
to follow the safety rules and other basic safety precautions may result in serious personal injury.
Version 20161114

2
IMPORTANT
OWNER / USER RESPONSIBILITY
INTENDED USE
TECHNICAL SPECIFICATIONS
Before You Begin Register This Product.
For future reference, record the model name, model number, date of manufacture and purchase date of this
product. You can nd this information on the product.
Model Name
Model Number
Date of Manufacture
Date of Purchase
DO NOT OPERATE OR REPAIR THIS PRODUCT WITHOUT READING THIS MANUAL.
Read and follow the safety instructions. Keep Instructions readily available for operators. Make certain all
operators are properly trained and understand how to safely and correctly operate the product. By proceeding
you agree that you fully understand and comprehend the full contents of this manual. Failure to operate this
product as intended may cause injury or death. The manufacturer is not responsible for any damages or injury
caused by improper use or neglect. Allow product operation only with all parts in place and operating safely.
Use only genuine replacement parts. Service and maintain the product only with authorized or approved
replacement parts; negligence will make the product unsafe for use and will void the warranty. Carefully
inspect the product on a regular basis and perform all maintenance as required. Store these instructions
in a protected dry location. Keep all decals on the product clean and visible. Do not modify and/or use for
any application other than that for which this product was designed. If you have any questions relative to a
particular application, DO NOT use the product until you have rst contacted the distributor or manufacturer to
determine if it can or should be performed on the product.
For technical questions please call 1-888-448-6746.
This device is designed to be as a mechanic’s creeper. It is intended to be used to support and move, along
a smooth and level surface, rated capacity loads consisting of a single person weighing no more than the
capacity specied. This product is used for the purpose of performing automotive maintenance or service.
This device is not intended, designed or engineered to be used for any other purpose.
Description
Item TR6375E
Capacity 250 lbs
____________________________
____________________________
____________________________
____________________________

3
GENERAL SAFETY RULES
USE AND CARE
INSPECTION
GENERAL SAFETY RULES
IMPORTANT SAFETY CONSIDERATIONS
WARNING: Read and understand all instructions. Failure to follow all instructions listed below may
result in serious injury.
WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot
cover all possible conditions or situations that could occur. It must be understood by the operator
that common sense and caution are factors that cannot be built into this product, but must be supplied by
the operator.
CAUTION: Do not allow persons to operate or assemble this product until they have read this
manual and have developed a thorough understanding of how the product works.
• Inspect the product carefully before each use. Ensure the product is not damaged, excessively worn, or
missing parts.
• Do not use the product unless it is properly lubricated.
• Using a product that is not in good clean working condition or properly lubricated may cause serious injury.
• Inspect the work area before each use. Make sure it is free and clear of any potential hazards.
Make certain that the operator thoroughly understands the inherent dangers associated with the use and
misuse of the product. If any doubt exists as to the safe and proper use of this product, remove from service
immediately.
• Do not modify the product in any way. Unauthorized modication may impair the function and/or safety and
could affect the life of the equipment.
• Always check of damaged or worn out parts before using the product. Broken parts will affect the
product operation. Replace or repair damaged or worn parts immediately.
• Store idle. When the product is not in use, store it in a secure place out of the reach of children. Inspect it
for good working condition prior to storage and before re-use.
• Not for use by children or people with reduced mental capacity.
• Do not use under the inuence of drugs or alcohol.
• Ensure children and other bystanders are kept at a safe distance when using product.
• Instructions and safety information shall be conveyed in the operator’s native language before use of this
product is authorized.
NOTE: Any creeper that appears damaged in any way, or operates abnormally shall be removed from service
immediately. If the creeper has been subjected to a shock load (a load dropped suddenly, unexpectedly
upon it), immediately discontinue use until repairs have been completed. It is recommended that
weekly inspection be completed to check that product is in good working condition.

4
SAFETY MARKINGS
SAFETY
WARNING!
1. Study, understand, and follow all instructions before operating this device.
2. Do not exceed rated capacity. (includes user, tools, equipment and personal items).
3. Use only on hard, level surfaces, with less than 3 degrees of slope.
4. Do use as a dolly.
5. Sit down gently! Avoid shock loads caused by jumping or falling onto product.
6. Do not stand on product.
7. Beware of pinch and crush hazards when folding and unfolding.
8. Keep out of the reach of children! This device is not appropriate for children’s use.
9. Do not use product unless vehicle is properly secured.
10. Only attachments and/or adapters supplied by the manufacturer shall be used.
11. Do not allow anyone under a vehicle that is being repaired, until the vehicle has been properly supported
by jack stands.
12. Use wheel chocks or other blocking devices on opposing wheels before perfoming work on a vehicle.
13. No alterations shall be made to this product.
14. Do not use this product for any use other than the manufacturer specied usage.
15. Failure to heed these markings may result in personal injury and/or property damage.
DO NOT OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL.
To maintain the product and user safety, the responsibility of the owner is to read and follow these instructions.
• Inspect the product for proper operation and function.
• Keep instructions readily available for equipment operators.
• Make certain all equipment operators are properly trained; understand how to safely and correctly operate
the unit.
• Allow unit operation only with all parts in place and operating properly.
• Use only genuine replacement parts.
• Service and maintain the unit only with authorized or approved replacement parts; negligence will make the
product unsafe for use and void the warranty.
• Folding components can present pinch and crush hazards during use of this product. Exercise caution when
performing adjustments and always be alert and sober
• Carefully inspect the unit on a regular basis and perform all maintenance as required.
• Store these instructions in a dry and clean environment that allows any user access to the manual before
use.
• Keep all decals on the unit clean and visible.
Always follow safety precautions when installing and operating this product. Keep all decals on the unit
clean and visible. Before proceeding ensure that you fully understand and comprehend the full contents of
this manual. Failure to operate this equipment as directed may cause injury or death. The distributor is not
responsible for any damages or injury caused by improper use or neglect.
SAFETY!
BEFORE PERFORMING ANY WORK ON A VEHICLE OR USING THIS PRODUCT;
Always use Jack Stands!
DO NOT USE wood blocks or any other non-approved load sustaining devices. The manufacturer only
warrants loads to be sustained by jack stands that meet current ASME standards.
DO NOT USE wood blocks or any other non-approved lifting devices for a means of lifting with a jack and or
load being raised. Failure to head these warnings may cause injury or death.
Folding components can present pinch and crush hazards during use of this product. Exercise caution when
performing adjustments and always be alert and sober while assembling and using this equipment.
CAUTION

5
PREPARATION
Before assembling Creeper, make sure all parts are present. Compare parts with package contents list. If
any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer
service for replacement parts.
1. Knock the plastic end caps (NO.8) into the holes
of the metal frame base (NO.9).
5. Assembly is now complete.
4. Attach the pneumatic pump (NO.6) to the metal
frame base (NO.9) and the seat base (NO.2).
2. Put the metal tool tray(NO.7) onto the metal frame
base(NO.9) and align the holes, then attach the
ve caster assemblies(NO.10) through the holes
of the metal tool tray(NO.7) and metal frame
base(NO.9) and tighten all ve nuts.
3. Tighten the seat base (NO.2) to the seat assembly
(NO.1) with the washers (NO.3), spring washers
(NO.4) and screws (NO.5).
ASSEMBLY

6
BEFORE USE
1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly with the
product and the hazards associated with its improper use.
2. Check and that the product operates smoothly before putting into service.
3. Inspect before each use. Do not use if bent, broken or cracked components are noted.
MAINTENANCE INSTRUCTIONS
If you use and maintain your equipment properly, it will give you many years of service. Follow the
maintenance instructions carefully to keep your equipment in good working condition. Never perform any
maintenance on the equipment while it is under a load.
Inspection
You should inspect the product for damage, wear, broken or missing parts (e.g.: pins) and that all components
function before each use. Follow lubrication and storage instructions for optimum product performance.
Binding
If the product binds while under a load, stop use immediately and repair faulty parts. After un-binding; clean,
lubricate and test that equipment is working properly. Rusty components, dirt, or worn parts can be causes of
binding Clean and lubricate the equipment as indicated in the lubrication section. Test the equipment without
a load. If the binding continues contact Customer Service.
Cleaning
If the moving parts of the equipment are obstructed, use cleaning solvent or another good de-greaser to clean
the equipment. Remove any existing rust, with a penetrating lubricant.
Lubrication
This equipment will not operate safely without proper lubrication. Using the equipment without proper
lubrication will result in poor performance and damage to the equipment. Some parts in this equipment are not
self-lubricating inspect the equipment before use and lubricate when necessary. After cleaning, lubricate the
equipment using light penetrating oil, lubricating spray.
• Use a good lubricant on all moving parts.
• For light duty use lubrication once a month.
• For heavy and constant use lubrication recommended every week.
• NEVER USE SANDPAPER OR ABRASIVE MATERIAL ON THESE SURFACES!
Rust Prevention:
Check cylinders assemblies daily for any signs of rust or corrosion.
Without a load on the equipment raise cylinder as high as it will go and look under and behind the lifting
points. If signs of rust are visible clean as needed.
Storing the Product
1. Store in a dry location, recommended indoors.
Note: If the product is stored outdoors, be sure to lubricate all moving parts before and after use to ensure the
product stays in good working condition.

7

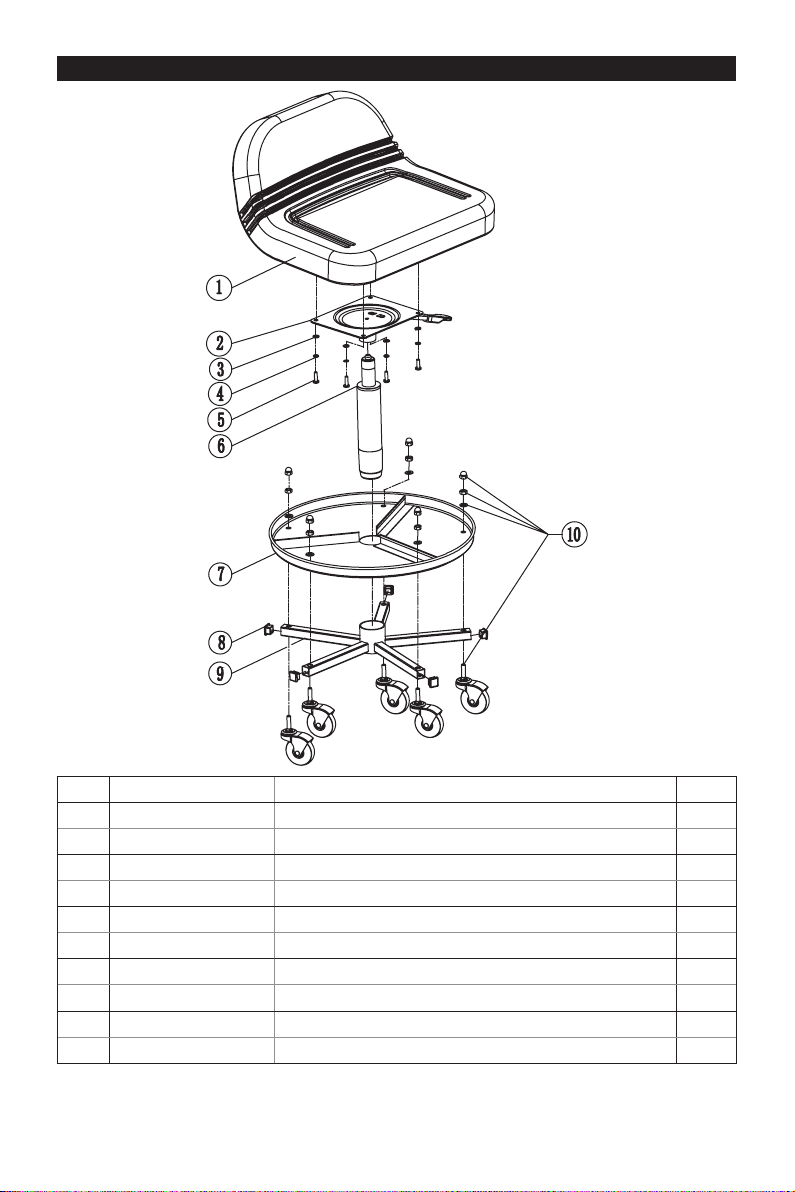

ASSEMBLY DIAGRAM
REF# PART # DESCRIPTION QTY
1 TR6201E.2 Seat assembly 1
2 TR6375E.1.1(ASM) Seat base with lever 1
3 GB97.1-6 Washer M6 4
4 GB93-6 Spring washer M6 4
5 GB818-M6X20 Screw M6x20 4
6 TR6188C.6 Pneumatic pump 1
7 TR6378.1 Metal tool tray 1
8 TR6206-6 Plastic end cap 5
9 TR6378.1 Metal frame base 1
10 TR6208.1 Caster assembly M6 5
Safe Operating Temperature is between 40°F – 105°F (4°C - 41°C)

8
This equipment is covered under a 1-year limited warranty when used as recommended. Only those
items listed with a Part # are available for purchase. For assistance with the operation or the availability of
replacement parts, contact our Parts and Warranty Department at 1-888-44-TORIN (1-888-448-6746). Please
have available a copy of your receipt, the model number of the product, serial number, and specic details
regarding your question.
Not all equipment components are available for replacement; illustrations provided are a convenient reference
of location and position in the assembly sequence.
The manufacturer reserves the rights to make design changes and or improvements to product lines
and manuals without notice.
WARRANTY NOTICE
We want to know If you have any concerns with our products. If so, please call toll-free for Immediate
assistance. For additional web customer support help inquiries visit the Customer Service section at:
http://www.torin-usa.com.
WARRANTY INFORMATION

9
TORIN ONE YEAR LIMITED WARRANTY
Torin Inc.® has been producing quality automotive repair and maintenance products since 1968. All products
sold are felt to be of the highest quality and are covered by the following warranty:
With proof of purchase for a period of one year from the date of that purchase, the manufacturer will repair or
replace, at its discretion, without charge, any of its products or parts thereof which fail due to a defect in
material or workmanship. This warranty does not cover damage or defects caused by improper use, careless
use or abuse of the equipment. This warranty does not cover parts normally considered to wear out or be
consumed in the normal operation of the equipment. Except where such limitations and exclusions are
specically prohibited by applicable law, (1) the CONSUMERS SOLE AND EXCLUSIVE REMEDY SHALL BE
THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS AS DESCRIBED
ABOVE, and (2) THE MANUFACTURER SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGE OR LOSS WHATSOEVER, and (3) THE DURATION OF ANY AND ALL
EXPRESSED AND IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO A PERIOD OF ONE
YEAR FROM DATE OF PURCHASE. Product alteration in any manner by anyone other than us, with the sole
exception of alterations made pursuant to product instructions and in a workman like manner. You
acknowledge and agree that any use of the product for any purpose other than the specied use(s) stated in
the product instructions is at Your own risk.
Always check for damaged or worn out parts before using any product. Broken parts will affect the equipment
operation. Replace or repair damaged or worn parts immediately. Do not modify the product in any way.
Unauthorized modication may impair the function and/or safety and could affect the life of the equipment.
There are specic applications for which products are designed and tested during production. Manufacturer
provided warranted items are not authorized to be repaired by anyone other than the manufacturer or
manufacture approved repair person. Distributor does not have authorization to amend these statements. You
acknowledge and agree that any modication of the product for any purpose other than manufacturer
completed repairs is at your own risk. Before using this product, read the owner's manual completely and
familiarize yourself thoroughly with the product and the hazards associated with its improper use.
IMPORTANT: BEFORE FIRST USE on any Lift verify that a daily inspection has been completed and that all
components are in the proper working order.
This limited warranty gives you specic legal rights, and you also may have other rights, which vary from
state to state. Some states do not allow limitations or exclusions on implied warranties or incidental or
consequential damages, so the above limitations may not apply to You. This limited warranty is governed by
the laws of the State of California, without regard to rules pertaining to conicts of law. The state courts
located in San Bernardino County, California shall have exclusive jurisdiction for any disputes relating to this
warranty.
Manufacturer reserves the rights to make design changes and or improvements to this product lines and
manual without notice. We at Torin have taken every effort to ensure complete and accurate instructions have
been included in this manual. However, possible product updates, revisions and or changes may have
occurred since this printing. Torin Inc. reserves the right to change specications without incurring any
obligation for equipment previously or subsequently sold. Not responsible for typographical errors.
Alternately Customer Service can be reached through www.torin-usa.com or via email at
[email protected].
Not all equipment components are available for replacement, but are illustrated as a convenient reference of
location and position in the assembly sequence. Contact Customer Service for equivalent component. When
you contact us, please have your Product’s Model number, Serial Number and Description ready so that we
may help you efciently. This information can be found on a sticker on the product.
For any warranty support or if your Torin® equipment is not functioning properly contact
Torin® Customer Service directly by telephone at 1-888-44-TORIN (1-888-448-6746)
8:00am – 5:00pm Pacic Time, Monday – Friday
www.torin-usa.com Made in China

Contact Torin® Customer Service directly by telephone at:
1-888-44-TORIN (1-888-448-6746)
8:00am – 5:00pm Pacic Time, Monday – Friday
Communiquez directement avec le Service à la clientèle Torin® au:
1-888-44-TORIN (1-888-448-6746)
De 8 heures à 17 heures, heure du Pacique, du lundi au vendredi
Comuníquese conel Servicio de Atención al Cliente de Torin® directamente por teléfono al:
1-888-44-TORIN (1-888-448-6746)
De lunes a viernes de 8:00 a. m. a 5 p. m. hora del Pacíco
Torin Inc.
4355 E. Brickell Street Ontario, CA USA
www.torin-usa.com
Made in China - Fabriqué en Chine - Hecho en China
