INSTALLATION GUIDE
PATHPILOTOPERATOR CONSOLE ASSEMBLY
FOR 1100M/1100M+/1100MX

TECHNICAL DOCUMENT
PURPOSE
This document gives instructions on installing the PathPilotOperator Console Assembly for
1100M/1100M+/1100MX.
PRODUCT INFORMATION
Product: PathPilotOperator Console Assembly for 1100M/1100M+/1100MX (PN50440)
Quantity Description
1 Controller Enclosure Mount (PN 39308)
1 Controller Wire Kit (PN50367)
1 Jog Pendant (PN50363)
1 Machine Controller
Note: If any items are missing, we can help. Email support@tormach.com to contact Tormach Technical
Support for guidance on how to proceed.
REQUIRED TOOLS
This procedure requires the following tools. Collect them before you begin.
l15/64 in. drill bit
lElectric drill
lHole punch
lLevel
lMetric hex wrench set
lPhillips screwdriver
lPhillips screwdriver, small
lScissors
lRuler
lTape
BEFORE YOU BEGIN
lMachine Arm Not Compatible If you already have a machine arm installed on your machine, you must
first disassemble it. Refer to the product's documentation, and follow the steps in reverse order.
lMachine Enclosure Required If you haven't yet done so, you must first install the machine's enclosure.
See the product's documentation for more information.
Page 2
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
PREPARE THE MACHINE
1. Power off the machine and the PathPilot controller.
a. Push in the Emergency Stop button on the operator box, which removes power to motion control.
b. From the PathPilot interface, select Exit.
c. Turn the Main Disconnect switch to OFF on the side of the electrical cabinet.
2. Close the enclosure doors.
NOTICE! This procedure requires you to drill four holes into the enclosure. If the enclosure's right door is
open, there's a risk that you'll drill into it.
Remove the Right Side Window
To make it easier to install the mount arm, we recommend removing the right side window from the
enclosure. Loosen the screws on the vertical window retainers, and slide the window out of the right side
panel. Set the window aside.
Remove the Operator Box
1. Remove the Emergency Stop cable from the operator box.
2. Remove the four screws that secure the operator box to the machine stand using a 3 mm hex wrench.
Discard the operator box.
3. Put the four screws from the operator box back on to the machine stand.
INSTALL THE MOUNT ARM
1. Print the drill template provided in this document. To verify that the template printed at the correct size, use
a ruler to measure the 1 in. scale on the template. If the template is incorrectly sized, adjust your printer
settings and try again.
2. Cut out the drill template along its edges.
3. Find the operator console's mount arm.
4. Put the drill template on the mount arm's top bracket. Then, verify that the holes on the bracket align with
the holes on the drill template. If they don't, trace the correct hole pattern on to the drill template.
Page 3
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
5. Align the drill template to the top of the enclosure and tape it in place, as shown in the following image.

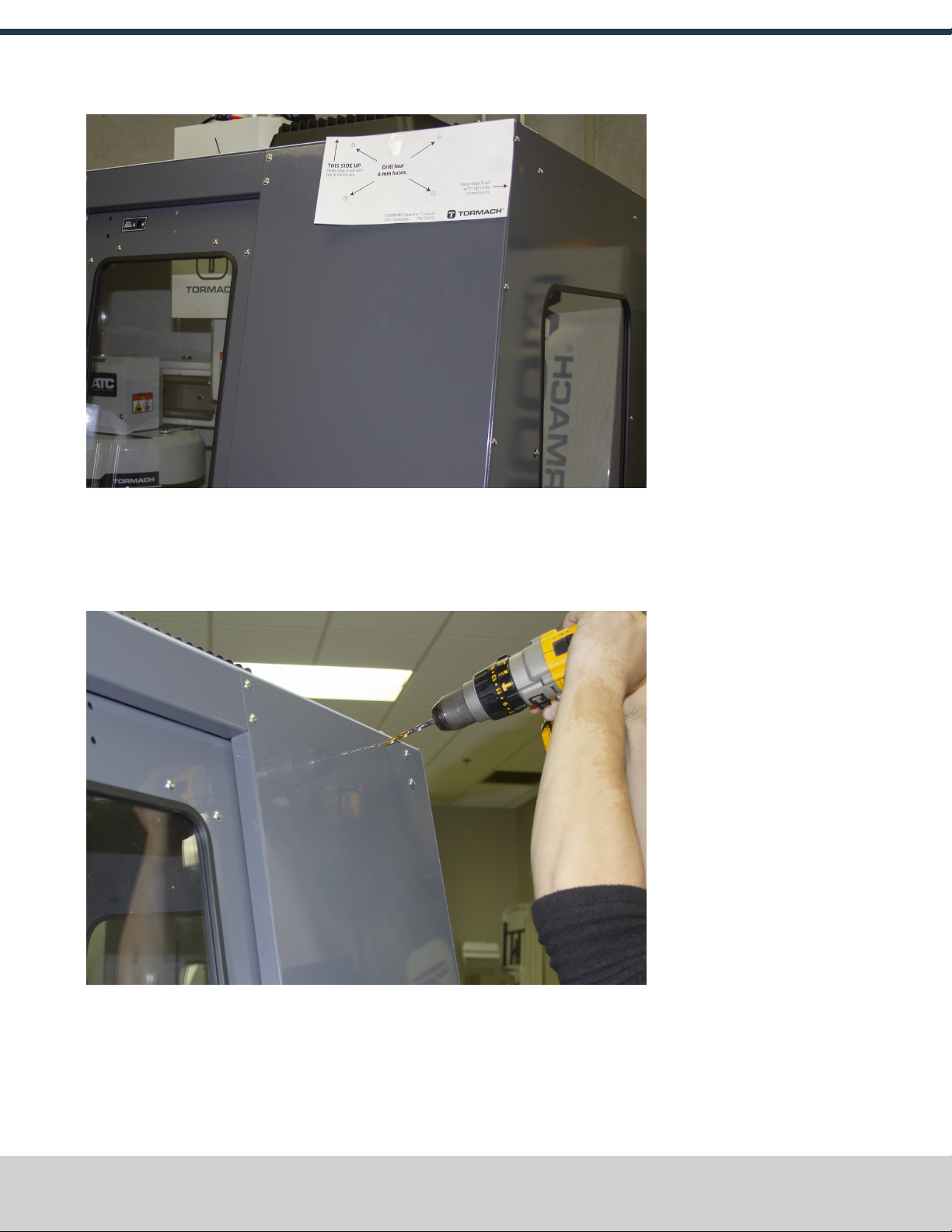

Figure 1: Drill template taped to the enclosure.
6. Put a mark in each hole on the drill template using a hole punch.
7. Remove the drill template from the enclosure and discard it.
8. Drill into the marks on the enclosure that you made in Step 6 using an electric drill and a 15/64 in. drill bit.
Figure 2: Drilling holes into the top of the enclosure.
Page 4
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
9. Secure the top of the mount arm to the enclosure with four M6 screws, four washers, and four nuts using an
M3 hex wrench.
Figure 3: Securing the top of the mount arm to the enclosure.
10. Using a level, align the bottom of the mount arm with the bottom of the enclosure.
Figure 4: Bottom of the mount arm level on the enclosure.
11. Using the bottom of the mount arm as a template, drill one hole using an electric drill and a 15/64 in. drill
bit.
Page 5
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
12. Put one M6 screw, one washer, and one nut into the hole that you drilled in Step 11 using an M3 hex
wrench.
The mount arm is now secure enough to reliably drill the remaining three holes.
13. Drill the remaining three holes for the mount arm's bottom bracket.
Figure 5: Drilling the remaining three holes into the enclosure.
14. Put three M6 screws, three washers, and three nuts into the remaining three holes using an M3 hex wrench.
Page 6
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
15. Once the mount arm is secured to the enclosure, open the enclosure door and verify that the mount arm's
screws don't interfere with the enclosure door jamb. If they do, loosen the screws on the door jamb, and
slide it toward the back of the machine.
Figure 6: Door jamb moved to provide clearance for the mount arm's screws.
MOUNT THE CONSOLE
Complete the following steps in the order listed:
Assemble the Controller and Keyboard Tray 7
Lift and Secure the Controller Assembly 11
Assemble the Controller and Keyboard Tray
1. Find the three provided split collars. If they're connected, remove their bolts using a 6 mm hex wrench, and
separate them. The split collars are matched pairs, so you must keep them together.
Page 7
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT

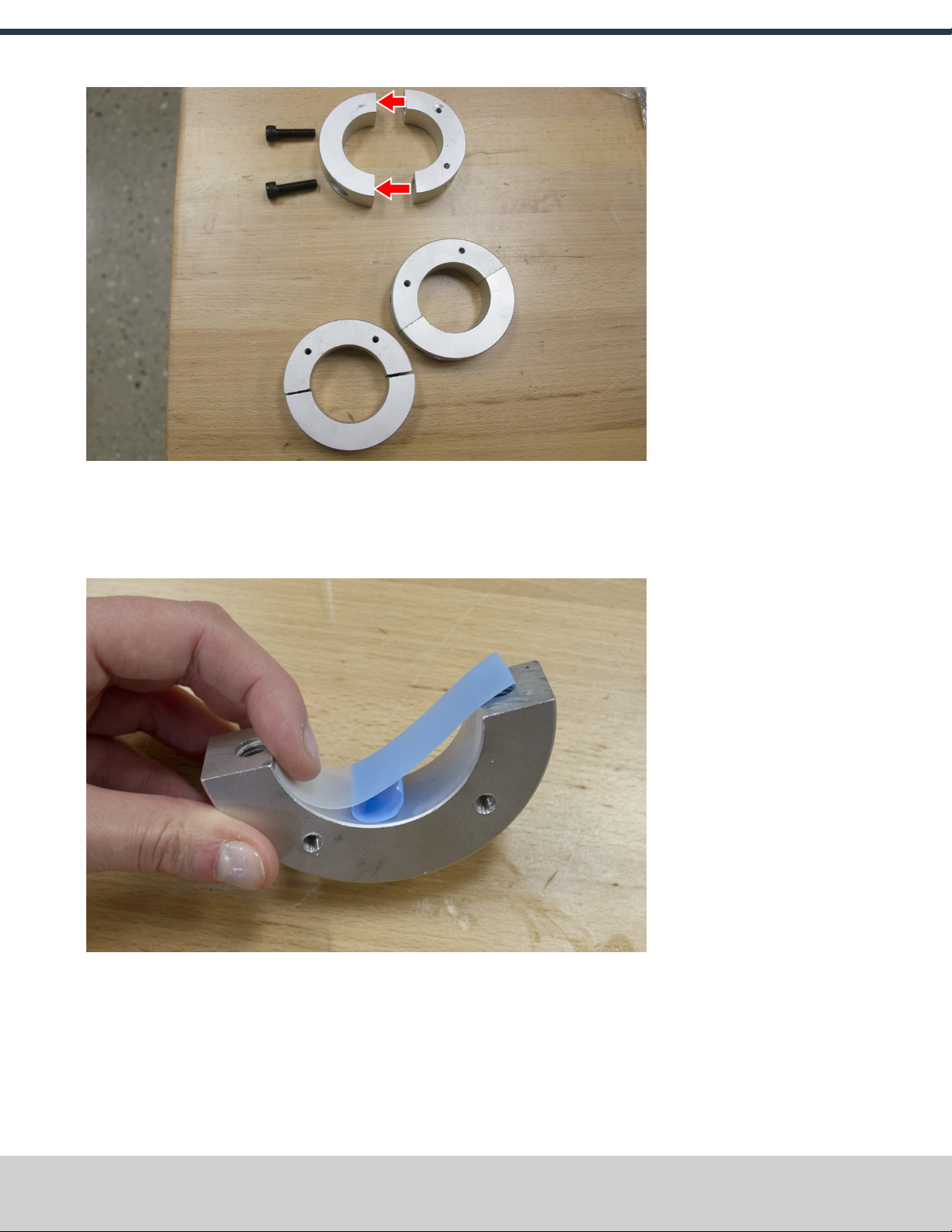

Figure 7: One split collar disassembled.
2. Find the four provided pieces of plastic with adhesive backing. Cut each piece of plastic so that it's the length
of the inside of the split collar.
3. Adhere one piece of plastic to the inside of each split collar.
Figure 8: Adhering tape on the inside of a split collar.
Page 8
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
4. Find the three provided mount arm brackets.
Figure 9: Mount arm brackets.
5. Loosely attach two of the mount arm brackets to the left side of the controller with four M4 screws using a
2.5 mm hex wrench, as shown in the following image. Verify that the curved edge is facing away from the
controller.
Note: Don't completely tighten the brackets to the controller. You'll adjust them when you're
adjusting the height of the entire console assembly.
Figure 10: Two mount brackets attached to the controller.
Page 9
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
6. Attach one side of two split collars to the mount arm brackets with four M6 screws and four washers using a
3 mm hex wrench.
Figure 11: Split collars attached to the mount arm brackets on the controller.
7. Find the keyboard tray provided. Then, attach the remaining mount arm bracket to the left side of the
keyboard tray with two M4 screws using a 2.5 mm hex wrench. Verify that the curved edge is facing away
from the keyboard tray.
8. Attach one side of one split collar to the mount arm bracket with two M6 screws, two washers, and two nuts
using a 3 mm hex wrench.
Figure 12: Split collar attached to the mount arm bracket on the keyboard tray.
Page 10
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
9. Find the provided jog pendant bracket. Then, attach it to the left side of the controller (between the two
mount arm brackets) with two M4 screws using a 2.5 mm hex wrench.
10. Set the keyboard tray aside.
Lift and Secure the Controller Assembly
1. Attach the remaining split collar to the mount arm, and completely tighten it using a 6 mm hex wrench. This
split collar determines the height for the overall console assembly, so we suggest attaching it 16-1/2 in.
from the top of the enclosure.

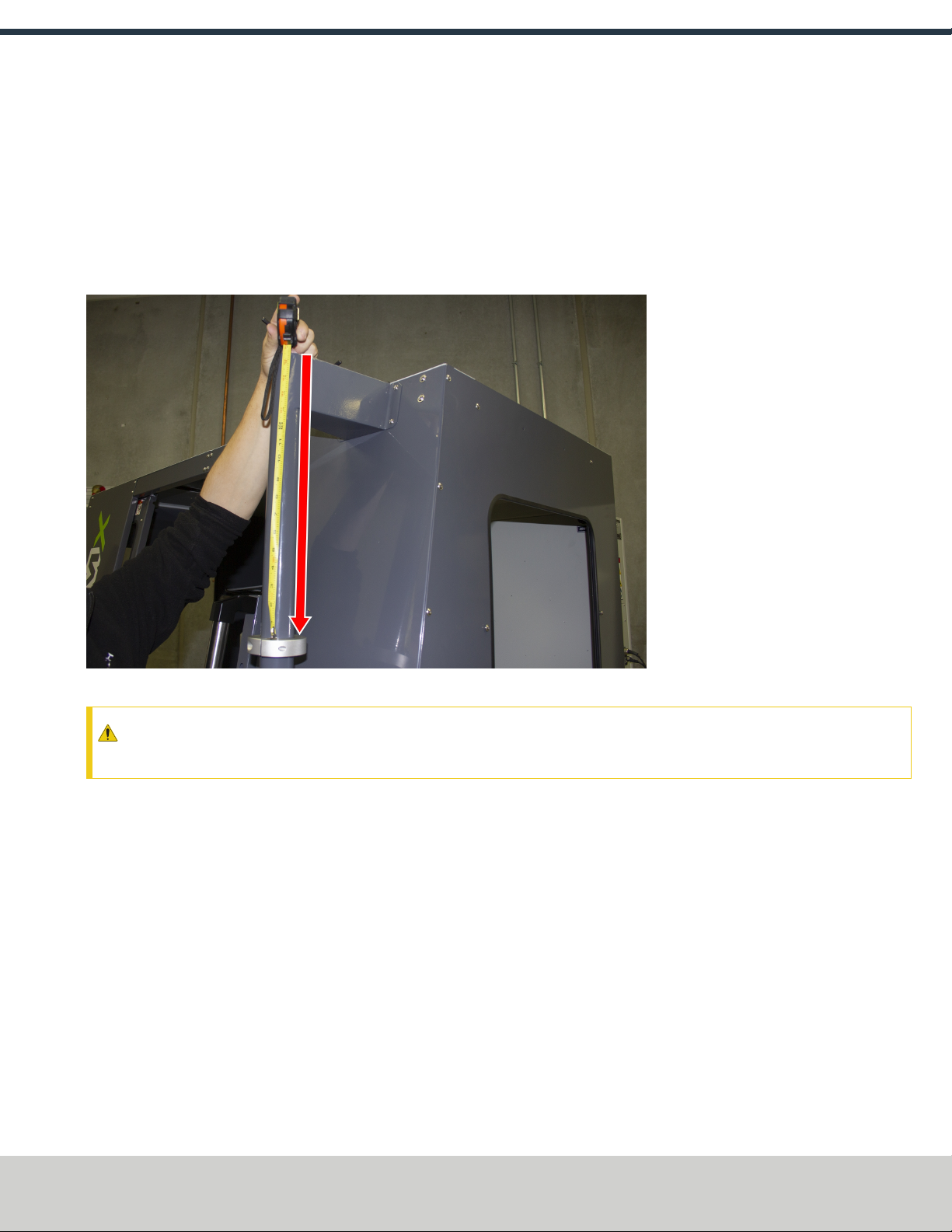

Figure 13: Split collar attached to the mount arm.
CAUTION! Team Lift Required:You must have the aid of more than one person to lift and move the
object. The object is heavy, and lifting it by yourself can cause serious injury.
2. Lift the console and hold it on the right side of the mount arm.
3. Align the bottom split collar on the controller with the split collar that you installed on the mount arm in
Step 1.
Page 11
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
4. With the aid of another person, loosely attach the opposite side of both split collars to the mount arm using
a 6 mm hex wrench.
Figure 14: Loosely attaching the split collars to the mount arm.
5. Find the keyboard tray that you set aside earlier. Then, attach it to the bottom of the controller, as shown in
the following image.
Figure 15: Attaching the keyboard tray to the bottom of the controller.
6. Loosely attach the opposite side of the split collar to the mounting arm using a 6 mm hex wrench.
7. Adjust the height and the angle of the console assembly as required.
Page 12
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
8. Securely tighten all four split collars using a 6 mm hex wrench. Securely tighten all mount arm brackets
using a 2.5 mm hex wrench.
MAKE ELECTRICAL CONNECTIONS
1. Find the provided Jog Pendant (PN50363).
2. Hang the jog pendant on its bracket (on the front of the controller) as shown in the following image.

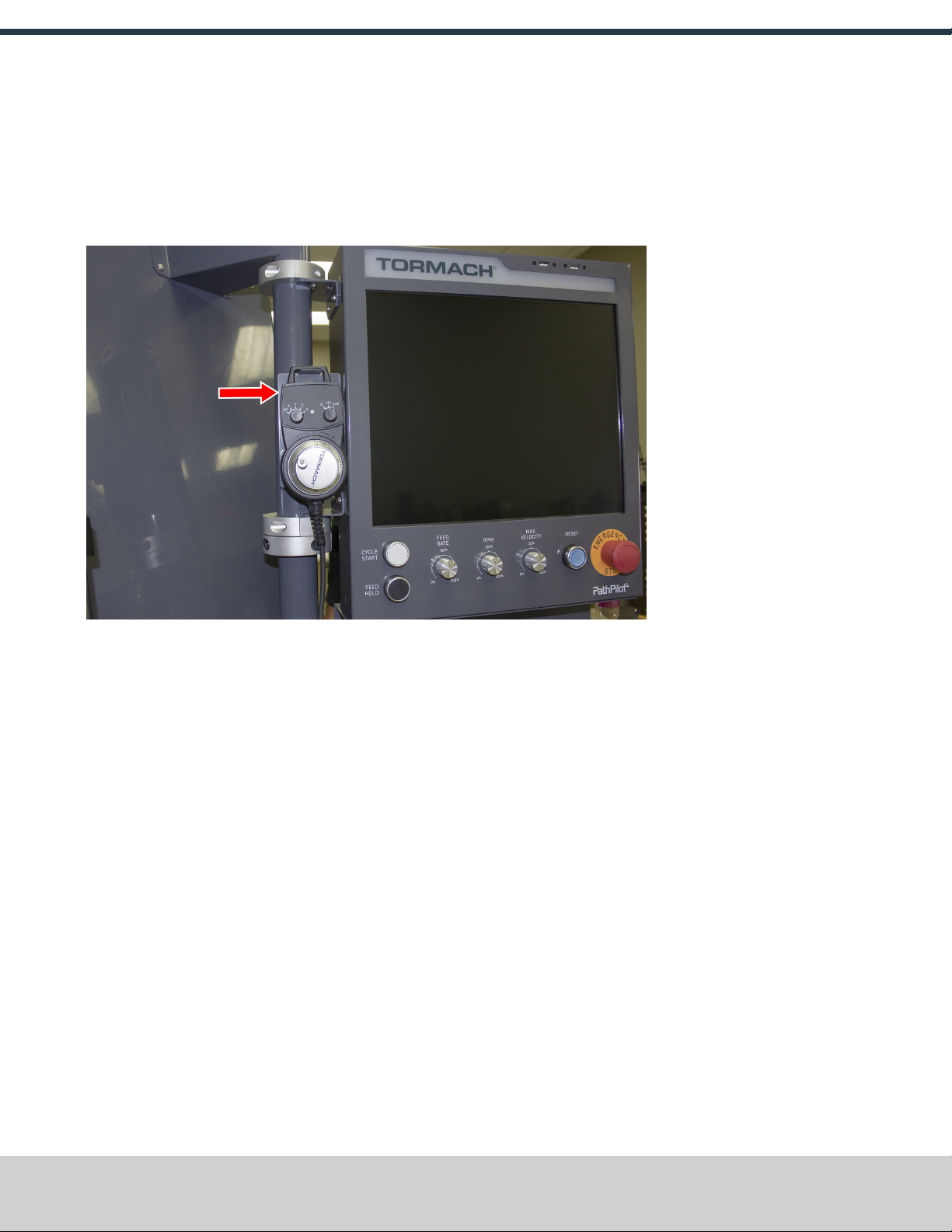

Figure 16: Jog pendant on the front of the console assembly.
3. Route the loose end of the jog pendant to the back of the controller.
4. Find the provided power supply bracket. Then, attach it to the back of the controller with two M3 screws
using a 2.5 mm hex wrench.
Page 13
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
5. Find the provided power, Ethernet, emergency stop extension, and ATCUSB cables, and the WiFi dongle.
Then, connect them – and the jog pendant cable – to the controller as shown in the following image.
Figure 17: Controller connections.
6. Put the power supply into the power supply bracket.
7. Find the provided corrugated tubing and piece of rubber.
8. Attach the piece of rubber to the bracket on the rear of the keyboard tray as shown in the following image.

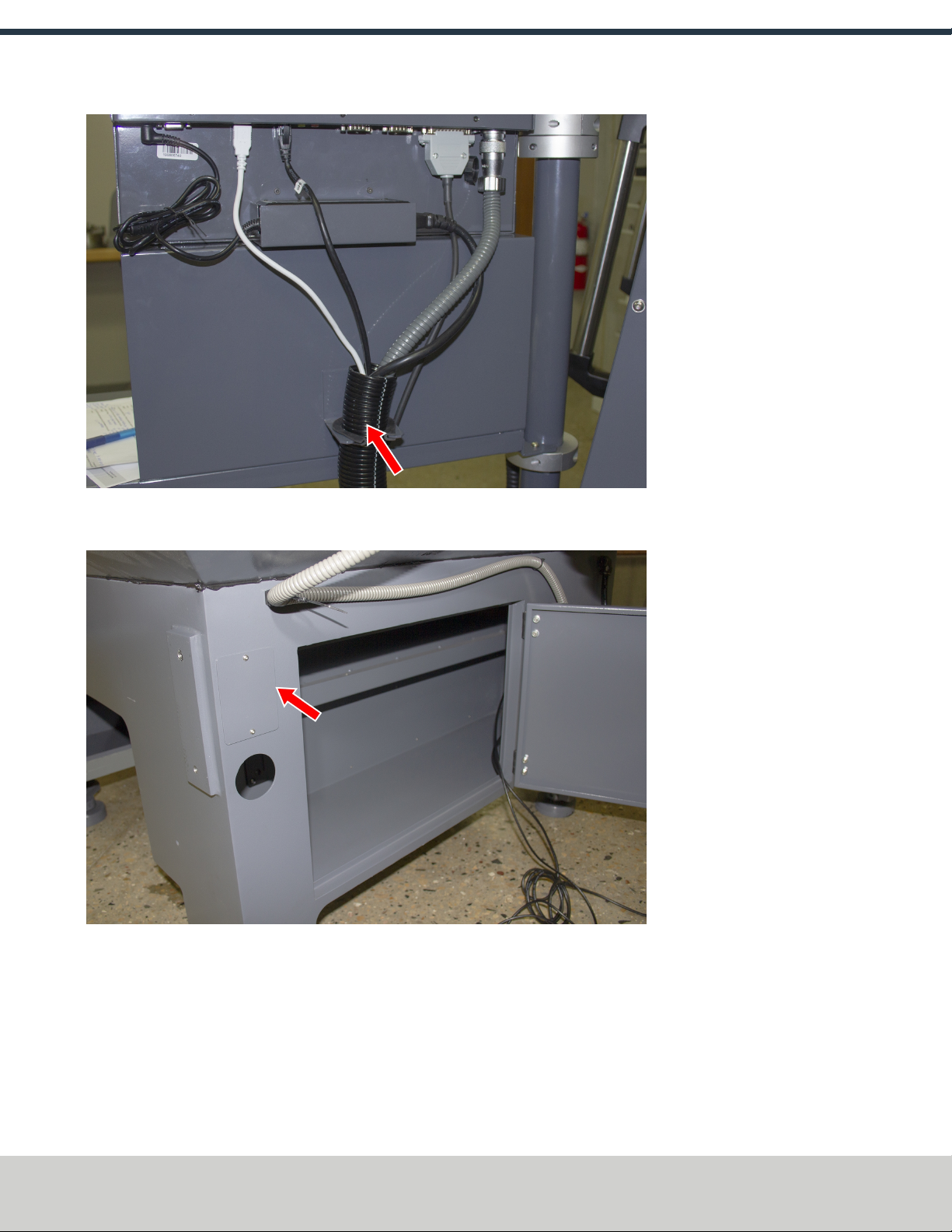

Figure 18: Rubber attached to the bracket on the keyboard tray.
9. Put the loose ends of all cables from the controller into the corrugated tubing.
Page 14
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
10. Push the corrugated tubing into the bracket on the rear of the keyboard tray.
Figure 19: Cords put into corrugated tubing, which is attached to the rear of the keyboard tray.

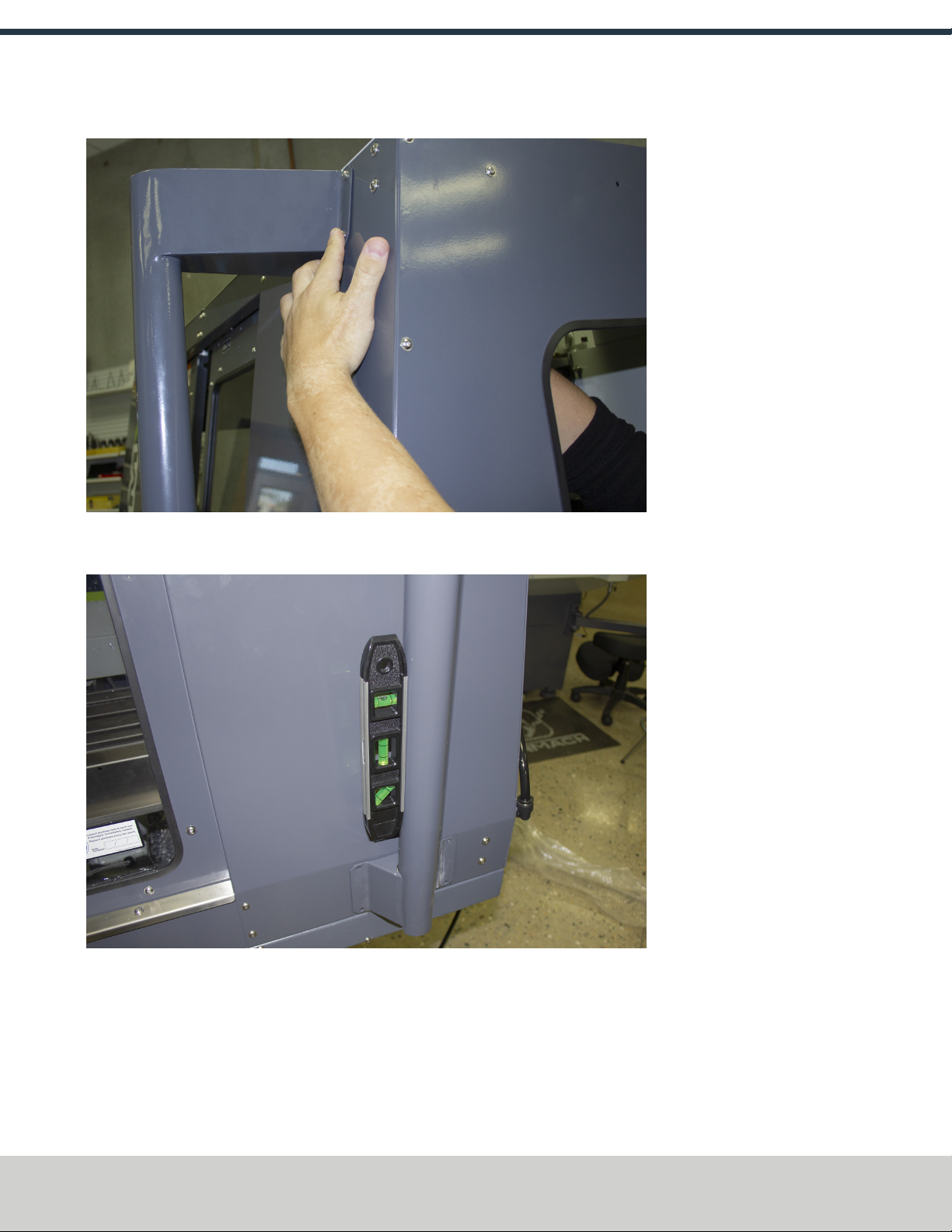

11. Find the access panel on the machine stand as shown in the following image.
Figure 20: Access panel on the machine stand.
12. Remove the access panel using a 2 mm hex wrench, and discard the panel. Set the screws aside for later in
this procedure.
Page 15
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
13. Find the provided access panel. Then, put the loose end of the corrugated tubing and all cords through it as
shown in the following image.
Figure 21: Loose end of corrugated tubing and all cords put through the access panel.
14. Attach the access panel – with the corrugated tubing and all cords – to the machine stand with the screws
that you set aside in Step 12 using a 2 mm hex wrench.
Figure 22: Access panel attached to the machine stand.
15. Route the loose end of all cords through the machine stand and out toward the rear of the machine.
Page 16
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
16. Find the existing operator box cable that's preinstalled on the machine. Then, route it through the access
hole in the machine stand shown in the following image.
Figure 23: Preinstalled operator box cable routing.
17. Connect the operator box extension cable to the existing operator box cable (that you just routed into the
machine stand).
18. Connect the Ethernet cable to the Controller Communications port on the side of the electrical cabinet.
19. From the ATC, remove and discard the existing USB cable. Then, route the loose end of the ATCUSB cable
from the controller to the ATC, and connect it in place of the original USB cable.
Page 17
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
20. If you have an EU model of the PathPilotOperator Console Assembly for 1100M/1100M+/1100MX, find the
provided set of keys, and put it into the top of the controller.
Figure 24: Key put into the controller.
For more information on operation modes, refer to the EU machine operator's manual.
REASSEMBLE THE MACHINE
1. Put the right side window (that you set aside in "Prepare the Machine" (page3)) back into the right side
panel on the enclosure. Then, tighten the screws on the vertical window retainers
2. Power on the machine and the PathPilot controller.
a. Turn the Main Disconnect switch to ONon the side of the electrical cabinet.
b. Twist out the Emergency Stop button on the operator box, which enables movement to the machine axes
and the spindle.
c. Press the Reset button on the operator box.
d. Bring the machine out of reset and reference it.
Page 18
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
TROUBLESHOOTING
Problem
The touch screen does not respond to touch inputs on all or part of the screen's surface.
Cause
The sensitivity setting for the touch controller is too low.
Solutions
You Might
Need To... Probability How-To Steps Need More?
Adjust
touchscreen
sensitivity.
High 1. Verify that you have PathPilot v2.4.4 or
higher installed on your console.
2. From the PathPilot interface, in the MDI
Line DRO field, type
ADMINTOUCHSCREENSENSITIVITY
1000 and press Enter. You can use a value
between 1 and 2047, but 1000 is generally
sufficient for most shop spaces.
The touchscreen used in the
operator console is a resistive
type, to prevent accidental
triggering from drops of coolant
on the screen. The resistive
touchscreen may need its
sensitivity adjusted when used in
a shop space with very high or
low humidity.
Page 19
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

TECHNICAL DOCUMENT
Problem
The console screen doesn't display an image or respond to the power button.
Cause
The console isn't receiving power.
Solutions
You Might
Need To... Probability How-To Steps Need More?
Examine
power input
to the
console.
High Examine the green LED on the
power brick for the console. If it's
not lit, examine the power cords
to the power brick.
If your console receives power from the
Accessory Input ports on the machine, look
for tripped breakers inside your machine's
electrical cabinet.
Test the
power
button
functionality.
Low Examine the green ring around
the power button. It should light
up when you press the power
button.
Page 20
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
This manual suits for next models
2
Table of contents
Other Tormach Enclosure manuals
