Toro 75742 User manual

FormNo.3449-212RevB
TimeCutter®42inRidingMower
ModelNo.75742—SerialNo.411000000andUp
ModelNo.75742TA—SerialNo.410000000andUp
ModelNo.75742W—SerialNo.410000000andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3449-212*

GrossorNetTorque:Thegrossornettorque
ofthisenginewaslaboratoryratedbytheengine
manufacturerinaccordancewiththeSocietyof
AutomotiveEngineers(SAE)J1940orJ2723.As
conguredtomeetsafety,emission,andoperating
requirements,theactualenginetorqueonthisclass
ofmowerwillbesignicantlylower.Pleasereferto
theenginemanufacturer’sinformationincludedwith
themachine.
Gotowww.Toro.comtoviewspecicationsonyour
model.
Important:IfyouareusingamachinewithaToro
engineabove1500m(5,000ft)foracontinuous
period,ensurethattheHighAltitudeKithasbeen
installedsothattheenginemeetsCARB/EPA
emissionregulations.TheHighAltitudeKit
increasesengineperformancewhilepreventing
spark-plugfouling,hardstarting,andincreased
emissions.Onceyouhaveinstalledthekit,attach
thehigh-altitudelabelnexttotheserialdecalon
themachine.ContactanyAuthorizedToroService
DealertoobtaintheproperHighAltitudeKitand
high-altitudelabelforyourmachine.Tolocate
adealerconvenienttoyou,accessourwebsite
atwww.Toro.comorcontactourToroCustomer
CareDepartmentatthenumber(s)listedinyour
EmissionControlWarrantyStatement.
Removethekitfromtheengineandrestorethe
enginetoitsoriginalfactorycongurationwhen
runningtheengineunder1500m(5,000ft).Do
notoperateanenginethathasbeenconverted
forhigh-altitudeuseatloweraltitudes;otherwise,
youcouldoverheatanddamagetheengine.
Ifyouareunsurewhetherornotyourmachine
hasbeenconvertedforhigh-altitudeuse,lookfor
thefollowinglabel.
decal127-9363
Figure3
WARNING
CALIFORNIA
Proposition65Warning
Theengineexhaustfromthisproduct
containschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Batteryposts,terminals,andrelated
accessoriescontainleadandlead
compounds,chemicalsknownto
theStateofCaliforniatocause
cancerandreproductiveharm.Wash
handsafterhandling.
Useofthisproductmaycauseexposure
tochemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Introduction
Thisrotary-blade,ridinglawnmowerisintendedtobe
usedbyhomeownersinresidentialapplications.Itis
designedprimarilyforcuttinggrassonwell-maintained
lawns.Usingthisproductforpurposesotherthan
itsintendedusecouldprovedangeroustoyouand
bystanders.
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.
Visitwww.T oro.comforproductsafetyandoperation
trainingmaterials,accessoryinformation,helpnding
adealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineT oroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
Important:Withyourmobiledevice,youcan
scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.
©2021—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

g297763
Figure1
Undertheseat
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Thesafety-alertsymbol(Figure2)appearsbothin
thismanualandonthemachinetoidentifyimportant
safetymessagesthatyoumustfollowtoavoid
accidents.Thissymbolwillappearwiththeword
Danger,Warning,orCaution.
•Dangerindicatesanimminentlyhazardous
situationwhich,ifnotavoided,willresultindeath
orseriousinjury.
•Warningindicatesapotentiallyhazardous
situationwhich,ifnotavoided,couldresultin
deathorseriousinjury.
•Cautionindicatesapotentiallyhazardoussituation
which,ifnotavoided,mayresultinminoror
moderateinjury.
sa-black
Figure2
1.Safety-alertsymbol
Contents
Safety.......................................................................4
GeneralSafety...................................................4
SlopeIndicator...................................................5
SafetyandInstructionalDecals..........................6
ProductOverview...................................................10
Controls............................................................11
BeforeOperation.................................................12
BeforeOperationSafety...................................12
AddingFuel......................................................13
PerformingDailyMaintenance..........................14
BreakinginaNewMachine..............................14
UsingtheSafety-InterlockSystem....................14
PositioningtheSeat..........................................15
AdjustingtheMotion-ControlLevers.................15
DuringOperation.................................................15
DuringOperationSafety...................................15
OperatingtheMowerBlade-ControlSwitch
(PTO)............................................................18
OperatingtheThrottle.......................................18
OperatingtheChoke.........................................18
StartingtheEngine...........................................19
ShuttingOfftheEngine.....................................19
UsingtheMotion-ControlLevers.......................19
DrivingtheMachine..........................................20
UsingtheSmartSpeedTMControl
System..........................................................21
UsingtheSideDischarge.................................22
AdjustingtheHeightofCut...............................22
AdjustingtheAnti-ScalpRollers........................23
OperatingTips.................................................23
AfterOperation....................................................24
AfterOperationSafety......................................24
CleaningtheMachine.......................................24
PushingtheMachinebyHand..........................25
TransportingtheMachine.................................26
Maintenance...........................................................28
MaintenanceSafety..........................................28
RecommendedMaintenanceSchedule(s)...........29
Pre-MaintenanceProcedures..............................30
RaisingtheMachine.........................................30
Lubrication..........................................................30
GreasingtheBearings......................................30
EngineMaintenance...........................................31
EngineSafety...................................................31
ServicingtheAirCleaner..................................31
ServicingtheEngineOil....................................33
ServicingtheSparkPlug...................................35
CleaningtheCoolingSystem............................36
FuelSystemMaintenance...................................36
ReplacingtheIn-LineFuelFilter.......................36
ElectricalSystemMaintenance...........................37
ElectricalSystemSafety...................................37
ServicingtheBattery.........................................37
ServicingtheFuses..........................................39
DriveSystemMaintenance..................................39
CheckingtheTirePressure...............................39
3

ReleasingtheElectricBrake.............................39
AdjustingtheTracking......................................40
BeltMaintenance................................................41
InspectingtheBelts..........................................41
ReplacingtheMowerBelt.................................41
MowerMaintenance.............................................42
BladeSafety.....................................................42
ServicingtheCuttingBlades.............................42
LevelingtheMowerDeck..................................45
RemovingtheMowerDeck...............................47
InstallingtheMowerDeck.................................48
ReplacingtheGrassDeector..........................48
Cleaning..............................................................49
WashingtheUndersideoftheMower
Deck..............................................................49
DisposingofWaste...........................................50
Storage...................................................................50
StorageSafety..................................................50
CleaningandStorage.......................................50
StoringtheBattery............................................51
Troubleshooting......................................................52
Schematics.............................................................54
Safety
Thismachinehasbeendesignedinaccordancewith
ANSIB71.1-2017.
GeneralSafety
Thisproductiscapableofamputatinghandsand
feetandofthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriouspersonalinjuryordeath.
•Readandunderstandthecontentsofthis
Operator’sManualbeforestartingtheengine.
•Keepbystandersandchildrenaway.
•Donotallowchildrenoruntrainedpeopleto
operateorservicethemachine.Allowonlypeople
whoareresponsible,trained,familiarwiththe
instructions,andphysicallycapabletooperateor
servicethemachine.
•Donotoperatethemachineneardrop-offs,
ditches,embankments,water,orotherhazards,or
onslopesgreaterthan15°.
•Donotputyourhandsorfeetnearmoving
componentsofthemachine.
•Donotoperatethemachinewithoutallguards,
safetyswitches,andothersafetyprotective
devicesinplaceandfunctioningproperly.
•Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operator’sposition.Allowthemachinetocool
beforeservicing,adjusting,fueling,cleaning,or
storingit.
4

SlopeIndicator
g011841
Figure4
Youmaycopythispageforpersonaluse.

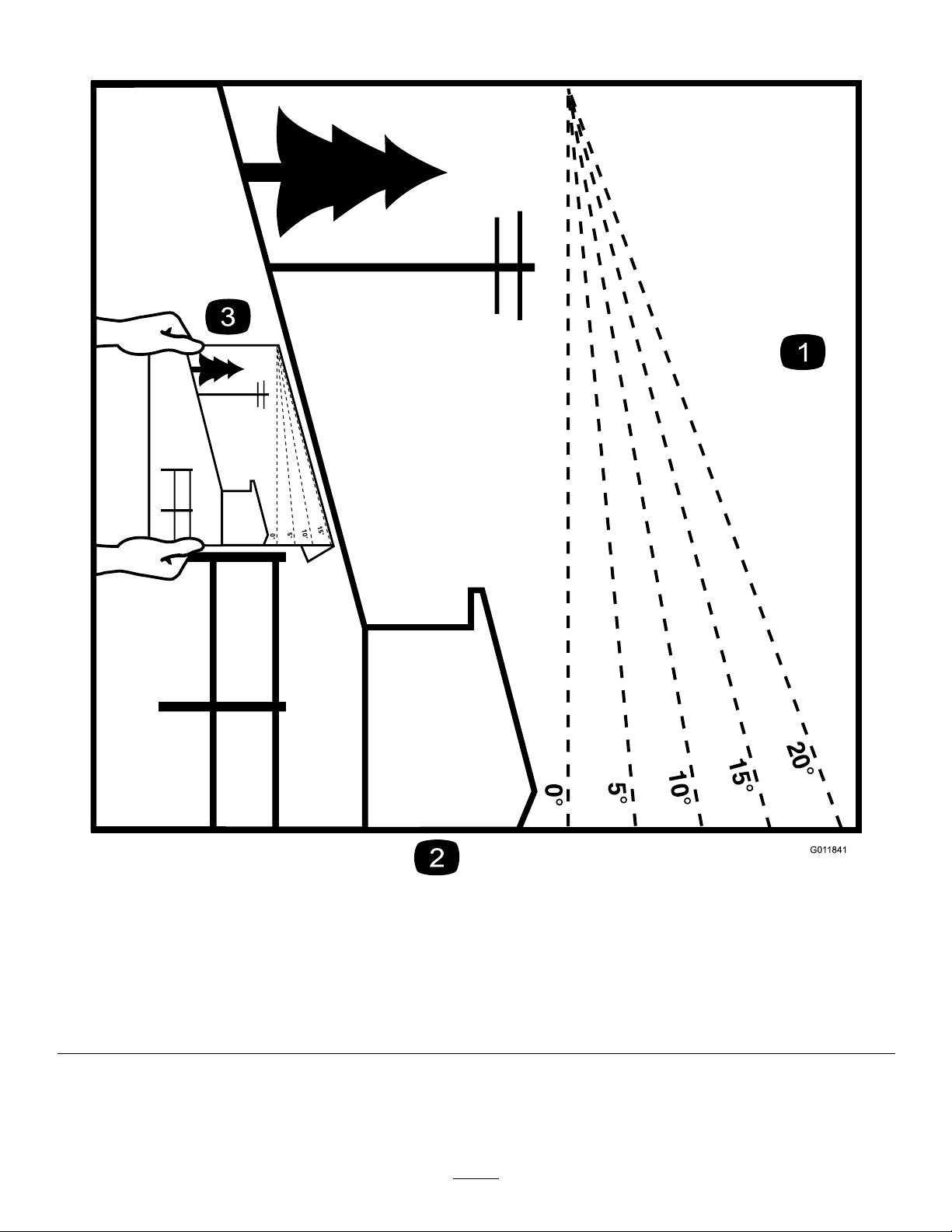

1.Themaximumslopeyoucanoperatethemachineonis15degrees.Usetheslopecharttodeterminethedegreeofslopeof
hillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan15degrees.Foldalongtheappropriateline
tomatchtherecommendedslope.
2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.
3.Exampleofhowtocompareslopewithfoldededge
5

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decalbatterysymbols
BatterySymbols
Someorallofthesesymbolsareonyourbattery.
1.Explosionhazard6.Keepbystandersaway
fromthebattery.
2.Nore,opename,or
smoking
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries.
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection.9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator's
Manual.
10.Containslead;donot
discard
decaloemmarkt
Manufacturer'sMark
1.Thismarkindicatesthatthebladeisidentiedasapart
fromtheoriginalmachinemanufacturer.
decal93-7009
93-7009
1.Warning—donotoperatethemowerwiththedeectorup
orremoved;keepthedeectorinplace.
2.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.
decal105-7015
105-7015
1.Beltrouting
decal121-2989b
121-2989
1.Bypassleverpositionfor
pushingthemachine
2.Bypassleverpositionfor
operatingthemachine
6

decal131-1097
131-1097
1.Oildrain
decal132-0872
132-0872
1.Thrownobject
hazard—keepbystanders
awayfromthemachine.
3.Severinghazardofhand
orfoot—keepawayfrom
movingparts.
2.Thrownobjecthazard,
raiseddeector—donot
operatethemachinewith
anopendeck;usea
baggeroradeector.
4.Entanglement
hazard—keepaway
frommovingparts;keep
allguardsandshieldsin
place.
Decal138-6074ismoldedintothefueltank.
decal138-2456
138-2456
1.ReadtheOperator’s
Manual.
3.Donotoverllthefuel
tank.
2.Parkthemachineona
levelsurfacewhenlling
thefueltank.
decal139-2388
139-2388
1.Slow3.Fast
2.Hauling
decal139-2391
139-2391
1.Fast2.Slow
7

decal139-2392
139-2392
decal139-2394
139-2394
1.Tractioncontrols4.Neutral
2.Fast5.Reverse
3.Slow6.Parkingbrake
decal139-2395
139-2395
1.Parkingbrake4.Neutral
2.Fast5.Reverse
3.Slow6.Tractioncontrols
decal142-5864
142-5864
8

decal144-5288
144-5288
Note:Thismachinecomplieswiththeindustrystandard
stabilitytestinthestaticlateralandlongitudinaltestswiththe
maximumrecommendedslopeindicatedonthedecal.Reviewthe
instructionsforoperatingthemachineonslopesintheOperator’s
Manualaswellastheconditionsinwhichyouwouldoperatethe
machinetodeterminewhetheryoucanoperatethemachineinthe
conditionsonthatdayandatthatsite.Changesintheterraincan
resultinachangeinslopeoperationforthemachine.
1.Warning—readthe
Operator’sManual.
4.Runoverhazard—donot
carrypassengers;look
behindyouwhenmoving
inreverse.
2.Cutting/dismemberment
hazardofthengersor
hand—keephandsaway
frommovingparts;keep
allguardsandshieldsin
place.
5.Tippinghazard—when
loadingontoatrailer,do
notusedualramps;only
useasingularrampwide
enoughforthemachine;
donotusearampwith
aslopegreaterthan15°;
backuptheramp(in
reverse)anddriveforward
offtheramp.
3.Thrownobject
hazard—keepbystanders
away;pickupanydebris;
keepthedeectorinplace.
6.Tippinghazard—donot
usethemachinenear
drop-offsoronslopes
greaterthan15°;only
operateacrossslopesless
than15°.
9

ProductOverview

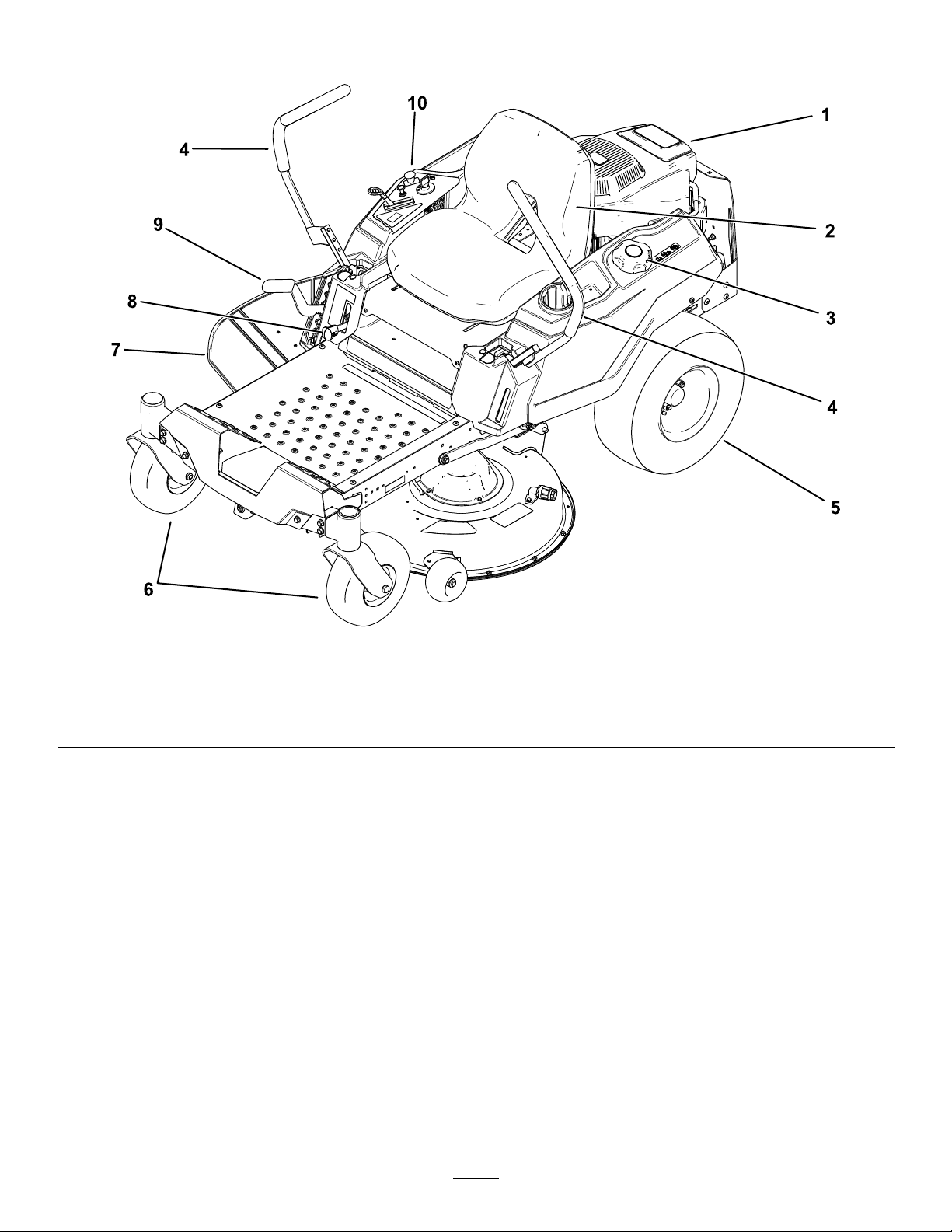

g293302
Figure5
1.Engine4.Motion-controllevers7.Deector10.Controlpanel
2.Operatorseat5.Reardrivewheel8.SmartSpeed™lever
3.Fuel-tankcap6.Frontcasterwheels9.Height-of-cutlever
10
