Service Manual
GreensmasterR3150
Preface
The purpose of this publication is to provide the service
technician with information for troubleshooting, testing
and repair of major systems and components on the
Greensmaster 3150 (Model 04358).
REFER TO THE TRACTION UNIT AND CUTTING
UNIT OPERATOR’S MANUALS FOR OPERATING,
MAINTENANCE AND ADJUSTMENT INSTRUC-
TIONS. For reference, insert a copy of the Operator’s
Manuals and Parts Catalogs for your machine into
Chapter 2 of this service manual. Additional copies of
theOperator’sManualsandPartsCatalogareavailable
on the internet at www.Toro.com.
TheToroCompanyreservesthe righttochangeproduct
specifications or this publication without notice.
This safety symbol means DANGER, WARNING
or CAUTION, PERSONAL SAFETY INSTRUC-
TION. When you see this symbol, carefully read
the instructions that follow. Failure to obey the
instructions may result in personal injury.
NOTE: ANOTE will give general information about the
correct operation, maintenance, service, testing or re-
pair of the machine.
IMPORTANT: The IMPORTANT notice will give im-
portant instructionswhichmustbefollowedtopre-
vent damage to systems or components on the
machine.
EThe Toro Company -- 2012

Greensmaster 3150
This page is intentionally blank.

Greensmaster 3150
Table Of Contents
Chapter 1 -- Safety
Safety Instructions 1 -- 2..........................
Jacking Instructions 1 -- 5.........................
Safety and Instruction Decals 1 -- 5................
Chapter 2 -- Product Records and Maintenance
Product Records 2 -- 1...........................
Maintenance 2 -- 1...............................

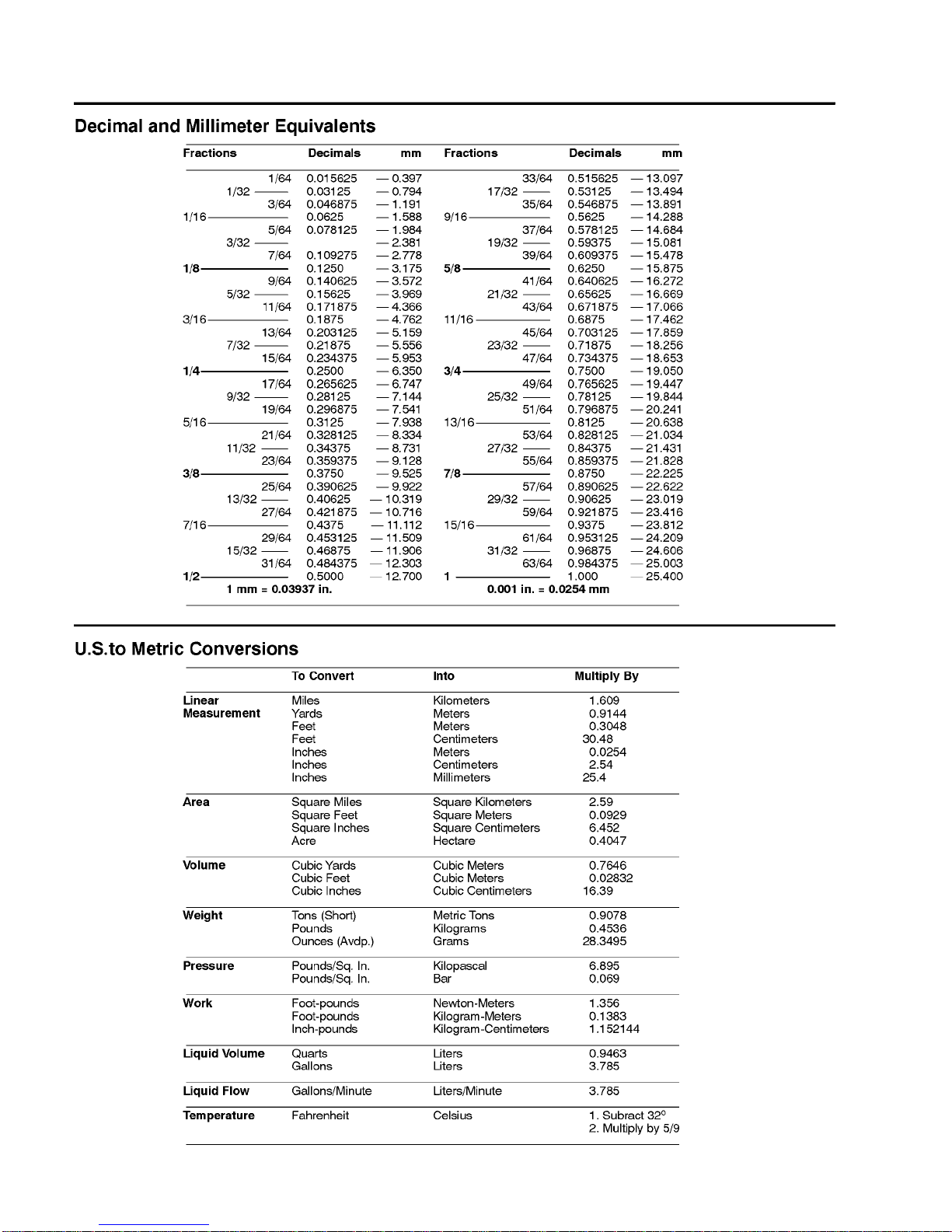

Equivalents and Conversions 2 -- 2................
Torque Specifications 2 -- 3.......................
Chapter 3 -- Engine
General Information 3 -- 2........................
Specifications 3 -- 3..............................
Service and Repairs 3 -- 4........................
BRIGGS & STRATTON VANGUARD V-TWIN OHV
REPAIR MANUAL
Chapter 4 -- Hydraulic System
Specifications 4 -- 2..............................
General Information 4 -- 3........................
Hydraulic Schematic 4 -- 8........................
Hydraulic Flow Diagrams 4 -- 10...................
Special Tools 4 -- 18.............................
Troubleshooting 4 -- 21...........................
Testing 4 -- 26...................................
Adjustments 4 -- 49..............................
Service and Repairs 4 -- 50.......................
EATON, MEDIUM DUTY PISTON PUMP, REPAIR IN-
FORMATION, MODEL 70160 VARIABLE DIS-
PLACEMENT PISTON PUMP
PARKER TORQMOTORTM SERVICE PROCEDURE
(TC, TB, TE, TJ, TF, TG, TH and TL SERIES)
SAUER/DANFOSS STEERING UNIT TYPE OSPM
SERVICE MANUAL
Chapter 5 -- Electrical System
General Information 5 -- 2........................
Special Tools 5 -- 3..............................
Turf Guardian Leak Detector
System Operation 5 -- 5........................
Troubleshooting 5 -- 6............................
Electrical System Quick Checks 5 -- 11.............
Component Testing 5 -- 12........................
Service and Repairs 5 -- 28.......................
Chapter 6 -- Chassis
Specifications 6 -- 2..............................
General Information 6 -- 3........................
Special Tools 6 -- 3..............................
Service and Repairs 6 -- 4........................
Chapter 7 -- DPA Cutting Units
Specifications 7 -- 2..............................
General Information 7 -- 3........................
Special Tools 7 -- 4..............................
Factors That Can Affect Cutting Performance 7 -- 6..
Set Up and Adjustments 7 -- 10....................
Service and Repairs 7 -- 12.......................
Chapter 8 -- Groomer
Specifications 8 -- 2..............................
General Information 8 -- 3........................
Troubleshooting 8 -- 4............................
Adjustments 8 -- 6...............................
Service and Repairs 8 -- 7........................
Chapter 9 -- Foldout Drawings
Hydraulic Schematic 9 -- 3........................
Electrical Schematic 9 -- 4........................
Electrical Circuit Diagrams 9 -- 5...................
Wire Harness Drawings 9 -- 12....................
Product Records
and Maintenance
Engine
Hydraulic
System
Electrical
System
ChassisGroomer
Foldout
Drawings
SafetyDPA Cutting
Units

Greensmaster 3150
This page is intentionally blank.

Greensmaster 3150 Page 1 -- 1 Safety
Chapter 1
Safety
Table of Contents
SAFETY INSTRUCTIONS 2......................
Before Operating 2............................
While Operating 3............................
Maintenance and Service 4....................
JACKING INSTRUCTIONS 5.....................
SAFETY AND INSTRUCTION DECALS 5..........
Safety

Greensmaster 3150Page 1 -- 2Safety
Safety Instructions
The Greensmaster 3150 was tested and certified by
Toroforcompliancewithnationalandinternationalstan-
dards as specified in the Operator’s Manual. Although
hazard control and accident prevention partiallyare de-
pendent upon the design and configuration of the ma-
chine, these factors are also dependent upon the
awareness, concern and proper training of the person-
nel involved in the operation, transport, maintenance
and storage of the machine. Improper use or mainte-
nance of the machine can result in injury or death.
WARNING
Toreducethepotentialforinjuryordeath,comply
with the following safety instructions.
Before Operating
1. Readand understandthe contentsoftheOperator’s
Manual before starting and operating the machine. Be-
come familiar with all controls and know how to stop
quickly. Copies of the Operator’s Manual are available
on the internet at www.Toro.com.
2. Never allow children to operate the machine. Never
allow adults to operate it without proper instructions.
3. Become familiar with the controls and know how to
stop the engine quickly.
4. Keep all shields, safety devices and decals in place.
Ifa shield,safety deviceor decalisdefective,illegibleor
damaged: repair or replace it before operating the ma-
chine.
5. Always wear substantial shoes. Do not operate ma-
chine while wearing sandals, tennis shoes or sneakers.
Donotwearloosefittingclothingwhichcouldgetcaught
in moving parts and cause personal injury.
6. Wearing safety glasses, safety shoes, long pants
and a helmet is advisable and required by some local
safety and insurance regulations.
7. Make sure work area is clear of objects which might
be picked up and thrown by the reels.
8. Do not carry passengers on the machine. Keep ev-
eryone, especially children and pets, away from the
areas of operation.
9. Gasoline(fuel)ishighlyflammable;handleitcareful-
ly.
A. Store fuel in containers specifically designed for
this purpose.
B. Add fuel before starting the engine. Never re-
movethecapofthefueltankoraddfuelwhiletheen-
gine is running or when the engine is hot.
C. Refuel outdoors only and do not smoke while
refuelling.
D. Fillfueltanktoalevelnohigherthantothebottom
of fuel tank filler neck. Do not overfill.
E. Replaceallfueltanksandcontainercapssecure-
ly.
F. If fuel is spilled, do not attempt to start the engine
butmovethemachineawayfromtheareaofspillage
andavoidcreatinganysourceofignitionuntilfuelva-
pors have dissipated.
G. Wipe up any spilled fuel.

Greensmaster 3150 Page 1 -- 3 Safety
While Operating
1. Donotruntheengineinaconfinedareawithoutade-
quate ventilation. Exhaust fumes are hazardous and
couldbedeadly.
2. Sit on the seat when starting and operating the ma-
chine.
3. Check the safety interlock switch daily for properop-
eration; see Verify Interlock System Operation in Chap-
ter 5 -- Electrical System. Replace any malfunctioning
switches before operating the machine.
4. To start the engine:
A. Sitontheseat,makesurecuttingunits aredisen-
gaged.
B. Verify that functional control lever is in neutral.
C. Verify that parking brake is set.
D. Proceed to start engine.
5. Using the machine demands attention. To prevent
loss of machine control:
A. Mow only in daylight or when there is good artifi-
cial light.
B. Watch for holes or other hidden hazards.
C. Do not drive close to sand traps, ditches, creeks
or other hazards.
D. Reduce speed when making sharp turns. Avoid
sudden stops and starts.
E. Before backing up, look to the rear to be sure no
one is behind the machine.
F. Watchoutfortrafficwhen nearor crossingroads.
Always yield the right--of--way.
G. Apply the service brakes when going downhill to
keep forward speed slow and to maintain control of
the machine.
6. Keep hands, feet and clothing away from moving
parts and the reel discharge area. The grass baskets
must be in place during operation of the reels or thatch-
ersformaximumsafety.Shuttheengineoffbeforeemp-
tying the baskets.
7. Wearappropriateclothingincludingsubstantialfoot-
wear, hard hat, safety glasses and ear protection.
8. Raise the cutting units when driving from one work
area to another.
9. Do not touch engine, muffler or exhaust pipe while
engine is running or soon after it is stopped because
these areas could be hot enough to cause burns.
10.If a cutting unit strikes a solid object or vibrates ab-
normally, stop immediately, turn engine off, wait for all
motion to stop and inspectfor damage. Adamaged reel
or bedknife must be repaired or replaced before opera-
tion is continued.
11.Before getting off the seat:
A. Make sure cutting units are disengaged.
B. Verify that functional control lever is in neutral.
C. Set the parking brake.
D. Stop the engine and remove key from ignition
switch.
12.Traverse slopes carefully. Do not start or stop sud-
denly when traveling uphill or downhill.
13.Operator must be skilled and trained in how to drive
on hillsides. Avoidwet slopes. Failure to use caution on
slopes or hills may cause loss of control and vehicle to
tip or roll possibly resulting in personal injury or death.
14.If engine stalls or loses headway and cannot make
it to the top of a slope, do not turn machine around. Al-
ways back slowly straight down the slope.
15.DON’T TAKE AN INJURY RISK! Whenapersonor
pet appears unexpectedly in or near the mowing area,
STOP MOWING. Careless operation, combined with
terrain angles, ricochets or improperly positioned
guardscanleadtothrownobjectinjuries.Donotresume
mowing until area is cleared.
16.Whenever machine is left unattended, make sure
cutting units are fully raised and reels are not spinning,
key is removed from ignition switch and parking brake
is set.
Safety

Greensmaster 3150Page 1 -- 4Safety
Maintenance and Service
1. Before servicing or making adjustments to the ma-
chine, stop the engine, remove key from switch to pre-
vent accidental starting of the engine.
2. Be sure entire machine is in good operating condi-
tion. Keep all nuts, bolts, screws and hydraulic fittings
tight.
3. Make sure all hydraulic line connectors are tight,and
all hydraulic hoses and lines are in good condition be-
fore applying pressure to the system.
4. Keep body and hands away from pin hole leaks or
nozzles that eject hydraulic fluid under high pressure.
Use paper or cardboard, not hands, to search for leaks.
Hydraulic fluid escaping under pressure can have suffi-
cient force to penetrate skin and do serious damage. If
fluidisejectedintotheskinitmustbesurgicallyremoved
within a few hours by a doctor familiar with this form of
injury or gangrene may result.
5. Before disconnecting or performing any work on the
hydraulic system, all pressure in system must be re-
lievedbystoppingengineandloweringcuttingunitsand
attachments to the ground.
6. Toreducepotentialfirehazard,keeptheenginearea
free of excessive grease, grass, leaves and accumula-
tion of dirt. Never wash a warm engine or electrical con-
nections with water.
7. Check allfuel lines for tightness and wear on aregu-
lar basis. Tighten or repair fuel lines as needed.
8. If the engine must be running to perform a mainte-
nance adjustment, keep hands, feet, clothing and any
other parts of the body away from the cutting units, at-
tachmentsandanymoving parts. Keepeveryoneaway.
9. Do not overspeed the engine by changing governor
settings.Toassuresafetyandaccuracy,haveanAutho-
rized Toro Distributor check maximum engine speed
with a tachometer. Maximum governed engine speed
should be 2850 + 50 RPM.
10.Enginemustbeshutoffbeforecheckingoiloradding
oil to the crankcase.
11.If major repairs are ever needed or if assistance is
desired, contact your Authorized Toro Distributor.
12.At the time of manufacture, the machine conformed
tothesafetystandardsforriding mowers. To assure op-
timumperformanceandcontinuedsafetycertificationof
the machine, use genuine Toro replacement parts and
accessories.Replacementpartsandaccessoriesmade
by other manufacturers may result in non-conformance
with the safety standards and the warranty may be
voided.
13.When changing attachments, tires or performing
other service, use correct blocks, hoists and jacks.
Make sure machine is parkedonasolidlevelsurface
suchasaconcretefloor.Priortoraisingthemachine,re-
move any attachments that may interfere with the safe
and proper raising of the machine. Always chock or
block wheels. Use appropriate jack stands to support
the raised machine. If the machine is not properly sup-
ported by jack stands, the machine may move or fall,
which may result in personal injury.

Greensmaster 3150 Page 1 -- 5 Safety
Jacking Instructions
CAUTION
When changing attachments, tires or perform-
ing other service, use correct jacks and sup-
ports. Make sure machine is parked on a solid,
level surface such as a concrete floor. Prior to
raising machine, remove any attachments that
may interfere with the safe and proper raising of
themachine.Alwayschockorblockwheels.Use
jack stands to support the raised machine.If the
machine is not properly supported by jack
stands, the machine may move or fall, which
may result in personal injury.
Front End Jacking
1. Apply parking brake and chock rear tire to prevent
the machine from moving. Make sure that cutting units
are fully lowered.
2. Position jack securely under the frame jacking point:
A. The left side jacking point is the frame channel
under the step behind the LH front wheel.
B. The right side jacking point is the ROPS support
bracket behind the RH front wheel (Fig. 1).
3. Jack front of machine off the ground.
4. Position appropriate jack stands under the frame as
close to the wheel as possible to support the machine.
Rear End Jacking
1. Applyparkingbrakeandchockbothfronttirestopre-
vent the machine from moving. Make sure that cutting
units are fully lowered.
2. Place jack securely below the rear castor fork.
3. Jack rear of machine off the ground.
4. Position appropriate jack stands under the frame to
support the machine.
1. ROPS support bracket
Figure 1
1
Safety and Instruction Decals
Numerous safety and instruction decals are affixed to
the traction unit and the cutting units of the Greensmas-
ter 3150. If any decal becomes illegible or damaged, in-
stall a new decal. Part numbers are listed in your Parts
CatalogandOperator’sManual.Orderreplacementde-
cals from your Authorized Toro Distributor.
Safety

Greensmaster 3150Page 1 -- 6Safety
This page is intentionally blank.

Greensmaster 3150 Page 2 -- 1 Product Records and Maintenance
Chapter 2
Product Records and Maintenance
Table of Contents
PRODUCT RECORDS 1.........................
MAINTENANCE 1..............................
EQUIVALENTS AND CONVERSIONS 2...........
Decimal and Millimeter Equivalents 2............
U.S. to Metric Conversions 2...................
TORQUE SPECIFICATIONS 3...................
Fastener Identification 3.......................
Using a Torque Wrench with an Offset Wrench 3..
Standard Torque for Dry, Zinc Plated and
Steel Fasteners (Inch Series). 4...............
Standard Torque for Dry, Zinc Plated and
Steel Fasteners (Metric Fasteners). 5..........
Other Torque Specifications 6..................
Conversion Factors 6.........................
Product Records
Insert a copy of the Operator’s Manual and Parts Cata-
log for your Greensmaster 3150 at the end of this chap-
ter. Additionally, if any optional equipment or
accessorieshavebeeninstalled toyourmachine,insert
the Installation Instructions, Operator’s Manuals and
Parts Catalogs for those options at the endof this chap-
ter.
Maintenance
Maintenanceproceduresandrecommendedservicein-
tervals for the Greensmaster 3150 are covered in the
Traction Unit Operator’s Manual. Maintenance proce-
dures and recommended service intervals for the
Greensmaster Cutting Units are covered in the Cutting
Unit Operator’s Manual. Refer to these publications
when performing regular equipment maintenance. Re-
fer to the Engine Operator’s Manual for additional en-
gine specific maintenance procedures.
Product Records
and Maintenance

0.09375
Greensmaster 3150Page 2 -- 2Product Records and Maintenance
Equivalents and Conversions

Greensmaster 3150 Page 2 -- 3 Product Records and Maintenance
Torque Specifications
Recommended fastener torque values are listed in the
following tables. For critical applications,asdetermined
byToro,eithertherecommendedtorqueoratorquethat
is unique to the application is clearly identified and spe-
cified in this Service Manual.
Thesetorquespecificationsfortheinstallationandtight-
ening of fasteners shall apply to all fasteners which do
nothaveaspecific requirementidentifiedin thisService
Manual.The followingfactorsshallbe consideredwhen
applying torque: cleanliness of the fastener, use of a
threadsealant(e.g.Loctite),degreeoflubricationonthe
fastener, presence of a prevailing torque feature, hard-
ness of the surface underneath the fastener’s head or
similar condition which affects the installation.
Asnotedinthefollowingtables,torquevaluesshouldbe
reduced by 25% for lubricated fasteners to achieve
the similar stress as a dry fastener. Torque values may
also have to be reduced when the fastener is threaded
into aluminum or brass. The specific torque value
should be determined based on the aluminum or brass
material strength, fastener size, length of thread en-
gagement, etc.
The standard method of verifying torque shall be per-
formed by marking a line on the fastener (head or nut)
and mating part, then back off fastener 1/4 of a turn.
Measurethetorquerequiredto tightenthe fasteneruntil
thelinesmatchup.
Fastener Identification
Figure 1
Grade 1 Grade 5 Grade 8
Inch Series Bolts and Screws Figure 2
Class 8.8 Class 10.9
Metric Bolts and Screws
Using a Torque Wrench with an Offset Wrench
Useofanoffsetwrench(e.g.crowfootwrench)willaffect
torque wrench calibration due to theeffective change of
torque wrench length.Whenusingatorquewrench with
an offset wrench, multiply the listed torque recommen-
dation by the calculated torque conversion factor (Fig.
3) to determine proper tightening torque. Tightening
torque when using a torque wrench with an offset
wrench will be lower than the listed torque recommen-
dation.
Example: The measured effective length of the torque
wrench (distance from the center of the handle to the
center of the square drive) is 18”.
Themeasuredeffectivelengthofthetorquewrenchwith
the offset wrench installed (distance from the center of
the handle to the center of the offset wrench) is 19”.
The calculated torque conversion factor for this torque
wrenchwiththisoffsetwrenchwouldbe18/ 19 = 0.947.
If the listed torque recommendation for a fastener is
from 76 to 94 ft--lb, the proper torque when using this
torque wrench with an offset wrench would be from 72
to 89 ft--lb.
Figure 3
(effective length of
torque wrench)
TORQUE CONVERSION FACTOR = A / B
A
B
(effective length of torque
Torque wrenchOffset wrench
wrench + offset wrench)
Product Records
and Maintenance

Greensmaster 3150Page 2 -- 4Product Records and Maintenance
Standard Torque for Dry, Zinc Plated and Steel Fasteners (Inch Series)
Thread Size Grade1,5,&
8withThin
Height Nuts
SAE Grade 1 Bolts, Screws, Studs, &
Sems with Regular Height Nuts
(SAE J995 Grade 2 or Stronger Nuts)
SAE Grade 5 Bolts, Screws, Studs, &
Sems with Regular Height Nuts
(SAE J995 Grade 2 or Stronger Nuts)
SAE Grade 8 Bolts, Screws, Studs, &
Sems with Regular Height Nuts
(SAE J995 Grade 5 or Stronger Nuts)
in--lb in--lb N--cm in--lb N--cm in--lb N--cm
#6--32UNC 10 + 213 + 2147 + 23 15 + 2170 + 20 23 + 2260 + 20
#6--40UNF 17 + 2190 + 20 25 + 2280 + 20
#8--32UNC 13 + 225 + 5282 + 30 29 + 3330 + 30 41 + 4460 + 45
#8--36UNF 31 + 3350 + 30 43 + 4485 + 45
#10--24UNC 18 + 230 + 5339 + 56 42 + 4475 + 45 60 + 6675 + 70
#10--32UNF 48 + 4540 + 45 68 + 6765 + 70
1/4 -- 20 UNC 48 + 753 + 7599 + 79 100 + 10 1125 + 100 140 + 15 1580 + 170
1/4 -- 28 UNF 53 + 765 + 10 734 + 113 115 + 10 1300 + 100 160 + 15 1800 + 170
5/16 -- 18 UNC 115 + 15 105 + 17 1186 + 169 200 + 25 2250 + 280 300 + 30 3390 + 340
5/16 -- 24 UNF 138 + 17 128 + 17 1446 + 192 225 + 25 2540 + 280 325 + 30 3670 + 340
ft--lb ft--lb N--m ft--lb N--m ft--lb N--m
3/8 -- 16 UNC 16 + 216 + 222 + 330 + 341 + 443 + 458 + 5
3/8 -- 24 UNF 17 + 218 + 224 + 335 + 347 + 450 + 468 + 5
7/16 -- 14 UNC 27 + 327 + 337 + 450 + 568 + 770 + 795 + 9
7/16 -- 20 UNF 29 + 329 + 339 + 455 + 575 + 777 + 7104 + 9
1/2 -- 13 UNC 30 + 348 + 765 + 975 + 8102 + 11 105 + 10 142 + 14
1/2 -- 20 UNF 32 + 353 + 772 + 985 + 8115 + 11 120 + 10 163 + 14
5/8 -- 11 UNC 65 + 10 88 + 12 119 + 16 150 + 15 203 + 20 210 + 20 285 + 27
5/8 -- 18 UNF 75 + 10 95 + 15 129 + 20 170 + 15 230 + 20 240 + 20 325 + 27
3/4 -- 10 UNC 93 + 12 140 + 20 190 + 27 265 + 25 359 + 34 375 + 35 508 + 47
3/4 -- 16 UNF 115 + 15 165 + 25 224 + 34 300 + 25 407 + 34 420 + 35 569 + 47
7/8 -- 9 UNC 140 + 20 225 + 25 305 + 34 430 + 45 583 + 61 600 + 60 813 + 81
7/8 -- 14 UNF 155 + 25 260 + 30 353 + 41 475 + 45 644 + 61 660 + 60 895 + 81
NOTE: Reduce torque values listed in the table above
by 25% for lubricated fasteners. Lubricated fasteners
are defined as threads coated with a lubricant such as
oil, graphite or thread sealant such as Loctite.
NOTE: Torque values may have to be reduced when
installing fasteners into threaded aluminum or brass.
The specific torque value should be determined based
on the fastener size, the aluminum or base material
strength, length of thread engagement, etc.
NOTE: The nominal torque values listed above for
Grade 5 and 8 fasteners are based on 75% of the mini-
mum proof load specified in SAE J429. The tolerance is
approximately + 10% of the nominal torque value. Thin
height nuts include jam nuts.

Greensmaster 3150 Page 2 -- 5 Product Records and Maintenance
Standard Torque for Dry, Zinc Plated and Steel Fasteners (Metric Fasteners)
Thread Size Class 8.8 Bolts, Screws and Studs with
Regular Height Nuts
(Class 8 or Stronger Nuts)
Class 10.9 Bolts, Screws and Studs with
Regular Height Nuts
(Class 10 or Stronger Nuts)
M5 X 0.8 57 + 5in--lb 640 + 60 N--cm 78 + 7in--lb 885 + 80 N--cm
M6 X 1.0 96 + 9in--lb 1018 + 100 N--cm 133 + 13 in--lb 1500 + 150 N--cm
M8 X 1.25 19 + 2ft--lb 26 + 3N--m 27 + 2ft--lb 36 + 3N--m
M10 X 1.5 38 + 4ft--lb 52 + 5N--m 53 + 5ft--lb 72 + 7N--m
M12 X 1.75 66 + 7ft--lb 90 + 10 N--m 92 + 9ft--lb 125 + 12 N--m
M16 X 2.0 166 + 15 ft--lb 225 + 20 N--m 229 + 22 ft--lb 310 + 30 N--m
M20 X 2.5 325 + 33 ft--lb 440 + 45 N--m 450 + 37 ft--lb 610 + 50 N--m
NOTE: Reduce torque values listed in the table above
by 25% for lubricated fasteners. Lubricated fasteners
are defined as threads coated with a lubricant such as
oil, graphite or thread sealant such as Loctite.
NOTE: Torque values may have to be reduced when
installing fasteners into threaded aluminum or brass.
The specific torque value should be determined based
on the fastener size, the aluminum or base material
strength, length of thread engagement, etc.
NOTE: The nominal torque values listed above are
based on 75% of the minimum proof load specified in
SAEJ1199.Thetoleranceisapproximately+10%ofthe
nominal torque value.
Product Records
and Maintenance

Greensmaster 3150Page 2 -- 6Product Records and Maintenance
Other Torque Specifications
SAE Grade 8 Steel Set Screws
Thread Size Recommended Torque
Square Head Hex Socket
1/4 -- 20 UNC 140 + 20 in--lb 73 + 12 in--lb
5/16 -- 18 UNC 215 + 35 in--lb 145 + 20 in--lb
3/8 -- 16 UNC 35 + 10 ft--lb 18 + 3ft--lb
1/2 -- 13 UNC 75 + 15 ft--lb 50 + 10 ft--lb
Thread Cutting Screws
(Zinc Plated Steel)
Type 1, Type 23 or Type F
Thread Size Baseline Torque*
No. 6 -- 32 UNC 20 + 5in--lb
No. 8 -- 32 UNC 30 + 5in--lb
No. 10 -- 24 UNC 38 + 7in--lb
1/4 -- 20 UNC 85 + 15 in--lb
5/16 -- 18 UNC 110 + 20 in--lb
3/8 -- 16 UNC 200 + 100 in--lb
Wheel Bolts and Lug Nuts
Thread Size Recommended Torque*
7/16 -- 20 UNF
Grade 5 65 + 10 ft--lb 88 + 14 N--m
1/2 -- 20 UNF
Grade 5 80 + 10 ft--lb 108 + 14 N--m
M12 X 1.25
Class 8.8 80 + 10 ft--lb 108 + 14 N--m
M12 X 1.5
Class 8.8 80 + 10 ft--lb 108 + 14 N--m
* For steel wheels and non--lubricated fasteners.
Thread Cutting Screws
(Zinc Plated Steel)
Thread
Size Threads per Inch Baseline Torque**
Type A Type B
No. 6 18 20 20 + 5in--lb
No. 8 15 18 30 + 5in--lb
No. 10 12 16 38 + 7in--lb
No. 12 11 14 85 + 15 in--lb
** Hole size, material strength, material thickness & fin-
ish must be considered when determining specific
torquevalues.Alltorquevaluesarebasedonnon--lubri-
cated fasteners.
Conversion Factors
in--lb X 11.2985 = N--cm N--cm X 0.08851 = in--lb
ft--lb X 1.3558 = N--m N--m X 0.7376 = ft--lb

Greensmaster 3150 Page 3 -- 1 Engine
Chapter 3
Engine
Table of Contents
GENERAL INFORMATION 2.....................
Operator’s Manual 2..........................
SPECIFICATIONS 3............................
SERVICE AND REPAIRS 4......................
Fuel Tank 4..................................
Engine 6.....................................
Engine Removal 7...........................
Engine Installation 7.........................
Fuel Evaporative Control System 10.............
BRIGGS&STRATTONVANGUARDV--TWINOHVRE-
PAIR MANUAL
Engine

Greensmaster 3150Page 3 -- 2Engine
General Information
This Chapter gives information about specifications,
maintenance, troubleshooting, testing and repair of the
engine used in the Greensmaster 3150.
Most repairs and adjustments require tools which are
commonly available in many service shops. Special
tools are described in the Briggs & Stratton Vanguard
V-Twin OHV Repair Manual. The use of some special-
ized test equipment is explained. However, the cost of
the test equipment and the specialized nature of some
repairs may dictate that the work be done at an engine
repair facility.
Service and repair parts for Briggs & Stratton Vanguard
V-Twin OHV engines are supplied throughyour local lo-
cal Toro distributor. If no partslist is available, be sureto
provide your distributor with the Toro model and serial
numberalongwiththe enginemodeland serialnumber.
Operator’s Manual
The Traction Unit Operator’s Manual provides informa-
tion regarding the operation, general maintenance and
maintenanceintervalsfor yourGreensmaster3150ma-
chine. Refer to the Operator’s Manual for additional in-
formation when servicing the machine.

Greensmaster 3150 Page 3 -- 3 Engine
Specifications
Item Description
Make / Designation Briggs and Stratton, 4--cycle, V--Twin Cylinder,
OHV, Air Cooled, Gasoline Engine -- Model 356447
Bore x Stroke 2.83” x 2.76” (72 mm x 70 mm)
Total Displacement 34.8 in3(570 cc)
Governor Mechanical Governor
Carburetor Float Feed
Fuel Pump Pulsating Crankcase Vacuum
Fuel Unleaded, regular grade gasoline
Fuel Tank Capacity 7.0 U.S. gallons (26.5 liters)
Low Idle (no load) 1650 + 100 RPM
High Idle (no load) 2850 + 50 RPM
Lubrication System Pressure Lubrication, Gear Driven Geroter Oil Pump
Engine Oil See Operator’s Manual
Crankcase Oil Capacity 1.75 U.S. quarts (1.65 liters) with new filter
Ignition System Flywheel magneto, twin electronic armatures
Spark Plugs Champion RC 14YC (or equivalent)
Spark Plug Gap 0.030” (0.76 mm)
Alternator 16 Amp
Dry Weight (approximate) 84 lb (38 kg)
Engine

Greensmaster 3150Page 3 -- 4Engine
Service and Repairs
Fuel Tank
Figure 1
FRONT
RIGHT
30 to 60 in--lb
(3.4 to 6.7 N--m)
Antiseize
Lubricant
1. Fuel filter
2. Hose clamp
3. Fuel hose (filter to engine)
4. Fuel cap
5. Fuel tank
6. Grommet (4 used)
7. Flat washer (4 used)
8. Hose support clamp
9. Cap screw (4 used)
10. Cap screw
11. Hose support clamp
12. Vehicle frame
13. Fuel tank vent fitting
14. Fuel hose (shut--off valve to filter)
15. Fuel shut--off valve
16. Hose clamp
17. Fuel hose (tank to shut--off valve)
18. Hose clamp
19. Spacer
20. Hose clamp
21. Fuel vent hose (fitting to cannister)
22. Grommet
118 3
4
5
6
7
8
9
2
2
7
818
610
11
19
9
14
15
16
17
16
6
7
12
13
20
21
22
