Toro Groundsmaster 4000 User manual

FormNo.3428-799RevA
Groundsmaster®4000or4010
RotaryMower
ModelNo.30609—SerialNo.403450001andUp
ModelNo.30636—SerialNo.403450001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3428-799*A

ThisproductcomplieswithallrelevantEuropean
directives;fordetailspleaseseetheseparateproduct
specicDeclarationofConformity(DOC)sheet.
ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineon
anyforest-covered,brush-covered,orgrass-covered
landunlesstheengineisequippedwithaspark
arrester,asdenedinSection4442,maintainedin
effectiveworkingorderortheengineisconstructed,
equipped,andmaintainedforthepreventionofre.
Theenclosedengineowner'smanualissupplied
forinformationregardingtheUSEnvironmental
ProtectionAgency(EPA)andtheCaliforniaEmission
ControlRegulationofemissionsystems,maintenance,
andwarranty.Replacementsmaybeorderedthrough
theenginemanufacturer.
WARNING
CALIFORNIA
Proposition65Warning
Dieselengineexhaustandsomeofits
constituentsareknowntotheStateof
Californiatocausecancer,birthdefects,
andotherreproductiveharm.
Batteryposts,terminals,andrelated
accessoriescontainleadandlead
compounds,chemicalsknownto
theStateofCaliforniatocause
cancerandreproductiveharm.Wash
handsafterhandling.
Useofthisproductmaycauseexposure
tochemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Introduction
Thismachineisamulti-purposemachineintended
tobeusedbyprofessional,hiredoperatorsin
commercialapplications.Itisdesignedprimarilyfor
mowinggrassonwell-maintainedlawnsinparks,golf
courses,sportselds,andoncommercialgrounds.
Usingthisproductforpurposesotherthanitsintended
usecouldprovedangeroustoyouandbystanders.
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.
Visitwww.T oro.comforproductsafetyandoperation
trainingmaterials,accessoryinformation,helpnding
adealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineT oroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
Important:Withyourmobiledevice,youcan
scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.
g239270
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.
g000502
Figure2
1.Safety-alertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
©2019—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

Contents
Safety.......................................................................4
GeneralSafety...................................................4
Engine-EmissionCertication.............................4

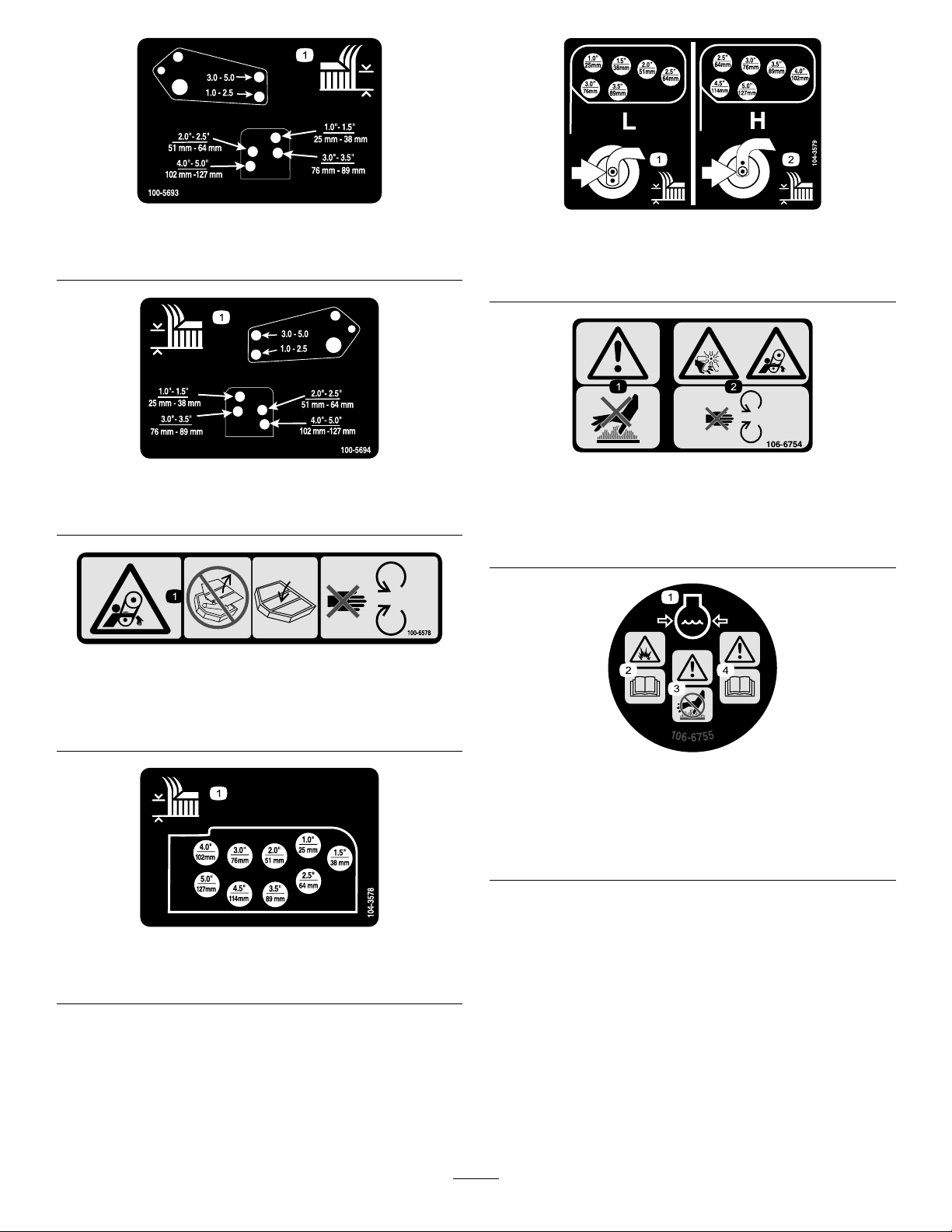

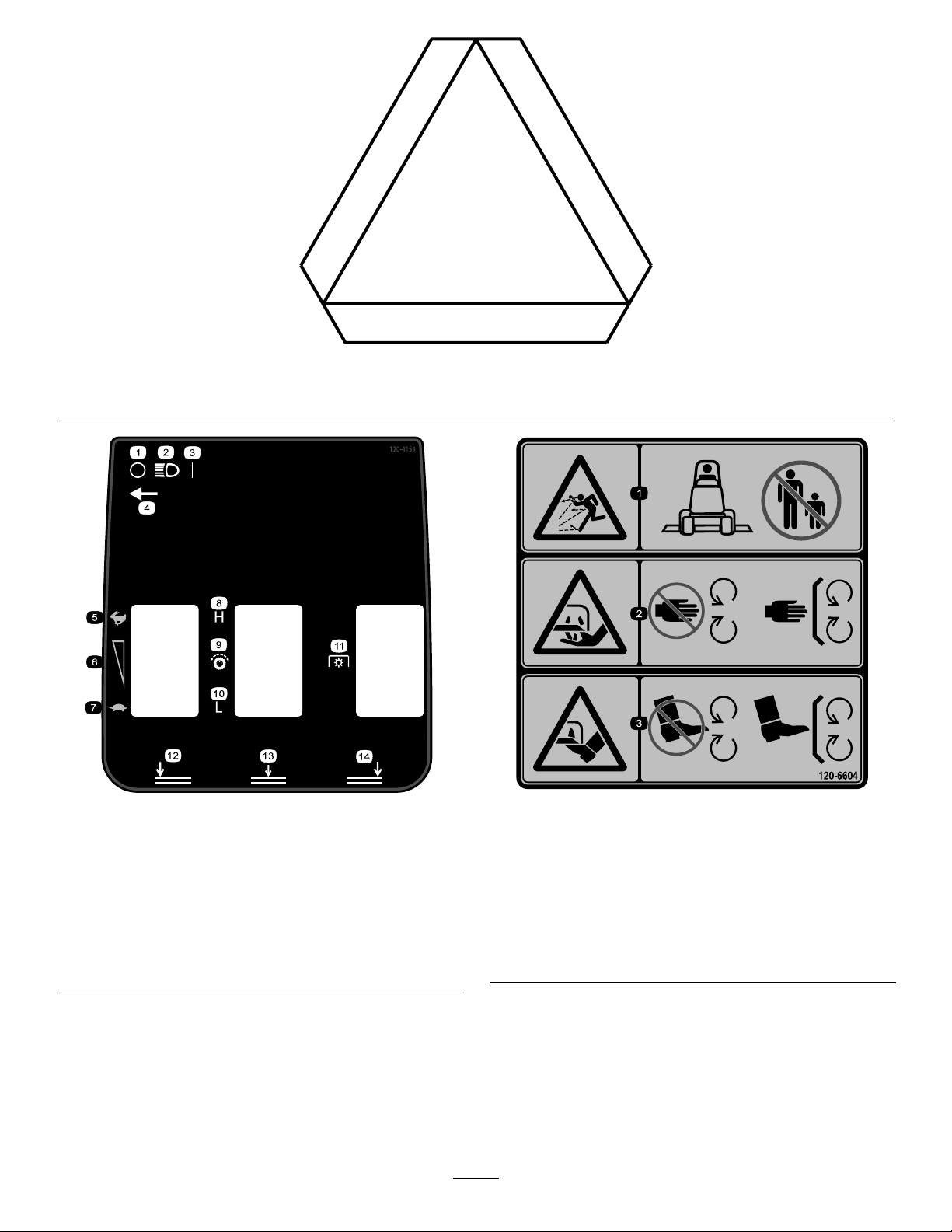

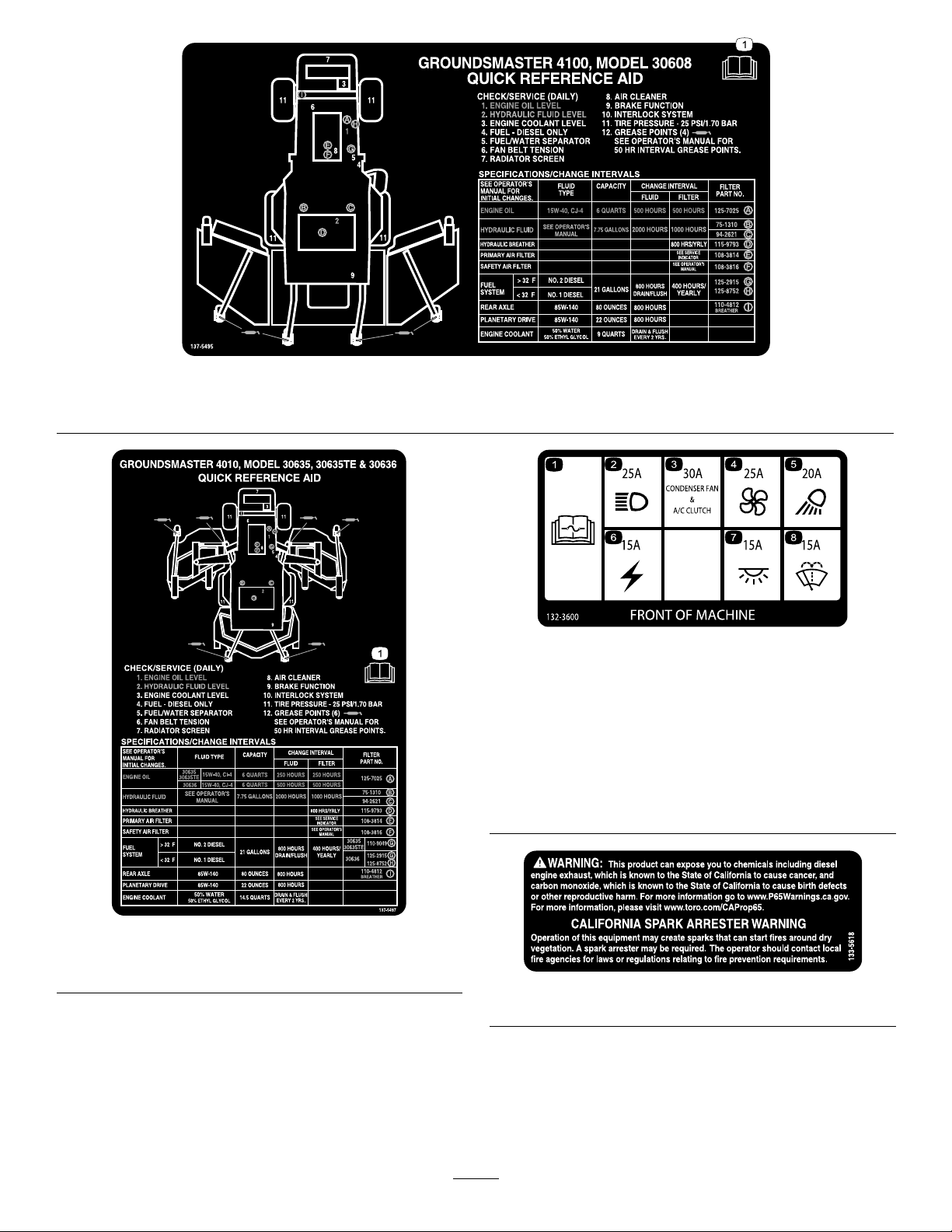

SafetyandInstructionalDecals..........................5
Setup......................................................................14
1GreasingtheMachine....................................14
2CheckingtheTirePressure............................14
3CheckingtheFluidLevels..............................15
4InstallingtheDecal(CEMachines
Only).............................................................15
ProductOverview...................................................16
Controls...........................................................16
CabControls.................................................18
Specications..................................................23
Attachments/Accessories.................................24
BeforeOperation.................................................24
BeforeOperationSafety...................................24
CheckingtheEngine-OilLevel..........................25
CheckingtheCoolingSystem...........................25
CheckingtheHydraulicSystem........................25
FillingtheFuelTank..........................................25
CheckingtheTirePressure...............................27
CheckingtheTorqueoftheWheelLug
Nuts..............................................................27
CheckingthePlanetary-Gear-Drive
Oil.................................................................27
CheckingtheRear-AxleLubricant....................28
CheckingtheRear-Axle-Gearbox
Lubricant.......................................................28
AdjustingtheRollBar.......................................29
AdjustingtheHeightofCut...............................29
AdjustingtheSkids...........................................32
AdjustingtheCuttingUnitRollers......................33
CorrectingaMismatchBetweentheCutting
Units..............................................................33
CheckingtheSafety-InterlockSwitches............35
AdjustingtheMirrors.........................................35
AimingtheHeadlights.......................................36
ActivatingtheQuietMode.................................36
DuringOperation.................................................36
DuringOperationSafety...................................36
StartingtheEngine...........................................37
ShuttingOfftheEngine.....................................38
UnderstandingSmartPower®Traction.............38
PerformingaFan-ReverseOperation...............38
UnderstandingAutoIdle...................................38
UsingCruiseControl.........................................38
DieselParticulateFilterRegeneration...............38
UsingtheEngine-SpeedSwitch........................50
AdjustingtheMowingSpeed............................51
AdjustingtheTransportSpeed..........................51
UnderstandingtheOperatingCharacteristics
oftheMachine..............................................51
OperatingTips.................................................52
AfterOperation....................................................53
GeneralSafety.................................................53
PushingorTowingtheMachine........................53
LocatingtheJackingPoints..............................54
HaulingtheMachine.........................................54
LocatingtheTie-DownPoints...........................54
Maintenance...........................................................55
MaintenanceSafety..........................................55
RecommendedMaintenanceSchedule(s)...........55
DailyMaintenanceChecklist.............................57
Pre-MaintenanceProcedures..............................58
RemovingtheHood..........................................58
Lubrication..........................................................58
GreasingtheBearingsandBushings................58
EngineMaintenance...........................................61
EngineSafety...................................................61
ServicingtheEngineOil....................................61
ServicingtheAirCleaner..................................62
ServicingtheDiesel-OxidationCatalyst
(DOC)andtheSootFilter..............................63
FuelSystemMaintenance...................................64
ServicingtheFuelSystem................................64
ServicingtheWaterSeparator..........................64
ServicingtheFuelFilter....................................65
ElectricalSystemMaintenance...........................65
ElectricalSystemSafety...................................65
ServicingtheBattery.........................................65
LocatingtheFuses...........................................66
DriveSystemMaintenance..................................67
AdjustingtheTraction-PedalAngle...................67
ChangingthePlanetary-Gear-Drive
Oil.................................................................67
ChangingtheRear-AxleOil..............................68
CheckingtheRearWheelT oe-In......................69
CoolingSystemMaintenance..............................69
CoolingSystemSafety.....................................69
CheckingtheCoolingSystem...........................69
ServicingtheEngine-CoolingSystem...............70
BrakeMaintenance.............................................71
AdjustingtheServiceBrakes............................71
BeltMaintenance................................................71
ServicingtheAlternatorBelt.............................71
ServicingtheCompressorBelt..........................71
TensioningtheBlade-DriveBelts......................72
ReplacingtheBlade-DriveBelt.........................72
HydraulicSystemMaintenance...........................73
HydraulicSystemSafety...................................73
ServicingtheHydraulicSystem........................73
CuttingUnitMaintenance.....................................76
Pivoting(Tilting)theFrontCuttingUnittothe
UprightPosition.............................................76
PivotingtheFrontCuttingUnitDown.................76
AdjustingtheCuttingUnitPitch.........................76
ServicingtheCaster-ArmBushings..................77
ServicingtheCasterWheelsand
Bearings........................................................78
BladeMaintenance..............................................79
BladeSafety.....................................................79
CheckingforaBentBlade................................79
3

RemovingandInstallingtheCutting-Unit
Blade(s)........................................................79
InspectingandSharpeningtheCuttingUnit
Blade(s)........................................................79
CorrectingaCuttingUnitMismatch...................80
CabMaintenance.................................................81
CleaningtheCab..............................................81
CleaningtheCabAirFilters..............................81
CleaningtheCabPre-Filter..............................82
CleaningtheAir-ConditioningAssembly
......................................................................82
Storage...................................................................83
StorageSafety..................................................83
PreparingtheMachineforStorage...................83
Safety
Thismachinehasbeendesignedinaccordancewith
CENstandardANSIB71.4-2017andISOEN5395
whenyouinstalltheproperCEKitsandcompletethe
setupprocedures.
GeneralSafety
Thisproductiscapableofamputatinghandsand
feetandofthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriouspersonalinjury.
•Readandunderstandthecontentsofthis
Operator’sManualbeforestartingtheengine.
•Useyourfullattentionwhileoperatingthe
machine.Donotengageinanyactivitythat
causesdistractions;otherwise,injuryorproperty
damagemayoccur.
•Donotoperatethemachinewithoutallguards
andothersafetyprotectivedevicesinplaceand
functioningproperlyonthemachine.
•Keepyourhandsandfeetawayfromrotating
parts.Keepclearofthedischargeopening.
•Keepbystandersandchildrenoutoftheoperating
area.Neverallowchildrentooperatethemachine.
•Shutofftheengine,removethekey(ifequipped),
andwaitforallmovementtostopbeforeyouleave
theoperator’sposition,Allowthemachinetocool
beforeadjusting,servicing,cleaning,orstoringit.
Improperlyusingormaintainingthismachinecan
resultininjury.Toreducethepotentialforinjury,
complywiththesesafetyinstructionsandalways
payattentiontothesafety-alertsymbol,which
meansCaution,Warning,orDanger—personalsafety
instruction.Failuretocomplywiththeseinstructions
mayresultinpersonalinjuryordeath.
Engine-Emission
Certication
TheengineinthismachineisEPATier4FinalandEU
StageVemissionscompliant.
4

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decalbatterysymbols
BatterySymbols
Someorallofthesesymbolsareonyourbattery.
1.Explosionhazard6.Keepbystandersaway
fromthebattery.
2.Nore,opename,or
smoking
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries.
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection.9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator's
Manual.
10.Containslead;donot
discard
decal93-7272
93-7272
1.Cutting/dismembermenthazard;fan—stayawayfrom
movingparts.
decal93-7818
93-7818
1.Warning—readtheOperator'sManualforinstructionson
torquingthebladebolt/nutto115to149N∙m(85to110
ft-lb).
decal100-5622
100-5622
1.Height-of-cutadjustment
decal100-5623
100-5623
1.Lowheight-of-cut
adjustment
2.Highheight-of-cut
adjustment
decal100-5624
100-5624
1.Height-of-cutadjustment
5

decal100-5693
100-5693
1.Height-of-cutadjustment
decal100-5694
100-5694
1.Height-of-cutadjustment
decal100-6578
100-6578
1.Entanglementhazard,belt—donotoperatethemachine
withtheshieldsorguardsremoved;alwayskeeptheshields
andguardsinplace;stayawayfrommovingparts.
decal104-3578
104-3578
1.Height-of-cutadjustment
decal104-3579
104-3579
1.Lowheight-of-cut
adjustment
2.Highheight-of-cut
adjustment
decal106-6754
106-6754
1.Warning—donottouchthehotsurface.
2.Cutting/dismembermenthazard,fan;entanglementhazard,
belt—stayawayfrommovingparts.
decal106-6755
106-6755
1.Enginecoolantunder
pressure.
3.Warning—donottouchthe
hotsurface.
2.Explosionhazard—read
theOperator'sManual.
4.Warning—readthe
Operator'sManual.
6

decal114-0846
114-0846
1.ReadtheOperator’sManualforinformationonstartingthe
engine—1)Settoneutral;2)Engagethebrake;3)Setthe
enginespeedtoslow;4)Turnthekeytopreheat;5)Turn
thekeytostarttheengine.
2.ReadtheOperator’sManualforinformationonshuttingoff
theengine—1)Settheenginespeedtoslow;2)Disengage
thedeck;3)Locktheparkingbrake;4)Wait5minutes;5)
Turnthekeytoshutofftheengine;6)Removethekey
fromtheswitch.
3.ReadtheOperator’sManual.
4.PulltheknobouttoengagethePTO.
5.PushtheknobintodisengagethePTO.
6.RaisethedeckstogotoHrange.
decal114-0849
114-0849
1.Warning—1)Disengage
thePTO;2)Raisethedeck
4.Forwarddirection
2.Donotplaceyourfoot
here.
5.Reversedirection
3.Directionpedal
decal117-4765
117-4765
1.ReadtheOperator'sManual.
2.Donotusestartingaids.
7

decal120-0250
120-0250
1.Slow-movingvehicle
decal120-4159
120-4159
1.Off8.High
2.Lights9.Tractiondrive
3.On10.Low
4.Lightswitchlocation11.PTO
5.Fast12.Lowerleftdeck
6.Variablespeedadjustment13.Lowercenterdeck
7.Slow14.Lowerrightdeck
decal120-6604
120-6604
1.Thrownobjecthazard—keepbystandersawayfromthe
machine.
2.Cutting/dismembermenthazardofhand,mower
blade—stayawayfrommovingparts,keepallguardsand
shieldsinplace.
3.Cutting/dismembermenthazardoffoot,mowerblade—stay
awayfrommovingparts,keepallguardsandshieldsin
place.
8

decal120-8947
120-8947
1.Warning—readthe
Operator’sManual.
4.Iftherollbarisraised,
weartheseatbelt.
2.Thereisnorollover
protectionwhentheroll
barisdown.
5.Iftherollbarislowered,
donotweartheseatbelt.
3.Thereisrolloverprotection
whentherollbarisup.
6.Driveslowlywhenturning.
decal121-1599
121-1599
1.ReadtheOperator’sManualforinformationonfuses.
decal121-3884
121–3884
1.Engine—stop3.Engine—start
2.Engine—preheat
decal121-3887
121–3887
1.ReadtheOperator’sManual.
decal125-9688
125-9688
ModelwithCabOnly
1.Windshieldwipers(off)3.Windshieldwipers(on)
2.Windshieldwipers4.Spraywindshieldwasher
uid
9

decal127-3700
127-3700
1.Raisetheleftdeck.4.Locktheenginespeed.
2.Raisethecenterdeck.5.Unlocktheenginespeed.
3.Raisetherightdeck.
decal130-0594
130-0594
1.Warning—readtheOperator’sManual;whensittinginthe
cab,alwayswearaseatbelt;wearhearingprotection.
decal130-0611
130-0611
ModelwithCabOnly
1.Warning—1)Removethepin;2)Raisethedoors;3)Exit
thecab.
decal130-5355
130-5355
1.Closetherearwindow.2.Raisethehood.
decal130-5356
130-5356
1.Usethefootpedaltomoveforwardorinreverse.
10

decal117-2754
117-2754
1.Warning—readtheOperator'sManual.
2.Warning—donotoperatethismachineunlessyouaretrained.
3.Warning—weartheseatbeltwhenseatedintheoperator'sposition.
4.Warning—wearhearingprotection.
5.Thrownobjecthazard—keepbystandersaway.
6.Cuttinghazardofhandorfoot—stayawayfrommovingparts;keepallguardsandshieldsinplace.
7.Tippinghazard—lowerthecuttingunitwhendrivingdownslopes;slowthemachinebeforeturning;donotturnathighspeeds.
8.Warning—engagetheparkingbrake,shutofftheengine,andremovethekeybeforeleavingthemachine.
decal121-8378
121-8378
ModelwithCabOnly
1.Fan(off)3.Coldair5.Externalair7.Airconditioner(off)
2.Fan(onfull)4.Hotair6.Internalair8.Airconditioner(on)
11

decal137-5495
137-5495
1.ReadtheOperator’sManual.
decal137-5497
137-5497
1.ReadtheOperator’sManual.
decal132-3600
132-3600
ModelwithCabOnly
1.ReadtheOperator's
Manualformore
informationonfuses.
5.Workinglight(20A)
2.Headlight(25A)6.Auxiliarypower(15A)
3.CondenserfanandA/C
clutch(30A)
7.Cablight(15A)
4.Fan(25A)8.Windshieldwipers(15A)
decal133-5618
133-5618
12

decal136-4436
136-4436
1.ReadtheOperator’sManualforinformationonfuses.7.Infocenter—2A
2.Enginepreheat—60A8.Headlights—15A
3.Powersupply—7.5A9.Powerseat—10A
4.Turnsignals—10A10.Lighter—10A
5.Enginecontrolunit—10A11.Horn—10A
6.Systempower—10A
13

Setup
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
ProcedureDescriptionQty.Use
1Nopartsrequired–Greasethemachine.
2Nopartsrequired–Checkthetirepressure.
3Nopartsrequired–Checktheuidlevels.
4Production-yeardecal1Installthedecal(CEMachinesOnly).
MediaandAdditionalParts
DescriptionQty.Use
Operator'sManual1Reviewbeforeoperatingthemachine.
Engineowner’smanual1Usetoreferenceengineinformation.
DeclarationofConformity1
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
1
GreasingtheMachine
NoPartsRequired
Procedure
Greasethemachinebeforeuse;refertoLubrication
(page58).
Important:Failuretoproperlygreasethe
machinewillresultinprematurefailureofcritical
parts.
2
CheckingtheTirePressure
NoPartsRequired
Procedure
Checkthetirepressure;refertoCheckingtheTire
Pressure(page27).
Important:Maintainpressureinalltiresto
ensureagoodquality-of-cutandpropermachine
performance.Donotunderinatethetires.
14

3
CheckingtheFluidLevels
NoPartsRequired
Procedure
1.Checktheengine-oillevel;refertoCheckingthe
Engine-OilLevel(page61).
2.Checkthehydraulic-uidlevel;refertoServicing
theHydraulicSystem(page73).
3.Checkthecoolingsystem;refertoCheckingthe
CoolingSystem(page69).
4.Checktheplanetary-gear-driveoil;referto
CheckingthePlanetary-Gear-DriveOil(page
27).
5.Checktherear-axlelubricant;refertoChecking
theRear-AxleLubricant(page28).
6.Checktherear-axle-gearboxlubricant;refer
toCheckingtheRear-Axle-GearboxLubricant
(page28).
4
InstallingtheDecal(CE
MachinesOnly)
Partsneededforthisprocedure:
1Production-yeardecal
Procedure
OnmachinesrequiringCEcompliance,installthe
production-yeardecalincludedinthelooseparts
(Figure3).
g279510
Figure3
1.Production-yeardecal
15

ProductOverview
Controls
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine.
g196908
Figure4
1.Brakepedals3.Tractionpedal
2.Pedal-lockinglatch4.Tilt-steeringlever
TractionPedal
Tostopthemachine,reduceyourfootpressureon
thetractionpedalandallowittoreturntothecenter
position(Figure4).
BrakePedals
Thereare2footpedalsthatoperateindividualwheel
brakesforturningassistance,parking,andtoaidin
betterside-hilltraction.Alatchconnectsthepedals
forparking-brakeoperationandtransport(Figure4).
Pedal-LockingLatch
Thepedal-lockinglatchconnectsthepedalstogether
toengagetheparkingbrake(Figure4).
Tilt-SteeringLever
Pressthetilt-steeringleverdowntotiltthesteering
wheeltothedesiredposition,thenreleasethelever
tolocktheadjustment(Figure4).
Parking-BrakeLatch
Aknobontheleftsideoftheconsoleactuatesthe
parking-brakelock(Figure4).
Toengagetheparkingbrake,connectthepedalswith
thelockinglatch,pushdownonbothpedals,andpull
theparking-brakelatchout.T oreleasetheparking
brake,pressbothpedalsuntiltheparking-brakelatch
retracts.
KeySwitch
Thekeyswitch(Figure5)has3positions:OFF,
ON/PREHEAT,andSTART.
g028453
Figure5
1.Liftswitches5.High-Lowspeedcontrol
2.PTOswitch6.Engine-speedswitch
3.Keyswitch7.Lightswitch(optional)
4.InfoCenter
Engine-SpeedSwitch
Theengine-speedswitch(Figure5)has2modesto
changetheenginespeed.Taptheswitchtoincrease
ordecreasetheenginespeedin100rpmincrements.
HolddowntheswitchtoautomaticallymovetoHigh
orLowidle,dependingonwhichendoftheswitch
youpress.
PTOSwitch
ThePTOswitchhas2positions:OUT(START)and
IN(STOP).PullthePTObuttonouttoengagethe
mower-deckblades.Pushthebuttonintodisengage
themower-deckblades(Figure5).
High-LowSpeedControl
Theswitch(Figure5)allowsthespeedrangeto
increasefortransportingthemachine.T oswitch
betweentheHighandLowspeedranges,raisethe
cuttingunits,disengagethePTOandthecruise
control,putthetractionpedalintotheNEUTRAL
position,andmovethemachineataslowspeed.
Note:Thecuttingunitsdonotoperateand/orcannot
beloweredfromthetransportpositionwhenthe
switchisinthehighrange.
16

LiftSwitches
Theliftswitchesraiseandlowerthecuttingunits
(Figure5).Presstheswitchesforwardtolowerthe
cuttingunitsandrearwardtoraisethecuttingunits.
Whenstartingthemachine,withthecuttingunitsin
thedownposition,presstheliftswitchdowntoallow
thecuttingunitstooatandmow.
Note:Thecuttingunitsdonotlowerwhileinthe
high-speedrangeandtheydonotraiseorlowerifyou
areoutoftheseatwhiletheengineisrunning.Also,
thecuttingunitslowerwiththekeyintheONposition
andyouareintheseat.
Cruise-ControlSwitch
Thecruise-controlswitchlocksinthepedalposition
tomaintainthedesiredgroundspeed(Figure6).
Pressingtherearoftheswitchturnsoffthecruise
control,themiddlepositionoftheswitchenablesthe
cruise-controlfunction,andthefrontoftheswitchsets
thedesiredgroundspeed.
Note:Pressingeitherbrakepedalormovingthe
tractionpedalintothereverseposition,for1second,
alsodisengagesthepedalposition.
g028454
Figure6
1.Power-pointswitch2.Cruise-controlswitch
Power-PointPort
Usethepower-pointporttopoweroptionalelectrical
accessories(Figure6).
SeatAdjustments
Seat-AdjustmentLever
Movetheseat-adjustmentleveronthesideofthe
seatoutward,slidetheseattothedesiredposition,
andreleasethelevertolocktheseatintoposition
(Figure7).
g008837
Figure7
1.Weightgauge4.Seat-backadjustment
lever
2.Weight-adjustmentlever5.Armrest-adjustmentknob
(notshown;locatedunder
armrest)
3.Seat-adjustmentlever
Armrest-AdjustmentKnob
Rotatetheknobtoadjustthearmrestangle.
Note:Theadjustmentknobislocatedunderthe
armrest.
Seat-Back-AdjustmentLever
Movethelevertoadjusttheseat-backangle(Figure
7).
WeightGauge
Theweightgaugeindicateswhentheseatisadjusted
totheweightoftheoperator(Figure7).Adjustthe
heightbypositioningthesuspensionwithintherange
ofthegreenregion.
Weight-AdjustmentLever
Usethislevertoadjusttotheproperweightofthe
operator(Figure7).Pullupthelevertoincrease
theairpressureandpushdowntodecreasetheair
pressure.Theproperadjustmentiscorrectwhenthe
weightgaugeisinthegreenregion.
17

CabControls
g032672
Figure8
1.Air-conditioningswitch4.Temperaturecontrol
2.Air-recirculationcontrol5.Windshield-wiperswitch
3.Fancontrol6.Blankswitchesforoptional
kits
Air-RecirculationControl
Theair-recirculationcontrolsetsthecabtoeither
recirculatetheairinthecabinortodrawairintothe
cabinfromoutside(Figure8).
•Setittorecirculatetheairwhenusingthe
air-conditioning.
•Setittodrawairinwhenusingtheheaterorfan.
Fan-ControlKnob
Rotatethefan-controlknobtoregulatethespeedof
thefan(Figure8).
Temperature-Control-Knob
Rotatethetemperature-controlknobtoregulatethe
airtemperatureinthecab(Figure8).
Windshield-WiperSwitch
Usethisswitchtoturnthewindshieldwipersonor
off(Figure8).
Air-ConditioningSwitch
Usethisswitchtoturntheairconditioningonoroff
(Figure8).
WindshieldLatch
Liftupthelatchestoopenthewindshield(Figure
9).PressinthelatchtolockwindshieldtotheOPEN
position.Pulloutanddownonthelatchtocloseand
securethewindshield.
g196911
Figure9
1.Windshieldlatch
RearWindowLatch
Liftupthelatchestoopentherearwindow.Pressin
onthelatchtolockthewindowinOPENposition.Pull
outanddownonthelatchtocloseandsecurethe
window(Figure9).
Important:Closetherearwindowbeforeopening
thehoodordamagemayoccurtothehoodorrear
window.
18

UsingtheInfoCenterControl
TheInfoCenterLCDdisplayshowsinformationabout
yourmachine,suchastheoperatingstatus,various
diagnosticsandotherinformationaboutthemachine
(Figure10).Thereisasplashscreenandmain
informationscreenoftheInfoCenter.Youcanswitch
betweenthesplashscreenandmaininformation
screenatanytimebypressinganyoftheInfoCenter
buttonsandthenselectingtheappropriatedirectional
arrow.
g020650
Figure10
1.Indicatorlight3.Middlebutton
2.Rightbutton4.Leftbutton
•LeftButton,MenuAccess/BackButton—pressthis
buttontoaccesstheInfoCentermenus.Youcan
useittoexitanymenuthatyouarecurrentlyusing.
•MiddleButton—usethisbuttontoscrolldown
menus.
•RightButton—usethisbuttontoopenamenu
wherearightarrowindicatesadditionalcontent.
•Beeper—activatedwhenloweringthedecksorfor
advisoriesandfaults.
Note:Thepurposeofeachbuttonmaychange
dependingonwhatisrequiredatthetime.Each
buttonislabeledwithanicondisplayingitscurrent
function.
InfoCenterIconDescription
SERVICEDUEIndicateswhenscheduledservice
shouldbeperformed
Enginerpm/status—indicatesthe
enginerpm
Hourmeter
Infoicon
Setsthemaximumtractionspeed
Fast
Slow
FanReversal—indicateswhenthe
fanisreversed
Fuellevel
Stationaryregenerationrequired
Airintakeheaterisactive
Raisetheleftdeck
Raisethecenterdeck
Raisetherightdeck
Operatormustsitinseat
ParkingBrakeIndicator—indicates
whentheparkingbrakeison
IdentiestherangeasHigh
Neutral
IdentiestherangeasLow
CoolantTemperature-indicatesthe
enginecoolanttemperatureineither
°Cor°F
Temperature(hot)
TractionorTractionPedal
19

InfoCenterIconDescription(cont'd.)
Deniedornotallowed
EngineStart
PTO—indicatesthatthePTOison
Stoporshutdown
Engine
Keyswitch
Indicateswhenthecuttingunitsare
beinglowered
Indicateswhenthecuttingunitsare
beingraised
PINpasscode
Hydraulic-uid
Temperature—indicatesthe
hydraulic-uidtemperature
CANbus
InfoCenter
Badorfailed
Center
Right
Left
Bulb
OutputofTECcontrollerorcontrol
wireinharness
High:over-allowedrange
Low:under-allowedrange
/
Outofrange
Switch
Operatormustreleasetheswitch
InfoCenterIconDescription(cont'd.)
Operatorshouldchangetothe
indicatedstate
Symbolsareoften
combinedtoform
sentences.Some
examplesareshown
below
Operatorshouldputthemachinein
neutral
Enginestartdenied
Engineshutdown
Enginecoolantistoohot
Hydraulicuidistoohot
Sitdownorengagetheparkingbrake
DPFashaccumulationnotication.
RefertoServicingtheDiesel
ParticulateFilter(DPF)inthe
maintenancesectionfordetails
Reset-standbyregenerationrequest
Parkedorrecoveryregeneration
request
Aparkedorrecoveryregenerationis
processing.
Highexhausttemperature
NOxcontroldiagnosismalfunction;
drivethemachinebacktotheshop
andcontactyourauthorizedT oro
distributor(softwareversionRand
later).
UsingtheMenus
ToaccesstheInfoCentermenusystem,pressthe
menuaccessbuttonwhileatthemainscreen.This
willbringyoutothemainmenu.Refertothefollowing
tablesforasynopsisoftheoptionsavailablefrom
themenus:
MainMenu
MenuItemDescription
20
