FormNo.3393-870RevA
Groundsmaster®7210Series
TractionUnit
ModelNo.30695—SerialNo.315000001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3393-870*A

WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemicalorchemicals
knowntotheStateofCaliforniatocausecancer,
birthdefects,orreproductiveharm.
Dieselengineexhaustandsomeofits
constituentsareknowntotheStateof
Californiatocausecancer,birthdefects,
andotherreproductiveharm.
Becauseinsomeareastherearelocal,state,orfederal
regulationsrequiringthatasparkarresterbeusedonthe
engineofthismachine,asparkarresterisavailableas
anoption.Ifyourequireasparkarrester,contactyour
AuthorizedToroServiceDealer.
GenuineTorosparkarrestersareapprovedbytheUSDA
ForestryService.
Important:ItisaviolationofCaliforniaPublic
ResourceCodeSection4442touseoroperatetheengine
onanyforest-covered,brush-covered,orgrass-covered
landwithoutasparkarrestermufermaintainedin
workingorder,ortheengineconstricted,equipped,and
maintainedforthepreventionofre.Otherstatesor
federalareasmayhavesimilarlaws.
Introduction
Thismachineisaride-on,rotary-bladelawnmowerintended
tobeusedbyprofessional,hiredoperatorsincommercial
applications.Itisprimarilydesignedforcuttinggrass
onwell-maintainedlawnsinparks,sportselds,andon
commercialgrounds.Itisnotdesignedforcuttingbrush,
mowinggrassandothergrowthalongsidehighways,orfor
agriculturaluses.
Readthisinformationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperatingthe
productproperlyandsafely.
YoumaycontactTorodirectlyatwww .Toro.comforproduct
andaccessoryinformation,helpndingadealer,ortoregister
yourproduct.
Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourproductready.Figure1identiesthelocationofthe
modelandserialnumbersontheproduct.Writethenumbers
inthespaceprovided.
G020872
1
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafetyalertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.
Figure2
1.Safetyalertsymbol
Thismanualalsouses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.
©2014—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA.
AllRightsReserved

Contents
Safety...........................................................................4
SafeOperatingPractices...........................................4
ToroRidingMowerSafety........................................5
EngineEmissionCertication...................................6

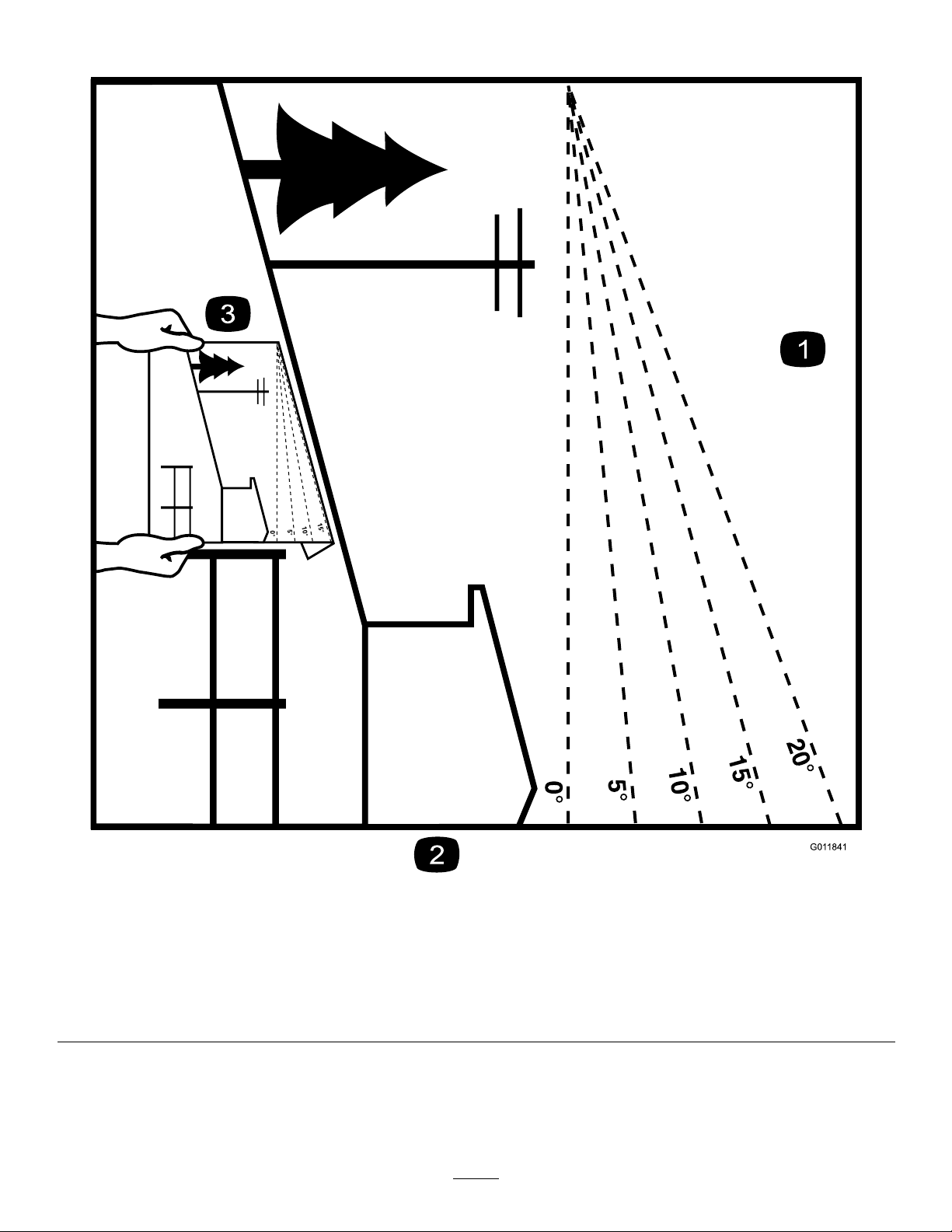

SlopeIndicator.......................................................7
SafetyandInstructionalDecals.................................8
Setup...........................................................................11
1RaisingtheRollBar..............................................11
2CheckingtheTirePressure....................................11
3CheckingFluidLevels...........................................12
ProductOverview.........................................................12
Controls...............................................................12
Specications........................................................16
Attachments/Accessories........................................16
Operation....................................................................16
AddingFuel...........................................................16
FillingtheFuelTank...............................................17
CheckingtheEngineOilLevel.................................17
CheckingtheCoolingSystem...................................17
CheckingtheHydraulicSystem................................17
UsingtheRolloverProtectionSystem(ROPS)............18
ThinkSafetyFirst...................................................18
OperatingtheParkingBrake....................................19
StartingandStoppingtheEngine..............................20
DrivingtheMachine...............................................21
StoppingtheMachine.............................................21
OperatingtheMower..............................................22
AdjustingtheHeight-of-Cut....................................22
TheSafetyInterlockSystem.....................................23
PositioningtheSeat................................................25
UnlatchingtheSeat.................................................25
PushingtheMachinebyHand..................................26
LoadingMachines..................................................26
TransportingMachines............................................27
OperatingTips......................................................27
Maintenance.................................................................29
RecommendedMaintenanceSchedule(s)......................29
DailyMaintenanceChecklist....................................30
PremaintenanceProcedures........................................31
Lubrication...............................................................31
GreasingtheBearingsandBushings..........................31
EngineMaintenance..................................................33
CheckingtheAirCleaner.........................................33
ServicingtheEngineOil..........................................34
ServicingtheDieselParticulateFilter(DPF)...............35
ServicingtheDieselOxidationCatalyst
(DOC)..............................................................35
FuelSystemMaintenance...........................................36
ServicingtheWaterSeparator..................................36
ServicingtheEngineFuelFilter................................36
CleaningtheFuelTank............................................36
FuelLinesandConnections.....................................37
ElectricalSystemMaintenance....................................37
ServicingtheBattery...............................................37
StoringtheBattery..................................................38
CheckingtheFuses.................................................38
DriveSystemMaintenance.........................................39
CheckingtheTirePressure......................................39
ReplacingtheCasterWheelsandBearings..................39
CoolingSystemMaintenance......................................40
CheckingtheCoolingSystem..................................40
CleaningtheRadiator..............................................40
BrakeMaintenance....................................................41
AdjustingtheParkingBrakeInterlockSwitch..............41
BeltMaintenance......................................................42
CheckingtheAlternatorBelt...................................42
ControlsSystemMaintenance.....................................42
AdjustingtheControlLeverNeutralInterlock
Switch...............................................................42
AdjustingtheControlLeverNeutralReturn...............43
AdjustingtheTractionDriveforNeutral....................44
AdjustingtheMaximumGroundSpeed.....................45
AdjustingtheTracking............................................45
HydraulicSystemMaintenance....................................47
CheckingtheHydraulicSystem................................47
ChangingtheHydraulicOilAndFilter.......................48
Cleaning...................................................................48
WasteDisposal.......................................................48
Storage........................................................................49
Machine................................................................49
Engine..................................................................49
3

Safety
ThesemachinesmeetorexceedANSIB71.4–2012
specicationsineffectatthetimeofproduction
Improperuseormaintenancebytheoperatororownercan
resultininjury.Toreducethepotentialforinjury,comply
withthesesafetyinstructionsandalwayspayattentiontothe
safetyalertsymbol,whichmeansCaution,Warning,or
Danger—personalsafetyinstruction.Failuretocomplywith
theinstructionmayresultinpersonalinjuryordeath.
SafeOperatingPractices
Thisproductiscapableofamputatinghandsandfeetand
throwingobjects.Alwaysfollowallsafetyinstructionsto
avoidseriousinjuryordeath.
Training
•ReadtheOperator'sManualandothertrainingmaterial
carefully.Befamiliarwiththecontrols,safetysigns,and
theproperuseoftheequipment.
•Neverallowchildrenorpeopleunfamiliarwiththese
instructionstousethelawnmower.Localregulationscan
restricttheageoftheoperator.
•Nevermowwhilepeople,especiallychildren,orpetsare
nearby.
•Keepinmindthattheoperatororuserisresponsiblefor
accidentsorhazardsoccurringtootherpeopleortheir
property.
•Donotcarrypassengers.
•Alldriversshouldseekandobtainprofessionaland
practicalinstruction.Suchinstructionshouldemphasize:
–theneedforcareandconcentrationwhenworking
withride-onmachines;
–controlofaride-onmachineslidingonaslopewill
notberegainedbytheapplicationofthecontrol
levers.Themainreasonsforlossofcontrolare:
◊insufcientwheelgrip,especiallyonwetgrass;
◊beingdriventoofast;
◊inadequatebraking;
◊thetypeofmachineisunsuitableforitstask;
◊lackofawarenessoftheeffectofground
conditions,especiallyslopes;
◊incorrectloaddistribution.
Preparation
•Whilemowing,alwayswearsubstantialfootwearandlong
trousers.Donotoperatetheequipmentwhenbarefoot
orwearingopensandals.
•Thoroughlyinspecttheareawheretheequipmentisto
beusedandremoveallobjectswhichmaybethrownby
themachine.
•Warning—fuelishighlyammable.
–Storefuelincontainersspecicallydesignedforthis
purpose.
–Refueloutdoorsonlyanddonotsmokewhile
refueling.
–Addfuelbeforestartingtheengine.Neverremove
thecapofthefueltankoraddfuelwhiletheengineis
runningorwhentheengineishot.
–Iffuelisspilled,donotattempttostarttheengine
butmovethemachineawayfromtheareaofspillage
andavoidcreatinganysourceofignitionuntilfuel
vaporshavedissipated.
–Replaceallfueltankandcontainercapssecurely.
•Replacefaultysilencers/mufers.
•Beforeusing,alwaysvisuallyinspecttoseethattheblades,
bladeboltsandcutterassemblyarenotwornordamaged.
Replacewornordamagedbladesandboltsinsetsto
preservebalance.
Operation
•Bealert,slowdownandusecautionwhenmakingturns.
Lookbehindandtothesidebeforechangingdirections.
•Donotoperatetheengineinaconnedspacewhere
dangerouscarbonmonoxidefumescancollect.
•Mowonlyindaylightoringoodarticiallight.
•Beforeattemptingtostarttheengine,disengageallblade
attachmentclutchesandshiftintoneutral.
•Rememberthereisnosuchthingasasafeslope.Travel
ongrassslopesrequiresparticularcare.Toguardagainst
overturning:
–donotstoporstartsuddenlywhenonaslope;
–useslowspeedsonslopesandduringtightturns;
–stayalertforhumpsandhollowsandotherhidden
hazards;
•Watchoutfortrafcwhencrossingornearroadways.
•Stopthebladesfromrotatingbeforecrossingsurfaces
otherthangrass.
•Whenusinganyattachments,neverdirectdischargeof
materialtowardbystandersnorallowanyonenearthe
machinewhileinoperation.
•Neveroperatethemachinewithdamagedguards,shields,
orwithoutsafetyprotectivedevicesinplace.
•Donotchangetheenginegovernorsettingsoroverspeed
theengine.Operatingtheengineatexcessivespeedmay
increasethehazardofpersonalinjury.
•Beforeleavingtheoperator'sposition:
–disengagethepowertake-offandlowerthe
attachments;
–changeintoneutralandsettheparkingbrake;
–stoptheengineandremovethekey.
•Disengagedrivetoattachments,stoptheengine,and
removetheignitionkey:
–beforeclearingblockagesoruncloggingchute;
4

–beforechecking,cleaningorworkingonthelawn
mower;
–afterstrikingaforeignobject.Inspectthelawn
mowerfordamageandmakerepairsbeforerestarting
andoperatingtheequipment;
–ifthemachinestartstovibrateabnormally(check
immediately).
•Donotoperatethemowerundertheinuenceofalcohol
ordrugs.
•Lightningcancausesevereinjuryordeath.Iflightning
isseenorthunderisheardinthearea,donotoperate
themachine;seekshelter.
•Disengagedrivetoattachmentswhentransportingornot
inuse.
•Stoptheengineanddisengagedrivetoattachmentbefore
refuelling.
MaintenanceandStorage
•Keepallnuts,boltsandscrewstighttobesurethe
equipmentisinsafeworkingcondition.
•Neverstoretheequipmentwithfuelinthetankinsidea
buildingwherefumesmayreachanopenameorspark.
•Allowtheenginetocoolbeforestoringinanyenclosure.
•Toreducetherehazard,keeptheengine,
silencer/mufer,batterycompartmentandfuelstorage
areafreeofgrass,leaves,orexcessivegrease.
•Replacewornordamagedpartsforsafety.
•Ifthefueltankhastobedrained,dothisoutdoors.
•Onmulti-bladedmowers,takecareasmanuallyrotating
onebladecancauseotherbladestorotate.
•Whenmachineistobeparked,storedorleftunattended,
lowerthemowerdeck.
ToroRidingMowerSafety
ThefollowinglistcontainssafetyinformationspecictoToro
productsorothersafetyinformationthatyoumustknowthat
isnotincludedintheCENstandard.
•Engineexhaustcontainscarbonmonoxide,whichisan
odorless,deadlypoisonthatcankillyou.Donotrun
engineindoorsorinanenclosedarea.
•Keephands,feet,hairandlooseclothingawayfrom
attachmentdischargearea,undersideofmowerandany
movingpartswhileengineisrunning.
•Donottouchequipmentorattachmentpartswhichmay
behotfromoperation.Allowtocoolbeforeattempting
tomaintain,adjust,orservice.
•Batteryacidispoisonousandcancauseburns.Avoid
contactwithskin,eyesandclothing.Protectyourface,
eyes,andclothingwhenworkingwithabattery.
•Thismachineisnotdesignedorequippedforon-road
useandisa“slow-movingvehicle.”Ifyoumustcross
ortravelonapublicroad,youshouldbeawareofand
complywithlocalregulations,suchasrequiredlights,
slowmovingvehiclesigns,andreectors.
•Batterygasescanexplode.Keepcigarettes,sparksand
amesawayfrombattery.
•UseonlygenuineTororeplacementpartstoensurethat
originalstandardsaremaintained.
•UseonlyToroapprovedattachments.Warrantymaybe
voidedifusedwithunapprovedattachments.
SlopeOperation
•Donotmowneardrop-offs,ditches,steepbanksor
water.Wheelsdroppingoveredgescancauserollovers,
whichmayresultinseriousinjury,death,ordrowning.
•Donotmowslopeswhengrassiswet.Slippery
conditionsreducetractionandcouldcauseslidingand
lossofcontrol.
•Donotmakesuddenturnsorrapidspeedchanges.
•Useawalkbehindmowerand/orahandtrimmernear
drop-offs,ditches,steepbanksorwater.
•Reducespeedanduseextremecautiononslopes.
•Removeormarkobstaclessuchasrocks,treelimbs,etc.
fromthemowingarea.Tallgrasscanhideobstacles.
•Watchforditches,holes,rocks,dips,andrisesthatchange
theoperatingangle,asroughterraincouldoverturnthe
machine.
•Avoidsuddenstartswhenmowinguphillbecausethe
mowermaytipbackwards.
•Beawarethatlossoftractionmayoccurgoingdownhill.
Weighttransfertothefrontwheelsmaycausedrive
wheelstoslipandcauselossofbrakingandsteering.
•Alwaysavoidsuddenstartingorstoppingonaslope.
Iftireslosetraction,disengagethebladesandproceed
slowlyofftheslope.
•Followthemanufacturer'srecommendationsforwheel
weightsorcounterweightstoimprovestability.
•Useextremecarewithattachments.Thesecanchangethe
stabilityofthemachineandcauselossofcontrol.
UsingtheRolloverProtectionSystem
(ROPS)
•Keeptherollbarintheraisedandlockedpositionand
usetheseatbeltwhenoperatingthemachine.
•Becertainthattheseatbeltcanbereleasedquicklyin
theeventofanemergency.
•Beawarethereisnorolloverprotectionwhentheroll
barisdown.
•ChecktheareatobemowedandneverfoldtheROPSin
areaswherethereareslopes,dropoffsorwater.
5

•Lowertherollbaronlywhenabsolutelynecessary.Do
notweartheseatbeltwiththerollbarfoldeddown.
•Checkcarefullyforoverheadclearances(i.e.branches,
doorways,electricalwires)beforedrivingunderany
objectsanddonotcontactthem.
EngineEmissionCertication
TheengineinthismachineisEPATier4Finalandstage3b
compliant.
6

SlopeIndicator
G01 1841
Figure3
Thispagemaybecopiedforpersonaluse.
1.Themaximumslopeyoucansafelyoperatethemachineonis15degrees.Usetheslopecharttodeterminethedegreeofslope
ofhillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan15degrees.Foldalongtheappropriateline
tomatchtherecommendedslope.
2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.
3.Exampleofhowtocompareslopewithfoldededge.
7

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotential
danger.Replaceanydecalthatisdamagedorlost.
110-8254
1.Engine–Stop3.Engine—Start
2.Engine—Run
110-9796
1.ReadtheOperator'sManualforinformationonfuses.
93-6687
1.Donotstephere.
93-6697
1.ReadtheOperator's
Manual.
2.AddSAE80w-90(API
GL-5)oilevery50hours.
107-1866
1.Tippinghazardandslidingorlossofcontrolhazard,
drop-offs—donotturnsharplywhiletravelingfast,instead,
slowdownandturngradually,donotoperatethemachine
neardrop-offs,slopesgreaterthan15degrees,orwater;
keepasafedistancefromdrop-offs.
2.Warning—iftherollbarislowered,donotweartheseat
belt,iftherollbarisraised,weartheseatbelt.
3.Warning—donotusesplitramps,useafullrampswhen
transportingmachine,onlyuserampswithinclinesless
than15degrees.
BatterySymbols
Someorallofthesesymbolsareonyourbattery
1.Explosionhazard6.Keepbystandersasafe
distancefromthebattery.
2.Nore,opename,or
smoking.
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator's
Manual.
10.Containslead;donot
discard.
8

117–2718
117-3276
1.Enginecoolantunder
pressure
3.Warning—donottouchthe
hotsurface.
2.Explosionhazard—read
theOperator'sManual.
4.Warning—readthe
Operator'sManual.
120–9164
1.Height-of-cutsettings
121–3363
1.Fast3.EngagePTO
2.Slow4.DisengagePTO
9

106-9290
1.Inputs5.Inseat9.Outputs13.Start
2.Notactive6.PowerT ake-off(PTO)10.PowerT akeOff(PTO)14.Power
3.Hightemperatureshutdown7.ParkingbrakeOff11.Start
4.Hightemperaturewarning8.Neutral12.EnergizetoRun(ETR)
120-9196
1.Forward3.Slow5.Reverse7.ReadtheOperator's
Manualformore
informationonthehydraulic
oil.
2.Fast4.Neutral6.Towvalvelocation;torque
thetowvalvesto6.78±
1.13N⋅m(60±10in-lbs).
10

Setup
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
ProcedureDescriptionQty.Use
1Nopartsrequired–Raisetherollbar.
2Nopartsrequired–Checkthetirepressure.
3Nopartsrequired–Checkthehydraulicuid,engineoil,
andcoolantlevels.
MediaandAdditionalParts
DescriptionQty.Use
IgnitionKey1Spareignitionkey
Operator'sManual1Reviewbeforeoperatingmachine
EngineOperator'sManual1Usetoreferenceengineinformation
PartsCatalog1Usetoreferencepartnumbers
OperatorTrainingMaterialsReviewbeforeoperatingmachine
1
RaisingtheRollBar
NoPartsRequired
Procedure
Raiseandsecuretherollbarbeforeusingtheproduct;refer
toUsingtheRolloverProtectionSystem(ROPS)(page18)
fordetailedinstructionsandinformationontherollover
protectionsystem.
2
CheckingtheTirePressure
NoPartsRequired
Procedure
Thetiresareoverinatedforshipping.Therefore,release
someoftheairtoreducethepressure.Thecorrectair
pressureis124kPa(18psi)inthereartiresand172kPa(25
psi)inthecasterwheels.
11

3
CheckingFluidLevels
NoPartsRequired
Procedure
1.Checkthehydraulicuidlevelbeforestartingthe
engine,refertoCheckingtheHydraulicSystem.
2.Checktheengineoillevelbeforeandafterstartingthe
engine,refertoCheckingtheEngineOilLevel.
3.Checkthecoolingsystembeforestartingtheengine;
refertoCheckingtheCoolingSystem.
ProductOverview
1
2
34
5
64
G020877
Figure4
1.Parkingbrakelever4.Motioncontrollever
2.Fuelcap(bothsides)5.Seat
3.Rollbar6.Seatbelt
1
2
3
4
g022099
Figure5
1.Ignitionswitch3.Powertakeoff(PTO)
Switch
2.Throttlelever4.InfoCenter
Controls
Becomefamiliarwithallthecontrolsbeforeyoustartthe
engineandoperatethemachine(Figure4andFigure5).
12

MotionControlLevers
Themotioncontrolleverscontroltheforwardandrearward
motionsaswellastheturningofthemachine.Referto
DrivingtheMachine(page21).
ParkingBrakeLever
Whenevertheengineisshutoff,engagetheparkingbraketo
preventaccidentalmovementofthemachine.Toengagethe
parkingbrake,pulltheparkingbrakeleverrearwardandup
(Figure6).Toreleasetheparkingbrake,pushtheparking
brakeleverforwardanddown.
G020866
Figure6
1.Parkingbrakelever
CAUTION
Donotparkthetractionunitonaslope.
IgnitionSwitch
Theignitionswitchhas3positions:Off,On/Preheat,and
Start.
ThrottleLever
Thethrottlelevercontrolsthespeedoftheengine.Moving
thethrottleleverforwardtowardtheFastpositionincreases
theenginespeed.MovingitrearwardtowardtheSlow
positiondecreasestheenginespeed.Thethrottlecontrolsthe
speedofthebladesand,inconjunctionwithmotioncontrol
levers,controlsgroundspeedofthemachine.Alwaysrunthe
machinewiththethrottleintheFastpositionwhencutting
grass.
PowerTakeOff(PTO)Switch
Thepowertake-off(PTO)switchstartsandstopsthemower
blades.
UsingtheInfoCenterLCDDisplay
TheInfoCenterLCDdisplayshowsinformationaboutyour
machinesuchastheoperatingstatus,variousdiagnostics
andotherinformationaboutthemachine(Figure7)There
isasplashscreenandmaininformationscreenofthe
InfoCenter.Youcanswitchbetweenthesplashscreenand
maininformationscreen,atanytime,bypressinganyof
theInfoCenterbuttonsandthenselectingtheappropriate
directionalarrow.
1
g020650
2
3
4
TORO
Figure7
1.Indicatorlight3.Middlebutton
2.Rightbutton4.Leftbutton
•LeftButton,MenuAccess/BackButton—pressthis
buttontoaccesstheInfoCentermenus.Youcanuseitto
backoutofanymenuyouarecurrentlyusing.
•MiddleButton—usethisbuttontoscrolldownmenus.
•RightButton—usethisbuttontoopenamenuwherea
rightarrowindicatesadditionalcontent.
Note:Thepurposeofeachbuttonmaychangedepending
onwhatisrequiredatthetime.Eachbuttonwillbelabeled
withanicondisplayingitscurrentfunction.
13

InfoCenterIconDescription
SERVICEDUEIndicateswhenscheduledservice
shouldbeperformed
RPMEngineRPM/status—indicatesthe
engineRPM
Hourmeter
Infoicon
Stationaryregenerationrequired
Glowplugsareactive
Operatormustsitinseat
ParkingBrakeIndicator—indicates
whentheparkingbrakeisOn
CoolantTemperature-indicatesthe
enginecoolanttemperatureineither
°Cor°F
Temperature(hot)
Deniedornotallowed
EngineStart
Stoporshutdown
Engine
Keyswitch
PINpasscode
HydraulicOilTemperature-indicates
thehydraulicoiltemperature
CANbus
InfoCenter
Badorfailed
Bulb
OutputofTECcontrollerorcontrol
wireinharness
High:overallowedrange
Low:underallowedrange
InfoCenterIconDescription(cont'd.)
/
Outofrange
Switch
Operatormustreleaseswitch
Operatorshouldchangetoindicated
state
Symbolsareoften
combinedtoform
sentences.Some
examplesareshown
below
Enginestartdenied
Engineshutdown
Enginecoolanttoohot
or
Sitdownorsetparkingbrake
UsingtheMenus
ToaccesstheInfoCentermenusystem,pressthemenuaccess
buttonwhileatthemainscreen.Thiswillbringyoutothe
mainmenu.Refertothefollowingtablesforasynopsisof
theoptionsavailablefromthemenus:
MainMenu
MenuItemDescription
FaultsTheFaultsmenucontains
alistoftherecentmachine
faults.RefertotheService
ManualoryourAuthorized
ToroDistributorformore
informationontheFaults
menuandtheinformation
containedthere.
ServiceTheServicemenucontains
informationonthemachine
suchashoursofuseandother
similarnumbers.
SettingsTheSettingsmenuallows
youtocustomizeandmodify
congurationvariablesonthe
InfoCenterdisplay.
AboutTheAboutmenuliststhe
modelnumber,serialnumber,
andsoftwareversionofyour
machine.
14

Service
MenuItemDescription
HoursListsthetotalnumberofhours
thatthemachine,engineand
fanhavebeenon,aswell
asthenumberofhoursthe
machinehasbeentransported
andhasoverheated.
Settings
MenuItemDescription
UnitsControlstheunitsusedonthe
InfoCenter.Themenuchoices
areEnglishorMetric
LanguageControlsthelanguageused
ontheInfoCenter*.
LCDBacklightControlsthebrightnessofthe
LCDdisplay.
LCDContrastControlsthecontrastofthe
LCDdisplay.
ProtectedMenusAllowsthedistributor/engineer
toaccessprotectedmenusby
inputtingapasscode.
*Only"operator-faced"textistranslated.Faults,Service,and
Diagnosticsscreensare"service-faced".Titleswillbeinthe
selectedlanguage,butmenuitemsareinEnglish.
About
MenuItemDescription
ModelListsthemodelnumberofthe
machine.
SNListstheserialnumberofthe
machine.
MachineControllerRevisionListsthesoftwarerevisionof
themastercontroller.
InfoCenterRevisionListsthesoftwarerevisionof
theInfoCenter.
CANBusListsthemachine
communicationbusstatus.
ProtectedMenus
Thereis1operatingcongurationsettingthatisadjustable
withintheServiceMenuoftheInfoCenter:Regeneration
request.ThissettingisintheProtectedMenu.
AccessingtheProtectedMenuSettings
ToaccesstheProtectedMenuSettings
•FromtheMainMenu,scrolldowntotheSettingsMenu
andpresstherightbutton.
•IntheSettingsMenu,scrolldowntotheProtectedMenu
andpresstherightbutton.
•Toenterthepasscode,usethecenterbuttontosetthe
rstdigitthenpresstherightbuttontomoveontothe
nextdigit.
•Usethecenterbuttontosettheseconddigitthenpress
therightbuttontomoveontothenextdigit.
•Usethecenterbuttontosetthethirddigitthenpressthe
rightbuttontomoveontothenextdigit.
•Usethecenterbuttontosetthefourthdigitthenpress
therightbutton.
•Pressthemiddlebuttontoenterthecode.
TheabilitytoviewandchangethesettingsintheProtected
Menucanbechanged.OncetheProtectedMenuhasbeen
accessed,scrolldowntoProtectSettings.Usingtheright
button,changingProtectSettingstoOFFwillallowthe
abilitytoviewandchangethesettingsintheProtectedMenu
withoutenteringthepasscode.ChangingProtectSettingsto
ONwillhidetheprotectedoptionsandwillrequireenteringa
passcodetochangethesettingintheProtectedMenu.After
thepasscodehasbeenset,thekeyswitchmustbeturnedoff
andbackontoenableandsavethisfeature.
StationaryRegeneration
IftheStationaryRegenerationiconappearsontheInfoCenter,
refertotheServiceManualorcontactyourToroDistributor
forthemaintenanceprocedure.
15

Specications
Note:Specicationsanddesignaresubjecttochange
withoutnotice.
Length254cm(100inches)
Width(RearWheels)144.8cm(57inches)
Height(RollBarUp)182.9cm(72inches)
Height(RollBarDown)121.9cm(48inches)
Weightwiththe72in
Side-DischargeMower
(30481)
1052kg(2320lb)
Weightwiththe60in
Side-DischargeMower
(30456)
1036kg(2284lb)
Weightwiththe72inBase
Mower(30353)
1012kg(2231lb)
Weightwiththe62inBase
Mower(30457)
990kg(2183lb)
Weightwiththe100in
Rear-DischargeMower
(31101)
1200kg(2646lb)
Attachments/Accessories
AselectionofToroapprovedattachmentsandaccessoriesis
availableforusewiththemachinetoenhanceandexpand
itscapabilities.ContactyourAuthorizedServiceDealeror
Distributororgotowww .Toro.comforalistofallapproved
attachmentsandaccessories.
Operation
Note:Determinetheleftandrightsidesofthemachine
fromthenormaloperatingposition.
CAUTION
Thismachineproducessoundlevelsinexcessof85
dBAattheoperator’searandcancausehearingloss
throughextendedperiodsofexposure.
Wearhearingprotectionwhenoperatingthis
machine.
AddingFuel
Useonlyclean,freshdieselfuelwithultralow(<15
ppm)sulfurcontentmeetingASTMD975orEN590
specications.Theminimumcetaneratingshouldbe40.
Purchasefuelinquantitiesthatcanbeusedwithin180days
toensurefuelfreshness.
Important:Useofnon-ultralowsulfurfuelwillcause
damagetotheengineemissionsystem.
Fueltankcapacity:43.5liters(11.5USgallons)
Usesummergradedieselfuel(No.2-D)attemperatures
above20°F(-7°C)andwintergrade(No.1-DorNo.
1-D/2-Dblend)belowthattemperature.Useofwintergrade
fuelatlowertemperaturesprovideslowerashpointand
coldowcharacteristicswhichwilleasestartingandreduce
fuellterplugging.
Useofsummergradefuelabove20°F(-7°C)willcontribute
towardlongerfuelpumplifeandincreasedpowercompared
towintergradefuel.
Important:Donotusekeroseneorgasolineinsteadof
dieselfuel.Failuretoobservethiscautionwilldamage
theengine.
WARNING
Fuelisharmfulorfatalifswallowed.Long-term
exposuretovaporscancauseseriousinjuryand
illness.
•Avoidprolongedbreathingofvapors.
•Keepfaceawayfromnozzleandfueltankor
conditioneropening.
•Keepfuelawayfromeyesandskin.
BiodieselReady
Thismachinecanalsouseabiodieselblendedfuelofupto
B7(7%biodiesel,93%petrodiesel).Thepetrodieselportion
mustbeultralowsulfur.Observethefollowingprecautions:
•Thebiodieselportionofthefuelmustmeetspecication
ASTMD6751orEN14214.
•TheblendedfuelcompositionshouldmeetASTMD975
orEN590.
16

•Paintedsurfacesmaybedamagedbybiodieselblends.
•Monitorseals,hoses,gasketsincontactwithfuelasthey
maybedegradedovertime.
•Fuellterpluggingmaybeexpectedforatimeafter
convertingtobiodieselblended.
•Contactyourdistributorifyouwishmoreinformation
onbiodiesel.
DANGER
Incertainconditions,fuelisextremelyammable
andhighlyexplosive.Areorexplosionfromfuel
canburnyouandothersandcandamageproperty.
•Fillthefueltankoutdoors,inanopenarea,when
theengineiscold.Wipeupanyfuelthatspills.
•Neverllthefueltankinsideanenclosedtrailer.
•Neversmokewhenhandlingfuel,andstayaway
fromanopenameorwherefuelfumesmaybe
ignitedbyaspark.
•Storefuelinanapprovedcontainerandkeepit
outofthereachofchildren.Neverbuymore
thana180-daysupplyoffuel.
•Donotoperatemachinewithoutentireexhaust
systeminplaceandinproperworkingcondition.
DANGER
Incertainconditionsduringfueling,static
electricitycanbereleasedcausingasparkwhich
canignitethefuelvapors.Areorexplosionfrom
fuelcanburnyouandothersandcandamage
property.
•Alwaysplacefuelcontainersonthegroundaway
fromyourvehiclebeforelling.
•Donotllfuelcontainersinsideavehicleoron
atruckortrailerbedbecauseinteriorcarpets
orplastictruckbedlinersmayinsulatethe
containerandslowthelossofanystaticcharge.
•Whenpractical,removeequipmentfromthe
truckortrailerandrefueltheequipmentwithits
wheelsontheground.
•Ifthisisnotpossible,thenrefuelsuchequipment
onatruckortrailerfromaportablecontainer,
ratherthanfromafueldispensernozzle.
•Ifafueldispensernozzlemustbeused,keepthe
nozzleincontactwiththerimofthefueltank
orcontaineropeningatalltimesuntilfuelingis
complete.
FillingtheFuelTank
1.Parkthemachineonalevelsurface.
Important:Thefueltanksareconnected,butthe
fueldoesnottransferquicklyfromonetanktothe
other.Itisimportantwhenllingthatyoupark
onalevelsurface.Ifyouparkonahill,youmay
inadvertentlyoverllthetanks.
2.Shuttheengineoffandsettheparkingbrake.
3.Cleanaroundeachfueltankcapandremovethecap.
Important:Donotopenthefueltankswhen
parkedonahill.Thefuelcouldspillout.
4.Addfueltobothfueltanks,untilthelevelisevenwith
thebottomofthellerneck(Figure8).Donotover
llthefueltanks.
Figure8
1.Bottomofthellerneck
5.Installthefueltankcapssecurely.Wipeupanyfuel
thatmayhavespilled.
Note:Ifpossible,llthefueltanksaftereachuse.This
willminimizepossiblebuildupofcondensationinsidethe
fueltank.
CheckingtheEngineOilLevel
Beforeyoustarttheengineandusethemachine,checktheoil
levelintheenginecrankcase;refertoCheckingtheEngine
OilLevelintheMaintenanceSection.
CheckingtheCoolingSystem
Beforeyoustarttheengineandusethemachine,checkthe
coolingsystem;refertoCheckingtheCoolingSysteminthe
MaintenanceSection.
CheckingtheHydraulic
System
Beforeyoustarttheengineandusethemachine,checkthe
hydraulicsystem;refertoCheckingtheHydraulicSystemin
theMaintenanceSection.
17

UsingtheRolloverProtection
System(ROPS)
WARNING
Toavoidinjuryordeathfromrollover:keepthe
rollbarintheraisedlockedpositionandusethe
seatbelt.
Ensurethattherearpartoftheseatissecuredwith
theseatlatch.
WARNING
Thereisnorolloverprotectionwhentherollbaris
inthedownposition.
•Lowertherollbaronlywhenabsolutely
necessary.
•Donotweartheseatbeltwhentherollbaris
inthedownposition.
•Driveslowlyandcarefully.
•Raisetherollbarassoonasclearancepermits.
•Checkcarefullyforoverheadclearances(i.e.
branches,doorways,electricalwires)before
drivingunderanyobjectsanddonotcontact
them.
Important:Lowertherollbaronlywhenabsolutely
necessary.
1.Tolowertherollbar,removethehairpincotters,push
therollbarforwardagainstthesprings,andremove
the2pins(Figure9).
Figure9
1.Rollbar3.Hairpincotter
2.Pin
2.Lowertherollbartothedownposition(Figure10).
Figure10
1.Pin3.Mountinghole
2.Rollbar
3.Installthe2pinsandsecurethemwiththehairpin
cotterpins(Figure9).
Important:Ensurethattherearpartoftheseatis
securedwiththeseatlatch.
4.Toraisetherollbar,removethehairpincotterpinsand
removethe2pins(Figure9).
5.Raisetherollbartotheuprightpositionandinstall
thetwopinsandsecurethemwiththehairpincotter
pins(Figure9).
Important:Alwaysusetheseatbeltwhentherollbar
isintheraisedandlockedposition.Donotusetheseat
beltwhentherollbarisintheloweredposition.
ThinkSafetyFirst
Pleasereadallsafetyinstructionsandsymbolsinthesafety
section.Knowingthisinformationcouldhelpyouor
bystandersavoidinjury.
18

DANGER
Operatingonwetgrassorsteepslopescancause
slidingandlossofcontrol.
Wheelsdroppingoveredgescancauserollovers,
whichmayresultinseriousinjury,deathor
drowning.
Thereisnorolloverprotectionwhentherollbaris
down.
Alwayskeeptherollbarintheraisedandlocked
positionandusetheseatbelt.
Readandfollowtherolloverprotectioninstructions
andwarnings.
Toavoidlossofcontrolandpossibilityofrollover:
•Donotoperateneardrop-offsornearwater.
•Reducespeedanduseextremecautionon
slopes.
•Avoidsuddenturnsorrapidspeedchanges.
Figure11
1.SafeZone3.Water
2.Usewalkbehindmower
and/orhandtrimmernear
drop-offsandwater.
CAUTION
Thismachineproducessoundlevelsinexcessof
85dBAattheoperatorsearandcancausehearing
lossthroughextendedperiodsofexposure.
Wearhearingprotectionwhenoperatingthis
machine.
Theuseofprotectiveequipmentforeyes,ears,feetandhead
isrecommended.
OperatingtheParkingBrake
Alwayssettheparkingbrakewhenyoustopthemachineor
leaveitunattended.
SettingtheParkingBrake
1.Movethemotioncontrollevers(Figure16)outtothe
neutrallockedposition.
2.Pullupandbackontheparkingbrakelevertosetthe
parkingbrake(Figure12).
Note:Theparking-brakelevershouldstayrmlyin
theengagedposition.
G020868
1
Figure12
1.Parking-brakelever
WARNING
Theparkingbrakemaynotholdthemachine
parkedonaslopeandcouldcausepersonal
injuryorpropertydamage.
Donotparkthemachineonslopesunlessthe
wheelsarechockedorblocked.
19

ReleasingtheParkingBrake
Pushforwardanddownontheparkingbrakelevertorelease
theparkingbrake(Figure13).
G020869
1
Figure13
1.Parking-brakelever
StartingandStoppingthe
Engine
StartingtheEngine
1.Raisetherollbarupandlockitintoplace,sitonthe
seat,andfastentheseatbelt.
2.Ensurethatthemotioncontrolsareintheneutral
lockedposition.
3.Settheparkingbrake;refertoSettingtheParking
Brake(page19).
4.MovethePTO(powertake-off)switchtotheoff
position(Figure14).
1
2
3
g022121
Figure14
1.Ignitionswitch3.Powertakeoffswitch
(PTO)
2.Throttlecontrol
5.TurntheignitionkeyclockwisetotheRunposition
(Figure15).
Figure15
1.Ignitionswitch3.Run
2.Off4.Start
6.Aftertheglowplugindicatorlightdims,turnthekey
totheStartposition.Whentheenginestartsrelease
thekey.
Important:Usestartingcyclesofnomorethan
15secondsperminutetoavoidoverheatingthe
startermotor.
Note:Additionalstartingcyclesmayberequired
whenstartingtheengineforthersttimeafterthefuel
systemhasbeencompletelydrained.
Important:Whentheengineisstartedfortherst
time,orafteranengineoilchange,oranoverhaul
oftheengine,transmission,orwheelmotor,
operatethemachinewiththethrottleleverinthe
Slowpositioninboththeforwardandreverse
directionsfor1to2minutes.Alsooperatethelift
leverandPTOlevertoensureproperoperation
20
