Toro Recycler 20376 User manual

FormNo.3376-807-ASMRevA
22inRecycler®LawnMower
ModelNo.20376—SerialNo.313000001andUp
Operator'sManual
ReplacementpartsareavailablefromanAuthorizedServiceDealeroratwww.shoptoro.com.
Introduction
Thisrotary-blade,walk-behindlawnmowerisintendedto
beusedbyresidentialhomeowners.Itisdesignedprimarily
forcuttinggrassonwell-maintainedlawnsonresidential
properties.Itisnotdesignedforcuttingbrushorfor
agriculturaluses.
Readthisinformationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperatingthe
productproperlyandsafely.
YoumaycontactTorodirectlyatwww.Toro.comforproduct
andaccessoryinformation,helpndingadealer,ortoregister
yourproduct.
Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourproductready.Figure1identiesthelocationofthe
modelandserialnumbersontheproduct.
G020227
1
Figure1
1.Modelandserialnumberplate
Writetheproductmodelandserialnumbersinthespace
below:
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafetyalertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.
Figure2
1.Safetyalertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.
WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemicalorchemicals
knowntotheStateofCaliforniatocausecancer,
birthdefects,orotherreproductiveharm.
Theengineexhaustfromthisproduct
containschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Important:Thisengineisnotequippedwithaspark
arrestermufer.ItisaviolationofCaliforniaPublic
ResourceCodeSection4442touseoroperatetheengine
onanyforest-covered,brush-covered,orgrass-covered
land.Otherstatesorfederalareasmayhavesimilarlaws.
ThissparkignitionsystemcomplieswithCanadianICES-002.
Theenclosed
EngineOwner'sManual issuppliedfor
informationregardingtheUSEnvironmentalProtection
Agency(EPA)andtheCaliforniaEmissionControl
Regulationofemissionsystems,maintenance,and
warranty.Replacementsmaybeorderedthroughthe
enginemanufacturer.
Formodelswithstatedenginehorsepower,thegross
horsepoweroftheenginewaslaboratoryratedbytheengine
manufacturerinaccordancewithSAEJ1940.Ascongured
tomeetsafety,emission,andoperatingrequirements,the
©2012—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.Toro.com.OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved*3376-807-ASM*A

actualenginehorsepoweronthisclassoflawnmowerwill
besignicantlylower.
Contents
Introduction..................................................................1
GeneralOperation..................................................2
SlopeOperation......................................................3
Children.................................................................3
Service...................................................................3
SafetyandInstructionalDecals.................................4
Setup............................................................................5
1InstallingtheBlade-controlBar...............................5
2InstallingtheHandle.............................................5
3InstallingtheRecoil-starterRopeintheRope
Guide.................................................................5
4FillingtheEnginewithOil......................................6
ProductOverview..........................................................7
Operation.....................................................................7
FillingtheFuelTank................................................7
CheckingtheEngineOilLevel..................................8
AdjustingtheCuttingHeight....................................8
StartingtheEngine..................................................9
UsingtheSelf-propelDrive.......................................9
StoppingtheEngine................................................9
EngagingtheBlade..................................................9
DisengagingtheBlade.............................................10
CheckingtheBlade-brake-clutchOperation...............10
RecyclingtheClippings...........................................10
BaggingtheClippings.............................................10
Side-dischargingtheClippings..................................12
OperatingTips......................................................13
Maintenance.................................................................15
RecommendedMaintenanceSchedule(s)......................15
PreparingforMaintenance.......................................15
ServicingtheAirCleaner.........................................16
ChangingtheEngineOil.........................................16
ReplacingtheBlade................................................16
CleaningtheBlade-brake-clutchShield......................17
AdjustingtheSelf-propelDriveCable........................18
CleaningundertheMachineHousing........................18
Storage........................................................................19
PreparingtheMachineforStorage............................19
FoldingtheHandle.................................................19
RemovingtheMachinefromStorage.........................19
Safety
ThislawnmowermeetsorexceedstheCPSCbladesafety
requirementsforwalk-behindrotarylawnmowersandthe
B71.1specicationsoftheAmericanNationalStandards
Instituteineffectatthetimeofproduction.
Readandunderstandthecontentsofthismanualbefore
youstarttheengine.
Thesafetyalertsymbol(Figure2)isusedtoalertyouto
potentialpersonalinjuryhazards.Obeyallsafetymessages
thatfollowthissymboltoavoidpossibleinjuryordeath.
Improperlyusingormaintainingthismowercouldresultin
injuryordeath.Toreducethispotential,complywiththe
followingsafetyinstructions.
Thefollowinginstructionshavebeenadaptedfromthe
ANSI/OPEIstandardB71.1-2003.
Thiscuttingmachinecanamputatehandsandfeetand
throwobjects.Failuretoobservethefollowingsafety
instructionscouldresultinseriousinjuryordeath.
GeneralOperation
•Read,understand,andfollowallinstructionsonthe
machineandinthemanual(s)beforestarting.
•Donotputhandsorfeetnearorunderthemachine.
Keepclearofthedischargeopeningatalltimes.
•Onlyallowresponsibleadults,whoarefamiliarwiththe
instructions,tooperatethismachine.
•Cleartheareaofobjectssuchasrocks,wire,toys,etc.,
whichcouldbethrownbytheblade.Staybehindthe
handlewhentheengineisrunning.
•Besuretheareaisclearofbystandersbeforeoperating.
Stopmachineifanyoneentersthearea.
•Donotoperatemachinebarefootedorwhilewearing
sandals.Alwayswearsubstantialfootwear.
•Donotpullmachinebackwardunlessabsolutely
necessary.Alwayslookdownandbehindbeforeand
whilemovingbackward.
•Neverdirectdischargedmaterialtowardanyone.Avoid
dischargingmaterialagainstawallorobstruction.
Materialmayricochetbacktowardtheoperator.Stopthe
bladewhencrossinggravelsurfaces.
•Donotoperatemachinewithouttheentiregrasscatcher,
dischargeguard,rearguard,orothersafetyprotective
devicesinplaceandworking.
•Neverleavearunningmachineunattended.
•Stoptheengineandwaituntilthebladecomestoa
completestopbeforecleaningthemachine,removing
grasscatcher,oruncloggingthedischargeguard.
•Operatemachineonlyindaylightorgoodarticiallight.
•Donotoperatemachinewhileundertheinuenceof
alcoholordrugs.
•Neveroperatemowerinwetgrass.Alwaysbesureof
yourfooting;walk;neverrun.
•Disengagethedrivesystem,ifsoequipped,before
startingtheengine.
•Ifthemachineshouldstarttovibrateabnormally,stop
theengineandcheckforthecauseimmediately.Vibration
isgenerallyawarningoftrouble.
2

•Alwaysweareyeprotectionwhenoperatingmachine.
•Seemanufacturer'sinstructionsforproperoperationand
installationofaccessories.Onlyuseaccessoriesapproved
bythemanufacturer.
SlopeOperation
Slopesareamajorfactorrelatedtoslipandfallaccidents,
whichcanresultinsevereinjury.Operationonallslopes
requireextracaution.Ifyoufeeluneasyonaslope,donot
mowit.
•Mowacrossthefaceofslopes;neverupanddown.
Exerciseextremecautionwhenchangingdirectionon
slopes.
•Watchforholes,ruts,bumps,rocks,orotherhidden
objects.Uneventerraincouldcauseaslipandfall
accident.Tallgrasscanhideobstacles.
•Donotmowonwetgrassorexcessivelysteepslopes.
Poorfootingcouldcauseaslipandfallaccident.
•Donotmowneardrop-offs,ditches,orembankments.
Youcouldloseyourfootingorbalance.
Children
Tragicaccidentscanoccuriftheoperatorisnotalerttothe
presenceofchildren.Childrenareoftenattractedtothe
machineandthemowingactivity.Neverassumethatchildren
willremainwhereyoulastsawthem.
•Keepchildrenoutofthemowingareaandunderthe
watchfulcareofaresponsibleadultotherthanthe
operator.
•Bealertandturnmoweroffifachildentersthearea.
•Neverallowchildrentooperatethemachine.
•Useextracarewhenapproachingblindcorners,shrubs,
trees,orotherobjectsthatmayblockyourviewofachild.
Service
SafeHandlingofGasoline
Toavoidpersonalinjuryorpropertydamage,use
extremecareinhandlinggasoline.Gasolineisextremely
ammableandthevaporsareexplosive.
•Extinguishallcigarettes,cigars,pipes,andothersources
ofignition.
•Useonlyanapprovedgasolinecontainer.
•Neverremovegascaporaddfuelwiththeengine
running.Allowenginetocoolbeforerefueling.
•Neverrefuelthemachineindoors.
•Neverstorethemachineorfuelcontainerwherethereis
anopename,spark,orpilotlightsuchasonawater
heateroronotherappliances.
•Neverllcontainersinsideavehicleoronatruckor
trailerbedwithaplasticliner.Alwaysplacecontainerson
thegroundawayfromyourvehiclebeforelling.
•Removegas-poweredequipmentfromthetruckortrailer
andrefuelitontheground.Ifthisisnotpossible,then
refuelsuchequipmentwithaportablecontainer,rather
thanfromagasolinedispensernozzle.
•Keepthenozzleincontactwiththerimofthefueltank
orcontaineropeningatalltimesuntilfuelingiscomplete.
Donotuseanozzlelock-opendevice.
•Iffuelisspilledonclothing,changeclothingimmediately.
•Neveroverllfueltank.Replacegascapandtighten
securely.
WARNING
Exhaustcontainscarbonmonoxide,anodorless,
deadlypoisonthatcankillyou.
Donotruntheengineindoorsorinanenclosed
area.
GeneralService
•Neveroperatemachineinaclosedarea.
•Keepallnutsandboltstighttobesuretheequipmentis
insafeworkingcondition.
•Nevertamperwithsafetydevices.Checktheirproper
operationregularly.
•Keepmachinefreeofgrass,leaves,orotherdebris
build-up.Cleanupoilorfuelspillageandremoveany
fuel-soakeddebris.Allowmachinetocoolbeforestoring.
•Ifyoustrikeaforeignobject,stopandinspectthe
machine.Repair,ifnecessary,beforestarting.
•Nevermakeanyadjustmentsorrepairswiththeengine
running.Disconnectthesparkplugwireandground
againstenginetopreventunintendedstarting.
•Checkgrasscatchercomponentsandthedischargeguard
frequentlyandreplacewithmanufacturer'srecommended
parts,whennecessary.
•Mowerbladesaresharp.Wrapthebladeorweargloves,
anduseextracautionwhenservicingthem.
•Donotchangetheenginegovernorsettingoroverspeed
theengine.
•Maintainorreplacesafetyandinstructionlabels,as
necessary.
3

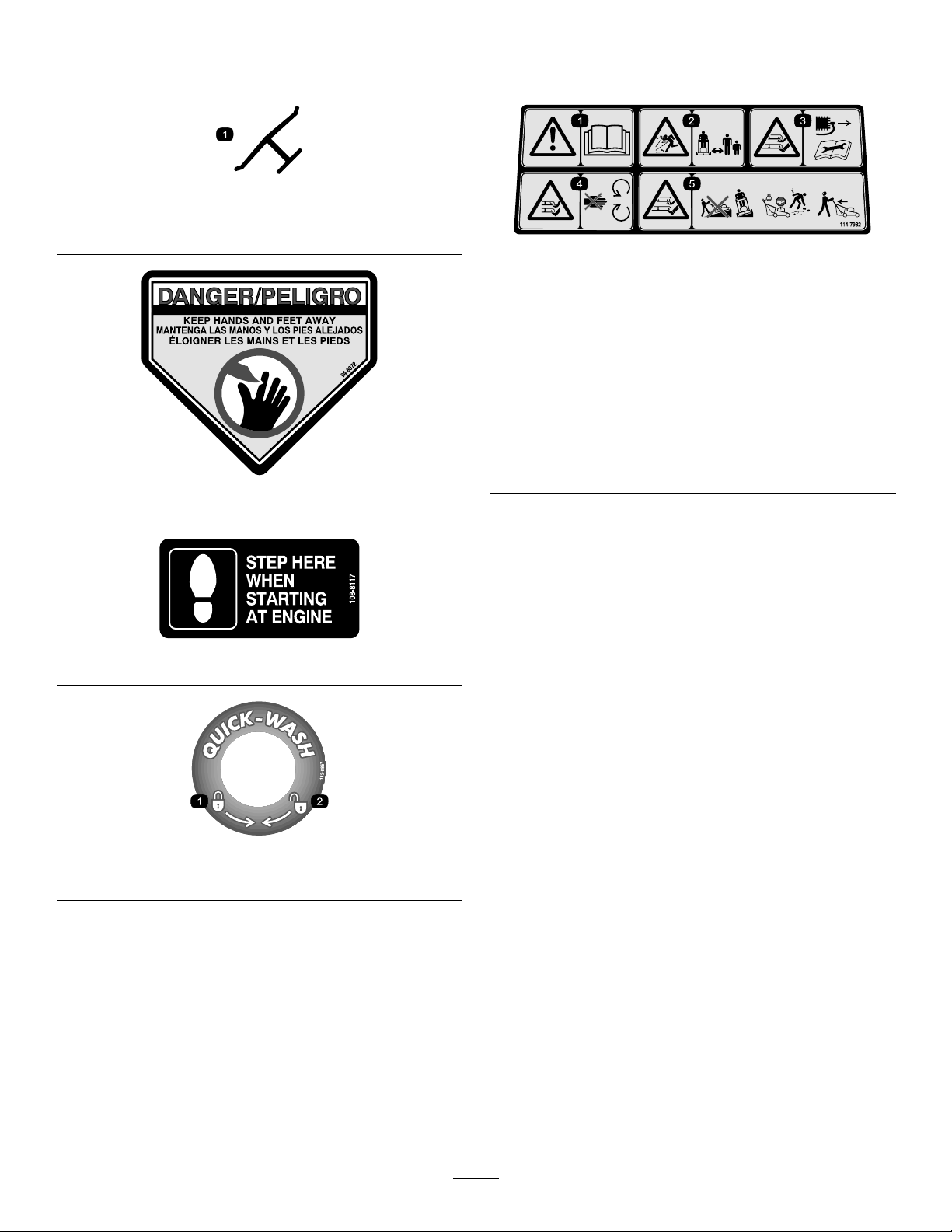

SafetyandInstructionalDecals
Important:Safetyandinstructiondecalsarelocatednearareasofpotentialdanger.Replacedamageddecals.
Manufacturer'sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.
94-8072
108-8117
112-8867
1.Lock2.Unlock
114-7982
1.Warning—readtheOperator'sManual.
2.Thrownobjecthazard—keepbystandersasafedistance
fromthemachine.
3.Cutting/dismembermenthazardofhandorfoot,mower
blade—removetheignitionkeyandreadtheinstructions
beforeservicingorperformingmaintenance.
4.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.
5.Cutting/dismembermenthazardofhandorfoot,mower
blade—donotoperateupanddownslopes;operatesideto
sideonslopes;stoptheenginebeforeleavingtheoperating
position;andlookbehindyouwhenbackingup.
4

Setup
Important:Removeanddiscardtheprotectiveplastic
sheetthatcoverstheengine.
1
InstallingtheBlade-control
Bar
NoPartsRequired
Procedure
Installtheblade-controlbarintotheupperhandle(Figure3).
Figure3
2
InstallingtheHandle
NoPartsRequired
Procedure
WARNING
Foldingorunfoldingthehandleimproperlycan
damagethecables,causinganunsafeoperating
condition.
•Donotdamagethecableswhenfoldingor
unfoldingthehandle.
•Ifacableisdamaged,contactanAuthorized
ServiceDealer.
1.Removethehandleknobsfromthemachinehousing
(Figure4).
Important:Routethecablestotheoutsideofthe
handleknobsasyouinstallthehandle.
G020228
Figure4
2.Movethehandletotheoperatingposition.
3.Installandtightenthehandleknobsthatyouremoved
instep1.
3
InstallingtheRecoil-starter
RopeintheRopeGuide
NoPartsRequired
Procedure
Important:Tostarttheenginesafelyandeasily
wheneveryouusethemachine,installtherecoil-starter
ropeintheropeguide.
Pulltherecoil-starterropethroughtheropeguideonthe
handle(Figure5).
5

Figure5
1.Recoil-starterrope2.Ropeguide
4
FillingtheEnginewithOil
NoPartsRequired
Procedure
Important:Yourmachinedoesnotcomewithoilin
theengine,butitdoescomewithabottleofoil.Before
startingtheengine,lltheenginewithoil.
Max.ll:22oz.(0.65l),type:SAE30detergentoilwithan
APIserviceclassicationofSF,SG,SH,SJ,SL,orhigher.
Note:Whenthecrankcaseisempty,pourabout3/4of
thecrankcasecapacityofoilinthecrankcase,thendothe
following:
1.Movethemachinetoalevelsurface.
2.Removethedipstickbyrotatingthecap
counterclockwiseandpullingitout(Figure6).
G020244
Figure6
3.Wipethedipstickcleanwithacleancloth.
4.Insertthedipstickfullyintotheoil-lltube(butdonot
screwitin),thenremovethedipstick.
5.Readtheoillevelonthedipstick(Figure6).
•IftheoillevelisbelowtheAddmarkonthe
dipstick,slowlypourasmallamountofoilinto
theoil-lltube,wait3minutes,andrepeatsteps3
through5untiltheoillevelonthedipstickisat
theFullmark.
•IftheoillevelisabovetheFullmarkonthe
dipstick,draintheexcessoiluntiltheoillevel
onthedipstickisattheFullmark.Referto
ChangingtheEngineOil(page16).
Important:Iftheoillevelinthecrankcaseistoo
lowortoohighandyouruntheengine,youmay
damagetheengine.
6.Installthedipsticksecurely.
Important:
Changetheengineoilaftertherst5
operatinghours
;changeityearlythereafter.Refer
toChangingtheEngineOil(page16).
6

ProductOverview
G020230
12
3
4
5
6
7
8
9
10
11
12
13
14
Figure7
1.Handle8.Cutting-heightlever(4)
2.Blade-controlbar9.Sparkplug
3.Ignitionswitch10.Side-dischargedeector
4.Oilll/dipstick11.Bag-on-demandlever
5.Fuel-tankcap12.Handleknob(2)
6.Washoutport(notshown)13.Recoil-starthandle
7.Airlter14.Control-barlock
Figure8
1.Grassbag2.Side-dischargechute
Operation
FillingtheFuelTank
DANGER
Gasolineisextremelyammableandexplosive.A
reorexplosionfromgasolinecanburnyouand
others.
•Topreventastaticchargefromignitingthe
gasoline,placethecontainerand/ormachine
directlyonthegroundbeforelling,notina
vehicleoronanobject.
•Fillthetankoutdoorswhentheengineiscold.
Wipeupspills.
•Donothandlegasolinewhensmokingoraround
anopenameorsparks.
•Storegasolineinanapprovedfuelcontainer,out
ofthereachofchildren.
Fillthefueltankwithfreshunleadedregulargasoline(having
anoctaneratingof87orhigher)fromamajorname-brand
servicestation(Figure9).
Note:Neverusemethanol,gasolinecontainingmethanol,or
gasolinecontainingmorethan10%ethanolbecausethefuel
systemcouldbedamaged.Donotmixoilwithgasoline.
Important:Toreducestartingproblems,addfuel
stabilizertothefuelallseason,mixingitwithgasoline
lessthan30daysold.
G020231
1
Figure9
1.1/2inch(1cm)
7

CheckingtheEngineOilLevel
ServiceInterval:Beforeeachuseordaily
Note:Max.ll:22oz.(0.65l),type:SAE30detergent
oilwithanAPIserviceclassicationofSF,SG,SH,SJ,SL,
orhigher.
1.Movethemachinetoalevelsurface.
2.Removethedipstick(Figure10).
G020244
Figure10
3.Wipethedipstickcleanwithacleancloth.
4.Insertthedipstickfullyintotheoil-lltube(butdonot
screwitin),thenremovethedipstick.
5.Readtheoillevelonthedipstick(Figure10).
•IftheoillevelisbelowtheAddmarkonthe
dipstick,slowlypourasmallamountofoilinto
theoil-lltube,wait3minutes,andrepeatsteps3
through5untiltheoillevelisattheFullmarkon
thedipstick(Figure10).
•IftheoillevelisabovetheFullmarkonthe
dipstick,draintheexcessoiluntiltheoillevel
onthedipstickisattheFullmark.Referto
ChangingtheEngineOil(page16).
Important:Iftheoillevelinthecrankcaseistoo
lowortoohighandyouruntheengine,youmay
damagetheengine.
6.Installthedipsticksecurely.
AdjustingtheCuttingHeight
WARNING
Adjustingthecuttingheightmaybringyouinto
contactwiththemovingblade,causingserious
injury.
•Stoptheengineandwaitforallmovingparts
tostop.
•Donotputyourngersunderthehousingwhen
adjustingthecuttingheight.
CAUTION
Iftheenginehasbeenrunning,themuferwillbe
hotandcanseverelyburnyou.Keepawayfromthe
hotmufer.
Adjustthecuttingheightasdesired.Setthefrontwheelsto
thesameheightastherearwheels(Figure11).
Note:Toraisethemachine,movethefrontcutting-height
leversrearwardandtherearcutting-heightleversforward.
Tolowerthemachine,movethefrontcutting-heightlevers
forwardandtherearcutting-heightleversrearward.
G020232
Figure11
1.Raisethemachine2.Lowerthemachine
Note:Thecutting-heightsettingsare1inch(25mm);1-3/8
inches(35mm);1-3/4inches(44mm);2-1/8inches(54mm);
2-1/2inches(64mm);2-7/8inches(73mm);3-1/4inches
(83mm);3-5/8inches(92mm);and4inches(102mm).
8

StartingtheEngine
Note:Youcanstarttheengineeitherfromtheoperating
position(Figure12)orattheengine(withtherecoil-start
handleoutoftheropeguide).
Figure12
Pulltherecoilstarterlightlyuntilyoufeelresistance,thenpull
itsharply.Allowtheropetoreturntothehandleslowly.
Note:Ifthemachinedoesnotstartafterseveralattempts,
contactanAuthorizedServiceDealer.
UsingtheSelf-propelDrive
Tooperatetheself-propeldrive,simplywalkwithyourhands
ontheupperhandleandyourelbowsatyoursides,andthe
machinewillautomaticallykeeppacewithyou(Figure13).
Figure13
Note:Ifthemachinedoesnotfreelyrollbackwardafter
self-propelling,stopwalking,holdyourhandsinplace,and
allowthemachinetorollacoupleofinches(centimeters)
forwardtodisengagethewheeldrive.Youcanalsotry
reachingjustunderthepersonalpacehandletothemetal
handleandpushthemachineforwardacoupleofinches
(centimeters).Ifthemachinestilldoesnotrollbackward
easily,contactanAuthorizedServiceDealer.
StoppingtheEngine
Tostoptheengine,pressandholdtheignitionswitch
(Figure14)untiltheenginestops.
G020233
Figure14
1.Ignitionswitch
Important:Whenyoupressandholdtheignition
switch,theengineshouldstopwithin3seconds.If
itdoesnotstopproperly,stopusingyourmachine
immediatelyandcontactanAuthorizedServiceDealer.
EngagingtheBlade
Whenyoustartyourengine,thebladedoesnotturn.You
mustengagethebladetomow.
1.Pullthecontrol-barlockback(Figure15).
Figure15
2.Pulltheblade-controlbartothehandle(Figure16).
Figure16
3.Holdtheblade-controlbaragainstthehandle
(Figure17).
9

Figure17
DisengagingtheBlade
Releasethebladecontrolbar(Figure18).
Figure18
Important:Whenyoureleasetheblade-controlbar,
thebladeshouldstopwithin3seconds.Ifitdoesnot
stopproperly,stopusingyourmachineimmediatelyand
contactanAuthorizedServiceDealer.
Checkingthe
Blade-brake-clutchOperation
Checkthecontrolbarbeforeeachusetoensurethatthe
blade-brake-clutchsystemisoperatingproperly.
UsingtheGrassBag
ServiceInterval:Beforeeachuseordaily
Youcanusethegrassbagtoperformanadditionaltestto
checktheblade-brakeclutch.
1.Installtheemptygrassbagonthemachine.
2.Starttheengine.
3.Engagetheblade.
Note:Thebagshouldbegintoinate,indicatingthat
thebladeisengagedandrotating.
4.Releasetheblade-controlbar.
Note:Ifthebagdoesnotimmediatelydeate,the
bladeisstillrotating.Theblade-brakeclutchmaybe
deterioratingand,ifignored,couldresultinanunsafe
operatingcondition.Havethemachineinspectedand
servicedbyanAuthorizedServiceDealer.
5.Stoptheengineandwaitforallmovingpartstostop.
NotUsingtheGrassBag
1.Movethemachineontoapavedsurfaceinanon-windy
area.
2.Setall4wheelstothe3-1/4inch(83mm)cutsetting.
3.Takeahalfsheetofnewspaperandcrumpleitintoa
ballsmallenoughtogounderthemachinehousing
(about3inchesor76mmindiameter).
4.Placethenewspaperballabout5inches(13cm)in
frontofthemachine.
5.Starttheengine.
6.Engagetheblade.
7.Releasetheblade-controlbar.
8.Immediatelypushthemachineoverthenewspaperball.
9.Stoptheengineandwaitforallmovingpartstostop.
10.Gotothefrontofthemachineandcheckthe
newspaperball.
Note:Ifthenewspaperballdidnotgounderthe
machine,repeatsteps4through10.
11.Ifthenewspaperisunravelledorshredded,theblade
didnotstopproperly,whichcouldresultinanunsafe
operatingcondition.ContactanAuthorizedService
Dealer.
RecyclingtheClippings
Yourmachinecomesfromthefactoryreadytorecyclethe
grassandleafclippingsbackintothelawn.
Ifthegrassbagisonthemachineandthe
bag-on-demandleverisinthebaggingposition,
movethelevertotherecyclingposition;referto
OperatingtheBag-on-DemandLever(page11)before
recyclingtheclippings.Iftheside-discharge
chuteisonthemachine,removeit;refer
toRemovingtheSide-dischargeChute(page13)before
recyclingtheclippings.
BaggingtheClippings
Usethegrassbagwhenyouwanttocollectgrassandleaf
clippingsfromthelawn.
WARNING
Aworngrassbagcouldallowsmallstonesand
othersimilardebristobethrownintheoperator'sor
bystander'sdirectionandresultinseriouspersonal
injuryordeathtotheoperatororbystanders.
Checkthegrassbagfrequently.Ifitisdamaged,
installanewTororeplacementbag.
10

Iftheside-dischargechuteisonthemachine,removeit;
refertoRemovingtheSide-dischargeChute(page13)before
baggingtheclippings.Ifthebag-on-demandleverisinthe
recyclingposition,moveittothebaggingposition;referto
OperatingtheBag-on-DemandLever(page11).
WARNING
Thebladeissharp;contactingthebladecanresult
inseriouspersonalinjury.
Stoptheengineandwaitforallmovingpartstostop
beforeleavingtheoperatingposition.
InstallingtheGrassBag
1.Raiseandholdupthereardeector(Figure19).
G020245
Figure19
1.Notches3.Grassbagpin(2)
2.Reardeector
2.Installthegrassbag,ensuringthatthepinsonthebag
restinthenotchesonthehandle(Figure19).
3.Lowerthereardeector.
RemovingtheGrassBag
Toremovethebag,reversethestepsabove.
OperatingtheBag-on-DemandLever
Thebag-on-demandfeatureallowsyoutoeithercollector
recyclegrassandleafclippingswhilethegrassbagisattached
tothemachine.
11

•Forbaggingthegrassandleafclippings,pressthebutton
onthebag-on-demandleverandmovetheleverforward
untilthebuttonontheleverpopsup(Figure20).
G020246
Figure20
1.Bag-on-demandlever(inbaggingposition)
•Forrecyclingthegrassandleafclippings,pressthebutton
ontheleverandmovetheleverrearwarduntilthebutton
ontheleverpopsup.
Important:Forproperoperation,removeanygrass
clippingsanddebrisfromthebag-on-demanddoor
andthesurroundingopening(Figure21)beforeyou
movethebag-on-demandleverfromoneposition
toanother.
G020235
Figure21
1.Cleanhere
WARNING
Thebladeissharp;contactingthebladecan
resultinseriouspersonalinjury.Also,anopen
reardischargeareacouldallowsmallstones
andothersimilardebristobethrowninthe
operator'sorbystander'sdirectionandresultin
seriouspersonalinjuryordeathtotheoperator
orbystanders.
Stoptheengineandwaitforallmovingpartsto
stopbeforecleaningthebag-on-demanddoor
andthesurroundingopening.
Side-dischargingtheClippings
Usesidedischargingforcuttingverytallgrass.
Ifthegrassbagisonthemachineandthe
bag-on-demandleverisinthebaggingposition,
movethelevertotherecyclingposition;referto
OperatingtheBag-on-DemandLever(page11).
WARNING
Thebladeissharp;contactingthebladecanresult
inseriouspersonalinjury.
Stoptheengineandwaitforallmovingpartstostop
beforeleavingtheoperatingposition.
12

InstallingtheSide-dischargeChute
Liftupthesidedeectorandinstalltheside-dischargechute
(Figure22).
Figure22
RemovingtheSide-dischargeChute
Toremovetheside-dischargechute,liftupthesidedeector,
removetheside-dischargechute,andlowertheside-discharge
deector.
OperatingTips
GeneralMowingTips
•Cleartheareaofsticks,stones,wire,branches,andother
debristhatthebladecouldhit.
•Avoidstrikingsolidobjectswiththeblade.Never
deliberatelymowoveranyobject.
•Ifthemachinestrikesanobjectorstartstovibrate,
immediatelystoptheengine,disconnectthewirefrom
thesparkplug,andexaminethemachinefordamage.
•Forbestperformance,installanewbladebeforethe
cuttingseasonbegins.
•ReplacethebladewhennecessarywithaToro
replacementblade.
CuttingGrass
•Cutonlyaboutathirdofthegrassbladeatatime.Donot
cutbelowthe2-1/8-inch(54mm)settingunlessthegrass
issparseoritislatefallwhengrassgrowthbeginstoslow
down.RefertoAdjustingtheCuttingHeight(page8).
•Whencuttinggrassover6inches(15cm)tall,mowatthe
highestcuttingheightsettingandwalkslower;thenmow
againatalowersettingforthebestlawnappearance.If
thegrassistoolong,themachinemayplugandcause
theenginetostall.
•Mowonlydrygrassorleaves.Wetgrassandleavestend
toclumpontheyardandcancausethemachinetoplug
ortheenginetostall.
WARNING
Wetgrassorleavescancauseseriousinjuryif
youslipandcontacttheblade.Mowonlyindry
conditions.
•Beawareofapotentialrehazardinverydryconditions,
followalllocalrewarnings,andkeepthemachinefree
ofdrygrassandleafdebris.
•Alternatethemowingdirection.Thishelpsdispersethe
clippingsoverthelawnforevenfertilization.
•Ifthenishedlawnappearanceisunsatisfactory,tryone
ormoreofthefollowing:
–Replacethebladeorhaveitsharpened.
–Walkataslowerpacewhilemowing.
–Raisethecuttingheightonyourmachine.
–Cutthegrassmorefrequently.
–Overlapcuttingswathsinsteadofcuttingafullswath
witheachpass.
–Setthecuttingheightonthefrontwheelsonenotch
lowerthantherearwheels.Forexample,setthefront
wheelsat2-1/8-inch(54mm)andtherearwheels
at2-1/2inches(64mm).
13

CuttingLeaves
•Aftercuttingthelawn,ensurethathalfofthelawnshows
throughthecutleafcover.Youmayneedtomakemore
thanonepassovertheleaves.
•Iftherearemorethan5inches(13cm)ofleavesonthe
lawn,setthefrontcuttingheight1or2notcheshigher
thantherearcuttingheight.
•Slowdownyourmowingspeedifthemachinedoesnot
cuttheleavesnelyenough.
14

Maintenance
Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.
RecommendedMaintenanceSchedule(s)
MaintenanceService
IntervalMaintenanceProcedure
Aftertherst5hours•Changetheengineoil.
Beforeeachuseordaily
•Checktheengineoillevel.
•Ensurethattheenginestopswithin3secondsafterpressingandholdingtheignition
switch.
•Checktheblade-brake-clutchoperation.
•Cleangrassclippingsanddirtfromunderthemachine.
Every25hours
•Checktheaircleanerfordirty,loose,ordamagedparts,andcleanorreplacethem,
ifnecessary.
•Cleantheblade-brake-clutchshield.
Every100hours•Replacetheair-cleanerelement(replaceitmorefrequentlywhenoperatingthe
machineindustyordirtyconditions).
Beforestorage•Emptythefueltankbeforerepairsasdirectedandbeforeannualstorage.
Yearly
•Changetheengineoil.
•Replacethebladeorhaveitsharpened(morefrequentlyiftheedgedullsquickly).
•Cleantheaircoolingsystem;cleanitmorefrequentlyindustyoperatingconditions.
Refertoyourengineoperator'smanual.
•Refertoyourengineoperator'smanualforanyadditionalyearlymaintenance
procedures.
Important:Refertoyourengineoperator'smanualforadditionalmaintenanceprocedures.
Note:ReplacementpartsareavailablefromanAuthorizedServiceDealer(gotowww.toro.comtondthenearestdealer)
oratwww.shoptoro.com.
PreparingforMaintenance
1.Stoptheengineandwaitforallmovingpartstostop.
2.Disconnectthespark-plugwirefromthesparkplug
(Figure23)beforeperforminganymaintenance
procedure.
Figure23
3.Afterperformingthemaintenanceprocedure(s),
connectthesparkplugwiretothesparkplug.
Important:Beforetippingthemachinetochange
theoilorreplacetheblade,allowthefueltankto
rundrythroughnormalusage.Ifyoumusttip
themachinepriortorunningoutoffuel,usea
handfuelpumptoremovethefuel.Alwaystipthe
machineontoitsside,withthedipstickdown.
15

ServicingtheAirCleaner
ServiceInterval:Every25hours—Checktheaircleanerfor
dirty,loose,ordamagedparts,andclean
orreplacethem,ifnecessary.
Every100hours
1.RefertoPreparingforMaintenance(page15).
2.Unscrewandopentheair-cleanercover(Figure24).
G020262
1
2
3
Figure24
1.Air-cleanercover3.Air-cleanerelement
2.Screw
3.Replacetheair-cleanerelement.
4.Installtheair-cleanercover.
ChangingtheEngineOil
ServiceInterval:Aftertherst5hours
Yearly
Runtheengineafewminutesbeforechangingtheoiltowarm
it.Warmoilowsbetterandcarriesmorecontaminants.
1.Movethemachinetoalevelsurface.
2.RefertoPreparingforMaintenance(page15).
3.Removethedipstick(Figure25).
G020244
Figure25
4.Tipthemachineontoitssidewiththedipstickdown
todraintheusedoiloutthroughtheoil-lltube
(Figure26).
G020234
Figure26
5.Returnthemachinetotheoperatingposition.
6.Pourabout3/4ofthecrankcasecapacityofoilinthe
crankcase.
Note:Max.ll:22oz.(0.65l),type:SAE30
detergentoilwithanAPIserviceclassicationofSF,
SG,SH,SJ,SL,orhigher.
7.Waitabout3minutesfortheoiltosettleinthe
crankcase.
8.Wipethedipstickcleanwithacleancloth.
9.Insertthedipstickfullyintotheoil-lltube(butdonot
screwitin),thenremovethedipstick.
10.Readtheoillevelonthedipstick(Figure25).
•IftheoillevelisbelowtheAddmarkonthe
dipstick,slowlypourasmallamountofoilintothe
oil-lltubeandrepeatsteps8through10untilthe
oillevelisattheFullmarkonthedipstick.
•IftheoillevelisabovetheFullmarkonthe
dipstick,draintheexcessoiluntiltheoillevelon
thedipstickisattheFullmark.
Important:Iftheoillevelinthecrankcaseistoo
lowortoohighandyouruntheengine,youmay
damagetheengine.
11.Installthedipsticksecurely.
12.Recycletheusedoilproperly.
ReplacingtheBlade
ServiceInterval:Yearly
Important:
Youwillneedatorquewrenchtoinstallthe
bladeproperly
.Ifyoudonothaveatorquewrenchor
areuncomfortableperformingthisprocedure,contact
anAuthorizedServiceDealer.
Examinethebladewheneveryourunoutofgasoline.Ifthe
bladeisdamagedorcracked,replaceitimmediately.Ifthe
bladeedgeisdullornicked,haveitsharpenedandbalanced,
orreplaceit.
16

WARNING
Thebladeissharp;contactingthebladecanresult
inseriouspersonalinjury.
Weargloveswhenservicingtheblade.
1.Disconnectthespark-plugwirefromthesparkplug.
RefertoPreparingforMaintenance(page15).
2.Tipthemachineontoitssidewiththedipstickdown.
3.Removethe2bladenutsandthestiffener(Figure27).
Figure27
1.Bladenuts2.Stiffener
4.Removetheblade(Figure27).
5.Installthenewblade(Figure27).
6.Installthestiffenerthatyoupreviouslyremoved.
7.Installthebladenutsandtorquethemto15to27ft-lb
(20to37N-m).
Cleaningthe
Blade-brake-clutchShield
ServiceInterval:Every25hours
Cleantheblade-brake-clutchshieldyearlytopreventtheblade
fromstallingwhileyoumow.
1.Disconnectthespark-plugwirefromthesparkplug.
RefertoPreparingforMaintenance(page15).
2.Tipthemachineontoitssidewiththedipstickdown.
3.Removethe2bladenutsandthestiffener(Figure28).
Figure28
1.Bladenuts4.Bladedriver
2.Stiffener5.Disk
3.Blade6.Blade-brake-clutchshield
4.Removetheblade(Figure28).
5.Removethebladedriveranddisk(Figure28).
6.Removethebladebrake-clutchshield(Figure28).
7.Brushorblowoutdebrisfromtheinsideoftheshield
andaroundalltheparts.
8.Installtheblade-brake-clutchshieldthatyoupreviously
removed.
9.Installthebladedriveranddiskthatyoupreviously
removed.
10.Installthebladeandthestiffenerthatyoupreviously
removed(Figure28).
11.Installthebladenutsandtorquethemto15to27ft-lb
(20to37N-m).
17

AdjustingtheSelf-propelDrive
Cable
Wheneveryouinstallanewself-propelcableorifthe
self-propeldriveisoutofadjustment,adjusttheself-propel
drivecable.
1.Loosenthecable-supportnut(Figure29).
Figure29
2.Pulldownthecablejacket(towardthemachine)until
thereisnoslackinthecable(Figure30).
Figure30
3.Tightenthenutonthecablesupport.
CleaningundertheMachine
Housing
ServiceInterval:Beforeeachuseordaily
WARNING
Themachinemaydislodgematerialfromunderthe
machinehousing.
•Weareyeprotection.
•Stayintheoperatingposition(behindthe
handle)whentheengineisrunning.
•Donotallowbystandersinthearea.
Forbestresults,cleanthemachinesoonafteryouhave
completedmowing.
1.Lowerthemachinetoitslowestcuttingheightsetting.
RefertoAdjustingtheCuttingHeight(page8).
2.Movethemachineontoaatpavedsurface.
3.Washouttheareaunderthereardeectorwherethe
clippingsgofromthehousingtothegrassbag.
Note:Washouttheareawiththebag-on-demandin
boththefullyforwardandfullyrearwardpositions.
4.Attachagardenhosethatisconnectedtoawater
supplytothewashoutportonthemachinehousing
(Figure31).
G020007
1
Figure31
1.Washoutport
5.Turnthewateron.
6.Starttheengineandrunituntiltherearenomore
clippingsthatcomeoutfromunderthemachine
housing.
7.Stoptheengine.
8.Shutoffthewateranddisconnectthegardenhose
fromthemachine.
9.Starttheengineandrunitforafewminutestodrythe
housingtopreventitfromrusting.
10.Allowtheenginetocoolbeforestoringthemachine
inanenclosedarea.
18

Storage
Storethemachineinacool,clean,dryplace.
PreparingtheMachinefor
Storage
WARNING
Gasolinevaporscanexplode.
•Donotstoregasolinemorethan30days.
•Donotstorethemachineinanenclosurenear
anopename.
•Allowtheenginetocoolbeforestoringit.
1.Onthelastrefuelingoftheyear,addfuelstabilizerto
thefuelasdirectedbytheenginemanufacturer.
2.Disposeofanyunusedfuelproperly.Recycleit
accordingtolocalcodes,oruseitinyourautomobile.
Note:Oldfuelinthefueltankistheleadingcauseof
hardstarting.Donotstorefuelwithoutstabilizermore
than30days,anddonotstorestabilizedfuelmorethan
90days.
3.Runthemachineuntiltheenginestopsfromrunning
outoffuel.
4.Starttheengineagain.
5.Allowtheenginetorununtilitstops.Whenyoucan
nolongerstarttheengine,itissufcientlydry.
6.Disconnectthewirefromthesparkplug.
7.Removethesparkplug,add1oz.(30ml)ofoilthrough
thesparkplughole,andpullthestarterropeslowly
severaltimestodistributeoilthroughoutthecylinder
topreventcylindercorrosionduringtheoff-season.
8.Looselyinstallthesparkplug.
9.Tightenallnuts,bolts,andscrews.
FoldingtheHandle
WARNING
Foldingorunfoldingthehandleimproperlycan
damagethecables,causinganunsafeoperating
condition.
•Donotdamagethecableswhenfoldingor
unfoldingthehandle.
•Ifacableisdamaged,contactanAuthorized
ServiceDealer.
1.Loosenthehandleknobsuntilyoucanmovetheupper
handlefreely.
2.FoldtheupperhandleforwardasshowninFigure32.
Important:Routethecablestotheoutsideofthe
handleknobsasyoufoldthehandle.
G020229
Figure32
3.Tounfoldthehandle,reversethestepsabove.
RemovingtheMachinefrom
Storage
Connectthewiretothesparkplug.
19

TheToroTotalCoverageGuarantee22inRecycler®
A2-YearFullWarranty(45DayLimitedWarrantyforCommercialUse)20inMulcher/Bagger
TheToroGTSStartingGuaranteeWalkPowerMowers
A3-YearFullWarranty(NotApplicableforCommercialUse)
ConditionsandProductsCovered
TheToroCompanyanditsafliate,ToroWarrantyCompany,pursuantto
anagreementbetweenthem,jointlypromisetorepairtheToroProduct
listedbelowifusedforresidentialpurposes*;ifitisdefectiveinmaterials
orworkmanshiporifitstopsfunctioningduetothefailureofacomponent;
oriftheToroGTS(GuaranteedtoStart)enginewillnotstartontherstor
secondpull,providedtheroutinemaintenancerequiredintheOperator's
Manualhavebeenperformed.
Thiswarrantycoversthecostofpartsandlabor,butyoumustpay
transportationcosts.
Thefollowingtimeperiodsapplyfromthedateofpurchase:
ProductsWarrantyPeriod
22inRecyclerand20in
Mulcher/BaggerandAttachments2-yearfullwarranty
GTS(GuaranteedtoStart)3-yearfullwarranty
Engine3-yearfullwarranty
Battery1-yearfullwarranty
LimitedWarrantyforCommercialUse*
Gas-poweredToroProductsusedforcommercial,institutional,or
rentaluse,arewarrantedfor45daysagainstdefectsinmaterialsor
workmanship.Componentsfailingduetonormalweararenotcovered
bythiswarranty.
TheToroGTS(GuaranteedtoStart)StartingGuaranteedoesnotapply
whentheproductisusedcommercially*.
InstructionsforObtainingWarrantyService
IfyouthinkthatyourToroProductcontainsadefectinmaterialsor
workmanship,orifanormal,able-bodiedadultcannolongerstartyour
product'sengineinoneortwopulls,followthisprocedure:
1.ContactanyAuthorizedToroServiceDealertoarrangeservice
attheirdealership.T olocateadealerconvenienttoyou,referto
theYellowPagesofyourtelephonedirectory(lookunder“Lawn
Mowers”)oraccessourwebsiteatwww.Toro.com.Youmayalso
callthenumberslistedinitem#3tousethe24-hourToroDealer
locatorsystem.
2.Bringtheproductandyourproofofpurchase(salesreceipt)tothe
ServiceDealer.Thedealerwilldiagnosetheproblemanddetermine
ifitiscoveredunderwarranty.
3.IfforanyreasonyouaredissatisedwiththeServiceDealer’s
analysisorwiththeassistanceprovided,contactusat:
CustomerCareDepartment,RLCDivision
TheToroCompany
8111LyndaleAvenueSouth
Bloomington,MN55420-1196
Tollfreeat866-214-9807(U.S.customers)
Tollfreeat866-214-9808(Canadiancustomers)
OwnerResponsibilities
YoumustmaintainyourToroProductbyfollowingthemaintenance
proceduresdescribedintheOperator'sManual.Suchroutine
maintenance,whetherperformedbyadealerorbyyou,isatyourexpense.
ItemsandConditionsNotCovered
Thereisnootherexpresswarrantyexceptforspecialemissionsystem
coverageandenginewarrantycoverageonsomeproducts.Thisexpress
warrantydoesnotcoverthefollowing:
•Costofregularmaintenanceserviceorparts,suchaslters,fuel,
lubricants,oilchanges,sparkplugs,airltersbladesharpening
orwornblades,cable/linkageadjustments,orbrakeandclutch
adjustments
•Anyproductorpartwhichhasbeenalteredormisusedandrequires
replacementorrepairduetoaccidentsorlackofpropermaintenance
•Repairsnecessaryduetofailuretousefreshfuel(lessthanone
monthold),orfailuretoproperlypreparetheunitpriortoanyperiod
ofnon-useoveronemonth
•Pickupanddeliverycharges
•Operationalmisuse,neglect,oraccidents
•RepairsorattemptedrepairsbyanyoneotherthananAuthorized
ToroServiceDealer
•Repairsoradjustmentstocorrectstartingdifcultiesduetothe
following:
–failuretofollowpropermaintenanceprocedures
–rotarymowerbladestrikinganobject
–contaminantsinthefuelsystem
–improperfuel(consultyourOperator'sManualifindoubt)
–failuretodrainthefuelsystempriortoanyperiodofnon-use
overonemonth
•Specialoperationalconditionswherestartingmayrequiremorethan
twopulls:
–rsttimestartsafterextendedperiodofnon-useoverthree
monthsorseasonalstorage
–cooltemperaturestartssuchasthosefoundinearlyspringand
lateautumn
–improperstartingprocedures-ifyouarehavingdifcultystarting
yourunit,pleasechecktheOperator'sManualtoensurethat
youareusingthecorrectstartingprocedures.Thiscansavean
unnecessaryvisittoanAuthorizedToroServiceDealer.
GeneralConditions
Allrepairscoveredbythesewarrantiesmustbeperformedbyan
AuthorizedToroServiceDealerusingToro-approvedreplacementparts.
RepairbyanAuthorizedToroServiceDealerisyoursoleremedyunder
thiswarranty.
NeitherTheToroCompanynorToroWarrantyCompanyisliablefor
indirect,incidental,orconsequentialdamagesinconnectionwiththe
useoftheToroProductscoveredbythesewarranties,includingany
costorexpenseofprovidingsubstituteequipmentorserviceduring
reasonableperiodsofmalfunctionornon-usependingcompletionof
repairsunderthesewarranties.
Somestatesdonotallowexclusionsofincidentalorconsequential
damages,sotheaboveexclusionsmaynotapplytoyou.
Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveother
rightswhichvaryfromstatetostate.
CountriesOtherthantheUnitedStatesorCanada
CustomerswhohavepurchasedToroproductsexportedfromtheUnitedStatesorCanadashouldcontacttheirToroDistributor(Dealer)toobtain
guaranteepoliciesforyourcountry,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor'sserviceorhavedifcultyobtaining
guaranteeinformation,contacttheToroimporter.Ifallotherremediesfail,youmaycontactusatToroWarrantyCompany.
*Residentialpurposesmeansuseoftheproductonthesamelotasyourhome.Useatmorethanonelocation,orinstitutionalorrentaluse,isconsidered
commercialuse,andthecommercialusewarrantywouldapply.
374-0254RevC
