FormNo.3360-217RevA
Multicycler48cmLawnMower
ModelNo.20636—SerialNo.280J00001andUp
ModelNo.20637—SerialNo.280K00001andUp
ModelNo.20638—SerialNo.280L00001andUp
Operator'sManual
Introduction
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoidinjury
andproductdamage.Youareresponsibleforoperating
theproductproperlyandsafely.
YoumaycontactTorodirectlyatwww.Toro.comfor
productandaccessoryinformation,helpndinga
dealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.
Figure1
1.Modelandserialnumberplate
Writetheproductmodelandserialnumbersinthespace
below:
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafetyalertsymbol
(Figure2),whichsignalsahazardthatmaycauseserious
injuryordeathifyoudonotfollowtherecommended
precautions.
Figure2
1.Safetyalertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Formodelswithstatedenginehorsepower,thegross
horsepoweroftheenginewaslaboratoryratedbythe
enginemanufacturerinaccordancewithSAEJ1940.
Asconguredtomeetsafety,emission,andoperating
requirements,theactualenginehorsepoweronthisclass
oflawnmowerwillbesignicantlylower.
Safety
Improperlyusingormaintainingthismowercan
resultininjury.Toreducethepotentialforinjury,
complywiththesesafetyinstructions.
Torodesignedandtestedthismowerforreasonablysafe
service;however,failuretocomplywiththefollowing
instructionsmayresultinpersonalinjury.
Toensuremaximumsafety,bestperformance,and
togainknowledgeoftheproduct,itisessential
thatyouandanyotheroperatorofthemowerread
andunderstandthecontentsofthismanualbefore
theengineiseverstarted.Payparticularattention
tothesafetyalertsymbol(Figure2)whichmeans
Caution,Warning,orDanger—“personalsafety
instruction.”Readandunderstandtheinstruction
becauseithastodowithsafety.Failuretocomply
withtheinstructionmayresultinpersonalinjury.
©2008—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.Toro.com.OriginalInstructions(EN)
PrintedinHungary
AllRightsReserved

GeneralLawnMowerSafety
ThefollowinginstructionshavebeenadaptedfromEN
836.
Thiscuttingmachineiscapableofamputatinghands
andfeetandthrowingobjects.Failuretoobservethe
followingsafetyinstructionscouldresultinserious
injuryordeath.
Training
•Readtheinstructionscarefully.Befamiliarwiththe
controlsandtheproperuseoftheequipment.
•Neverallowchildrenorpeopleunfamiliarwiththese
instructionstousethemower.Localregulationscan
restricttheageoftheoperator.
•Keepinmindthattheoperatororuserisresponsible
foraccidentsorhazardsoccurringtootherpeopleor
theirproperty.
•Understandexplanationsforallpictogramsusedon
themowerorintheinstructions.
Gasoline
WARNING-Gasolineishighlyammable.Takethe
followingprecautions.
•Storefuelincontainersspecicallydesignedforthis
purpose.
•Refueloutdoorsonlyanddonotsmokewhile
refueling.
•Addfuelbeforestartingtheengine.Neverremove
thecapofthefueltankoraddgasolinewhilethe
engineisrunningorwhentheengineishot.
•Ifgasolineisspilled,donotattempttostartthe
enginebutmovethemowerawayfromtheareaof
spillageandavoidcreatinganysourceofignition
untilgasolinevaporshavedissipated.
•Replaceallfueltankandcontainercapssecurely.
Preparation
•Whilemowing,alwayswearsubstantialfootwearand
longtrousers.Donotoperatetheequipmentwhen
barefootorwearingopensandals.
•Thoroughlyinspecttheareawheretheequipmentis
tobeusedandremoveallstones,sticks,wires,bones
andotherforeignobjects.
•Beforeusing,alwaysvisuallyinspecttoseethat
guards,andsafetydevices,suchasdeectorsand/or
grasscatchers,areinplaceandworkingcorrectly.
•Beforeusing,alwaysvisuallyinspecttoseethatthe
blades,bladeboltsandcutterassemblyarenotworn
ordamaged.Replacewornordamagedbladesand
boltsinsetstopreservebalance.
Starting
•Disengageallbladeanddriveclutchesandshiftinto
neutralbeforestartingtheengine.
•Donottiltmowerwhenstartingtheengineor
switchingonthemotor,unlessthemowerhastobe
tiltedforstarting.Inthiscase,donottiltitmorethan
absolutelynecessaryandliftonlythepart,whichis
awayfromtheoperator.
•Starttheengineorswitchonthemotorcarefully
accordingtoinstructionsandwithfeetwellaway
fromtheblade(s)andnotinfrontofthedischarge
chute.
Operation
•Nevermowwhilepeople,especiallychildren,orpets
arenearby.
•Mowonlyindaylightoringoodarticiallight.
•Stayalertforholesintheterrainandotherhidden
hazards.
•Donotputhandsorfeetnearorunderrotatingparts.
Keepclearofthedischargeopeningatalltimes.
•Neverpickuporcarryalawnmowerwhilethe
engineisrunning.
•Useextremecautionwhenreversingorpullinga
pedestriancontrolledlawnmowertowardsyou.
•Walk,neverrun.
•Slopes:
–Donotmowexcessivelysteepslopes.
–Exerciseextremecautionwhenonslopes.
–Mowacrossthefaceofslopes,neverupand
downandexerciseextremecautionwhen
changingdirectiononslopes.
–Alwaysbesureofyourfootingonslopes.
•Stopthebladeifthelawnmowerhastobetiltedfor
transportationwhencrossingsurfacesotherthan
grassandwhentransportingthelawnmowertoand
fromtheareatobemowed.
•Donotoperatetheengineinaconnedspacewhere
dangerouscarbonmonoxidefumescancollect.
•Stoptheengine
–wheneveryouleavethelawnmower.
–beforerefueling.
–beforeremovingthegrasscatcher.
2

–beforemakingheightadjustmentunless
adjustmentcanbemadefromtheoperator’s
position.
•Stoptheengineanddisconnectthespark-plugwire.
–beforeclearingblockagesoruncloggingchute.
–beforechecking,cleaningorworkingonthelawn
mower.
–afterstrikingaforeignobject,inspectthelawn
mowerfordamageandmakerepairsbefore
restartingandoperatingthelawnmower.
–iflawnmowerstartstovibrateabnormally(check
immediately).
•Watchoutfortrafcwhencrossingornearroadways.
MaintenanceandStorage
•Keepallnuts,boltsandscrewstighttobesurethe
equipmentisinsafeworkingcondition.
•Donotusepressurecleaningequipmentonmachine.
•Neverstoretheequipmentwithgasolineinthetank
andinsideabuildingwherefumescanreachanopen
ameorspark.
•Allowtheenginetocoolbeforestoringinany
enclosure.
•Toreducetherehazard,keeptheengine,silencer,
batterycompartmentandgasolinestorageareafree
ofgrass,leaves,orexcessivegrease.
•Checkgrasscatchercomponentsandthedischarge
guardfrequentlyandreplacewithmanufacturer’s
recommendedparts,whennecessary.
•Replacewornordamagedpartsforsafety.
•Replacefaultysilencers.
•Ifthefueltankhastobedrained,dothisoutdoors.
•Donotchangetheenginegovernorsettingsor
overspeedtheengine.Operatinganengineat
excessivespeedcanincreasethehazardofpersonal
injury.
•Onmultibladedlawnmowers,takecareasrotating
oneblademaycauseotherstorotate.
•Becarefulduringadjustmentofthelawnmowerto
prevententrapmentofthengersbetweenmoving
bladesandxedpartsofthelawnmower.
•Toensurethebestperformanceandsafety,
purchaseonlygenuineTororeplacementparts
andaccessories.Donotuse
will t partsand
accessories;theymaycauseasafetyhazard.
SoundPressure
Thisunithasamaximumsoundpressurelevelatthe
operatorearof85dBA,basedonmeasurementsof
identicalmachinesperEN836andISO11201.
SoundPower
Thisunithasaguaranteedsoundpowerlevelof98dBA,
basedonmeasurementsofidenticalmachinesperISO
11094.
Vibration,Hand/arm
Thisunitdoesnotexceedahand/armvibrationlevelof
4.9m/s2,basedonmeasurementsofidenticalmachines
perEN836andEN1033.
3

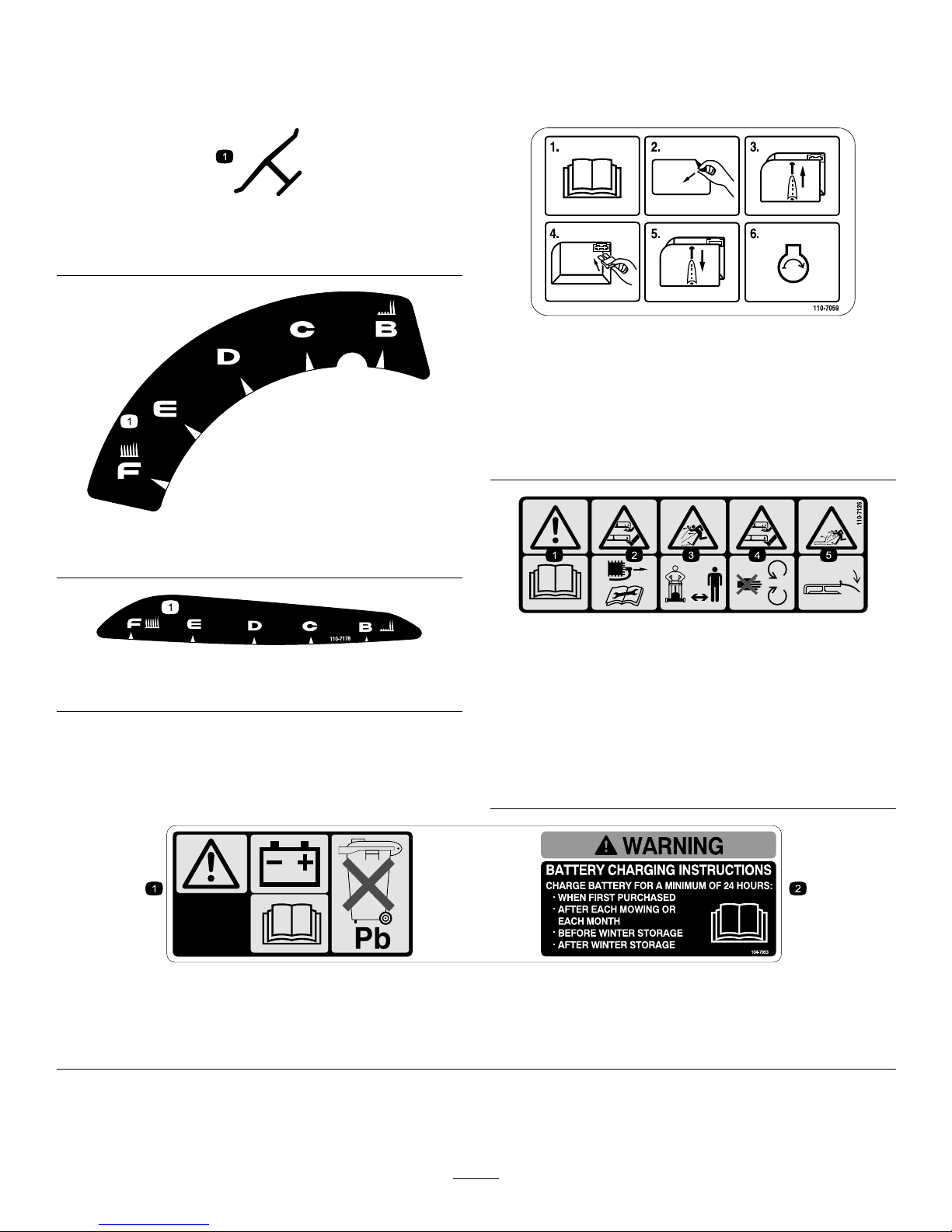

SafetyandInstructionalDecals
Important:Safetyandinstructiondecalsarelocatednearareasofpotentialdanger.Replacedamaged
decals.
Manufacturer’sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.
110-7058
1.Heightofcut
110-7178
1.Heightofcut
110-7059
Model20638only
1.ReadtheOperator’s
Manual.4.Installthefuse.
2.Removethefusebox
decal.5.Replacethefusebox cover.
3.Removethefusebox
cover.6.Starttheengine.
110-7126
1.Warning—readtheOperator’sManual.
2.Cutting,dismembermenthazardofhandorfoot—remove
thesparkplugwirebeforeperforminganymaintenance
onthemachine.
3.Thrownobjecthazard—keepbystandersasafedistance
fromthemachine.
4.Cutting,dismembermenthazardofhandorfoot—stayaway
frommovingparts.
5.Thrownobjecthazard—keepdeectorinplace.
104-7953
Model20638only
1.Warning—readtheOperator’sManualforinformationonchargingthebattery;containslead;donotdiscard.
2.ReadtheOperator’sManual.
4

Setup

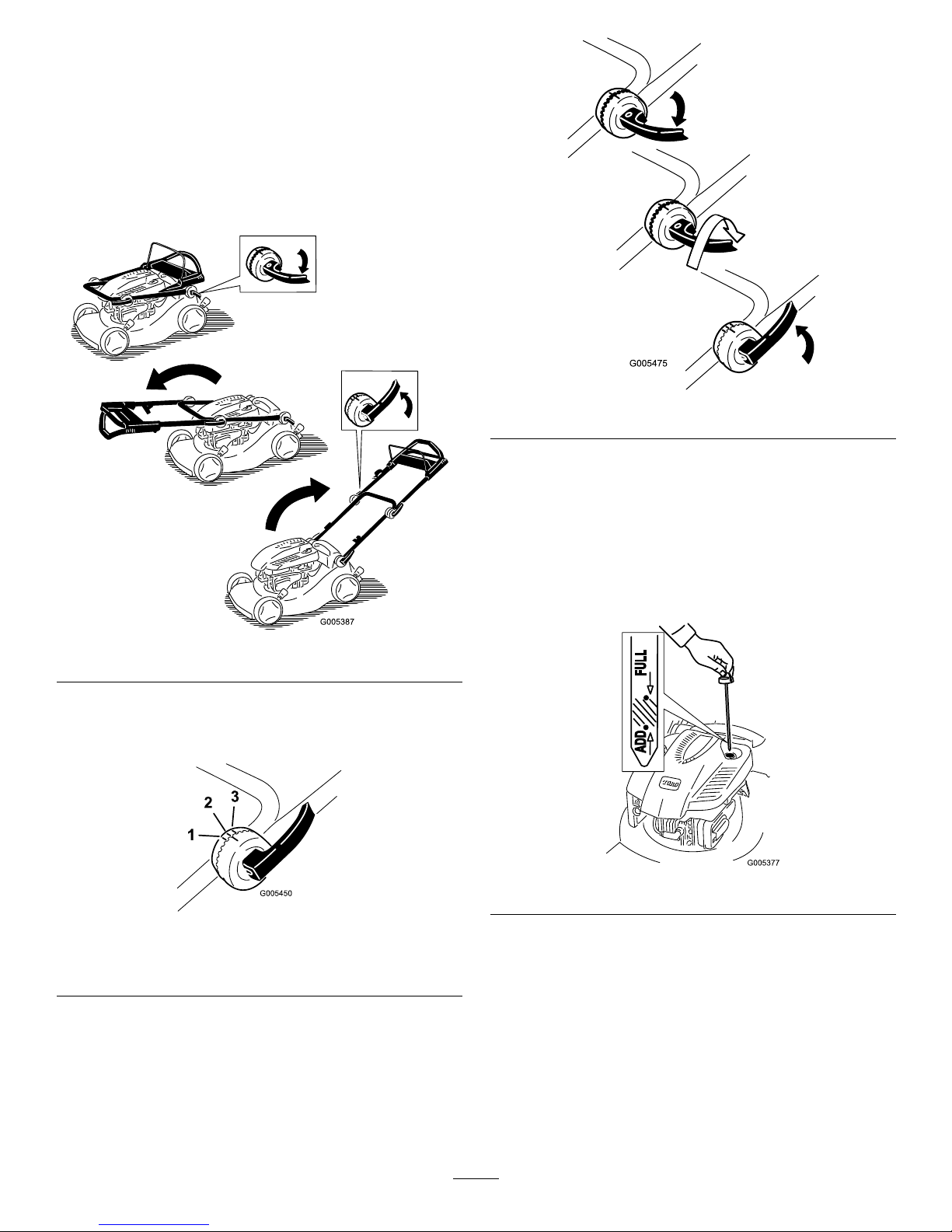

1.UnfoldingtheHandle
Procedure
1.Unlockthehandlelocks,movethehandlesections
intotheoperatingposition,andlockthehandlelocks
(Figure3).
Figure3
2.Unlocktheupperhandlelocksandrotatetheupper
handleupwardandlockitintoapositionthatis
comfortabletoyou(Figure4).
Figure4
1.Highestposition3.Lowestposition
2.Middleposition
Note:Youcansettheupperhandleto1of3handle
positions.Lineupthemarktooneofthe3markson
theinnersideoftheupperhandlelocks(Figure4).
Note:Ifahandleleverisloose,openthelever,
rotateitclockwise1or2turnstotightenit,then
closethelever(Figure5).
Figure5
2.FillingtheEnginewithOil
Procedure
Yourmowerdoesnotcomewithoilintheengine.
1.Removethedipstick(Figure6).
Figure6
2.Slowlypouroilintotheoillltubeuntiltheoillevel
reachestheFullmarkonthedipstick(Figure6).
Donotoverll.(Max.ll:0.59l,type:SAE30
detergentoilwithanAPIserviceclassicationofSF,
SG,SH,SJ,SL,orhigher.)
3.Installthedipsticksecurely.
Important: Change the engine oil after the r st
5 operating hour s ;changeityearlythereafter.
RefertoChangingtheEngineOil.
5

3.InstallingtheFuse
Procedure
Model20638only
Yourmowercomeswitha40-ampfusethatprotectsthe
electricstarter.
Important:Youcannotstartthemowerwiththe
electricstarterorchargethebatteryunlessyou
installthefuse.
1.Removethebatterycoverandthebatteryandlocate
thefuseholder(Figure7).
Figure7
1.Screw3.Fuseholder
2.Batterycover4.Battery
2.Insertthefuse(fromtheloosepartsbag)intothe
fuseholder(Figure8).
Figure8
Note:Yourmowercomeswithafuseintheowner’s
packetandanotherfuseinthebatterybox.
3.Installthebatteryandthebatterycover.
4.ChargingtheBattery
Procedure
Model20638only
RefertoChargingtheBatteryintheMaintenance
section.
ProductOverview
Figure9
Model20638shown
1.Lowerhandlelock9.Oilll/Dipstick(notshown)
2.Grassbag10.Fueltankcap
3.Upperhandlelock11.Cuttingheightlever(2)
4.Recoilstarthandle12.Sparkplug
5.Upperhandle(Models
20637and20638only)
13.Primer
6.Bladecontrolbar14.Airlter
7.Electricstart(model20638
only)15.Recycling/bagginglever
8.Reardoor
6

Operation
FillingtheFuelTank
Gasolineisextremelyammableandexplosive.
Areorexplosionfromgasolinecanburnyou
andothers.
•Topreventastaticchargefromignitingthe
gasoline,placethecontainerand/ormower
directlyonthegroundbeforelling,notina
vehicleoronanobject.
•Fillthetankoutdoorswhentheengineis
cold.Wipeupspills.
•Donothandlegasolinewhensmokingor
aroundanopenameorsparks.
•Storegasolineinanapprovedfuelcontainer,
outofthereachofchildren.
Fillthefueltankwithfreshunleadedregulargasoline
fromamajorname-brandservicestation(Figure10).
Important:Toreducestartingproblems,add
fuelstabilizertothefuelallseason,mixingitwith
gasolinelessthan30daysold.
Figure10
CheckingtheEngineOilLevel
ServiceInterval:Beforeeachuseordaily—Checkthe
engineoillevel.
1.Removethedipstick,wipeitclean,andfullyinstall
thedipstick(Figure6).
2.Removethedipstickandchecktheoillevel
(Figure6).IftheoillevelisbelowtheAddmarkon
thedipstick,slowlypouroilintotheoillltubeto
raisetheoilleveltotheFullmarkonthedipstick.
Donotoverll.(Max.ll:0.59l,type:SAE30
detergentoilwithanAPIserviceclassicationofSF,
SG,SH,SJ,SL,orhigher.)
3.Installthedipstick.
AdjustingtheCuttingHeight
Adjustingthecuttingheightmaybringyouinto
contactwiththemovingblade,causingserious
injury.
•Stoptheengineandwaitforallmovingparts
tostop.
•Donotputyourngersunderthehousing
whenadjustingthecuttingheight.
Iftheenginehasbeenrunning,themuferwill
behotandcanseverelyburnyou.Keepaway
fromthehotmufer.

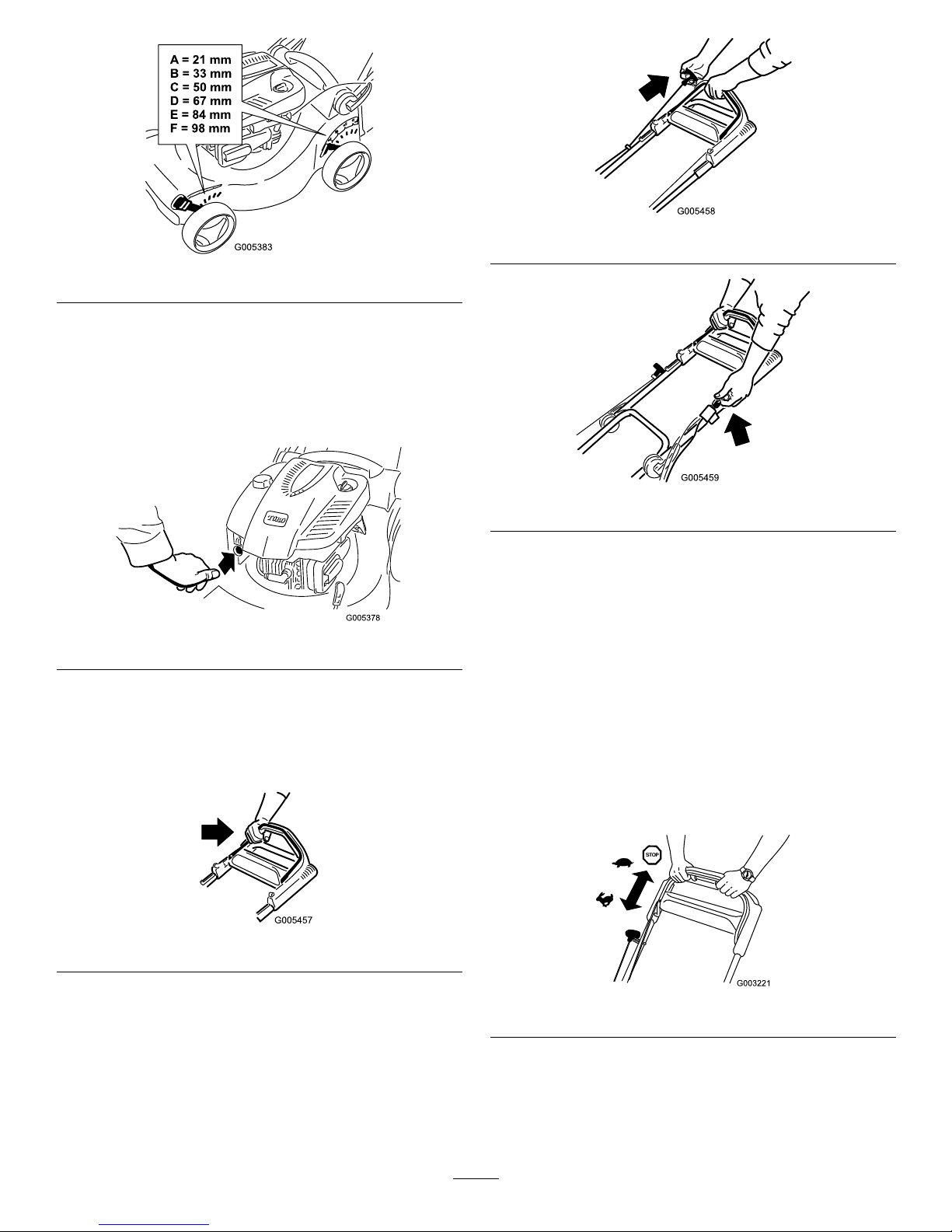

Adjustthecuttingheightasdesired.Setallfourwheels
tothesameheight.
Note:Toraisethemower,movethe2cuttingheight
leversforward;tolowerthemower,movethemboth
rearward(Figure11).
7

Figure11
StartingtheEngine
1.Firmlypushintheprimer3timeswithyourthumb,
holdingtheprimerinforasecondbeforereleasing
iteachtime(Figure12).
Figure12
Note:Iftheairtemperatureisbelow13°C,rmly
pushtheprimerin5times.
2.Holdthebladecontrolbaragainstthehandle
(Figure13).
Figure13
3.Pulltherecoilstarter(Figure14)orturntheignition
keyasshowninFigure15(model20638only).
Figure14
Figure15
4.Ifthemowerdoesnotstartin1or2pulls(orwithin
5secondsusingtheelectricstarter),presstheprimer
button1or2timesandtrystartingitagain.
Note:Ifthemowerstilldoesnotstart,contactan
AuthorizedServiceDealer.
UsingtheSelf-propelDrive
Models20637and20638
Tooperatetheself-propeldrive,simplywalkwithyour
handsontheupperhandleandyourelbowsatyoursides,
andthemowerwillautomaticallykeeppacewithyou.
Figure16
8

StoppingtheEngine
1.Releasethebladecontrolbar(Figure17).
Figure17
2.Whentheenginestops,removetheignitionkey
whenyouleavethemower.
Important:Whenyoureleasethebladecontrol
bar,boththeengineandbladeshouldstop
within3seconds.Iftheydonotstopproperly,
stopusingyourmowerimmediatelyandcontact
anAuthorizedServiceDealer.
RecyclingtheClippings
Yourmowercomesfromthefactoryreadytorecyclethe
grassandleafclippingsbackintothelawn.
Note:Thegrassbagmayremainonthemowerwhile
youarerecyclingtheclippings.
Torecycletheclippings,movetheRecycling/bagging
levertotherecyclingmode(Figure18).
Figure18
1.Recyclingmode2.Baggingmode
BaggingtheClippings
Usethegrassbagwhenyouwanttocollectgrassand
leafclippingsfromthelawn.
Aworngrassbagcouldallowsmallstones
andothersimilardebristobethrowninthe
operator’sorbystander’sdirectionandresultin
seriouspersonalinjuryordeathtotheoperator
orbystanders.
Checkthegrassbagfrequently.Ifitis
damaged,installanewTororeplacementbag.
Thebladeissharp;contactingthebladecan
resultinseriouspersonalinjury.
Stoptheengineandwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
Tobagthegrassclippings,installthegrassbag
(refertoInstallingtheGrassBag)andmovethe
Recycling/bagginglevertothebaggingmode
(Figure18).
InstallingtheGrassBag
Raiseandholdupthereardoor,installthebag,and
lowerthereardoor(Figure19).
Figure19
9

RemovingtheGrassBag
Toremovethebag,reversethestepsabove.
Rear-dischargingthe
Clippings
Usethereardischargeforcuttingverytallgrass.
Ifthebagisonthemower,removeit(refertoRemoving
theGrassBag)beforerear-dischargingtheclippings
(Figure20).TheRecycling/bagginglevershouldbein
thebaggingmode.
Figure20
Thebladeissharp;contactingthebladecan
resultinseriouspersonalinjury.
Stoptheengineandwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
OperatingTips
GeneralMowingTips
•Cleartheareaofsticks,stones,wire,branches,and
otherdebristhatthebladecouldhit.
•Avoidstrikingsolidobjectswiththeblade.Never
deliberatelymowoveranyobject.
•Ifthemowerstrikesanobjectorstartstovibrate,
immediatelystoptheengine,disconnectthewire
fromthesparkplug,andexaminethemowerfor
damage.
•Forbestperformance,installanewbladebeforethe
cuttingseasonbegins.
•ReplacethebladewhennecessarywithaToro
replacementblade.
CuttingGrass
•Cutonlyaboutathirdofthegrassbladeatatime.
Donotcutbelowthe51mmsettingunlessthegrass
issparseoritislatefallwhengrassgrowthbeginsto
slowdown.RefertoAdjustingtheCuttingHeight.
•Whencuttinggrassover15cmtall,mowatthe
highestcuttingheightsettingandwalkslower;then
mowagainatalowersettingforthebestlawn
appearance.Ifthegrassistoolong,themowermay
plugandcausetheenginetostall.
•Mowonlydrygrassorleaves.Wetgrassandleaves
tendtoclumpontheyardandcancausethemower
toplugortheenginetostall.
Wetgrassorleavescancauseseriousinjuryif
youslipandcontacttheblade.Mowonlyindry
conditions.
•Alternatethemowingdirection.Thishelpsdisperse
theclippingsoverthelawnforevenfertilization.
•Ifthenishedlawnappearanceisunsatisfactory,try
oneormoreofthefollowing:
–Replacethebladeorhaveitsharpened.
–Walkataslowerpacewhilemowing.
–Raisethecuttingheightonyourmower.
–Cutthegrassmorefrequently.
–Overlapcuttingswathsinsteadofcuttingafull
swathwitheachpass.
–Setthecuttingheightonthefrontwheelsone
notchlowerthantherearwheels.Forexample,
setthefrontwheelsat60mmandtherearwheels
at70mm.
CuttingLeaves
•Aftercuttingthelawn,ensurethathalfofthelawn
showsthroughthecutleafcover.Youmayneedto
makemorethanonepassovertheleaves.
•Iftherearemorethan13cmofleavesonthelawn,
setthefrontcuttingheightoneortwonotches
higherthantherearcuttingheight.
•Slowdownyourmowingspeedifthemowerdoes
notcuttheleavesnelyenough.
10

Maintenance
Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.
RecommendedMaintenanceSchedule(s)
MaintenanceService
IntervalMaintenanceProcedure
Aftertherst5hours•Changetheengineoil.
Beforeeachuseordaily
•Checktheengineoillevel.
•Ensurethattheenginestopswithin3secondsafterreleasingthebladecontrolbar.
•Cleanthemower.
Every25hours•Chargethebatteryfor24hours(model20638only).
•Replacethebladeorhaveitsharpened(morefrequentlyiftheedgedullsquickly).
Every50hours•Changetheengineoil.
Every100hours•Cleanthecoolingsystem(refertoyourengineowner’smanual).
•Replacethesparkplug(refertoyourengineowner’smanual).
Beforestorage•Emptythefueltankbeforerepairsasdirectedandbeforeannualstorage.
Yearly
•Replacetheairlter(morefrequentlyindustyoperatingconditions).
•Checkthesparkplug(refertoyourengineowner’smanual).
•Lubricatethewheelgears.
•RefertoyourEngineOperator’sManualforanyadditionalyearlymaintenance
procedures.
Important:Refertoyour Engine Operator’ s Man ual foradditionalmaintenanceprocedures.
PreparingforMaintenance
1.Stoptheengineandwaitforallmovingpartstostop.
2.Disconnectthesparkplugwirefromthesparkplug
(Figure21)beforeperforminganymaintenance
procedure.
Figure21
3.Afterperformingthemaintenanceprocedure(s),
connectthesparkplugwiretothesparkplug.
Important:Beforetippingthemowertochange
theoilorreplacetheblade,allowthefueltank
torundrythroughnormalusage.Ifyoumust
tipthemowerpriortorunningoutoffuel,usea
handfuelpumptoremovethefuel.Alwaystip
themowerontoitssidewiththeairlterup.
Tippingthemowermaycausethefueltoleak.
Gasolineisammable,explosiveandcancause
personalinjury.
Runtheenginedryorremovethegasolinewith
ahandpump;neversiphon.
ReplacingtheAirFilter
ServiceInterval:Yearly—Replacetheairlter
(morefrequentlyindustyoperating
conditions).
1.Performthepre-maintenanceprocedures;referto
PreparingforMaintenance.
2.Opentheairltercoverandremovetheoldairlter
(Figure22).
11

Figure22
3.Installanewairlterandtheairltercover.
ChangingtheEngineOil
ServiceInterval:Aftertherst5hours
Every50hours
Runtheengineafewminutesbeforechangingtheoil
towarmit.Warmoilowsbetterandcarriesmore
contaminants.
1.Performthepre-maintenanceprocedures;referto
PreparingforMaintenance.
2.Ifthegrassbagisonthemower,removeit.
3.Drainthegasolinefromthefueltank;referto
EmptyingtheFuelTank.
4.Removethedipstick(Figure6).
5.Removethedipstickfromoillltubeandplace
adrainpannexttotheleftsideofthemower
(Figure23).
Figure23
6.Afterdrainingtheoil,returnthemowertoits
operatingposition.
7.Slowlypouroilintotheoillltubeuntiltheoillevel
reachestheFullmarkonthedipstick(Figure6).
Donotoverll.(Max.ll:0.59l,type:SAE30
detergentoilwithanAPIserviceclassicationofSF,
SG,SH,SJ,SL,orhigher.)
8.Installthedipsticksecurely.
9.Wipeupanyspilledoil.
10.Disposeoftheusedoilproperlyatalocalrecycling
center.
ChargingtheBattery
ServiceInterval:Every25hours—Chargethebattery
for24hours(model20638only).
Model20638only
Alwaysusethechargerinashelteredareaandchargethe
batteryatroomtemperature(22°C)wheneverpossible.
1.Connectthechargertothemowerwireharness
locatedbelowtheignitionkey(Figure24).
Figure24
2.Plugthechargerintoawalloutlet.
Note:Whenthebatterynolongerholdsacharge,
recycleordisposeofthelead-acidbatteryaccording
tolocalcodes.
ReplacingtheFuse
Model20638only
Ifthebatterydoesnotchargeortheenginedoesnotrun
withtheelectricstarter,thefusemaybeblown.Replace
itwitha40-ampplug-intypefuse.RefertoInstalling
theFuse.
12

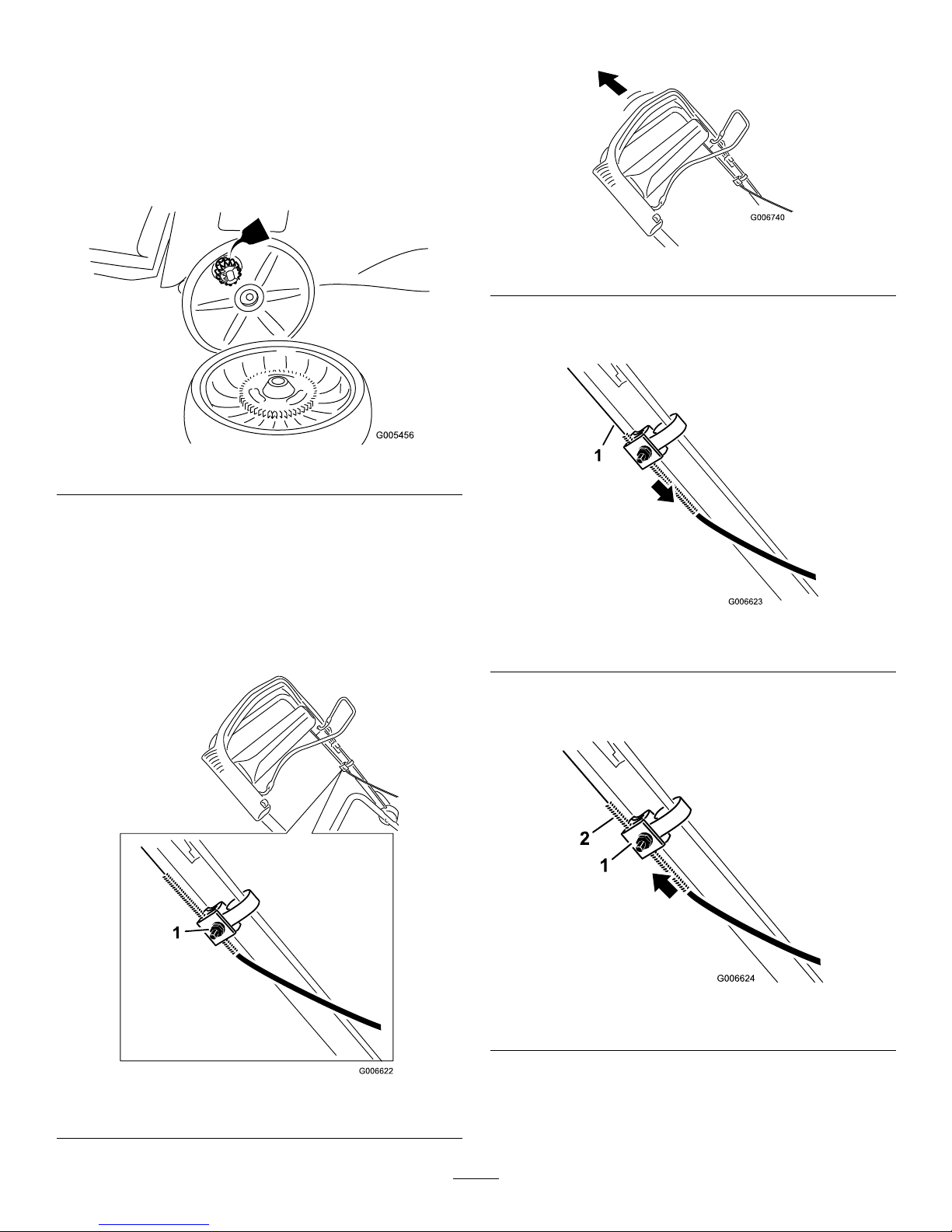

LubricatingtheWheelGears
ServiceInterval:Yearly—Lubricatethewheelgears.
1.Removethewheelboltsontherearwheelsand
removetherearwheels.
2.Applyalubricatingoiltothegearasshownin
Figure25.
Figure25
3.Installtherearwheels.
AdjustingtheSelf-propelDrive
Ifyourmowerdoesnotself-propelproperly,adjustthe
self-propeldrivecable.
1.Loosenthenutonthecablemount(Figure26).
Figure26
1.Nutoncablemount
2.Pulltheupperhandlebackfullyrearward(Figure27).
Figure27
3.Pullthecablejacketdownwarduntilyouremovethe
slackintheexposedcable(Figure28).
Figure28
1.Exposedcable
4.Pushthecablejacketupward3/16inch(5mm)
(Figure29).
Figure29
1.Cablemount2.Cablejacket
Note:Youcanplacearuleragainsttheupperside
ofthecablemountandmeasurehowfartheupper
endofthecablejacketmoves.
13

Note:Movingthecablejacketupwarddecreases
thegroundspeed;movingthejacketdownward
increasesthegroundspeed(Figure30).
Figure30
1.Cablejacket
5.Tightenthenutrmly.
6.Startthemowerandchecktheadjustment.
Note:Iftheself-propeldriveisnotproperly
adjusted,repeatthisprocedure.
ReplacingtheBlade
ServiceInterval:Every25hours—Replacetheblade
orhaveitsharpened(morefrequently
iftheedgedullsquickly).
Important:
Y ou will need a torque wr ench to install
the blade pr oper l y .Ifyoudonothaveatorque
wrenchorareuncomfortableperformingthis
procedure,contactanAuthorizedServiceDealer.
Examinethebladewheneveryourunoutofgasoline.If
thebladeisdamagedorcracked,replaceitimmediately.
Ifthebladeedgeisdullornicked,haveitsharpenedor
replaceit.
Thebladeissharp;contactingthebladecan
resultinseriouspersonalinjury.
Weargloveswhenservicingtheblade.
1.Disconnectthesparkplugwirefromthesparkplug.
RefertoPreparingforMaintenance.
2.Tipthemowerontoitssidewiththeairlterup
(Figure31).
Figure31
3.Removetheblade,savingallmountinghardware.
4.Installthenewbladeandallmountinghardware.
Important:Positionthecurvedendsofthe
bladetopointtowardthemowerhousing.
5.Useatorquewrenchtotightenthebladebolt
to82N-m.
Important:Abolttorquedto82N-misvery
tight.Whileholdingthebladewithablockof
wood,putyourweightbehindtheratchetor
wrenchandtightentheboltsecurely.Thisbolt
isverydifculttoovertighten.
CleaningtheMower
ServiceInterval:Beforeeachuseordaily—Cleanthe
mower.
Tippingthemowermaycausethefueltoleak
fromthecarburetororthefueltank.Gasoline
isextremelyammable,highlyexplosive,and
undercertainconditioncancausepersonal
injuryorpropertydamage.
Runtheenginedryorremovethefuelwitha
handpump;neversiphonthefuel.
1.Performthepre-maintenanceprocedures;referto
PreparingforMaintenance.
2.Removethegrassbag.
3.Drainthefuelfromthefueltank.
4.Tipthemowerontoitssidewiththeairlterup.
5.Removethedirtandgrassclippingswithahardwood
orplasticscraper.Avoidburrsandsharpedges.
14

6.Spraytheundersideofthemowerhousingwith
water.
7.Turnthemoweruprightaftercleaningthemower.
EmptyingtheFuelTank
1.Stoptheengineandwaitforittocooldown
2.Disconnectthewirefromthesparkplug.
3.Removethecapfromthefueltank.
4.Useahandpumptosyphonthefuelintoaclean
approvedgasolinecontainer.
5.Connectthewiretothesparkplug.
6.Runtheengineuntilitstops.
7.Starttheengineagaintomakesurethatallthe
gasolineisoutofthecarburetor.
Storage
Storethemowerinacool,clean,dryplace.
PreparingtheMowerfor
Storage
Gasolinevaporscanexplode.
•Donotstoregasolinemorethan30days.
•Donotstorethemowerinanenclosurenear
anopename.
•Allowtheenginetocoolbeforestoringit.
1.Onthelastrefuelingoftheyear,addfuelstabilizer
tothefuelasdirectedbytheenginemanufacturer.
2.Runthemoweruntiltheenginestopsfromrunning
outoffuel.
3.Primetheengineandstartitagain.
4.Allowtheenginetorununtilitstops.Whenyoucan
nolongerstarttheengine,itissufcientlydry.
5.Disconnectthewirefromthesparkplug.
6.Removethesparkplug,add30mlofoilthrough
thesparkplughole,andpullthestarterropeslowly
severaltimestodistributeoilthroughoutthecylinder
topreventcylindercorrosionduringtheoff-season.
7.Looselyinstallthesparkplug.
8.Tightenallnuts,bolts,andscrews.
9.Chargethebatteryfor24hours,thenunplugthe
batterychargeranstorethemowerinanunheated
area.Ifyoumuststorethemowerinaheatedarea,
youmustchargethebatteryevery90days(model
20638only).
RemovingtheMowerfrom
Storage
1.Removethesparkplugandspintheenginerapidly
usingthestartertoblowtheexcessoilfromthe
cylinder.
2.Installthesparkplugandtightenitwithatorque
wrenchto20N-m.
3.Chargethebatteryfor24hours(model20638only).
4.Connectthewiretothesparkplug.
15

374-0102 Rev B
International Distributor List
Distributor: Country: Phone Number:
Atlantis Su ve Sulama Sisstemleri Lt Turkey 90 216 344 86 74
Balama Prima Engineering Equip Hong Kong 852 2155 2163
B-Ray Corporation Korea 82 32 551 2076
Casco Sales Company Puerto Rico 787 788 8383
Ceres S.A Costa Rica 506 239 1138
CSSC Turf Equipment (pvt) Ltd Sri Lanka 94 11 2746100
Cyril Johnston & Co Northern Ireland 44 2890 813 121
Equiver Mexico 52 55 539 95444
Femco S.A. Guatemala 502 442 3277
G.Y.K. Company ltd. Japan 81 726 325 861
Geomechaniki of Athens Greece 30 10 935 0054
Guandong Golden Star China 86 20 876 51338
Hako Gorund and Garden Sweden 46 35 10 0000
Hayter Limited (U.K.) United Kingdom 44 1279 723 444
Hydroturf Int. Co Dubai United Arab Emirates 97 14 347 9479
Hydroturf Egypt LLC Egypt 202 519 4308
Ibea S.p.A. Italy 39 0331 853611
Irriamc Portugal 351 21 238 8260
Jean Heybroek b.v. Netherlands 31 30 639 4611
Lely (U.K.) Limited United Kingdom 44 1480 226 800
Maquiver S.A. Colombia 57 1 236 4079
Maruyama Mfg. Co. Inc. Japan 81 3 3252 2285
Metra Kft Hungary 36 1 326 3880
Mountfield a.s. Czech Republic 420 255 704 220
Munditol S.A. Argentina 54 11 4 821 9999
Oslinger Turf Equipment SA Ecuador 593 4 239 6970
Oy Hako Ground and Garden Ab Finland 358 987 00733
Parkland Products Ltd New Zealand 64 3 34 93760
Prochaska & Cie Austria 43 1 278 5100
RT Cohen 2004 Ltd Israel 972 986 17979
Riversa Spain 34 9 52 83 7500
Roth Motorgerate GmBh & Co Germany 49 7144 2050
Sc Svend Carlsen A/S Denmark 45 66 109 200
Solvert S.A.S France 33 1 30 81 77 00
Spypros Stavrinides Limited Cyprus 357 22 434131
Surge Systems India Limited India 91 1 292299901
T-Markt Logistics Ltd Hungary 36 26 525 500
Toro Australia Australia 61 3 9580 7355
Toro Europe BVBA Belgium 32 14 562 960

The Toro Warranty
Conditions and Products CoveredThe Toro® Company and its afliate, Toro Warranty Company, pursuant toan agreement between them, jointly promises to the original purchaser* torepair any Toro Product used for normal residential purposes* if defective inmaterials or workmanship. The following time periods apply from the dateof original purchase:
Products
Warranty Period
Walk Power Mowers
2-year limited warranty
Rear Engine Riders 2-year limited warranty
Lawn & Garden Tractors
2-year limited warranty
Electric Hand Held Products
2-year limited warranty
Snowthrowers
2-year limited warranty
Consumer Zero Turn
2-year limited warranty
* “Original purchaser” means use the person who originally purchased Toroproducts.
* “Normal residential purposes” means use of the product on the same lot asyour home. Use at more than one location is considered commercial use, andthe commercial use warranty would apply.
Limited Warranty for Commercial UseToro Consumer Products and attachments used for commercial, institutional,or rental use are warranted against defects in materials or workmanship for thefollowing time periods from the date of original purchase:
Products
Warranty Period
Walk Power Mowers
90 day warranty
Rear Engine Riders 90 day warranty
Lawn & Garden Tractors
90 day warranty
Electric Hand Held Products
90 day warranty
Snowthrowers
90 day warranty
Consumer Zero Turn
45 day warranty
Instructions for Obtaining Warranty ServiceIf you think that your Toro Product contains a defect in materials orworkmanship, follow this procedure:
1. Contact your seller to arrange service of the product. If for any reasonit is impossible for you to contact your seller, you may contact any ToroAuthorized Distributor to arrange service.
2. Bring the product and your proof of purchase (sales receipt) to your selleror the Service Dealer.
If for any reason you are dissatised with the Service Dealer’s analysis or with theassistance provided, contact the Toro importer or contact us at:
Customer Care Department, Consumer DivisionToro Warranty Company8111 Lyndale Avenue SouthBloomington, MN 55420-1196Manager: Technical Product Support: 001-952-887-8248
See attached Distributor List
Owner ResponsibilitiesYou must maintain your Toro Product by following the maintenance proceduresdescribed in the operator’s manual. Such routine maintenance, whetherperformed by a dealer or by you, is at your expense.
Items and Conditions Not CoveredThis express warranty does not cover:
•Cost of regular maintenance service or parts, such as lters, fuel, lubricants,tune-up parts, blade sharpening, brake and clutch adjustments.
•Any product or part which has been altered or misused or requiredreplacement or repair due to normal wear, accidents, or lack of propermaintenance.
•Repairs necessary due to improper fuel, contaminants in the fuel system, orfailure to properly prepare the fuel system prior to any period of non-useover three months.
•Engine and transmission. These are covered by the appropriatemanufacturer’s guarantees with separate terms and conditions.
All repairs covered by this warranty must be performed by an Authorized ToroService Dealer using Toro approved replacement parts.
General ConditionsThe purchaser is covered by the national laws of each country. The rights towhich the purchaser is entitled with the support of these laws are not restrictedby this warranty.
374-0101 Rev A

FormNo.3360-217RevA
48cmMulticyclerRasenmäher
Modellnr.20636—Seriennr.280J00001undhöher
Modellnr.20637—Seriennr.280K00001undhöher
Modellnr.20638—Seriennr.280L00001undhöher
Bedienungsanleitung
Einführung
LesenSiedieseInformationensorgfältigdurch,umsich
mitdemordnungsgemäßenEinsatzundderWartung
desGerätsvertrautzumachenundVerletzungenund
eineBeschädigungdesGerätszuvermeiden.Sietragen
dieVerantwortungfüreinenordnungsgemäßenund
sicherenEinsatzdesGeräts.
WendenSiesichhinsichtlichInformationenzu
ProduktenundZubehörsowieAngabenzuIhrem
örtlichenVertragshändleroderzurRegistrierungdes
ProduktsdirektanTorounterwww.Toro.com.
WendenSiesichanIhrenToroVertragshändler
oderKundendienst,wennSieeineServiceleistung,
ToroOriginalersatzteileoderweitereInformationen
benötigen.HabenSiedafürdieModell-und
SeriennummernderMaschinegriffbereit.Bild1zeigt
diePositionderModell-undSeriennummernander
Maschine.
1.TypenschildmitModell-undSeriennummern
TragenSiehierbittedieModell-undSeriennummern
derMaschineein:
Modellnr.
Seriennr.
IndieserAnleitungwerdenpotenzielleGefahren
angeführt,undSicherheitsmeldungenwerdenvom
Sicherheitswarnsymbol(Bild2)gekennzeichnet,dasauf
eineGefahrhinweist,diezuschwerenodertödlichen
Verletzungenführenkann,wennSiedieempfohlenen
Sicherheitsvorkehrungennichteinhalten.
1.Sicherheitswarnsymbol
IndieserAnleitungwerdenzweiBegriffezur
HervorhebungvonInformationenverwendet.Wichtig
weistaufspezielletechnischeInformationenhin,und
HinweishebtallgemeineInformationenhervor,die
IhrebesondereBeachtungverdienen.
BeiModellenmitangegebenenPSwurdedie
BruttoleistungdesMotorsimLaborvom
MotorherstellergemäßSAEJ1940klassiziert.
AufgrundderKongurationzurErfüllungvon
Sicherheits-,Emissions-undBetriebsanforderungen
istdietatsächlicheMotorleistungindieserKlasseder
Rasenmäherwesentlichniedriger.
Sicherheit
DerunsachgemäßeEinsatzoderdiefalsche
WartungdiesesRasenmäherskannzuVerletzungen
führen.BefolgenSiezurReduzierungder
VerletzungsgefahrdieseSicherheitsanweisungen.
DieserRasenmäherwurdevonTorofüreinen
angemessenenundsicherenBetriebausgelegt.Das
NichtbeachtenderfolgendenAnweisungenkannjedoch
zuVerletzungenführen.
UmdiemaximaleSicherheit,optimaleLeistung
unddasnötigeWissenüberdieMaschinezu
erhalten,müssenSieundjederandereBenutzer
desRasenmähersdenInhaltdervorliegenden
AnleitungvordemAnlassendesMotorssorgfältig
lesenundverstehen.BesondereBeachtung
istdemGefahrensymbolBild2zuschenken,
©2008—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
RegistrierenSieIhrProduktunterwww.Toro.com.Originaldokuments(DE)
Druck:Ungarn
AlleRechtevorbehalten

welchesVorsicht,WarnungoderGefahr–
„Sicherheitshinweis“bedeutet.Lesenund
verstehenSiedieAnweisungen,dasiewichtig
fürdieSicherheitsind.DasNichtbeachtender
AnweisungenkannzuKörperverletzungenführen.
AllgemeineHinweisezur
SicherheitvonRasenmähern
DiefolgendenAnleitungenbasierenaufder
EN-Norm836.
DieseMaschinekannHändeundFüßeamputierenund
Gegenständeaufschleudern.DasNichtbeachtender
folgendenSicherheitsvorschriftenkannzuschweren
VerletzungenoderzumTodführen.
Schulung
•LesenSiedieseAnweisungengründlichdurch.
MachenSiesichmitdenBedienelementenunddem
korrektenEinsatzdesGerätsvertraut.
•LassenSiedenRasenmähernievonKindernoder
Personenbedienen,diemitdiesenAnweisungen
nichtvertrautsind.DasAlterdesFahrerskann
durchlokaleVorschrifteneingeschränktsein.
•BedenkenSieimmer,dassderBedienerdie
VerantwortungfürUnfälleoderGefahrengegenüber
anderenundihremEigentumträgt.
•VerstehenSiealleErläuterungenderamRasenmäher
undinderAnleitungverwendetenSymbole.
Benzin
WARNUNG:Kraftstoffistleichtentzündlich.Befolgen
SiedienachstehendenSicherheitsvorkehrungen:
•BewahrenSieKraftstoffnurinzugelassenen
Vorratskanisternauf.
•BetankenSienurimFreien,undrauchenSiedabei
nie.
•BetankenSiedieMaschine,bevorSiedenMotor
anlassen.EntfernenSiebeilaufendemoderheißem
MotorniedenKraftstofftankdeckeloderbetanken
dieMaschine.
•VersuchenSie,wennBenzinverschüttetwurde
nie,denMotorzustarten,sondernschiebenden
RasenmähervomverschüttetenKraftstoffwegund
vermeidenoffeneFlammen,bisdieVerschüttung
verdunstetist.
•SchraubenSiedenTank-undBenzinkanisterdeckel
wiederfestauf.
Vorbereitung
•TragenSiebeimMähenimmerfesteSchuheund
langeHosen.FahrenSiedieMaschineniebarfuss
odermitSandalen.
•InspizierenSiedenArbeitsbereichgründlichund
entfernenSteine,Stöcke,Drähte,Knochenund
andereFremdkörper.
•PrüfenSievorderInbetriebnahmevisuell,oballe
SchutzvorrichtungenundSicherheitsgeräte,wiez.B.
Ablenkblecheund/oderGrasfangkörbeeinwandfrei
montiertsindundrichtigfunktionieren.
•ÜberprüfenSievordemEinsatzimmer,obdie
Schnittmesser,-schraubenunddasMähwerk
abgenutztoderbeschädigtsind.TauschenSie
abgenutzteoderdefekteMesserund-schrauben
alskompletteSätzeaus,umdieWuchtderMesser
beizubehalten.
Anlassen
•KuppelnSiealleMesserundAntriebskupplungen
ausundstellendieSchaltungaufNeutral,bevorSie
denMotorstarten.
•KippenSiedenRasenmähernie,wennSieden
Motoranlassen,esseidenn,Siemüssenihnzum
Startenkippen.KippenSieihninsolchenFällennie
weiteralsunbedingterforderlichundnurdenTeil,
dervomBenutzerentferntist.
•StartenSiedenMotorvorsichtigundentsprechend
denAnweisungen,wobeiSiedieFüßesoweitwie
möglichvom/vondenMesser(n)fernhalten,d.h.
stellenSiesichnievordenAuswurfkanal.
Betrieb
•MähenSienie,wennsichPersonen,insbesondere
KinderoderHaustiere,inderNäheaufhalten.
•MähenSienurbeiTageslichtoderguterkünstlicher
Beleuchtung.
•AchtenSieaufKuhlenundandereversteckte
GefahrenstellenimGelände.
•HaltenSieHändeundFüßevonsichdrehenden
Teilenfern.BleibenSieimmervonder
Auswurföffnungfern.
•HebenodertragenSiedenRasenmäherniebei
laufendemMotor.
•GehenSiemitgrößterVorsichtvor,wenn
SierückwärtsfahrenoderSieeinen
fußgängergesteuertenRasenmäherzusich
ziehen.
•GehenSieimmer;laufenSienie.
•Gefälle:
2

–VersuchenSienicht,steileHängezumähen.
–GehenSieanHängenäußertvorsichtigvor.
–MähenSiequerzumHang,d.h.nieauf-
oderabwärts,undgehenSiebeimWendenzur
HangseitemitgrößterVorsichtvor.
–AchtenSieanHängenimmeraufeinegute
Bodenhaftung.
•StellenSiedasMesserab,wennSiedenRasenmäher
zwischenMähbereichentransportierenundder
RasenmäherzumTransportzumÜberquerenvon
Flächen(außerGrünächen)gekipptwerdenmuss.
•LassenSiedenMotornieinunbelüftetenRäumen
laufen,dasichdortgefährlicheKohlenmonoxidgase
ansammelnkönnen.
•StellenSiedenMotorindenfolgendenSituationen
ab:
–WennSiedenRasenmäherverlassen.
–VordemAuftanken.
–VordemEntfernenderHeckfanganlage.
–VordemVerstellenderSchnitthöhe.Esseidenn,
dieEinstellunglässtsichvonderFahrerposition
ausbewerkstelligen.
•StellenSiedenMotorabundziehenSieden
Zündkerzensteckerab:
–VordemEntfernenvonBehinderungenund
VerstopfungenausdemAuswurfkanal.
–VordemPrüfen,ReinigenoderAusführenvon
WartungsarbeitenamRasenmäher.
–...wennSieaufeinenFestkörperaufgeprallt
sindundprüfendenRasenmäheraufeventuelle
Defekte;führenSiedanndieerforderlichen
Reparaturendurch,bevorSiedenRasenmäher
startenundinBetriebnehmen.
–BeimAuftretenvonungewöhnlichenVibrationen
amRasenmäher(sofortüberprüfen).
•AchtenSiebeimÜberquerenundinderNähevon
StraßenaufdenVerkehr.
WartungundLagerung
•HaltenSiealleMutternundSchraubenfest
angezogen,damitdasGerätineinemsicheren
Betriebszustandbleibt.
•VerwendenSiekeinHochdruckgerätzumWaschen
derMaschine.
•BewahrenSiedenRasenmäherniemitBenzinim
TankoderinnerhalbeinesGebäudesauf,woDämpfe
eineoffeneFlammeoderFunkenerreichenkönnten.
•LassenSiedenMotorabkühlen,bevorSiedie
MaschineineinemgeschlossenenRaumabstellen.
•HaltenSie,umdasBrandrisikozuverringern,den
Motor,Schalldämpfer,dasBatteriefachundden
BenzintankvonGras,LaubundüberüssigemFett
frei.
•PrüfenSiedieBestandteiledesFangkorbsunddes
Auswurfschutzblecheshäug,undwechselnSiesie
ggf.mitdenvomHerstellerempfohlenenTeilenaus.
•TauschenSieabgenutzteundbeschädigteTeileaus
Sicherheitsgründenaus.
•WechselnSiedefekteAuspuffeaus.
•WennSiedenKraftstoffausdemTankablassen
müssen,solltediesimFreiengeschehen.
•VerändernSieniedieEinstellungdes
Motoriehkraftreglers,undüberdrehenSie
niemalsdenMotor.DurchdasÜberdrehendes
MotorssteigtdieVerletzungsgefahr.
•GehenSiebeiMähernmitmehrerenMessern
vorsichtigvor,dadasDreheneinesMessersdie
anderenMessermitdrehenkann.
•AchtenSiebeimEinstellendesRasenmähers
sorgfältigdarauf,dassSieIhreFingernirgendwo
zwischendensichbewegendenMessernundstarren
Teilenverklemmen.
•FüreineoptimaleLeistungundSicherheit
solltenSienurToroOriginalersatzteileund
-zubehörkaufen.VerwendenSienie
ungefähr
passende TeileundZubehör;diesesindu.U.
gefährlich.
Schalldruck
DieseMaschineerzeugteinenmaximalen
Schalldruckpegel,deramOhrdesBenutzersaufder
GrundlagevonMessungenanbaugleichenMaschinen
nachEN836undISO1120185dBAbeträgt.
Schallleistung
DieseMaschineentwickeltnachMessungenan
baugleichenMaschinenlautISO11094einen
Schallleistungspegelvon98dBA.
Vibration,Hand/Arm
DieseMaschinehataufderGrundlagevonMessungen
anbaugleichenMaschinengemäßEN836undEN1033
anderHandbzw.demArmdesBedienerseinmaximales
Vibrationsniveauvon4,9m/s2.
3
