Toshiba IC-S19RH User manual

USER
MANUAL
INDUCTION COOKER
IC-S19RH
KEEP WARM SIMMER BOIL

2
• Do not disassemble, repair or modify It may cause fire, electri
•
c shock
or injury. For repairs, contact the store where you purchased the
product or the consultation center.
• Do not put foreign matter in the air intake / exhaust port In particular,
metals such as pins and wires may cause electric shock or even move
and cause injury.
• Do not soak or splash water. Do not get wet. It may cause a short
circuit or electric shock
• Do not give a shock (such as dropping something) to the top plate If
it is cracked or cracked, using it as it is may cause electric shock,
overheating, or abnormal operation.
I.SAFETY INSTRUCTIONS
Warning
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilties, or lack of experi-
ence and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible
for their safety.
•This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised.
•Keep the appliance and its cord out of reach of children less than 8
years.
•Children should be supervised to ensure that they do not play with
the appliance.

Power Cord/Outlet Related
• Make sure to insert the power plug steady to the base.
• When heating the liquid, mix it before heating
• Observe the following when stir-frying or grilling.
•If the supply cord is damaged, it must be replaced by the manufactur-
hazard.
•This appliance as well as the cooking utensils used and the surface of
the appliance can become very hot, do not touch the hot surface of
the ceramic hob.
•Hold the power plug and pull it out from the outlet. It may cause fire
due to electric shock or short circuit.
•Be careful when handling plugs and cords (Causes of fire, electric
shock, and burns due to short circuit and electric leakage)
•Do not use for anything other than cooking (Cause of ignition due to
overheating / abnormal operation)
•Be careful of splashing oil while cooking fried food. Oil may splatter
and cause burns. Be careful especially with foods that with much
more water.
•That appliances are not intended to be operated by means of an
external timer or separate remote-control system.
•Remove dust from the plug on a regular period If dust accumulates, it
may cause a fire due to poor insulation.
•Make sure your hands are dry before touching the plug.
•Do not damage the cord, do not bend it forcibly, do not pull it, do not
twist it. Do not bundle and energize, keep away from high tempera-
ture parts, do not put heavy objects on it. Do not pinch, do not
process.
•
nance or relocation and whenever it is not in use.
3
Don't leave when cooking.
Adjust the heat to a low level and do not overheat.
Since a small amount of oil is used, the oil temperature rises sharply and may ignite.
•
•
•

• Do not use on unstable places, heat-sensitive rugs, near flammable
materials, or in slippery places. If the main body is tilted, the pan will
• Keep your face away. It may cause burns.
• Do not bake or overheat. It may cause burns, ignition of cooked food,
or damage to the pan.
• Unplug the power plug as soon as there is a lot of oily smoke,
because The oil is hot. Continued heating may cause ignition.
• Please choose the course that suits your cooking Do not cook fried
food on a heating course. The oil temperature will rise too high and
may cause a fire.
•Caution, hot surface, The surfaces are liable to get hot during use.
•When frying food with induction cooker, the following precautions
caused by overheating of oil temperature. Please do not leave away
when frying food in an induction cooker. Frying food with the "frying"
menu. When the bottom of the pot is deformed, please do not use it.
You must use a pan for frying food. Please do not fry with oil less than
800g (0.9l). Please put the pot in the middle of the induction cooker
when frying food.
•If you are using a cardiac pacemaker, please use this induction cooker
under the guidance of a doctor. The operation of this product will
• Do not use hot oil preheated with other appliances (gas stove, etc.)
Do not preheat with hot oil. The temperature control device may not
work properly and may overheat abnormally, causing ignition.
• Nothing is laid under the pan. Do not cook with water or foreign
matter on the top plate or the bottom of the pan. Resins such as
pan, It cannot be done and may cause the food to burn.
• Do not block the intake and exhaust ports. If you use it on something
that can be easily sucked in, such as paper or table cloth, and block
the exhaust and intake ports, the temperature inside the main unit
will rise, which may cause a fire.
4

Other matters
• Do not use on IH cooking heaters. Also, do not use an
electromagnetic induction heating cooker such as an IH jar rice
cooker on the top plate.
• Since the lines of magnetic force are emitted, keep away from objects
that are weak against magnetism. The memory of cash cards, IC
cards, etc. may be lost. In addition, TV, radio, hearing aids, etc. may be
interference with noisy.
•This appliance is intended to be used in household and similar appli-
cations such as:
•
•farm houses;
•by clients in hotels, motels and other residential type environments;
•In bed and breakfast type environments;
• Do not put the IH cooker near water leakage, stove, gas stove and
other heat sources. Otherwise, electric shock, electric leakage,
furnace deformation and fire may be caused.
5

Power cord
ttnneevvrriiAA
Ceramic plateCeramic plate
enozg enozgnikooC nikooC
Control panelControl panel
yyrrttnneerriiAA
II.PRODUCT INTRODUCTION
IC-S19RH 220-240V~ 50/60Hz 1900W 360x290x45 2.65
The induction cooker is able to meet various kinds of cooking
demands by electromagnetic heating, high thermal efficiency, is
safe and reliable, easy to clean.
Model Applied
voltage/frequency Rated power Dimension (mm) Weight(kg)
Performance Parameters
KEEP WARM
CHILD LOCK TIMER PAUSE
SIMMER BOIL FRY DEEP FRYBOOST
HOT POT
6

III. OPERATION INSTRUCTIONS
The controls respond to touch, so you don't need to apply any pressure.
Plug in
After the power supply is connect, a beep will be heard.
Switch on
After pressing the " " button, the induction cooker is ready for working.
Press the function button to start heating.
After pressing the " " button, if no function button is pressed for 10
seconds, the induction cooker will switch off automatically.
Under the working mode, if there is no proper pot on the ceramic plate, the
induction cooker will not heat up and the alarm will sound to indicate that a pot
is required. One minute later, it will switch off automatically.
Read this guide, taking special note of the "Safety Warnings” section.
Before using New Induction cooker
Remove any protective film that may still be on your ceramic plate.
Using the Touch Controls
Use the ball of your finger, not its tip
You will hear a beep each time a touch is registered.
Make sure the controls are always clean, dry, and that there is no object
(e.g. a utensil or a cloth) covering them.Even a thin film of water may make
the controls difficult to operate.
Make sure the air vents are not blocked and keep utensils away from the
immediate surrounds of the ceramic plate.
Make sure the cookware which has food or liquid is placed in the center of
ceramic plate.
Put the pot on the ceramic plate
7

III. OPERATION INSTRUCTIONS
Pause
Press the “Pause” button to stop heating.
When the induction cooker is in pause,press the “Pause” button again or select
a cooking mode to quit the pause status and return to the normal heating
process.
After setting Pause ,the induction cookerstops heating.
After reaching the default pause time, if the pause state is not cancelled, the
induction cooker may alarm and automatically switch off.
Function
After switching on the induction cooker, press the corresponding function
button to select the desired cooking mode.
Function cooking mode instructions
Note: Power in each cooking mode is restricted complying with the cooking
requirement and you can use power mode if higher wattage is required.
8
2 hours
2 hours
Simmer
Function Icon Usage
Default
cooking
time
Adjustable
cooking
time range
Default
wattage
Power
15 min
2 hours
1600W 1min-3hours
200W
400W
2 hours
2 hours 1300W
1900W
1900W
1min-3hours
1min-3hours
1min-3hours
1min-3hours
-
-
Deep Fry
Boil
Fry
5min 1900WBoost
This mode can be used for manual.
You can adjust the power by using +/- button.
This mode can be used for keeping warm.
This mode can be used for simmer.
This mode can be used for boiling water.
This mode can be used for fry.
This mode can be used for deep fry.
This mode allows obtaining directly the
highest power level.
Keep
warm
+/-

III. OPERATION INSTRUCTIONS
ON/OFF
Timer
To use the timer, press the “Timer” button. The digital screen will indicate
“0:00”. During the several seconds,press the “+/-” buttons to adjust the cooking
time. Each pressure increase or decrease the time of 1 minute. If you maintain
the button longer, the time will increase or decrease by increments of 10
minutes. The timer can be set from 1 minute to 180 minutes. Once the time is
set, the digital screen will flicker during several seconds before heating. To
cancel the timer function, press again on the timer button.
When the operating time is over, the induction cooker switches off automatical-
ly.
Press the “ ” button to turn off the appliance .
How To Lock
Press the “CHILD LOCK” button to start lock function. The “CHILD LOCK”
indicator lights up. Now only the “ ” button can be used to switch off the
appliance, all the other operations are forbidden.
Press the “CHILD LOCK” button for several seconds to quit the lock function.
The “lock” indicator turns off.
Note: Do not touch the surface of the ceramic while“H” is displayed, it
means the temperature high.
While “L” is displayed, it means the temperature low.
9

IV. COMPATIBLE COOKWARE
V. CLEANING AND MAINTENANCE
Requirement for pot materials: containing magnetic inducting
materials.
Shape requirement: plat bottom, with the diameter more than
15 cm and less than 18 cm.
After the first use, some white spots would appear at the
bottom of the pot. This is normal.
Please pour some vinegar into the pot, heat it at about 60-
80 °C, then wipe the spots away with brush.
Incompatible pots material: glass, ceramic, aluminium,copper
and other non magnetic material.
If the pot removed, the induction cooker will stop heating imme-
diately. After the buzzer sounds for 1 minute, it will go into-
standby mode automatically.
Before cleaning, please switch off the appliance first and then
disconnect the power plug from the power outlet. Wait till the
cooker plate of the induction cooker is not hot and
start cleaning.
After using the induction cooker for a long time, the
opening of air inlet/air outlet will pile up with dust or other
dirt, please wipe it with a soft dry cloth. Dust in the air inlet
and outlet can be cleaned by using a soft brush or a mini
vacuum cleaner.
Iron oil frying
pan
Enamel stainless
steel kettle
Enamel cooking
utensil
Iron plate
Stainless steel pot Iron pan Iron kettle
10

VI. TROUBLESHOOTING
For oil spots on the cooker plate, wipe the cooker plate by
using a soft moist cloth with a little tooth paste or mild deter-
gent. And then use a soft moist cloth to wipe it until no stain
remains.
When not using it for a long time, please disconnect the
power plug from the power outlet and protect the
induction cooker from any dust or bugs.
Note:Pleasedo not rinse it with water.
Abnormalities Key checking points and trouble shooting
Is the power plug properly connected?
Is the switch, power outlet, fuse or power cord
damaged?
Is the pot material proper?
Is the appliance in a "Preset" working status?
For other causes, please take the appliance to a
repairing and maintenance site to be fixed.
Code of failure
E3 E6 EA
E7 E8
Wait a moment and press the "ON/OFF"button when the
temperature of the hotplate becomes normal,the induction
hotplate will operate as usual.
E1 E2 E4
U1E5 Eb
Turn off the hotplate, when the voltage becomes
normal, and then turn on the hotplate, it will operate as
usual.
Please contact the special maintenance department.
Emergency
During using, if there are some abnormal cases, please unplug immediately and
disconnect power.For any failure of the product, please contact the special
maintenance department or the customer service center.
After plugging in the power cord and
pressing the "ON/OFF" key. the indicator
and display do not light up.
Heating suddenly stops during the
process.
The "ON/OFF" indicator lights up and the
display works normally, but heating does
not start.
Is the temperature of the oil too high when frying
dishes?
Is the temperature of the surroundings very high?
Is the air inlet or air outlet of the induction cooker
blocked?
Is the default heating time of the induction cooker
over?
The self-safety protection of the induction cooker
starts, wait for several minutes and connect power
to use it.
11

VII.WARRANTY
VIII.SPECIAL DECLARATION
If problems occur with the product, please contact our specific repair and
maintenance site or service center.
If there is technical amendment for the product, it will be edited into the
updated version of the instruction manual. Please be aware that we will not
inform customers of this separately. If the appearance or color of the product
is modified, please refer to the real appliance as a standard.
• Any problem caused by the following items is not included in the warranty:
Damage caused by incorrect use. storing or maintenance by the customer.
Disassembling or repairing the appliance by a repair agent that is not
appointed by our company, resulting in damage to the appliance.
The model number on the invoice is different from the one of the product to
be repaired, or the model number on the invoice is modified.
No valid invoice.
Damage due to force majeure.
Putting the induction cooker to commercial use.
We are not responsible for accidents arising due to the use of our
accessories not designed for utilisation with this product.
Using the product in a non-household environment is not covered by the
warranty scope.
9 Man-made issue or problems caused by incorrect use are not covered by
the warranty scope.
• For those products beyond the warranty, the customer service center of
the company will still serve you warmly.
12

IC-S19RH
KEEP WARM SIMMER BOIL

I.
1
8
8
3. 8
4.
FRY DEEP FRY BOOST

2
FRY DEEP FRY BOOST

3
菜單，

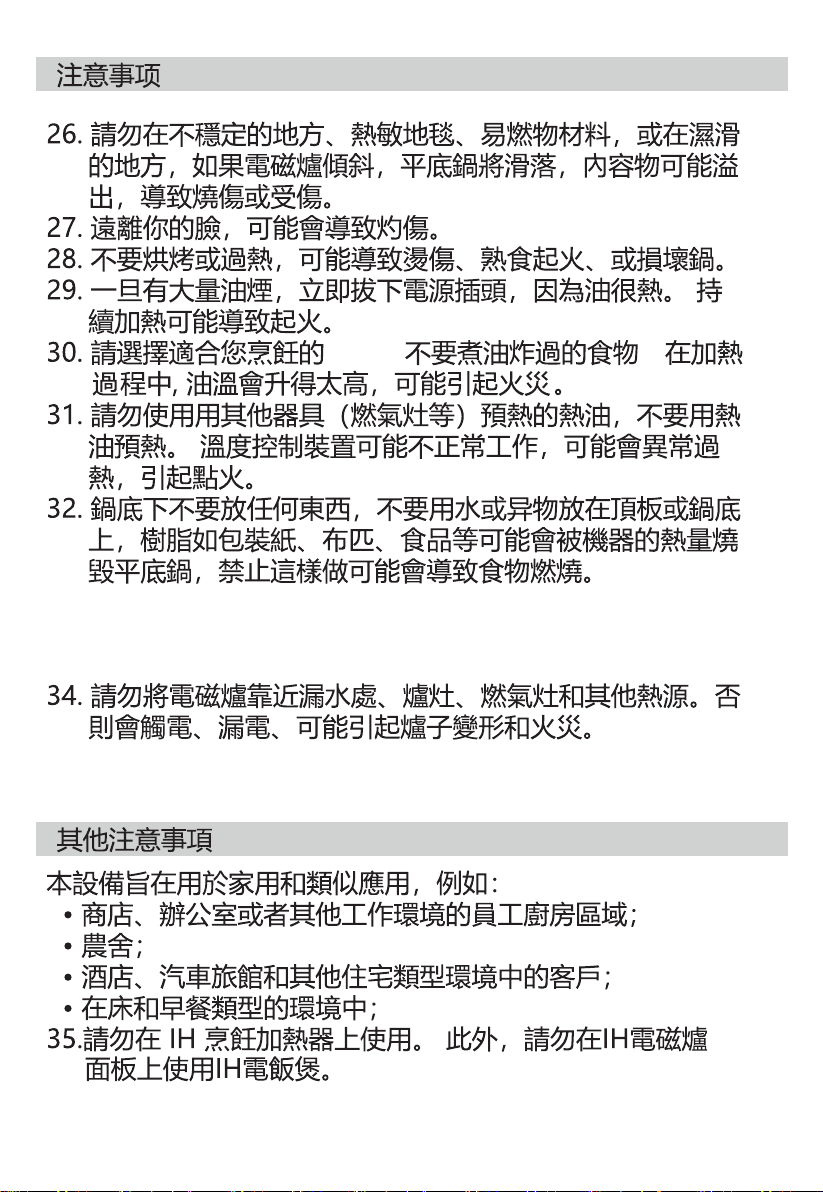

33. 不要堵塞進、排氣口。 如果用在紙或桌布等容易被吸進去
的東西上，堵住了排氣口和進氣口，主機內部的溫度會上
升，這可能會引起火災。
，

II.
IC-S19RH 220-240V~ 50/60Hz 1900W 360x290x45 2.65
4
/
KEEP WARM
CHILD LOCK TIMER PAUSE
SIMMER BOIL FRY DEEP FRYBOOST
HOT POT

III.
5
“ ”
“ ”
“ ” 10

III.
6
“ ”
“ ”
+/- 21600W
+/-
2200W
燉2200W 此模式可用於煨煮。
15 1900W -
21300W
油炸 21900W 此模式可用於油炸。
51900W -
