Toshiba PDR-4300 Mounting instructions

You should read this first before you use this software.
Notice and Request Regarding Software and Instruction Manual
(1) Copying or duplication of the software and Instruction Manual packaged with this Software
Application in part or in whole is not allowed without the prior permission of Toshiba
Corporation.
(2) Use of the software and Instruction Manual packaged with this Software Application is allowed
only on one personal computer.
(3) Toshiba Corporation is not liable whatsoever for any damages to the user or a third party as a
result of use of a device by the software and Instruction Manual packaged with this Software
Application.
(4) Every effort has been made in assuring the quality during production of the CD-ROM contained
in this package. If for any reason the CD-ROM has been damaged during production and within
the warranty, the disk will be replaced free of charge. For all other nonconformities or damages
made other than during the production of the CD-ROM, Toshiba Corporation will not be held
liable whatsoever.
(5) The contents of the software, Design, Specifications and Instruction Manual packaged with this
Software Application are subject to change without notice.
(6) The personal computer screens shown in this Instruction Manual are examples, and may differ from
actual screens.
(7) Toshiba Corporation is not liable whatsoever for any compensation arising from errors in descriptions
in this Instruction Manual.
(8) Do not play back the CD-ROM packaged with this Software Application on a musical CD player or
a similar device. Doing so might damage the headphones or speakers, or injure your ears.
IMPORTANT

Operations in
ACD See
When Using
Macintosh
When Using
Windows
Getting Ready
1
Before Reading This Manual
This Instruction Manual describes how to install the software provided and a brief explanation of how to use
the Software Application.
To ensure that you use this Software Application correctly, read this Instruction Manual carefully before you
start using the Software Application.
This document has been written assuming that you basically understand how to use the Toshiba PDR-4300
Digital Still Camera and your personal computer that the Software Application is running on.
For basic details on the PDR-4300 and your personal computer, refer to the Toshiba PDR-4300 Digital Still
Camera’s Instruction Manual or the Instruction Manual for your personal computer.
Trademark Information
Microsoft and Windows are registered trademarks of the Microsoft Corporation of the U.S. registered in
the USA and other countries.
Windows is an abbreviated term referring to the Microsoft Windows Operating System.
Macintosh is a trademark of Apple Computer, Inc.
ACDSee is a registered trademark of ACD Systems Ltd.
Direct X is a registered trademark of Microsoft Corporation.
SD is a trademark .
Other companies or product names are trademarks or registered trademarks of the respective companies.
Conventions Used In This Manual
• Indicates items or details that you should observe to prevent loss of data, malfunction and impaired
performance. Also indicates information relating to specifications and functions.
• Indicates extra useful information.

When Using
Macintosh
When Using
Windows Getting Ready
Operations in
ACD See
2
Before Reading This Manual (continued)
Abbreviations Used In This Manual
Windows 98
This refers to the Microsoft Windows 98 operating system.
Windows 2000
This refers to the Microsoft Windows 2000 Professional operating system.
Windows ME
This refers to the Microsoft Windows ME operating system.
Windows XP
This refers to the Microsoft Windows XP operating system.
Images
This refers to both still images and movies.
About bundle software in CD-ROM
After USB connection between the camera and the computer is established, the system will automatically
launch ACDSeeTM software.
Either using Classic or X environment mode on Macintosh, the software installations remain the same.
About OS Platform
Macintosh
Do not remove SD Memory Card from your camera or your PC card adapter until USB connection is properly
terminated between the computer and the camera.
At Windows 2000, software installation is required on Administrator mode.
Windows
On Macintosh OS X, the images reviewed via ACDSee software cannot be copied or moved to another storage
media.
On Macintosh, ACDSee software does not support [Copy to Camera] function.

Operations in
ACD See
When Using
Macintosh
When Using
Windows
Getting Ready
3
Before Reading This Manual (continued)
Make sure that you have all of the items below before you start using your software application.
USB cable (1)
Software Manual(1)
(this manual)
Software application(1)
(CD-ROM)

When Using
Macintosh
When Using
Windows Getting Ready
Operations in
ACD See
4
Contents
Getting Ready
Before Reading This Manual ...................... 1
Contents ..................................................... 4
Features of This Software Application........ 5
About Files .................................................. 6
About the Software ...................................... 8
Pre-installation Checks .............................. 9
When Using Windows
Installation Procedure .............................. 10

Using USB Cables
(Windows 98/2000/ME/XP) ........................
12
Copying Images to Camera ..................... 15
When Using Macintosh
Installation Procedure .............................. 17
Operations in ACDSee
General Operations ......................................
Starting the Photo Enhancer........................
Playing Movies...............................................
Installing DirectX............................................
How to Access the Service and Support....
Global Contacts .............................................
18
20
22
23
24
25

Operations in
ACD See
When Using
Macintosh
When Using
Windows
Getting Ready
5
Features of This Software Application
If you install the software and drivers on your personal computer, you can perform the following:
Importing Images
You can import images taken on the Toshiba PDR-4300 Digital Still Camera into your personal computer.
To import images, you need to use the USB cable (packaged with this camera), or PC card adapter.
Editing Still Images
You can edit imported still images using ACDSee, or print them out on a printer connected to the
personal computer you are using.
Playing Movies
You can play imported movies.
Saving Images
You can save imported images or edited images on the personal computer you are using.
When You Use SD Memory Card on Your Personal Computer
When you use SD Memory Card on your personal computer, do not change or delete the folder or names of
files (image data) on the SD Memory Card. Otherwise, you may no longer be able to use the SD Memory
Card on the PDR-4300.
 Format the SD Memory Card on the PDR-4300.
 To edit image data, first copy the image data to the personal computer’s hard disk, and edit the copied
image data.

When Using
Macintosh
When Using
Windows Getting Ready
Operations in
ACD See
6
About Files
File Structure of SD Memory Card
The images taken on the Toshiba PDR-4300 Digital Still Camera are stored to the SD Memory Card as shown
below.

Operations in
ACD See
When Using
Macintosh
When Using
Windows
Getting Ready
7
About Files (continued)
About Still Picture Data
On the PDR-4300, still image data is saved in Exif format. This format is JPEG data that includes a
thumbnail image and the photographic settings.
Still image data is saved as follows as shown on page 6:
Folder name : XXXTOSHI (XXX is any number within the range 100 to 999)
File name : PDR_XXXX (XXXX is any number within the range 0001 to 9999)
About Movie Data
Movie data is saved in the following format on the PDR-4300:
File format : AVI
Movie size : 320 x 240 or 160 x 120
Movie codec : Motion-JPEG
• The quality or size of movie data cannot be changed.

When Using
Macintosh
When Using
Windows Getting Ready
Operations in
ACD See
8
About the Software
You can install the following software from the CD-ROM:
ACDSee
This software allows you to edit and print imported still images and to playback movies.
USB driver(Ver. 1.1)(for Windows 98 only)
This USB driver provided on the CD-ROM is exclusively for Windows 98. Installing the USB driver for use in
Windows 2000, Windows ME, Windows XP and Macintosh is not necessary.
Direct X
This software allows you to playback movies.

Operations in
ACD See
When Using
Macintosh
When Using
Windows
Getting Ready
9
Pre-installation Checks
To install the software supplied on the CD-ROM, your personal computer must conform to the system requirements
in the table below. Check the following items before you install the software.
Minimum system requirements
*Proper connections with not all PCs will be assured.
When using Mac OS 9.0 or 9.1, you need to install CarbonLib 1.3 or later.
You can download the program from the web site of Apple Computer, Inc.

Operations in
ACDSee
When Using
Macintosh
When Using
Windows Getting Ready
10
Installation Procedure(for Windows)

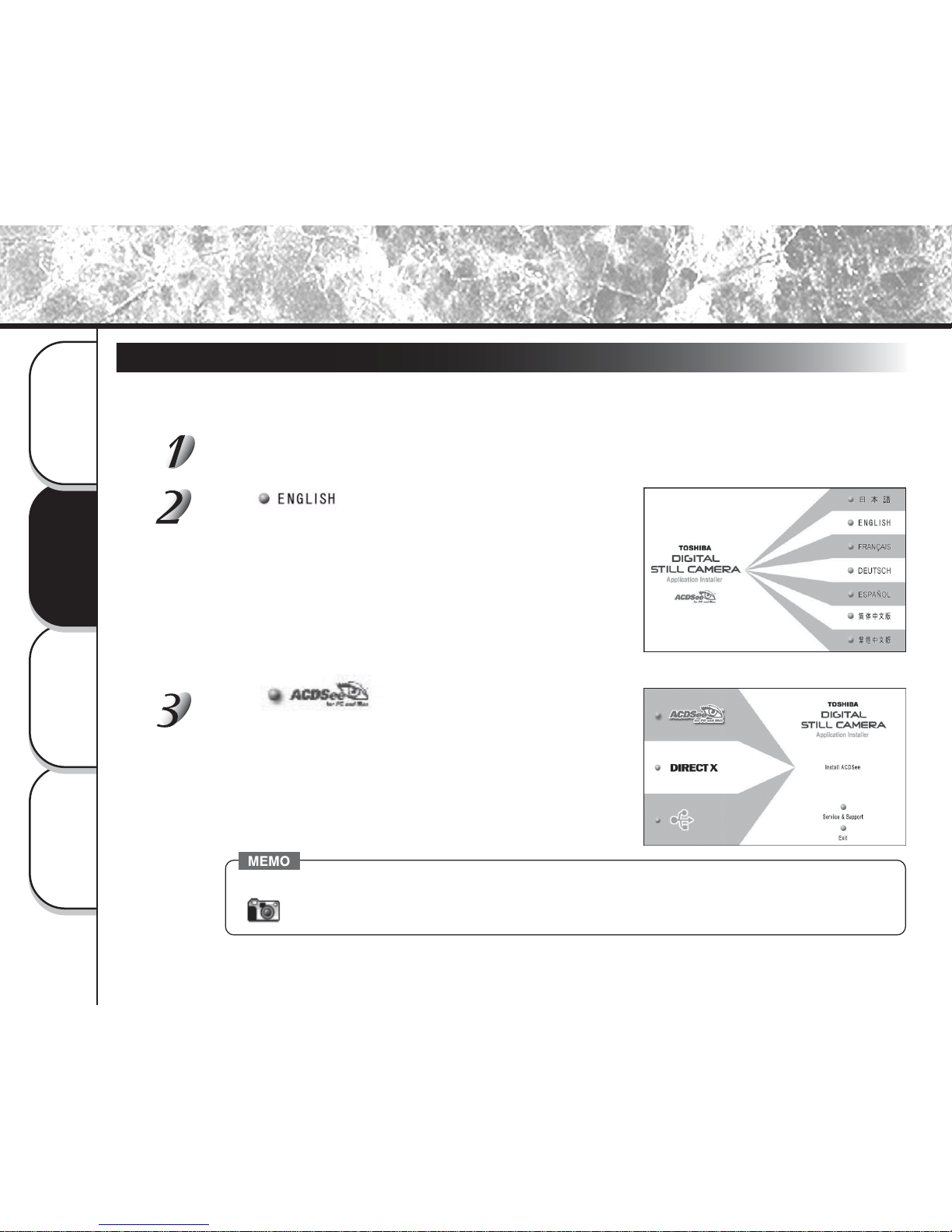

Installing ACDSee
Insert the CD-ROM supplied with this software package into the CD-ROM drive.
The screen for selecting the display language appears.
Click
Click
Follow the on-screen instructions to continue the setup.
Before installing the ACDSee, install the USB driver(only required on Windows 98).
• After ACDSee software had properly installed into your personal computer, CamDetect icon
will appear on the Windows Task bar.

Operations in
ACDSee
When Using
Macintosh
When Using
Windows
Getting Ready
11
Installing the USB Driver (for Windows 98 only)
Install this driver when the USB cable(provided) is used. (The USB driver provided on the CD-ROM
is exclusively for Windows 98. Installing the USB driver for use in Windows 2000/ME/XP is not
necessary.)
Insert the CD-ROM supplied with this software package into the CD-ROM drive.
The screen for selecting the display language appears.
Click
Click
Follow the on-screen instructions to continue the setup.
Installation Procedure(for Windows) (continued)

Operations in
ACDSee
When Using
Macintosh
When Using
Windows Getting Ready
12
Using USB Cables (Windows 98/2000/ME/XP)
To enable importing of images on the PDR-4300 to your personal computer, the PDR-4300 must be
connected to your personal computer by USB cable(provided).
When you connect the PDR-4300 to your personal computer by USB cable, the connection can only be
made with both the PDR-4300 and your personal computer turned ON. The USB connection will be
automatically recognized by the computer.
Connectable personal computer: Windows 98/2000/ME/XP pre-installed machine
• If the camera’s power is turned OFF while image data is being transferred to the PC, the data may be
damaged. When the PDR-4300 is connected to the personal computer, use the AC adapter.
Connect one end of the USB cable to the DIGITAL terminal on the PDR-4300.
Connect the large end of the USB cable to the USB port on your personal
computer.
Perform the following operation with Windows 98/2000/ME/XP already booted up.When the
icon appears on the Windows task bar, it means the USB cable is successfully connected.
If this is the first time for an image to be imported using the USB cable, the Add New Hardware
Wizard screen appears. Install USB driver.
<When using Windows 98>
Refer to "Installing the USB driver (for Windows 98 only)".
))
))
)Installing the USB Driver (for Windows 98 only). page 11.
<When using Windows 2000/ME/XP>
Follow the on-screen instructions to perform the driver installation.
It is added as a Removable Disk as the standard Windows 2000/ME/XP driver is installed.
Set the mode dial to [ ] .

Operations in
ACDSee
When Using
Macintosh
When Using
Windows
Getting Ready
13
• When connecting the USB cable, pay attention to insert the connector in a proper direction.
If CamDetect function is active ( icon will appear on Windows task bar), ACDSee software will
be automatically launched.
If CamDetect icon is not active, you can open the Camera Detector program:
1.Click the [Start] menu.
2.Select [Programs|ACD Systems].
3.Click CamDetect.
Using USB Cables (Windows 98/2000/ME/XP)(continued)
Once ACDSee starts up, it will automatically open the existing XXXTOSHI subfolder stored in DCIM
folder. The Removable disk automatically appears once the camera’s power is ON after USB
connection is successfully accomplished between the camera and the computer.

Operations in
ACDSee
When Using
Macintosh
When Using
Windows Getting Ready
14
Download the images.
Using USB Cables (Windows 98/2000/ME/XP)(continued)
<To download all images>Go to [Edit|Select All Files]
All the images are being highlighted. Drag and drop those images to copy on your hard disk.

Operations in
ACDSee
When Using
Macintosh
When Using
Windows
Getting Ready
15
Copying Images to Camera
Click [Start]-[Program]-[ACD Systems]-[ACDSee] on the Windows task bar.
ACDSee is started.
Select images that you want to copy to the camera.
Go to [Plug-ins| Copy to Camera]
[Copy Image to Camera] will appear.
Choose Camera source, select PDR-4300 camera
[TOSHIBA PDR USB Device on G:]
Select the options on Resize Images:
Best fit to standard camera resolutions
If the current image size between 640x480 ~ 1024x768, it
will resize to 640x480.
If the current image size is bigger than 1024x768, it will
resize to 1024x768.
Resize for TV viewing
The current image size will be automatically resize to
1024x768.
Do not resize
It will remain at the original size and the copied
images may not properly display on the camera.

Operations in
ACDSee
When Using
Macintosh
When Using
Windows Getting Ready
16
Click OK.
After copying images process completed, one XXXACDSE folder will be automatically created on
the Folder tree pane.
XXXACDSE folder is created next to the last existing XXXTOSHI folder on the folder tree pane.
• [Do not resize] option on [Copy to Camera] function, the copied images may not
properly display on the camera.
Copying Images to Camera(continued)

17
Operations in
ACD See
When Using
Macintosh
When Using
Windows
Getting Ready
Installation Procedure(for Macintosh)
Installing ACDSee
Insert the CD-ROM supplied with this software package into the CD-ROM drive.
The screen for selecting the display language appears.
Click
Click
Follow the on-screen instructions to continue the setup.
• During the ACDSee installation process, LaunchACDSee will automatically be installed along with it.
With this feature, ACDSee will automatically launch when the camera is connected to your computer
with the USB cable.
• LaunchACDSee can be accessed by [Function Extend Manager] - [Setup Item] for MacOS9, and in
the case of MacOSX LaunchACDSee can be accessed by the [Login Items] tab under [Systems
Preferences] - [Login].

18
Operations in
ACD See
When Using
Macintosh
When Using
Windows Getting Ready
General Operations
ACDSee is a program composed of three main windows, which work to manage, view and manipulate
your images.
The Browse Window
It presents an Explorer-like interface that lets you locate and manage
images stored in your file system. By default, this window comes up
when you start ACDSee. You can open more than one Browser at a
time by going to [File | New Window].
Several customization features allow you to choose the windowpanes,
the toolbars, and the shortcut buttons you wish to use.
The View Window
It lets you view a selected sequence of images, one at a time. Slide
show, zoom, and some file management features are also available
in this window. To switch between the Browse window and the View
window, doubleclick an image file in the Browser, or select an image
and press the <Enter> key.
Clicking the Browse button, double -clicking the image, or pressing
<Enter> will return you to Browse mode.
