Toshiba PDR-M61 Mounting instructions

DIGITAL STILL CAMERA
PDR-M65
PDR-M61
S OFTWARE M ANUAL

You should read this first before you use this software.
Notice and Request Regarding Software and Instruction Manual
(1) Copying or duplication of the software and Instruction Manual packaged with this Software
Application in part or in whole is not allowed without the prior permission of Toshiba Corporation.
(2) Use of the software and Instruction Manual packaged with this Software Application is allowed only
on one personal computer.
(3) Toshiba Corporation is not liable whatsoever for any damages to the user or a third party as a result
of use of a device by the software and Instruction Manual packaged with this Software Application.
(4) Every effort has been made in assuring the quality during production of the CD-ROM contained in
this package. If for any reason the CD-ROM has been damaged during production and within the
warranty, the disk will be replaced free of charge. For all other nonconformities or damages made
other than during the production of the CD-ROM, Toshiba Corporation will not be held liable
whatsoever.
(5) The contents of the software, Design, Specifications and Instruction Manual packaged with this
Software Application are subject to change without notice.
(6) The personal computer screens shown in this Instruction Manual are examples, and may differ from
actual screens.
(7) Toshiba Corporation is not liable whatsoever for any compensation arising from errors in descriptions
in this Instruction Manual.
(8) Do not play back the CD-ROM packaged with this Software Application on a regular CD player.
Doing so might damage the headphones or speakers, or injure your ears.
IMPORTANT

- 1 -
Operations in
Image Expert
When Using
Macintosh
When Using
Windows
Getting Ready
Before Reading This Manual
This Instruction Manual describes how to install the software provided and a brief explanation of how to use the
Software Application.
To ensure that you use this Software Application correctly, read this Instruction Manual carefully before you start
using the Software Application.
This document has been written assuming that you basically understand how to use the Toshiba PDR-M65 or PDR-
M61 Digital Still Camera and your personal computer that the Software Application is running on.
For basic details on the PDR-M65 or PDR-M61 and your personal computer, refer to the Toshiba PDR-M65 or PDR-
M61 Digital Still Camera’s Instruction Manual or the Instruction Manual for your personal computer.
Trademark Information
•Windows and Windows NT are registered trademarks of the Microsoft Corporation of the U.S. registered in the
USA and other countries.
Windows is an abbreviated term referring to the Microsoft Windows Operating System.
•Macintosh is a trademark of Apple Computer, Inc.
•Image Expert is a registered trademark of Sierra Imaging Inc.
•SmartMedia is a trademark of Toshiba Corporation.
•FlashPath is a registered trademark of SmartDisk Corporation of the USA.
• Other companies or product names are trademarks or registered trademarks of the respective companies.
Conventions Used In This Manual
IMPORTANT
• Indicates items or details that you should observe to prevent loss of data, malfunction and impaired performance.
Also indicates information relating to specifications and functions.
Memo
• Indicates extra useful information.
☞Indicates another page to refer to for extra information.

- 2 -
Operations in
Image Expert When Using
Macintosh When Using
Windows Getting Ready
Before Reading This Manual (continued)
Abbreviations Used In This Manual
• Windows 98
This refers to the Microsoft®Windows®98 operating system.
• Windows 95
This refers to the Microsoft®Windows®95 operating system.
• Windows 2000
This refers to the Microsoft®Windows®2000 Professional operating system.
• Windows NT
This refers to the Microsoft®Windows NT®or Windows NT®workstation 4.0 operating system.
• Windows ME
This refers to the Microsoft®Windows®ME operating system.
• Images
This refers to still images.

- 3 -
Operations in
Image Expert
When Using
Macintosh
When Using
Windows
Getting Ready
Before Reading This Manual (continued)
Make sure that you have all of the items below before you start using your software application.
USB cable (1.5 m <4.9 ft>)
CD-ROM (1 disk)
•ImageExpert
•USB driver
PDR-M65-01

- 4 -
Operations in
Image Expert When Using
Macintosh When Using
Windows Getting Ready
Contents
Getting Ready
■Before Reading This Manual........................ 1
■Contents....................................................... 4
■Features of This Software Application.......... 5
■About Files ................................................... 6
■About the Software....................................... 8
■Pre-installation Checks ................................ 9
When Using Windows
■Installation Procedure (for Windows) ......... 10
■Using USB Cables
(Windows 98/2000/ME).............................. 15
■Using the Floppy Disk Adapter
(Windows 95/98/2000/NT 4.0/ME) ............. 20
■Using the PC Card Adapter
(Windows 95/98/2000/ME)......................... 23
■Changing the Camio Viewer Settings......... 25
When Using Macintosh
■Installation Procedure (for Macintosh) ....... 27
■
Using USB Cables (Mac OS 9.0 or higher)... 29
■Using the Floppy Disk Adapter
(Power Macintosh/G3)................................ 33
■Using the PC Card Adapter........................ 34
Operations in Image Expert
■Button Functions ........................................ 36
■Pasting Images to Other Applications
(Windows) .................................................. 38

- 5 -
Operations in
Image Expert
When Using
Macintosh
When Using
Windows
Getting Ready
Features of This Software Application
If you install the software and drivers on your personal computer, you can perform the following:
• Importing Images
You can import images taken on the Toshiba PDR-M65 or PDR-M61 Digital Still Camera into your personal
computer.
To import images, you need to use the USB cable (packaged with this camera), or the FlashPath floppy disk
adapter, or PC card adapter.
• Editing Images
You can edit imported images using Image Expert, or print them out on a printer connected to the personal
computer you are using.
• Saving Images
You can save imported images or edited images on the personal computer you are using.
When You Use SmartMedia™ on Your Personal Computer
• When you use SmartMedia™ on your personal computer, do not change or delete the folder or names of files
(image data) on the SmartMedia™. Otherwise, you may no longer be able to use the SmartMedia™ on the
PDR-M65 or PDR-M61.
• Format the SmartMedia™ on the PDR-M65 or PDR-M61.
• To edit image data, first copy the image data to the personal computer’s hard disk, and edit the copied image data.

- 6 -
Operations in
Image Expert When Using
Macintosh When Using
Windows Getting Ready
About Files
File Structure of SmartMedia™
The images taken on the Toshiba PDR-M65 or PDR-M61 Digital Still Camera are stored to the SmartMedia™ as
shown below.
root DCIM 100TOSHI
Picture data
101TOSHI
.
.
.
.
.
.

- 7 -
Operations in
Image Expert
When Using
Macintosh
When Using
Windows
Getting Ready
About Picture Data
On the PDR-M65 or PDR-M61, image data is saved in Exif format. This format is JPEG data that includes a
thumbnail image and the photographic settings.
Image data is saved as follows as shown on page 6:
Folder name : XXXTOSHI (XXX is any number within the range 100 to 999)
File name : PDRMXXXX (XXXX is any number within the range 0001 to 9999)
About Files (continued)

- 8 -
Operations in
Image Expert When Using
Macintosh When Using
Windows Getting Ready
About the Software
You can install the following software from the CD-ROM:
• Image Expert
This software allows you to edit and print imported still images.
• USB driver
Install this driver when you use the USB connector on your personal computer to import images.
Install this driver when you are using the USB Software Application (CD-ROM).

- 9 -
Operations in
Image Expert
When Using
Macintosh
When Using
Windows
Getting Ready
Pre-installation Checks
To install the software supplied on the CD-ROM, your personal computer must conform to the system requirements
in the table below. Check the following items before you install the software.
Windows
Windows 98/95/NT 4.0/2000/ME
16 MB min.
256 or more colors (640 x 480 dot min.)
32,000 or more colors recommended
Required
20 MB min.
CPU i486 or higher processor
OS
Memory
Free space on
hard disk
Color monitor
CD-ROM drive
11 *
Macintosh
Mac OS 9.0 or higher
32 MB min.
For installation : 8 MB
For software operation : 60 MB
PowerPC or higher
(Not applicable for 68K Macintosh)
*
*1 When you handle images, first make sure that you have enough free space on hard disk.
Minimum system requirements
When connecting by USB cable
When using the floppy disk adapter or PC Card adapter
Compatible
Personal
Computers
Windows
Windows 98/2000/ME
pre-installed PC
Macintosh
Mac OS 9.0
with built-in USB port
Compatible
Personal
Computers
Windows
Windows 98/95/NT/2000/ME
pre-installed PC
Macintosh
PowerPC or higher
(Not applicable for 68K Macintosh)

- 10 -
Operations in
Image Expert When Using
Macintosh When Using
Windows Getting Ready
Installation Procedure (for Windows)
Installing Image Expert
Insert the CD-ROM supplied with this software package into the CD-ROM drive.
The screen for selecting the display language appears.
Click “English”.
Click “Install Image Expert”.
Follow the on-screen instructions to continue the setup.
Memo
• To install Image Expert from floppy disk, click the “Make Image Expert Disks” button in the screen at step 3.
Follow the on-screen instructions to continue the setup.

- 11 -
Operations in
Image Expert
When Using
Macintosh
When Using
Windows
Getting Ready
Installing the USB Driver (for Windows 98, Windows 2000 or Windows ME)
Install this driver when the USB (provided) cable is used.

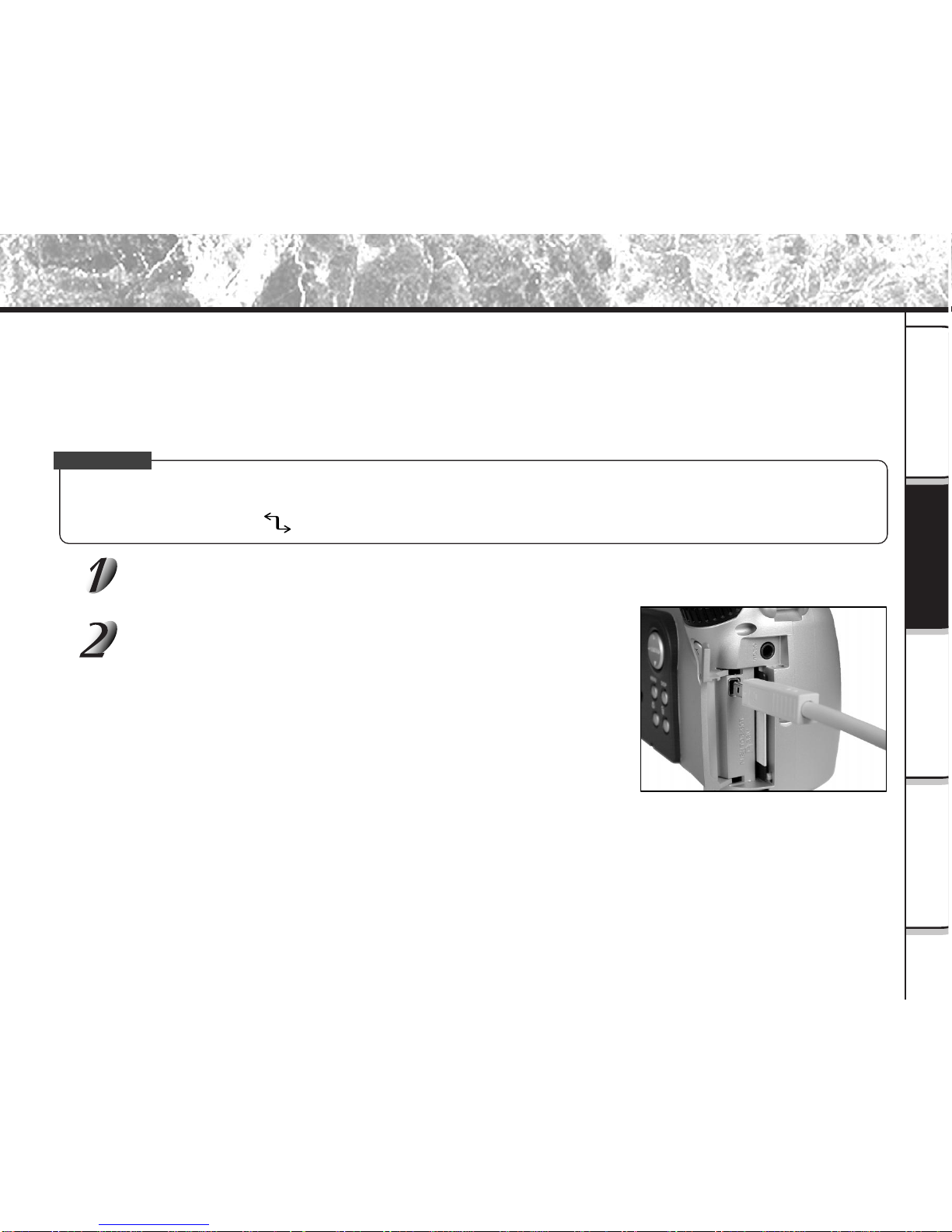

Connect the small end of the USB cable to the DIGITAL terminal on the
PDR-M65 or PDR-M61.
Connect the large end of the USB cable to the USB
port on your personal computer.
Connect the USB cable with Windows already booted up.
Set the mode dial to [ ].

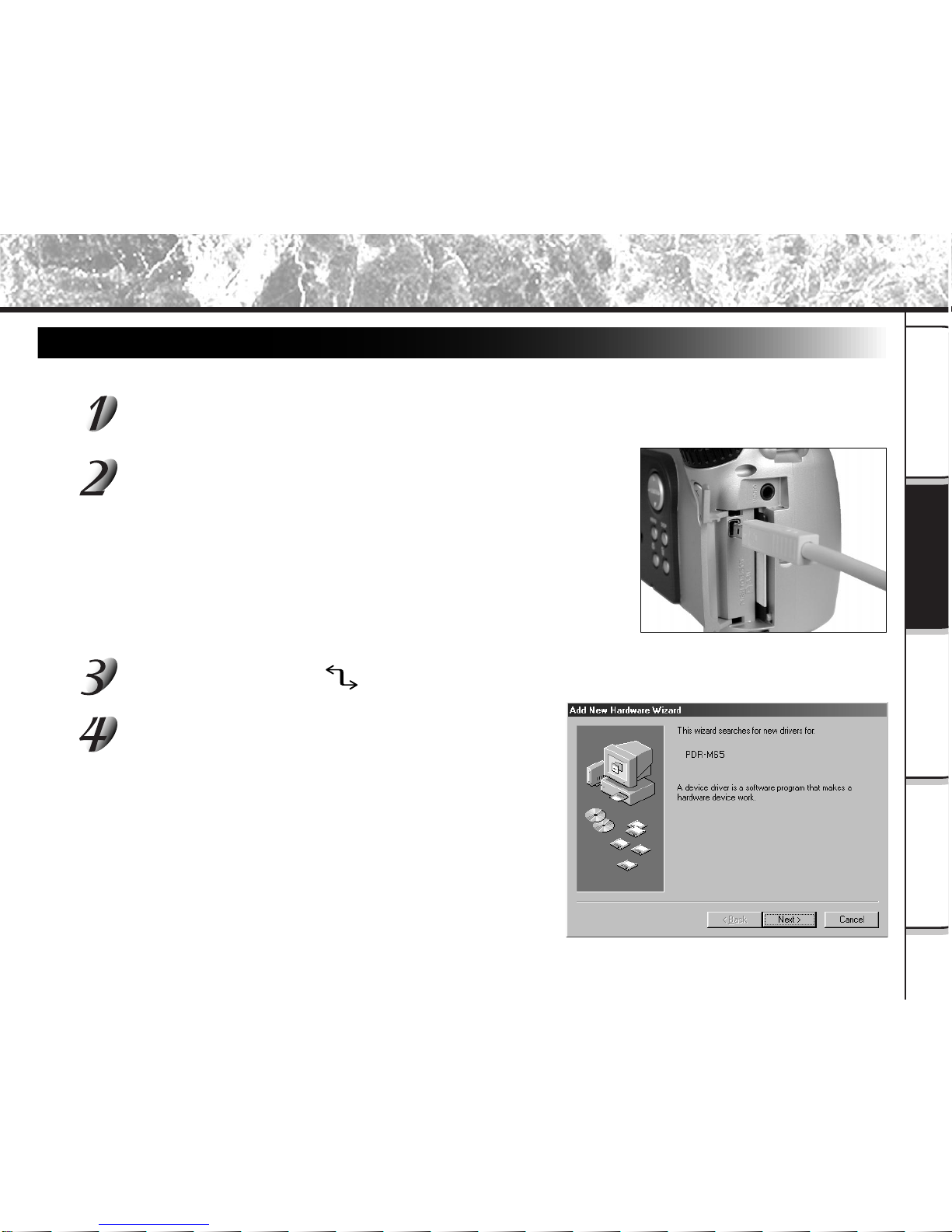

The “Add New Hardware Wizard” screen appears.
Click the Next button.
Installation Procedure (for Windows) (continued)

- 12 -
Operations in
Image Expert When Using
Macintosh When Using
Windows Getting Ready
Installation Procedure (for Windows) (continued)

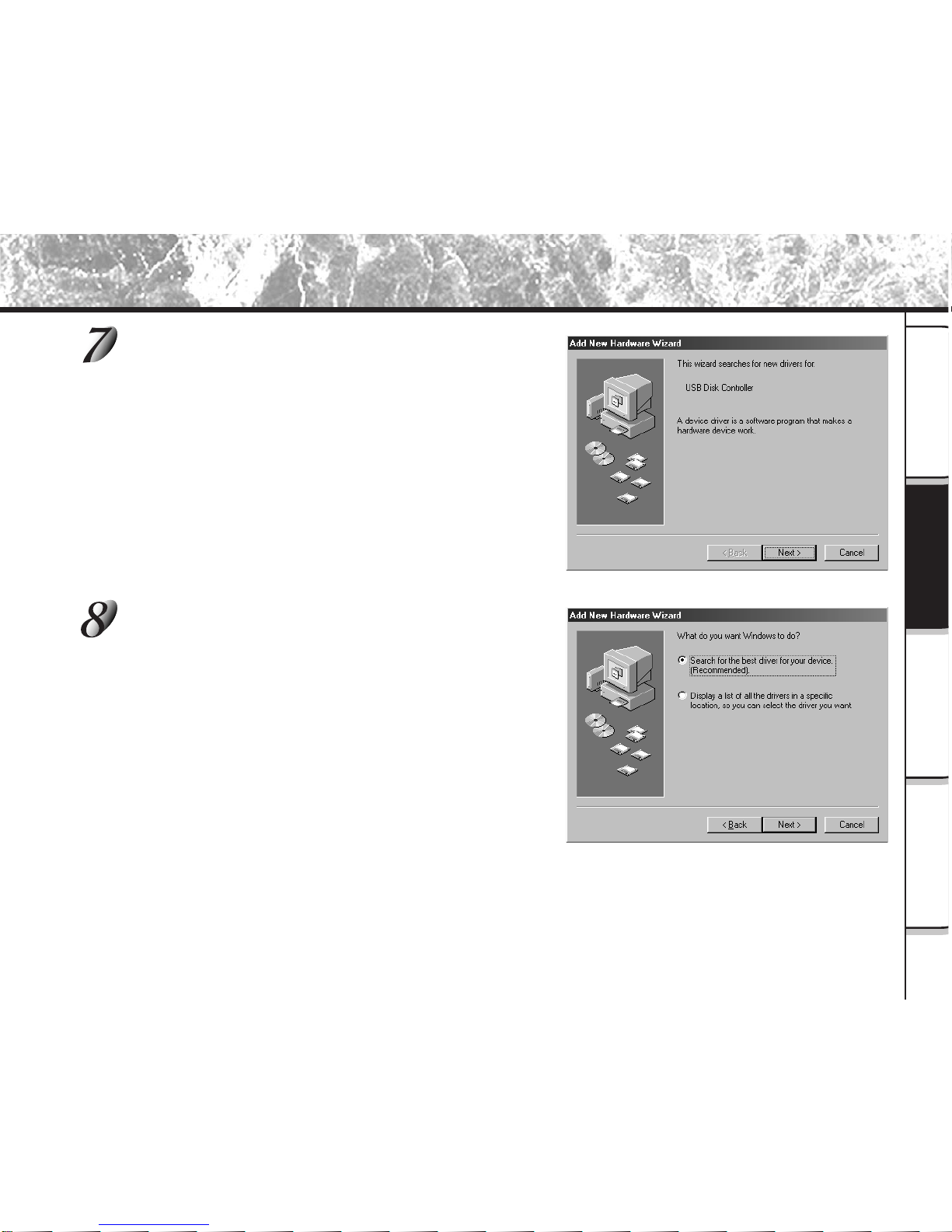

Select “Search for the best driver for your
device. (Recommended)”, and click the Next
button.
The next screen appears.
Insert the CD-ROM into the CD-ROM drive,
check the “CD-ROM drive” check box, and
click the Next button.
Follow the on-screen instructions to install the driver.
When installation is completed, the Add New Hardware
Wizard screen appears again.

- 13 -
Operations in
Image Expert
When Using
Macintosh
When Using
Windows
Getting Ready
Click the Next button.
Select “Search for the best driver for your
device. (Recommended)”, and click the Next
button.
Installation Procedure (for Windows) (continued)

- 14 -
Operations in
Image Expert When Using
Macintosh When Using
Windows Getting Ready
Installation Procedure (for Windows) (continued)
Check the “CD-ROM drive” check box, and click the Next button.
Follow the on-screen instructions to install the drivers.
This completes installation of the required drivers.
From here on, the PDR-M65 or PDR-M61 is automatically recognized simply by connecting the USB
cable.

- 15 -
Operations in
Image Expert
When Using
Macintosh
When Using
Windows
Getting Ready
Using USB Cables (Windows 98/2000/ME)
To enable importing of images on the PDR-M65 or PDR-M61 to your personal computer, the PDR-M65 or PDR-M61
must be connected to your personal computer by USB cable (provided).
When you connect the PDR-M65 or PDR-M61 to your personal computer by USB cable, the connection can only be
made with both the PDR-M65 or PDR-M61 and your personal computer turned ON. The PDR-M65 or PDR-M61
Mode Dial must be turned to the PC Connection Setting for the computer to recognize the camera USB connection.
Connectable personal computer: Windows 98/2000/ME pre-installed machine
IMPORTANT
• If the camera’s power is turned OFF while image data is being transferred to the PC, the data may be damaged. When
the PDR-M65 or PDR-M61 is connected to the personal computer, use the AC adapter.
• When the camera is in the [ ] PC mode, the Auto Power OFF function does not work.
Connect the small end of the USB cable to the DIGITAL terminal on the
PDR-M65 or PDR-M61.
Connect the large end of the USB cable to the USB
port on your personal computer.

- 16 -
Operations in
Image Expert When Using
Macintosh When Using
Windows Getting Ready
Using USB Cables (Windows 98/2000/ME) (continued)
Set the mode dial to [ ].
Perform the following operation with Windows 98/2000/ME already booted up.
When the Camio Viewer applet (the small camera icon on the Windows task bar) recognizes that the
USB cable is connected, the “Camio Viewer Startup Options” screen appears.
If this is the first time for an image to be imported using the USB cable, the Add New Hardware Wizard
screen appears.
Install the USB driver.
☞Installing the USB driver ➲P.11
Start up Image Expert.
Click [Start] - [Program] - [Image Expert] on the Windows task bar.

- 17 -
Operations in
Image Expert
When Using
Macintosh
When Using
Windows
Getting Ready
Click “Connection” in the Camera menu.
Set Connect Via to “Serial/USB”, Port in
Connection Settings to “USB” and click OK.
Using USB Cables (Windows 98/2000/ME) (continued)

- 18 -
Operations in
Image Expert When Using
Macintosh When Using
Windows Getting Ready
Using USB Cables (Windows 98/2000/ME) (continued)

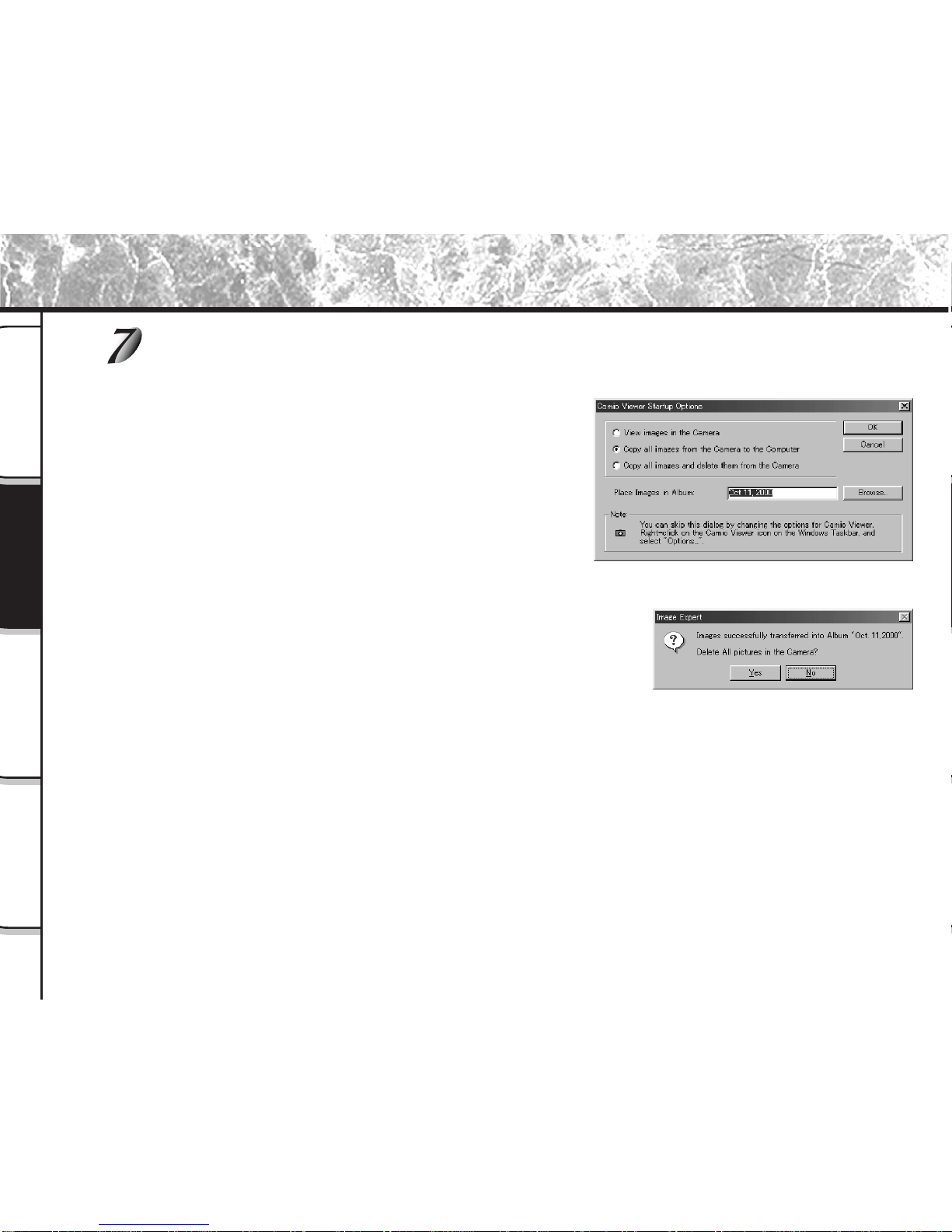

Download the images.
<To download all images>
In the “Camio Viewer Startup Options” screen, make sure
that “Copy all images from the Camera to the Computer”
check box is checked, and click OK.
All images stored on the PDR-M65 or PDR-M61 are
downloaded to the personal computer.
When downloading is completed, the screen on the right
appears asking you whether or not to delete all pictures in
the camera. To delete all pictures, click Yes. To leave all
pictures as they are, click No.
