Toshiba IK-527A User manual

IK-527A
CCD MONOCHROME CAMERA
INSTRUCTION MANUAL
CS-Mount only

IMPORTANT SAFEGUARDS
1. Read Instructions
All the safety and operating instructions should
be read before the product is operated.
2. Retain Instructions
The safety instructions and instruction manual
should be retained for future reference.
3. Heed Warnings
All warnings on the product and in the instruction
manual should be adhered to.
4. Follow Instructions
All operating and use instructions should be
followed.
5. Cleaning
Disconnect this video product from the power
supply before cleaning.
6. Attachments
Do not use attachments not recommended by the
video product manufacturer as they may cause
hazards.
7. Water and Moisture
Do not use this video product near water - for
example, near a bath tub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or near a
swimming pool and the like.
8. Accessories
Do not place this video product on an unstable
cart, stand, tripod, bracket or table. The video
product may fall, causing serious injury to a child
or adult, and serious damage to the product. Use
only with stand, tripod, bracket, or table
recommended by the manufacturer, or sold with
the video product. Any mounting of the product
should follow the manufacturer's instructions,
and should use a mounting accessory
recommended by the manufacturer.
9. Ventilation
This video product should never be placed near
or over a radiator or heat register. This video
product should not be placed in a built-in
installation such as a bookcase or rack unless
proper ventilation is provided or the
manufacturer's instructions have been adhered
to.
10. Power Sources
This video product should be operated only from
the type of power source indicated on the
marking label. If you are not sure of the type of
power supply to your location, consult your
product dealer.
11. Power-Cord Protection
Power-Supply cords should be routed so that
they are not likely to be walked on or pinched by
items placed upon or against them, paying
particular attention to cords at plugs, screws, and
the point where they exit from the product.
12. Lightning
For added protection for this video product during
a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the
wall outlet and disconnect the power supply and
cable system . This will prevent damage to the
video product due to lightning and power - line
surges.
13. Overloading
Do not overload power supply and extension
cords as this can result in a risk of fire or electric
shock.
14. Object and Liquid Entry
Never push objects of any kind into this video
product through openings as they may touch
dangerous voltage points or short-out parts that
could result in a fire or electrical shock. Never spill
liquid of kind on the video product.
15. Servicing
Do not attempt to service this video product
yourself as opening or removing covers may
expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
16. Damage Requiring Service
Disconnect this video product from the power
supply and refer servicing to qualified service
personnel under the following conditions.
a. When the power-supply cord or plug is
damaged.
b. If liquid has been spilled, or objects have fallen
into the video product.
c. If the video product has been exposed to rain
or water.
d. If the video product does not operate normally
by following the operating instructions in the
instruction manual. Adjust only those controls
that are covered by the instruction manual as
an improper adjustment of other controls may
result in damage and will often require
extensive work by a qualified technician to
restore the video product to its normal
operation.
e. If the video product has been dropped or the
cabinet has been damaged.
f. When the video product exhibits a distinct
change in performance - this indicates a need
for service.
17. Replacement Parts
When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer of have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock or
other hazards.
18. Safety Check
Upon completion of any service or repairs to this
video product, ask the service technician to
perform safety checks to determine that the video
product is in proper operating condition.

This installation should be made by a qualified service person and should
conform to all local codes.
A R Is^FELKTRl^Soan A
_ I DO NOT OPEN _ _|
CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
• The CAUTION label, shown on the left,
is attached on the bottom of camera.
A The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated "dangerous
voltage” within the product's enclosure that may be of sufficient magni¬
tude to constitute a risk of electric shock to persons.
A The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance (ser¬
vicing) instructions in the literature accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION
• CONNECT 24V AC UL LISTED CLASS 2
POWER SUPPLY.
INFORMATION
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful in¬
terference to radio communications. Operation of this equipment in a resi¬
dential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
USER-INSTALLER CAUTION: Your authority to operate this FCC verified
equipment could be voided if you make changes or modifications not ex¬
pressly approved by the party responsible for compliance to Part 15 of the
FCC rules.
THIS CLASS A DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE
CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
CET APPAREIL NUMERIQUE DE LA CLASSE A RESPECTE TOUTES LES
EXIGENCES DU REGLEMENTSUR LE MATERIEL BROUILLEUR DU CANADA

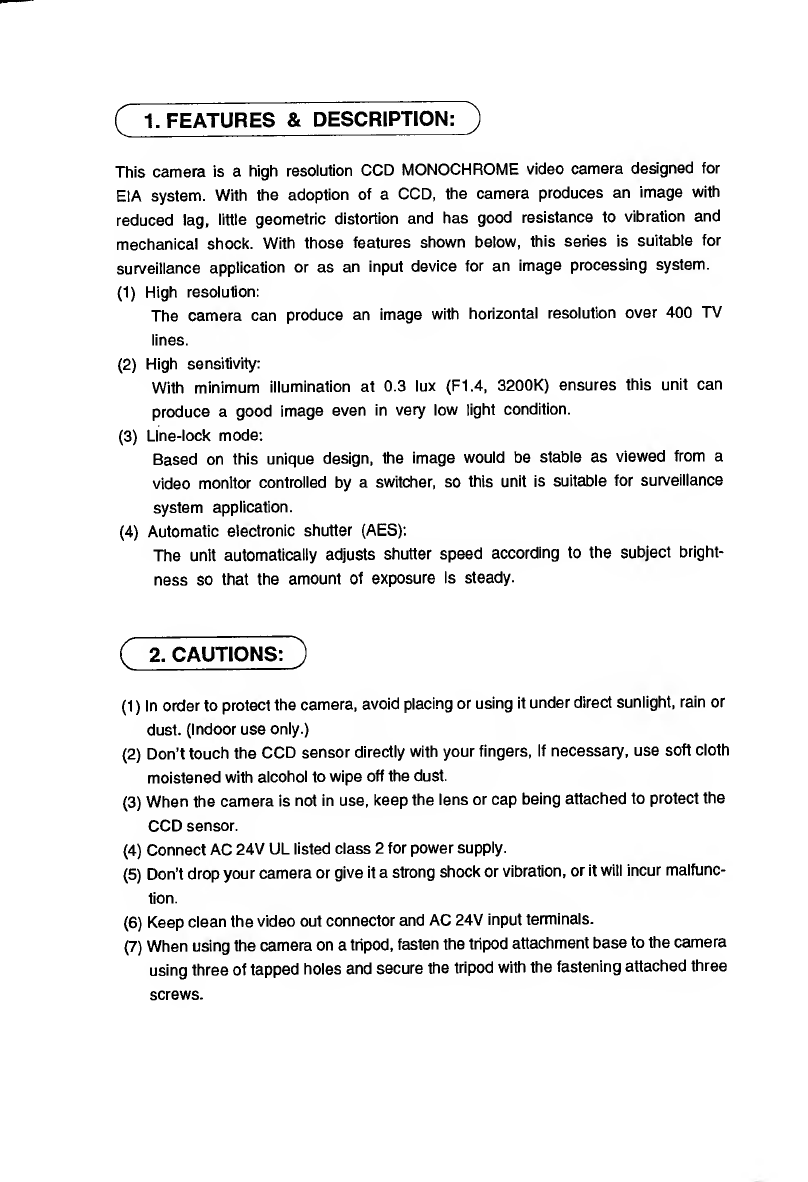

( 1. FEATURES & DESCRIPTION: )
This camera is a high resolution CCD MONOCHROME video camera designed for
EIA system. With the adoption of a CCD, the camera produces an image with
reduced lag, little geometric distortion and has good resistance to vibration and
mechanical shock. With those features shown below, this series is suitable for
surveillance application or as an input device for an image processing system.
(1) High resolution:
The camera can produce an image with horizontal resolution over 400 TV
lines.
(2) High sensitivity:
With minimum illumination at 0.3 lux (FI.4, 3200K) ensures this unit can
produce a good image even in very low light condition.
(3) Line-lock mode:
Based on this unique design, the image would be stable as viewed from a
video monitor controlled by a switcher, so this unit is suitable for surveillance
system application.
(4) Automatic electronic shutter (AES):
The unit automatically adjusts shutter speed according to the subject bright¬
ness so that the amount of exposure is steady.
( 2. CAUTIONS:
(1) In order to protect the camera, avoid placing or using it under direct sunlight, rain or
dust. (Indoor use only.)
(2) Don’t touch the CCD sensor directly with your fingers, If necessary, use soft cloth
moistened with alcohol to wipe off the dust.
(3) When the camera is not in use, keep the lens or cap being attached to protect the
CCD sensor.
(4) Connect AC 24V UL listed class 2 for power supply.
(5) Don't drop your camera or give it a strong shock or vibration, or it will incur malfunc¬
tion.
(6) Keep clean the video out connector and AC 24V input terminals.
(7) When using the camera on a tripod, fasten the tripod attachment base to the camera
using three of tapped holes and secure the tripod with the fastening attached three
screws.

( 3. SYSTEM COMPONENTS: )
Camera.1
Instruction manual.1
Lens mount cap.1
Hexagonal wrench.1
IRIS 4 pins plug, E4-191J-100.1
Tripod mounting base....1
( 4. CONNECTION; )
(1)When using one camera and one monitor:
Video monitor
Connect AC 24V UL listed class 2 for power supply.

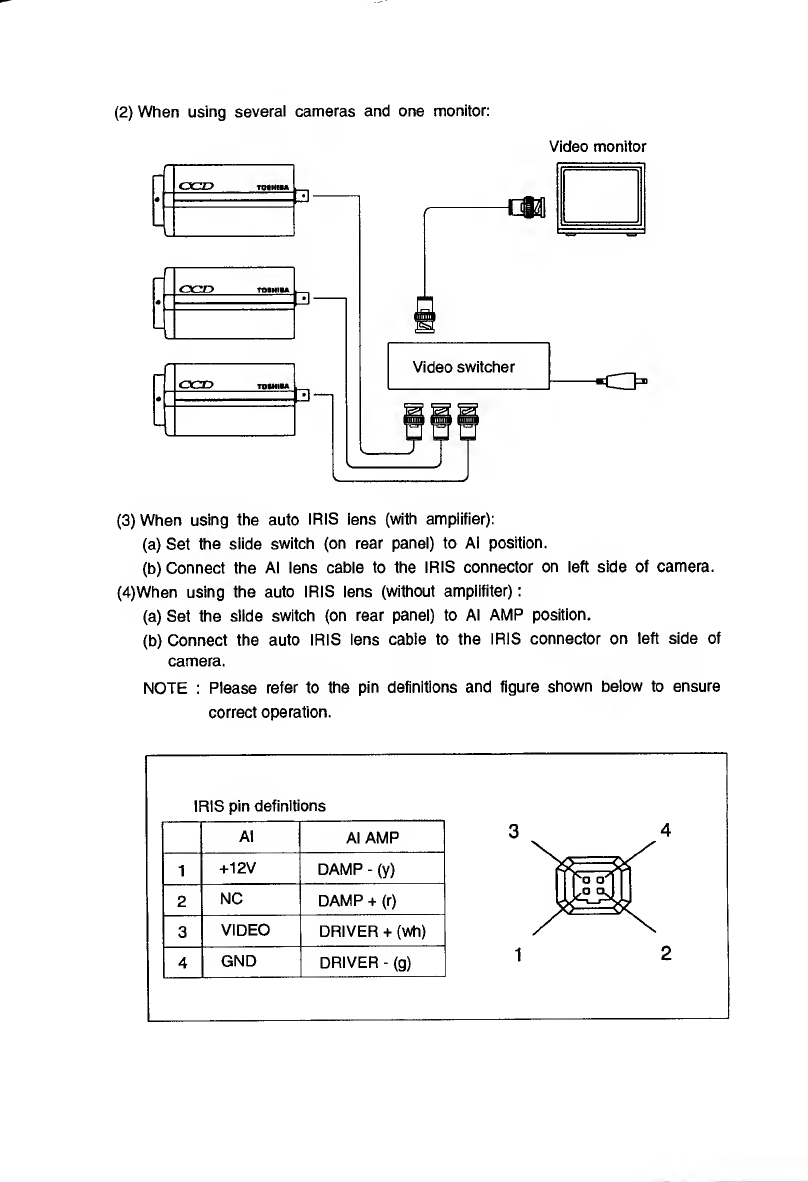

(2) W hen using several cameras and one monitor:
Video monitor
(3) When using the auto IRIS lens (with amplifier):
(a) Set the slide switch (on rear panel) to Al position.
(b) Connect the Al lens cable to the IRIS connector on left side of camera.
(4) When using the auto IRIS lens (without amplifiter):
(a) Set the slide switch (on rear panel) to Al AMP position.
(b) Connect the auto IRIS lens cable to the IRIS connector on left side of
camera.
NOTE : Please refer to the pin definitions and figure shown below to ensure
correct operation.
IRIS pin definitions
Al
Al AMP
1
+12V
DAMP - (y)
3 4

( 5. OPERATION PROCEDURE: ~)
(1) Before operation make sure the power source is correct for your camera.
(2) Install lens to the camera.
(3) Connect the VIDEO output to the Video monitor. The picture will appear on the
monitor screen as the power is supplied to the camera.
(4) Adjust the focus and aperture of the lens to get a best quality image.
(5) Back focus adjustment:
In general, the back focus is calibrated in the factory. So readjustment is
unnecessary. But depending on your application, back focus readjustment may
be necessary. In this case, set the focus ring of the lens to the ~ position and
take a picture at a distance of 20m or more. Then, loosen the lens mount and
turn the lens and mount at the same time till the picture on the monitor is in
focus. Now, tighten the screws on the mount by hexagonal wrench.
(6) Line-Lock mode
When two or more cameras are switched by the video switcher for monitoring
on a TV monitor, the picture may fluctuate due to different AC line phase of
each camera. In this case, adjust the VERTICAL PHASE (on rear panel)
trimmer to get a stable picture.

( 6. SPECIFICATION : )
IK-527A
CCD MONOCHROME CAMERA
EIA SYSTEM
Image Area
5.24mm x 6.4mm
Pickup Elements
512(H) x492(V) Pixels 1/3“ Interline
Transfer CCD
Scanning Syetem
2:1 Interlace EIA,
V: 60Hz, H: 15.750kHz
Sync System
Linelock AC
Video Output
1 V(p-p) Composite Output, 75ohms
Lens Mount
CS Mount
Resolution
400 TV Lines (Horizontal)
Gamma Correction
0.45
Minimum Illumination 0.3 Lux (FI .4, 3200°K)
S/N Ratio
Power Requirement
AC 24V
Power Consumption 5.5 W
Ambient
-10~50°c / 30~90%RH
Dimensions
120(L) x 70(W) x 60(H)mm
4.72(L) x 2.76(W) x 1.26(H) inch
Weights
700 g
Shutter Control
Auto: 1/60 To 1/100000 Sec.
Iris Control
Video Out / Iris Driver Circuit Built In
Gain Control
Average AGC

( 7. PART NAMES & FUNCTIONS :
Holes
for
attaching
a
tripod
(screws
for
tripod:
U1/4").

LIMITED WARRANTY
TOSHIBA CCD CAMERA
Toshiba America Information Systems, Inc. ("TAIS"), makes the following limited warranties. These limited warranties
extend to the original enduser purchaser.
Limited One (1) Year Warranty of Labor and Parts
TAIS warrants this product and its parts against defects in materials or workmanship for a period of one year after the
date of original retail purchase.
During this period, TAIS will repair a defective product or part, without charge to you. You must deliver the entire product
to a TAIS Service Center.
You pay for all transportation and insurance charges for the product to the Service Center.
Instruction Manual (Owner's Manual)
You should read the instruction manual (owner's manual) thoroughly before operating this product.
Your Responsibility
The above warranties are subject to the following conditions:
1. You must retain your bill of sale or provide other proof of purchase.
2. You must notify TAIS Service within thirty (30) days after you discover a defective product or part.
3. All warranty servicing of this product must be made by TAIS Sen/ice Center.
4. These warranties are effective only if the products is purchased and operated in the U.S.A.
5. Labor service charges for installation and adjustment of customer controls are not covered by this warranty.
6. Warranties extend only to defects in materials or workmanship as limited above and do not extend to any product or
parts which have been lost or discarded by you or to damage to products or parts caused by misuse, accident,
improper installation, improper maintenance or use in violation of instructions furnished by us; or to units which have
been altered or modified without authorization of TAIS or to damage to products or parts there of which have had the
serial number removed, altered, defaced or rendered illegible.
Step-By-Step Procedures— How to Obtain Warranty Service
To obtain warranty servicing, you should:
1. Contact TAIS Service Center listed below for warranty service within thirty (30) days after you find a defective product
or part.
2. Arrange for the delivery of the product to TAIS Service Center. Products shipped to the Service Center must be
insured and safely and securely packed, preferably in the original shipping carton, and a letter explaining the defect
and also a copy of the bill of sale or other proof of purchase must be enclosed. All transportation and insurance
charges must be prepaid by you.
3. If you have any questions about service, please contact the following TAIS Service Center:
9740 Irvine Blvd. Irvine, CA 92713-9724
Rhone Number: [phone]
ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY LIMITED TO THE DURATION OF THE LIM¬
ITED WARRANTIES SET FORTH ABOVE. Some states do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you. WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS HEREBY
LIMITED, THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES,
GUARANTEES, AGREEMENTS AND SIMILAR OBLIGATIONS OF MANUFACTURER OR SELLER WITH RESPECT
TO THE REPAIR OR REPLACEMENT OF ANY PRODUCT OR PARTS.
IN NO EVENT SHALL TAIS BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES. Some states do not allow
the exclusion or limitation of incidental or consequential damages so the above limitation may not apply to you.
No person, agent, distributor, dealer, service station or company is authorized to change, modify or extend the terms of
these warranties in any manner whatsoever. The time within which an action must be commenced to enforce any
obligation of TAIS arising under this warranty or under any statute, or law of the United States or any state thereof, is
hereby limited to one year from the date you discover or should have discovered, the defect. This limitation does not
apply to implied warranties arising under state law. Some states do not permit limitation of the time within which you
may bring an action beyond the limits provided by state law so the above provision may not apply to you. This warranty
gives you specific legal rights and you may also have other rights which vary from state to state.
TOSHIBA AMERICA INFORMATION SYSTEMS, INC.
TOSHIBA
